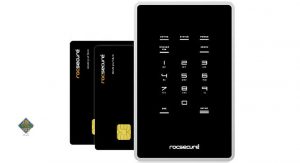

AMPHIBIOUS X7
Secure Encrypted on Device Password Authentication Mobile Ruggedized Drive
Mobile-Ruggedized Drive Secure-Encrypted Two-Factor Authentication AES-256 CBC Real-Time Hardware Encryption, with NIST and FIPS Validated Cryptographic Modules
Amphibious X7 is the world’s most technologically advanced two-factor authentication, real-time, hardware encrypted external drive in the market today. Designed and engineered to satisfy the requirements of demanding security concerned professionals, Amphibious can also support a fast solid-state drive (SSD). Amphibious is designed to be both bootable and bus-powered, and it is compatible with MS Windows and Macintosh environments without any software installations.
Rocsecure Amphibious is a hardware-based encryption device that secures data in a SATA hard disk or SSD drive against hackers and information thieves. Uniquely designed as a bump-in-the-wire device on the SATA cable, the Amphibious requires no mounting and simply plugs in-between the SATA connector on the motherboard and the hard disk drive. It operates transparently and encrypts all data written onto the hard disk without any loss in disk performance. Amphibious does not require any additional software drivers or applications to be installed and is fully independent of the operating system. Once deployed, users would be assured that all the data on the Amphibious X7 is fully protected from unauthorized access in the event the hard disk is lost or stolen. The data is accessible as long as the Amphibious X7 is powered ON.
Encryption Features:
- Advanced Encryption Standard Algorithm AES-256 bit key strength
- Real-time encryption (virtually zero time in encrypting and decrypting the data)
- Military-grade hardware encryption (not software embedded in a chip)
- CBC modes
- Two-factor authentication—smart card and password protected
- The cryptographic engine is NIST (National Institute of Standards and Technology) of USA and CSE (Communications Security Establishment) of Canada certified hardware AES (Advanced Encryption
- Standard) algorithm.
- FIPS (U.S. Federal Information Processing Standard) 140-2 Cryptographic Engine validated (FIPS Inside)
- No software or GUI involved or required installation (for encryption or authentication)
One of the most secure and cutting-edge hardware-based encryption chipsets is integrated into the internal circuitry of the Amphibious. The cryptographic encryption module contains features such as Advanced Encryption Standard Algorithm AES-256 bit key strength, and real-time encryption so that there is virtually zero time in encrypting and decrypting the data. While in the CBC mode, the encryption chipset bears certifications from the National Institute of Standards and Technology (NIST) and U.S. Federal Information Processing Standard FIPS Level 2 for a Cryptographic Module. The Amphibious is authenticated by secure (ISO7816, compliance) smart card and password (PIN number), which is inserted for authentication, and removed soon after the device is authenticated, and then ready for secure data transfer.
Special Features
- Ruggedized pocket-size portable external storage drive
- Bootable
- Bus powered (no adaptor required)
- Carrying case included
- Incorporates SATA hard drive (up to 1TB) or solid-state drive (SSD)
- USB and FireWire connections
- Speeds up to 800 megabytes per second
- Compatible with both Windows and Macintosh environments
- Includes all necessary cables
United State Government:
Rocstor has integrated the latest U.S. Government issuing (deployed) PIV and CAC cards into the Amphibious X7-Gov model and sold it to U.S. government agencies only. The agency must be indentified and contacted before any information is released; the specifications herein stated may or may not bear the product specifications for a particular agency.
Corporate—Consumers:
The standard Amphibious X7 model contains two Smartcards; Consumers will be to order the device with three (3) or more cards before purchase. (Smartcard with different codes can be purchased separately)
Real-Time Hardware Encryption
Amphibious X7 Mobile authenticates the user every time it is plugged into your computer. To give your data the highest level of security, it uses a smart card. You not only need to insert a smart card (something you have) but also need to key in a password PIN (something you know) before the drive becomes accessible. This use of two factors for authentication gives you the same level of security offered by bank
Enclosure Design
Amphibious Ruggedized Portable Enclosure Design
How Does the Amphibious 2.5″ Enclosure Design Help Protect Your Hard Drive?
The safety-centric mechanical design of Amphibious series 2.5″ enclosures provides critical hardware protection features, including:
- Secure Shock-Absorbent Mechanism
The full-length bridgeboard provides additional protection by supporting the entire length of the hard drive. A strong aluminum rim holds the hard drive chassis firmly in place, eliminating stress on the bridgeboard and preventing damage due to impact or violent movement. - Shock-Absorbent Protection
The shock-absorbent dampers strip between the bridgeboard and chassis offers additional resistance against accidental drops and bumps. The disposition of the hard drive and housing profile form an anti-shock chamber to cushion the blow of potential impacts. - Thermal Protection and Load-Bearing Case
The precision density of the rugged aluminum aircraft-grade border provides excellent heat dissipation and is strong enough to bear external weight.
Patent in progress
Regulatory Compliance
Amphibious X7 employs data encryption and pre-boot authentication allowing organizations to better protect and control access to their corporate and customer records, thus complying with regulations such as Sarbanes-Oxley (SOX), Health Insurance Portability and Accountability Act (HIPAA), and Gramm-Leach-Bliley (GLB); it is also FCC, CE, and ISO7816 smart card compliant.
A unique feature of the Amphibious X7 Mobile is that it has an embedded keypad allowing you to key in your PIN directly onto the unit. This ensures protection from key-loggers who may be recording your keystrokes on your computer. Together with full-disk encryption and smart card–based authentication, these features give you the ultimate level of protection with an unrivaled ease of use.
Encryption Technology
One of the most secure and cutting-edge hardware-based encryption chipsets is integrated into the internal circuitry of the Amphibious lines. The chipset contains features such as Advanced Encryption Standard Algorithm AES-256 bit key strength, and real-time encryption so that there is virtually zero time in encrypting and decrypting the data. While in either CBC or ECB modes, the encryption chipset bears certifications from the National Institute of Standards and Technology (NIST), and FIPS Level 2 for a Cryptographic Module. The Amphibious is authenticated by a digital key token, which is inserted for authentication, and removed soon after the device is authenticated, and then ready for secure data transfer.
AMPHIBIOUS X7
Secure Encrypted on Device Password Authentication Mobile Ruggedized Drive
| Interface: | One USB 2.0 and two FireWire 800 (400) | ||||
| Transfer Rate: | USB up to 480 Mbits/s and FireWire up to 800 Mbits/s | ||||
| Compatible Drives: | 2.5″ SATA-1 and SATA-II or Solid State Drives | ||||
| Encryption: | AES-256 bit key strength CBC mode Real-time encryption Hardware Encryption (Not software imbedded in a chip). Cryptographic engine: NIST (National Institute of Standards and Technology) of USA and CSE (Communications Security Establishment) of Canada certified hardware AES (Advanced Encryption Standard) algorithm validated. FIPS (US Federal Information Processing Standard) 140-2 Cryptographic Engine validated (FIPS Inside). Authentication: Secure Key-token. No software or GUI involved or required installation (for Encryption or Authentication). |
||||
| Operating Systems: | Operating System Independent (Works with Windows XP, Vista, Windows 7 -8, Linux or Mac OS 10.5 or later) | ||||
| Pre-boot Authentication: | Two-factor authentication Smartcard and Password protected | ||||
| Smartcard Authentication: | Two-factor authentication (ISO7816, compliant smartcard) | ||||
| Certifications and Standards: | Federal Information Processing Standards, FIPS Level-2 Cryptographic module validated National Institute of Standards and Technology NITS cipher engine validated FCC and CE Compliance |
||||
| Dimensions (LxWxH): | ~5.3 x 3.4 x 0.9 inches (~132 x 8.30 x 2.6 centimeters) | ||||
| Weight: | ~ 8 ounces – 0.25 Kilogram | ||||
| Color: | Black or Silver | ||||
| System Requirements: | Mac and PC: USB 2.0, or FireWire 800 (or FireWire 400) Mac: PowerPC or Intel Core Duo processor PC: 266Mhz or faster Intel or equivalent processor |
||||
| OS Requirements: | Mac: PowerPC or Intel processor running Mac OS 10.5 or later PC: Microsoft® Windows XP, Vista, Windows 7 – 8 |
||||
| Recommended memory: | 512MB RAM | ||||
| Warranty: | 1 year limited warranty 2 year unlimited toll-free telephone tech support |
||||
| Contents: | Amphibious external disk drive Two Smartcards Quick installation manual USB and FireWire 800 cables Carrying Case |
||||
*** US Government part numbers: Sold to US Government agencies only. The agency must be indentified and contacted before any information is released; the specifications herein stated may/will not bear the product specifications for a particular agency.
Capacity Disclaimer: Actual accessible hard drive capacity will indicate up to 10% lower than stated under different Operating Systems and formatting. Therefore, a 500GB capacity drive will show up as a 450GB drive (approximately.)
* Benchmarked with Intech Bench Test v3.5. Drive capacity might vary depending on Mac or PC format.
Specifications and appearance are given as guidelines and may change without notice.
System Requirements
FireWire 800 (1394b) [or FireWire 400 (1394a) cable not included] port(s)
-
- USB 2.0 port(s)
- PowerPC or Intel processor
- Mac OS 10.5 and later
- MS Windows, XP or later
- Min. recommended memory: 1GB MB RAM
Compatibility
-
- Mac OS 10.5 and later
- Microsoft Windows, XP or later
- Linux
- Solid-state Drives (SSD)
| PN | Model | Size | RPM | Cache | UPC |
| K20AXX-BK | Amphibious X7 | No Drives | 0 | 87691000844 | |
| K20AP5-BK | Amphibious X7 | 1 TB | 5400 | 32 MB | 87691000868 |
| K20AP7-BK | Amphibious X7 | 1 TB | 7200 | 32 MB | 87691000870 |
| K20AS5-BK | Amphibious X7 | 2 TB | 5400 | 32 MB | 87691000891 |
| K20AGG-BK | Amphibious X7 | 500 GB | SSD | 87691000938 | |
| K20AKK-BK | Amphibious X7 | 1 TB | SSD | ||
| K20ALL-BK | Amphibious X7 | 2 TB | SSD | - |
