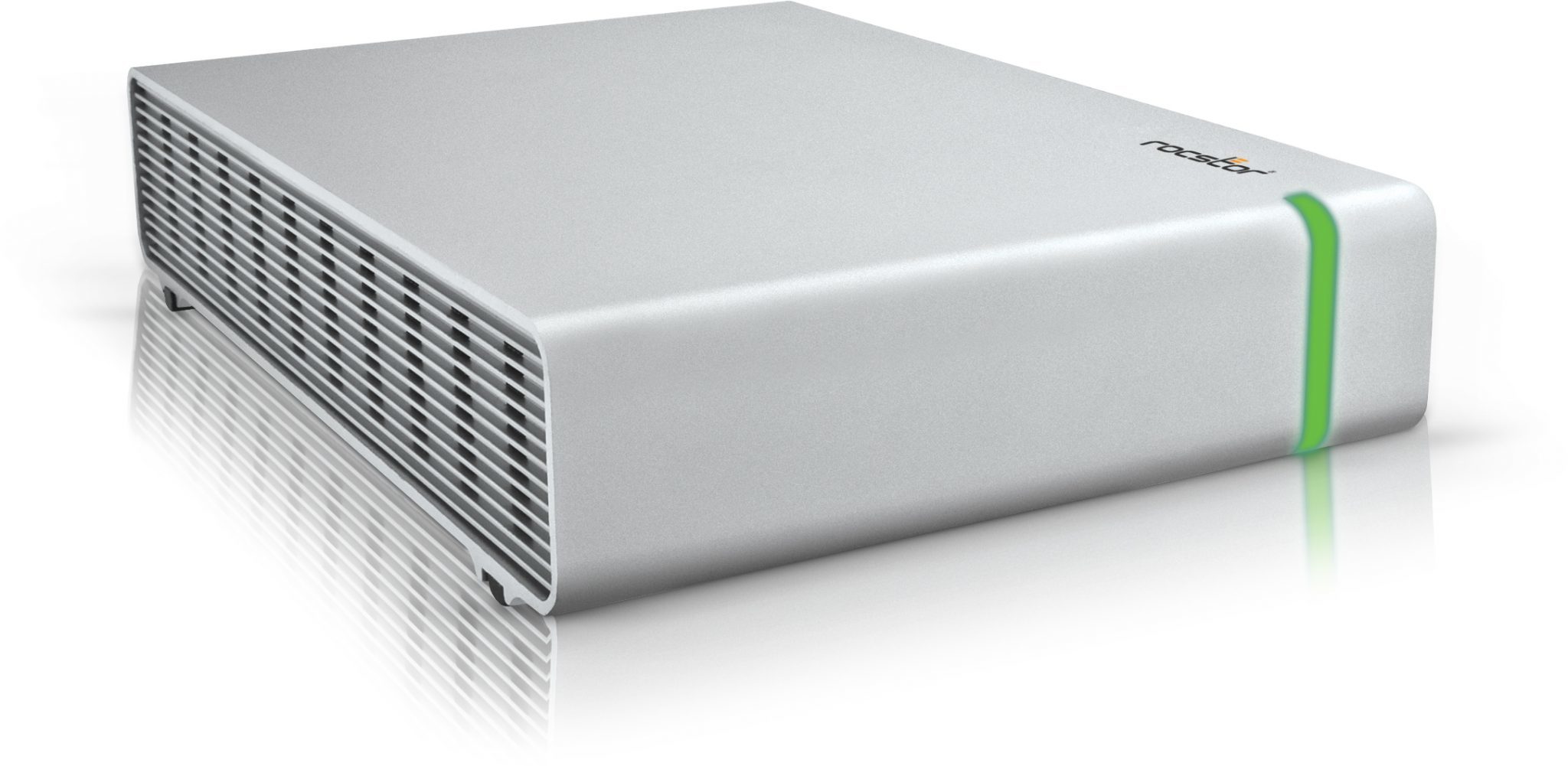

COMMANDERX EC31
Encrypted Desktop Hard Drive
USB 3.1 WITH SECURE TOKEN KEY AUTHENTICATION
Designed, engineered, integrated, and assembled in the United States to satisfy the requirements of demanding security concerned professionals and governments, the CommanderX line can support a Solid State Drive “SSD” or a fast SATA high-capacity 3.5“ hard drive, and has a uniquely” stylish and ruggedized design that will complement any desktop. It features ~1.5 Lb of recycled aluminum case that can be conveniently stacked or mounted vertically. With its built-in fan-less power supply, and quiet opera on, the Commander can be easily moved from one desktop environment to another using the provided carrying case. The CommanderX E31 is compatible with both Windows and Macintosh environments without any so ware installations using the latest USB 3.1 Type-C connection.
CommanderX external hard drives deliver extraordinary performance, rapid file transfer speeds (up to 10,000 Mbits/s), and proven reliability for both Mac and PC users. And because it provides up to 8TB single hard drive, one of the first of its kind, this device is one of the most, versa le desktop and portable external drives in the world using secure token key.
SPECIAL FEATURES:
- Desktop and portable external storage drive • Ruggedized aluminum casing
- Built-in power supply
- Carrying case included
- Incorporates SATA or SSD hard drive
- USB 3.1 connec ons
- Speeds up to 10,000 Megabits per second
- Enhanced with new shock-absorbents mechanism (patent in progress) • Compa ble with both Windows and
- Macintosh environments
- CBC encryp on modes
- Power: Auto-Switchable 240VA/100VA interna onal use
- Direct (AC) plug in to electricity (no bulky adaptor required)
- Includes all necessary cable
The CommanderX series is made with more than ~1.5 Lb (~0.75 Kg) of recycled aluminum, making this enclosure both ruggedized and durable. An exclusive shock-absorbing mechanism (patent pending) is built into the enclosure. Its function is to keep the hard drive suspended within the casing, while dissipating the heat produced by the hard drive. The Commander line is designed this way to allow peak performance while operating at an optimal temperature.
The built-in power supply offers the user added convenience by eliminating the need to carry nonstandard and some mes he y adaptors and cables that are normally required to power typical hard drives. The power supply contained in the Commander line is Auto-Switchable 240VA/100VA (will work internationally) and uses any standard computer cable, no ma er what country you are in. In addition, due to the heat dissipating automatically through the enclosure, there is no fan installed, which makes the device virtually silent while it is operating.
One of the most secure and cutting-edge hardware-based encryption chipsets is integrated into the internal circuitry of the Commander lines. The cryptographic encryption module contains features such as Advanced Encryption Standard Algorithm AES-256 bit key strength, and real- me encryption so that there is virtually zero me in encrypting and decrypting the data. Using encrypted CBC mode, the encryption chipset bears certifications from the National Institute of Standards and Technology (NIST), and FIPS Level 2 for a Cryptographic Module. The Commander is authenticated by a digital key token, which is inserted for authentication, and removed soon a er the device is authenticated, and then ready for secure data transfer.
COMMANDERX EC31
Encrypted Desktop Hard Drive
| Interface: | One USB 3.1 (Compatible with USB 2.0 and USB 3.0)
Token Key Port |
||||
| Compatible Drives: | 3.5″ SATA or Solid State Drives | ||||
| Encryption: | AES-256 bit key strength CBC mode Real-time encryption Hardware Encryption (Not software imbedded in a chip). Cryptographic engine: NIST (National Institute of Standards and Technology) of USA and CSE (Communications Security Establishment) of Canada certified hardware AES (Advanced Encryption Standard) algorithm validated. FIPS (US Federal Information Processing Standard) 140-2 Cryptographic Engine validated (FIPS Inside). Authentication: Secure Key-token. No software or GUI involved or required installation (for Encryption or Authentication). |
||||
| Operating Systems: | Operating System Independent (Windows XP and higher. Mac OS 10.5 or higher), & Linux | ||||
| Authentication: | Secured Token Key Authentication – CBC Encryption FIPS Validated | ||||
| Certifications and Standards: | Federal Information Processing Standards, FIPS Level-2 Cryptographic module validated National Institute of Standards and Technology NITS cipher engine validated FCC and CE Compliance |
||||
| Dimensions (LxWxH): | .62 x 5.98 x 1.65 in. (with legs 1.78) or ~21.9 x 15.2 x 4.2 cm (with legs 4.5) | ||||
| Weight: | 2.85 lb – 1.29 Kilogram | ||||
| Color: | Silver | ||||
| Warranty: | 2 year limited warranty 2 year unlimited toll-free telephone tech support |
||||
| Contents: | CommanderX external disk drive Three (3) Smart Token Keys Quick installation manual USB Type-C to Type-A cable |
||||
| PN | Model | Size | RPM | Cache | UPC |
| C280XX-01 | CommanderX EC31 | No Drives | 0 | 8.54E+011 | |
| C280P7-01 | CommanderX EC31 | 1 TB | 7200 | 32 MB | |
| C280S2-01 | CommanderX EC31 | 2 TB | 7200 | 64 MB | 8.54E+011 |
| C280N7-01 | CommanderX EC31 | 3 TB | 7200 | 64 MB | 8.54E+011 |
| C280Q2-01 | CommanderX EC31 | 4 TB | 7200 | 64 MB | |
| C280T7-01 | CommanderX EC31 | 6 TB | 7200 | 128 MB | 8.54E+011 |
| C280U5-01 | CommanderX EC31 | 8 TB | 5900 | 128 MB | 8.54E+011 |
| C280U7-01 | CommanderX EC31 | 8 TB | 7200 | 256 MB | 8.54E+011 |
| C280L7-01 | CommanderX EC31 | 10 TB | 7200 | 256 MB | 87691000019 |
| C28011-01 | CommanderX EC31 | 12 TB | 7200 | 256 MB | |
| C28012-01 | CommanderX EC31 | 14 TB | 7200 | 256 MB | |
| C280KK-01 | CommanderX EC31 | 1 TB | SSD | 8.54E+011 | |
| C280LL-01 | CommanderX EC31 | 2 TB | SSD | 8.54E+011 |
