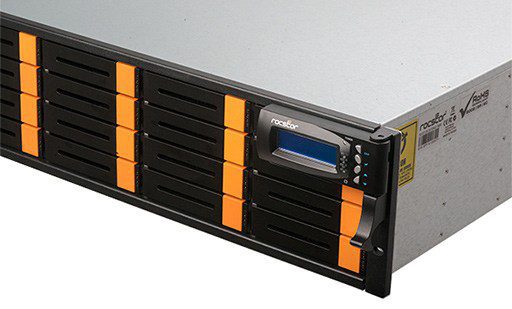

ENTEROC S630 SAS
12Gb SAS 16-Bay Redundant Raid Storage
3U 12Gb SAS – 6Gb SAS Redundant RAID Subsystem
The Enteroc S630 SAS RAID features 12Gb SAS host performance to increase system efficiency and performance. It features high capacity expansion, with 16 hot-swappable SAS2/SATA3 hard disk drive bays in a 19-inch 3U rackmount unit, scaling to a maximum storage capacity in the terabyte range. The S630 can connect with expansion enclosures to accommodate up to 256 drives. The Enteroc S630 series also supports dual redundant controllers which provide better fault tolerance and higher reliability of system operation.
Controller Redundancy
- Dual-active RAID controller with cache mirroring through dedicated high speed bus
- Automatic synchronization of firmware version in the dual-active mode
- Redundant controller operation with active/active and failover/failback function
- Redundant flash image for controller availability
- Management port seamless take-over
High availability
- DataBolt™ Bandwidth Optimizer for balance faster host and slower SAS or SATA devices
- RAID level 0, 1,10(1E), 3, 5, 6, 30, 50, 60, 00, 100, Single Disk and JBOD
Unparalleled Drive Support
- Support for native 4K and 512 byte sector SAS and SATA devices
- Support HDD firmware update
- SSD automatic monitor clone (AMC) support
- S.M.A.R.T. support
Energy Saving
- Low power consumption & Low heat production
- Support intelligent power management to save energy and extend service life
RAID Management
- Access terminal menu by telnet via a LAN port
- API library for customer to write its own monitor utility
- Field-upgradeable firmware in flash ROM
- Firmware-embedded manager via RS-232 port
- Firmware-embedded Web Browser-based RAID manager allows local or remote management and configuration
- SAP management utility to easily manage multiple RAID units in the network
ENTEROC S630 SAS
12Gb SAS 16-Bay Redundant Raid Storage
| RAID Controller | 12Gb SAS – 6Gb SAS |
| Controller | Single or Redundant |
| Host Interface | Two / Four 4x mini SAS HD (12Gb/s) (SFF-8644) |
| Disk Interface | 6Gb/s SAS, 6Gb/s SATA HDD/SSD |
| SAS expansion | One / Two 6Gb/s SAS (SFF-8644) |
| - Direct Attached | 16 Disks |
| - Expansion | Up to 256 Disks |
| Processor Type | 1.2GHz Dual Core RAID-On-Chip processor |
| Cache Memory | 4GB Single Controller/ 8GB Dual Controller Standard - 8GB / 16GBDDR3 ECC SDRAM Option Upgrade |
| Management Port Support | 2 x RJ11 Serial Ports; 1 x RJ45 Ethernet Port |
| Battery Backup Module(BBM) | Optional |
| RAID Features | |
| RAID level | 0, 1,10(1E), 3, 5, 6, 30, 50, 60, 00, 100, Single Disk and JBOD |
| LUNs | Up to 128 |
| Hot Spare | Global and Dedicated |
| Stripe Size | Up to 1024KB |
| Cache writing approaches | Write-through or write-back |
| Online Rebuild | Yes |
| Automatic drive insertion/ removal detection |
Yes |
| Multiple RAID selection | Yes |
| Online Array roaming | Yes |
| Online RAID level / stripe size migration |
Yes |
| Online capacity expansion | Yes |
| Online volume set growth | Yes |
| SNMP manager | Yes |
| E-mail Notification | Yes |
| Instant availability and background initialization |
Yes |
| HDD Xfer Speed Test | Yes |
| Real time clock support | Yes |
| RAID clock Synchronization | Yes (Using NTP) |
| Multiple pairs SSD/HDD disk clone | Yes |
| Multi-Path I/O (MPIO) Support | Yes |
| Enclosure | |
| Platform | Rackmount |
| Form Factor | 3U |
| # of Hot Swap Trays | 16 |
| Tray Lock | Yes |
| Disk Status Indicator | Access / Fail LED |
| Backplane | SAS2 / SATA3 Single BP |
| # of PS / Fan Modules | 500W x 2 w/PFC |
| # of Fans | 4 |
| Power Requirements | AC 90V ~ 264V Full Range 10A ~ 5A, 47Hz ~ 63Hz |
| Environmental | |
| Relative Humidity | 10% ~ 85% Non-condensing |
| Operating Temperature | 10°C ~ 40°C (50°F ~ 104°F) |
| Physical Dimension | 590(L) x 482 (W) x 131(H) mm |
| Weight (Without Disk) | 24 / 25 Kg |
| PN | Model | Size | RPM | Cache | UPC |
| R3USDSS6-XXX | Enteroc S630-S | No Drives | 0 | 87691000947 | |
| R3USDSS6-S32 | Enteroc S630-S | 32 TB | 7200 | 128 MB | 87691000948 |
| R3USDSS6-S64 | Enteroc S630-S | 64 TB | 7200 | 128 MB | 87691000949 |
| R3USDSS6-S96 | Enteroc S630-S | 96 TB | 7200 | 256 MB | 85392000001 |
| R3USDSS6-S128 | Enteroc S630-S | 128 TB | 7200 | 256 MB | |
| R3USDSS6-S160 | Enteroc S630-S | 160 TB | 7200 | 256 MB | |
| R3UDDSS6-XXX | Enteroc S630-D | No Drives | 0 | 85392000002 | |
| R3UDDSS6-S32 | Enteroc S630-D | 32 TB | 7200 | 128 MB | 85392000003 |
| R3UDDSS6-S64 | Enteroc S630-D | 64 TB | 7200 | 128 MB | 85392000029 |
| R3UDDSS6-S96 | Enteroc S630-D | 96 TB | 7200 | 256 MB | 85392000004 |
| R3UDDSS6-S128 | Enteroc S630-D | 128 TB | 7200 | 256 MB | |
| R3UDDSS6-S160 | Enteroc S630-D | 160 TB | 7200 | 256 MB |
