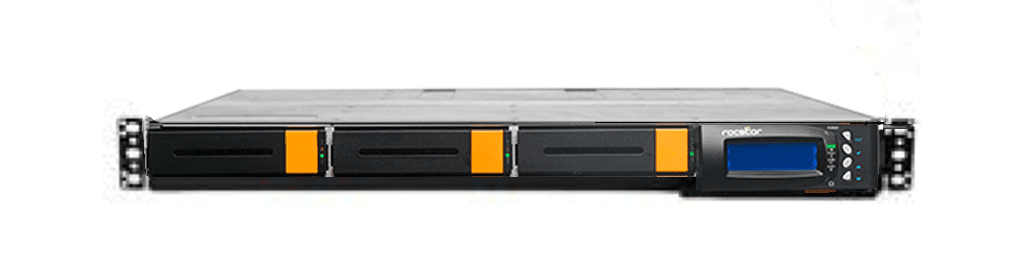

Enteroc N1120 NAS
NAS Solution for workgroups, small businesses, and remote offices.
NAS 1U 4-Bay
Easy to deploy and easy to manage, the Enteroc NAS N1120 delivers a 1U NAS solution for workgroup, small businesses, and remote offices. Just plug it in for instant storage – wherever you need it, whenever you need it. The NAS N1120 is designed to support all of your existing multi-protocol clients and drive down the cost of storage. It gives you an immediate, low-cost solution to your complex storage needs.
Intel® Celeron® Quad Core for exceptional performance
Enteroc N1120 is powered by Intel® Celeron® Quad Core 2.0 GHz processor CPU and 8GB DDR3 SDRAM memory module. This powerful rackmount NAS storage is a powerful server designed for SMB complex storage needs.
Built-in backup and data protection
Enteroc N1120 includes a fully-featured backup solution including manual or scheduled backup for file, folder, and shared files. It can be backup and restore from multiple local or remote devices. The N1120 features volume clone, snapshot, remote replication, and data copy options which are all designed to ensure and enhance your valuable data.
- Volume Clone (EXT3/EXT4/XFS/NTFS/VMFS/ZFS)
- Symantec BackupExec Agent (by additional installation)
- Scheduling multi-snapshot (Support iSCSI snapshot)
- Replication (Remote realtime data mirroring)
- Scheduling Rsync Replication
- Support NetVault backup client (by additional installation)
- Support CA ARCserve (by additional installation)
- Data copy (copy files to other share/attached storage)
- Scheduling backup
- Differential/incremental backup
- iSCSI Replication
- Amazon S3 backup
- backup/restore from attached storage
- (USB/eSATA/iSCSI/RDX*/USM*)
- Support Apple Time Machine
Logical Volume AES-256 Encryption
For your extensive data protection, the Entroc N1120 includes an AES-256 logical volume encryption option. If shared folders have not been created in the logical volume setup, the volume can be encrypted by configuring data "Encrypt" option in the setup. After an encrypted volume is created, system will download the key file automatically. The key is a part of the encryption validation and the volume cannot be accessed without key file.
SSD Cache technology
Entroc N1120 features SSD Caching that enables an SSD drive to be used in conjunction with a high-capacity hard drive (HDD). SSD Caching feature recognizes and automatically stores your most frequently used applications and data into the SSD, while giving you full access to the large storage capacity of an HDD. You can create, work, and access your data faster than ever before without paying more for a larger SSD to store our entire data.
Rocstor® Enteroc® NAS systems are built for business.
Rocstor Enteroc N1120 is full featured and supports Windows LDAP, Android/iOS mobile APP for monitoring, Backup/Restore from attached storage (USB/eSATA/iSCSI/RDX/USM), Backup/Restore from remote share (CIFS/NFS), Backup to Cloud (Amazon S3), VMware ESXi 5 iSCSI/FC/NFS VAAI support, Microsoft® Windows® 98/ME/NT/2000/XP/2003/Vista/2008 /Win7/Windows 2012/Win 8 Unix/Win 10, Linux, Mac OS, iSCSI Target manager which support LUN Mapping/Initiator Filter/Thin Provisioning, Support NIC/Trunking/Load Balance/Fail Over/802.3ad, and many more for a true enterprise solution with one of the lowest Total Cost of Ownership storage solutions.
Compression and Deduplication Advance Features
Entroc N1120 features a robust Data Deduplication option which is a method of reducing storage needs by eliminating redundant data. Only one unique instance of the data is actually retained on storage media. Data Compression is also a feature of N1120 which provides a reduction in storage hardware, data transmission time and communication bandwidth, hence resulting in data storage cost savings.
Rocstor® ProNAS® OS and Disk Manager
Rocstor ProNAS OS and Disk Manger is a powerful and full featured enterprise NAS operating system which provides configuring and managing your NAS data infrastructure easy. ProNAS delivers business featured options that are easy-to-use thru its GUI interface. Simplifying setup and management. ProNAS is built specifically for Enteroc range of NAS storage and delivers optimal performance, reliability and efficiency.
- Automatic IP address configuration
- Web browser-based management
- SNMP management and notification
- Fail-free online firmware upgrade
- Unicode support
- Multi-node management GUI
- System configuration backup/restore
- Central management
- Quick wizard
- APP for Android/iOS monitoring
Rocstor® Enteroc® NAS are built for Virtualization
Rocstor Enteroc N1120 is a perfect storage system for virtualization environments, including VMware, Citrix, and Microsoft Hyper-V. With VMware vSphere® & VAAI integration support. N1120 also supports iSCSI Target and Thin Provisioning block storage.
Unified storage system
Consolidating file data with a Rocstor Enteroc N1120 Network Attached Storage (NAS) solution can easily help you to address your changing file serving needs and reduce cost of ownership - enabling simplified management, better resource utilization, and centralized growth and data protection. Enteroc N1120 allows you to share files across Windows®, Mac®, and Linux® platforms efficiently and seamlessly. The N1120 supports Backup/Restore from remote share (CIFS/NFS) along with TCP/IP, SMB/CIFS, NFS, SNMP, FTP/SFTP/FXP, HTTP, HTTPS, Telnet, SSH, AFP, WebDAV, Bonjour and TFTP protocols.
Enteroc N1120 NAS
NAS Solution for workgroups, small businesses, and remote offices.
Technical Specifications
| H/W Platform |
| Intel Celeron Quad Core 2.0GHz CPU |
| Cache memory : 8GB DDR3 SDRAM |
| One USB3.0, one eSATA and two USB2.0 ports |
| Two Gigabit Ethernet ports |
| Support RAID level: RAID 0, 1, 5, 6, 10 and Linear(JBOD) |
| Up to Four (4) 2.5"/3.5” hot-swappable 6Gb/s SATA3 hard drives |
| Real-time drive activity and status indicators |
| Environmental monitoring unit |
| 220W power supply with PFC |
| Support drive hot spare and automatic hot rebuild |
| Locally audible event notification alarm |
| Storage Management |
| Volume management (Support ZFS, XFS, EXT3 and EXT4 file system) |
| Support Compression and Deduplication (Support on ZFS file system) |
| Disk usage statistics |
| Hot spare drives |
| iSCSI Target manager: Support LUN Mapping/Initiator Filter/Thin Provisioning |
| VAAI support for iSCSI/NFS |
| General |
| Independent file server |
| Multiple language support |
| Support UPS |
| Support LV encryption |
| System Management |
| Automatic IP address configuration |
| Web browser-based management |
| SNMP management and notification |
| Fail-free online firmware upgrade |
| Unicode support |
| Multi-node management GUI |
| System configuration backup/restore |
| Central management |
| Quick wizard |
| APP for Android/iOS monitoring |
| Networking |
| Support NIC/Trunking/Load Balance/Fail Over/802.3ad |
| DHCP Server/DHCP Client |
| WINS Server |
| Internet gateway |
| DDNS |
| Protocols |
| TCP/IP, SMB/CIFS, NFS, SNMP, FTP/SFTP/FXP, HTTP, HTTPS, Telnet, SSH, AFP, WebDAV, Bonjour, TFTP |
| Client Operating Systems Support |
| Microsoft® Windows® 98/ME/NT/2000/XP/2003/Vista/2008/Win7/Windows 2012/Win 8 |
| Unix/Linux |
| Mac OS |
| Authentication |
| Local user account/group |
| Microsoft NT Domain Controller (PDC) |
| Microsoft Active Directory Authentication (ADS) |
| Network Information Service (NIS) |
| Support OpenLDAP service |
| Support creating users by batch |
| User quota management |
| Share level security |
| File level security |
| User ID security for NFS |
| Recycle bin (Samba) |
| File access log, audit (Samba) |
| Write Once Read Many (WORM) |
| Block Storage |
| iSCSI Target Support |
| Thin Provisioning support |
| VMware VAAI support |
| Virtualization |
| VMware/Citrix/Hyper-V |
| VMware VAAI for NFS support |
| Attached Storage |
| ISO Mount |
| USB/eSATA/iSCSI initiator |
| Data Backup / Restore |
| Volume Clone (EXT3/EXT4/XFS/NTFS/VMFS/ZFS) |
| Symantec BackupExec Agent (by additional installation) |
| Scheduling multi-snapshot (Support iSCSI snapshot) |
| Replication (Remote realtime data mirroring) |
| Scheduling Rsync Replication |
| Support NetVault backup client (by additional installation) |
| Support CA ARCserve (by additional installation) |
| Data copy (copy files to other share/attached storage) |
| Scheduling backup |
| Differential/incremental backup |
| iSCSI Replication |
| Amazon S3 backup |
| backup/restore from attached storage |
| (USB/eSATA/iSCSI/RDX*/USM*) |
| Support Apple Time Machine |
| Plug-in management |
| Anti-Virus |
| Central management |
| iTunes Server |
| Power requirements |
| AC 100V ~ 240V Full range |
| 6A~3A, 60~50Hz |
| Environmental |
| Relative Humidity: 10%~85% Non-condensing |
| Operating Temp: 10°C ~ 40°C (50°F ~ 104°F) |
| Physical Dimensions : 44(H) x 446.4(W) x 500(D)mm |
| Weight : 18Lb (without drives) |
| PN | Model | Size | RPM | Cache | UPC |
| R1N1120-XXX | Enteroc N1120 | No Drives | 0 | ||
| R1N1120-1S8 | Enteroc N1120 | 8 TB | 5900 | 64 MB | |
| R1N1120-1S16 | Enteroc N1120 | 16 TB | 5900 | 64 MB | |
| R1N1120-S16 | Enteroc N1120 | 16 TB | 7200 | 128 MB | |
| R1N1120-S24 | Enteroc N1120 | 24 TB | 7200 | 128 MB | |
| R1N1120-S32 | Enteroc N1120 | 32 TB | 7200 | 256 MB | |
| R1N1120-S40 | Enteroc N1120 | 40 TB | 7200 | 256 MB |
