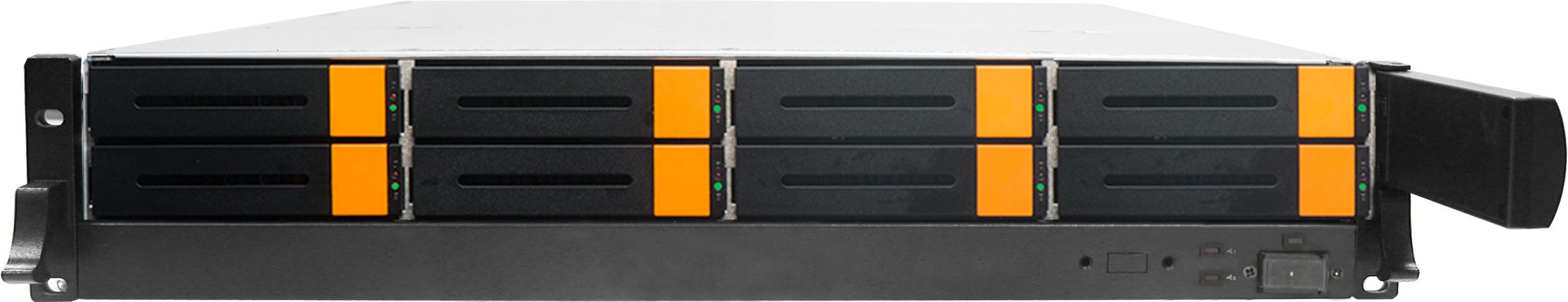

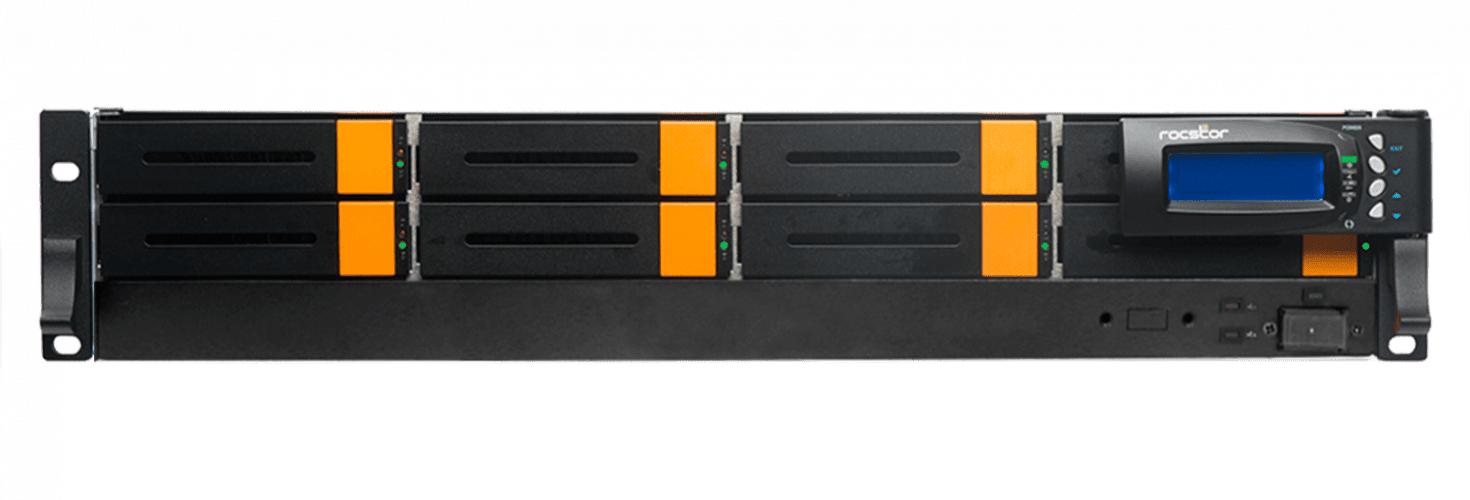

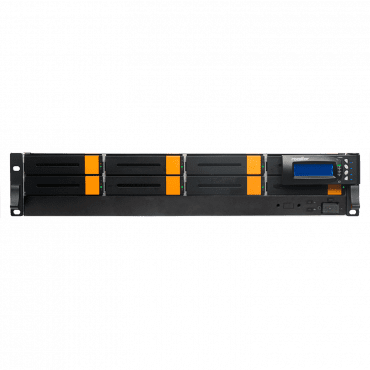

Enteroc® N1422 NAS 8-Bay Storage
Rackmount NAS Solution for workgroups, small businesses, and remote offices.
Enteroc® N1422 is designed for small to medium size businesses that require powerful Rackmount NAS for their consolidated storage needs. Easy to deploy and easy to manage, the Enteroc® NAS N1422 rackmount storage delivers a Powerful 8-Bay NAS solution with Intel® Core™ i3, i5, or i7 Processor options. Just plug it in for instant storage – wherever you need it, whenever you need it. The N1422 is designed to support all your existing multi-protocol clients and drive down the cost of storage. It supports a variety of advanced storage management and application features such as VAAI, Thin-Provisioning and It gives you an immediate, low-cost solution to your complex storage needs.
Intel® Core™ i3, i5, or i7 processor for exceptional performance
Enteroc N1422 is powered by Intel® Core™ i3, i5, or i7 processor CPU and 8GB DDR4 SDRAM memory module with expandability to 32GB. This rackmount NAS storage is a powerful solution designed for SMB complex storage needs.
Redundancy in its core
Enteroc N1422 supports RAID 0, 1, 5, 6, 10, 50 & 60. With up to Eight (8) 2.5” or 3.5” hot-swappable 6Gb/s SATA3 drives. With different RAID settings, rest assured the N1422 is at work to provide you a reliable redundancy and protection on your valuable data.

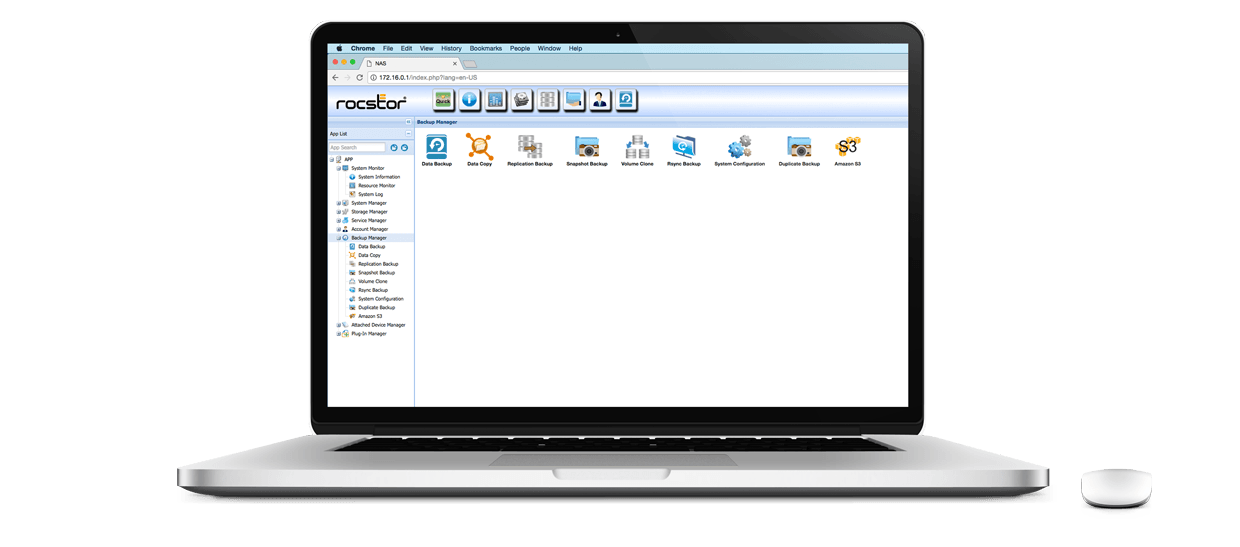

Built-in backup and data protection
Enteroc N1422 includes a fully-featured backup solution including manual or scheduled backup for file, folder, and shared files. It can be backup and restore from multiple local or remote devices. The N1422 features volume clone, snapshot, remote replication, and data copy options which are all designed to ensure and enhance your valuable data..
• Volume Clone (EXT3/EXT4/XFS/NTFS/VMFS/ZFS)
• Symantec BackupExec Agent (by additional installation)
• Scheduling multi-snapshot (Support iSCSI snapshot)
• Replication (Remote realtime data mirroring)
• Scheduling Rsync Replication
• Support NetVault backup client (by additional installation)
• Support CA ARCserve (by additional installation)
• Data copy (copy files to other share/attached storage)
• Scheduling backup
• Differential/incremental backup
• iSCSI Replication
• Amazon S3 backup
• backup/restore from attached storage
• (USB/eSATA/iSCSI/RDX*/USM*)
• Support Apple Time Machine

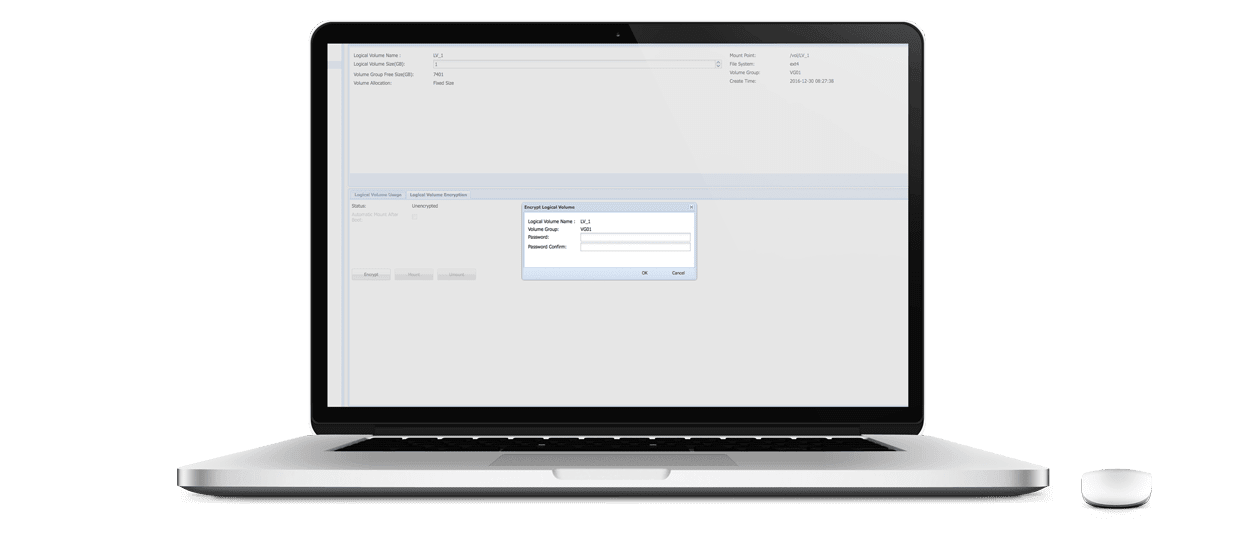

Logical Volume AES-256 Encryption
For your extensive data protection, the Entroc N1422 includes an AES-256 logical volume encryption option. If shared folders have not been created in the logical volume setup, the volume can be encrypted by configuring data “Encrypt” option in the setup. After an encrypted volume is created, system will download the key file automatically. The key is a part of the encryption validation and the volume cannot be accessed without key file.
Rocstor® Enteroc® NAS systems are built for business.
Rocstor Enteroc N1422 is full featured and supports Windows LDAP, Android/iOS mobile APP for monitoring, Backup/Restore from attached storage (USB/eSATA/iSCSI/RDX/USM), Backup/Restore from remote share (CIFS/NFS), Backup to Cloud (Amazon S3), VMware ESXi 5 iSCSI/FC/NFS VAAI support, Microsoft® Windows® 98/ME/NT/2000/XP/2003/Vista/2008 /Win7/Windows 2012/Win 8 Unix/Win 10, Linux, Mac OS, iSCSI Target manager which support LUN Mapping/Initiator Filter/Thin Provisioning, Support NIC/Trunking/Load Balance/Fail Over/802.3ad, and many more for a true enterprise solution with one of the lowest Total Cost of Ownership storage solutions.
Compression and Deduplication Advance Features
Entroc N1422 features a robust Data Deduplication option which is a method of reducing storage needs by eliminating redundant data. Only one unique instance of the data is actually retained on storage media. Data Compression is also a feature of N1422 which provides a reduction in storage hardware, data transmission time and communication bandwidth, hence resulting in data storage cost savings. Both support on ZFS file system.

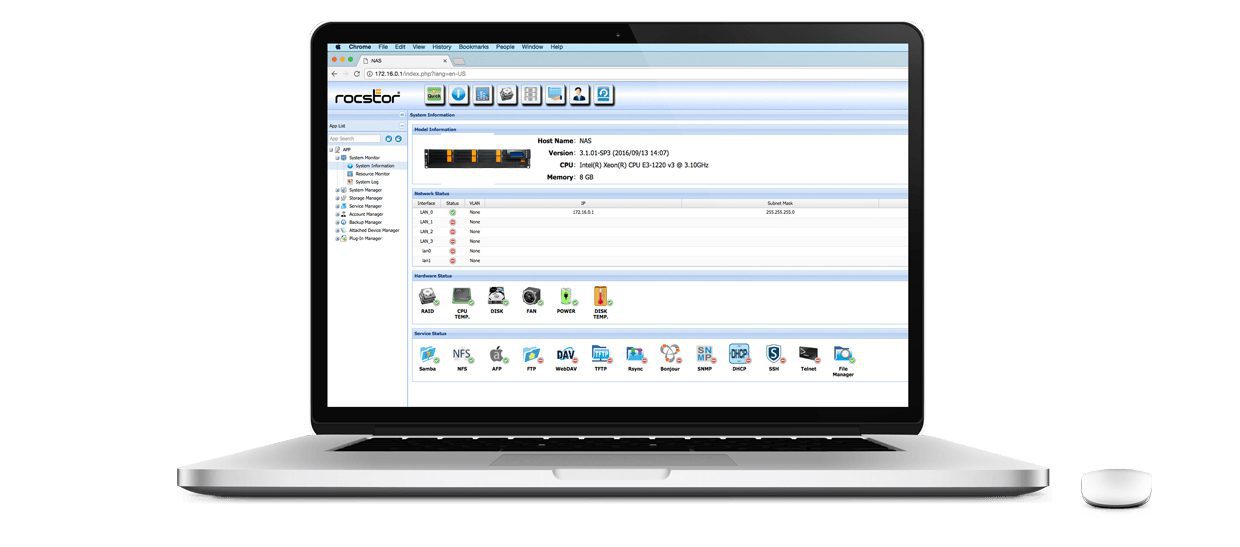

Rocstor® ProNAS® OS and Disk Manager
Rocstor ProNAS OS and Disk Manager is a powerful and full featured enterprise NAS operating system which provides configuring and managing your NAS data infrastructure easy. ProNAS delivers business featured options that are easy-to-use thru its GUI interface. Simplifying setup and management. ProNAS is built specifically for Enteroc range of NAS storage and delivers optimal performance, reliability and efficiency.
• Automatic IP address configuration
• Web browser-based management
• SNMP management and notification
• Fail-free online firmware upgrade
• Unicode support
• Multi-node management GUI
• System configuration backup/restore
• Central management
• Quick wizard
Rocstor® Enteroc® NAS are built for Virtualization
RRocstor Enteroc N1422 is a perfect storage system for virtualization environments, including VMware, Citrix, and Microsoft® Hyper-V. With VMware vSphere® & VAAI for NFS integration support. N1422 also supports iSCSI Target and Thin Provisioning block storage.
Unified storage system
Consolidating file data with a Rocstor Enteroc N1422 Network Attached Storage (NAS) solution can easily help you to address your changing file serving needs and reduce cost of ownership – enabling simplified management, better resource utilization, and centralized growth and data protection. Enteroc N1422 allows you to share files across Windows®, Mac®, and Linux® platforms efficiently and seamlessly. The N57 supports Backup/Restore from remote share (CIFS/NFS) along with TCP/IP, SMB/CIFS, NFS, SNMP, FTP/SFTP/FXP, HTTP, HTTPS, Telnet, SSH, AFP, WebDAV, Bonjour and TFTP protocols.
| NAS H/W Specification | Intel Core Core i3 / i5 / i7 processor Cache memory : 8GB DDR3 ECC SDRAM up to 32GB Two Gigabit Ethernet Up to Eight 2.5"/3.5” hot-swappable 12Gb/s SAS, 6Gb/s SATA hard drive Real-time drive activity and status indicators Environmental monitoring unit Two(2) 400W hot-swappable power supplies with PFC Spare PCIE/PCI slot for H/W upgrade |
| RAID Controller | 1.2GHz dual core RAID on Chip (ROC) storage single or dual processor Support RAID level: RAID 0, 1, 5, 6, 10, 50 and 60 Support 1GB DDRIII cache memory Support drive hot spare and automatic hot rebuild Allow online capacity expansion within the enclosure Locally audible event notification alarm |
| Storage Management | Volume management (Support ZFS, XFS, EXT3 and EXT4 file system) Support SSD Caching, Compression and Deduplication (Support on ZFS file system) Disk usage statistics Hot spare drives iSCSI Target manager: Support LUN Mapping/Initiator Filter/Thin Provisioning FC Target manager: Support LUN Mapping/Thin Provisioning VAAI support for iSCSI/FC/NFS |
| General | Independent file server Multiple language support Support UPS Support LV encryption |
| System Management | Automatic IP address configuration Web browser-based management SNMP management and notification Fail-free online firmware upgrade Unicode support Multi-node management GUI System configuration backup/restore Central management Quick wizard |
| Networking | Support NIC/Trunking/Load Balance/Fail Over/802.3ad DHCP Server/DHCP Client WINS Server Internet gateway DDNS |
| Protocols | TCP/IP, SMB/CIFS, NFS, SNMP, FTP/SFTP/FXP, HTTP, HTTPS, Telnet, SSH, AFP, WebDAV, Bonjour, TFTP Client Operating Systems Support Microsoft® Windows® 98/ME/NT/2000/XP/2003/Vista/2008/Win7/- Windows 2012/Win 8/Win 10/2016 Unix/Linux Mac OS |
| Authentication | Local user account/group Microsoft NT Domain Controller (PDC) Microsoft Active Directory Authentication (ADS) Network Information Service (NIS) Support OpenLDAP service Support creating users by batch User quota management Share level security File level security User ID security for NFS Recycle bin (Samba) File access log, audit (Samba) Write Once Read Many (WORM) |
| Block Storage | iSCSI Target Support Fiber Target Support (optional) Thin Provisioning support VMware VAAI support |
| Virtualization | VMware/Citrix/Hyper-V VMware VAAI for NFS support |
| Attached Storage | ISO Mount USB/eSATA*/iSCSI initiator |
| Data Backup / Restore | Volume Clone (EXT3/EXT4/XFS/NTFS/VMFS/ZFS) Symantec BackupExec Agent (by additional installation) Scheduling multi-snapshot (Support iSCSI & FC snapshot) Replication (Remote realtime data mirroring) proNAS High-Availability (Two(2) nodes HA) (optional) Scheduling Rsync Replication Support NetVault backup client (by additional installation) Support CA ARCserve (by additional installation) Data copy (copy les to other share/attached storage) Scheduling backup Di erential/incremental backup iSCSI/FC Replication Amazon S3 backup backup/restore from attached storage (USB/eSATA*/iSCSI/RDX*/USM*) Support Apple Time Machine |
| Plug-in management | Anti-Virus Central management iTunes Server Virtualization (VM on NAS) |
| Power requirements | AC 100V ~ 240V Full range 8A ~ 4A, 47~63Hz |
| Environmental | Relative Humidity:10%~85% Non-condensing Operating Temp:10°C ~ 40°C (50°F ~ 104°F) Physical Dimensions: 88(H) x 482(W) x 620(D)mm |
Part Number |
Capacity |
RPM |
Processors |
Discription |
Intel i3 |
||||
| RF1800-01 | 32TB | 7200 | i3-6500-3.7 | Enteroc N1422 - 32TB - 7200 RPM - 2x Gigabit Ethernet RJ45 - Enteroc N1422 Business NAS Storage Server - 32TB (8x4TB) 7200RPM SATA- Intel i3-6100 3.70GHzDC - 8GB RAM - 8-Bay Rackmount - Hot-swappable HDD - RAID 0,1,5,6,10,50 and 60 - Dual 400W PS W/PFC |
| RF1802-01 | 48TB | 7200 | i3-6500-3.7 | Enteroc N1422 - 48TB - 7200 rpm - 2x Gigabit Ethernet RJ45 - Enteroc N1422 Business NAS Storage Server - 48TB (8x6TB) 7200RPM SATA- Intel i3-6100 3.70GHzDC - 8GB RAM - 8-Bay Rackmount - Hot-swappable HDD - RAID 0,1,5,6,10,50 and 60 - Dual 400W PS W/PFC |
| RF1804-01 | 64TB | 7200 | i3-6500-3.7 | Enteroc N1422 - 64TB - 7200 rpm - 2x Gigabit Ethernet RJ45 - Enteroc N1422 Business NAS Storage Server - 64TB (8x8TB) 7200RPM SATA- Intel i3-6100 3.70GHzDC - 8GB RAM - 8-Bay Rackmount - Hot-swappable HDD - RAID 0,1,5,6,10,50 and 60 - Dual 400W PS W/PFC |
| RF1806-01 | 80TB | 7200 | i3-6500-3.7 | Enteroc N1422 - 80TB - 7200 rpm - 2x Gigabit Ethernet RJ45 - Enteroc N1422 Business NAS Storage Server - 80TB (8x10TB) 7200RPM SATA- Intel i3-6100 3.70GHzDC - 8GB RAM - 8-Bay Rackmount - Hot-swappable HDD -RAID 0,1,5,6,10,50 and 60 - Dual 400W PS W/PFC |
| RF1808-01 | 96TB | 7200 | i3-6500-3.7 | Enteroc N1422 - 96TB - 7200 rpm - 2x Gigabit Ethernet RJ45 - Enteroc N1422 Business NAS Storage Server - 96TB (8x12TB) 7200RPM SATA- Intel i3-6100 3.70GHzDC - 8GB RAM - 8-Bay Rackmount -Hot-swappable HDD - RAID 0,1,5,6,10,50 and 60 - Dual 400W PS W/PFC |
| RF1810-01 | 112TB | 7200 | i3-6500-3.7 | Enteroc N1422 - 112TB - 7200 rpm - 2x Gigabit Ethernet RJ45 - Enteroc N1422 Business NAS Storage Server - 112TB (8x14TB) 7200RPM SATA-Intel i3-6100 3.70GHzDC - 8GB RAM - 8-Bay Rackmount - Hot-swappable - RAID 0,1,5,6,10,50 and 60 - Dual 400W PS W/PFC |
| RF1812-01 | 128TB | 7200 | i3-6500-3.7 | Enteroc N1422 - 128TB - 7200 rpm - 2x Gigabit Ethernet RJ45 - Enteroc N1422 Business NAS Storage Server - 128TB (8x16TB) 7200RPM SATA-Intel i3-6100 3.70GHzDC - 8GB RAM - 8-Bay Rackmount - Hot-swappable - RAID 0,1,5,6,10,50 and 60 - Dual 400W PS W/PFC |
| RF1814-01 | 144TB | 7200 | i3-6500-3.7 | Enteroc N1422 - 144TB - 7200 rpm - 2x Gigabit Ethernet RJ45 - Enteroc N1422 Business NAS Storage Server - 144TB (8x18TB) 7200RPM SATA- Intel i3-6100 3.70GHzDC - 8GB RAM - 8-Bay Rackmount - Hot-swappable - RAID 0,1,5,6,10,50 and 60 - Dual 400W PS W/PFC |
Intel i5 |
||||
| RF1816-01 | 32TB | 7200 | i5-7500-3.8 | Enteroc N1422 - 32TB - 7200 rpm - 2x Gigabit Ethernet RJ45 - Enteroc N1422 Business NAS Storage Server - 32TB (8x4TB) 7200RPM SATA- Intel i5-7500 3.8GHz QC- 8GB RAM - 8-Bay Rackmount - Hot-swappable HDD - RAID 0,1,5,6,10,50 and 60 - Dual 400W PS W/PFC |
| RF1818-01 | 48TB | 7200 | i5-7500-3.8 | Enteroc N1422 - 48TB - 7200 rpm - 2x Gigabit Ethernet RJ45 - Enteroc N1422 Business NAS Storage Server - 48TB (8x6TB) 7200RPM SATA- Intel i5-7500 3.8GHz QC- 8GB RAM - 8-Bay Rackmount - Hot-swappable HDD - RAID 0,1,5,6,10,50 and 60 - Dual 400W PS W/PFC |
| RF1820-01 | 64TB | 7200 | i5-7500-3.8 | Enteroc N1422 - 64TB - 7200 rpm - 2x Gigabit Ethernet RJ45 - Enteroc N1422 Business NAS Storage Server - 64TB (8x8TB) 7200RPM SATA- Intel i5-7500 3.8GHz QC- 8GB RAM - 8-Bay Rackmount - Hot-swappable HDD - RAID 0,1,5,6,10,50 and 60 - Dual 400W PS W/PFC |
| RF1822-01 | 80TB | 7200 | i5-7500-3.8 | Enteroc N1422 - 80TB - 7200 rpm - 2x Gigabit Ethernet RJ45 - Enteroc N1422 Business NAS Storage Server - 80TB (8x10TB) 7200RPM SATA- Intel i5-7500 3.8GHz QC- 8GB RAM - 8-Bay Rackmount - Hot-swappable HDD -RAID 0,1,5,6,10,50 and 60 - Dual 400W PS W/PFC |
| RF1824-01 | 96TB | 7200 | i5-7500-3.8 | Enteroc N1422 - 96TB - 7200 rpm - 2x Gigabit Ethernet RJ45 - Enteroc N1422 Business NAS Storage Server - 96TB (8x12TB) 7200RPM SATA- Intel i5-7500 3.8GHz QC- 8GB RAM - 8-Bay Rackmount -Hot-swappable HDD - RAID 0,1,5,6,10,50 and 60 - Dual 400W PS W/PFC |
| RF1826-01 | 112TB | 7200 | i5-7500-3.8 | Enteroc N1422 - 112TB - 7200 rpm - 2x Gigabit Ethernet RJ45 - Enteroc N1422 Business NAS Storage Server - 112TB (8x14TB) 7200RPM SATA-Intel i5-7500 3.8GHz QC- 8GB RAM - 8-Bay Rackmount - Hot-swappable - RAID 0,1,5,6,10,50 and 60 - Dual 400W PS W/PFC |
| RF1828-01 | 128TB | 7200 | i5-7500-3.8 | Enteroc N1422 - 128TB - 7200 rpm - 2x Gigabit Ethernet RJ45 - Enteroc N1422 Business NAS Storage Server - 128TB (8x16TB) 7200RPM SATA-Intel i5-7500 3.8GHz QC- 8GB RAM - 8-Bay Rackmount - Hot-swappable - RAID 0,1,5,6,10,50 and 60 - Dual 400W PS W/PFC |
| RF1830-01 | 144TB | 7200 | i5-7500-3.8 | Enteroc N1422 - 144TB - 7200 rpm - 2x Gigabit Ethernet RJ45 - Enteroc N1422 Business NAS Storage Server - 144TB (8x18TB) 7200RPM SATA- Intel i5-7500 3.8GHz QC- 8GB RAM - 8-Bay Rackmount - Hot-swappable - RAID 0,1,5,6,10,50 and 60 - Dual 400W PS W/PFC |
Intel i7 |
||||
| RF1832-01 | 32TB | 7200 | i7-7700-4.2 | Enteroc N1422 - 32TB - 7200 rpm - 2x Gigabit Ethernet RJ45 - Enteroc N1422 Business NAS Storage Server - 32TB (8x4TB) 7200RPM SATA- Intel i7-7700 4.2GHz QC- 8GB RAM - 8-Bay Rackmount - Hot-swappable HDD - RAID 0,1,5,6,10,50 and 60 - Dual 400W PS W/PFC |
| RF1834-01 | 48TB | 7200 | i7-7700-4.2 | Enteroc N1422 - 48TB - 7200 rpm - 2x Gigabit Ethernet RJ45 - Enteroc N1422 Business NAS Storage Server - 48TB (8x6TB) 7200RPM SATA- Intel i7-7700 4.2GHz QC- 8GB RAM - 8-Bay Rackmount - Hot-swappable HDD - RAID 0,1,5,6,10,50 and 60 - Dual 400W PS W/PFC |
| RF1838-01 | 64TB | 7200 | i7-7700-4.2 | Enteroc N1422 - 64TB - 7200 rpm - 2x Gigabit Ethernet RJ45 - Enteroc N1422 Business NAS Storage Server - 64TB (8x8TB) 7200RPM SATA- Intel i7-7700 4.2GHz QC- 8GB RAM - 8-Bay Rackmount - Hot-swappable HDD - RAID 0,1,5,6,10,50 and 60 - Dual 400W PS W/PFC |
| RF1840-01 | 80TB | 7200 | i7-7700-4.2 | Enteroc N1422 - 80TB - 7200 rpm - 2x Gigabit Ethernet RJ45 - Enteroc N1422 Business NAS Storage Server - 80TB (8x10TB) 7200RPM SATA- Intel i7-7700 4.2GHz QC- 8GB RAM - 8-Bay Rackmount - Hot-swappable HDD -RAID 0,1,5,6,10,50 and 60 - Dual 400W PS W/PFC |
| RF1842-01 | 96TB | 7200 | i7-7700-4.2 | Enteroc N1422 - 96TB - 7200 rpm - 2x Gigabit Ethernet RJ45 - Enteroc N1422 Business NAS Storage Server - 96TB (8x12TB) 7200RPM SATA- Intel i7-7700 4.2GHz QC- 8GB RAM - 8-Bay Rackmount -Hot-swappable HDD - RAID 0,1,5,6,10,50 and 60 - Dual 400W PS W/PFC |
| RF1844-01 | 112TB | 7200 | i7-7700-4.2 | Enteroc N1422 - 112TB - 7200 rpm - 2x Gigabit Ethernet RJ45 - Enteroc N1422 Business NAS Storage Server - 112TB (8x14TB) 7200RPM SATA-Intel i7-7700 4.2GHz QC- 8GB RAM - 8-Bay Rackmount - Hot-swappable - RAID 0,1,5,6,10,50 and 60 - Dual 400W PS W/PFC |
| RF1846-01 | 128TB | 7200 | i7-7700-4.2 | Enteroc N1422 - 128TB - 7200 rpm - 2x Gigabit Ethernet RJ45 - Enteroc N1422 Business NAS Storage Server - 128TB (8x16TB) 7200RPM SATA-Intel i7-7700 4.2GHz QC- 8GB RAM - 8-Bay Rackmount - Hot-swappable - RAID 0,1,5,6,10,50 and 60 - Dual 400W PS W/PFC |
| RF1848-01 | 144TB | 7200 | i7-7700-4.2 | Enteroc N1422 - 144TB - 7200 rpm - 2x Gigabit Ethernet RJ45 - Enteroc N1422 Business NAS Storage Server - 144TB (8x18TB) 7200RPM SATA- Intel i7-7700 4.2GHz QC- 8GB RAM - 8-Bay Rackmount - Hot-swappable - RAID 0,1,5,6,10,50 and 60 - Dual 400W PS W/PFC |
