ROCPRO RT38
Powerful Rackmount Thunderbolt™ 3 RAID. Built for Professionals.
Massive Storage
Rackmount 8-Bay RAID. Up to 112TB Capacity.
Extremely large capacity with extreme reliability.
Faster and more powerful than ever, Rocpro RT38 provides RAID storage capacities of up to 112TB. Take advantage of many available hard drive capacities such as 16TB, 32TB, 48TB, 64TB, 96TB, and 112TB. Get into higher sustained speed rates by choosing 8TB, 16TB, or 32TB Solid State capacity storage drives.
Need more capcity? Daisy-chain for up to 5 additional devices. With dual Thunderbolt 3 ports, you can easily daisy-chain up to 5 additional devices such as multiple drives, 4K displays or Rocpro RT38 storage. Control all of your connected Rocpro RT38 thru one Rocstor MSU for RAID settings.
Up to 1500MB/s Sustained Transfer Rates
Optimized support for 4K and 8K Multi-Stream Workflows.
RocproRT38features powerful new RAID controller that makes this Thunderbolt™ 3 storage a perfect companion for your Mac or PC. With up to 112TB of capacity and transfer rates up to 1500MB/s, the Rocpro RT38 provides the right solution for your demanding video workflows. Rely on RT38 for sustain rate and optimized 4K and 8K support. Natively edit footage and make changes in real-time. Render multi-layer video and graphic effects, and export your footage easily with right performance and speed.
RAID & STORAGE MONITORING
Hardware RAID.
Redundancy designed in its DNA.
Rocstor has designed its new Rocpro Thunderbolt 3 storage drives with the latest Hardware RAID modes. We know how valuable your data is, so we are providing you the most versatile and advance level or RAID features in our Thunderbolt 3 storage solutions. Take advantage of RAID 0, 1, 5, & 10 modes and hardware settings and rest assured that you are offered the latest redundancy features available in a Thunderbolt Storage solution.
Automatic Notification
Built-in S.M.A.R.T feature and email notification.
Utility notification features are standard.
Rocstor Thunderbolt 3 storage drives provide a comprehensive MSU Utility which assists in monitoring the RAID status while your drive is in use. The system will alert you thru loud beeping sound/buzzer, and will email you a warning message if the drive conditions are in danger. Rocstor’s MSU also records all the product status in detailed and tests your HDD or SSD quality thru its built-in S.M.A.R.T. testing software.
Connectivity
Thunderbolt™ 3.Compatible with Thunderbolt™ and Thunderbolt™ 2 (Mac only).
Invest in the RT38 latest technology storage RAID unit and easily connect your Macs with Thunderbolt and Thunderbolt 2 ports to Rocpro RT38 using Apple Thunderbolt 3 (USB-C) to Thunderbolt 2 Adapter (sold separately).
*The Mac must be running macOS Sierra 10.12 or later and transfer rates are based upon the speed of the connection, up to 10Gb/s for Thunderbolt and up to 20Gb/s for Thunderbolt 2.
Rocpro RT38 in power!
Built-in Power Supply & Advanced Power Management.
Rocstor Rocpro RT38 has a built in 300 watt power supply which conforms to safety regulations. It provides a stable and high efficient power output. It also provides energy-efficient hardware components that work hand in hand with Mac systems to conserve power. The RT38 spins down the hard drives and activates the sleep mode after a period of inactivity.

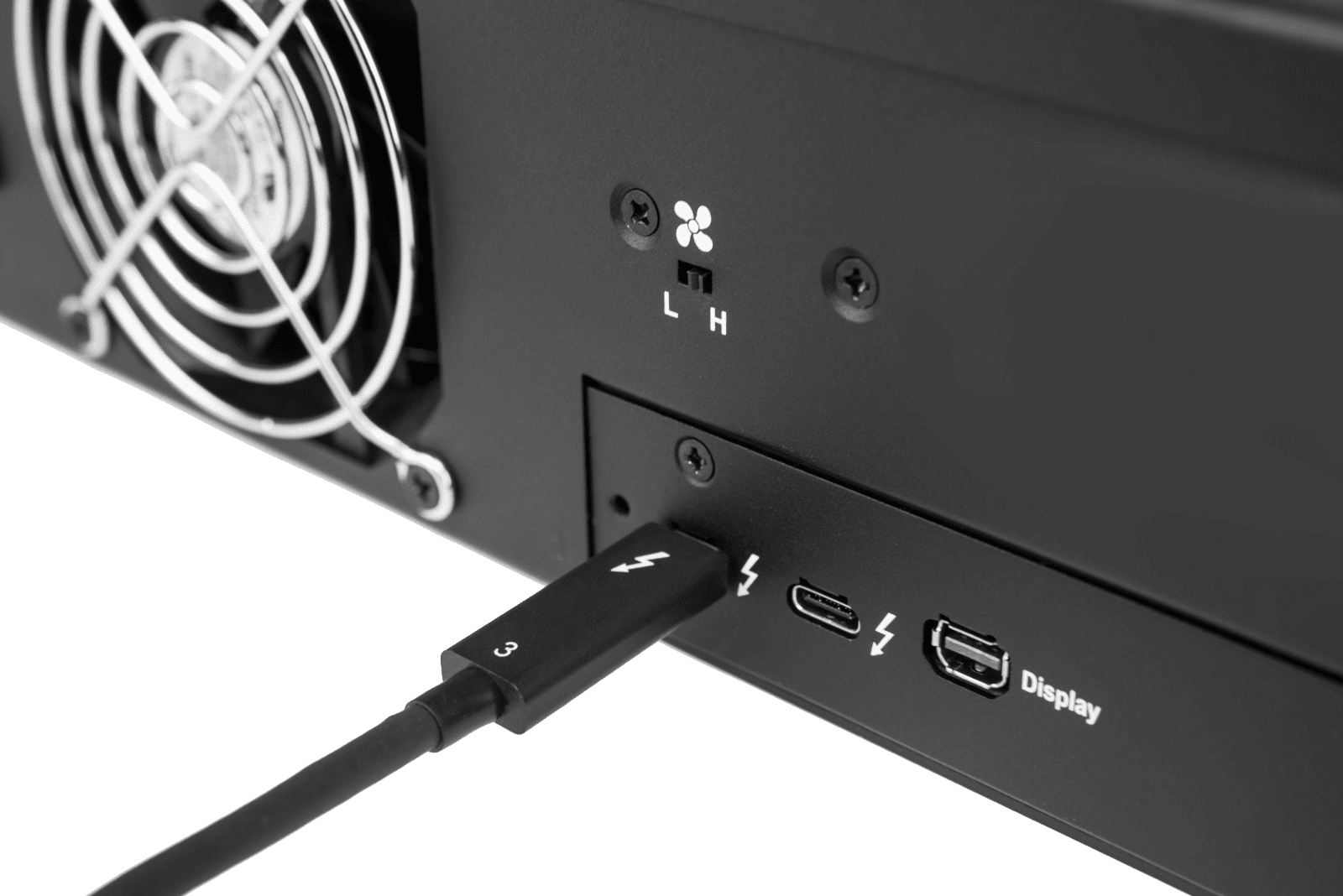

Rocpro RT38 Multi-port
Thunderbolt™ 3, USB-C, Mini Displayport™.
Rocstor Rocpro Thunderbolt™ 3 products provide two Thunderbolt 3 interface ports for an extreme high data transfer speeds. Both of Thunderbolt 3 ports are equipped with up to 40Gbps transfer rate which is 4 times faster than USB 3.1 Gen 2 and two times faster than Thunderbolt 2 technology. It also supports USB-C type connector for use of charging your mobile or tablet with up to 15w (5V/3A) power. All Rocstor’s Thunderbolt 3 storage units support a Mini Displayport™ which gives you an option to connect to your display device. The Mini Displayport is fully compliant with all the existing DVI, HDMI™, and VGA display devices with an adapter option.

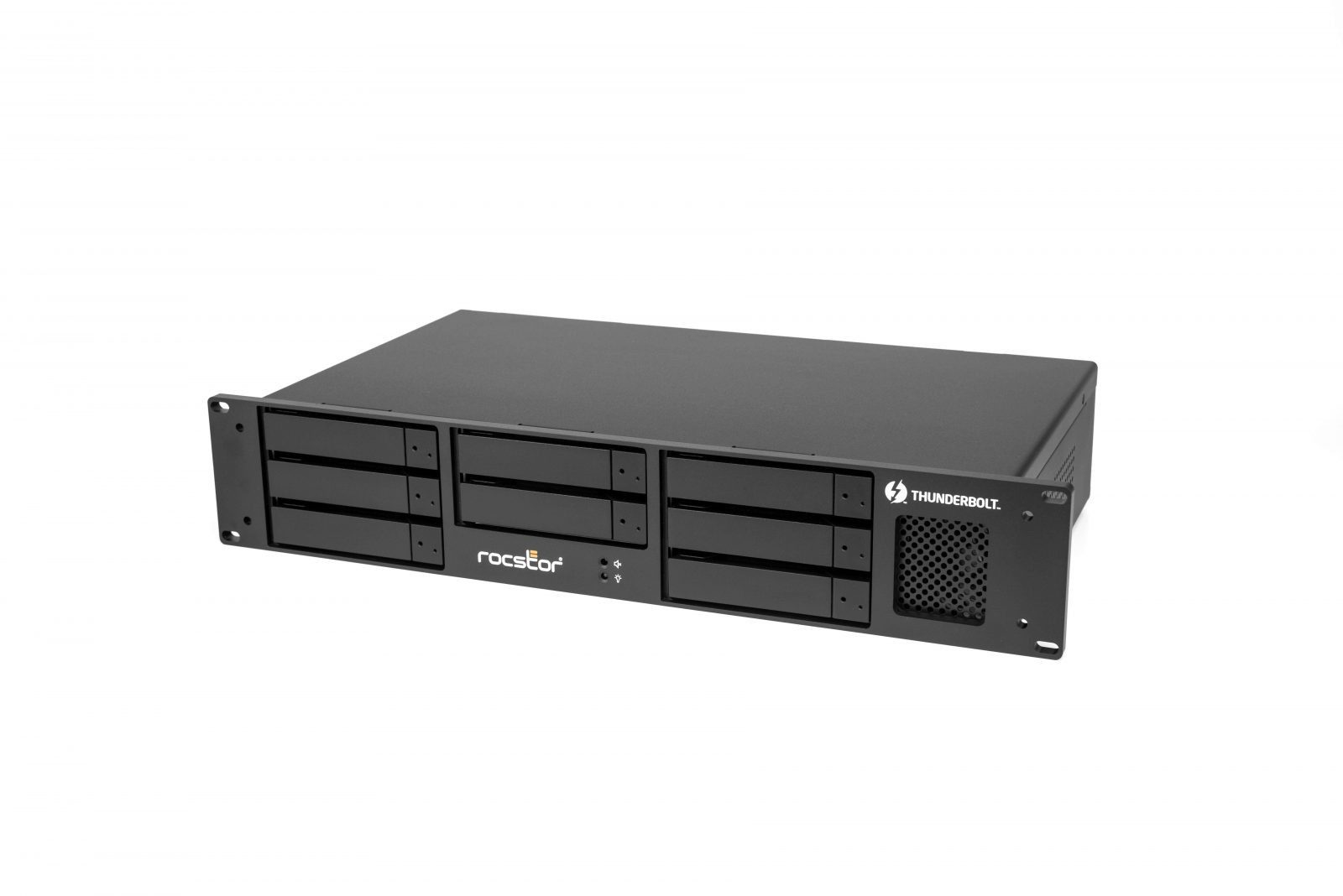

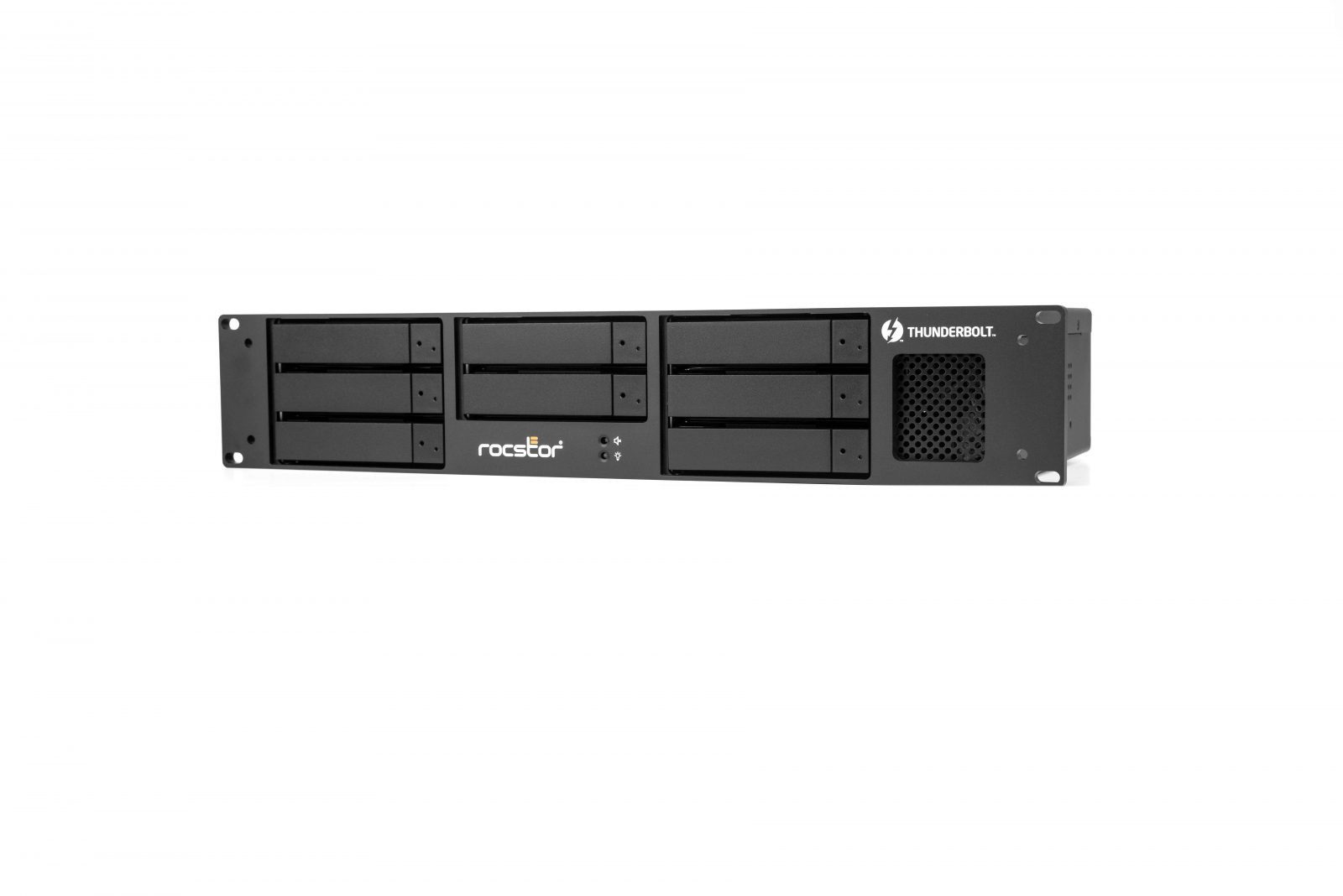

Rocpro RT38 Rackmount!
Compact 2U Enclosure.Robust Aluminum Chassis.
Rocstor Rocpro RT38 is built with tough and strong. Featuring full aluminum chassis to reduce the weight for transportable rackmount cases. Easily install the RT38 into your standard 19” server rack for both server and workstation storage applications.
Rocpro RT38
Storage
Desktop 8-Bay Thunderbolt 3 Hot-swap RAID Storage
Interfaces
2 × Thunderbolt™ 3 (Up to 40 Gbps). Supports 15W (5V/3A) Power delivery
1x mini DisplayPort™ (Fully complaint to all the existing DVI, HDMI, and VGA display devices thru an optional adapter)
Interface Transfer Rates
Thunderbolt 3: 40Gb/s
Interface Technology
Thunderbolt through a single reversible Thunderbolt 3 cable
Bi-directional, dual-protocol, and supports dual 4K displays or one 5K display
Daisy Chain
Connect up to five Thunderbolt 3
Drive Type Compatibility
8 x 3.5”/2.5" SATA III HDD/SSD (up to 6 Gbps )
RAID Modes
0 / 1 / 5 / 6 / 10 / 50 / 60 and JBOD
Rocstor Marvel RAID Manager for easy hardware RAID selection and management
Security
Rocstor Rocbolt® Security Lock / Kensington® Lock Compatible
Cooling
Whisper quite fan
Heat-dissipating all-aluminum enclosure
Additional Features
Front-facing status Drive LEDs for disk, power, and alarm events
System monitoring, audible alarm, and email alerts for failure and warning events via Rocstor Marvel utility manager
Power Supply
Line voltage: 100-240V AC
Frequency: 50Hz to 60Hz, single phase
Maximum continuous power: 300W
Colling System
2 x 8 cm Low noise fan
Dimensions (W × H × D)
140 × 282 × 296 mm | 5.51 × 11.10 × 11.65 in
Weight
Enclosure Only: 4.65 kg | 10.25 lbs
16TB: 9.0kg | 19.9 lbs
32TB: 10.3 kg | 22.7 lbs
48TB: 10.3 kg | 22.7 lbs
64TB: 9.8 kg | 21.7 lbs
80TB: 10.3 kg | 22.7 lbs
96TB: 10.3 kg | 22.7 lbs
112TB: 10.3 kg | 22.7 lbs
8TB SSD: 5.1 kg | 11.2 lbs
16TB SSD: 5.1 kg | 11.2 lbs
32TB SSD: 5.1 kg | 11.2 lbs
Operating Requirements
Operating temperature: 41° to 95° F (5° to 35° C)
Storage temperature: -4° to 116° F (-20° to 47° C)
Relative humidity: 5% to 95% noncondensing
Minimum System Requirements
Computer with a Thunderbolt 3
Latest version of Mac OS® X 10.10 and later / Latest version of Windows® 8 and later Minimum free disk space: 600MB recommended
Note: Your PC may need updates for the Thunderbolt 3 ports to function properly
What’s Included
1x Rocpro T38 Thunderbolt 3
1x Power cable
1x USB-C Thunderbolt 3 40Gb/s cable
1x CD
Manual (Online download)
Limited Warranty and Service
Your Rocpro T38 comes with three-year of complimentary technical support and a three-year limited warranty.
|
PN |
Model |
Size |
UPC |
RPM |
|
GP37XX-01 |
Rocpro RT38 |
NO DRIVE |
81060603060 |
|
|
GP3701-01 |
Rocpro RT38 |
16 TB |
81060603061 |
7200 |
|
GP3705-01 |
Rocpro RT38 |
32 TB |
81060603063 |
7200 |
|
GP3707-01 |
Rocpro RT38 |
48 TB |
81060603064 |
7200 |
|
GP3709-01 |
Rocpro RT38 |
64 TB |
81060603065 |
7200 |
|
GP3711-01 |
Rocpro RT38 |
80 TB |
81060603066 |
7200 |
|
GP3713-01 |
Rocpro RT38 |
96 TB |
81060603067 |
7200 |
|
GP3714-01 |
Rocpro RT38 |
112 TB |
81060603097 |
7200 |
|
GP3715-01 |
Rocpro RT38 |
8 TB |
81060603172 |
SSD |
|
GP3717-01 |
Rocpro RT38 |
16 TB |
81060603174 |
SSD |
|
GP3719-01 |
Rocpro RT38 |
32 TB |
81060603170 |
SSD |
