Rocsecure DE52 RAID
Desktop Encryption RAID Storage | Firewire 800 , USB 3.0, eSata
ROCSTOR® ROCSECURE® ENCRYPTION PRODUCTS AND SOLUTIONS ENABLE YOU TO EFFICIENTLY CONTROL YOUR DATA FROM UNAUTHORIZED USERS. WITH ROCSTOR, YOU CAN ENSURE BUSINESS CONTINUITY THROUGH VARIETY OF REAL-TIME HARDWARE ENCRYPTION STORAGE PRODUCTS.
Rocsecure® DE52 Encrypted Raid solution is the most reliable real-time hardware encrypted data solution utilizing Firewire 800, USB 3.0, and eSata connectivity. Secure your valuable data with Advanced Encryption Standard Algorithm AES-256 encryption when regulatory mandates or the need to protect intellectual property from security breaches dictate. Rocscure DE52 RAID Storage securely encrypts all data in real-time as it is written to the drive. You have the comfort of knowing that all data contained on these drives are protected against unauthorized access, including hardware theft, failure of a drive, or drive retirement. The encrypted RAID storage data cannot be accessed without the use of a unique Secure Key Token Authentication. The Rocsecure DE52 is authenticated by a USB digital key token, which is inserted for authentication, and removed soon after the device is authenticated, and then ready for secure data transfer.
Encryption Features:
- Advanced Encryption Standard Algorithm AES-256 bit key strength Real-time encryption (virtually zero time in encrypting and decrypting the data)
- Hardware encryption (not software embedded in a chip)
- The cryptographic engine is NIST (National Institute of Standards and Technology) of USA and CSE (Communications Security Establishment) of Canada certified hardware AES (Advanced Encryption Standard) algorithm.
- Authentication: USB Secure key token
- GUI RAID setup for installation

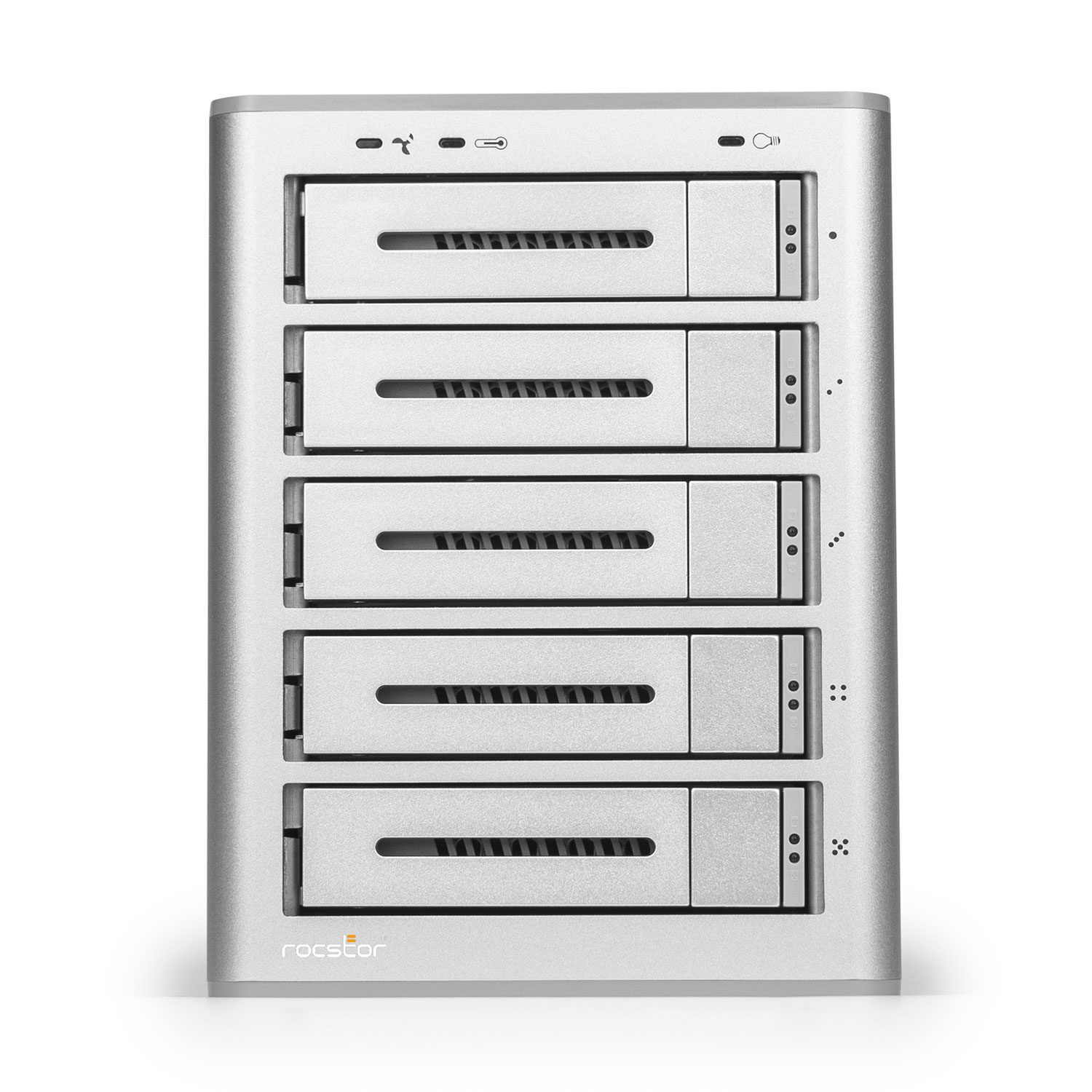

The Rocsecure DE52 storage is a powerful large capacity 5-Bay Volume RAID system that utilizes as many as five 3.5” hard drives and it is simple and easy to deploy. This high-performance, high-capacity AES-256 encrypted storage solution offers RAID 0, 1, 5, 10, or JBOD configurations. With up to five 3.5” SATA hard drives, you can connect the Rocsecure DE52 via Firewire 800, USB 3.0 or eSATA ports to any PC or Mac®. Secure hardware encrypted and AES 256-bit Encryption engine, the DE52 requires one Rocstor Token Authentication Key for all five drives in the RAID. There is no software to install or required. All the data will be encrypted seamlessly in real-time and securely stored. You can easily setup the RAID settings through GUI protocol.
Key Features:
- Real-Time Hardware AES-256 Encryption
- Large Capacity Storage Solutions, up to five 3.5” SATA hard drives
- One unique Rocstor USB Token Key for access to the Volume Encryption RAID
Storage - Built-in Hardware RAID 0, 1, 5, 10, or JBOD accelerator set for high performance

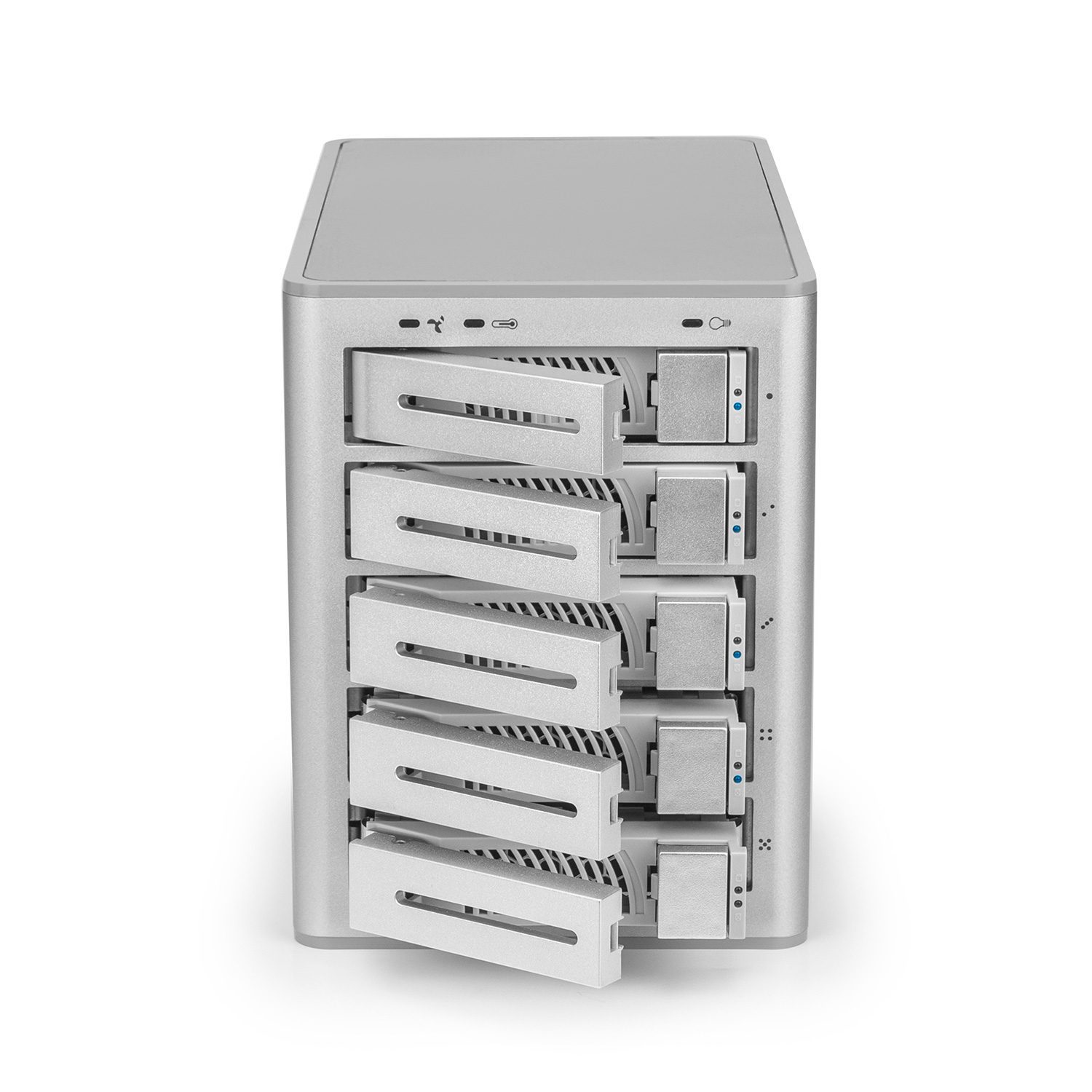

access. (Not Software RAID) - Drive Hot-Swap support
- Incorporates SATA hard drive or SSD
- OS independent. Compatible with both Windows® and Mac® operating systems.

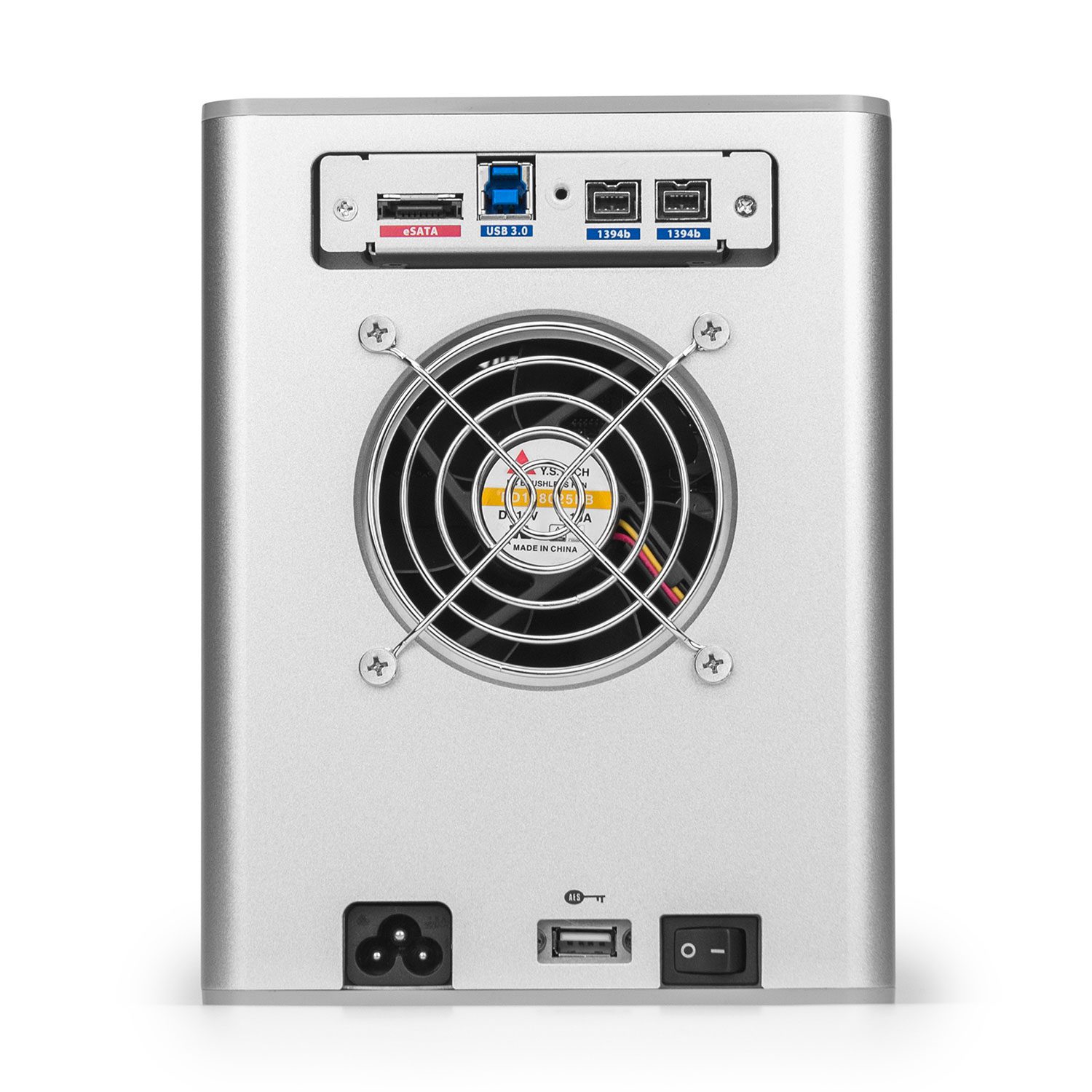

- Connect via Firewire 800, USB 3.0 or eSata
- Includes two (2) Rocstor USB Key Tokens
- Includes all necessary cables
Rocstor DE5 Waterproof Injection Molded Mil-Standard Waterproof Case
Rocstor DE5 Injection Molded Mil-Standard Waterproof Cases are molded of ultra high-strength polypropylene copolymer resin, featuring a gasketed, water and dust tight, submersible design (MIL-C-4150J) that is resistant to corrosion and impact damage. Features a molded-in hinge, patented trigger release latch system, comfortable, snap-down rubber over-molded cushion grip handle, automatic ambient pressure equalization valve (MIL-STD-648C), resistance to UV, solvents, corrosion, fungus and impact damage (MIL-STD-810F).
Features:
- Waterproof and dust tight design (MIL-C-4150J)
- Molded-in hinge for added protection
- Trigger release latch system
- Snap-down rubber over-molded cushion grip handle
- Ambient pressure equalization valve (MIL-STD-648C)
- Resistant to UV, solvents, corrosion, fungus (MIL-STD-810F)
- Resistant to impact damage (MIL-STD-810F)
Rocsecure DE52 NAS RAID
Desktop Encryption RAID Storage | Firewire 800 , USB 3.0, eSata
| Device Type: | Hard Drive Array |
| interface: | Firewire 800 , USB 3.0, eSata |
| Installed Devices / Modules: | 4 SATA Drives Maximum |
| Supported Drives: | SATA-600 |
| Localization: | United States |
| Storage Controller: | Hardware RAID ( SATA 6Gb/s ) – RAID 0, 1, 10 (0+1), JBOD |
| Hard Drive: | SSD or HDD SATA 6Gb/s – Hot-swap |
| OS Required: | Microsoft®Windows®, Apple® Mac® OS X 10.8.5 or later |
| Dimensions: | 6.54” (H) x 4.89” (W) x 9.75“ (D), (166x124x248 mm) |
| Weight (Without HDD): | 7.25 Lbs (3.3 kg) |
| Weight (With HDD): | 14.55 Lbs (6.6 kg) |
| Weight (With SSD): | 7.7 Lbs (3.49 kg) |
| Retail package Dimension: | 9″ (H) x 9″ (W) x 12.5″ (L) |
| Retail package (No HDD): | 8.90 Lbs (4.04 Kg) |
| Retail package (With HDD): | 13.25Lbs (6.0100989 Kg) |
| Retail package (With SSD): | 9.40 Lbs (4.26 Kg) |
| Manufacturer Warranty: | 3 Years Rocare Standard Warranty |
| Maximum Installed Devices / Modules Qty: | 4 Hot-swap |
| Type: | RAID |
| HDD Data Transfer Rate: | Up to 687 MBps HDD RAID 0 |
| SSD Data Transfer Rate: | Up to 1464 MBps SSD RAID 0 |
| RAID Level: | RAID 0, RAID 1, RAID 10, JBOD (0+1) |
| Expansion Bays: | 4 (total) – 3.5″ or 2.5” – Hot-swap |
| Enclosure Physical Security: | Security Lock Anti-theft Slot |
| Interfaces: | 2 x Thunderbolt 2 |
| Contents: | Rocpro T24 Raid System Unit |
| Power Supply: | Input: Auto Switching 100 ~ 240v, 50/60Hz |
|
PN |
Model |
Size |
UPC |
RPM |
|
E632XX-01 |
Rocsecure DE52 |
NO DRIVE |
81060603060 |
|
|
E632B7-01 |
Rocsecure DE52 |
10 TB |
81060603061 |
7200 |
|
E632C7-01 |
Rocsecure DE52 |
15 TB |
81060603063 |
7200 |
|
E632D7-01 |
Rocsecure DE52 |
20 TB |
81060603064 |
7200 |
|
E632E7-01 |
Rocsecure DE52 |
30 TB |
81060603065 |
7200 |
|
E632F7-01 |
Rocsecure DE52 |
40 TB |
81060603066 |
7200 |
|
E632G7-01 |
Rocsecure DE52 |
50 TB |
81060603067 |
7200 |
|
E63267-01 |
Rocsecure DE52 |
60 TB |
81060603097 |
7200 |
|
E63268-01 |
Rocsecure DE52 |
70 TB |
81060603172 |
SSD |
