Rocstor VOLT SC32

32 Sync and Charge Compartments



DESIGNED FOR DEMANDING PROFESSIONALS.

Rocstor Volt SC32 is designed to securely Sync, Charge, and Store tablets up to 13 inch diagonal screen size. This innovative cart has a large compartment with up to 32 individual, smooth edged shelves for easy, quick, and safe loading and unloading, and a separate drawer compartment to store notebook, and power adapters

Innovative Charging System

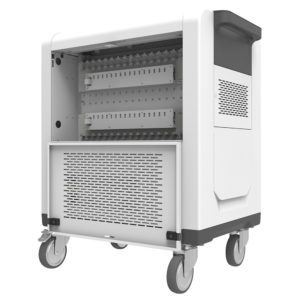

Rocstor’s innovative cart design and engineering provide the charging system for easy setup, and secure day to day usage. The rear compartment of Volt SC32 is organized with two banks of 16 outlets, each with 16 cable channels, keeping the cables and power adapters well organized and structured.

Key Features

  • Tablet Sync & Charging cart with supports 1-32 tablets, and ships configured for 32
  • Open Architecture: Compatible with a large variety of Apple© IOS and Android© mini-sized to regular-sized tablets up to 13-inch diagonal screen size.

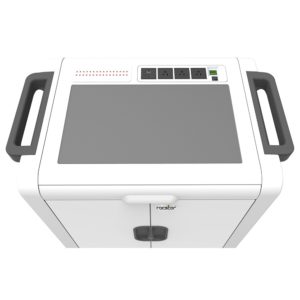

  • Top LED Indicator: 32 LED indicator on top of the cart, showing the charging / sync status of each slot.
  • Power Outlets & Protection: Extra External 3 Outlets provides additional Power to your peripherals from one standard wall outlet.  Also the art is protected by Over Current and Voltage Protection

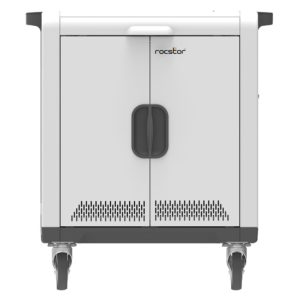

  • Retractable Front Doors: Two hinged front doors on the tablet front bay open from the center and retract into the cart's side channels for neat storage.  The door includes a provision for a heavy duty provision for pad locks.

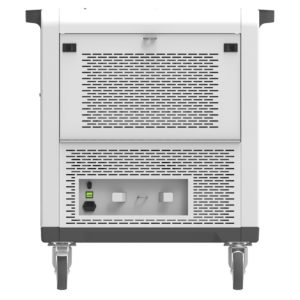

  • Door Compartments: Two locking rear panels allow access to the AC adapters (Charging Cart) and cabling.

Designed to Last

Rocstor’s heavy duty steel cabinet is designed to be durable and last lifetime. Top surface is made with heavy duty rubber which provides a tight grip with your notebook placement.

Simultaneous Charge

Provides simultaneous charging for up to 32 devices.

  • Complete Ventilation: Fans cool the tablets in the main body of the cart.
  • Casters: Four 5-inch medical grade rolling casters with 2 Brake Locks. Casters support easy turning and moving over thresholds. Two casters can be locked into place through a foot brake pedal to prevent the cart from rolling. Two casters are rigid and two casters swivel.
  • Cable Management:
  • Internal Cable management channel clips keep power and any other cables neat and managed inside the cart.
  • Security Features: Includes a standard front and rear door pad lock provision for securing the cart system.
  • Power Rating: DC Output is DC 5V, 2.4A for each USB Port
  • Ships assembled
  • Listed to TUV standards, including CE/FCC/VCCI in the US, Canada & Japan for both the enclosure and the electrical system.

Specification:

Device Capacity


32

Support Device


Tablet/Chromebook/Lapt/
Tablet up to 16"

Compartment Dimension


H: 8.66 inch/220 mm.
W: 0.83 inch/21 mm.
D: 13.78 inch/350 mm.

Cart Dimension


H: 36.5 inch
W: 30.3 inch
D:  21.7 inch

Package Dimension


H: 43.3 inch
W: 33.8 inch
D: 22.8 inch

Charging Type


AC Charge for US/EU/AU/UK

Smart Charging Mode

Warranty


5 years cart and tray
5 Years electrical components

Lock Type


Magnetic Adsorption

Regulatory/Certification


North America
FCC Part 15/IEC-003
UL 60950-1/cULus: CSA

Europe
CE-EMC
LVD EN60950-1

Australia/ N.Z
RCM

Power Specification


AC:
100-120/12A
220-240/10A

Rocstor VOLT SC32

32 Sync and Charge Compartments



Device Capacity 32
Slot Size Measurements W 0.83in/21mm. x H 8.66/220mm. x D 13.78 inch/350mm.
Support Device All USB-Charged Tablets up to 16" Screen
Charging Type USB 2.0
External Power Outlets 3 External Power Outlets
LED Indicator 32 LED indicator
Sliding Shelves No
Devider Type Plastic Dividers
Foam on Bar No
Cart Dimension 32.29x21.74x36.62inch
Package Dimension We have this information
Net Unit Weight 143.3 lbs / 65 kg
Power Specification Input:
AC 220~240V,50/60Hz,10A
AC 100~120V,50/60Hz,12A
Output: 5Vdc,2.4A each USB port
Cable Management Use Plastic Dividers to manage the cables
Security Front door: Padlock hole, User use their own lock.
Security Hook Yes
Casters 5" Casters x4 , 2 are lockable



PN Model UPC
VTSC032-01 Volt SC32 85392000083

Specification Brochure:
Specification Brochure (click here)

User Manuals:
User Manuals (click here)

Media File:
To Download The image package please click here
