Specifications:
| Items | Specifications | |
| Power Supply | Voltage/Current | Micro USB power supply (5V/1A) |
| Power consumption | TX < 4.5W, RX < 3.5W | |
| HDMI performance and interface | HDMI version | HDMI 2.0 |
| HDCP version | HDCP 1.4/HDCP 2.2 | |
| Max transmission rate | 18Gbps | |
| Resolution supported | 3840x2160@24/30/50/60Hz (YUV 4:4:4, YUV 4:2:2 and RGB),1080P@50/60Hz, 720P@50/60Hz, 1920x1200@60Hz |
|
| Input and output TMDS signal | 0.7~1.2Vp-p（TMDS） | |
| Input and output DDC signal | 5Vp-p（TTL） | |
| Transmission | Wi-Fi Frequency bands | 5.18-5.24 GHz |
| Transmission distance | ≤ 20m | |
| Latency | 100~250ms | |
| Connection types | One to one | |
| SSID pairing | Supported | |
| Protection Level | ESD protection | 1a Contact discharge level 3 1b Air discharge level 3 Standard: IEC61000-4-2 |
| Operating Environment |
Working temperature | -20～50℃ |
| Storage temperature | -30～70℃ | |
| Humidity (no condensation) | 0～90% | |
| Physical Properties | Dimension | TX: 40.2(W) * 230(L) * 15.0(H)mm RX: 40.2(W) * 230(L) * 15.0(H)mm |
| Color | Black | |
| Material | ABS | |
| Net weight | TX: 58g; RX: 54g | |
PN: Y10G009-B1

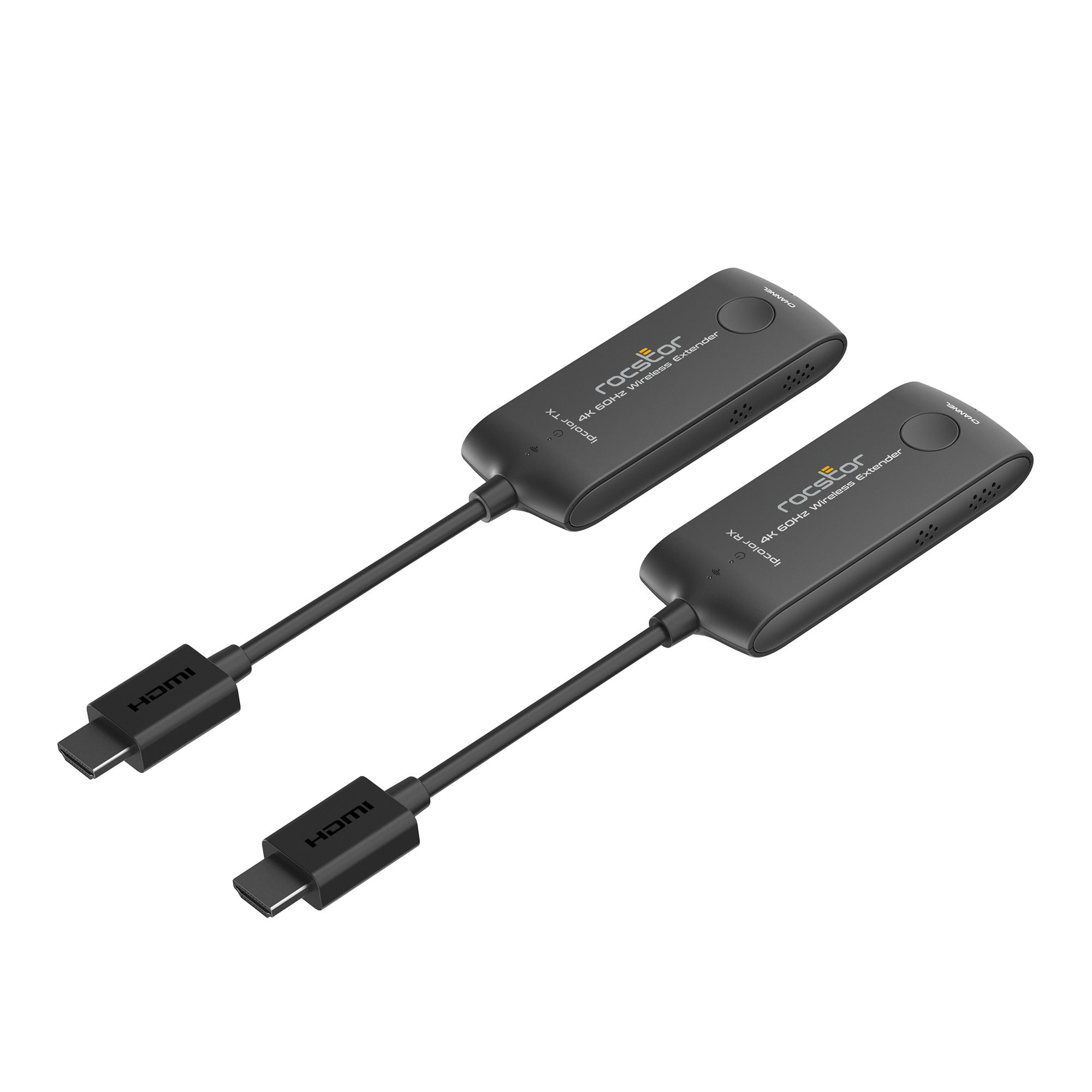

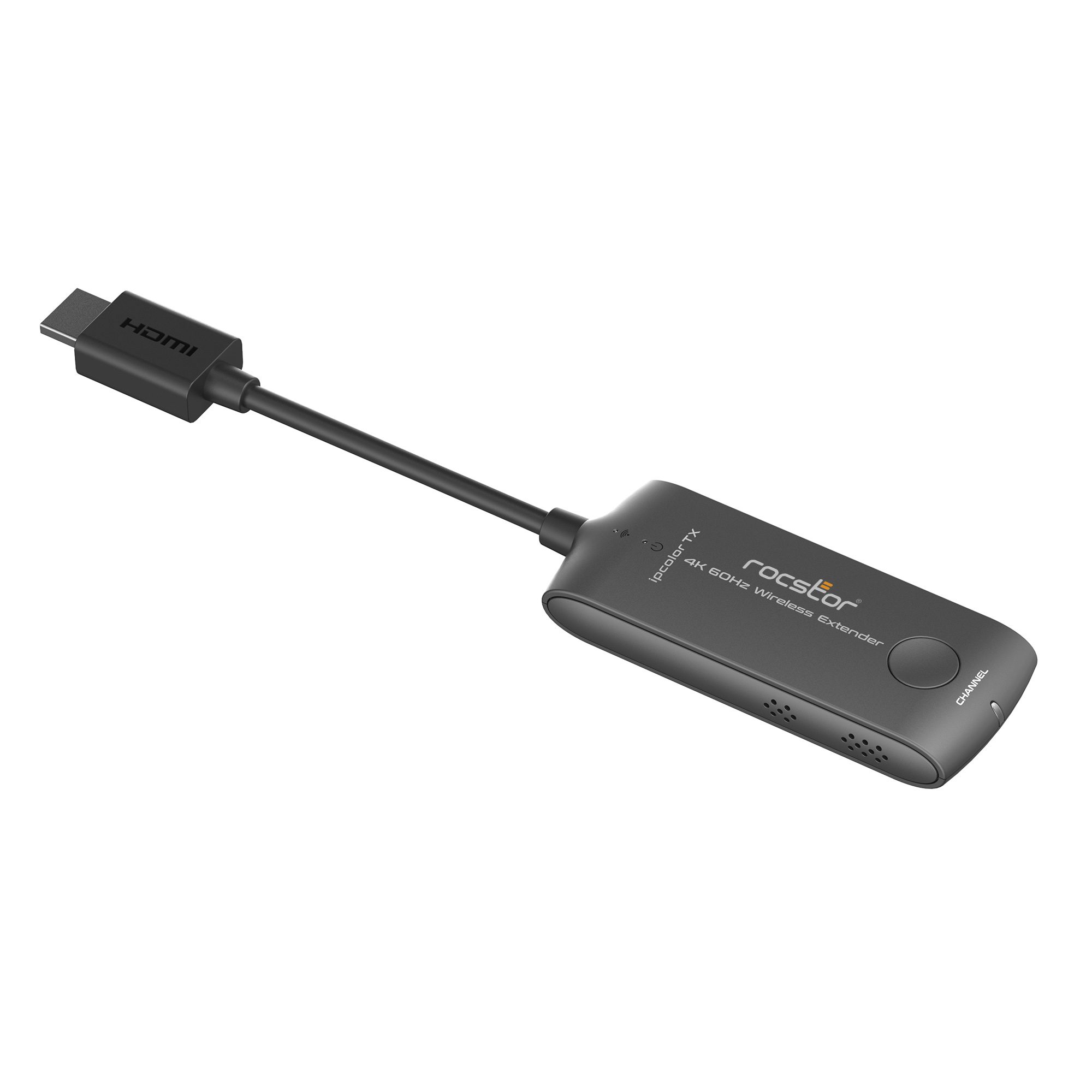

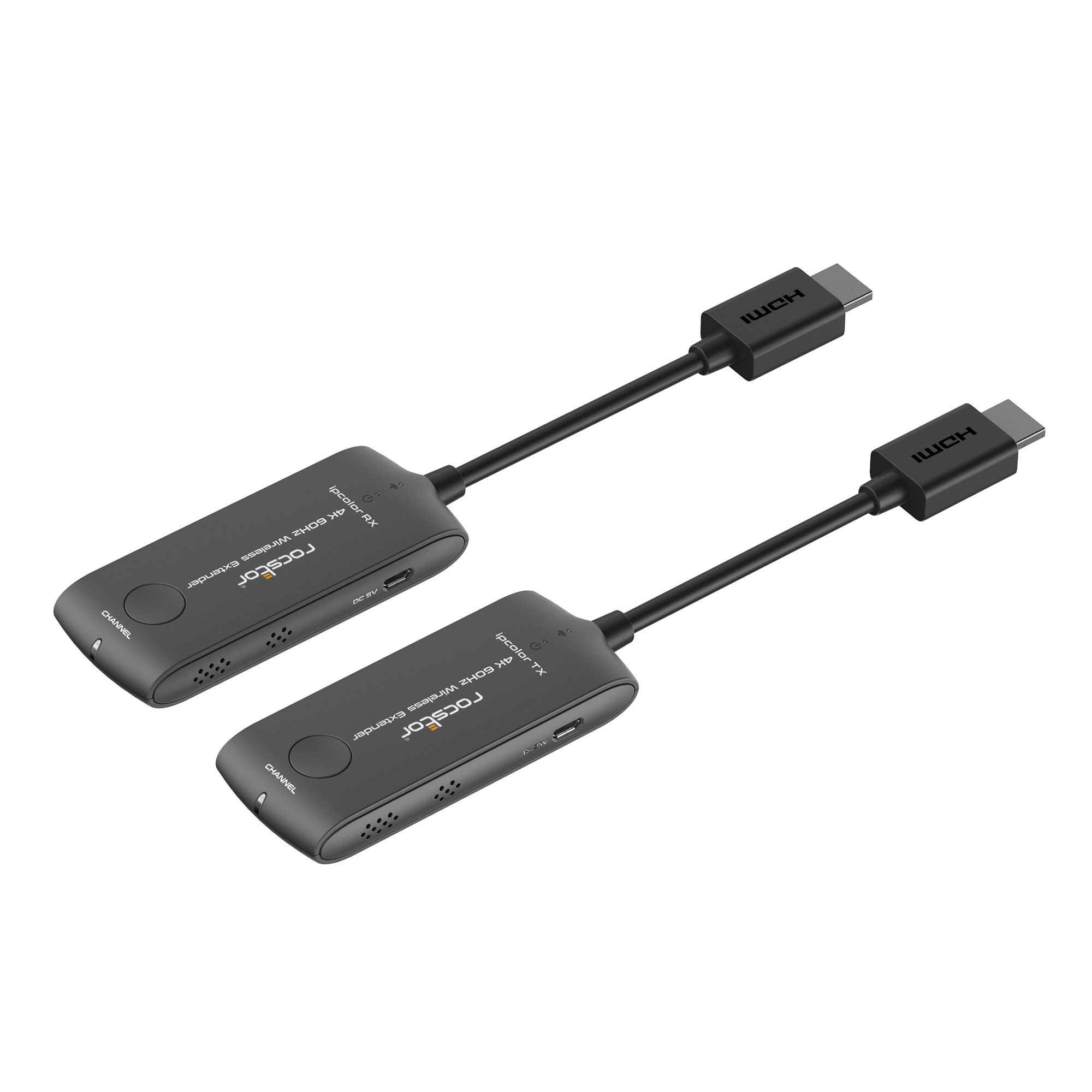

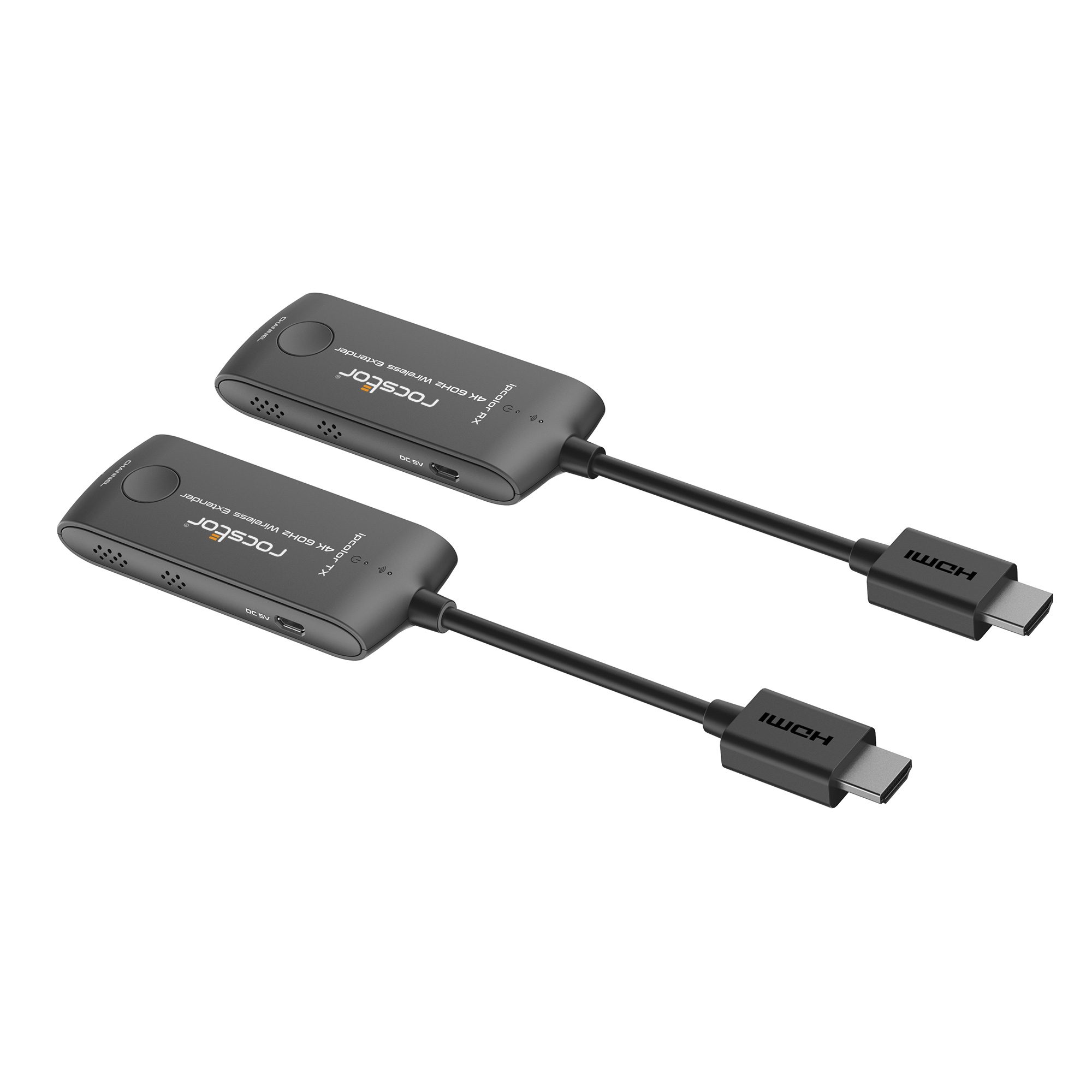

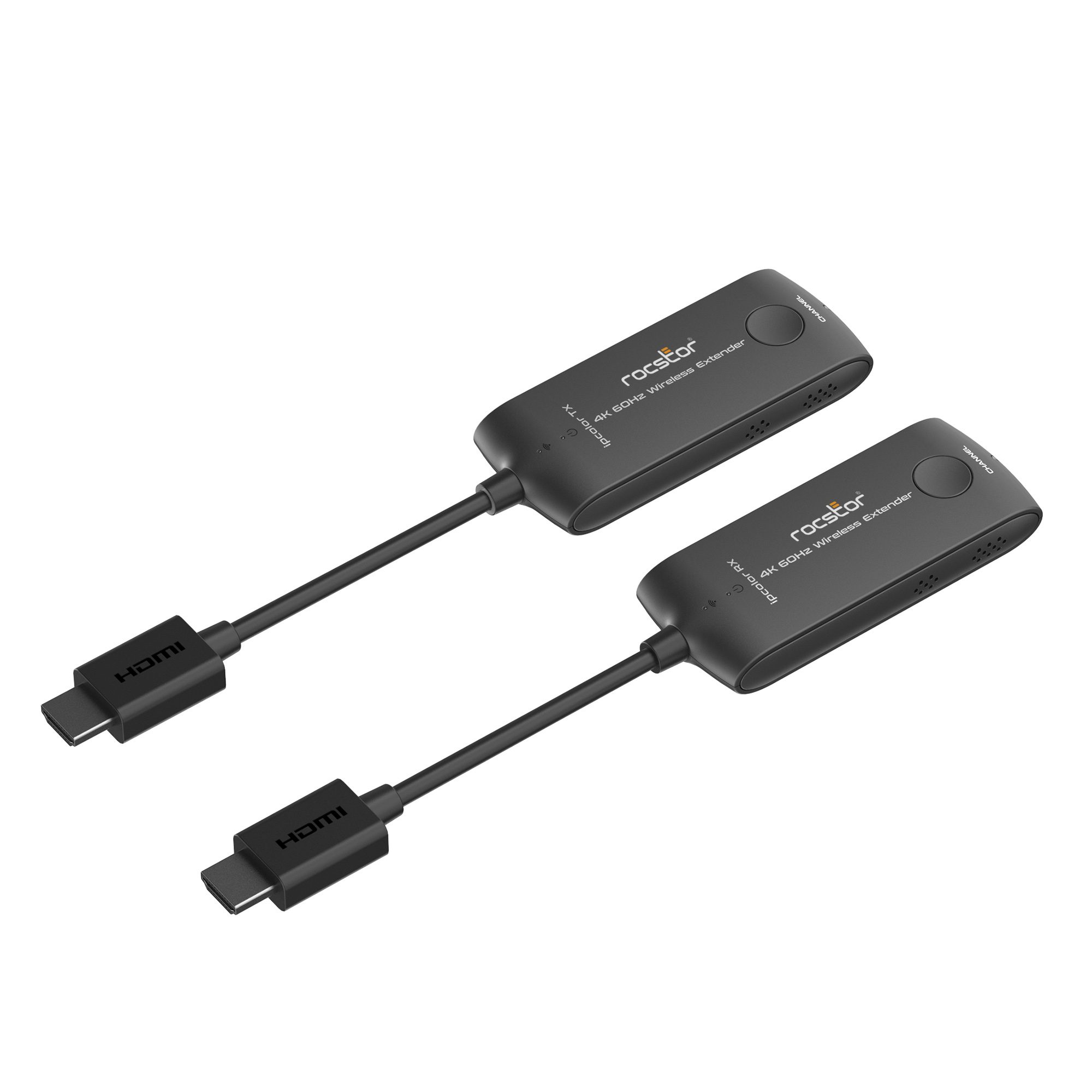

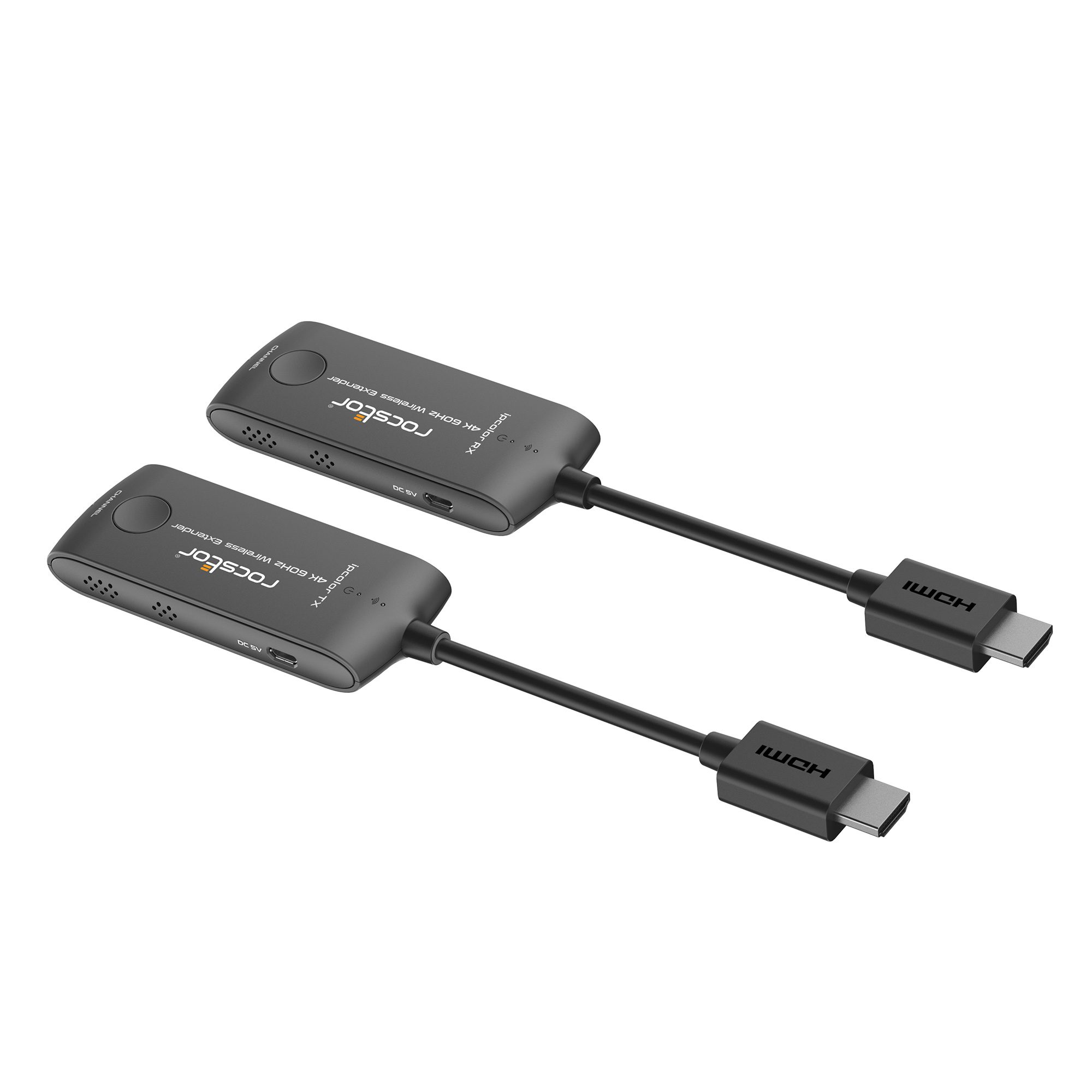

TrueReach Mini Portable HDMI over Wireless Extender 4K@60Hz 65ft (20M) (1) HDMI Transmitter & (1) HDMI Receiver Kit - Black
