| Specification | Transmitter | Receiver |
| Video Signal | ||

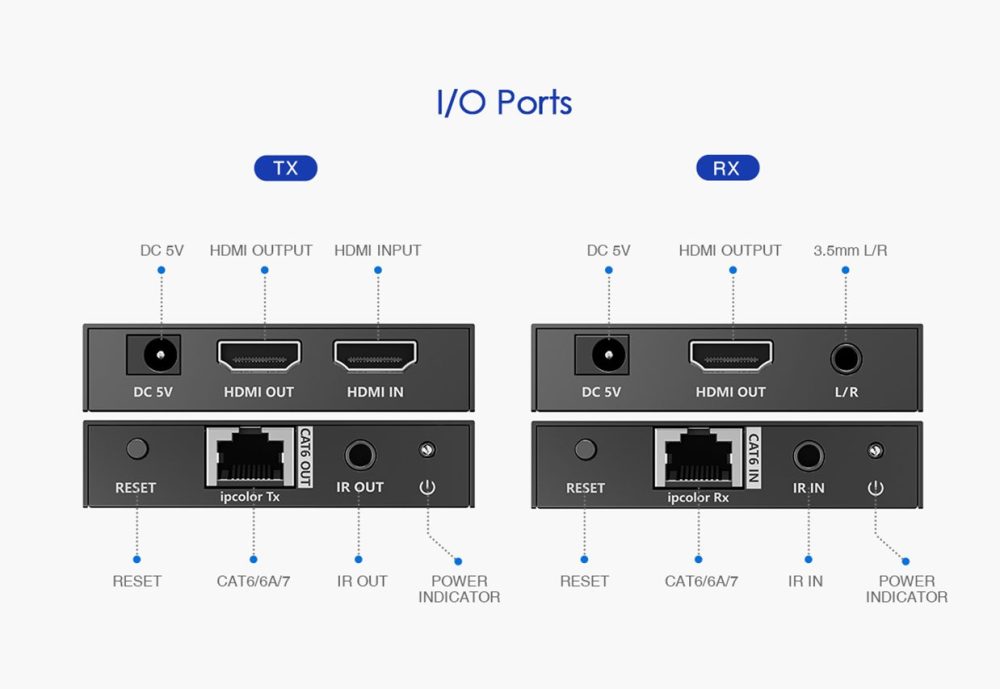

| Input | 1xHDMI Type A, Female | N/A |
| Output | 1xHDMI Type A, Female | 1xHDMI Type A, Female |
| HDMI Cable | 3-5m | 3-5m |
| Max Transmission Rate | 18Gbps | |
| Max Transmission Bandwidth | 600MHz | |
| EDID Pass back | Support | |
| Compatibility | HMDI2.0（Deep color/4K/HDR/YUV4:4:4） | |
| HDCP2.2 | ||
| Resolution | 4096x2160@24/25Hz、3840x2160@24/25/30/50/60Hz、1080i@50/60Hz、1080p@50/60Hz、720p@50/60Hz、480i@60Hz、480p@60Hz、576i@50Hz、576p@50Hz 1280x960、1280x800、1280x768、1680x1050、1360x768、1366x768、1600x900、1024x768、800x600 |
|
| Network | 1xRJ-45, Female | 1xRJ-45, Female |

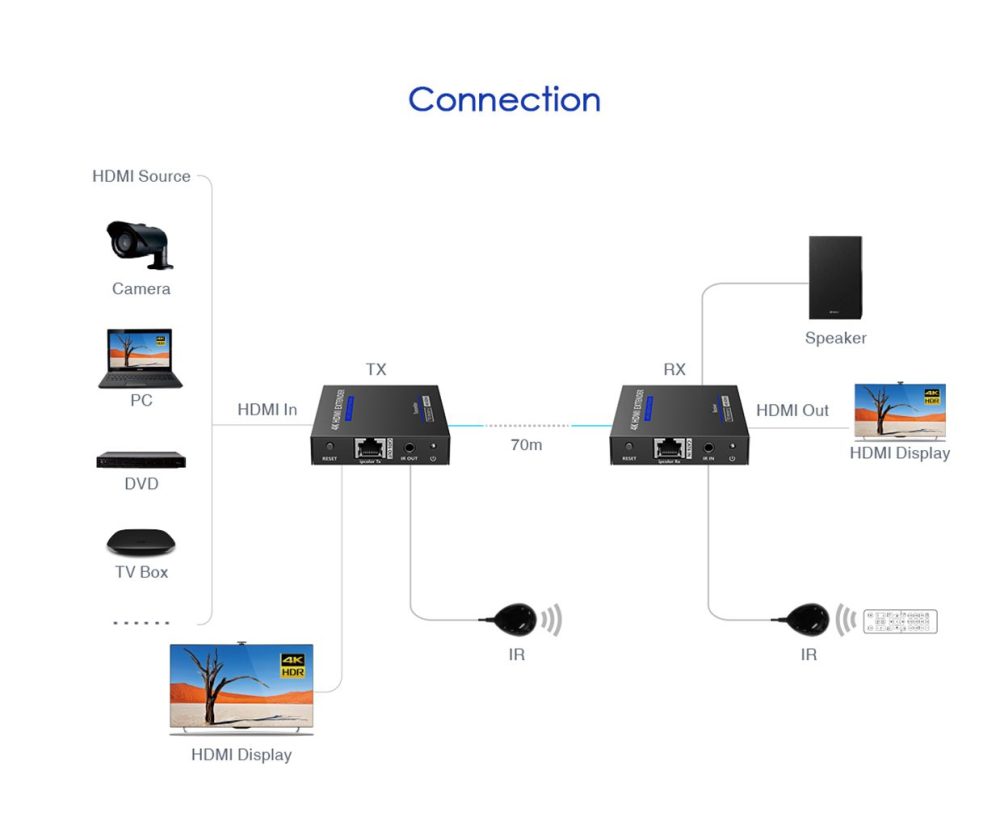

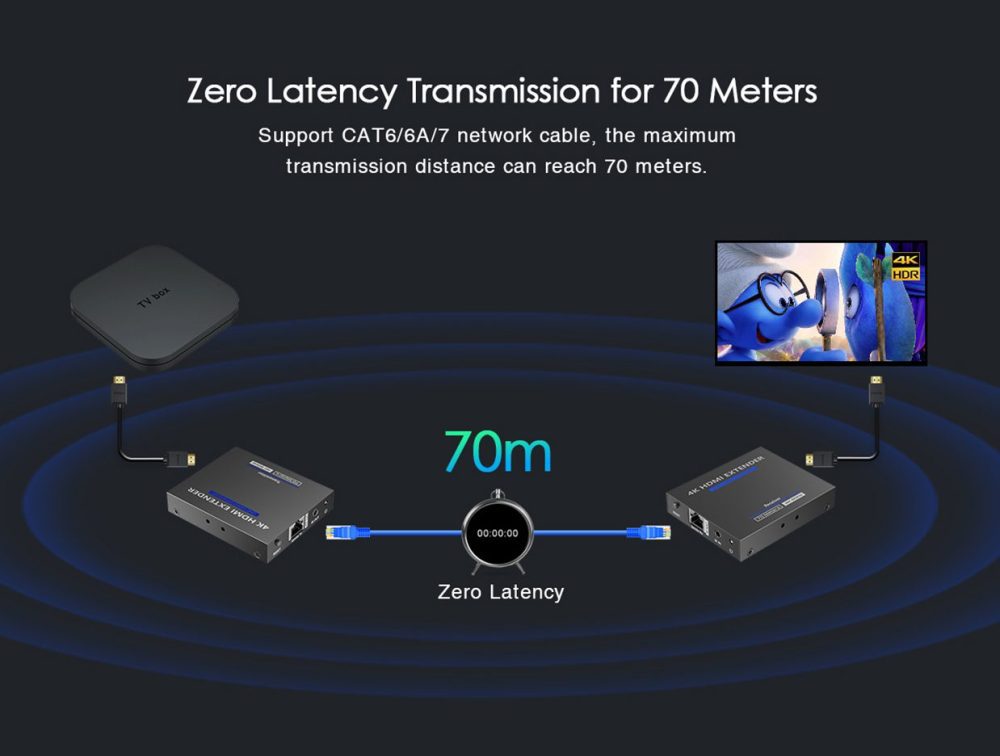

| Distance | CAT6/6A/7≤70m | |
| Audio Signal | ||
| Input | 1xHDMI Type A, Female | N/A |
| Output | 1xHDMI Type A, Female | 1xHDMI Type A, Female 1x3.5mm jack, Female |
| Formats | LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos | |
| Control Signal | ||
| IR Interface | 1x3.5mm IR OUT, Female | 1x3.5mm IR IN, Female |
| Range | ＜5m | |
| Frequency | 20-60KHz | |
| Power Supply | ||
| Interface | 1xDC5V_2.1 jack, without thread | |
| Voltage | DC5V/1A | DC5V/1A |
| Working Power | ＜3W | ＜3W |
| Operating Environment | ||
| Operating Temperature | -20～60℃ | |
| Storage Temperature | -30～70℃ | |
| Humidity | 0～90%(No Condensation) | |
| Physical Properties | ||
| Material | Iron | |
| Weight | 140g | 140g |
| Colour | Black | |
| Size | 80.0(L) x 75.5(W) x 16.5(H) mm | |
| Static Protection | ESD Protection 1a Contact discharge 2 Level（±4KV） 1b Air discharge 3 Level（±8KV） Standard：IEC61000-4-2 |
|
| Lighting protection, Surge protection | ||
| Certification | FCC/CE/RoHS | |
| Rack-mounted | Support | |
Y10G001-B1
TrueReach 4K@60Hz HDMI KVM Extender over CAT6/CAT6a/Cat7 Ethernet Cable – Supports USB KVM (keyboard, mouse & Touch Screen) – 4K 60Hz up to 230ft (70m) – Zero Latency – Point to Point Extender – ipColor Image Technology – Supports (4:4:4/4:4:2) 18Gbps, IR, HDR, KVM, ARC, S/PDIF port, HDMI loop-out on TX – Includes HDMI Transmitter and Receiver (Kit) – IR Pass-through; Metal housing – Black
