Technical Transmitter-TX Receiver-RX
HDMI compliance HDMI1.3
HDCP compliance HDCP1.4
Transmission meduim network cable
Transmission distance CAT5:80m,CAT5e:100m,CAT6:120m
Video bandwidth 18Mbps(10.2G)
Video support 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
Audio support PCM
InputTMDS signal 0.7~1.2Vp-p
InputDDC signal 5Vp-p
RS232 support no
POE support no
Multiple receiver connection yes (one TX to unlimited RX)

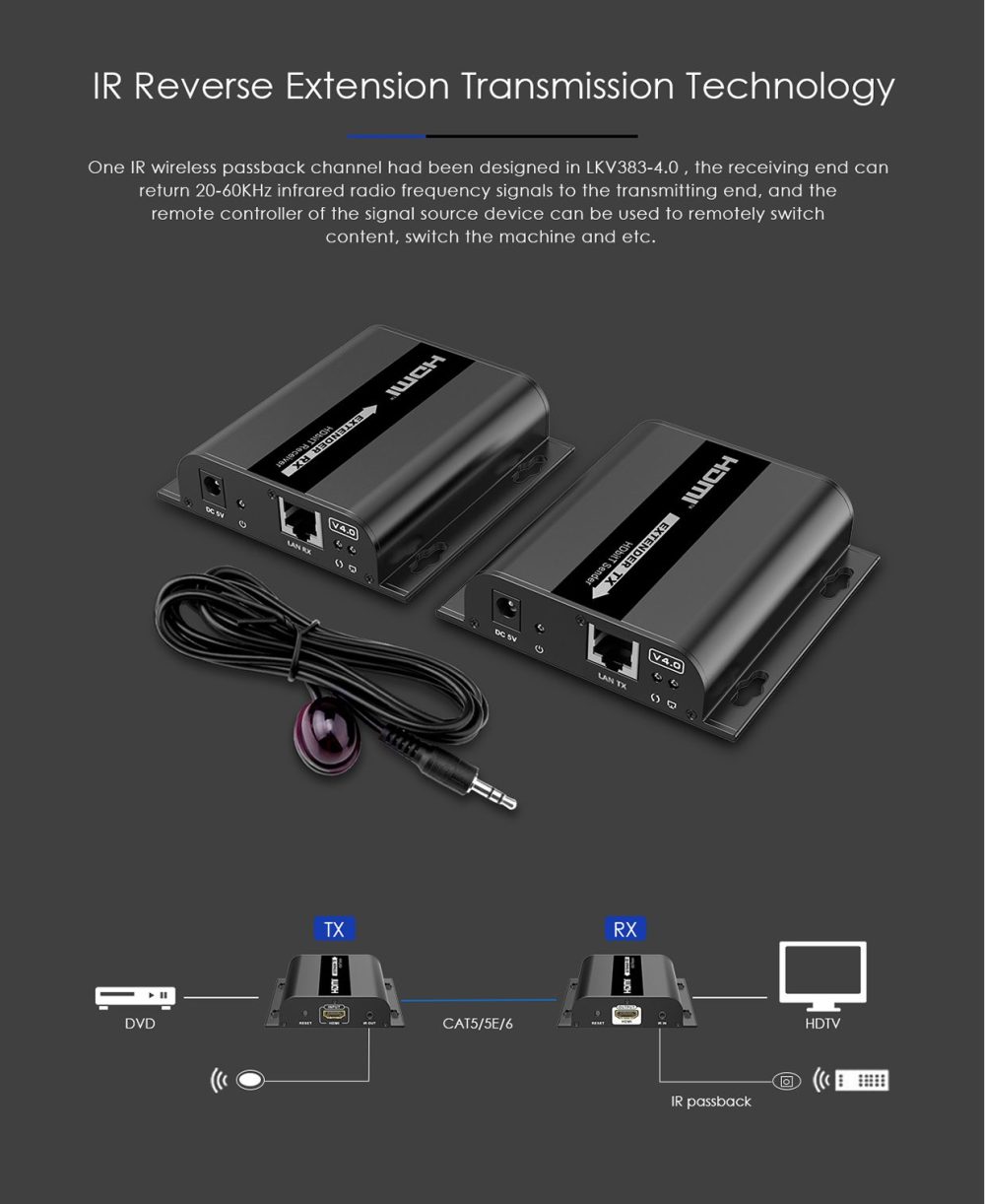

IR passback yes
IR frequance Range(KHz) 20-60Khz
Input 1×HDMI; DC2.1; DC2.1, RJ45 ×1,  3.5mm Audio F ×1 (IR)
Output RJ45 ×1, 3.5mm Audio F ×1 (IR) 1×HDMI
HDMI source control Controllable via IR passback from RX to TX
HDMI conector Type A 19 Pins,Female
Mechanical Transmitter-TX Receiver-RX
Housing Metal enclosure
Dimensions(L×W×H mm) 96.8×94×23.7mm
Net weight TX: 145g RX: 142g
Power supply 5V/1A
Power consumption 3.5W 3W
Protection Lightning Protection, Surge Protection, ESD protection
Operation temperaure 0~60℃
Storage temperature —20~70℃
Relative humidity 0~95%(no condensation)


The Rocstor TrueReach HDMI extender, extends the transmit length of HDMI Visual/Audio up to 120m(394ft) with single network cable. Supports IR signal transmission, to control media playback of the signal source device at the display location.
