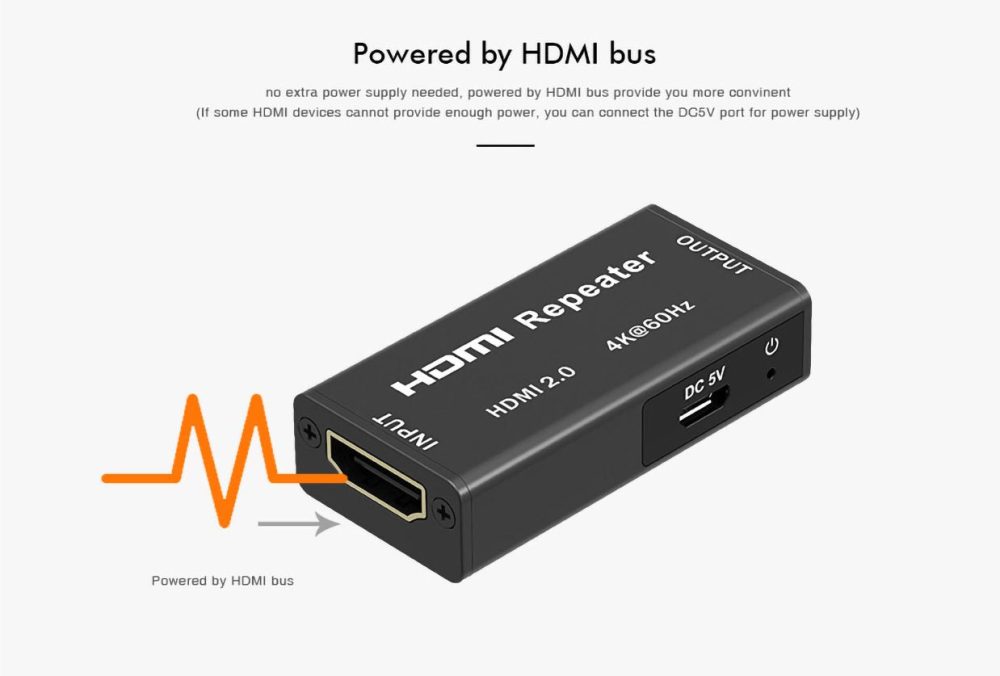

| Power Supply | Voltage/current | Can be powered by input sources through HDMI port (when the transmission / connection is not stable, or the output is not fluent, please use external Micro USB power spply) |
| Power consumption | ＜2.5W | |
| HDMI performance and interface |
HDMI compliance | HDMI2.0 |
| HDCP compliance | HDCP2.2 | |
| HDMI input / output resolution | 480i@60Hz、480p@60Hz、 576i@50Hz、576p@50Hz、 720p@50/60Hz、1080i@50/60Hz、 1080p@50/60Hz、4K×2K@24/25/30/60Hz |
|
| Transmission distance | 4K×2K@60Hz | 25 meters(AWG22 standard HDMI cable) |
| 4K×2K@30Hz | 30 meters(AWG24 standard HDMI cable) | |
| 1080P | 40 meters(AWG24 standard HDMI cable) | |
| Protection level |
Electrostatic protection of the whole machine |
1a Contact discharge level 3 1b Air discharge level 3 Implementation of the standard: IEC61000-4-2 |
| Operating environment |
Working temperature | 0～50℃ |
| Storage temperature | -10～70℃ | |
| Humidity (no condensation) | 0～90% | |
| Body properties | Dimension | 53.0(L) x 25.9(W) x 12.7(H)mm |
| Material | Aluminum alloy | |
| Colour | Black | |
| Weight | 37g |
Y10G003-B1

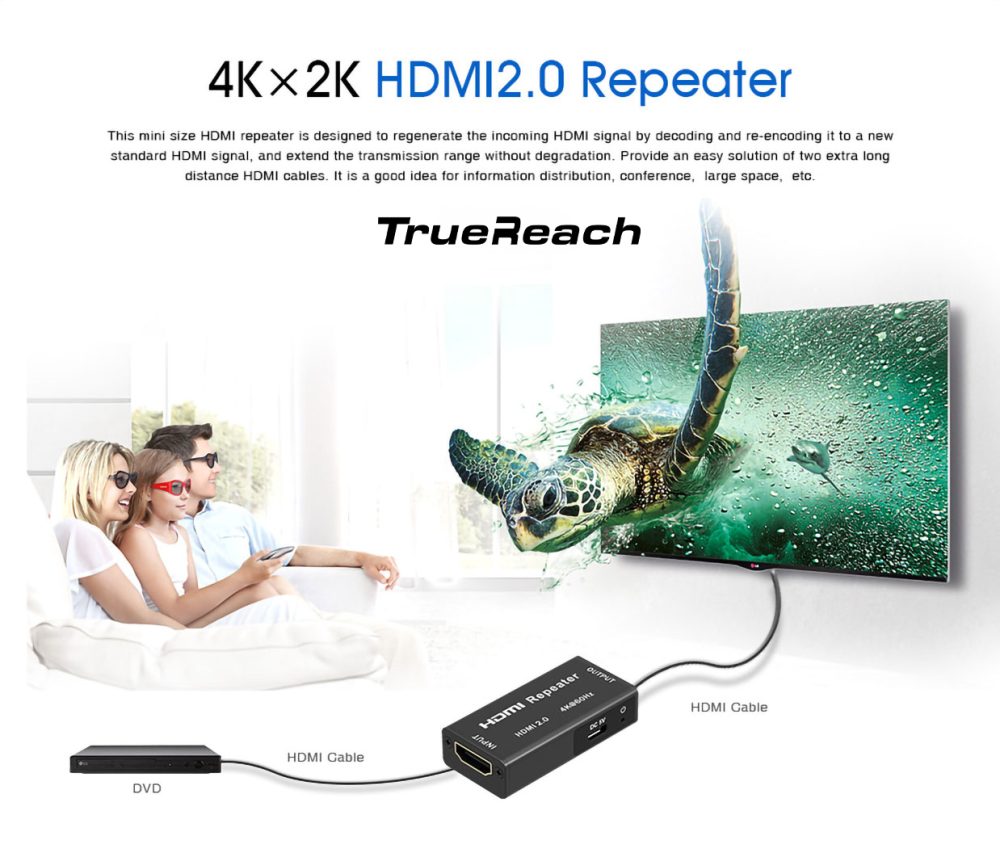

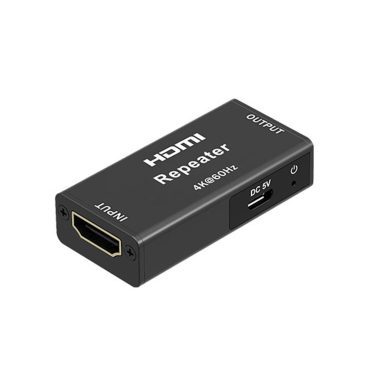

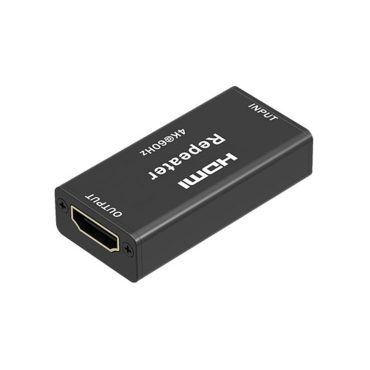

Rocstor TrueReach 4Kx2K HDMI Repeater Extender - HDMI2.0 Signal Booster & Video Amplifier - Up to 132 ft (40m) 1080p, 4K@30Hz 98ft (30m), 4K@60Hz 82ft (25m) Transmission Distance - HDCP 2.2 & 7.1 Audio Support - Powered by HDMI bus, no AC required- Extend HDMI signal - Aluminium - Black
