| Technical | Transmitter-TX | Receiver-RX |
| Voltage | Power by the signal source | DC 5V500mA |
| Power consumption | TX < 3W | RX < 3W |
| HDMI version | HDMI 2.0 | |
| HDCP version | HDCP 2.2, HDCP 1.4 | |
| Max transmission rate | 18Gbps | |
| Resolution | 1280x720, 1280x960, 1366x768,1440x900, 1680x1050, 1920x1080,1920x1200, 720p@50/60Hz,1080i@50/60Hz, 1080p@24/25/30/50/60/120Hz, 2560x1440@50/60/120/144Hz,3840x2160@24/25/30/50/60/100/120Hz, 4096x2160@24/25/30/50/60Hz |
|

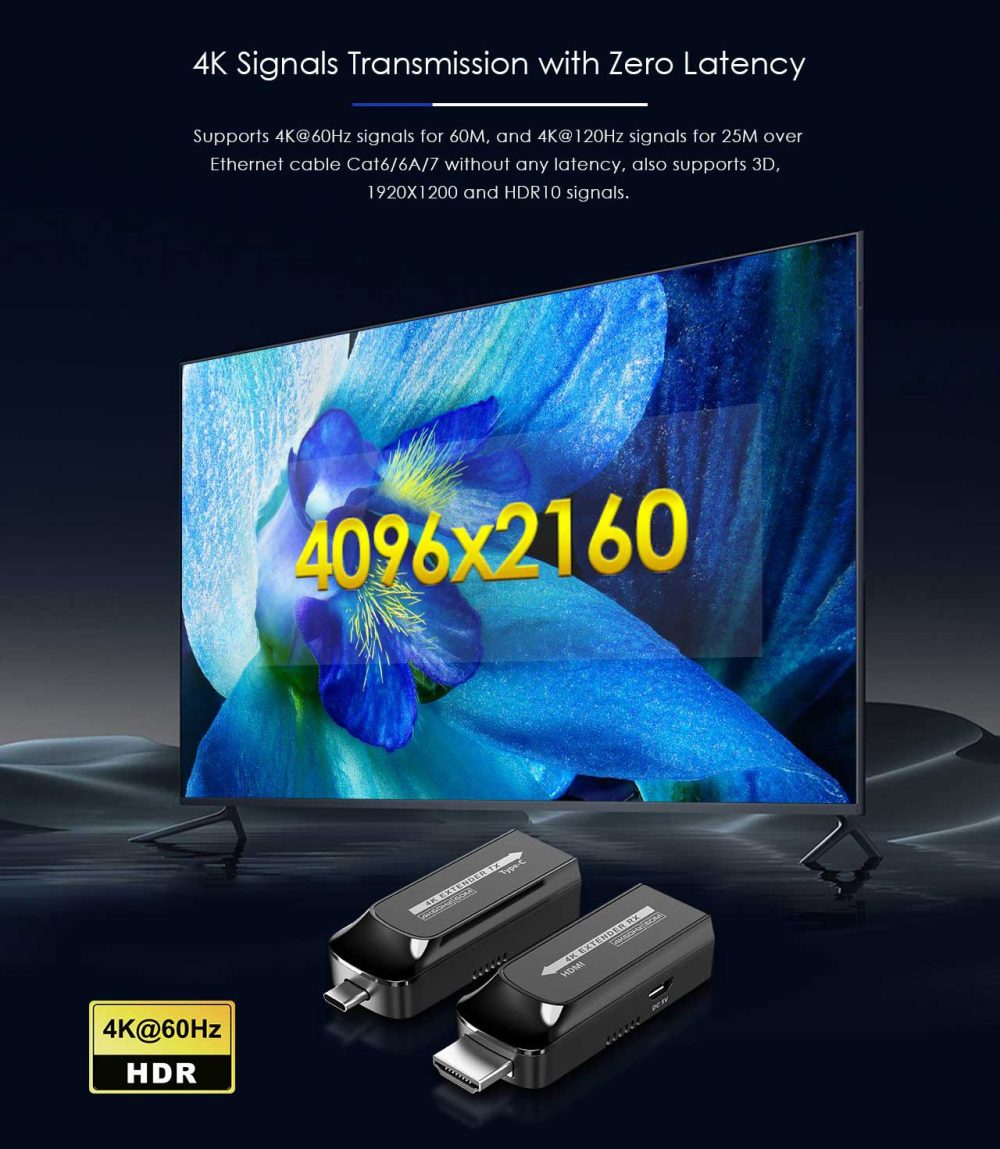

| CAT6/6A/7 Transmission distance |
4K@60Hz≤60m 2560x1440@120/144Hz ≤30m 4K@100/120Hz≤25m |
|

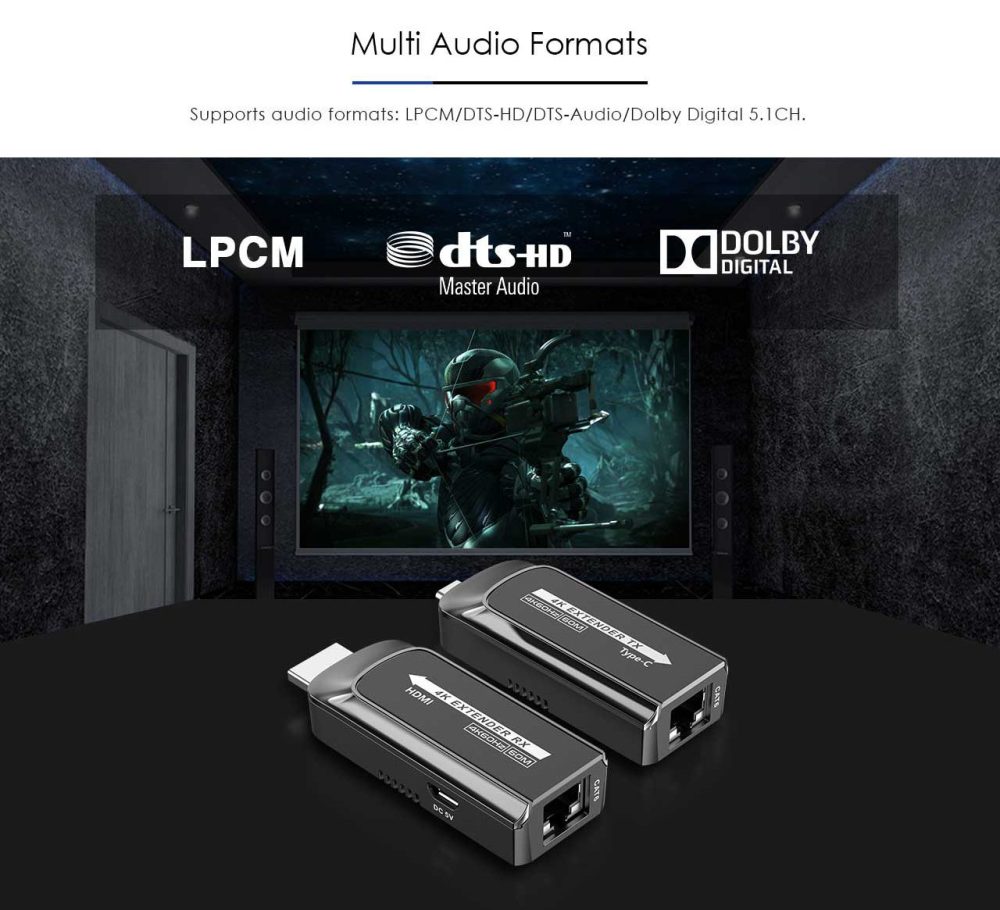

| Audio formats | PCM, DTS, Dolby | |
| TMDS signal | 0.7~1.2Vp-p (TMDS) | |
| DDC signal | 5Vp-p (TTL) | |
| HDR10 | Supported | |
| HDMI 3D | Supported | |
| EDID passthrough | Supported, auto downscaling | |
| HDMI conector | Type A, Female, 19-pin | |

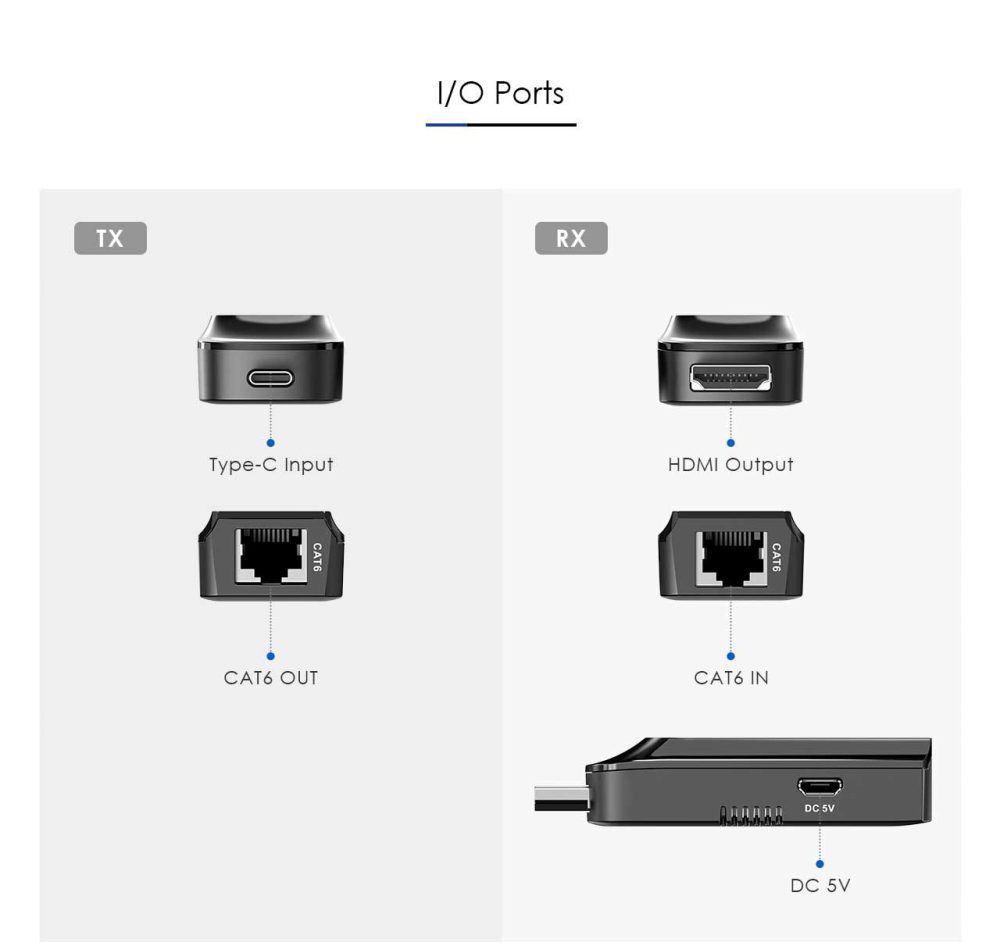

| RJ-45 connector | RJ-45 | |
| Mechanical | Transmitter-TX | Receiver-RX |

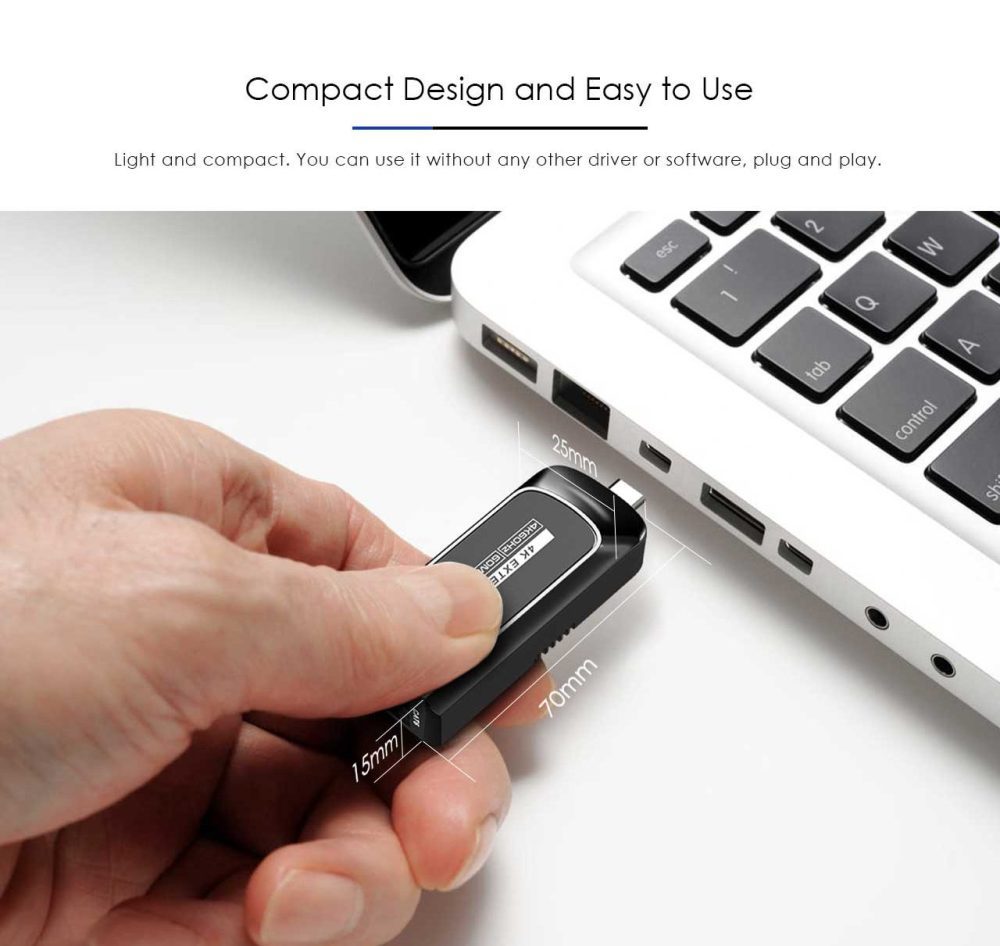

| Dimensions(L×W×H mm) | 71.5 (L) x 26.0 (W) x 15.0 (H) mm | 71.5 (L) x 26.0 (W) x 15.0 (H) mm |
| Net weight | 17g | 17.5g |
| Housing | ABS | |
| Color | Black | |
| Working temperature | -20~55℃ | |
| Storage temperature | -30~60℃ | |
| Humidity | 0~90%RH (no condensation) | |
| ESD protection | 1a Contact discharge level 2 (±4KV) 1b Air discharge level 3 (±8KV) Implementation of the standard: IEC61000-4-2 |
|
