| Technical | Transmitter-TX | Receiver-RX |
| HDMI compliance | 1.3 | |
| HDCP compliance | 1.4 | |
| Video bandwidth | 225MHz(10.2Gbps) | |
| Video support | 800x600、1024x768、1280x720、1280x960、1366x768、1440x900、1680x1050、1920x1080、480i@60Hz、480p@60Hz、576i@50Hz、576p@50Hz、720p@50/60Hz、1080i@50/60Hz、1080p@24/25/30/50/60Hz | |
| Audio support | PCM、LPCM、DTS-HD、DTS | |
| InputTMDS signal | 1.2Vp-p | |
| EDID through | Support | |
| IR passback | Support | |
| IR frequance Range（KHz） | 20-60KHz | |

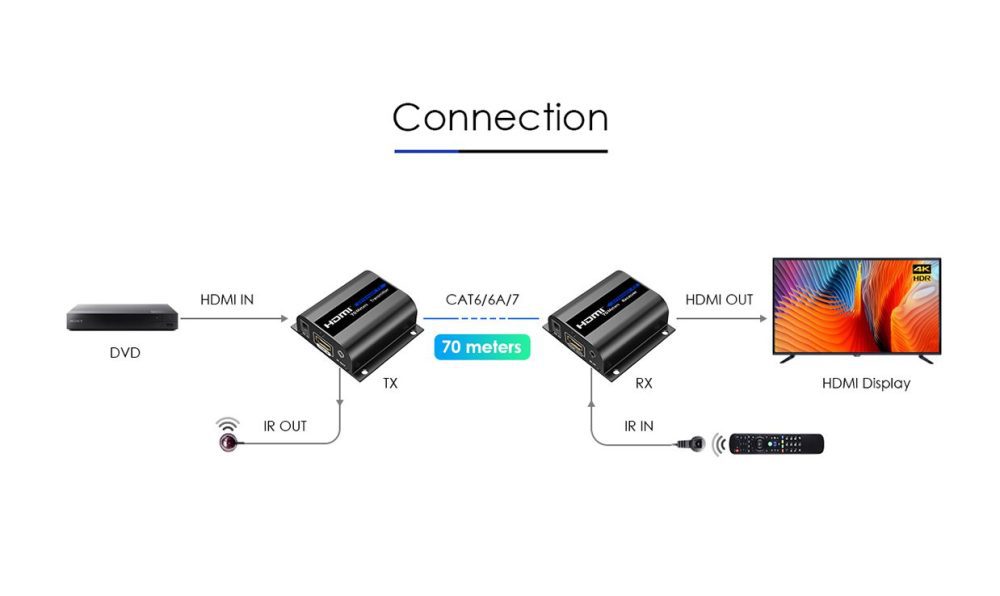

| Input | 1×HDMI | 1×RJ45, 1×3.5mm(IR) |
| Output | 1×RJ45, 1×3.5mm(IR) | 1×HDMI |
| HDMI conector | Type A, Female, 19-pin | |
| RJ-45 connector | RJ-45 | |

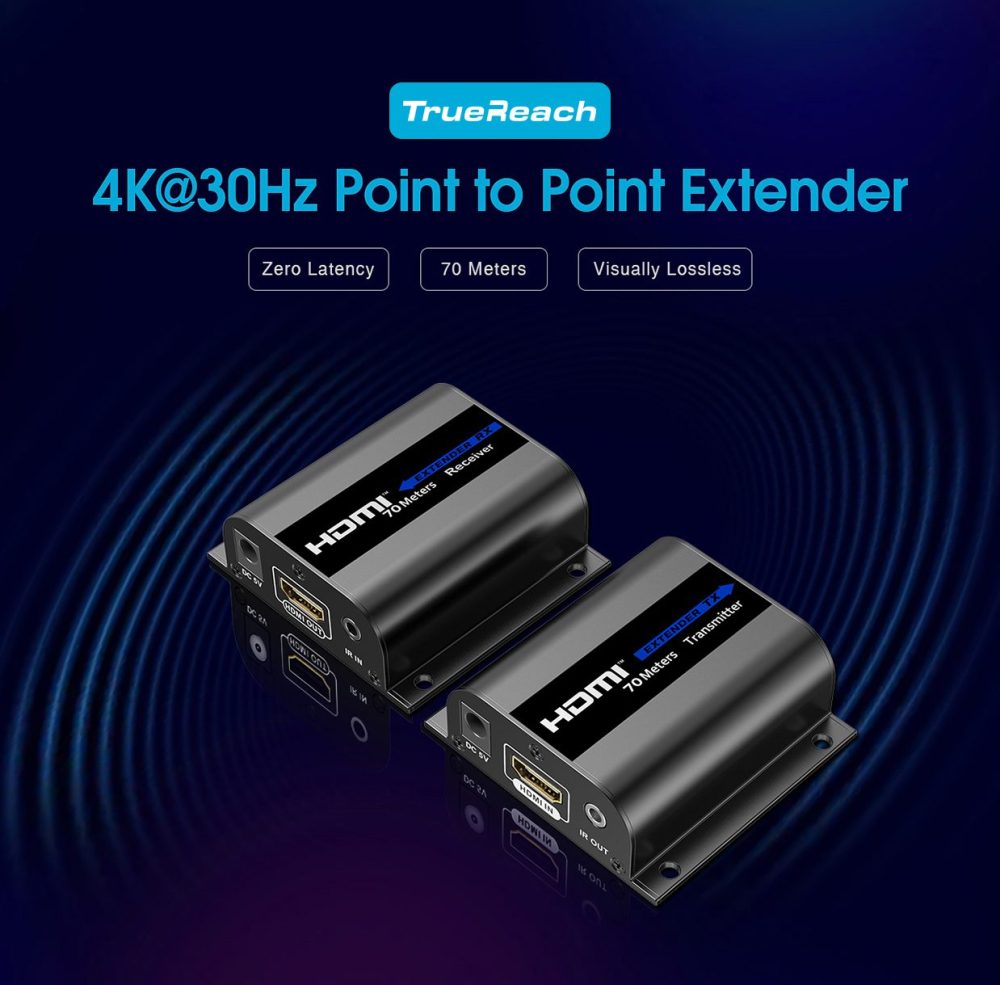

| Mechanical | Transmitter-TX | Receiver-RX |
| Housing | Metal enclosure | |
| Dimensions(L×W×H mm) | 71.6×66.6×24.8mm | 71.6×66.6×24.8mm |
| Net weight | 85g | 85g |
| Fixedness | wall-mounting case with screws | |
| Power supply | 5V/500mA | |
| Consumption | <1.5W | <1.5W |
| Operation temperaure | —20~60℃ | |
| Storage temperature | —30～70℃ | |
| Relative humidity | 0～90%(non-condensing) | |
