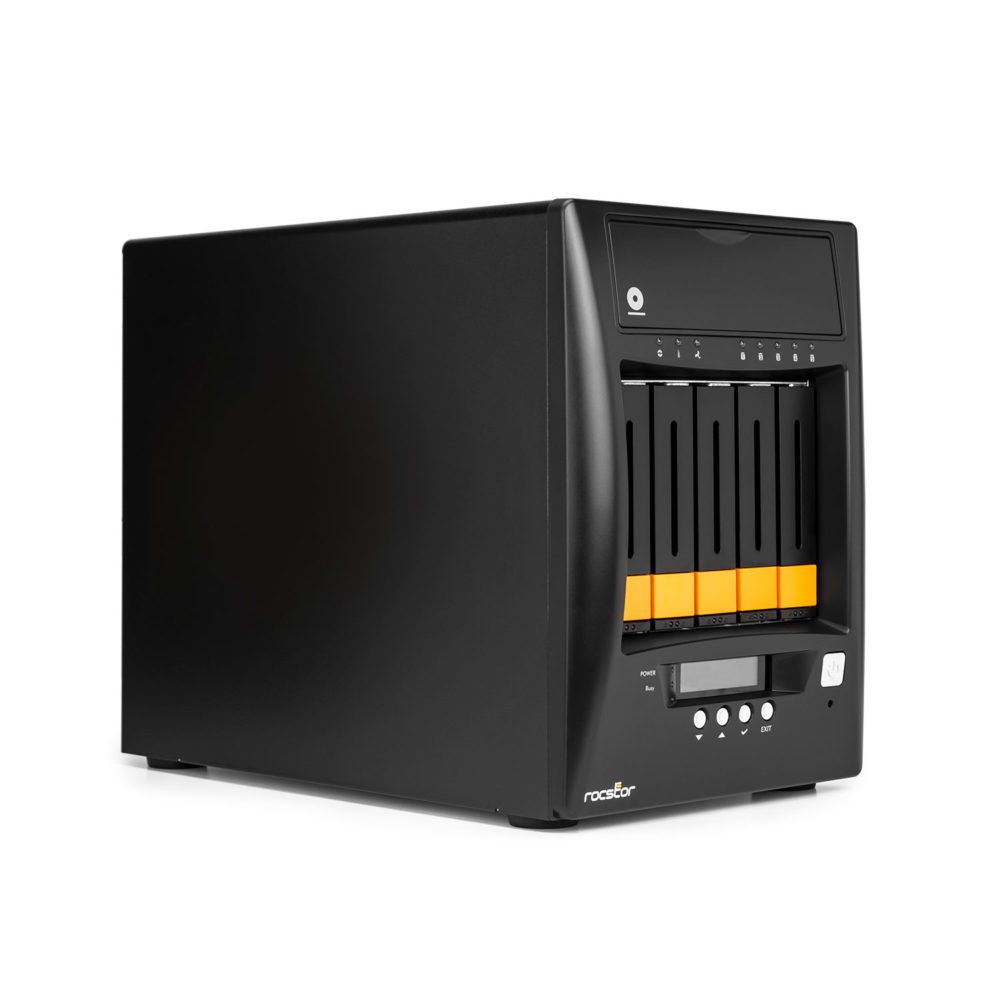

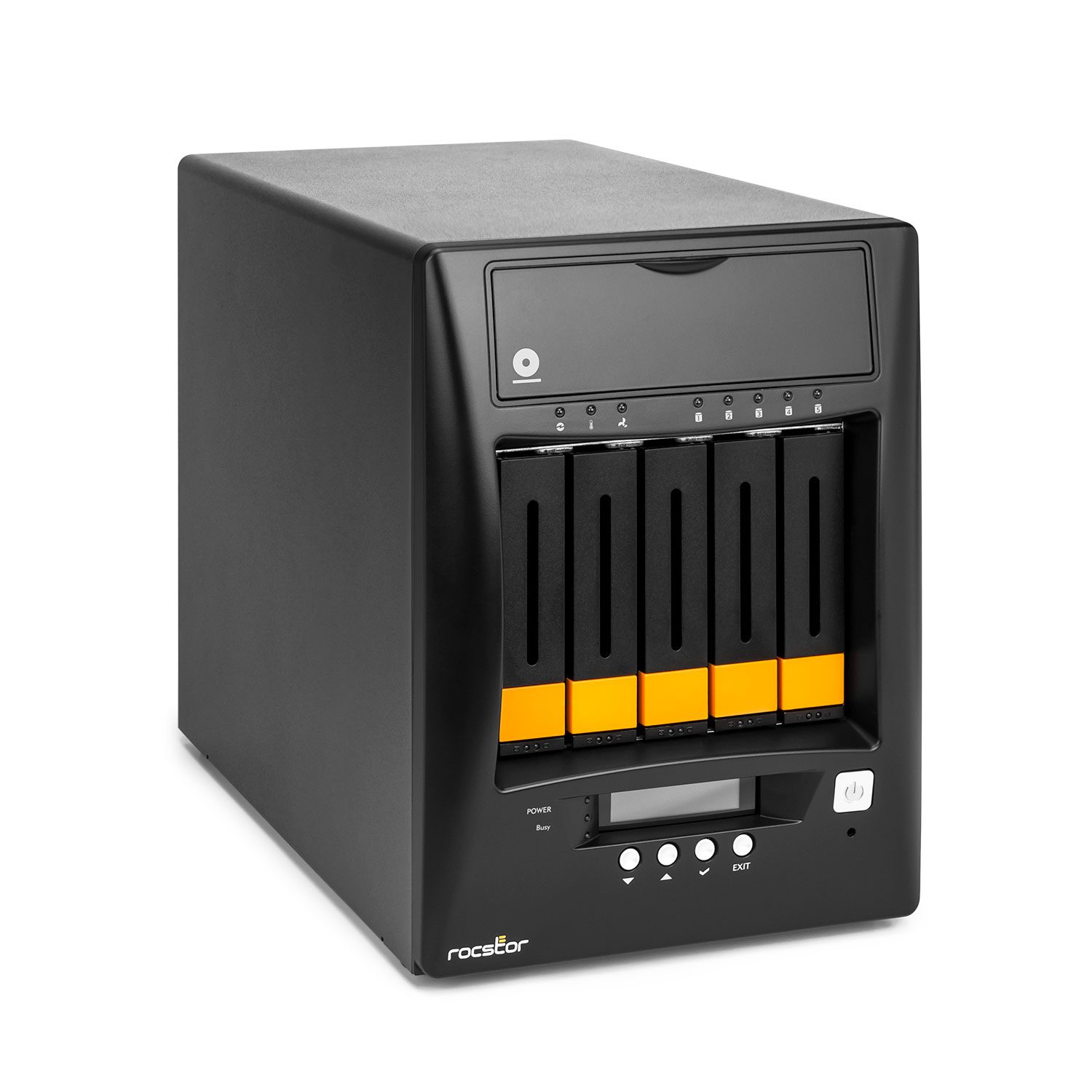

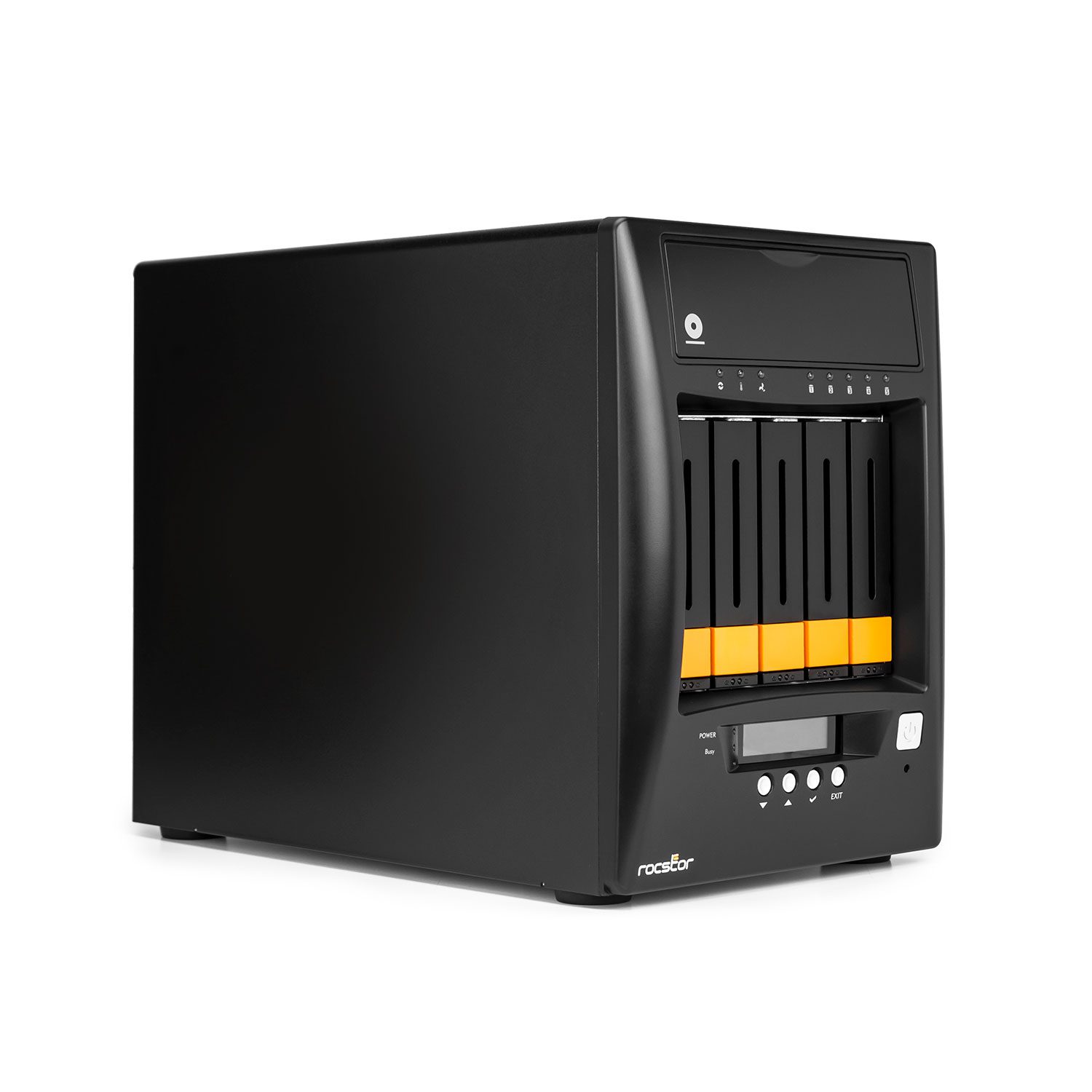

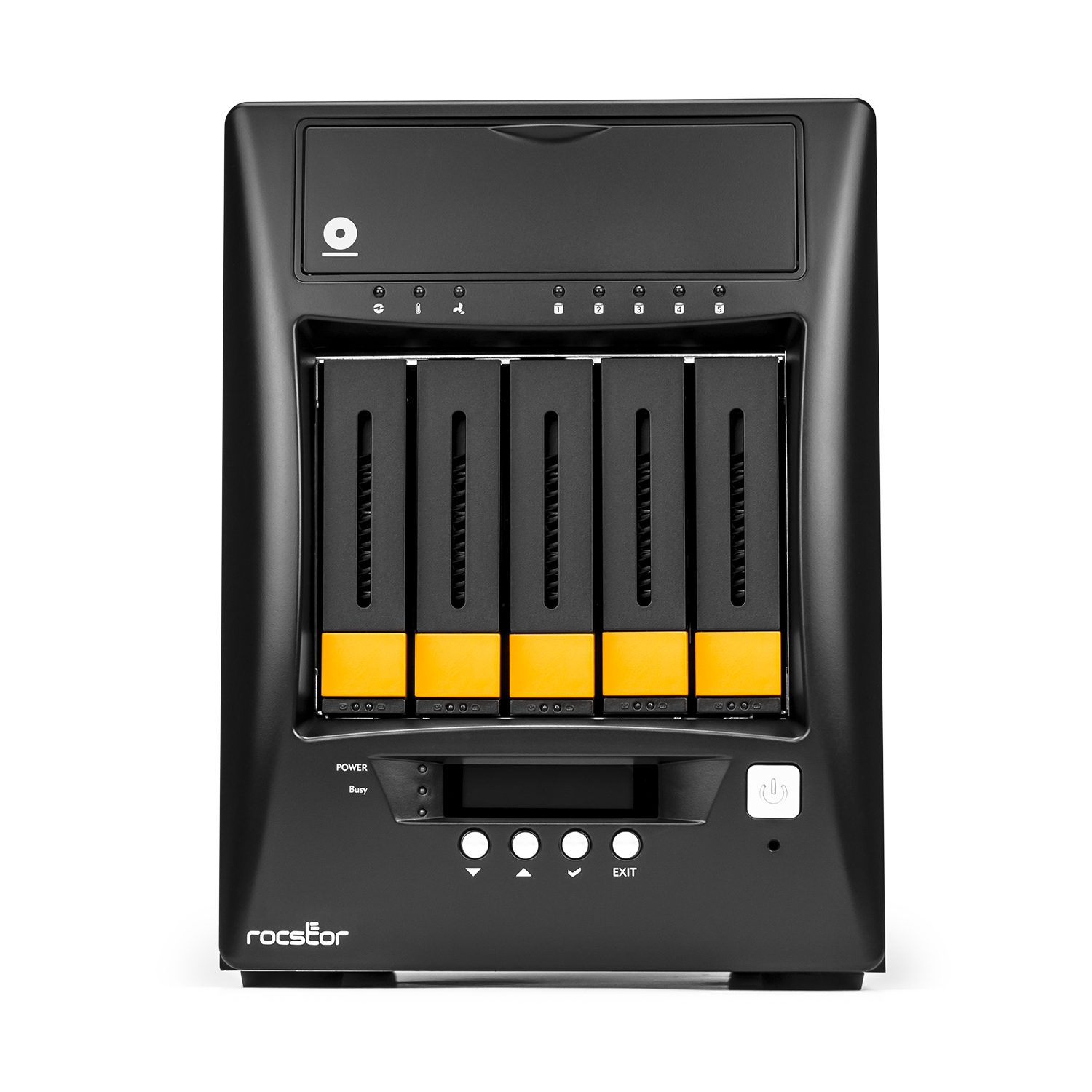

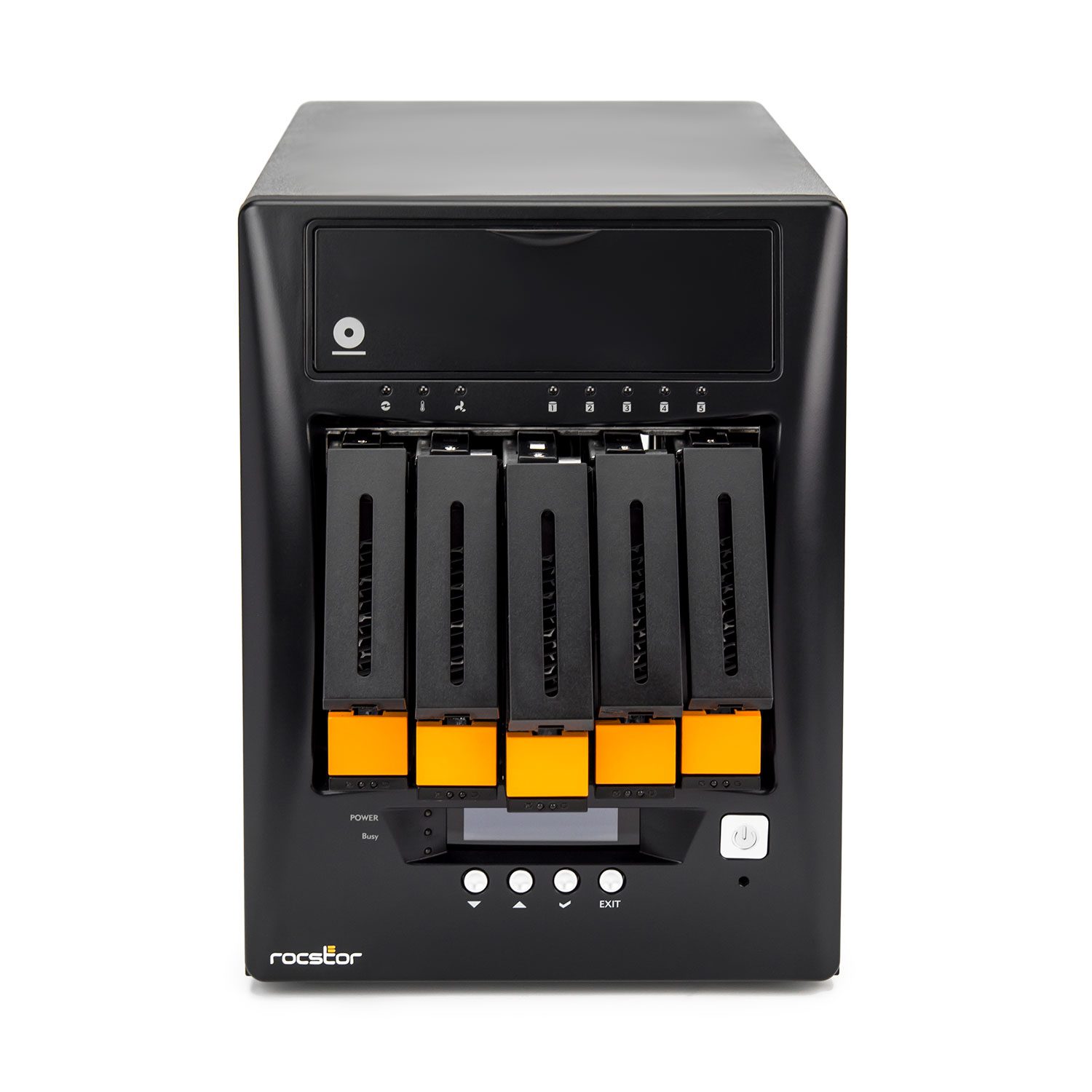

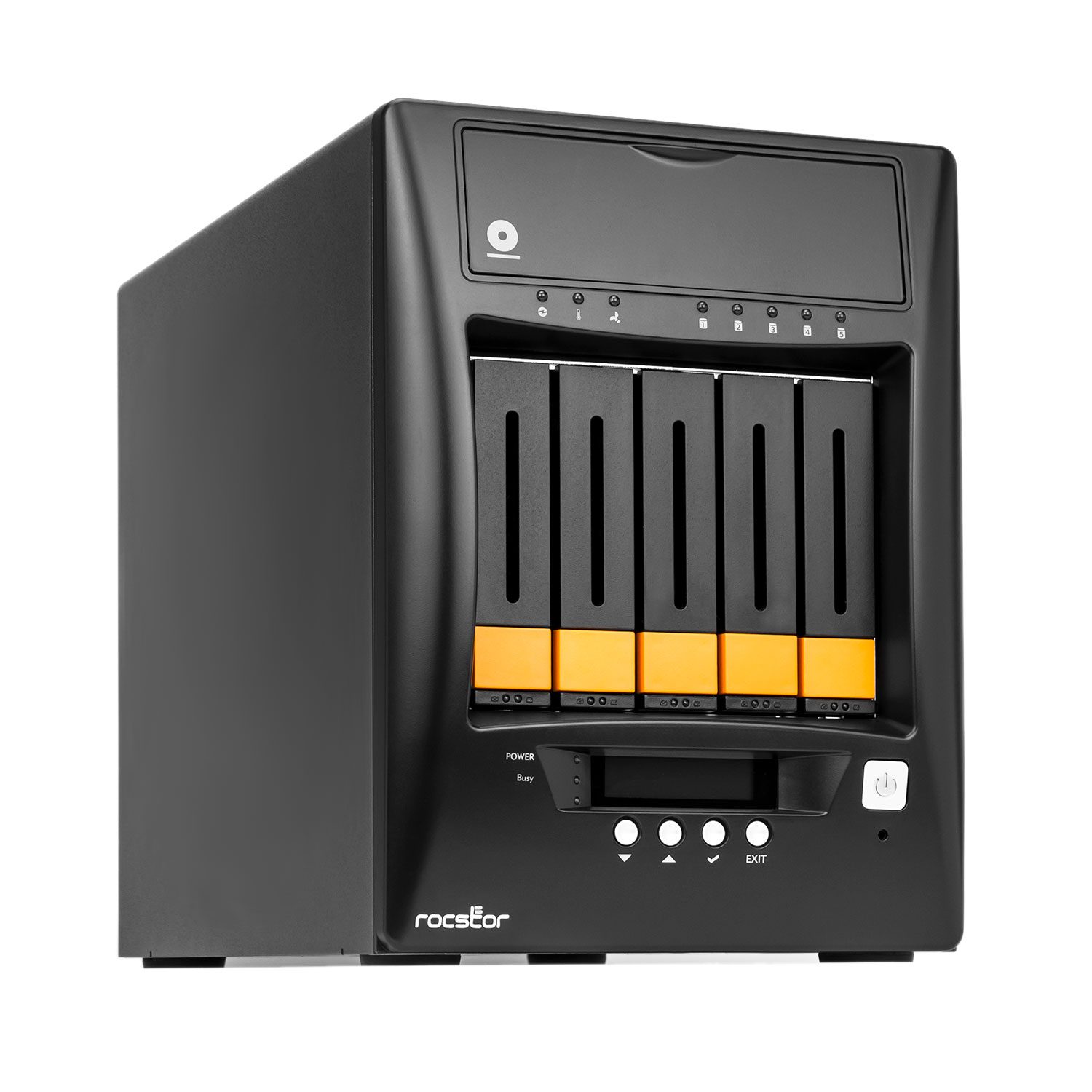

Enteroc® N57 NAS Desktop
Desktop NAS Solution for workgroups, small businesses, and remote offices.
Easy to deploy and easy to manage, the Enteroc® NAS N57 Desktop delivers a Powerful 5-Bay NAS solution with Intel® Core™ i3, i5, i7 & i9 Processor. This versatile NAS storage is for workgroup, small businesses, and remote offices. Just plug it in for instant storage – wherever you need it, whenever you need it. The N57 is designed to support all your existing multi-protocol clients and drive down the cost of storage. It gives you an immediate, low-cost solution to your complex storage needs.
Intel® Core™ i3, i5, i7 & i9 processor for exceptional performance
Enteroc N57 is powered by Intel® Core™ i3, i5, i7 & i9 processor CPU and 8GB DDR4 SDRAM memory module with expandability to 32GB. This desktop NAS storage is a powerful solution designed for SMB complex storage needs.
Redundancy in its core

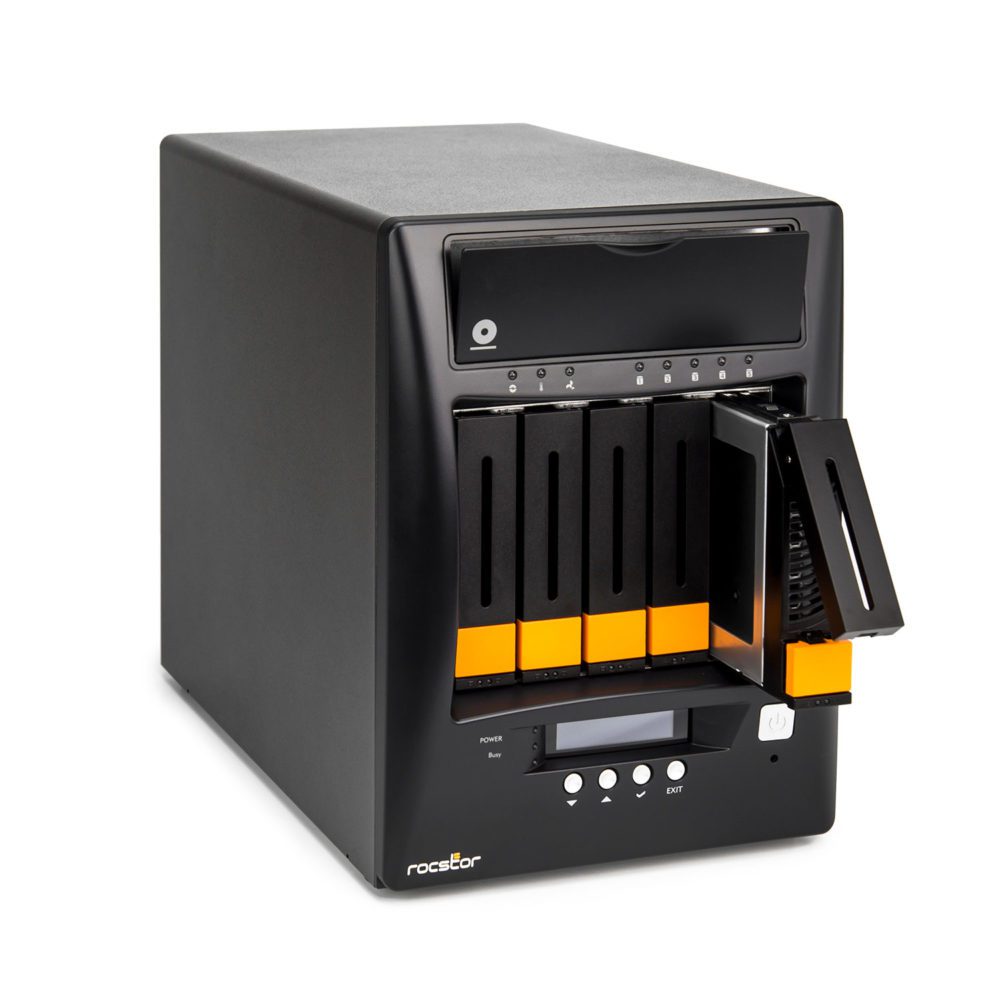

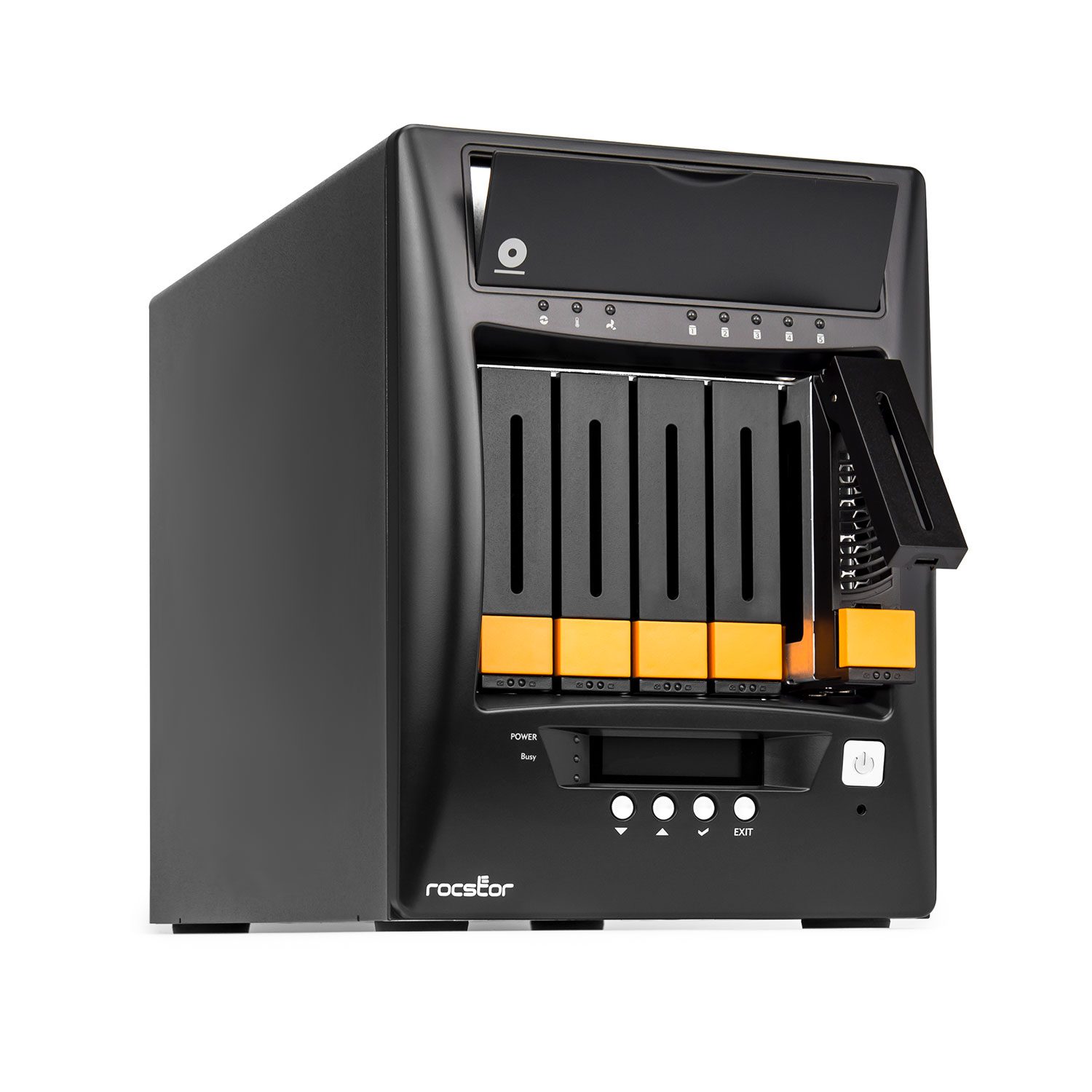

Enteroc N57 supports RAID 0, 1, 5, 6, 10 and Linear (JBOD). With up to Five (5) 2.5” or 3.5” hot-swappable 6Gb/s SATA3 drives. With different RAID settings, rest assured the N57 is at work to provide you a reliable redundancy and protection on your valuable data.
Built-in backup and data protection
Enteroc N57 includes a fully-featured backup solution including manual or scheduled backup for file, folder, and shared files. It can be backup and restore from multiple local or remote devices. The N57 features volume clone, snapshot, remote replication, and data copy options which are all designed to ensure and enhance your valuable data.
• Volume Clone (EXT3/EXT4/XFS/NTFS/VMFS/ZFS)
• Symantec BackupExec Agent (by additional installation)
• Scheduling multi-snapshot (Support iSCSI snapshot)
• Replication (Remote realtime data mirroring)
• Scheduling Rsync Replication
• Support NetVault backup client (by additional installation)
• Support CA ARCserve (by additional installation)
• Data copy (copy files to other share/attached storage)
• Scheduling backup
• Differential/incremental backup
• iSCSI Replication
• Amazon S3 backup
• backup/restore from attached storage
• (USB/eSATA/iSCSI/RDX*/USM*)
• Support Apple Time Machine
Compression and Deduplication Advance Features
Entroc N57 features a robust Data Deduplication option which is a method of reducing storage needs by eliminating redundant data. Only one unique instance of the data is actually retained on storage media. Data Compression is also a feature of N57 which provides a reduction in storage hardware, data transmission time and communication bandwidth, hence resulting in data storage cost savings. Both support on ZFS file system.
Rocstor® ProNAS® OS and Disk Manager
Rocstor ProNAS OS and Disk Manger is a powerful and full featured enterprise NAS operating system which provides configuring and managing your NAS data infrastructure easy. ProNAS delivers business featured options that are easy-to-use thru its GUI interface. Simplifying setup and management. ProNAS is built specifically for Enteroc range of NAS storage and delivers optimal performance, reliability and efficiency.
Rocstor® Enteroc® NAS systems are built for business.
Rocstor Enteroc N57 Desktop is full featured and supports OpenLDAP, Backup/Restore from attached storage (USB/eSATA/iSCSI/RDX/USM), Backup/Restore from remote share (CIFS/NFS), Backup to Cloud (Amazon S3), VMware ESXi 5 iSCSI/NFS VAAI support, Microsoft® Windows® 98/ME/NT/2000/XP/2003/Vista/2008 /Win7/Windows 2012/Win 8 Unix/Win 10, Linux, Mac OS, iSCSI Target manager which support LUN Mapping/Initiator Filter/Thin Provisioning, Support NIC/Trunking/Load Balance/Fail Over/802.3ad, and many more for a true enterprise solution with one of the lowest Total Cost of Ownership storage solutions.
Rocstor® Enteroc® NAS are built for Virtualization
Rocstor Enteroc N57 is a perfect storage system for virtualization environments, including VMware, Citrix, and Microsoft® Hyper-V. With VMware vSphere® & VAAI for NFS integration support. N57 also supports iSCSI Target and Thin Provisioning block storage.
Unified storage system
Consolidating file data with a Rocstor Enteroc N57 Network Attached Storage (NAS) solution can easily help you to address your changing file serving needs and reduce cost of ownership – enabling simplified management, better resource utilization, and centralized growth and data protection. Enteroc N57 allows you to share files across Windows®, Mac®, and Linux® platforms efficiently and seamlessly. The N57 supports Backup/Restore from remote share (CIFS/NFS) along with TCP/IP, SMB/CIFS, NFS, SNMP, FTP/SFTP/FXP, HTTP, HTTPS, Telnet, SSH, AFP, WebDAV, Bonjour and TFTP protocols.
| Drive Type |
HDD 7200RPM ,No Drive ,SSD |
|---|---|
| Capacity |
10TB ,20TB ,30TB ,40TB ,50TB ,5TB ,60TB ,70TB ,No Drive |
| Connector Type (Interface) |
Ethernet RJ45 ,USB-A |
Specification
[table type=”table-hover”]

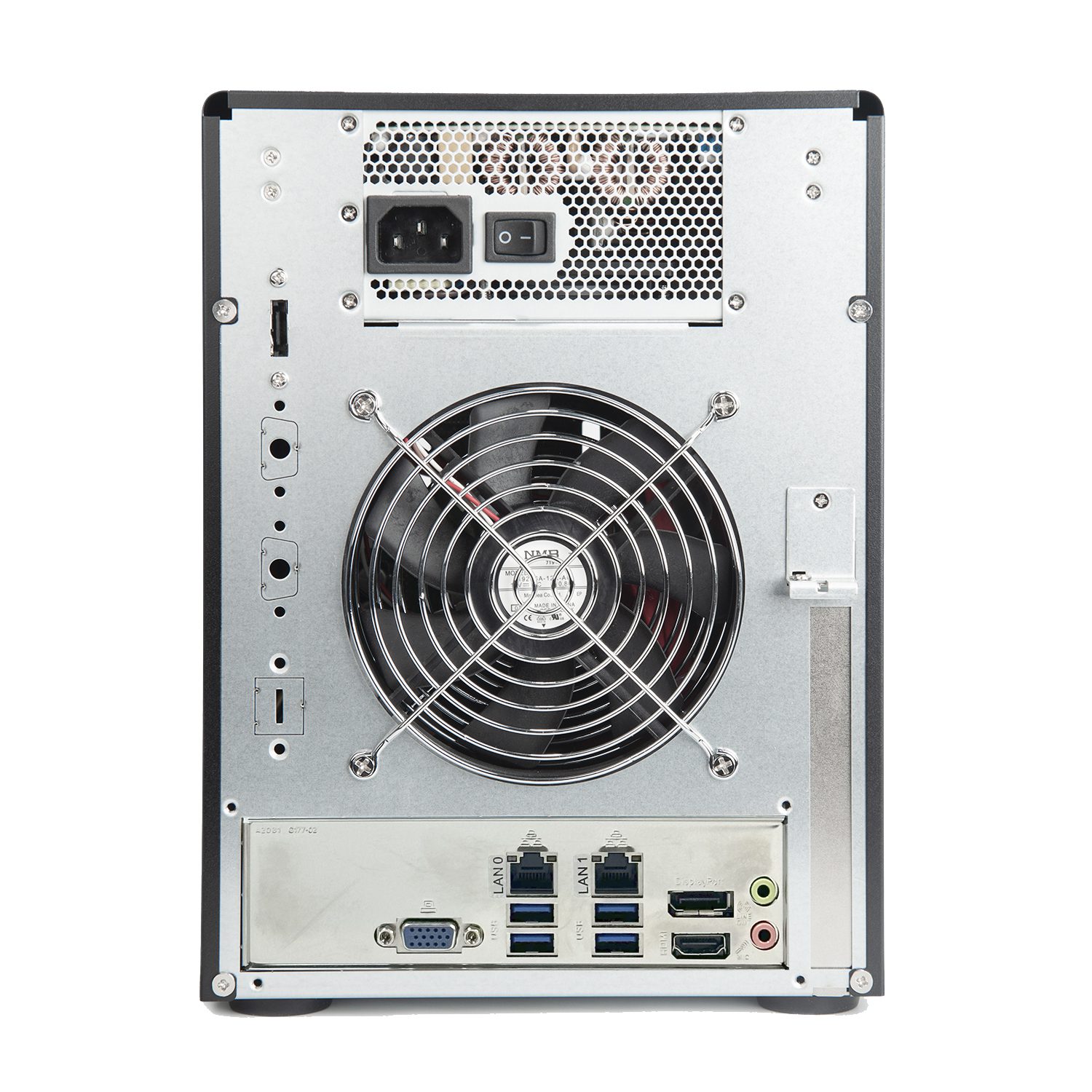

| H/W Platform | Socket LGA1200 for Intel core i9/i7/i5/i3 Pentium/Celeron(Comet lake -S) Intel Gen9.5,Intel Graphics DX12, OGL4.5 Support Dual channel DDR4 2666/2933MHz, 2 x So-DIMM up to 32G System Memory Socket LGA1200 for Intel core i9/i7/i5/i3 Pentium/Celeron(Comet lake -S 65W) 1 x HDMI2.0, 1 x DP port ,1 x Dual channel 24-bits LVDS/eDP 4 x USB3.0, 4 x USB2.0, 4 x SATA3 1 x Mini PCIe/mSATA, 1 x PCIe x16, 1 x M.2 Wifi, 1 x 2242/80 SSD slot Gigabit LAN : 2 x Intel LAN 1 x TPM IC(Optional) ATX Power Require Op temp : 0~60 degree |
| Storage Management | Volume management (Support Brfs, ZFS, XFS, EXT3 and EXT4 file system) Support Compression and Deduplication (Support on ZFS file system) Disk usage statistics Hot spare drives iSCSI Target manager: Support LUN Mapping/Initiator Filter/Thin Provisioning VAAI support for iSCSI/NFS |
| General | Independent file server Multiple language support Support UPS Support LV encryption |
| System Management | Automatic IP address configuration Web browser-based management SNMP management and notification Fail-free online firmware upgrade Unicode support Multi-node management GUI System configuration backup/restore Central management Quick wizard |
| Networking | Support NIC/Trunking/Load Balance/Fail Over/802.3ad DHCP Server/DHCP Client WINS Server Internet gateway DDNS |
| Protocols | TCP/IP, SMB/CIFS, NFS, SNMP, FTP/SFTP/FXP, HTTP, HTTPS, Telnet, SSH, AFP, WebDAV, Bonjour, TFTP |
| Client Operating Systems Support | Microsoft® Windows® 98/ME/NT/2000/XP/2003/Vista/2008/Win7/Windows 2012/Win 8/ Win10/2016 Unix/Linux Mac OS |
| Authentication | Local user account/group Microsoft NT Domain Controller (PDC) Microsoft Active Directory Authentication (ADS) Network Information Service (NIS) Support OpenLDAP service Support creating users by batch User quota management Share level security File level security User ID security for NFS Recycle bin (Samba) File access log, audit (Samba) Write Once Read Many (WORM) |
| Block Storage | iSCSI Target Support Thin Provisioning support VMware VAAI support |
| Virtualization | VMware/Citrix/Hyper-V VMware VAAI for NFS support |
| Attached Storage | ISO Mount USB/eSATA/iSCSI initiator |
| Data Backup / Restore | Volume Clone (EXT3/EXT4/XFS/NTFS/VMFS/ZFS) Symantec BackupExec Agent (by additional installation) Scheduling multi-snapshot (Support iSCSI snapshot) Replication (Remote realtime data mirroring) Scheduling Rsync Replication Support NetVault backup client (by additional installation) Support CA ARCserve (by additional installation) Data copy (copy files to other share/attached storage) Scheduling backup Differential/incremental backup iSCSI Replication Amazon S3 backup backup/restore from attached storage (USB/eSATA/iSCSI/RDX*/USM*) Support Apple Time Machine |
| Plug-in management | Anti-Virus Central management iTunes Server |
| Power requirements | AC 100V ~ 240V Full range 6A~3A, 60~50Hz |
| Relative Humidity | 10%~85% Non-condensing |
| Operating Temp | 10°C ~ 40°C (50°F ~ 104°F) |
| Physical Dimensions | 261(H) x 180(W) x 390(D)mm |
| Weight | 20Lb (without drives) |
[/table]
| Rocstor Part# | Ingram Micro | TD Synnex US | TD Synnex CA | A.B. Distributing | B&H |
| D75101-01 | nan | 5850381 | nan | ROD7510101 | |
| D75103-01 | nan | nan | ROD7510301 | ||
| D75105-01 | nan | nan | ROD7510501 | ||
| D75107-01 | nan | nan | ROD7510701 | ||
| D75109-01 | nan | nan | ROD7510901 | ||
| D75111-01 | nan | nan | ROD7511101 | ||
| D75113-01 | nan | nan | ROD7511301 | ||
| D75115-01 | nan | nan | ROD7511501 | ||
| D75117-01 | nan | nan | ROD7511701 | ||
| D75119-01 | nan | nan | ROD7511901 | ||
| D751XX-01 | nan | nan | ROD751XX01 | ||
| D73101-01 | nan | 5850370 | nan | ROD7310101 | |
| D73103-01 | nan | nan | ROD7310301 | ||
| D73105-01 | nan | nan | ROD7310501 | ||
| D73107-01 | nan | nan | ROD7310701 | ||
| D73109-01 | nan | nan | ROD7310901 | ||
| D73111-01 | nan | nan | ROD7311101 | ||
| D73113-01 | nan | nan | ROD7311301 | ||
| D73119-01 | nan | nan | ROD7311901 | ||
| D73117-01 | nan | nan | ROD7311701 | ||
| D73115-01 | nan | nan | ROD7311501 | ||
| D731XX-01 | nan | nan | ROD731XX01 | ||
| D71119-01 | nan | nan | ROD7111901 | ||
| D71117-01 | nan | nan | ROD7111701 | ||
| D71115-01 | nan | nan | ROD7111501 | ||
| D71113-01 | nan | nan | ROD7111301 | ||
| D71111-01 | nan | nan | ROD7111101 | ||
| D71109-01 | nan | nan | ROD7110901 | ||
| D71107-01 | nan | nan | ROD7110701 | ||
| D71105-01 | nan | nan | ROD7110501 | ||
| D71103-01 | nan | nan | ROD7110301 | ||
| D71101-01 | nan | 5850359 | nan | ROD7110101 | |
| D711XX-01 | nan | nan | ROD711XX01 |
