HDMI extender over 1G IP 4K@60Hz up to 120M with KVM remote control

$245.95

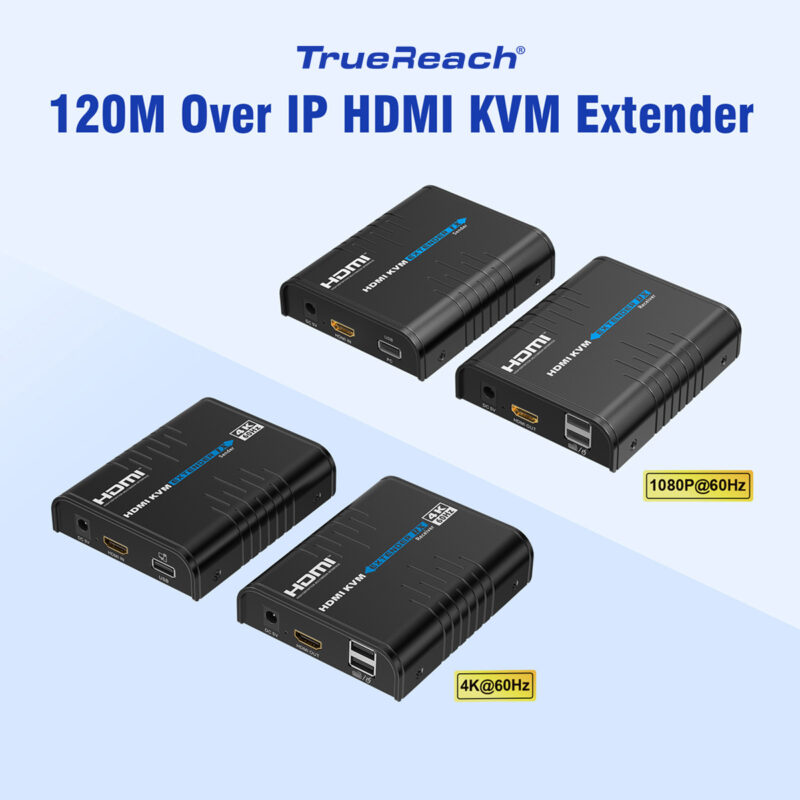

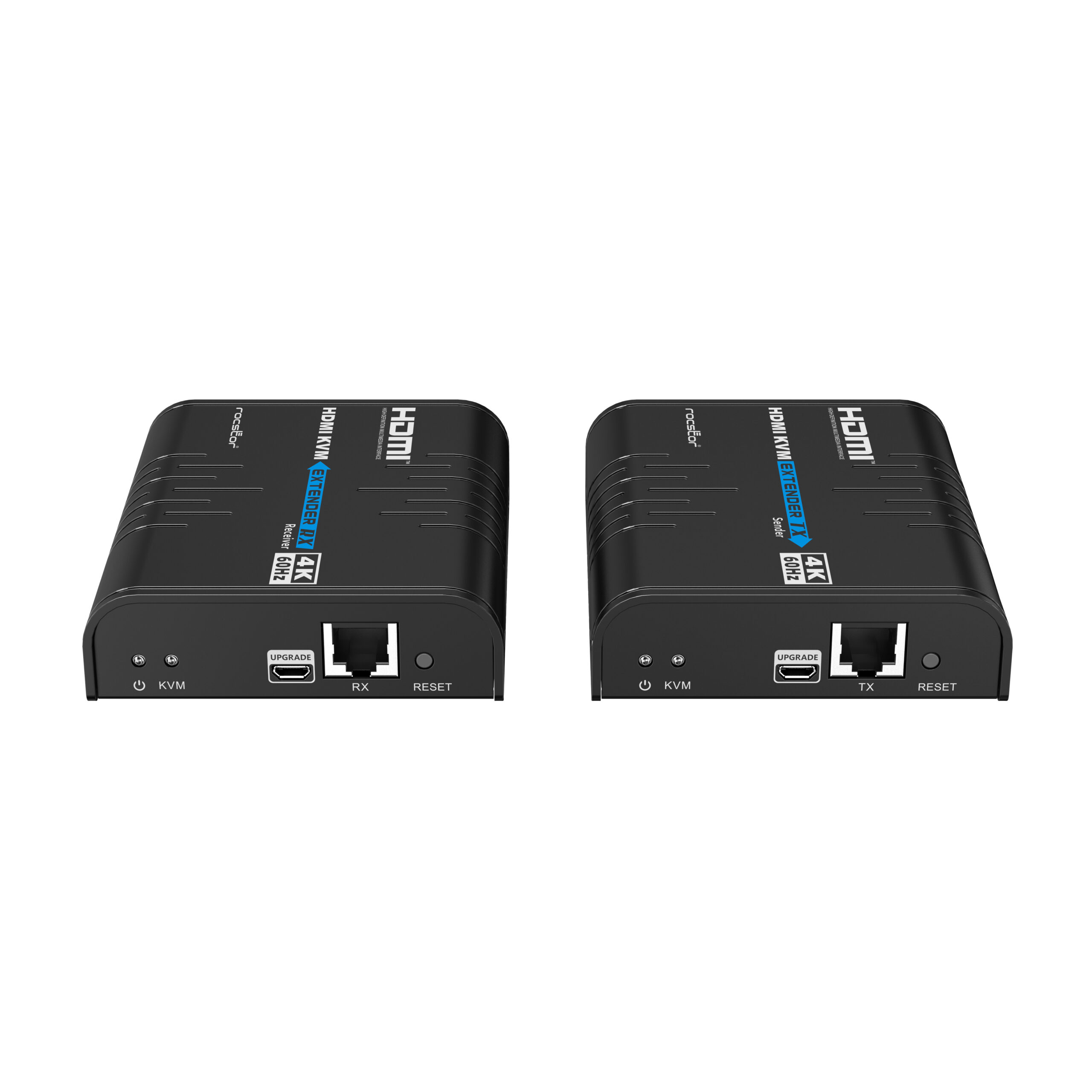

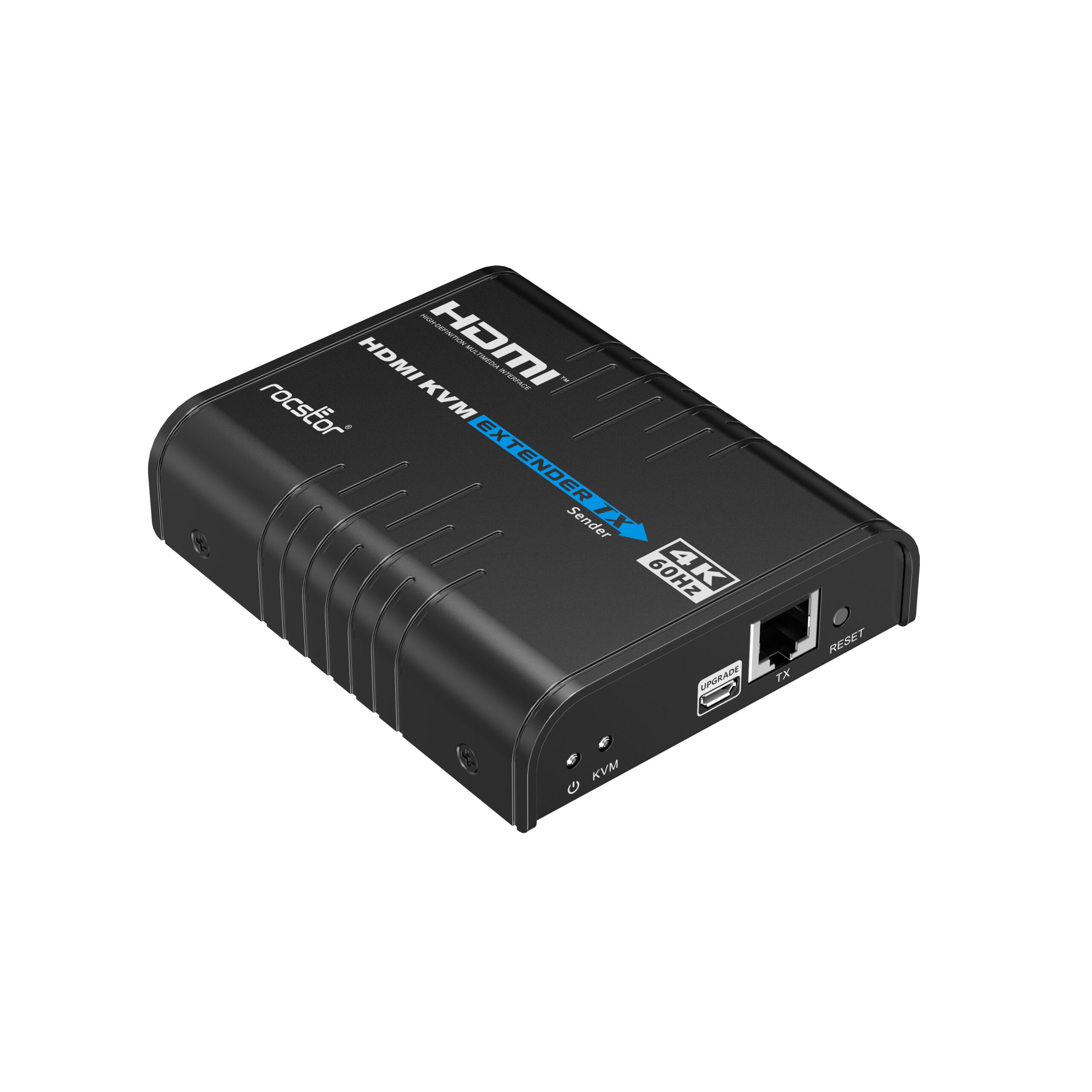

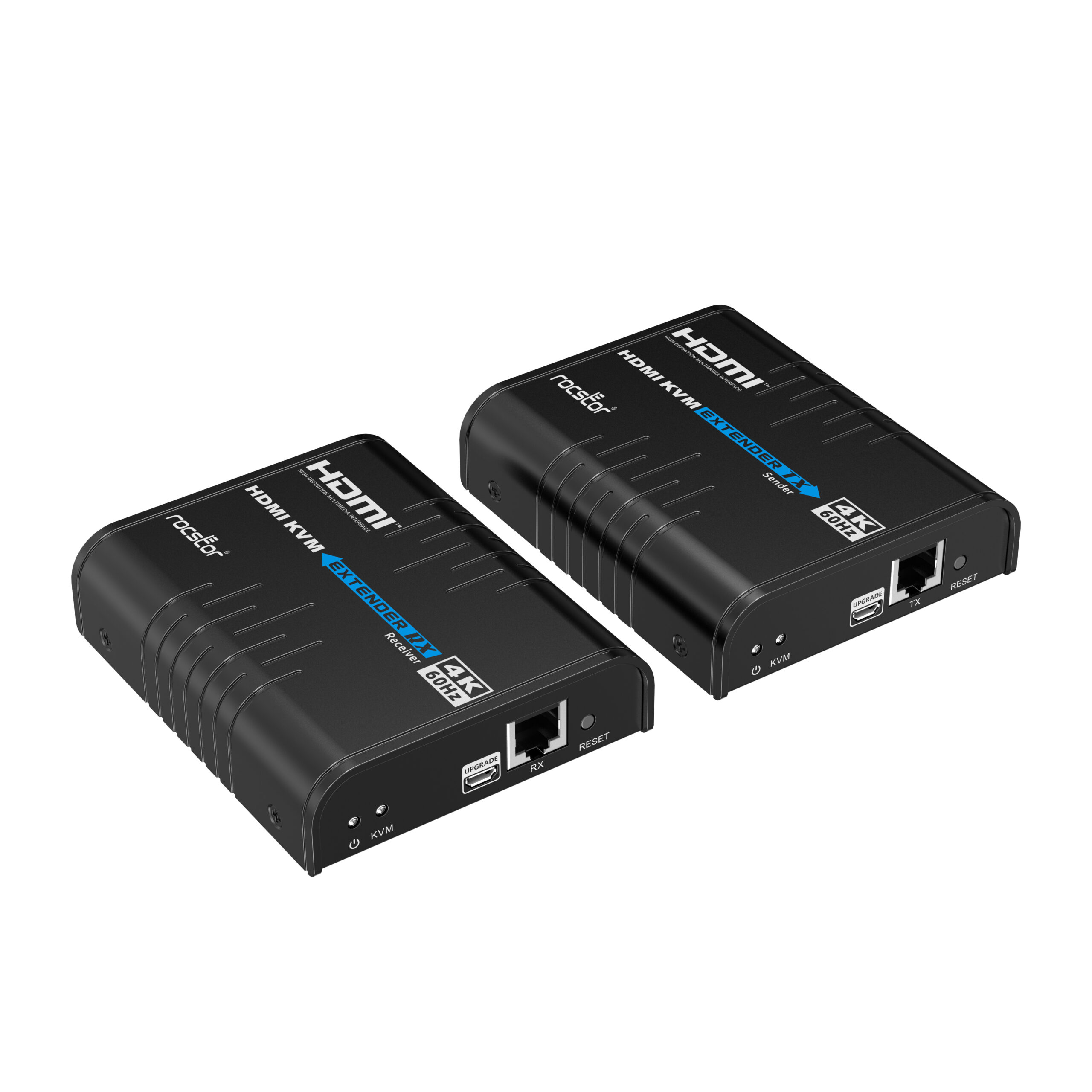

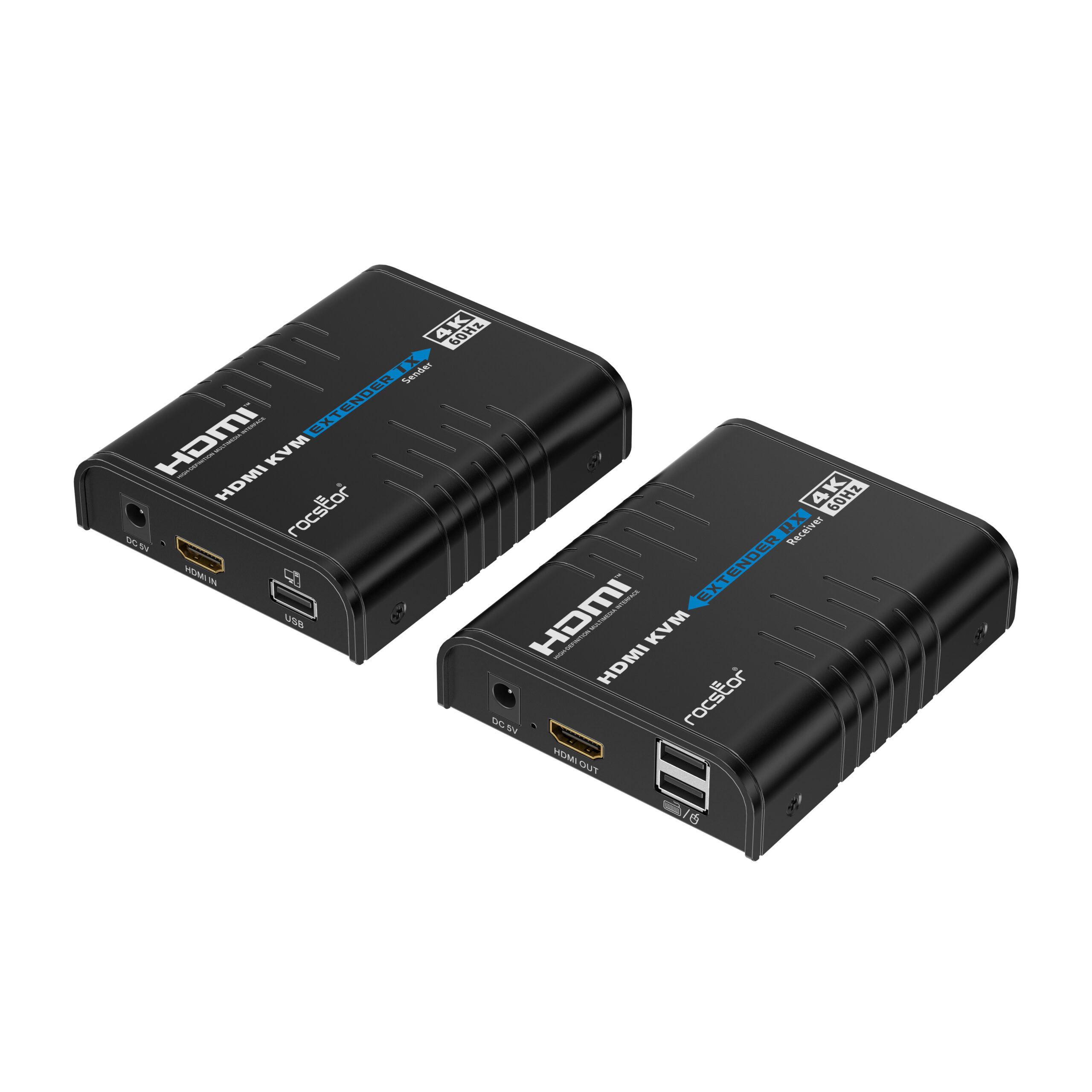

TrueReach TR19 4K@60Hz HDMI KVM Extender – Supports USB KVM (Keyboard, Mouse, Touch Screen Control) – Up to 656ft Transmission – Tx and Rx (Kit) -Black

Description

The Rocstor TrueReach TR19 4K@60Hz HDMI KVM Extender is a robust solution designed to extend ultra-high-definition HDMI signals and USB KVM control up to 656 feet (200 meters) over Cat6/6a/7 cables. With cutting-edge technology, it ensures crystal-clear 4K@60Hz video with low latency, making it ideal for professional applications such as business meetings, educational presentations, home entertainment, and more. Whether it’s controlling a remote workstation or delivering immersive video, the TR19 offers exceptional performance and versatility.

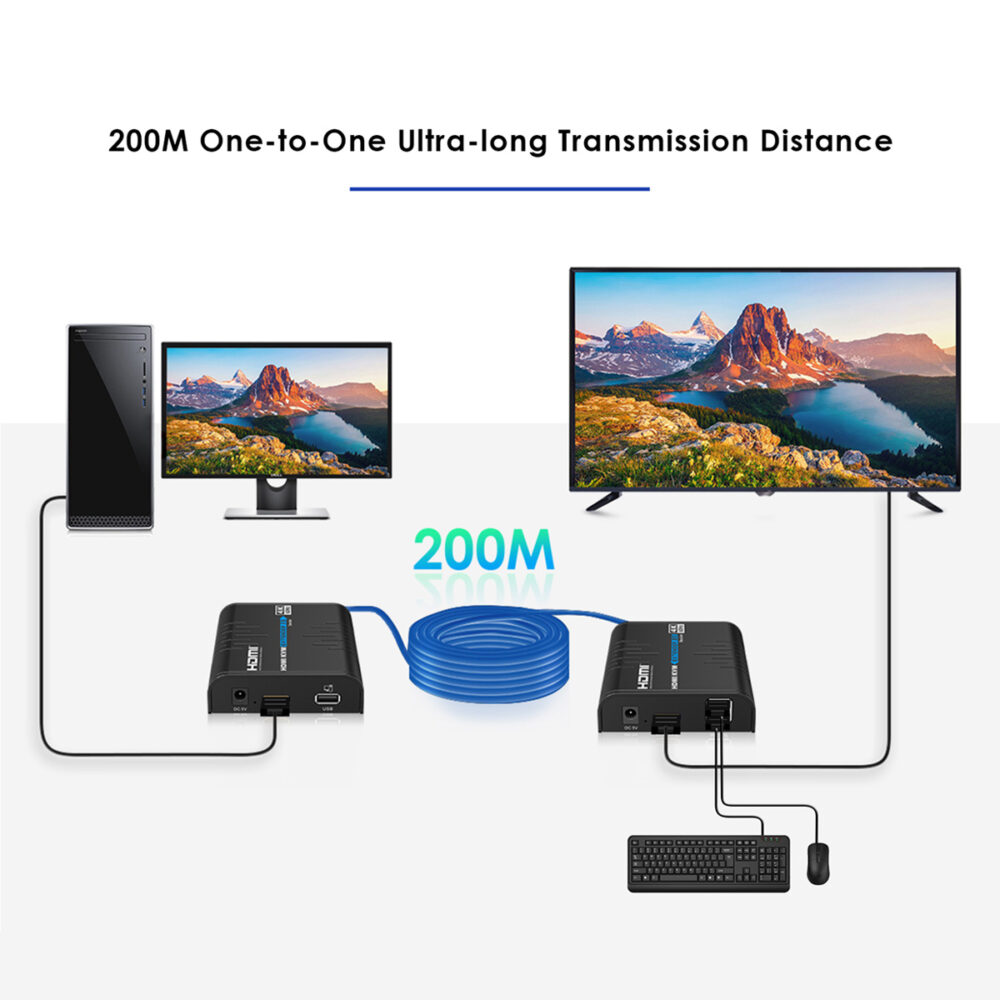

This extender supports both one-to-one and one-to-many setups, allowing for a single transmitter to connect to multiple receivers via a gigabit network switch. For even greater flexibility, the TR19 can be cascaded through multiple switches to cover larger distances and more complex setups. Its integrated USB KVM functionality supports keyboards, mice, and touchscreen devices, enabling intuitive control of remote systems. Designed for compatibility, it works seamlessly with Cat5/5e/6 or higher network cables, offering varied transmission distances depending on the cable type.

Built for high-performance environments, the TR19 supports resolutions up to 4096×2160@60Hz and is backward-compatible with lower resolutions, making it suitable for a wide range of display configurations. Its durable aluminum housing and built-in protection against lightning, surges, and electrostatic discharge (ESD) ensure reliable, 24/7 operation, even in challenging conditions. The inclusion of mounting brackets provides flexibility in installation, making it suitable for professional AV setups, classrooms, or home theaters.

The TR19 is fully HDMI 2.0 and HDCP 1.4/2.2 compliant, ensuring compatibility with the latest video standards and secure signal transmission. Additionally, firmware upgrades via Micro USB make the extender future-proof, adapting easily to evolving technologies. Whether for professional use or personal entertainment, the Rocstor TrueReach TR19 delivers unparalleled quality, convenience, and reliability for long-distance HDMI and KVM extensions. The Rocstor TrueReach TR19 is the ultimate HDMI and KVM extender solution for anyone seeking high-quality video, intuitive control, and long-distance signal reliability. Perfect for professional or personal use, it brings seamless connectivity to any application.

Key Features:

  • 4K@60Hz HDMI Transmission: Supports ultra-high-definition resolutions up to 4096×2160@60Hz with low-latency performance.
  • Long-Distance Extension: Extend HDMI signals up to 656ft (200m) with Cat6/6a/7 cables or 328ft (100m) with Cat5e cables.

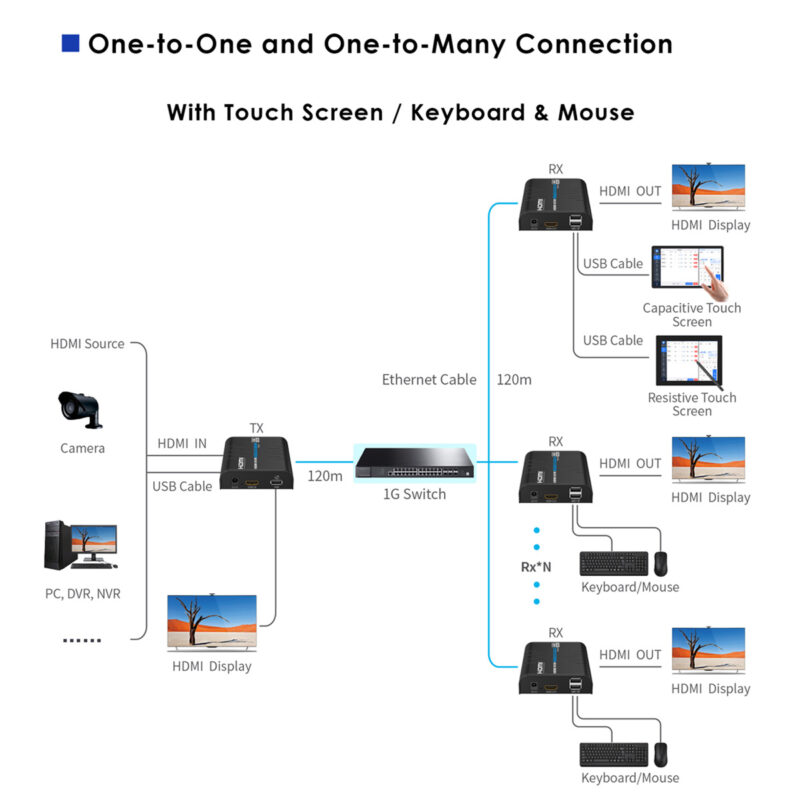

  • Flexible Configurations: Supports one-to-one connections, one-to-many setups via a gigabit switch, and cascading through multiple switches for extended coverage.
  • USB KVM Functionality: Allows remote control of devices via keyboard, mouse, and touchscreen integration.
  • HDMI 2.0 and HDCP Compliance: Fully compliant with HDCP 1.4/2.2 for secure and reliable transmission.
  • Built for Durability: Features robust aluminum housing and built-in lightning, surge, and ESD protection.
  • 24/7 Operation: Designed for continuous, reliable performance in demanding environments.
  • Firmware Upgradeable: Micro USB port enables easy updates for future compatibility.
  • Easy Installation: Includes mounting brackets for secure and flexible installation.

Specification

Manufacturer Information
Brand Rocstor
Part Number Y10G019-B1

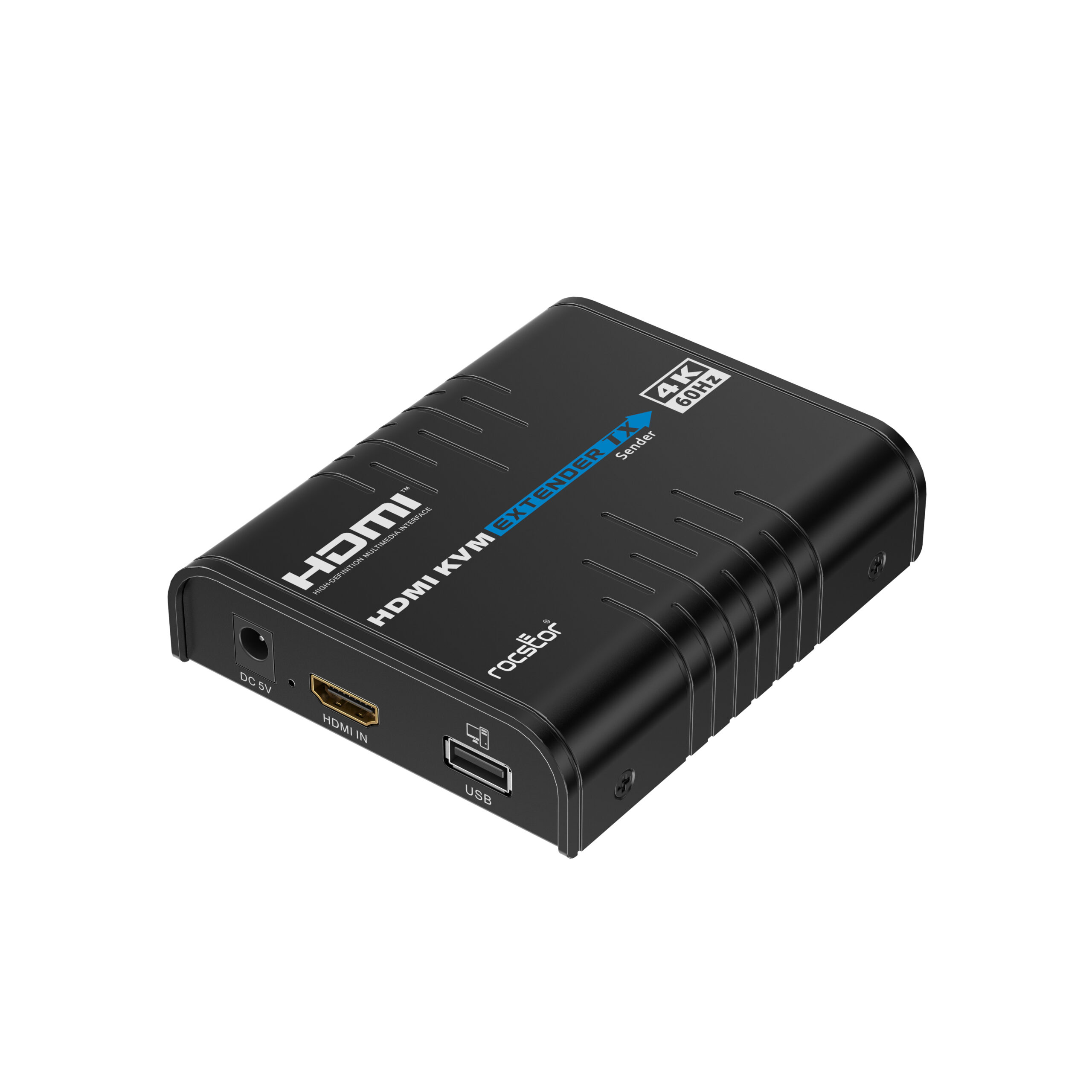

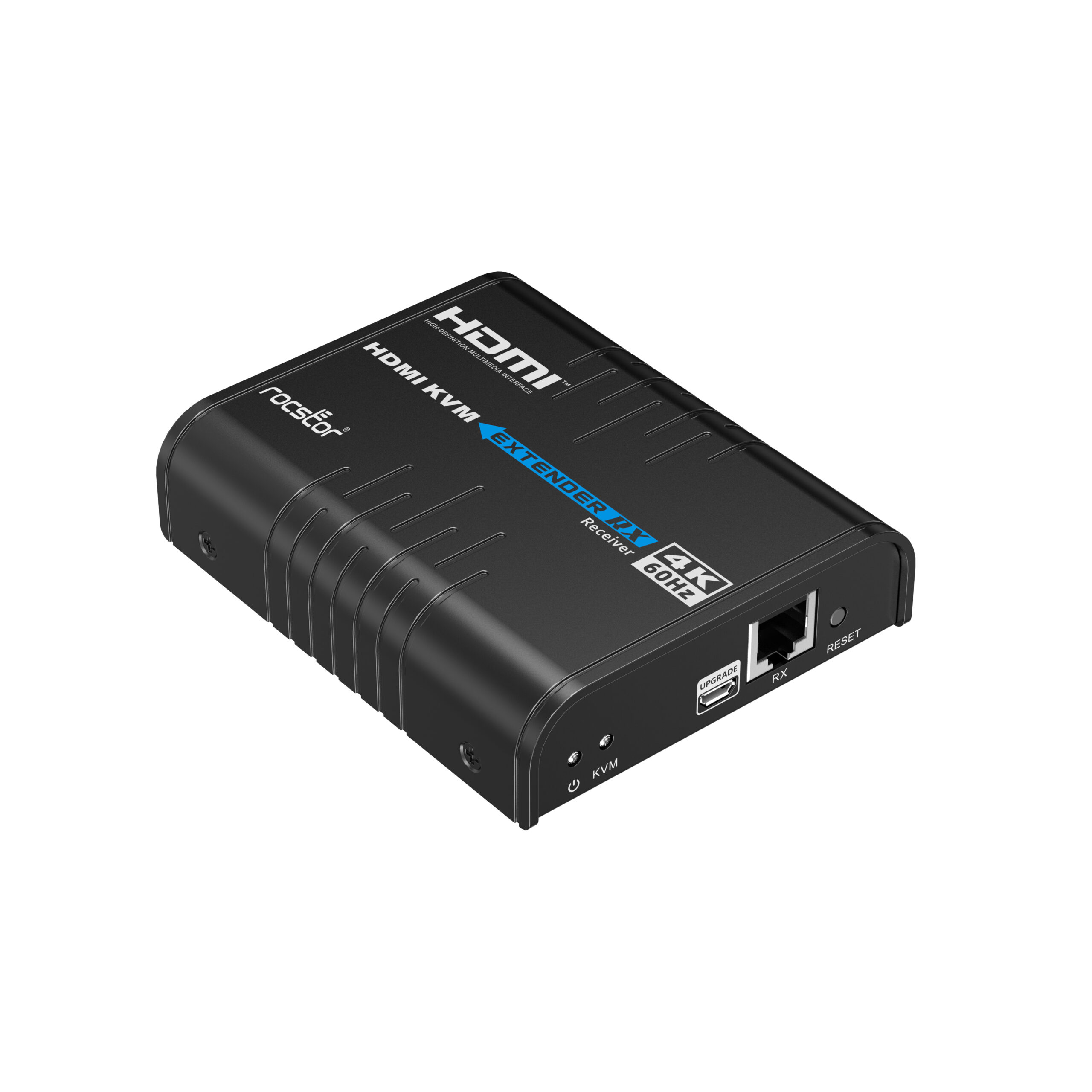

Video Transmitter Receiver

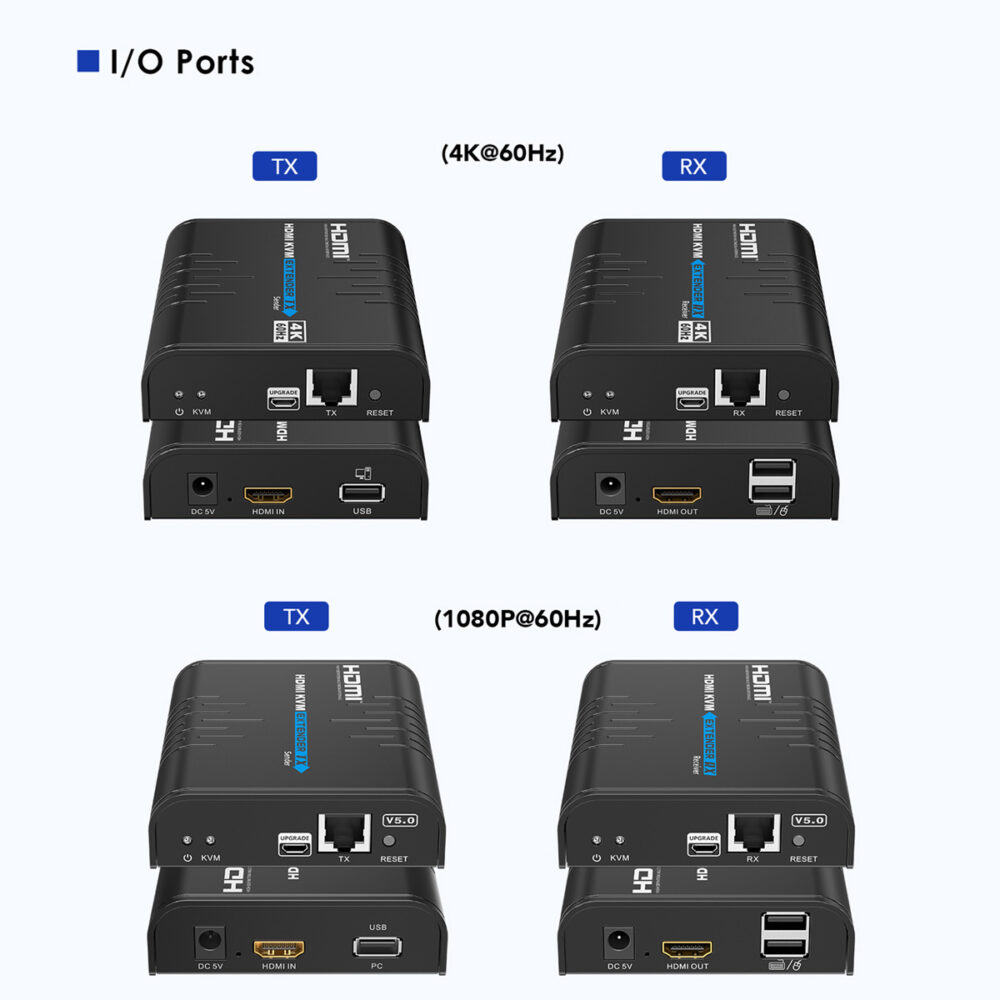

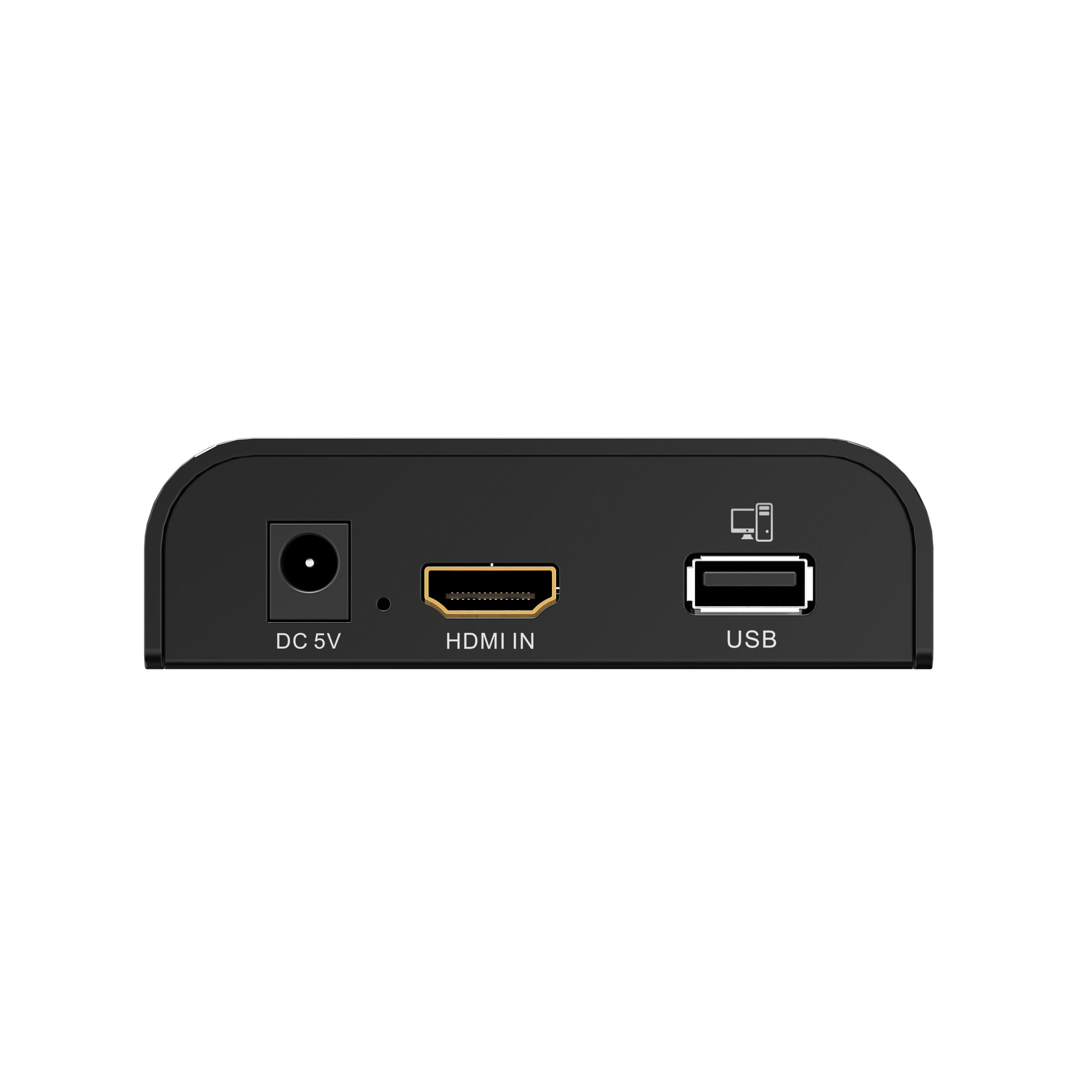

Input Interface 1x HDMI 1x RJ45
Output Interface 1x Rj45 1x HDMI
HDMI Length ≤ 16ft (5m) ≤ 16ft (5m)
Maximum Transfer Rate 18Gbps
Compatibility HDMI 2.0

HDCP 1.4/HDCP 2.2

Resolutions 4096×2160@24/30/50/60Hz, 3840×2160@24/30/50/60Hz, 1080P@24/25/30/50/60Hz, 720P@50/60Hz, 576P@60Hz, 480P@60Hz, 1920×1200, 1680×1050, 1600×900, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600
Transmission Distance CAT5 80m / CAT5E 100m / CAT6 120m
Transmission Latency 1080P: 80~130ms
4K@60Hz: 150~220ms
Audio Signal
Input Interface 1x HDMI 1x RJ45
Output Interface 1x RJ45 1x HDMI
HDMI Output LPCM 2.0
Power
Power Supply DC 5V/1A
Power Consumption TX ≤ 3.5W RX ≤ 2.5W
Operating Environment
Working Temperature -20°C~60°C
Storage Temperature -30°C~70°C
Humidity 0~90%RH (no condensation)
Physical Properties
Housing Aluminum (Top Cover) Iron (Bottom Cover)
Weight 8.47oz (240g) 8.57oz (243g)
Color Black
Dimensions RX and TX (each)
Inches: 4.32 × 3.52 × 1.04
Millimeters: 109.6 × 89.5 × 26.3
Protection ESD protection
1a Contact discharge level 2 (±4KV)
1b Air discharge level 3 (±8KV) Implementation of the standard: IEC61000-4-2
Lightning protection, Surge protection
