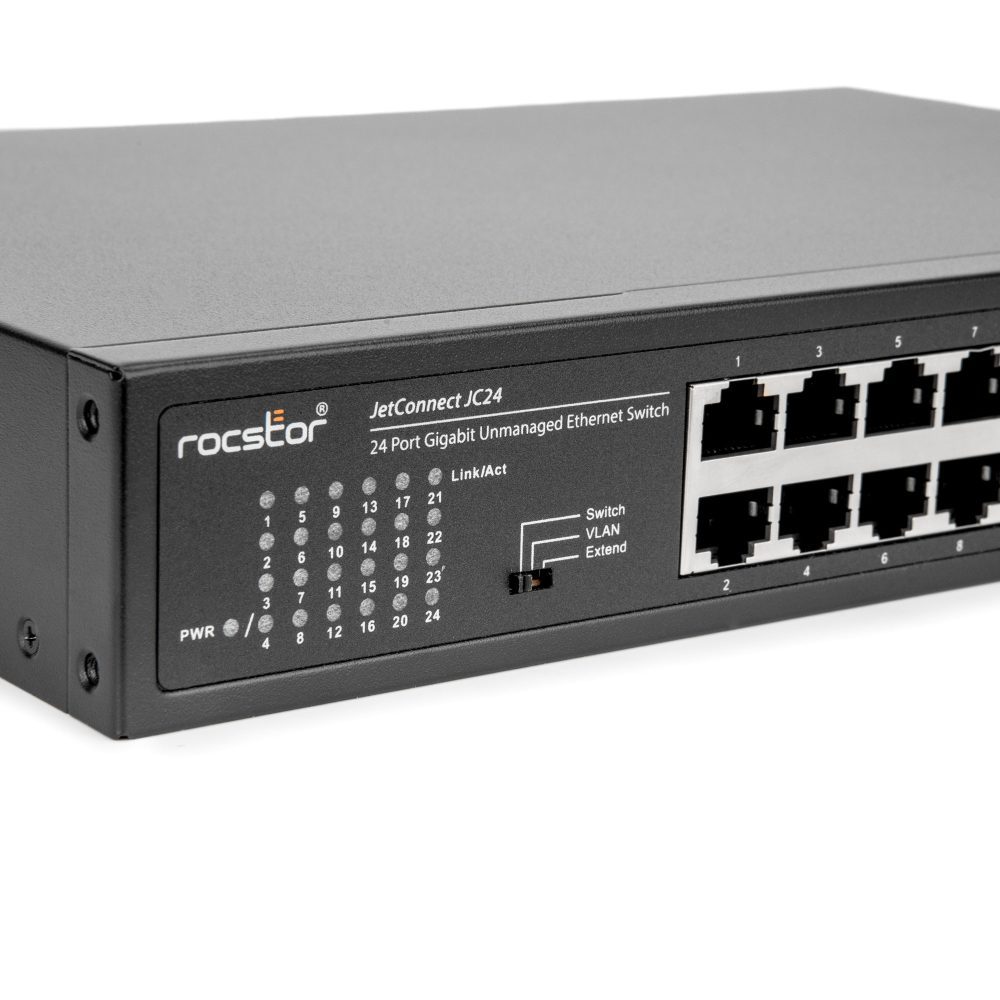

JetConnect JC24 24-Port Gigabit Desktop / Rack mount Unmanaged Network Switch

$119.95

JetConnect JC24 24-Port Gigabit Desktop / Rackmount Unmanaged Ethernet Switch, 24x 10/100/1000 Adaptive RJ-45 Ports, 2 Layer Supported, Metal, Conforms to IEEE 802.3 / 802.3u / 802.3ab Standards – UL Certified – Rack mount – TAA Compliant – Black

SKU: Y10S004-B1 Categories: , , Tag:

Description

The Rocstor JetConnect JC24 Ethernet Switch is a versatile networking solution designed for a wide range of applications, including small home offices, schools, government institutions, and small/medium enterprises. With its full Gigabit capability, this switch is designed to upgrade networks to Gigabit speed, meeting high bandwidth requirements for seamless data transmission. Featuring 24 10/100/1000 Mbps Adaptive Ethernet Ports, each supporting full line speed, non-blocking switching, and port auto flip functionality, the JC24 ensures efficient and reliable network performance.

The JC24 Ethernet Switch is Layer 2 supported, providing enhanced network capabilities for improved management and performance optimization. It conforms to IEEE802.3, IEEE 802.3u, and IEEE 802.3ab standards, ensuring broad compatibility with various network devices. With 24 10/100/1000 Base-T ports, it offers ample connectivity options for numerous devices, facilitating smooth communication and data transfer. The switch’s high back-plane bandwidth of 48 Gbps ensures efficient data handling, even during periods of high network traffic. Additionally, it features IEEE802.3x Flow control for optimized data flow and network stability.

One of the standout features of the JetConnect JC24 is its unique one-key function conversion, supporting three modes: normal mode, VLAN mode, and extend 492 ft (250m) mode. In normal mode, the switch operates with default settings. In VLAN mode, Ports 1-22 are isolated from each other and only communicate with the uplink ports 23-24. This feature enhances network security by controlling network storms and protecting information integrity. In extend 492 ft (250m) mode, Ports 1-22 can transmit data up to 492 ft (250 meters) using Cat5e/6 or higher network cables, while ports 23-24 operate normally.

The JetConnect JC24 is TAA compliant, meeting the requirements for government procurement. With its seamless, high-speed network experience, the JC24 ensures reliable connectivity and efficient data transmission. Backed by a 5-year warranty and lifetime technical support, Rocstor provides peace of mind and assistance throughout the product’s lifespan. Choose the Rocstor JetConnect JC24 Ethernet Switch for a robust and dependable networking solution.

Feature:

• Conforms to IEEE802.3, IEEE 802.3u, IEEE 802.3ab
• Provides 24 10/100/1 OOOBase-T ports
• High back-plane bandwidth 48 Gbps
• IEEE802.3x Flow control
• The switch supports one-key function conversion, currently supports three modes, normal mode, VLAN mode, extend 250m mode,

Additional information

Weight 3.65 lbs
Dimensions 9.6 × 14.4 × 3.2 in
UPC

Specification

Interfaces/Ports
Network (RJ-45) Yes
Modular No
Stack Port No
Total Number of Network Ports 24
Port/Expansion Slot Details 24 x Gigabit Ethernet Network
Physical Characteristics
Form Factor Rack-mountable
Desktop

Wall-mount

Weight 3 lbs
Height 1.73″
Width 7.09″
Depth 10.63″
Enclosure/Housing Material Metal
General Information
Product Type Ethernet Switch
Manufacturer Part Number Y10S004-B1
Manufacturer Website Address http://www.rocstor.com
Manufacturer Rocstor
Product Model JetConnect JC24
Product Name 24-Port Gigabit Desktop/Rackmount/Wall mount Switch
Brand Name Rocstor



Management & Protocols
Manageable No
Network & Communication
Layer Supported 2
Media & Performance
Network Technology 10/100/1000Base-T
Ethernet Technology Gigabit Ethernet
Media Type Supported Twisted Pair
Miscellaneous
Package Contents
  • 24-Port Gigabit Desktop/Rackmount Switch
  • Power Cord
  • Installation Guide
  • Rackmount Kit
  • Wallmount Kit
Country of Origin Taiwan
Environmentally Friendly Yes
Environmental Certification RoHS
Power Description

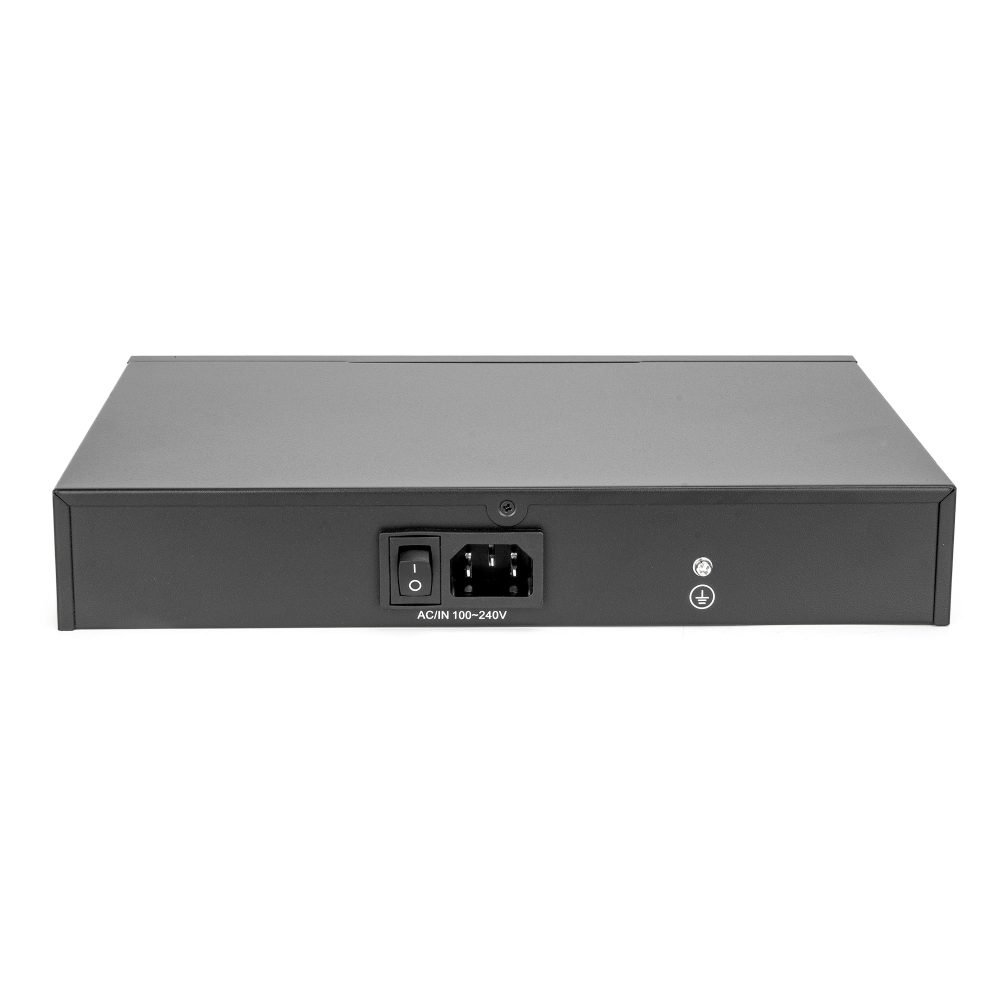

Power Source Built-in Power Supply – UL Certified
Frequency 60 Hz
50 Hz
Power Consumption 13.80 W
Interfaces/Ports
Network (RJ-45) Yes
Modular No
Stack Port No
Total Number of Network Ports 24
Port/Expansion Slot Details 24 x Gigabit Ethernet Network
Physical Characteristics
Form Factor Rack-mountable
Desktop
Height 1.7″
Width 11.6″
Depth 7.1″
General Information
Product Type Ethernet Switch
Manufacturer Part Number TL-SG1024S
Manufacturer Website Address http://www.tp-link.com/us
Manufacturer TP-LINK Technologies Co., Ltd
Product Model TL-SG1024S
Product Name 24-Port Gigabit Desktop/Rackmount Switch
Brand Name TP-Link



Miscellaneous
Certifications & Standards











  • IEEE 802.3: Ethernet
  • IEEE 802.3u: Fast Ethernet
  • IEEE 802.3x: Flow Control
  • IEEE 802.3ab: Gigabit Ethernet
  • EIA TIA 568A or 568B
  • Emissions: CE Mark A, FCC Class A
  • UL Certificate

Compliance                                         TAA

User Manual

Y10S004-B1 – User Manual
