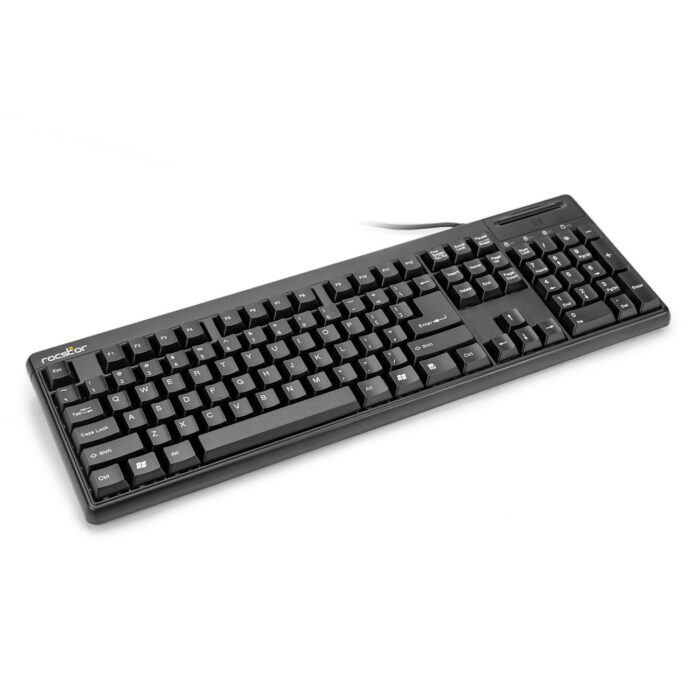

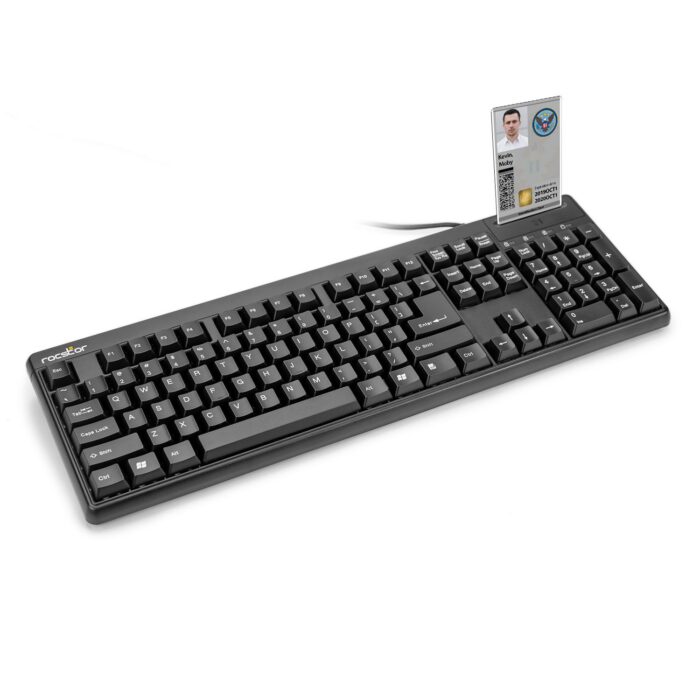

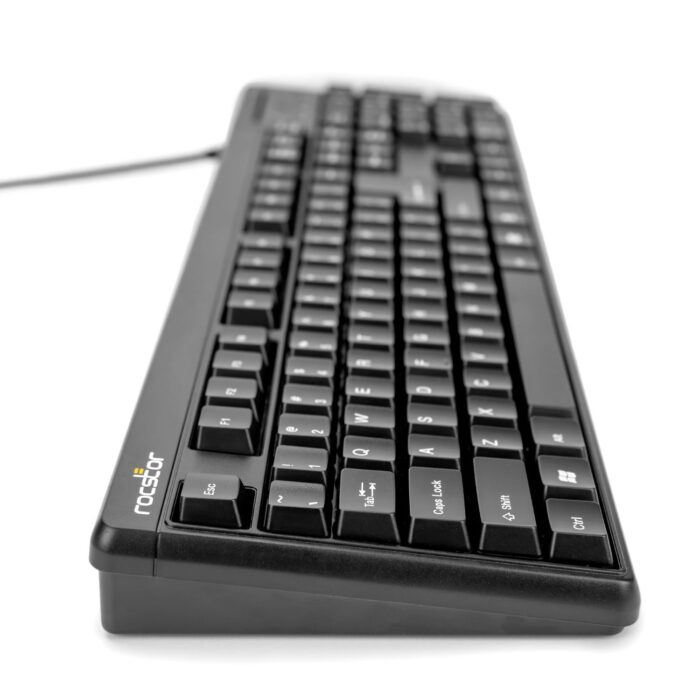

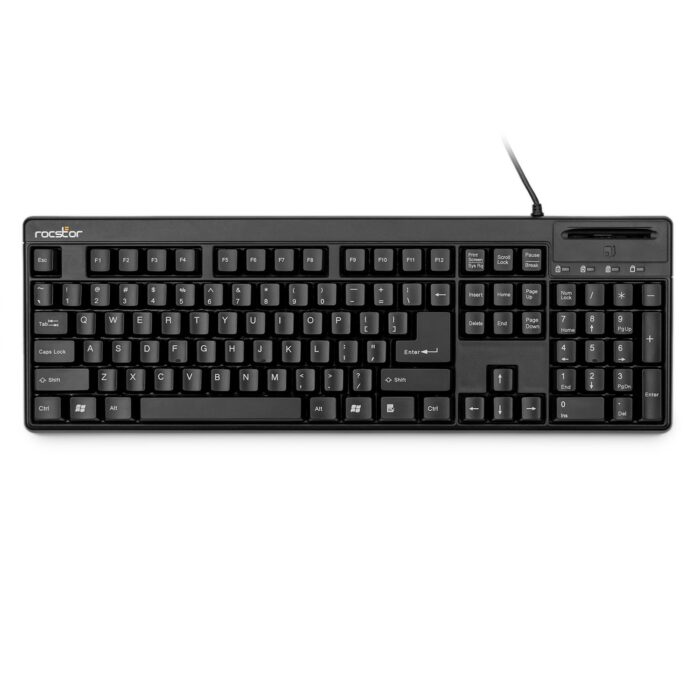

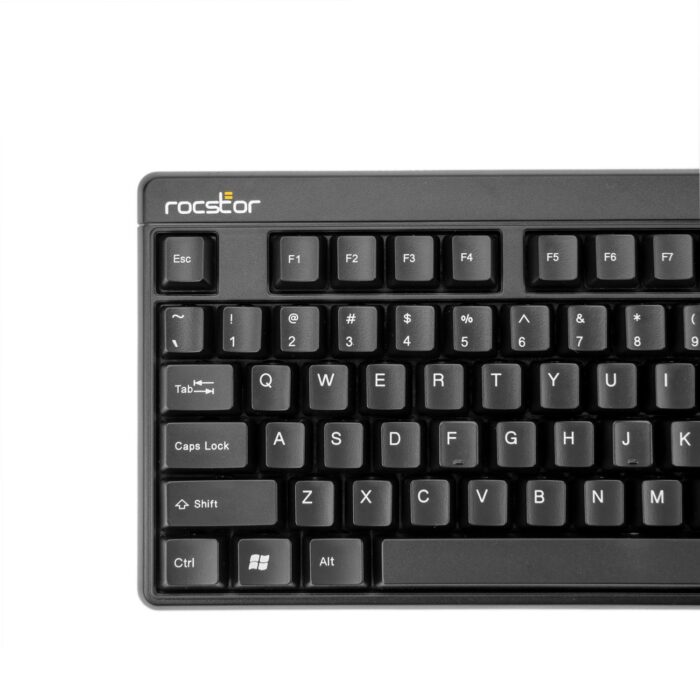

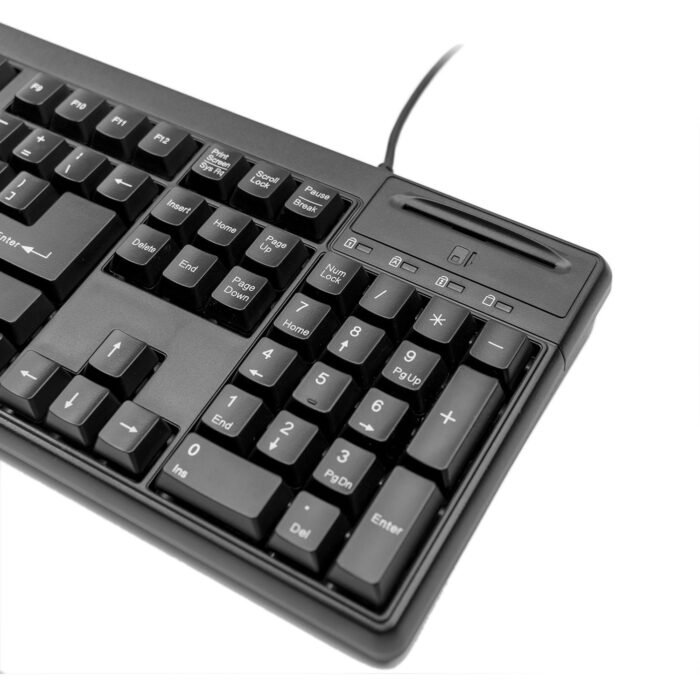

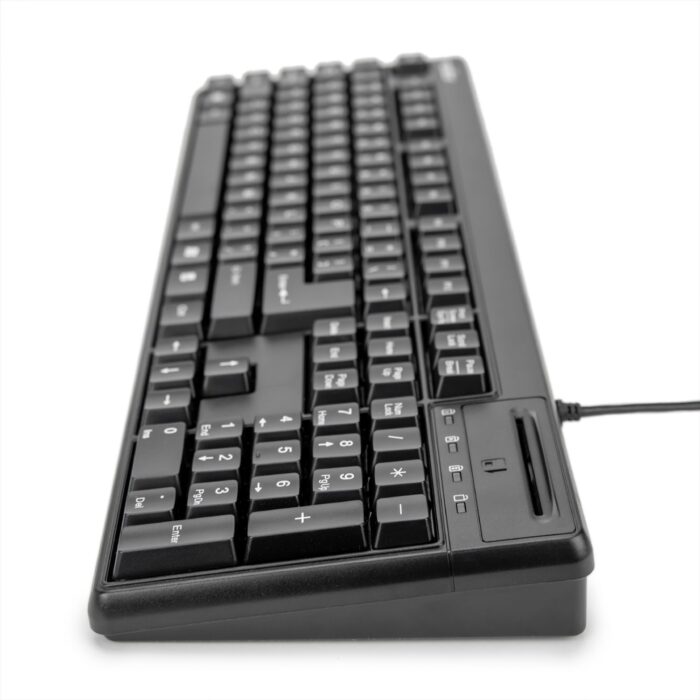

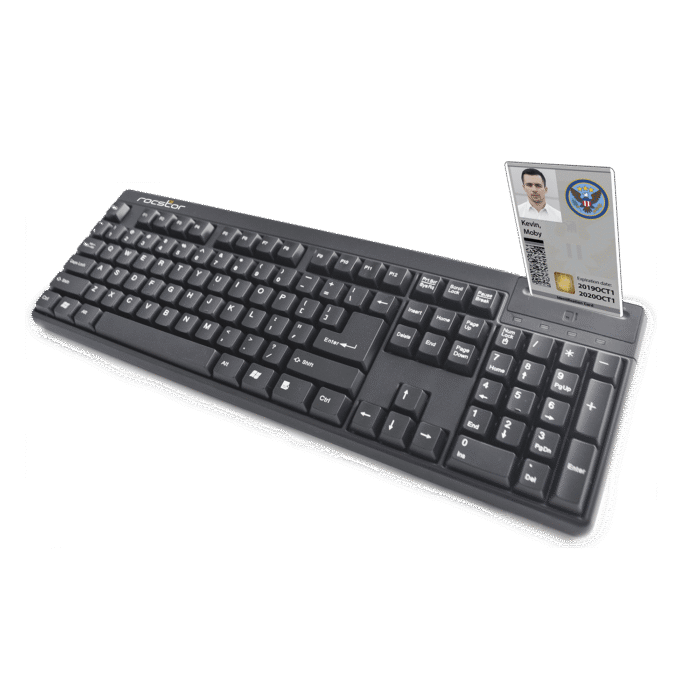

Rocstor KS20T 104-Key USB Keyboard with Built-in Smart Card Reader – TAA Compliant


Rocstor KS20T 104-Key Keyboard with Built-in Smart Card Reader – Common Access Card CAC Compatible – PIV Compatible – Smart Card Reader FIPS-201 Compliant – CCID Complaint – Supports ISO-7816 Class A, B and C – USB Interface – English (US) – PC – TAA Compliant – Black


Rocstor USB keyboard with built-in Card reader is a secure, robust and reliable keyboard with integrated security features and compatibility. The 104-key keyboard is enabled to read Common Access Card and features FIPS-201 Compliancy. It is PIV Compatible. It is also CCID Compliant and supports ISO-7816 Class A, B and C memory and microprocessor smart card (T=0, T=1). It is ideal for providing user authentication for applications such as network login, government, e-commerce, healthcare and banking applications. Government users can confidently use Rocstor KS20 keyboard series which is enabled for securely reading Common Access Cards CAC. Backed by Rocare full limited 3-year parts and labor warranty.

• FIPS-201 Compliant. Rocstor KS20 Series chip meets US Federal Information Processing Standard Publication 201

• PIV Compatible

• Secure Common Access Card CAC Compatible. With use with CAC card software. (CAC middleware is not included)

• Supports ISO-7816 Class A, B and C memory and microprocessor smart cards (T=0, T=1)

• EMV 4.0 level 1 Compliance, Conforms with banking, financial and government standards

• CCID Complaint

• Suitable for applications in government, healthcare, banking, entertainment, and secure network login

• Robust and reliable 104-Key full-size keyboard

• Num Lock, Caps Lock, Scroll Lock, SCR Reader LED Indicators

• Plug & Play

• Rocstor Rocare 3-Year Warranty

Additional information

Weight 2.43 lbs
Dimensions 18.4 × 6.9 × 2.4 in


Key Number 104 keys (US/ EU/JP)
Key Switch Membrane with 20 million life cycle time
Key Force/ Traveling 50 +/- 7 gm / 4 +/- 0.5 mm
Input Power/ Interface 5 VDC, 100mA / USB 1.1 version (smart card reader USB
Connectivity USB, 62” USB conected wire
LED Indication  24 .LEDs, Num Lock, Caps Lock, Scroll Lock, SCR Reader Tilt Angle w/o feet stand: 7.2o
Operating Temperature 0 to 50 degrees Celsius (10% to 95% RH, 25 degree Celsius)
Storage Temperature  -10 to 65 degrees Celsius (5% to 90% RH, 25 degree Celsius)
Standard ISO 7816
Compliance EMV 4.0 level 1, PIV Compatible
Protocols T=0, T=1.2-wire; SLE 4432/42 (S=10), 3-wire; SLE4418/28 (S=9), 12C (S=8)
Reading Speed/ Frequency 420 Kbps / up to 8MHz
Card Type Support 5V, 3V and 1.8V smart card ISO 7816 Class A, AB and C API Support: PCSC, CTAPI, Synchronous-API, OCF PCSC
Driver Support Windows 98/ME/2K/XP (32bit), 2003 Server Win, Win NT, Windows CE5.0/ CE.NET, Windows XP 64bit, Windows Vista (32bit/ 64bit), Windows 7, 8, 10,  Linux
Reliability 100K card insertions
Warranty Full limited 3-year parts and labor
Physical Dimension 442.99 (L) x 149.0 (W) x 39.58 (H)mm / 17.4” (L) x 5.8” (W) x 1.6” (H)
Box Dimension 467 (L) x 175 (W) x 52 (H) mm / 18.4” (L) x 6.9” (W) x 2” (H) Weight: 2.43 lbs / 1.1kg

Document & Download

Rocstor KS20T Keyboard Specification Sheet

User’s Manual



Limited Warranty: 3 Year
