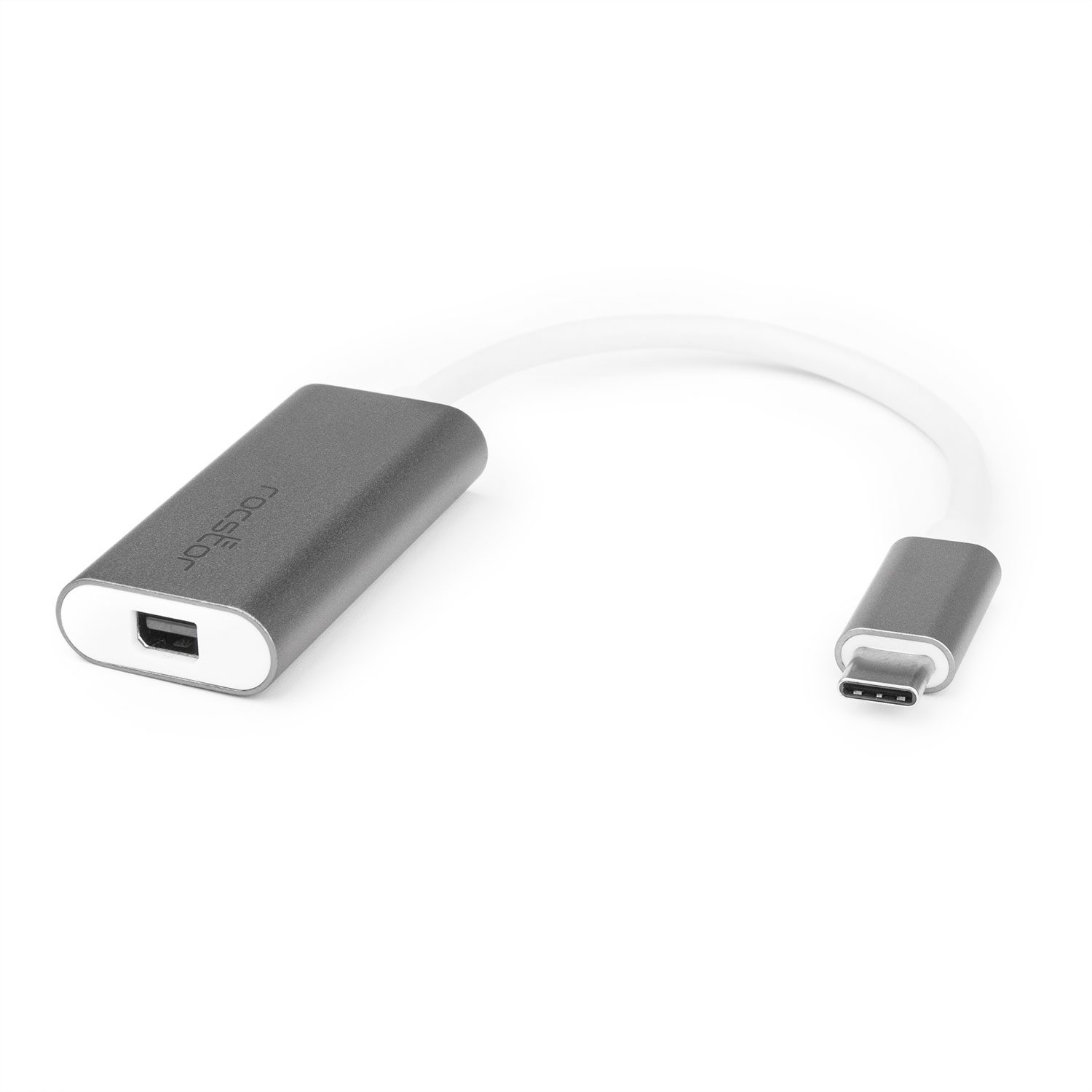

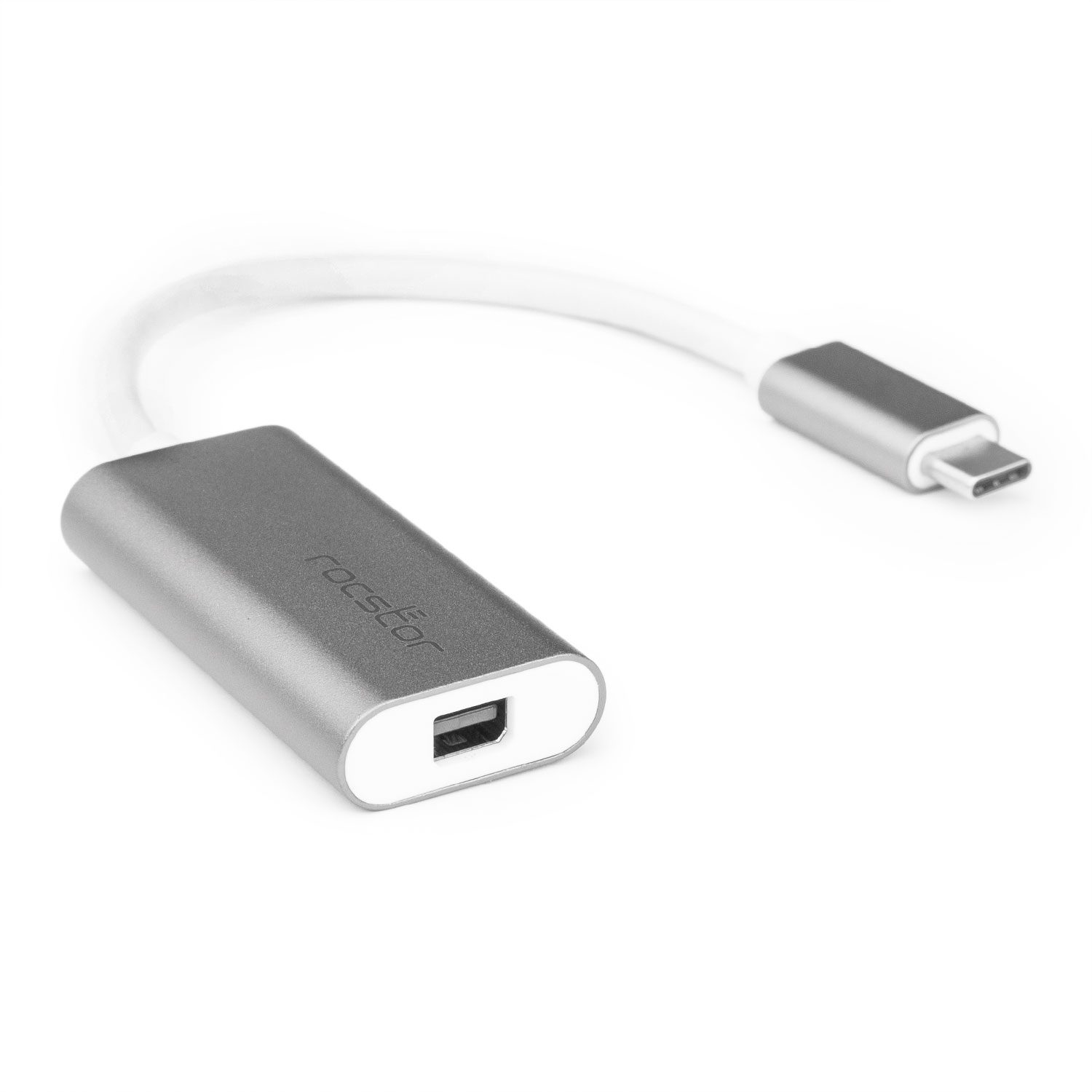

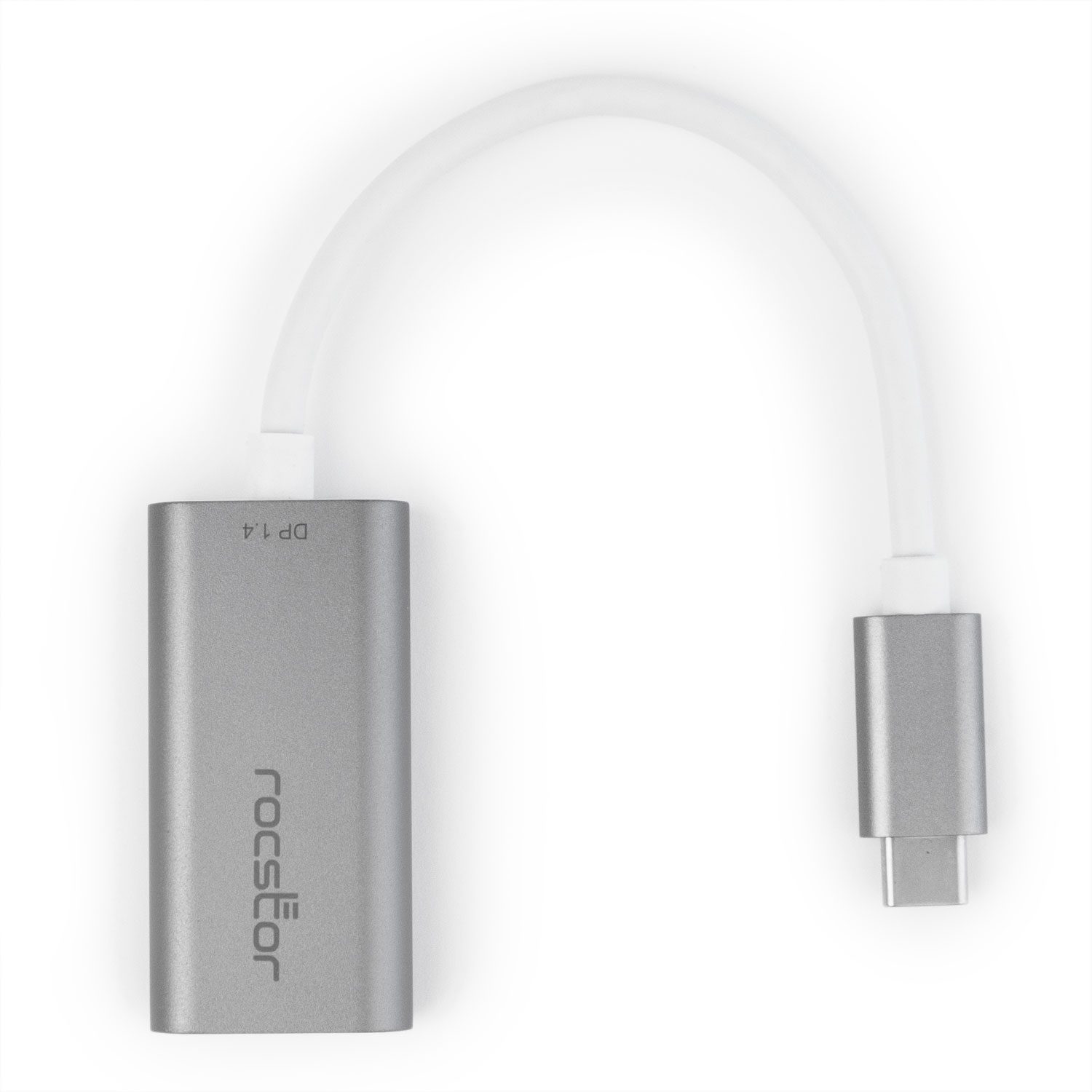

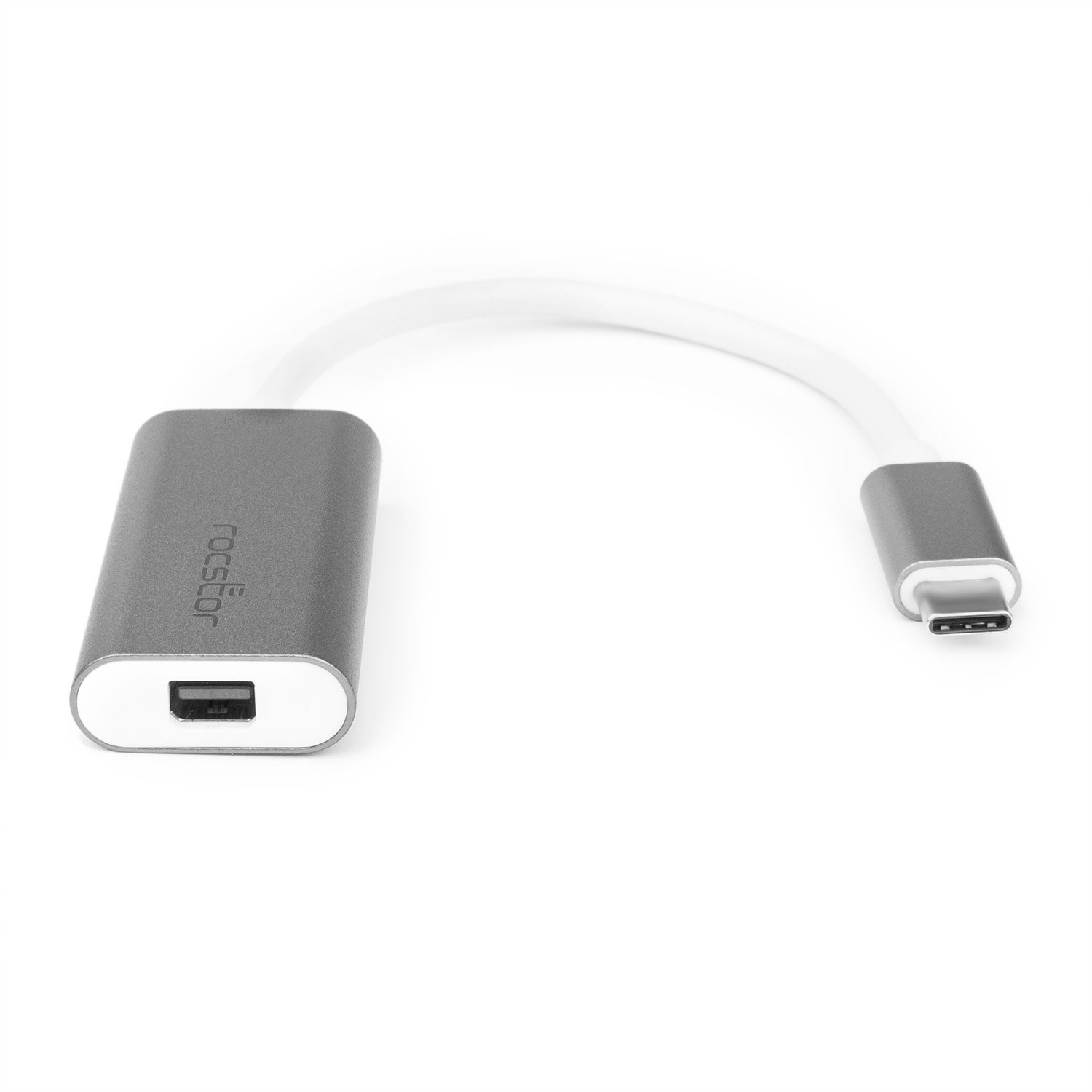

Rocstor Premium USB-C® to Mini DisplayPort® Adapter

$21.95

USB-C to Mini DisplayPort 1.4 Adapter –  HDR/DisplayHDR/HBR3/DSC/HDCP 2.2/1.4; 8K 30Hz/4K 120Hz/1080p – Supports output 4K resolution of up to 3840 x 2160p at 60Hz – Compatible to USB-C and Thunderbolt™ 3/4 device – Driverless OS independent – Aluminum Grey

Add $39.99 to cart and get free shipping!
Description

Rocstor Premium USB-C® to Mini DisplayPort® Adapter, allows you to experience an astonishingly high resolution mini DisplayPort video and audio from the USB-C port on your device such as laptop, smartphone, or tablet. This USB-C connector is equipped with 5.9” long cable, providing you to easily connect your laptop or other USB-C devices to a display monitor.

Support wide compatibility

This USB-C adapter has wide compatibility with USB-C and Thunderbolt™ 3/4 equipped devices such as iPad Pro®, Surface Pro® 7, Lenovo™, Dell™ XPS, Latitude, HP EliteBook®, Chromebook®, MacBook Pro®, and Pro® 7.

Super High Performance

Rocstor USB-C to Mini DP adapter is capable of delivering super high performance with stable and reliable connection. It supports Mini DisplayPort resolutions up to 8K (7680×4320)@30Hz, content protection of HDCP1.4 & HDCP 2.2, per lane data rates of 8.1Gbps(HBR3),5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR), up to 48 bit (16bit per channel) deep, which is all you need for running applications that demand high resource performance without any delays.

Provide Ultra high resolution up to 4K at 60HZ

Rocstor USB-C to Mini DisplayPort adapter allows you to enjoy an 8K Ultra HD video quality, as well as 4K high resolution videos up to a resolution of 3840 x 2160p at 60Hz. It is an ideal choice for performing tasks on high resolution demanding applications.
While providing unimaginable picture quality output with latest 4K and 8K supporting displays, it also works perfectly with displays that support 1080p resolution. So, whether you have already bought the 4K or 8K displays or you are planning to in future, this Rocstor adapter is perfect match to your existing and future 4K/8K displays.

Designed for easy portability and quick use

This light-weight and compact device can easily fit in your carrying case. Rocstor premium USB-C to mini DisplayPort adapter is made up of aluminum material which not only gives it a very compelling look but it is tough, reliable and it prevents unexpected damages. Rocstor offers 2-year warranty for it and free technical support throughout your usage.

Features

• HDR/DisplayHDR/HBR3/DSC/HDCP 2.2/1.4
• 8K resolution at 30Hz, and 4K resolution at 60Hz,
• Backward compatibility with1080p
• 2-year warranty
• Aluminum gray adapter
• Wide compatibility with USB-C and Thunderbolt 3/4 device such as iPad Pro, Surface Pro 7, Lenovo, Dell XPS, Latitude, HP EliteBook, Chromebook
• Supports DisplayPort 1.4/1.2 Alt mode
• Supports per lane data rates of 8.1Gbps (HBR3),5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR)
• Support up to 48 bit (16bit per channel) deep color
• Supports content protection of HDCP1.4 & HDCP 2.2
• USB bus power (no external power supply)
• Equipped with 5.96” long cable to support extended reach to devices that face connector strain
• High performance delivery with reliable connection
• Support 8K UHD at 30 Hz, 4K Ultra at 60 Hz (3840 x 2160p) on a wide range of mini DisplayPort monitors
• Backward compatibility with 1080p resolution devices
• Compact, portable and lightweight design
• Enclosed in stylish aluminum case supporting strength and durability
• Easy plug-and-play installation and OS independent, no drivers or software are required

Additional information
Weight 0.07 lbs
Dimensions 9.45 × 7.01 × 0.39 in
Technology

Mini DisplayPort

,

USB-C

Connector 1

USB-C

Connector 2

Mini DisplayPort

Length (ft)

0 – 2

Color

,

User Manual

User Manual

Y10A242-A1 User Manual

Partner Numbers
Rocstor Part# Ingram Micro TD Synnex US TD Synnex CA A.B. Distributing B&H
Y10A242-A1 9VT891 6459945 7956046 ROC-Y10A242-A1 ROY10A242A1
Specification

General Information

Manufacturer Rocstor
Manufacturer Part Number Y10A242-A1
Manufacturer Website Address http://www.rocstor.com
Brand Name Rocstor
Product Line Premium
Product Model Y10A242-A1
Product Name USB-C to Mini DisplayPort Adapter
Marketing Information Rocstor Premium USB-C® to Mini DisplayPort® Adapter allows you to experience an astonishingly high resolution mini DisplayPort video and audio from the USB-C port on your device such as laptop, smartphone, or tablet. This USB-C connector is equipped with a 5.9' cable, easily allowing you to connect your laptop or other USB-C devices to a display monitor.

Support wide compatibility

This USB-C adapter has wide compatibility with USB-C and Thunderbolt™ 3/4 equipped devices such as iPad Pro®, Surface Pro® 7, Lenovo™,Dell™ XPS, Latitude, HP EliteBook®, Chromebook®, MacBook Pro®, and Pro® 7.

Super High Performance

Rocstor USB-C to Mini DP adapter is capable of delivering super high performance with stable and reliable connection. It supports Mini DisplayPort resolutions up to 8K (7680x4320)@30Hz, content protection of HDCP1.4 & HDCP 2.2, per lane data rates of 8.1Gbps(HBR3),5.4Gbps (HBR2), 2.7Gbps (HBR) and 1.62Gbps (RBR), up to 48 bit (16 bit per channel) deep, which is all you need for running applications that demand high resource performance without any delays.

Provide Ultra high resolution up to 4K at 60HZ

Rocstor USB-C to Mini DisplayPort adapter allows you to enjoy an 8K Ultra HD video quality, as well as 4K high resolution videos up to a resolution of 3840 x 2160p at 60Hz. It is an ideal choice for performing tasks on high resolution demanding applications.

While providing unimaginable picture quality output with latest 4K and 8K supporting displays, it also works perfectly with displays that support 1080p resolution. Whether you have already bought the 4K or 8K displays or you are planning to do so in the future, this Rocstor adapter is a perfect match to your existing and future 4K/8K displays.

Designed for easy portability and quick use

This light-weight and compact device can easily fit in your carrying case. Rocstor premium USB-C to mini DisplayPort adapter is made up of aluminum material which not only gives it a very compelling look but it is tough, reliable and it prevents unexpected damages. Rocstor offers 2-year warranty for it and free technical support throughout your usage.

Attributes

  • USB-C to Mini DisplayPort 1.4 Adapter
  • HDR/DisplayHDR/HBR3/DSC/HDCP 2.2/1.4
  • 8K resolution at 30Hz, and 4K resolution at 60Hz,
  • Backward compatibility with1080p
  • 2-year warranty
  • Aluminum gray adapter
Packaged Quantity 1
Product Type A/V Adapter

Technical Information

Adapter Type Mini DisplayPort/USB-C
Connector Type on First End USB Type C - Male
Connector on First End Details 1 x 24-pin USB Type C - Male
Connector Type on Second End Mini DisplayPort 1.4 Digital Audio/Video - Female
Connector on Second End Details 1 x 20-pin Mini DisplayPort 1.4 Digital Audio/Video - Female
Maximum Resolution Supported 7680 x 4320
Features
  • Display Stream Compression (DSC)
  • HDCP 1.4
  • HDCP 2.2
  • Damage Resistant
  • Plug and Play
  • HDR Support

Physical Characteristics

Product Color Gray Aluminum
Product Material Aluminum
Material Details Aluminum - Enclosure
Height 0.4'
Width 1'
Length 8'
Weight (Approximate) 1.10 oz

Miscellaneous

Country of Origin Vietnam
Environmentally Friendly Yes
Environmental Compliance Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty 2 Year
