SolidKVM SK04 DisplayPort 1.4 and USB 3.0 4×1 KVM Switch 4K@60Hz, HDR, HDCP 2.2, IR, DP 1.4, USB Sharing
$114.95
SolidKVM SK04 DisplayPort 1.4 and USB 3.0 4×1 KVM Switch 4K@60Hz – 4096×2160 60Hz Res- Connect Four Computers with DisplayPort, Keyboard, Mouse, Mic & Speaker to One DisplayPort or HDMI Monitor – Includes Remote, Brackets – USB 3.0 HUB, IR Extender – Hotkey

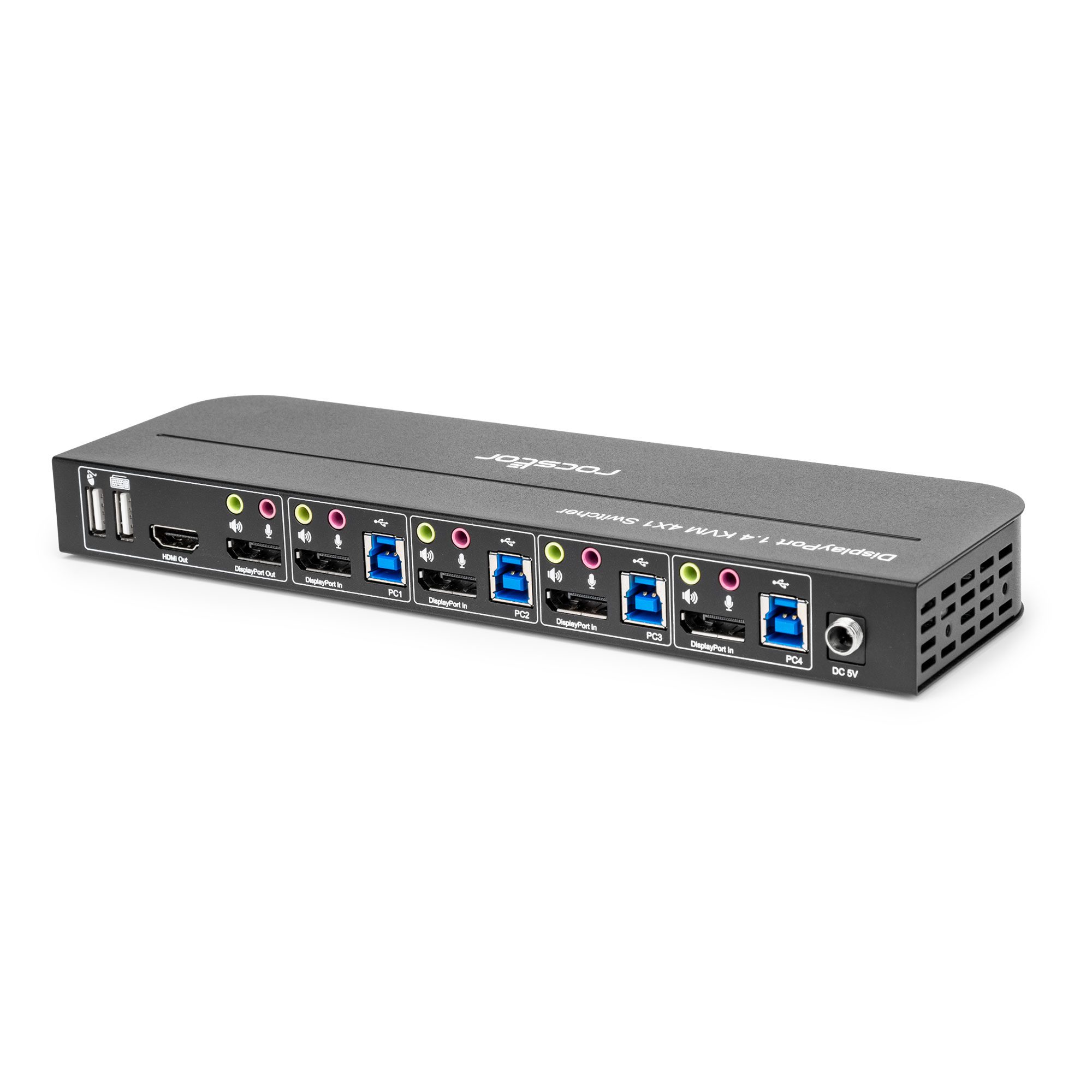

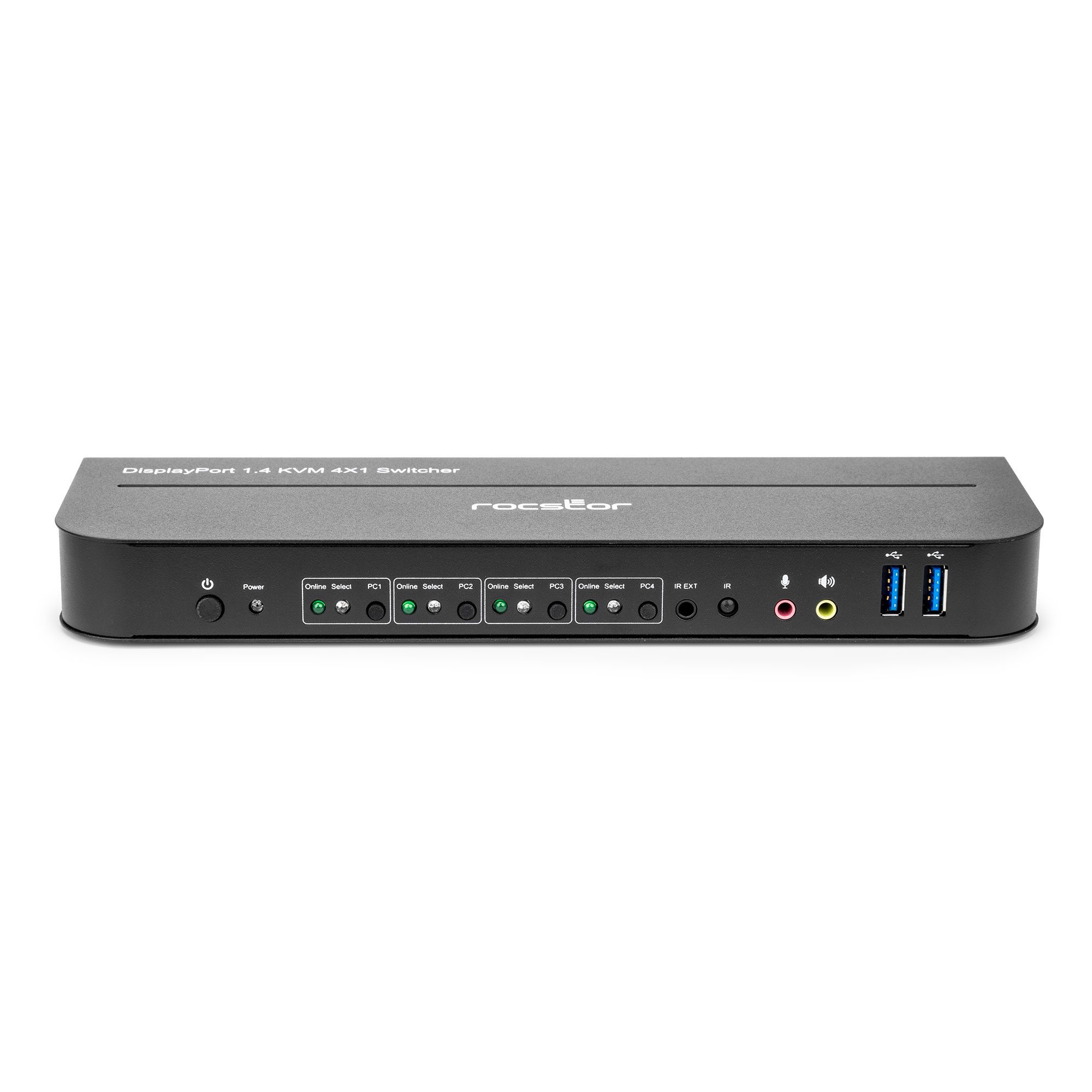

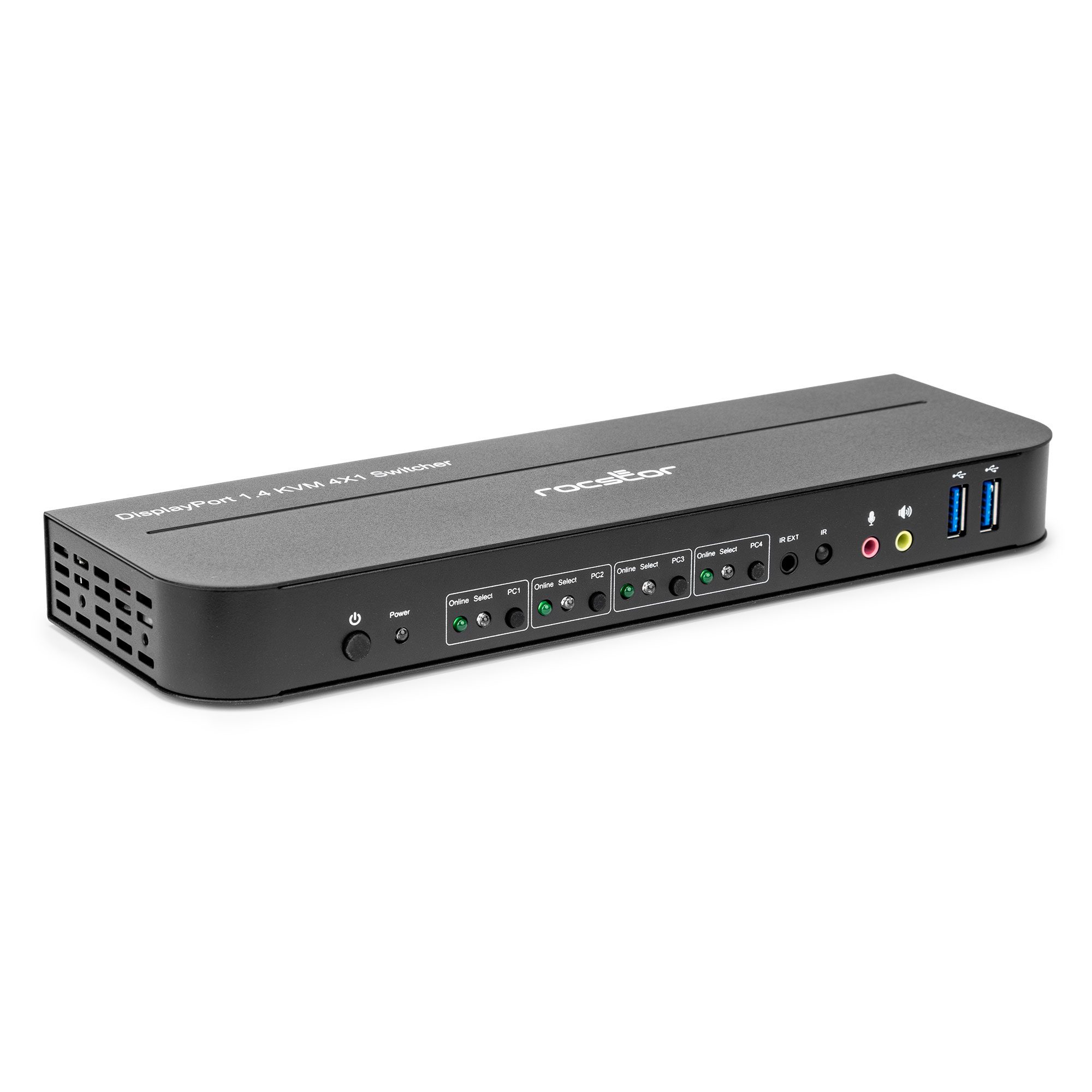

The Rocstor SolidKVM SK04 DisplayPort 1.4 and USB 3.0 4×1 KVM Switch is a high-performance solution designed to manage and control up to four computers using a single set of keyboard, mouse, microphone, and speaker. With support for both DisplayPort and HDMI monitors, this switch delivers ultra-high-definition video resolutions up to 4K@60Hz (4096×2160). Ideal for professionals who need seamless switching and control, the SolidKVM SK04 offers intelligent switching capabilities, hot-pluggable features, and robust connectivity options.
Equipped with four USB ports, including two USB 3.0 HUB ports, the SolidKVM SK04 allows users to connect additional peripherals such as printers, scanners, and external storage devices. The included infrared extender and remote control provide easy and convenient switching between connected computers, while LED indicators keep you informed of the input selection and power status. The switch is compatible with a variety of operating systems, including Windows 10 and 11, Linux, and Apple Mac OS, making it a versatile choice for any multi-device setup.

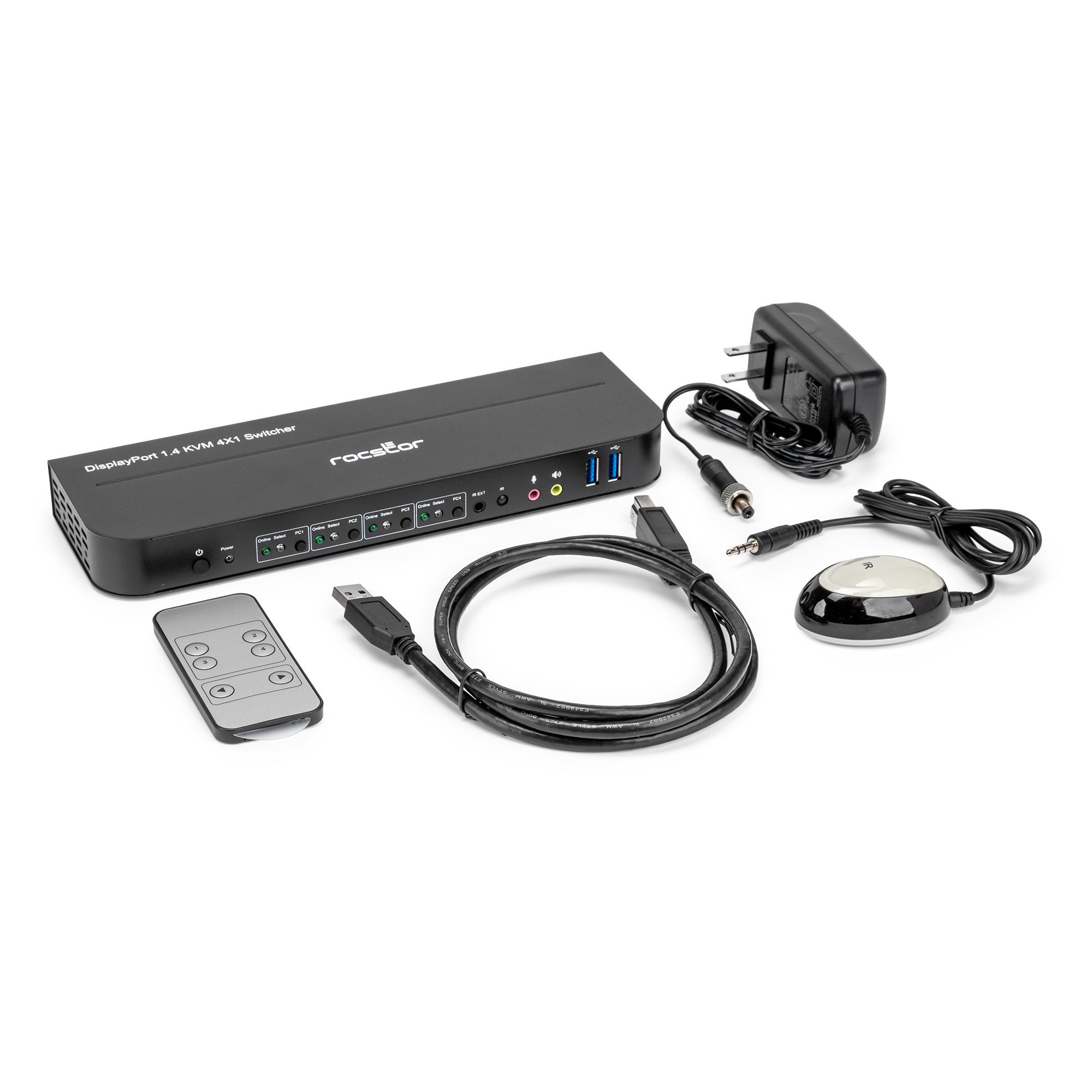

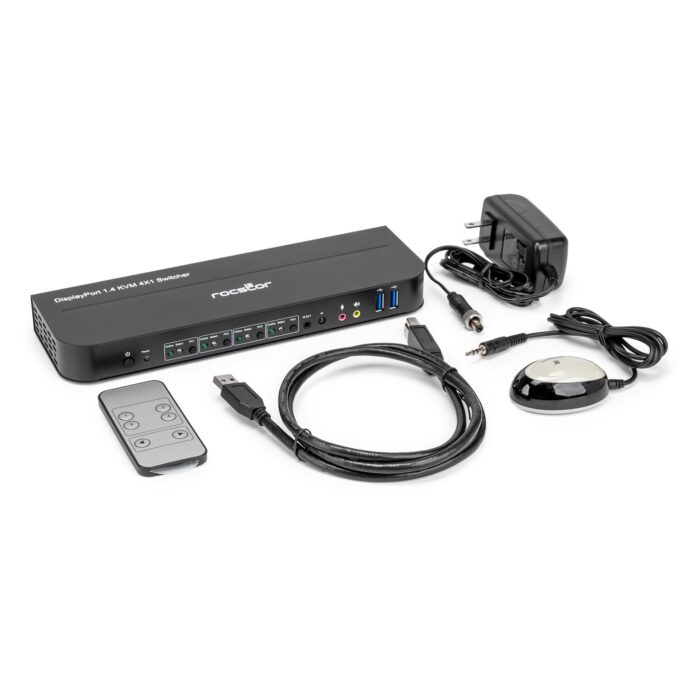

The SolidKVM SK04 package includes an AC power adapter, remote control, mounting brackets, and four USB cables, ensuring you have everything needed for a quick and hassle-free installation. Supporting HDR, HDCP 2.2, and multiple color formats, this KVM switch delivers exceptional video and audio quality, making it an ideal solution for professionals requiring high-performance connectivity and seamless device management. Backed by Rocstor 3-year limited warranty and lifetime free technical support.
Key Features:
- High-Resolution Support: Up to 4K@60Hz (4096×2160), Supports RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0
- KVM Functionality: Control four PCs with a single set of keyboard, mouse, microphone, and speaker

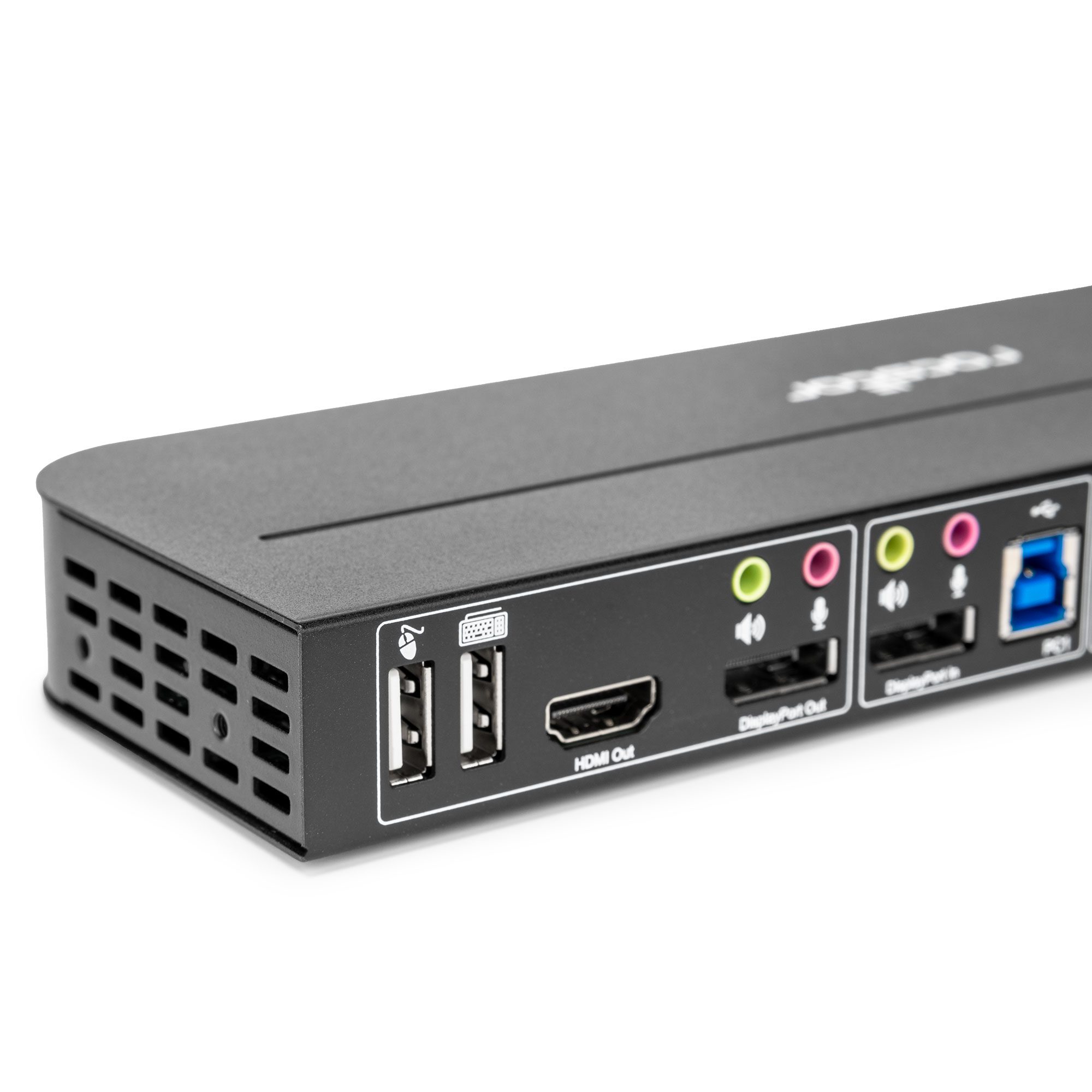

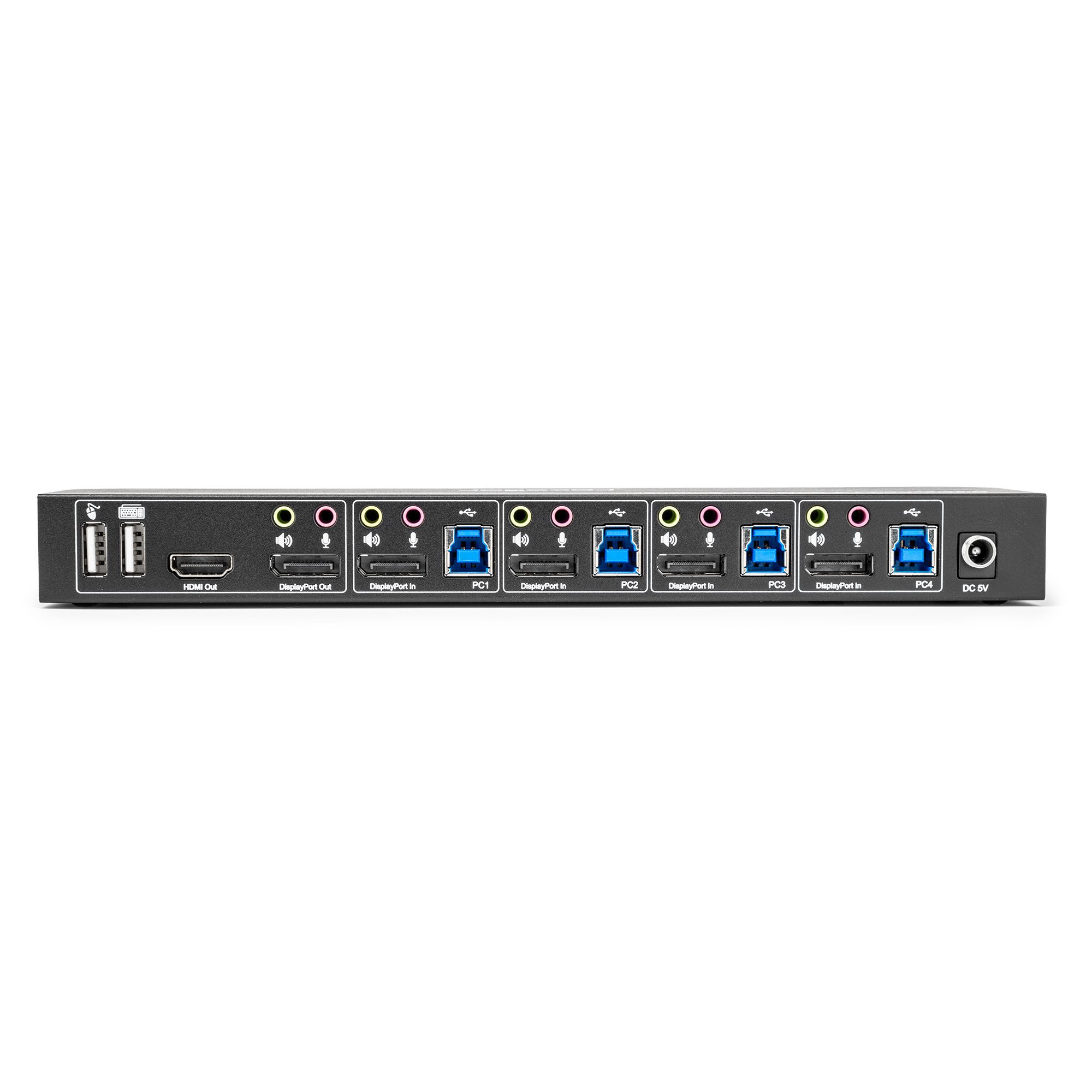

- Supports: DisplayPort and HDMI outputs
- DisplayPort: 8.1Gbps per channel bandwidth (32.4Gbps total) 16bit per channel deep color (48bit total)
- HDR support HDMI: 6Gbps per channel bandwidth (18Gbps total), 12bit per channel deep color (36bit total), HDCP 2.2/1.4 support,HDR support

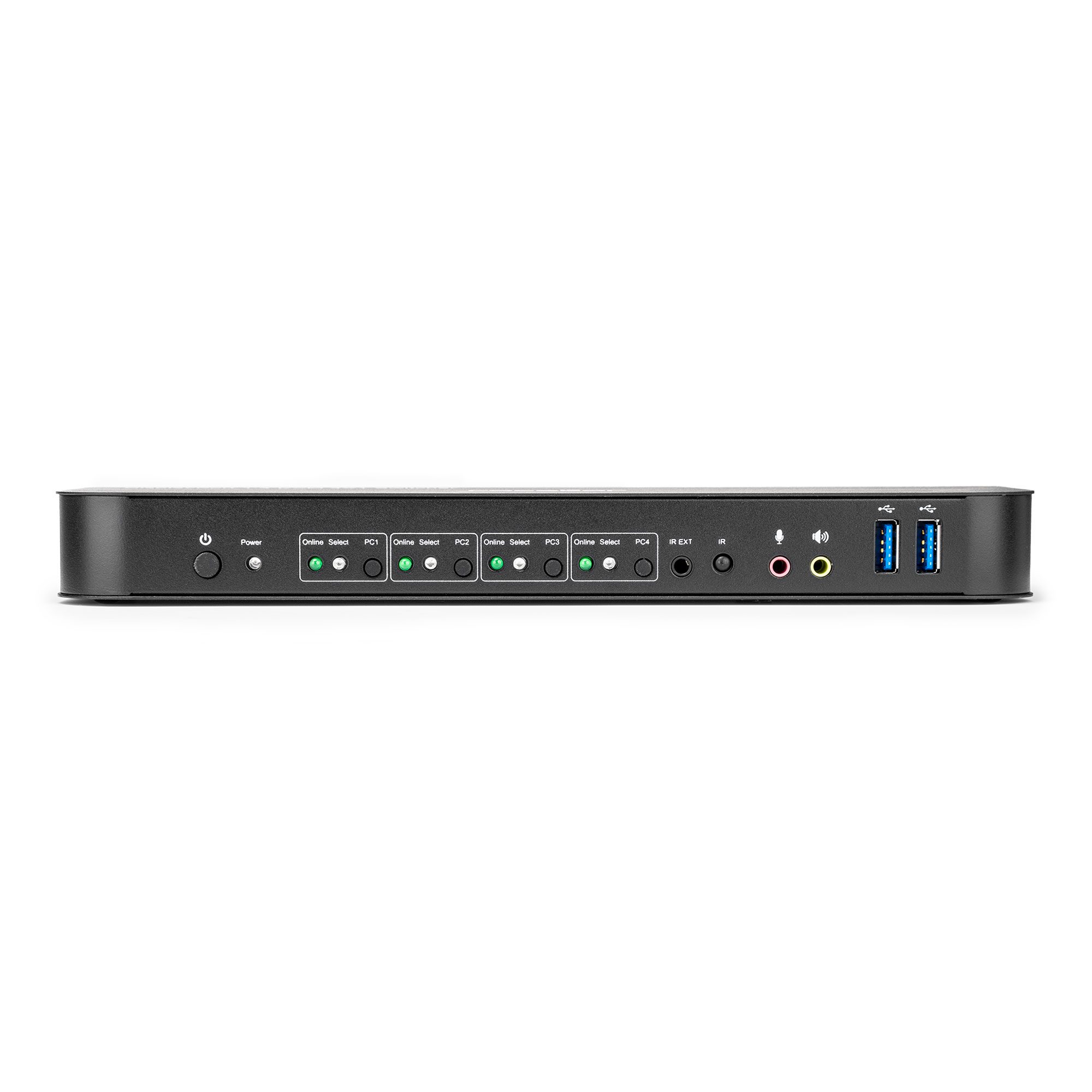

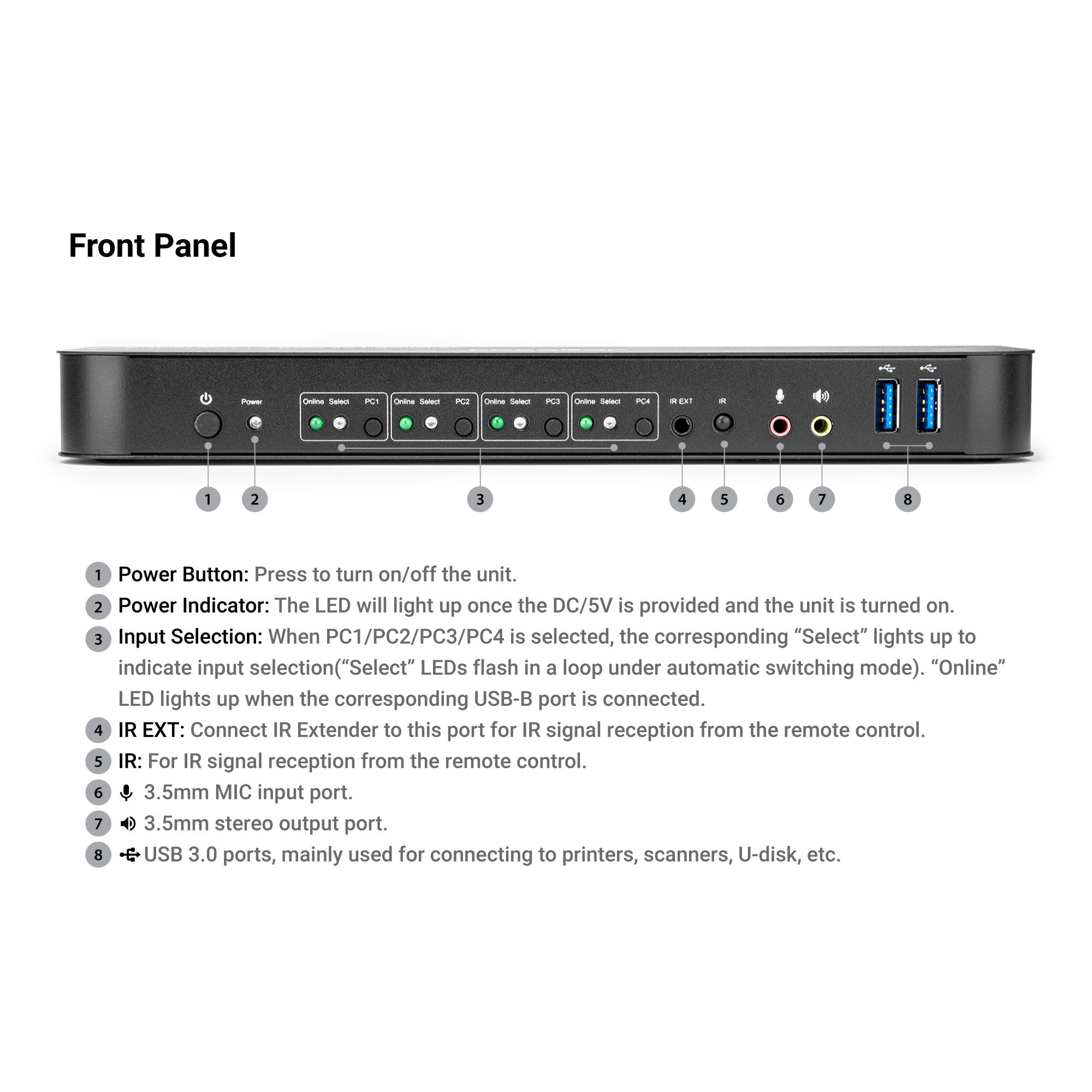

- Intelligent Switching: Key-press and remote control switching LED indicators for input selection and power status
- Comprehensive Connectivity: Includes AC power adapter, remote control, mounting brackets, and four USB cables
- Four USB ports: Two USB 3.0 HUB ports
- Infrared: Remote control function
- Compatibility: Supports Windows 10, 11, Linux, and Apple Mac OS
- Warranty: Rocstor 3-Year Limited Warranty
| Ports |
3 |
|---|---|
| Number of Users |
1 |
| PC/Server Connections |
DisplayPort |
User Manual
| Rocstor Part# | Ingram Micro | TD Synnex US | TD Synnex CA | AB | B&H |
| Y10A327-B1 | NJ2138 | 9812576.0 | 8171651.0 | ROC-Y10A327-B1 | ROY10A327B1 |
General Information
| Manufacturer | Rocstor |
| Manufacturer Part Number | Y10A327-B1 |
| Manufacturer Website Address | http://www.rocstor.com |
| Brand Name | Rocstor |
| Product Name | SolidKVM SK04 DisplayPort 1.4 and USB 3.0 4×1 KVM Switch |
| Marketing Information |
The Rocstor SolidKVM SK04 DisplayPort 1.4 and USB 3.0 4x1 KVM Switch is a high-performance solution designed to manage and control up to four computers using a single set of keyboard, mouse, microphone, and speaker. With support for both DisplayPort and HDMI monitors, this switch delivers ultra-high-definition video resolutions up to 4K@60Hz (4096x2160). Ideal for professionals who need seamless switching and control, the SolidKVM SK04 offers intelligent switching capabilities, hot-pluggable features, and robust connectivity options. Equipped with four USB ports, including two USB 3.0 HUB ports, the SolidKVM SK04 allows users to connect additional peripherals such as printers, scanners, and external storage devices. The included infrared extender and remote control provide easy and convenient switching between connected computers, while LED indicators keep you informed of the input selection and power status. The switch is compatible with a variety of operating systems, including Windows 10 and 11, Linux, and Apple Mac OS, making it a versatile choice for any multi-device setup. The SolidKVM SK04 package includes an AC power adapter, remote control, mounting brackets, and four USB cables, ensuring you have everything needed for a quick and hassle-free installation. Supporting HDR, HDCP 2.2, and multiple color formats, this KVM switch delivers exceptional video and audio quality, making it an ideal solution for professionals requiring high-performance connectivity and seamless device management. Backed by Rocstor 3-year limited warranty and lifetime free technical support. |
| Packaged Quantity | 1 |
| Product Type | KVM Switchbox |
Technical Information
| Connectivity Technology | Wired |
| Number of Computers Supported | 4 |
| Number of Local Users Supported | 1 |
| Features |
|
Video
| Graphic Mode | 4K |
| Maximum Video Resolution | 4096 x 2160 |
Interfaces/Ports
| USB | Yes |
| USB Standard |
|
| USB 2.0 | Yes |
| HDMI | Yes |
| DisplayPort | Yes |
| Number of USB Ports | 8 |
| Number of DisplayPorts | 5 |
Environmental Conditions
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 113°F (45°C) |
Power Description
| Input Current | 3 A |
Physical Characteristics
| Height | 1' |
| Width | 2.9' |
| Length | 9.50' |
| Weight (Approximate) | 1.11 lb |
Miscellaneous
| Package Contents |
|
| Environmentally Friendly | Yes |
| Country of Origin | Vietnam |
Warranty
| Limited Warranty | 3 Year |
