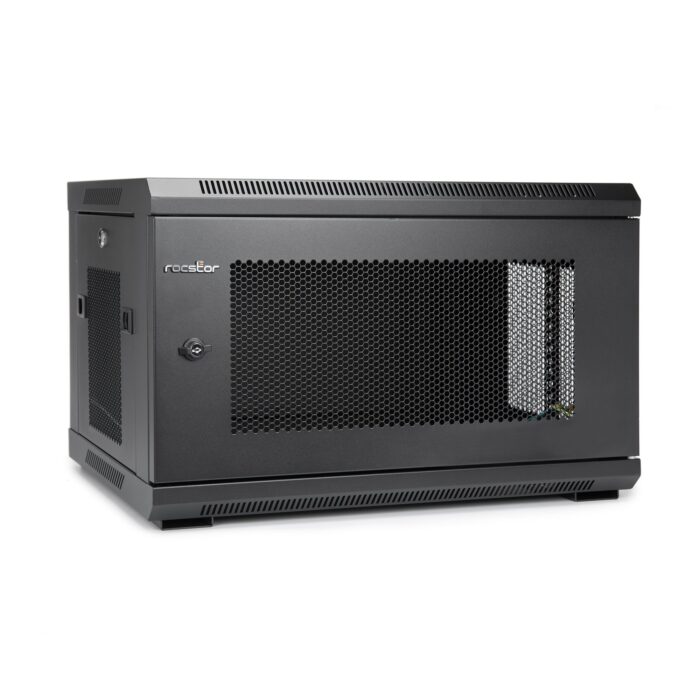

SolidRack Wall Mount Vented Rack Enclosure – Black

$239.95$299.95

Rocstor SolidRack Wall Mount Rack Vented Enclosure – Front & Side Door Locks – 200 lb Maximum Weight Capacity – Assembled – 14.75″ Rack Depth – Cold-rolled Steel – Optional Casters & Fans –  ROHS & CE Certified – EIA-310-E & IP20 Protection Rating  – Black

Description

The Rocstor SolidRack 6U, 9U, 12U Wall Mount with Vented Enclosure is constructed to EIA-standard 19-inch rack equipment in environments with restricted floor space, such as network wiring closets in homes, offices, retail establishments, classrooms, back offices, and other locations with limited floor space. Rocstor strives to deliver a safe, well-organized, and easy to use product to our users. This premium fully assembled wall mount rack is constructed with cold-rolled steel (CRS) and coated with a robust black powder-coated finish. It supports a rack depth of 14.8 inches and can withstand a maximum load capacity of 200 pounds (90.7 kilograms).For added protection against theft, tampering, and damage, the front door and side panels lock comfortably and securely. The removable side and front panels are constructed with a strong steel and vented mesh material. Cables can easily, conveniently, and effectively be routed through the removable top cover of the enclosure.The SolidRack 6U, 9U, 12U is delivered assembled and prepared for wall mounting, or it may be converted to a mobile rack using Rocstor’s optional rolling caster kit (PN: Y10E013-B1). Equipment installation is simplified by square 12-24 threaded mounting holes and numbered rack spaces. The vertical mounting rails can be adjusted in 7/8-inch increments to support equipment with a depth of up to 14.8 inches, including patch panels and network switches.

Conserves Essential Workspace

● Ideal for use in network wiring closets, hospitals, homes, offices, retail establishments, classrooms, and other limited space settings where equipment needs to be secure, organized, and out of the way.
● Accommodates EIA-standard 19 in. rack equipment in 6U or 9U or 12U of space
● Able to withstand a weight stationary capacity of up to 200 pounds. (90.7 kilograms)

Secures Important Equipment

● For added protection against theft, tampering, and damage, the front door and side panels lock comfortably and securely
● Top and bottom ports with removable top covers makes it convenient to effectively route cables

Simple Enclosure and Installation of Equipment

● Product arrives assembled for rapid installation

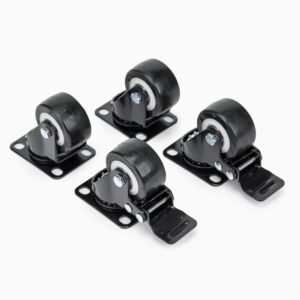

● Arrives prepared for wall mounting, or it may be converted to a mobile rack using Rocstor’s optional rolling caster kit
● 16-inch separation between wall mounting holes for conventional wall stud installation
● Equipment up to 14.8 inches deep, such as network switches and patch panels
● Square threaded-hole mounting is supported by rails.

Additional information

Weight N/A
Dimensions N/A
Rack Hight

6U, 9U, 12U

Frame Type

Enclosed Cabinet

Wallmountable

Yes

Max Depth Capacity

Up to 14.8

UPC

, ,

Manual

User Manual Click Here

6U

Technical Information

Application/Usage VoIP Device

Switches

Networking Equipment

Miscellaneous

Package Contents ●       SolidRack R106SH4 Wallmount Rack Enclosure

●       4 x Expansion bolts

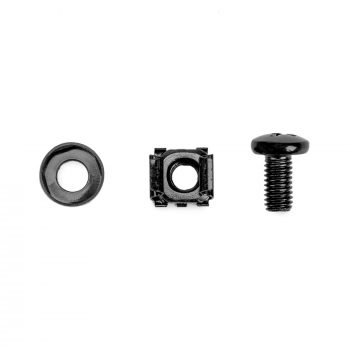

●       12 x M6 screws

●       12 x M6 cage nuts

●       12 x Plastic washers

●       12 x 12-24 screws

●       2 x Keys for Front door

●       2 x Keys for Side panels

●       Owner’s Manual

Certifications & Standards

○       EIA-310-E

○       CE

○       IP20 Protection Rating

Country of Origin China
Assembly Required No
Environmentally Friendly Yes
Environmental Certification RoHS

General Information

Product Type Rack Cabinet
Manufacturer Part Number Y10E004-B1
Manufacturer Website Address https://www.rocstor.com
Manufacturer Rocstor
Product Model R106SH4
Product Name SolidRack R106SH4 Wallmount 6U Rack Enclosure with Vented Enclosure
Product Line SolidRack
Brand Name Rocstor

Physical Characteristics

Weight (Approximate) 34.17 lb. (15.5 kg)
Form Factor Wall Mountable
Rack-mountable
Floor standing
Rack Height 6U
Height 15.06″
Width 23.62 “
Depth 17.72 “
Maximum Weight Capacity 200 lb
Rack Depth 14.80″
Product Color Black
Product Material Cold-Rolled Steel



Shipping Width  (inch) Shipping Length (inch) Shipping Height (inch) Shipping Weight  (lb)
24.6 19.3 15.7 36.38

9U

Technical Information

Application/Usage VoIP Device

Switches

Networking Equipment

Miscellaneous

Package Contents ●       SolidRack R109SH4 Wallmount Rack Enclosure

●       4 x Expansion bolts

●       12 x M6 screws

●       12 x M6 cage nuts

●       12 x Plastic washers

●       12 x 12-24 screws

●       2 x Keys for Front door

●       2 x Keys for Side panels

●       Owner’s Manual

Certifications & Standards

○       EIA-310-E

○       CE

○       IP20 Protection Rating

Country of Origin China
Assembly Required No
Environmentally Friendly Yes
Environmental Certification RoHS

General Information

Product Type Rack Cabinet
Manufacturer Part Number Y10E005-B1
Manufacturer Website Address https://www.rocstor.com
Manufacturer Rocstor
Product Model R109SH4
Product Name SolidRack R109SH4 Wallmount 9U Rack Enclosure with Vented Enclosure
Product Line SolidRack
Brand Name Rocstor



Physical Characteristics

Weight (Approximate) ​​42.55 lb. (19.3 kg)
Form Factor Wall Mountable
Rack-mountable
Floor standing
Rack Height 9U
Height 20.31”
Width 23.6”
Depth 17.7”
Maximum Weight Capacity 200 lb
Rack Depth 14.80″
Product Color Black
Product Material Cold-Rolled Steel



Shipping Specification;

Shipping Width  (inch) Shipping Length (inch) Shipping Height (inch) Shipping Weight  (lb)
24.6 19.3 21.1 43.65

12U

Technical Information

Application/Usage VoIP Device

Switches

working Equipment

Miscellaneous

Package Contents ●       SolidRack R112SH4 Wallmount Rack Enclosure

●       4 x Expansion bolts

●       12 x M6 screws

●       12 x M6 cage nuts

●       12 x Plastic washers

●       12 x 12-24 screws

●       2 x Keys for Front door

●       2 x Keys for Side panels

●       Owner’s Manual

Certifications & Standards

○       EIA-310-E

○       CE

○       IP20 Protection Rating

Country of Origin China
Assembly Required No
Environmentally Friendly Yes
Environmental Certification RoHS

General Information

Product Type Rack Cabinet
Manufacturer Part Number Y10E006-B1
Manufacturer Website Address https://www.rocstor.com
Manufacturer Rocstor
Product Model R112SH4
Product Name SolidRack R112SH4 Wallmount 12U Rack Enclosure with Vented Enclosure
Product Line SolidRack
Brand Name Rocstor

Physical Characteristics

Weight (Approximate)  48.5 lb. (22 kg)
Form Factor Wall Mountable
Rack-mountable
Floor standing
Rack Height 12U
Height 25.56 “
Width 23.6 “
Depth 17.7 “
Maximum Weight Capacity 200 lb
Rack Depth 14.80″
Product Color Black
Product Material Cold-Rolled Steel



Shipping Specifications:

Shipping Width  (inch) Shipping Length (inch) Shipping Height (inch) Shipping Weight  (lb)
24.6 19.3 26.4 49.38
