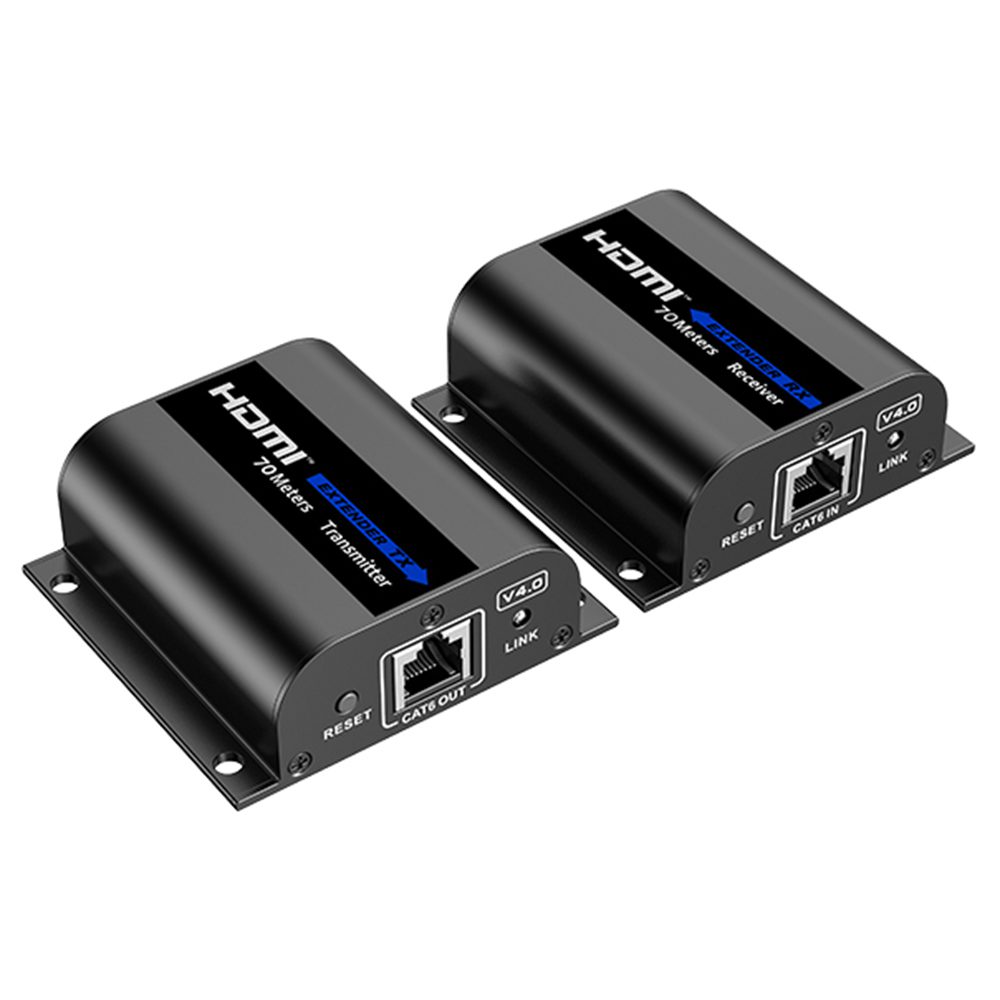

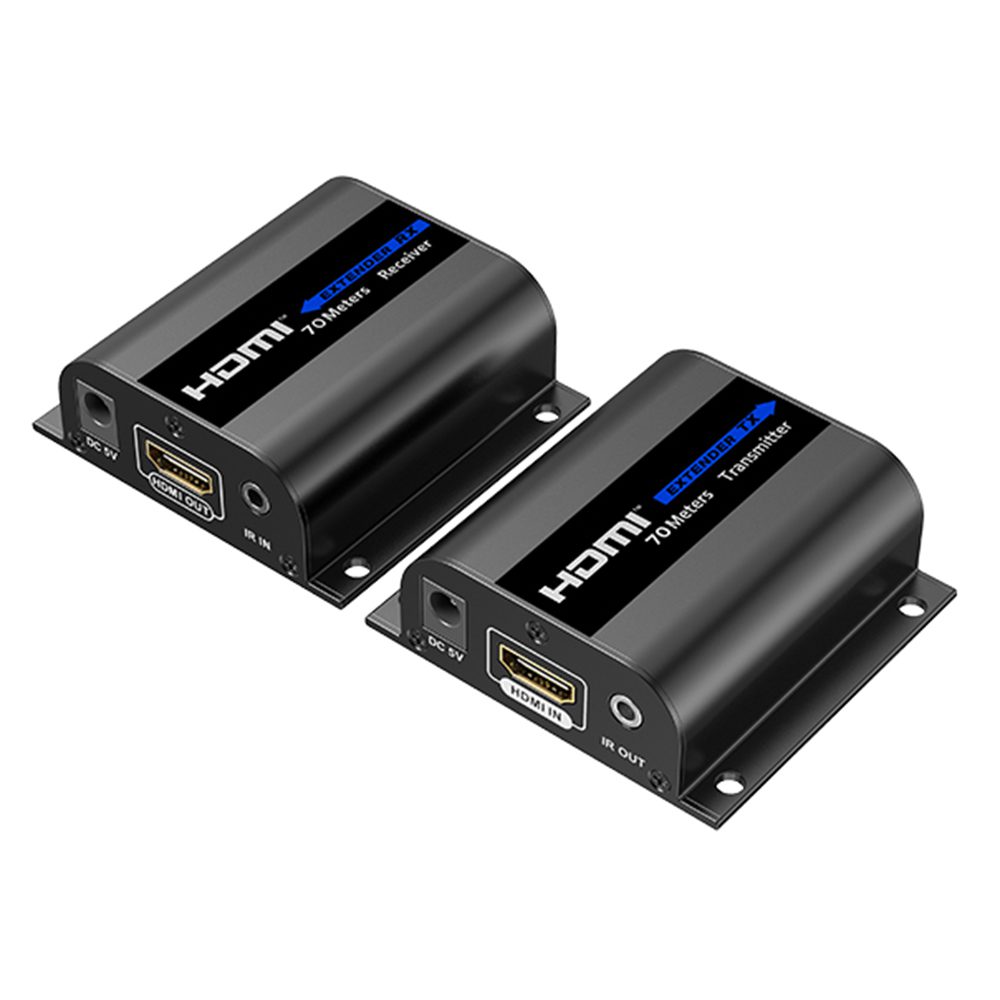

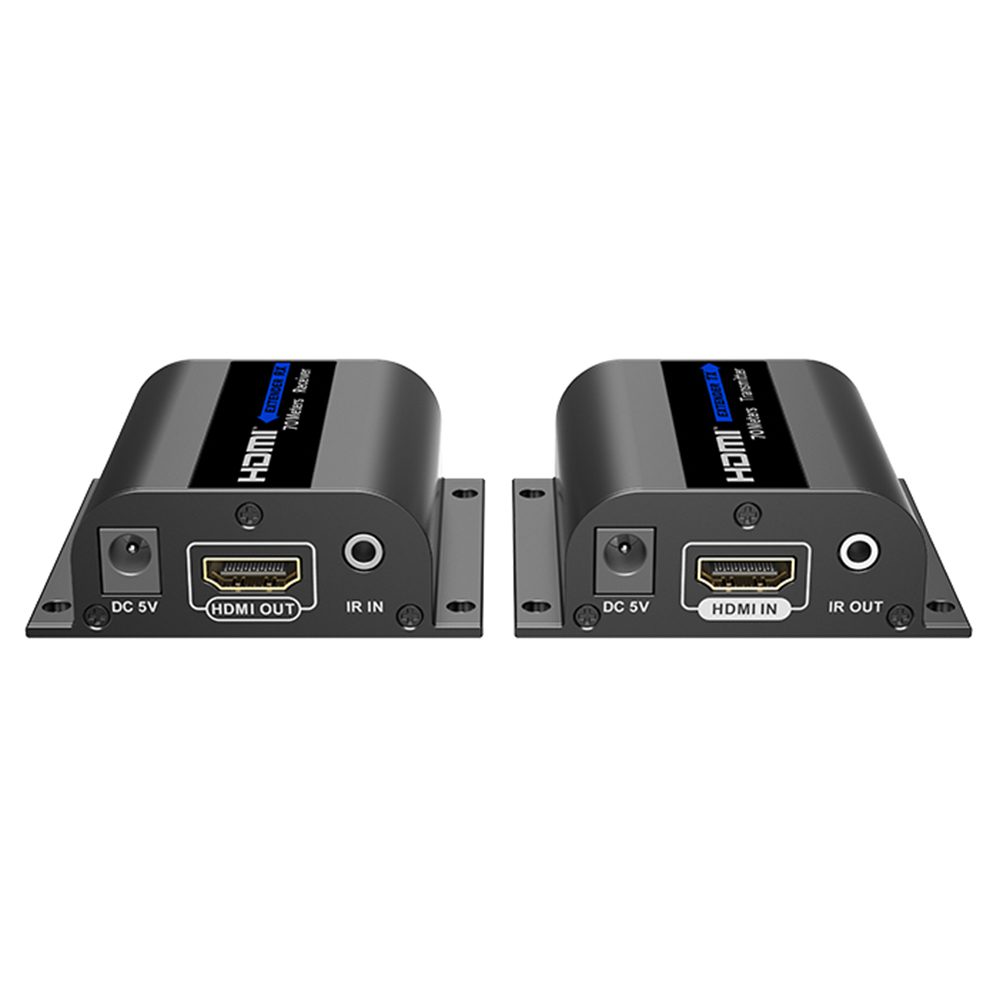

4K@30Hz HDMI Video Extender – up to 130ft – Point to Point Extender – AC Adapter


Rocstor TrueReach 4K HDMI Extender over CAT6/CAT6a/Cat7 Ethernet Cable – 4K 30Hz up to 131ft (40m) or 1080p up to 230ft (70m) – 4K 30Hz or 1080p 60Hz Video Extender – Point to Point Extender – Includes HDMI Transmitter and Receiver (Kit) – One UL power supply – IR Pass-through – Metal housing Includes built-on mounting brackets – Black


Learn More Here

4K@30Hz HDMI Video Extender – up to 130ft – Point to Point Extender – AC Adapter

Elevate your audiovisual experience with the Rocstor TrueReach Point to Point 4K @ 30Hz HDMI Extender. Designed to deliver exceptional performance and reliability, this advanced extender allows you to extend HDMI signals over long distances without compromising on video quality. With zero latency and a transmission distance of up to 70 meters, the TrueReach HDMI Extender ensures seamless, high-definition content delivery.

Immerse yourself in stunning visuals with support for 4K resolution at 30Hz with HDR. Whether you’re setting up a home theater, digital signage system, or professional presentation space, the TrueReach HDMI Extender guarantees vivid colors, crisp details, and an immersive viewing experience.

The TrueReach extender is equipped with convenient features such as IR pass-back and EDID passthrough, enabling you to control your HDMI source devices from the remote display location. This eliminates the need for additional equipment or complex installations, providing you with a streamlined setup and enhanced usability.

Thanks to its compatibility with Cat6, Cat6A, and Cat7 network cables, the Rocstor TrueReach adapts to various cable types effortlessly. Its adaptive technology automatically adjusts parameters to optimize display performance, ensuring a stable and reliable connection. Enjoy the flexibility to extend your HDMI signals while maintaining the highest level of video quality and signal integrity.



• Zero latency HDMI extender for seamless audiovisual transmission
• Transmission distance of up to 131 ft (40 meters) for 4K @ 30Hz and 70 meters for 1080p @ 60Hz signals
• IR pass-back feature enables control of HDMI source devices from the remote display location
• EDID passthrough ensures smooth communication between source and display
• Compatible with Cat6, Cat6A, and Cat7 network cables
• Adaptive technology automatically adjusts parameters for optimal display performance
• Perfect for home theaters, digital signage systems, and professional presentations.
• Supports 4K @ 30Hz HDR resolution for breathtaking visuals


Additional information

Weight 0.95 lbs
Dimensions 5.71 × 7.95 × 3.15 in
Extenders Type

Extender Kit, HDMI Extender Kit, Receiver, Transmitter


Box, Rackmoun, Wallmount



Video In


Video Out


Max Resolution


Max Range

51 – 100

User Manual

Y10G008-B1 User Manual


Technical Transmitter-TX Receiver-RX
HDMI compliance 1.3
HDCP compliance 1.4
Video bandwidth 225MHz(10.2Gbps)
Video support 800×600、1024×768、1280×720、1280×960、1366×768、1440×900、1680×1050、1920×1080、480i@60Hz、480p@60Hz、576i@50Hz、576p@50Hz、720p@50/60Hz、1080i@50/60Hz、1080p@24/25/30/50/60Hz
Audio support PCM、LPCM、DTS-HD、DTS
InputTMDS signal 1.2Vp-p
EDID through Support
IR passback Support
IR frequance Range(KHz) 20-60KHz
Input 1×HDMI 1×RJ45, 1×3.5mm(IR)
Output 1×RJ45, 1×3.5mm(IR) 1×HDMI
HDMI conector Type A, Female, 19-pin
RJ-45 connector RJ-45
Mechanical Transmitter-TX Receiver-RX
Housing Metal enclosure
Dimensions(L×W×H mm) 71.6×66.6×24.8mm 71.6×66.6×24.8mm
Net weight 85g 85g
Fixedness wall-mounting case with screws
Power supply 5V/500mA
Consumption <1.5W <1.5W
Operation temperaure —20~60℃
Storage temperature —30~70℃
Relative humidity 0~90%(non-condensing)
