Rocstor TrueReach TR13 Extender over Ethernet Cable 4K@60Hz HDMI
Experience seamless ultra-high-definition video with the Rocstor TrueReach TR13 Extender over Ethernet Cable 4K@60Hz HDMI. This point-to-point extender kit enables zero-latency transmission, allowing you to extend the HDMI™ signal up to 197 feet (60m) using CAT6/6A/7 network cables. Perfect for applications in security monitoring, home theater, broadcasting, and training, this kit ensures synchronized audiovisual signals with unmatched clarity and smoothness. Its mini plug-and-play design, combined with a Type-C power supply, offers convenience and reliability in a compact form.
The Rocstor TrueReach TR13 Extender is not just about extending distance; it enhances your viewing experience with 4K@60Hz HDR support for vivid, lifelike colors and superior image performance. The receiver can be powered over the cable (PoC) from the transmitter, simplifying installation by eliminating the need for a separate power supply. This kit supports HDMI 2.0, HDR, YUV4:4:4, and HDCP 2.2, along with audio formats like DTS 5.1 and Dolby Digital 5.1CH, housed in a durable metal enclosure for enhanced durability.
With the Rocstor TrueReach TR13 Extender 4K@60Hz HDMI, you’re equipped to deliver a high-performance video experience over extended distances with total ease and precision.

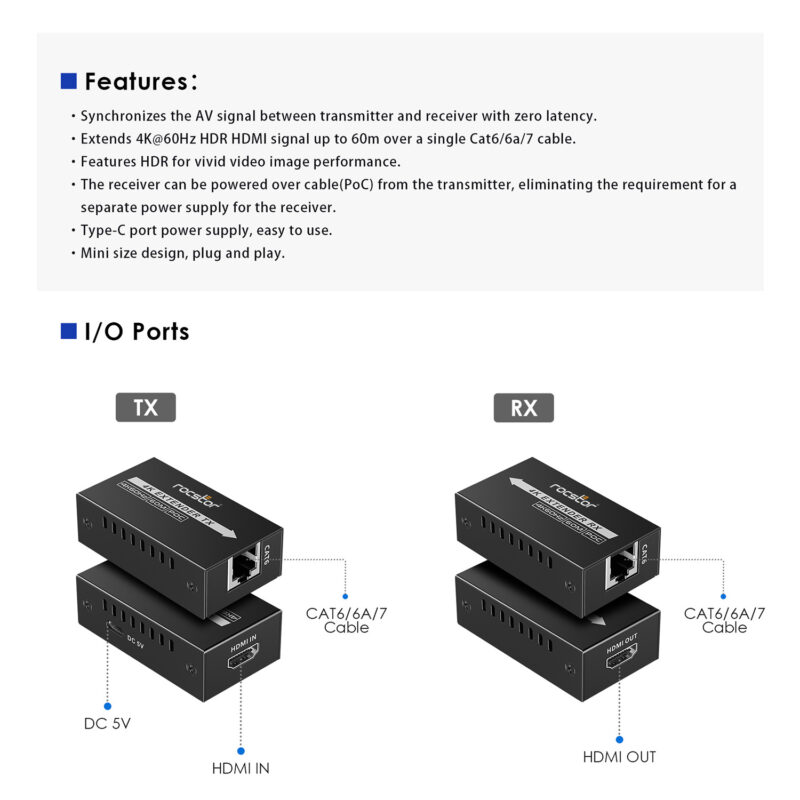

Features:
• Zero-Latency Transmission: Ensures perfect synchronization between transmitter and receiver for flawless audio and video.
• Long Range Extension: Extends 4K@60Hz HDR HDMI signals up to 197 feet (60m) over a single Cat6/6a/7 cable.
• High Dynamic Range (HDR): Delivers exceptional detail, brightness, and color accuracy.
• Power Over Cable (PoC): Powers the receiver directly from the transmitter to streamline setup.
• Type-C Power Supply: Easy and flexible power options with a modern connection.
• Compact Design: Miniature, plug-and-play design for easy installation and operation.
• Advanced Compatibility: Supports HDMI 2.0, HDR, YUV4:4:4, HDCP 2.2, DTS 5.1, and Dolby Digital 5.1CH.
• Robust Construction: Housed in a sturdy metal casing for extra durability and reliability.
| Extenders Type |
HDMI Extender Kit |
|---|---|
| Style | |
| Method |
CATx |
| Video In |
HDMI |
| Video Out |
HDMI |
| Max Resolution |
4K/60 |
| Max Range |
101 – 200 |
User Manual
Specification
[table type=”table-hover”]
| Miscellaneous | |
| Package Contents | CAT6 Transmitter x1
CAT6 Receiver x1 |
| Country of Origin | China |
| Environmentally Friendly | Yes |
| General Information | |
| Product Type | CAT6/6A/7 Extender |
| Manufacturer Part Number | Y10G013-B1 |
| Manufacturer Website Address | http://www.rocstor.com |
| Manufacturer | Rocstor |
| Product Name | Rocstor TrueReach TR13 Extender over Ethernet Cable 4K@60Hz HDMI |
| Brand Name | Rocstor |
| Physical Characteristics | |
| Weight (Approximate) | TX: 0.22lb (99g) RX: 0.20lb (90.7g) |
| Length | 2.63” (6.68cm) |
| Height | 0.59″ (1.5cm) |
| Width | 1.58″ (4cm) |
| Product Color | Black |
| Product Material | ABS |
| Product Information | |
| Maximum transfer rate | 18Gbps |
| Maximum transmission bandwidth | 600MHz |
| EDID passthrough | Yes |
| Compatibility | HDMI 2.0（Deep color, 4K, HDR, YUV4: 4:4） HDCP 2.2 |
| Resolutions | 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840×2160@24/25/30/50/60Hz, 4096×2160@24/25Hz, 1280×960, 1280×800, 1280×768, 1680×1050, 1920×1200, 1360×768, 1366×768, 1600×900, 1024×768, 800×600 |
| Transmission distance | CAT6/6A/7≤60m |
| Audio formats | LPCM/DTS 5.1/Dolby Digital 5.1CH |
| Power Supply | TX: DC5V/2A，RX: PoC (Powered by TX) |
| Power Consumption | TX+RX＜5W |
| Working temperature | -20℃~60℃ |
| Storage temperature | -30℃~70℃ |
| Humidity | 0~90%RH（No condensation) |
| Protection | ESD protection |
| 1a Contact discharge level 2 (±4KV) | |
| 1b Air discharge level 3 (±8KV) Implementation of the standard: IEC61000-4-2 | |
| Lightning protection, Surge protection | |
| Shipping Box Sizes | |
| Shipping Weight | 25.6lbs (11.6kg) |
| Lenght | 16.93in (43cm) |
| Width | 12.99in (33cm) |
| Height | 14.96in (38cm) |
[/table]
Warranty
Limited Warranty: 2 Year
