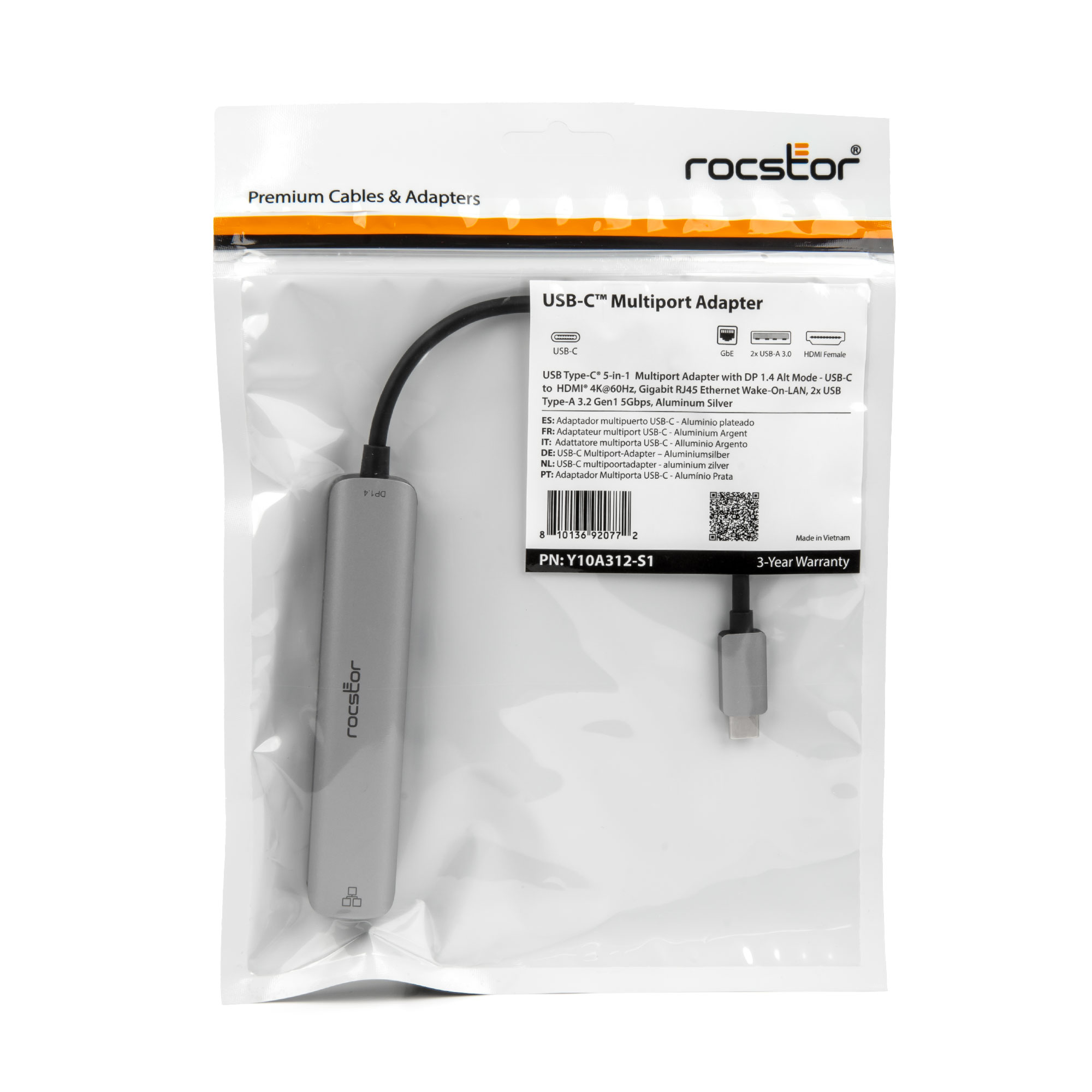

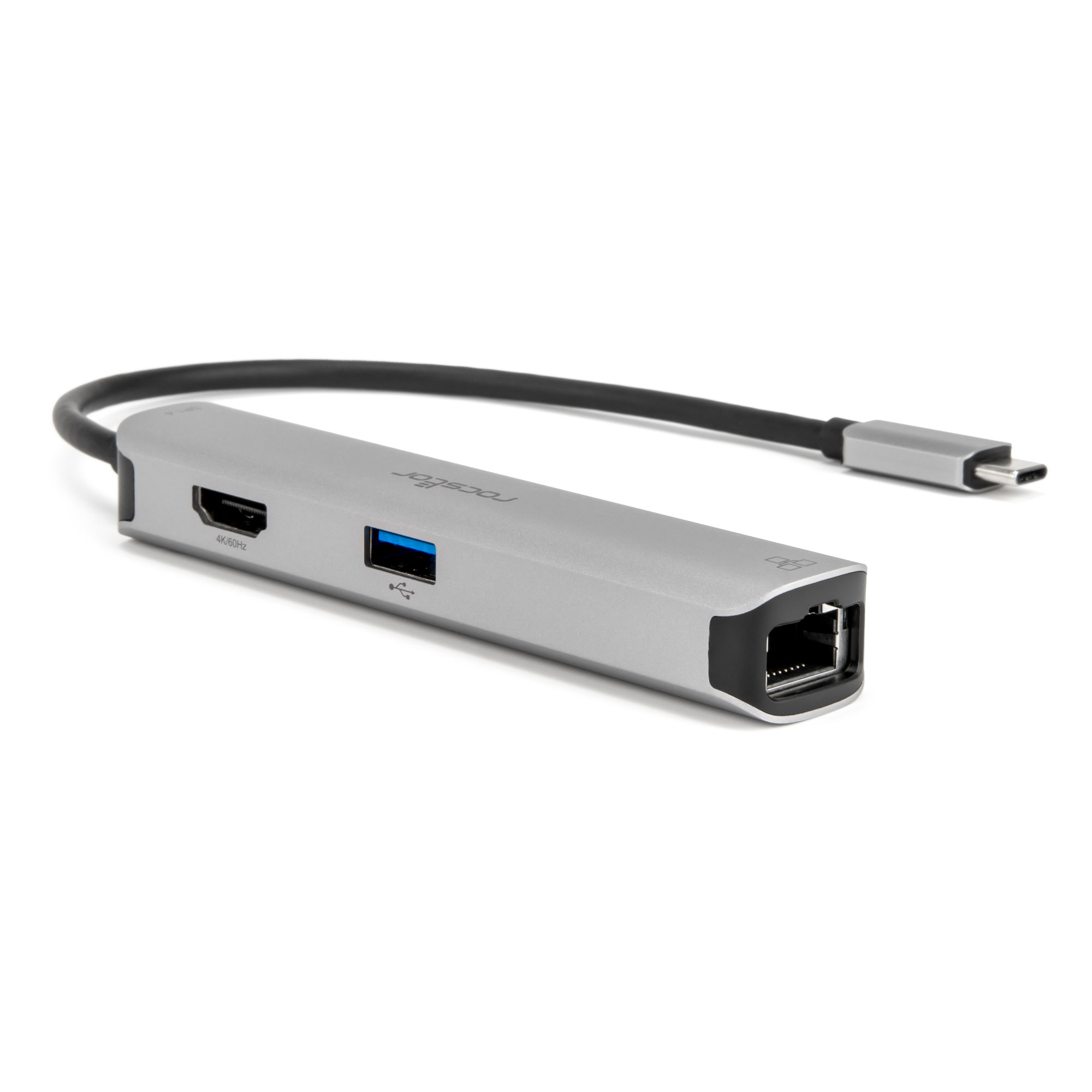

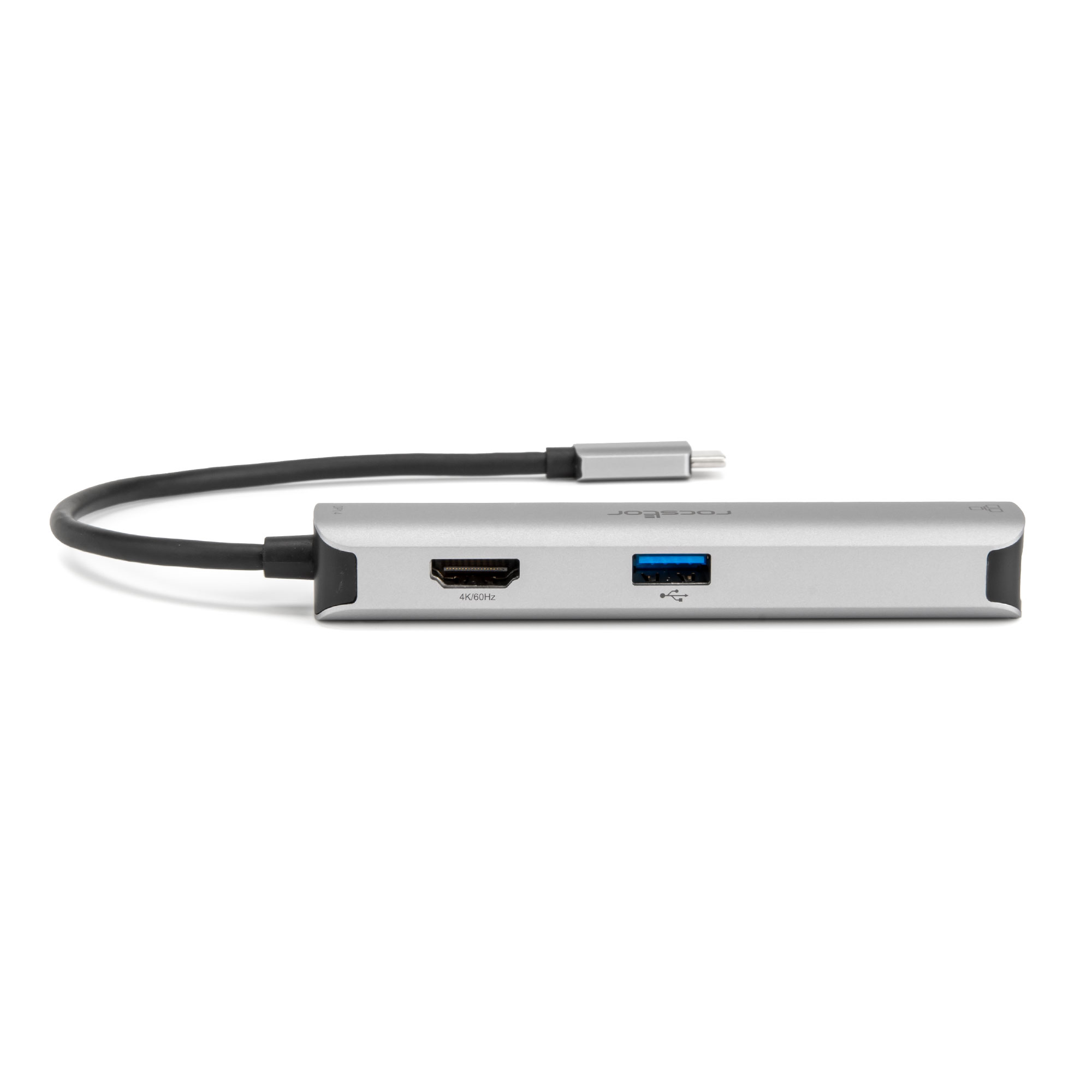

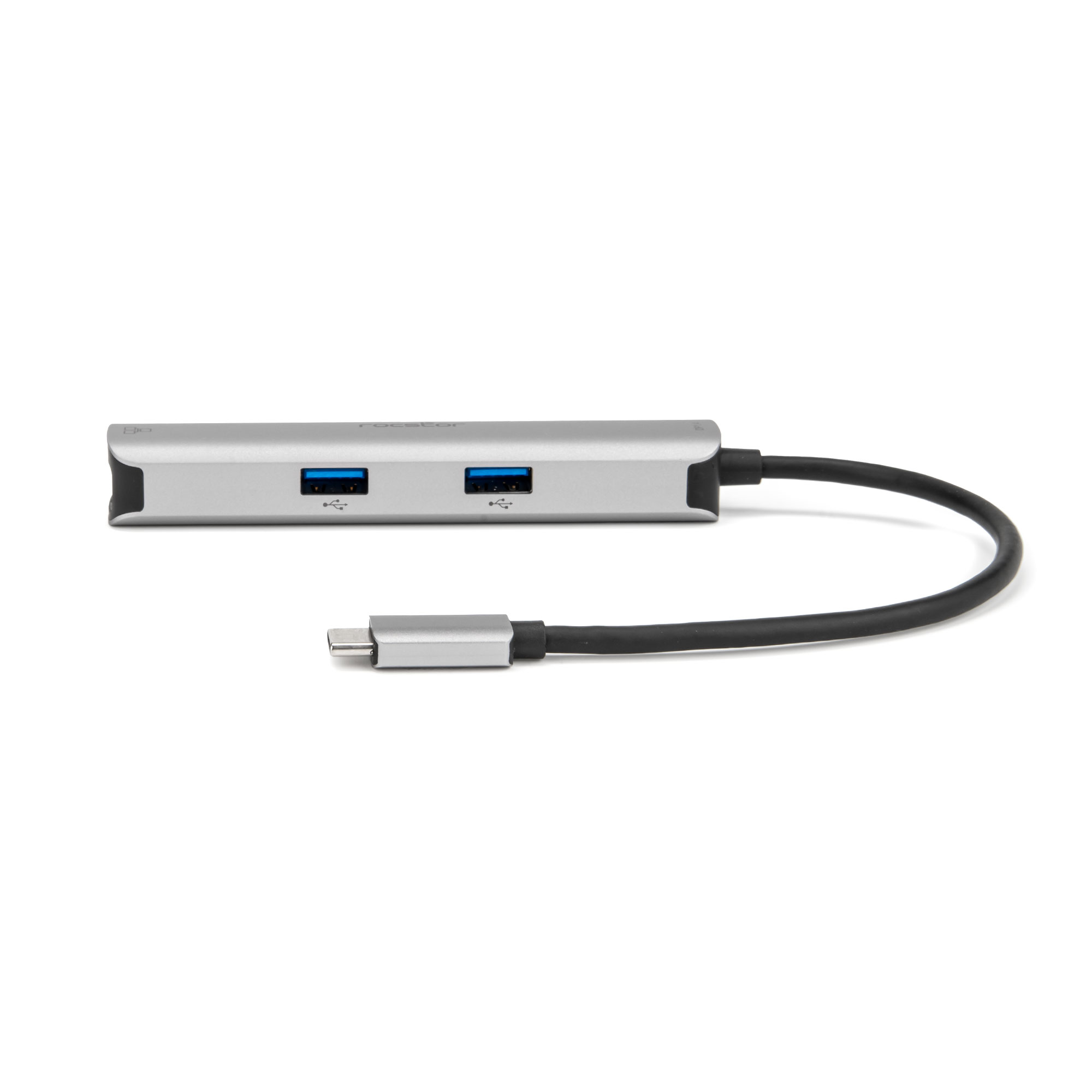

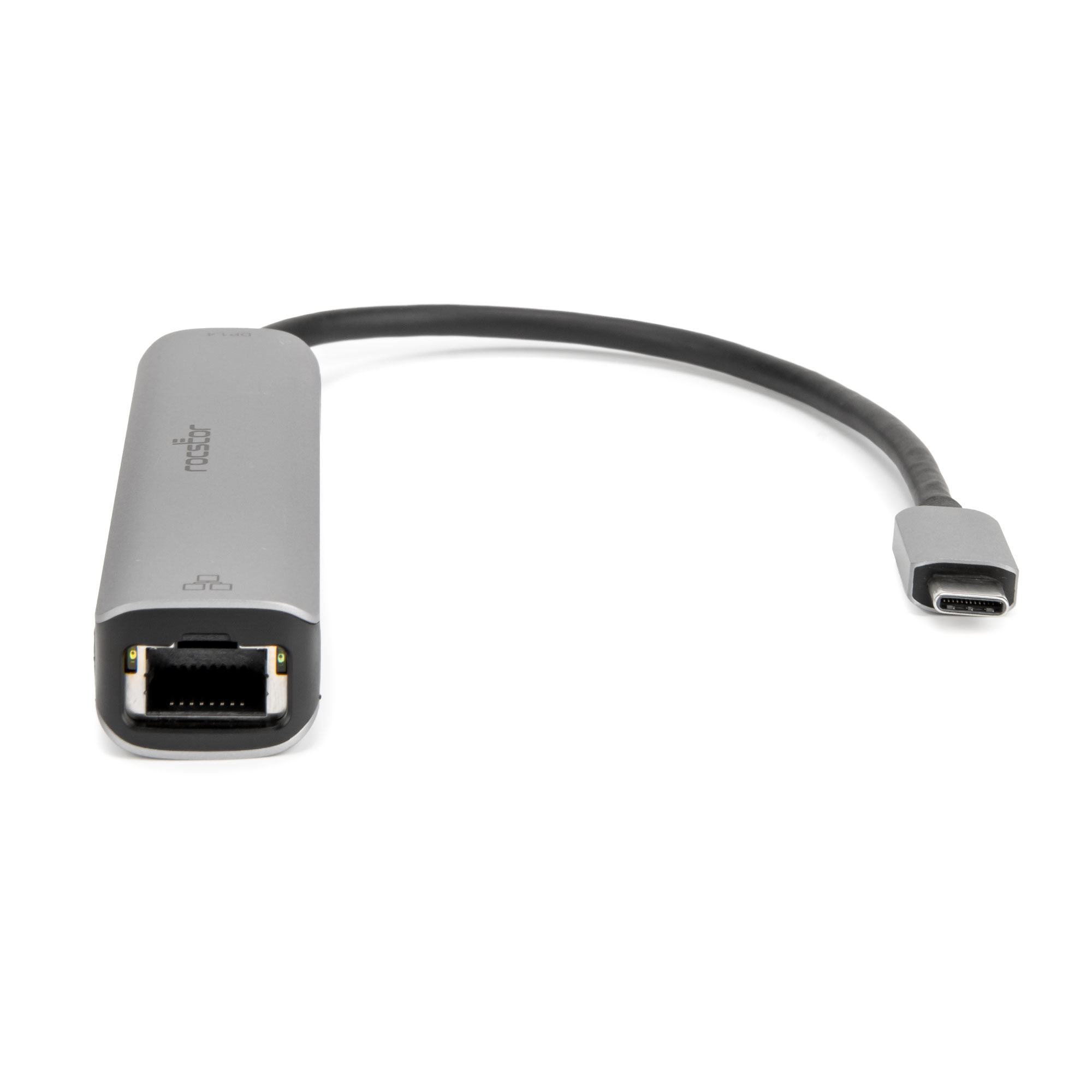

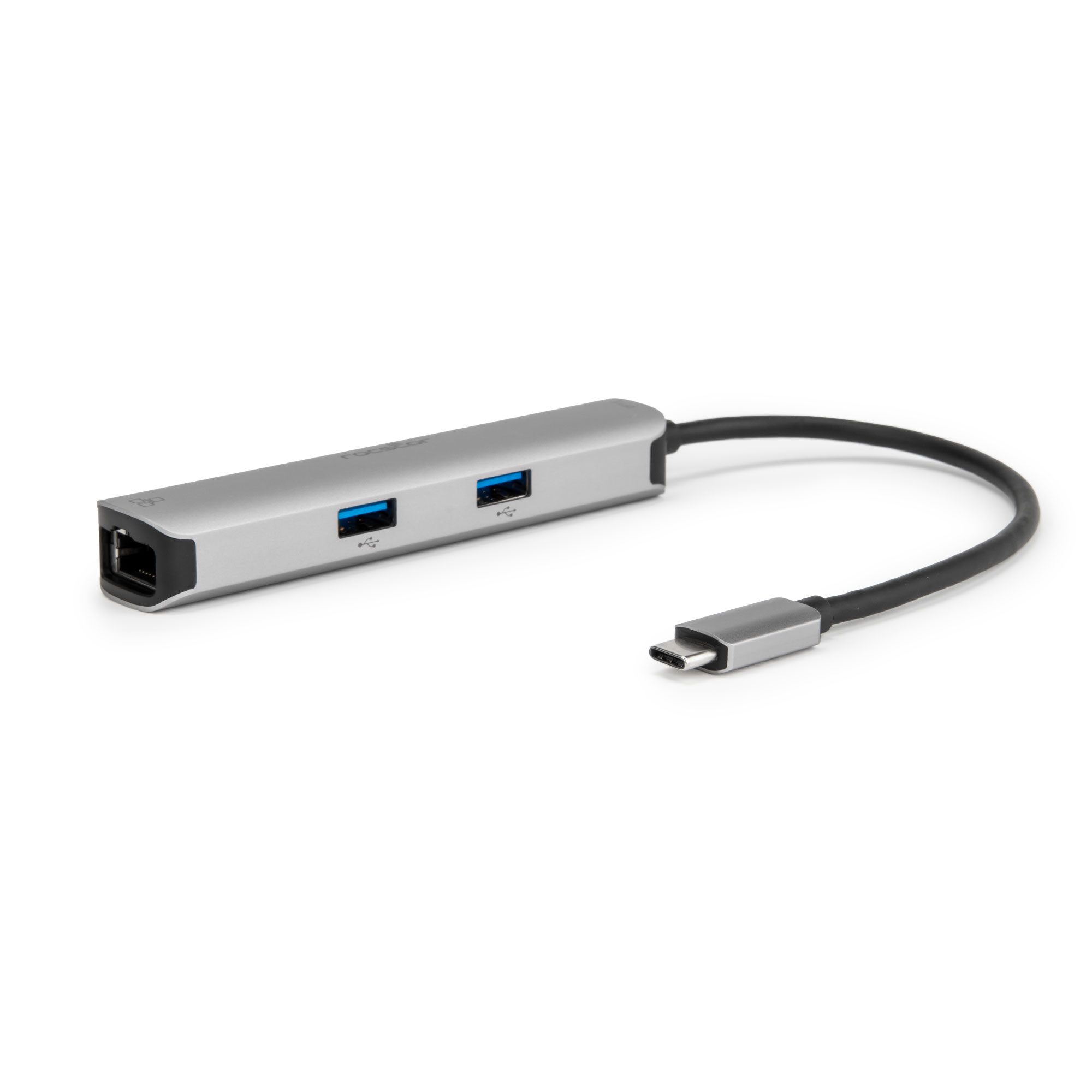

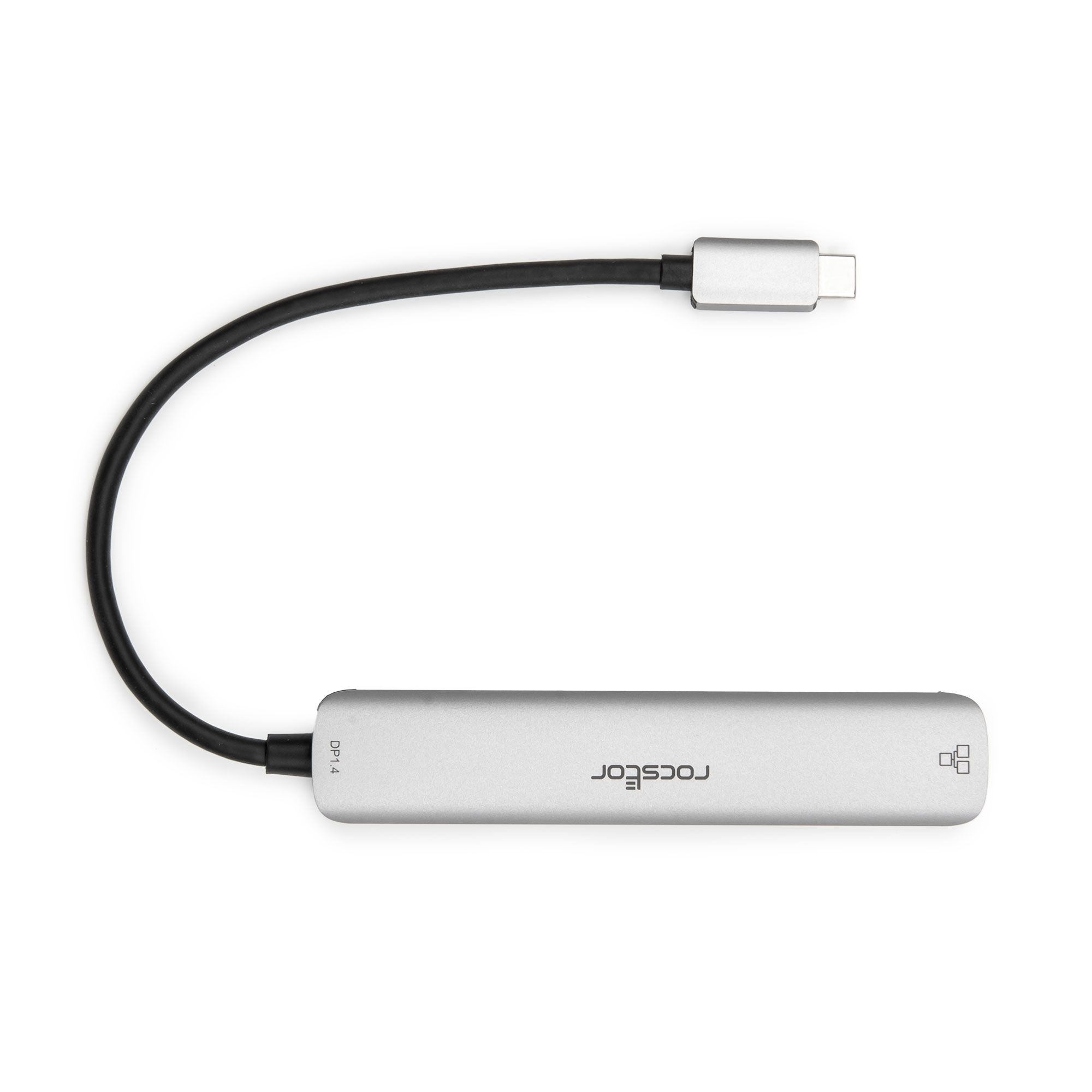

USB Type-C 5-in-1 4K Multiport Adapter with DP 1.4 Alt Mode – HDMI 4K@60Hz, Gigabit RJ45 Ethernet Wake-On-LAN, 2x USB Type-A 3.2 Gen1 5Gbps
$29.95
USB Type-C 5-in-1 4K Multiport Adapter with DP 1.4 Alt Mode – USB C to 1x HDMI 4K@60Hz,1x Gigabit RJ45 Ethernet Wake-On-LAN, 2x USB Type-A 3.2 Gen1 5Gbps, Aluminum Silver
The Rocstor Premium USB-C 5-in-1 4K Multiport Adapter is an ideal solution for expanding the connectivity options of Type-C and Thunderbolt 3/4 hosts, including PCs, laptops, and mobile phones. This versatile hub features an HDMI port, two USB-A ports, and a Gigabit RJ45 Ethernet port, making it particularly beneficial for devices with a single Type-C port. Equipped with the latest DisplayPort 1.4 Alt mode supported IC, the adapter supports HDMI video output at a maximum resolution of 4K/60Hz while concurrently transferring USB 3.1 data at speeds up to 5Gbps. The Gigabit Ethernet port ensures reliable and fast network connectivity, while the USB-A ports provide efficient data transfer and device charging capabilities.
Compatible with all DP Alt mode supported Type-C hosts, the Rocstor 5-in-1 Adapter ensures seamless integration and enhanced functionality. It supports HDR, HDCP 2.2 & HDCP 1.4, and various color depth outputs, delivering an exceptional visual experience. Whether you’re using Windows or MacOS, this adapter offers unparalleled versatility and convenience, making it an essential accessory for maximizing your device’s connectivity and productivity. Backed by Rocstor 3-year limited warranty and lifetime free technical support.
Key Features:

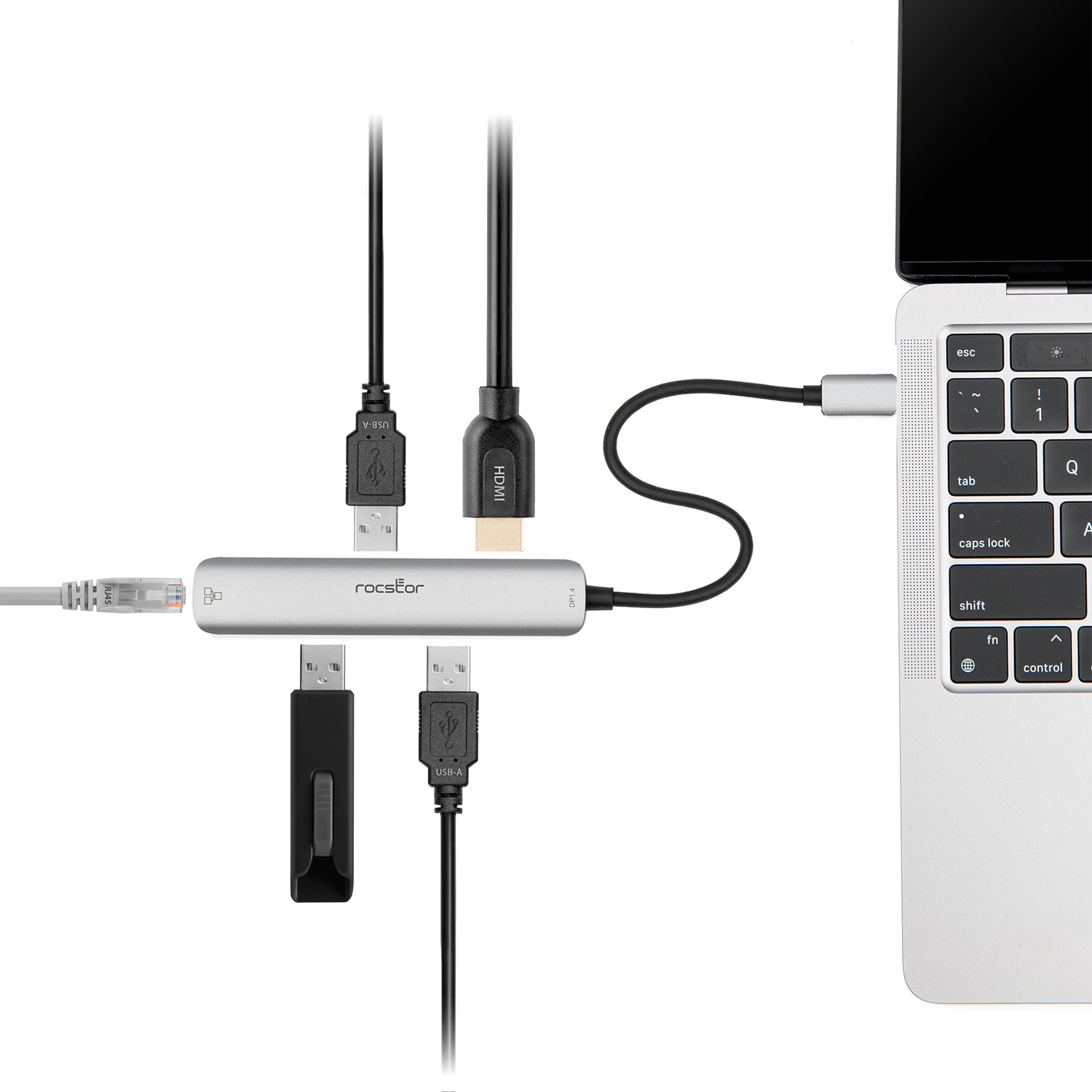

- Multiport Expansion: Connects a single Type-C port to HDMI, two USB-A ports, and RJ45 Ethernet.
- High-Resolution HDMI Output: Supports 4K/60Hz resolution with DP 1.4 Alt mode.
- Gigabit Ethernet Port: Ensures fast Ethernet connectivity (10/100/1000Mbps) with Wake-On-LAN support.
- Two USB-A Ports: Provide up to 5Gbps data transfer per port, compliant with USB 3.2 Gen1, and offer max 900mA downstream charging per port.
- HDR and HDCP Support: Ensures optimal video quality with enhanced depth, detail, brightness, contrast, and color gamut.
- Multiple Color Depth Outputs: Supports 8bit/10bit deep color and various pixel formats (RGB, YCbCr 4:4:4, YCbCr 4:2:2, YCbCr 4:2:0).
- Wide Compatibility: Works with all DP Alt mode supported Type-C hosts, including Thunderbolt 3 and 4 ports.
- Enhanced Protection: Includes short-circuit, over-current, and over-voltage protection for safe and reliable performance.
- Warranty: Rocstor 3-Year Limited Warranty
| Technology | HDMI, RJ45, USB-A |
|---|---|
| Host Connector | USB-C |
| Video Ports | HDMI |
| Number of Monitors | 1 |
| Data Ports | USB-A |
| Network Ports | RJ45 |
| Special Features | DisplayPort Alt Mode |
| Rocstor Part# | Ingram Micro | TD Synnex US | TD Synnex CA | A.B. Distributing | B&H |
| Y10A312-S1 | NJ2065 | 9812564 | 8171629 | ROC-Y10A312-S1 | ROY10A312S1 |
General Information
| Manufacturer | Rocstor |
| Manufacturer Part Number | Y10A312-S1 |
| Manufacturer Website Address | http://www.rocstor.com |
| Brand Name | Rocstor |
| Product Line | Premium |
| Product Name | Premium Docking Station |
| Marketing Information | The Rocstor Premium USB-C 5-in-1 4K Multiport Adapter is an ideal solution for expanding the connectivity options of Type-C and Thunderbolt 3/4 hosts, including PCs, laptops, and mobile phones. This versatile hub features an HDMI port, two USB-A ports, and a Gigabit RJ45 Ethernet port, making it particularly beneficial for devices with a single Type-C port. Equipped with the latest DisplayPort 1.4 Alt mode supported IC, the adapter supports HDMI video output at a maximum resolution of 4K/60Hz while concurrently transferring USB 3.1 data at speeds up to 5Gbps. The Gigabit Ethernet port ensures reliable and fast network connectivity, while the USB-A ports provide efficient data transfer and device charging capabilities.
Compatible with all DP Alt mode supported Type-C hosts, the Rocstor 5-in-1 Adapter ensures seamless integration and enhanced functionality. It supports HDR, HDCP 2.2 & HDCP 1.4, and various color depth outputs, delivering an exceptional visual experience. Whether you're using Windows or MacOS, this adapter offers unparalleled versatility and convenience, making it an essential accessory for maximizing your device's connectivity and productivity. Backed by Rocstor 3-year limited warranty and lifetime free technical support. |
| Packaged Quantity | 1 |
| Product Type | Docking Station |
Technical Information
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Device Supported |
|
| Management Features | Wake-on-LAN |
| Screen Mode Supported |
|
| Supported Resolutions | 3840 x 2160 |
| Maximum Data Transfer Rate | 640 MB/s |
Network & Communication
| Ethernet Technology | Gigabit Ethernet |
Interfaces/Ports
| Host Interface | USB Type C |
| Total Number of USB Ports | 3 |
| Number of USB 3.2 Gen 1 Type-A Ports | 3 |
| Number of USB Type-A Ports | 3 |
| USB Type-A | Yes |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB-C Male |
| Network (RJ-45) | Yes |
| Number of RJ-45 Ports | 1 |
| Number of HDMI Outputs | 1 |
| HDMI | Yes |
Software
| Operating System Supported |
|
Power Description
| Power Source Type | Power Adapter |
Physical Characteristics
| Color Family | Gray |
| Product Color | Space Gray |
| Form Factor | Portable |
| Height | 0.60' |
| Width | 0.90' |
| Weight (Approximate) | 1.76 oz |
Miscellaneous
| Package Contents |
|
| Compatibility | Compatible Devices:
|
| Brand Compatibility |
|
| Environmentally Friendly | Yes |
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Vietnam |
Warranty
| Limited Warranty | 3 Year |
