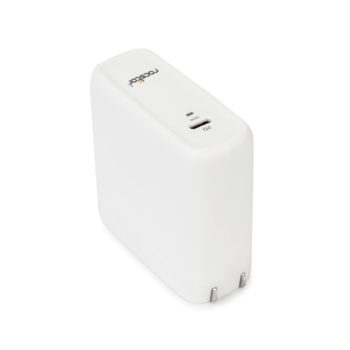

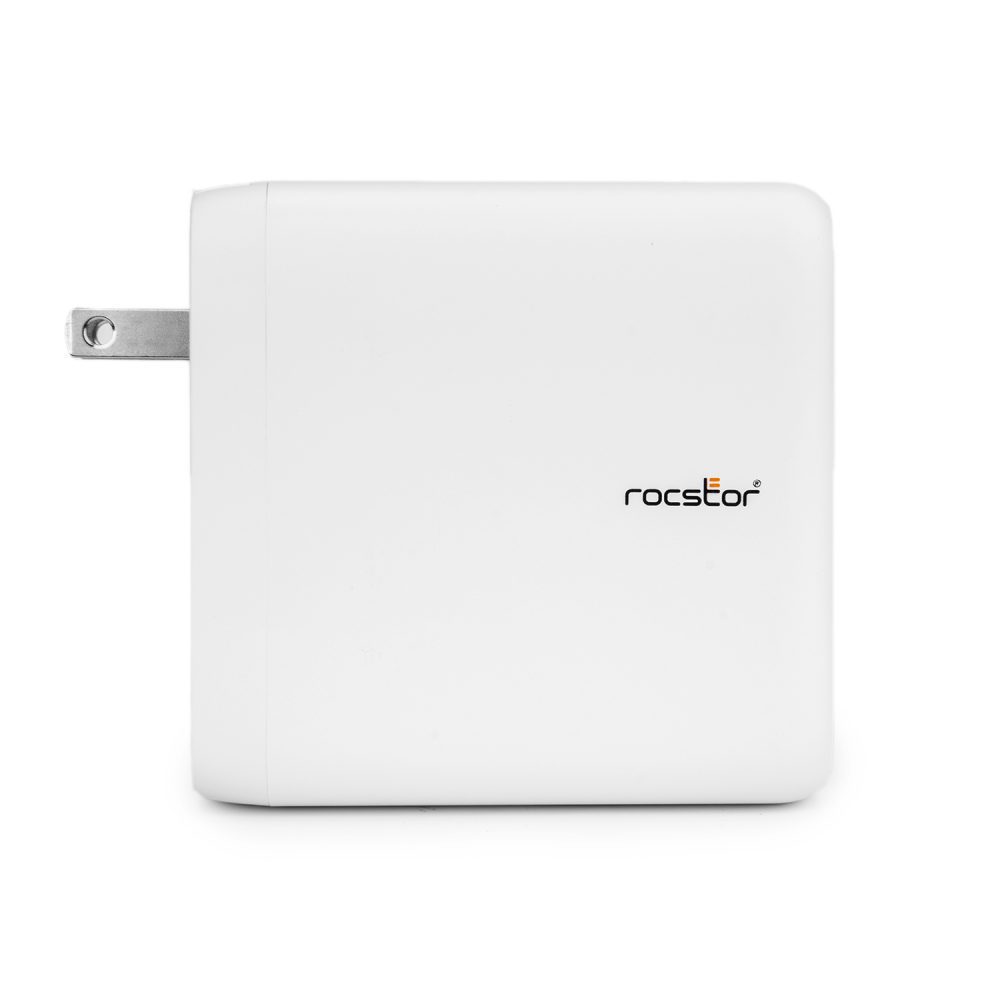

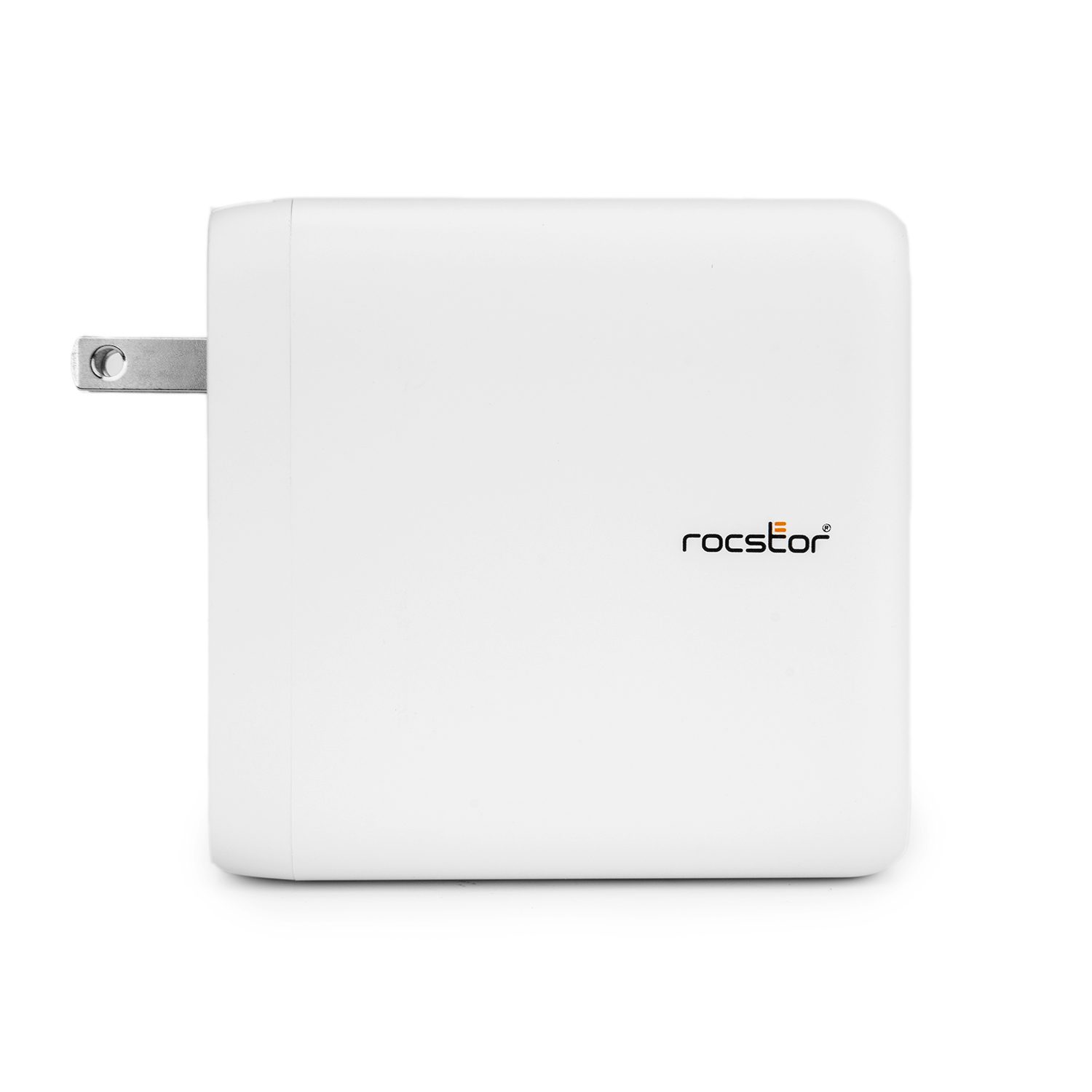

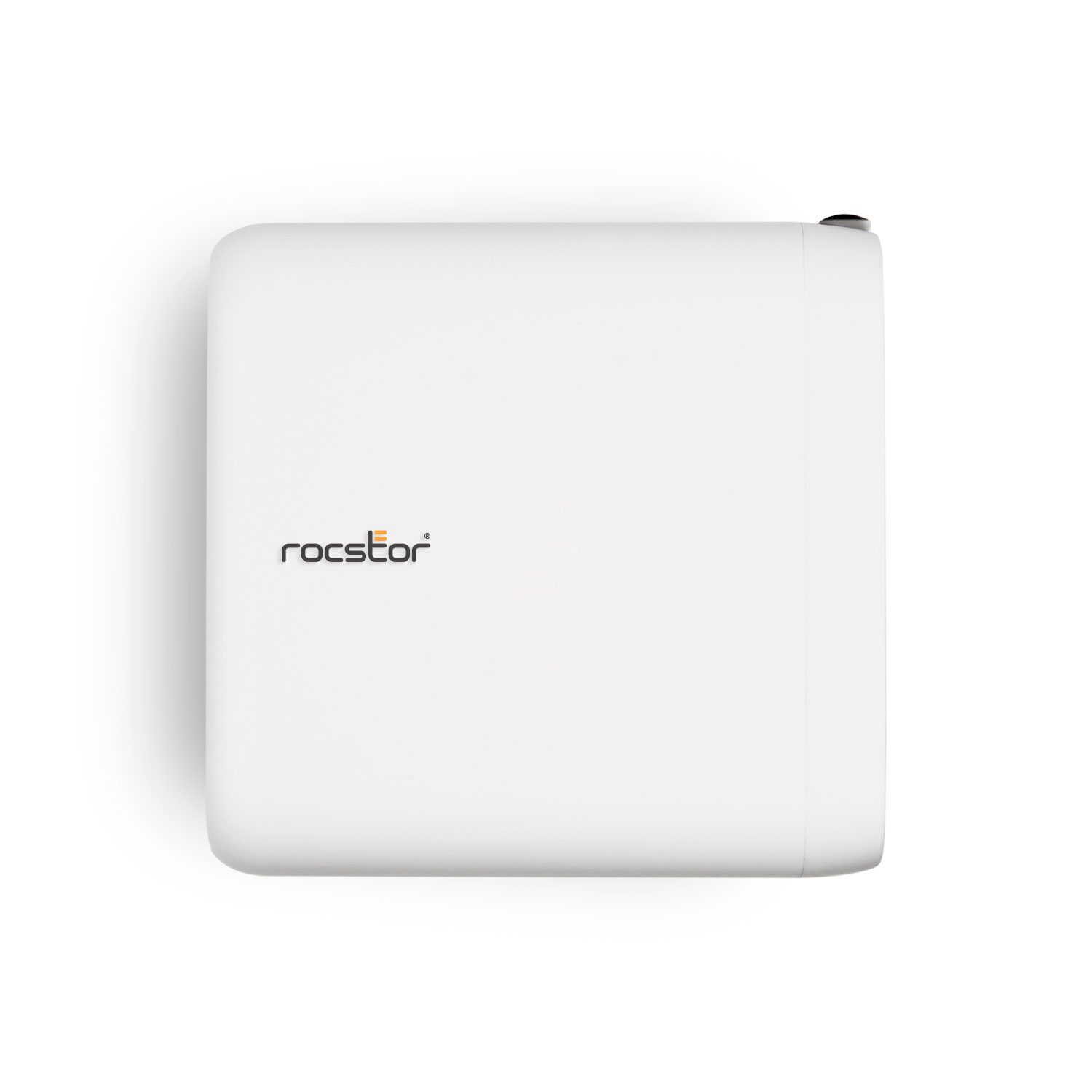

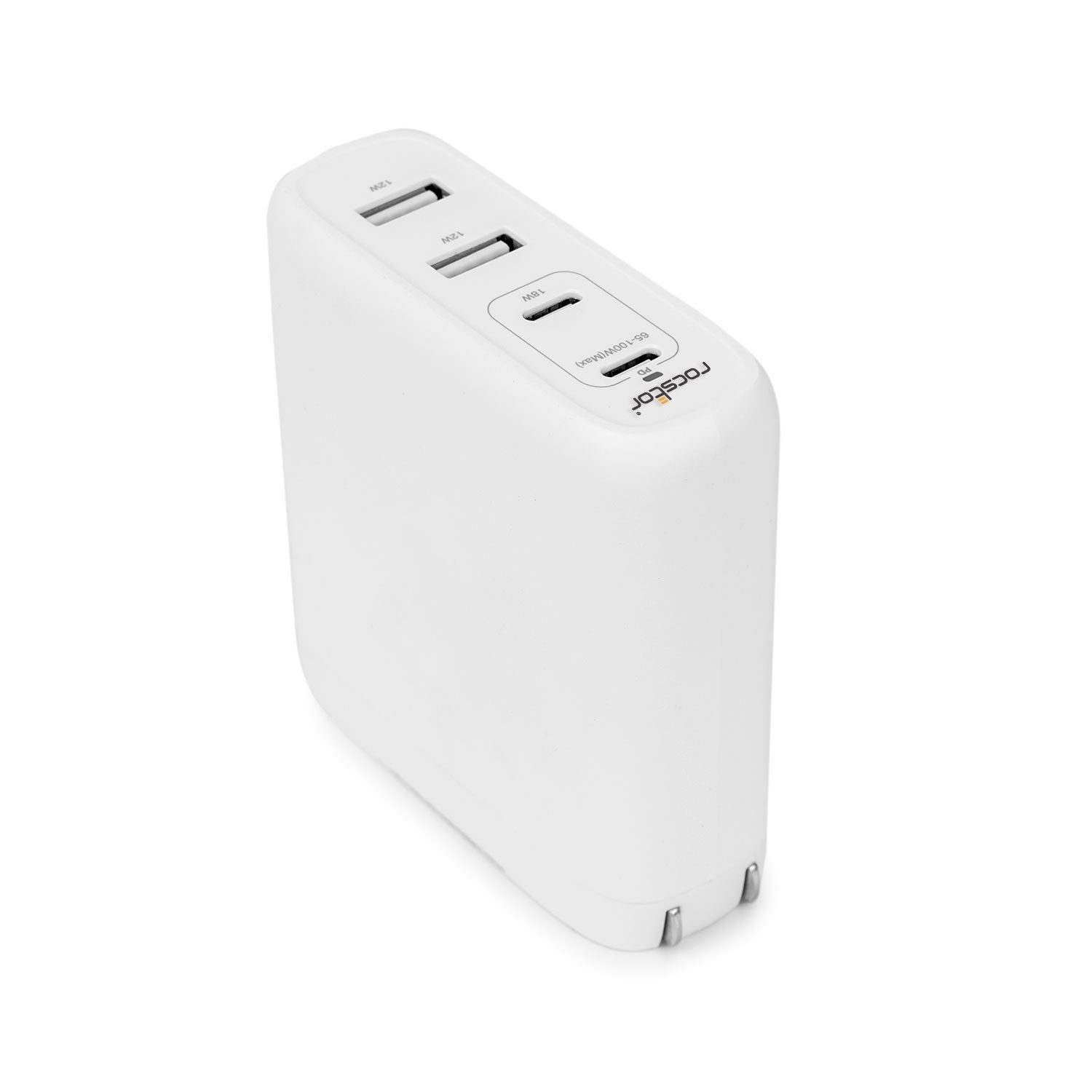

100W Smart USB-C® Power Station Adapter

$54.95

Provides 100W on first USB-C Output or provides up to 65W of charging power while one device is connected to a USB-C port, or distributes output to up to 4 connected devices – For MacBook®, MacBook Air®, MacBook Pro® 13″ MacBook Pro® 15″, MacBook Pro® 16″ with Thunderbolt 3/4 (USB-C), Chromebook® – Intelligent Power Allocation.

SKU: Y10A245-W1 Categories: , Tags: ,

Description

100W Smart USB-C® Power Station Adapter. This compact 4-Port charger provides (2) two USB Type-C® (C1 & C2) and two (2) two USB Type-A (A1 & A2) ports with a combination of up to 100W High Power Output. The two USB-C C1 & C2 provides 100W output individually (not combination). The two USB Type-A A3 & A4 provides 30W output individually (not combination). Use the two USB-C outputs simultaneously and take advantage of USB-C output of C1: 65W and C2: 30W output. Use a combination of USB-C and USB Type-A charging ports with either C1+C2+A3: 45W+30W+18W or C1+C2+A3+A4: 45W+30W+7.5W+7.5W. Making this 4-port versatile power adapter the best charger for multi-device charging requirements.
This versatile smart power adapter can also charge any HP®, Lenovo®, Dell and Chromebook™ devices that utilize up to 100W power. Rocstor’s 100W Smart power adapter automatically adjusts to your device power requirement up to 100W. This travel and compact charger is rugged, light and it is able to charge laptops, iPad®, tablets, cellular phone, earphones and everything else with a USB power input up to 100W. You are able to take advantage of this fast power adapter to charge your Apple® iPhone®, Samsung Galaxy®, or Google® Pixel® phone and tablets. With only 9.28 Ounces (263 g), this slim and compact design charger measures only 3.17” x 3.15” x 1.16” (80.5 x 80 x 29.5 mm) and features a foldable plug. The Rocstor 100W has the latest GaN (Gallium Nitride) Charging Technology and it holds the UL, FCC/CE, & VI Entergy Efficent certifications for the máximum safety protocols. It has a more efficient current transfer, which translates to less power loss to heat. Backed by Rocstor’s 1-year warranty and lifetime technical phone support.
Charging cable sold separately.

Key Features:

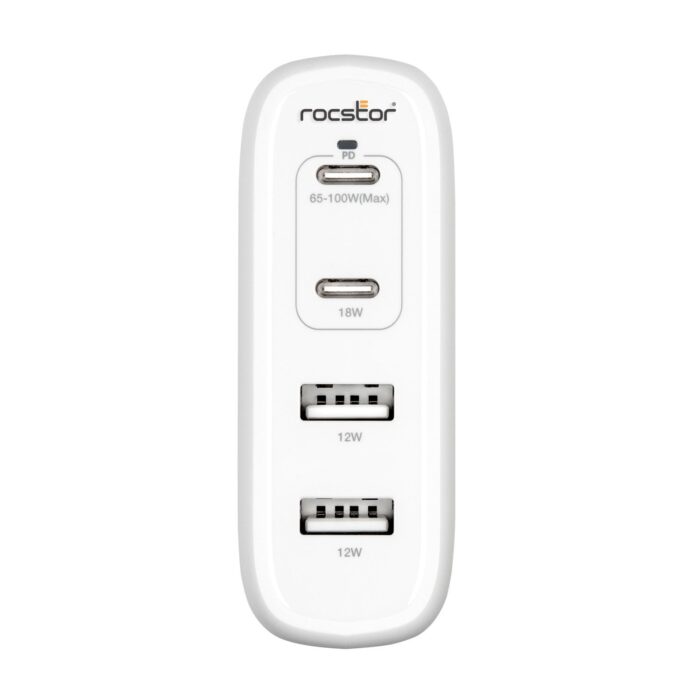

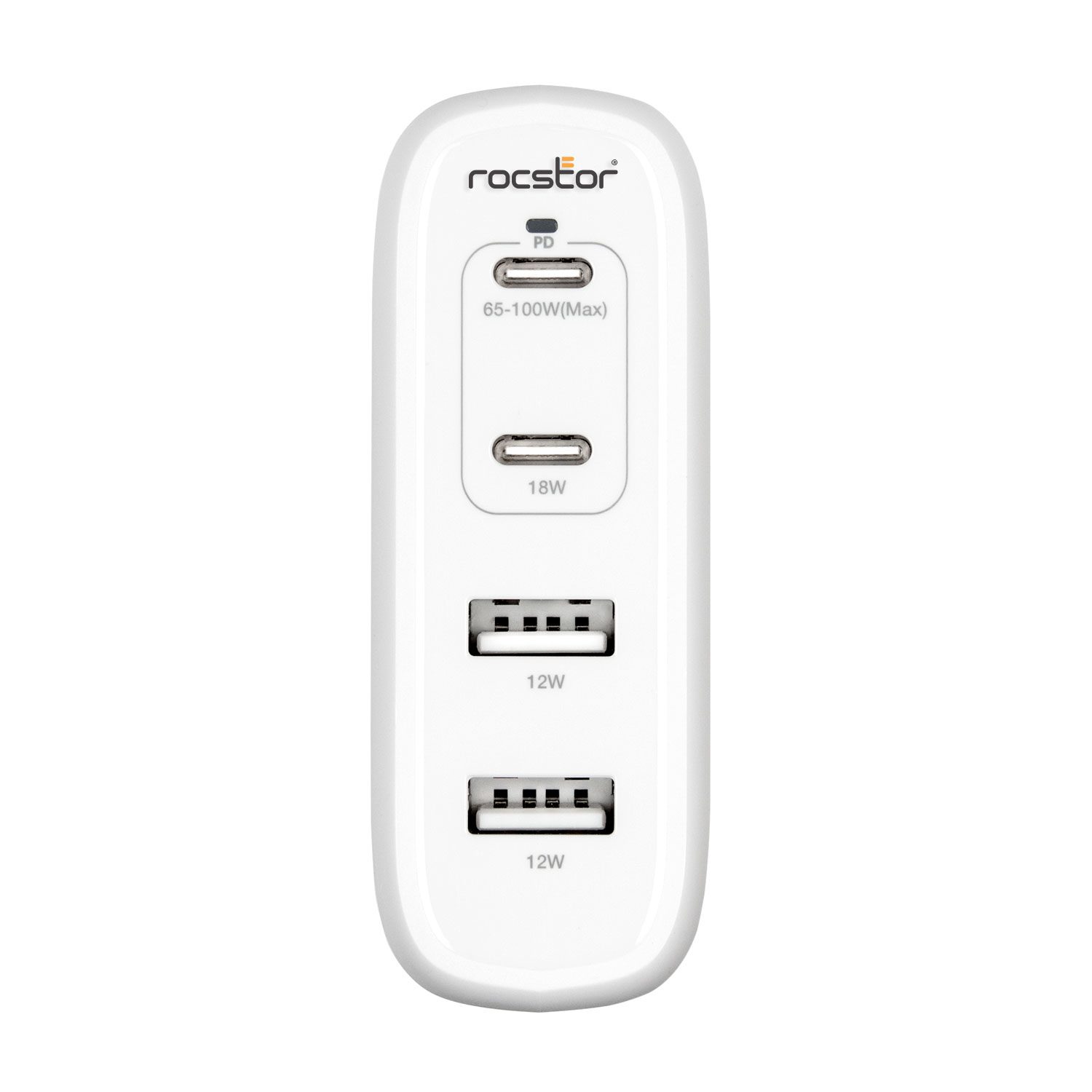

• Ports: 2x USB-C, 2x USB Type-A
• Compatible Devices: MacBook Air 13”, MacBook Pro 13” with 61W, MacBook Pro® 14” (67W),
• MacBook Pro® 15.6″ (87W), MacBook Pro® 16″ (96W) Power requirement
• Compatible Devices: Chromebook, HP, Dell, Lenovo computers
• Compatible Mobile Devices: iPhone, iPad & Samsung Galaxy phone & tablet
• For use with 100-240V AC of input voltage
• Output: 100W Intelligent
• USB-C Output: 15V/3A,20V/3.25A ,20V/5A
• USB Type-A Output: 5V/3.4A
• Technology: GaN (Gallium Nitride) Charging
• Warranty: 1-Year
• Certifications: UL, FCC/CE

• Simultaneously charge multiple devices
• 100-240VAC of input voltage.
• Four USB connectors for outputs:
• USB-C (C1 & C2) ports provide 5V/3A,9V/2A, USB-C C1 port provides 5~15V/3A,20V/3.25A,20V/5A output. USB Type-A (A3 & A4) ports provides 5V/3.4A in total, single port provides 5V/2.4A (max). Compliant with PD3.0 equipped with intelligent IC and automatically identifies the handheld devices
• Accurate limited current output and over current protection.
• Overload protection and over voltage protection.
• Short circuit protection.
• Over temperature protection and remove the fault condition auto-recovery.
• Compliant with UL, CE, FCC, VI standards.
• Select precision electrical components, fire line version, and imported fire plastic.
• Portable and convenient to use.
• Specially designed for your Type-C supported devices.

Additional information

Weight 0.57 lbs
Dimensions 3.1 × 3.1 × 1.1 in

User Manual

Y10A245-W1 Manual

Warranty

Limited Warranty: 1 Year

Specification

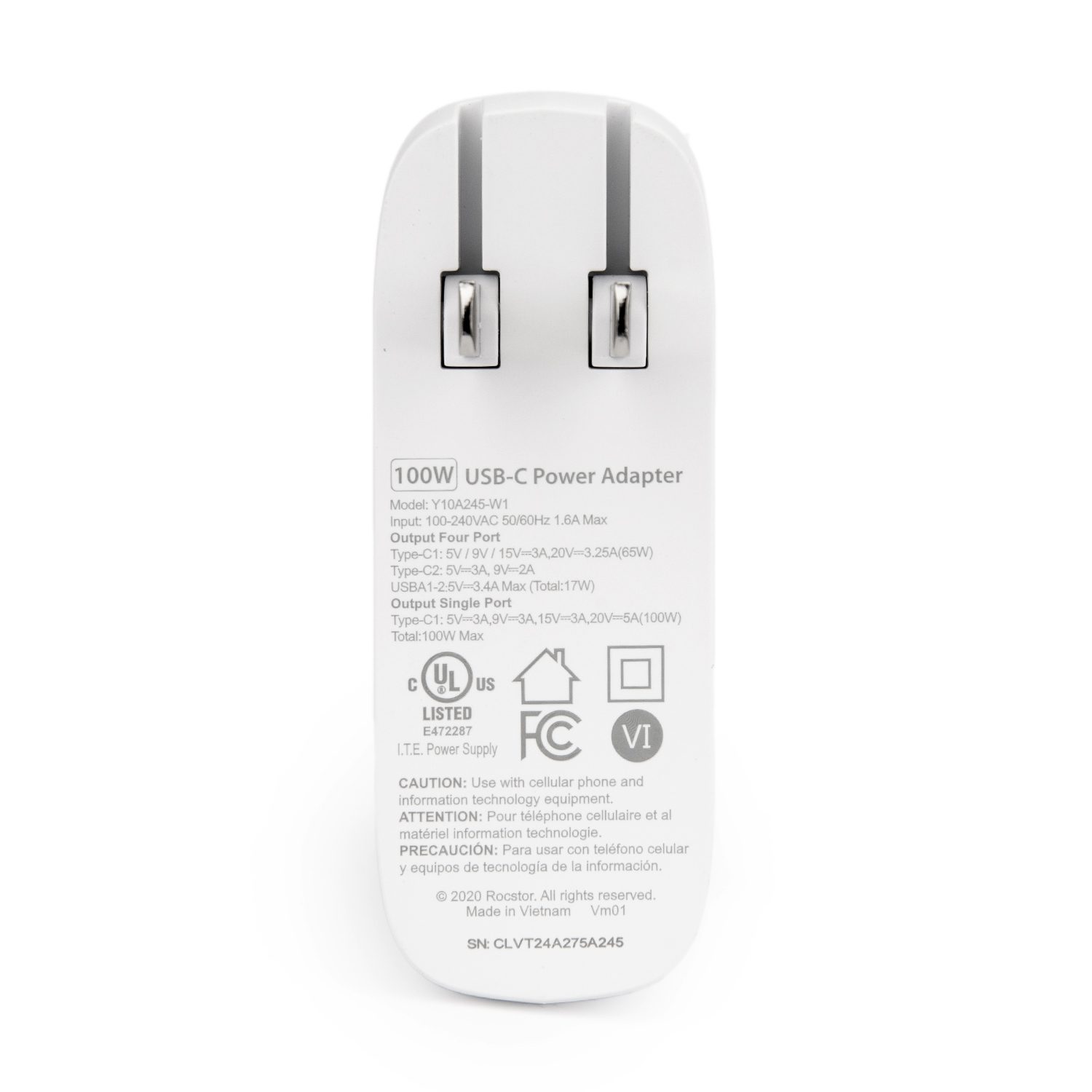

Input 100-240VAC 50/60Hz
Output USB-C 1 Output : (5,9,15V/3A,20V/5A )100W
USB-C 2 Output : (5V/3A,9V/2A) 18W
USB-A 1+2 Output: (5V/3.4A) 17W
USB-C 1 (65W)+USB-C 2 (18W)+USB-A 1 + USB-A 2 (17W)
Protection
Over current Yes
Short circuit Yes
Over temperature protection Yes
Over voltage Protection Yes
Performance
AC Leakage Current 5 max at 240VAC input
Ripple And Noise ≤200mV
Turn on delay time 3s max
Rise time 20mS
Efficiency Conform VI energy efficiency
Mechanical
Color White
Size (80.5 x 80 x 29.6) mm – (3.1 x 3.1 x 1.1) in
Weight 263 g – 0.57 lbs
Accessory User Manual
Environmental
Operating Temperature Range 0~25°C
Storage Temperature Range -20 ~ 80°C
Operating Relative Humidity 5% ~ 90% RH
Regulatory Approvals
Main unit IEC/EN/UL62368
Power Adapter UL
