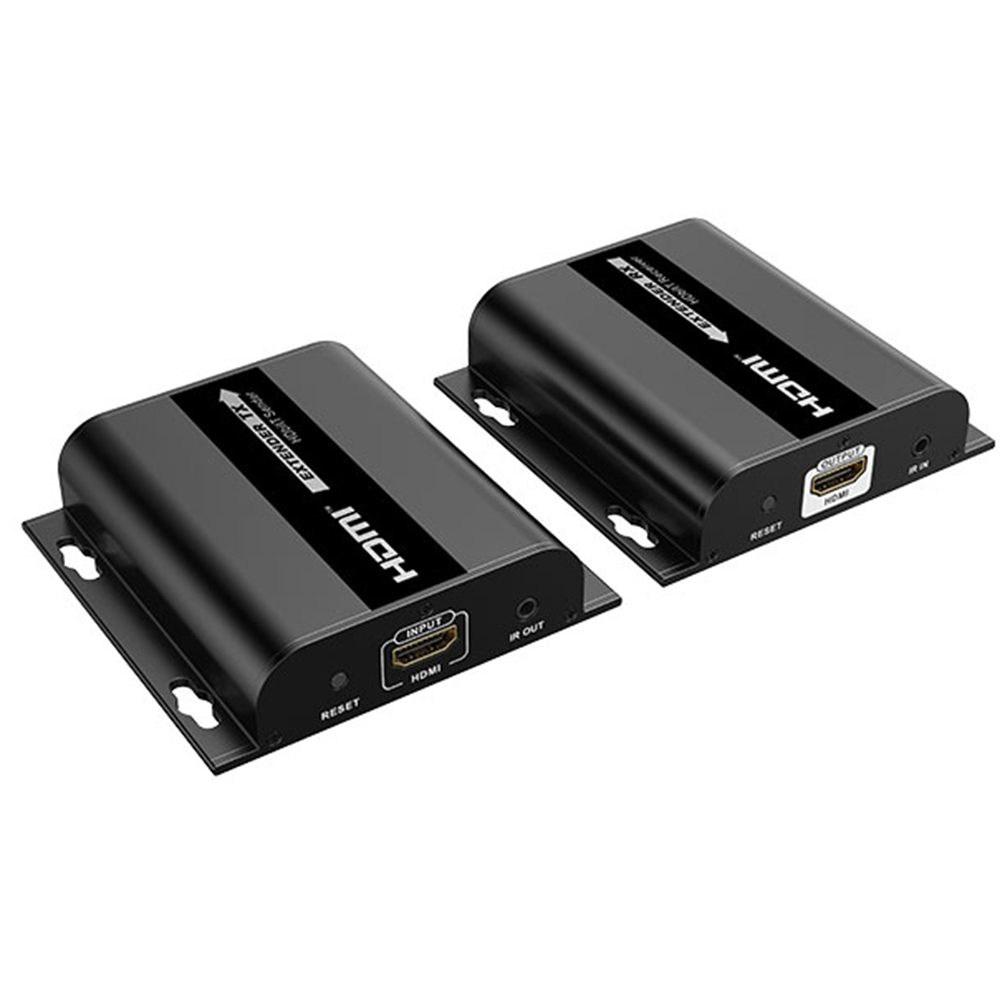

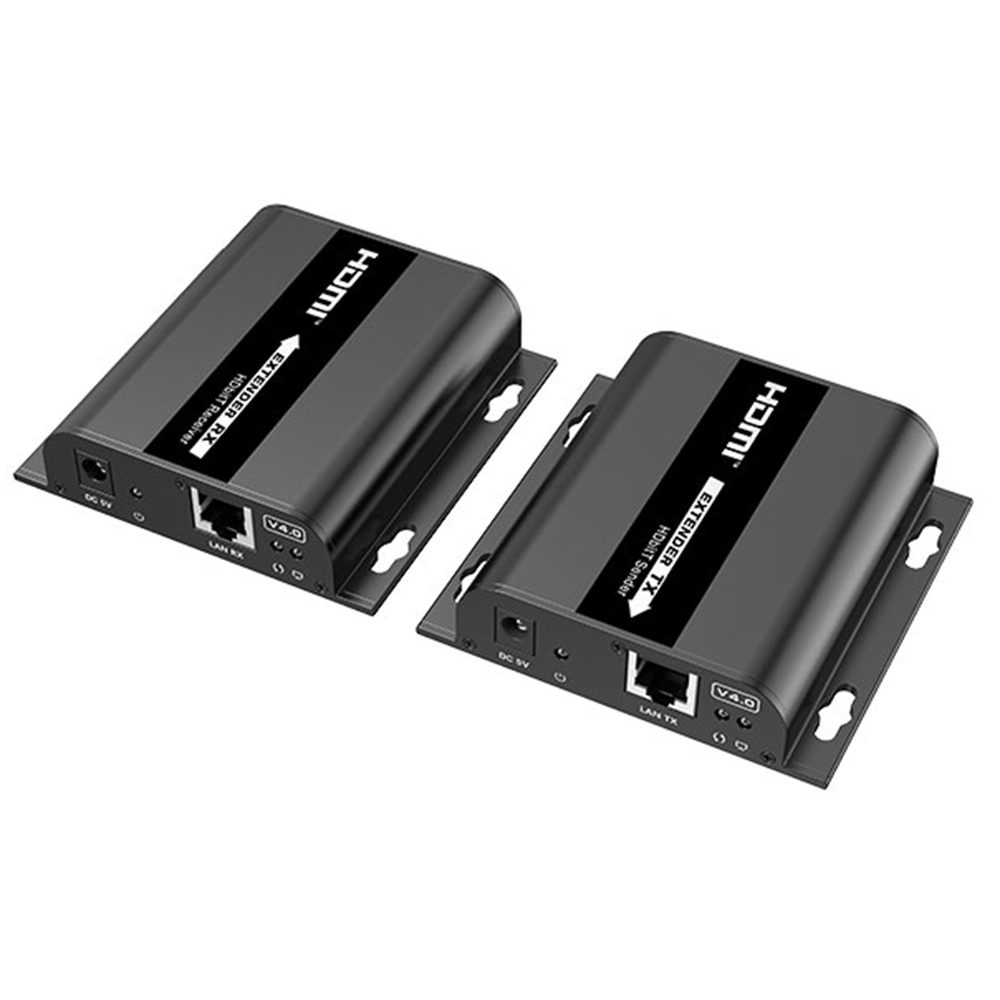

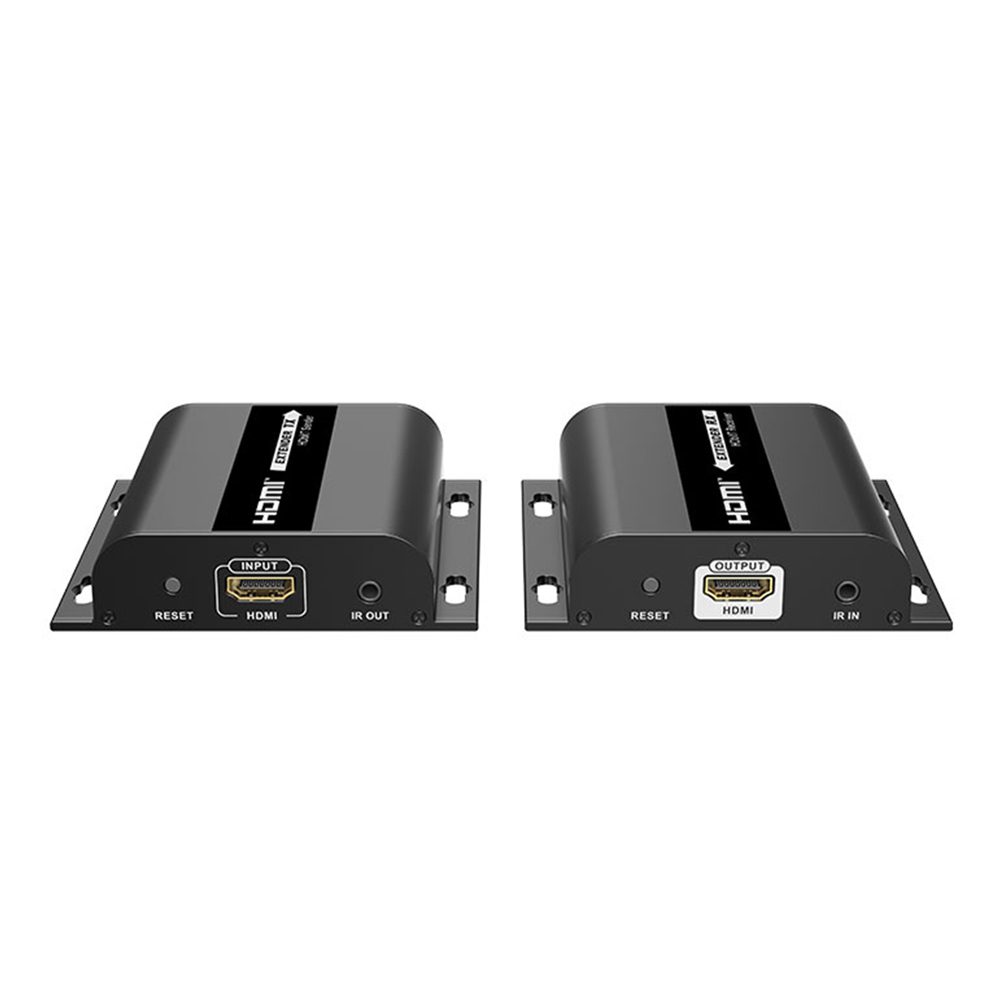

1080p HDMI & IR Over IP Extender – up to 393ft – IR Passback – HDMI 1.3 – HDCP 1.4

$149.95

TrueReach 1080p HDMI & IR Over IP Extender – 1080p 60Hz up to 393ft (120m) – Over IP Extender – IR Passback – One transmitter to One and Many Receivers – Industrial Grade – Includes HDMI Transmitter and Receiver (Kit) – Supports IR passback – HDMI 1.3 – Supports HDCP 1.4 – One UL power supply – No Software/drivers required – Cat6,6a, or 7 Cable Required – Metal housing Includes built-on mounting brackets – Black

SKU: Y10G002-B1 Category: Tags: ,

Description

Learn More Here

1080p HDMI & IR Over IP Extender – up to 393ft – IR Passback – HDMI 1.3 – HDCP 1.4

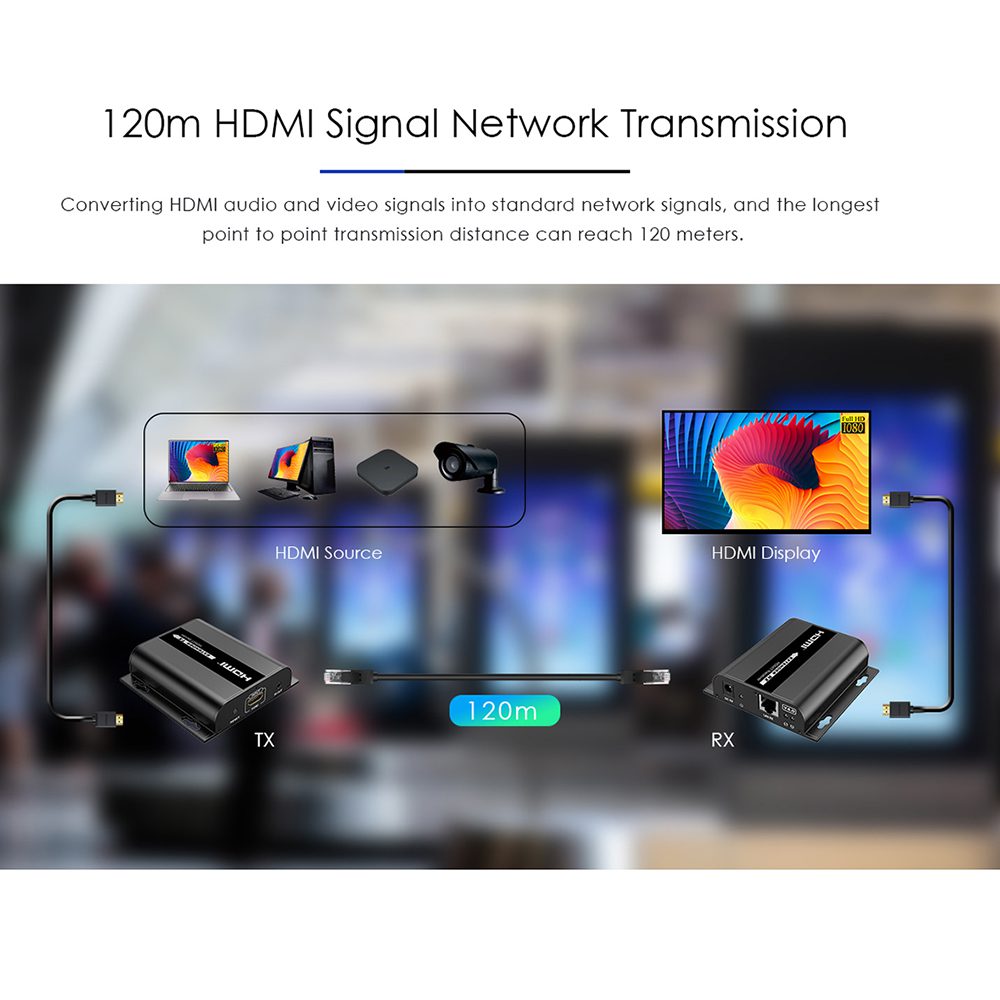

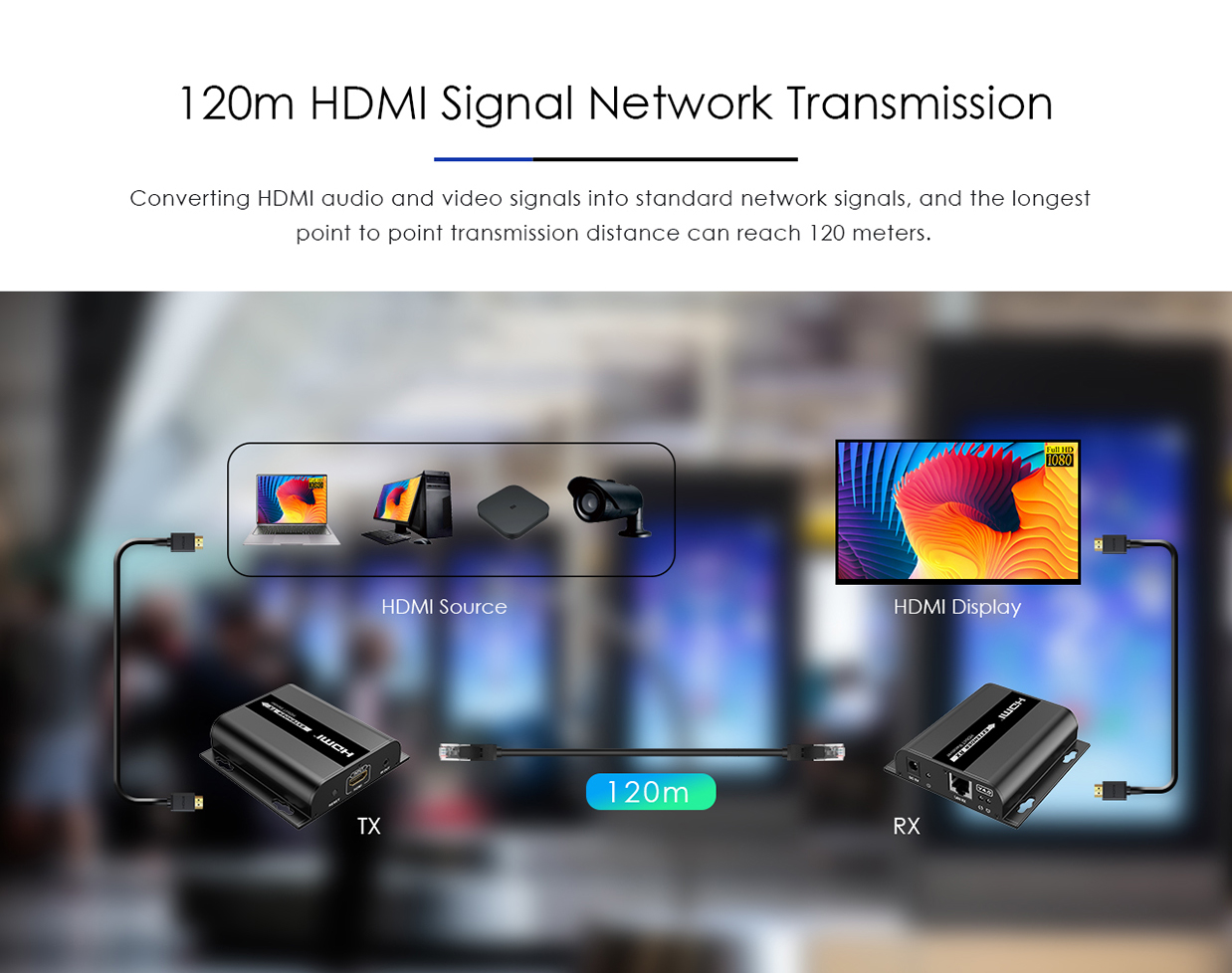

Experience seamless and versatile audiovisual transmission with the Rocstor TrueReach Point to Point 1080P @ 60Hz HDMI & over IP Extender. Engineered to deliver exceptional performance, this advanced extender allows you to extend high-quality HDMI signals over both local and wide area networks. With a transmission distance of up to 394 ft (120 meters), the TrueReach HDMI & over IP Extender ensures flawless, high-definition content delivery.

Immerse yourself in vibrant visuals with support for 1080P resolution at 60Hz with HDR. Whether you’re setting up a home theater, classroom, or digital signage system, the TrueReach HDMI & over IP Extender provides stunning colors, sharp details, and an engaging viewing experience.

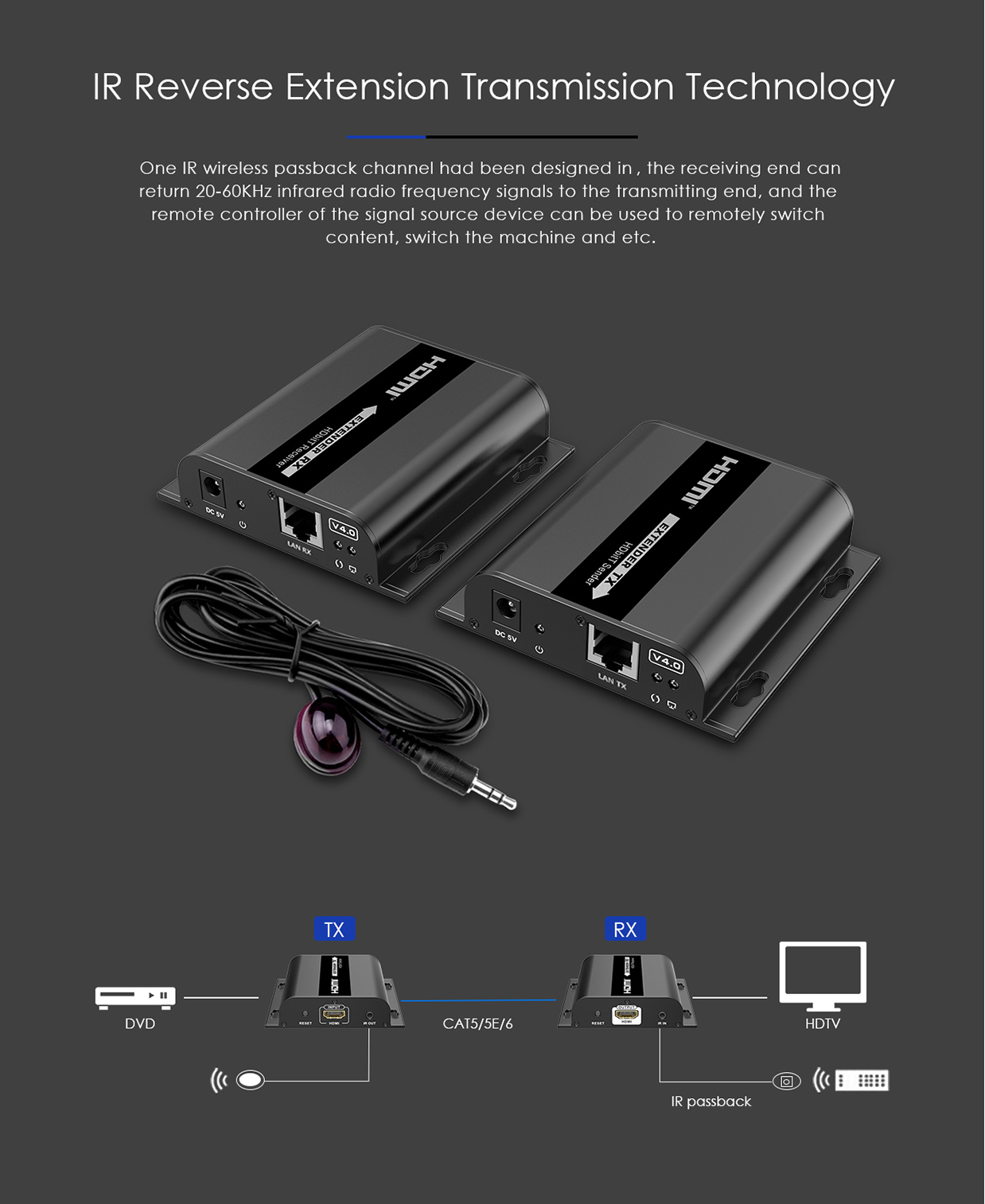

The TrueReach HDMI & over IP Extender features IR signal transmission, enabling convenient control of HDMI source devices from the remote display location. With IR pass-through capability, you can effortlessly manage your connected devices without the need for separate control systems or additional equipment.

Built-in lightning, surge, and ESD (electrostatic discharge) protection ensures the safety of your valuable equipment in various electrical environments. With Rocstor’s robust protection technology, your devices are shielded from unpredictable electrical events, offering peace of mind.

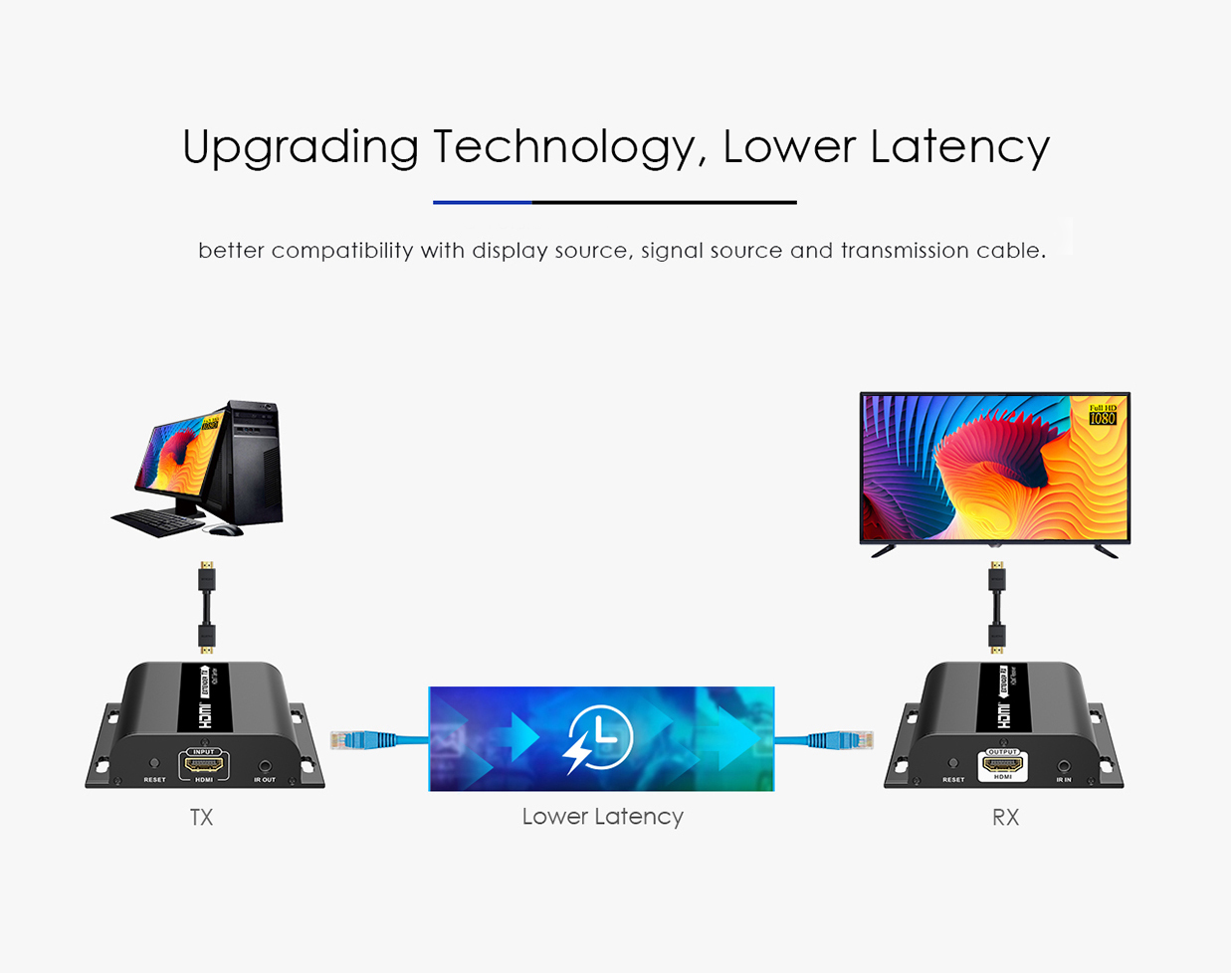

The TrueReach HDMI & over IP Extender utilizes the latest V4.0 technology with low latency and low transmission delay. This ensures minimal delay in signal transmission, providing a smooth and synchronized audiovisual experience, whether you’re streaming video content or conducting interactive presentations.

Thanks to its adaptive technology, the Rocstor TrueReach automatically adjusts parameters to optimize display performance, matching different network cables. This intelligent feature guarantees a stable and reliable connection, maintaining the highest level of video quality and signal integrity.

Features:

• Versatile HDMI & over IP extender for seamless audiovisual transmission
• Supports 1080P @ 60Hz HDR resolution for vibrant visuals
• Transmission distance of up to 394 ft (120 meters) for 1080P @ 60Hz signals
• IR signal transmission with pass-through capability for convenient device control
• Built-in lightning, surge, and ESD protection for equipment safety
• EDID passthrough ensures smooth communication between source and display
• Utilizes V4.0 technology with low latency and low transmission delay
• Adaptive technology automatically adjusts parameters for optimal display performance
• Ideal for home theaters, classrooms, digital signage systems, and more.

Additional information

Extenders Type

Extender Kit, HDMI Extender Kit, Receiver, Transmitter

Style

Box, Rackmoun, Wallmount

Method

CATx

Video In

HDMI

Video Out

HDMI

Max Resolution

1080p

Max Range

101 – 200

User Manual

Y10G002-B1 User Manual

Specification

Technical Transmitter-TX Receiver-RX
HDMI compliance HDMI1.3
HDCP compliance HDCP1.4
Transmission meduim network cable
Transmission distance CAT5:80m,CAT5e:100m,CAT6:120m
Video bandwidth 18Mbps(10.2G)
Video support 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz
Audio support PCM
InputTMDS signal 0.7~1.2Vp-p
InputDDC signal 5Vp-p
RS232 support no
POE support no
Multiple receiver connection yes (one TX to unlimited RX)
IR passback yes
IR frequance Range(KHz) 20-60Khz

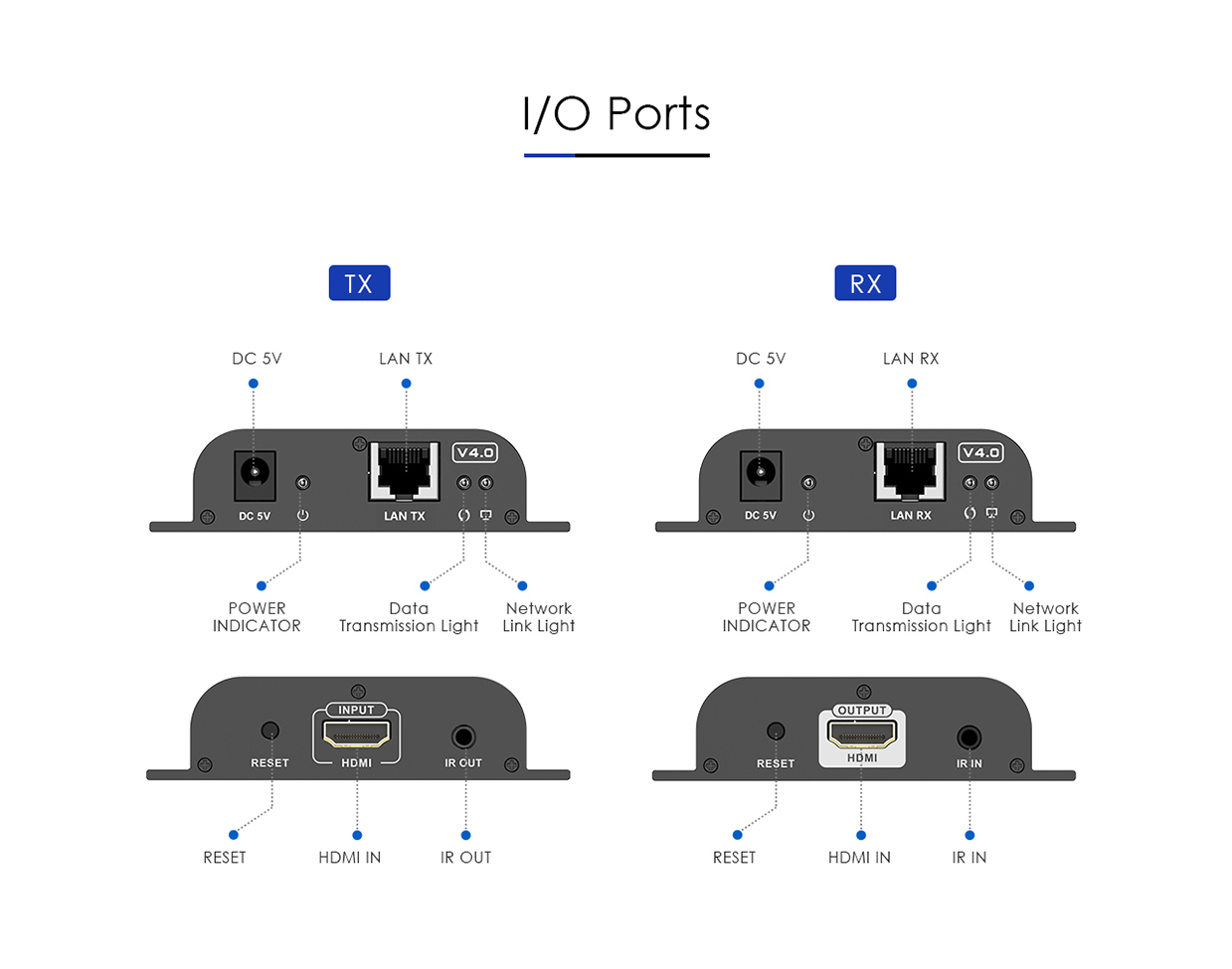

Input 1×HDMI; DC2.1; DC2.1, RJ45 ×1,  3.5mm Audio F ×1 (IR)
Output RJ45 ×1, 3.5mm Audio F ×1 (IR) 1×HDMI
HDMI source control Controllable via IR passback from RX to TX
HDMI conector Type A 19 Pins,Female
Mechanical Transmitter-TX Receiver-RX
Housing Metal enclosure
Dimensions(L×W×H mm) 96.8×94×23.7mm
Net weight TX: 145g RX: 142g
Power supply 5V/1A
Power consumption 3.5W 3W
Protection Lightning Protection, Surge Protection, ESD protection
Operation temperaure 0~60℃
Storage temperature —20~70℃
Relative humidity 0~95%(no condensation)
