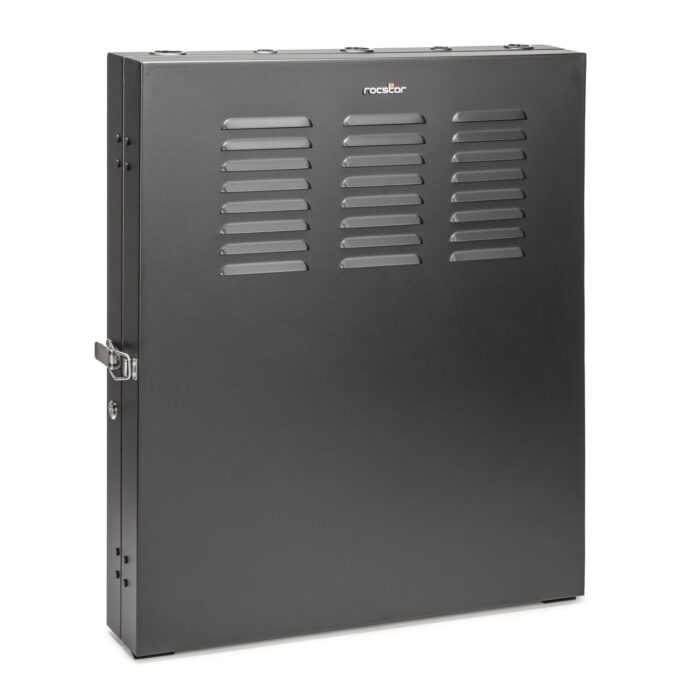

SolidRack 2U Low Profile Vertical Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet

Description

Rocstor SolidRack 2U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet is an ideal solution for environments with limited floor space, such as network wiring closets, retail locations, classrooms, and back offices. Designed to house EIA-standard 19-inch rack equipment, this cabinet ensures your equipment is secure, organized, and out of the way. Constructed from heavy-duty steel with a black powder-coated finish, it supports a maximum load capacity of 150 lbs (68 kg), providing durability and reliability.

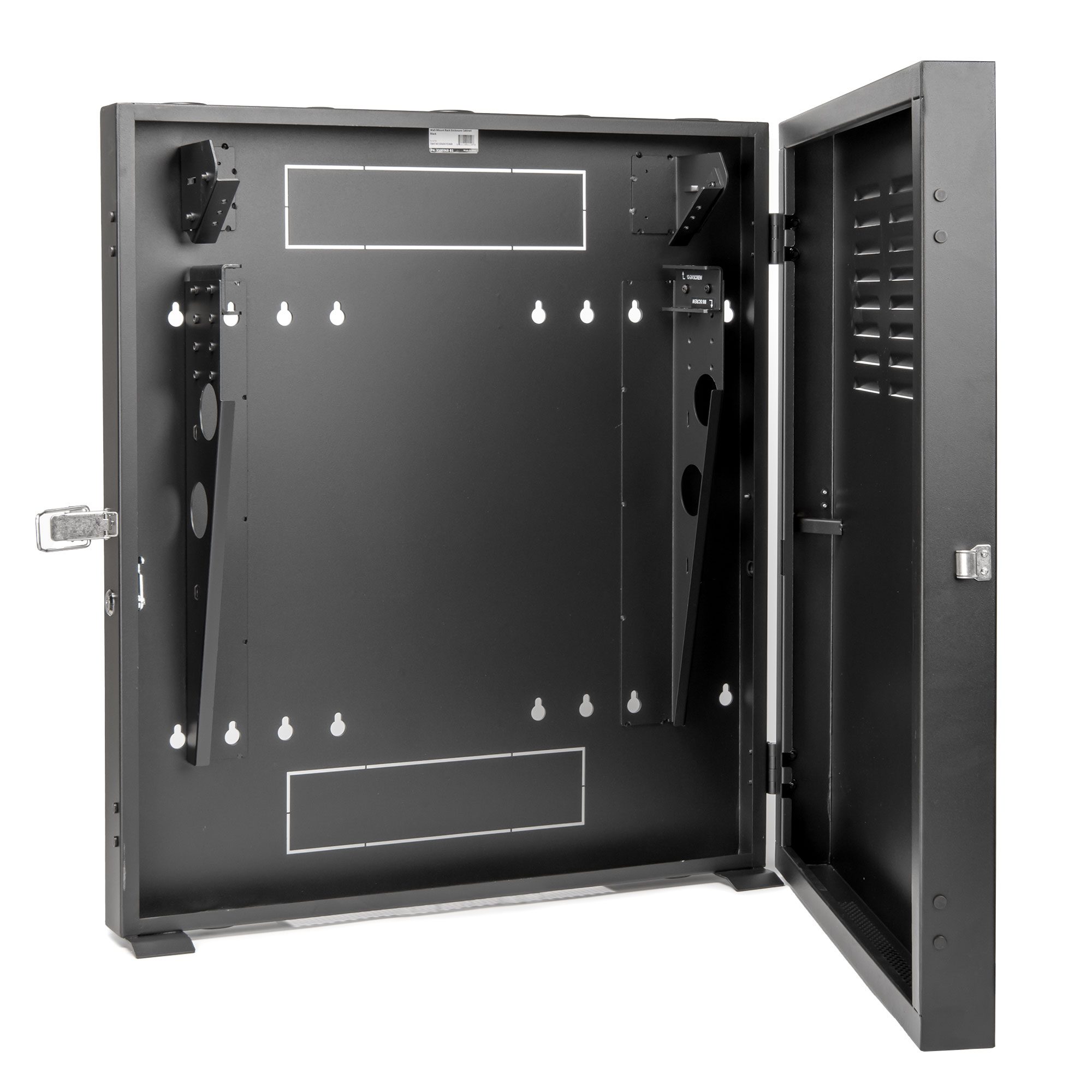

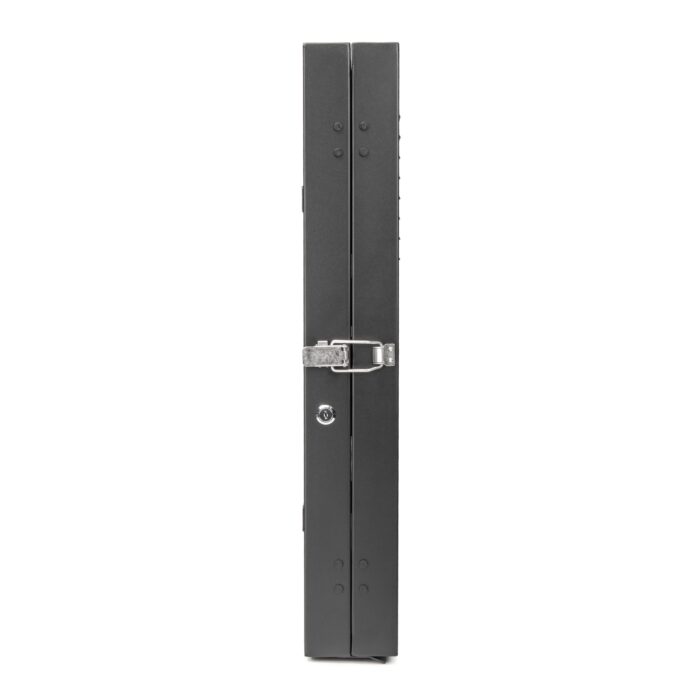

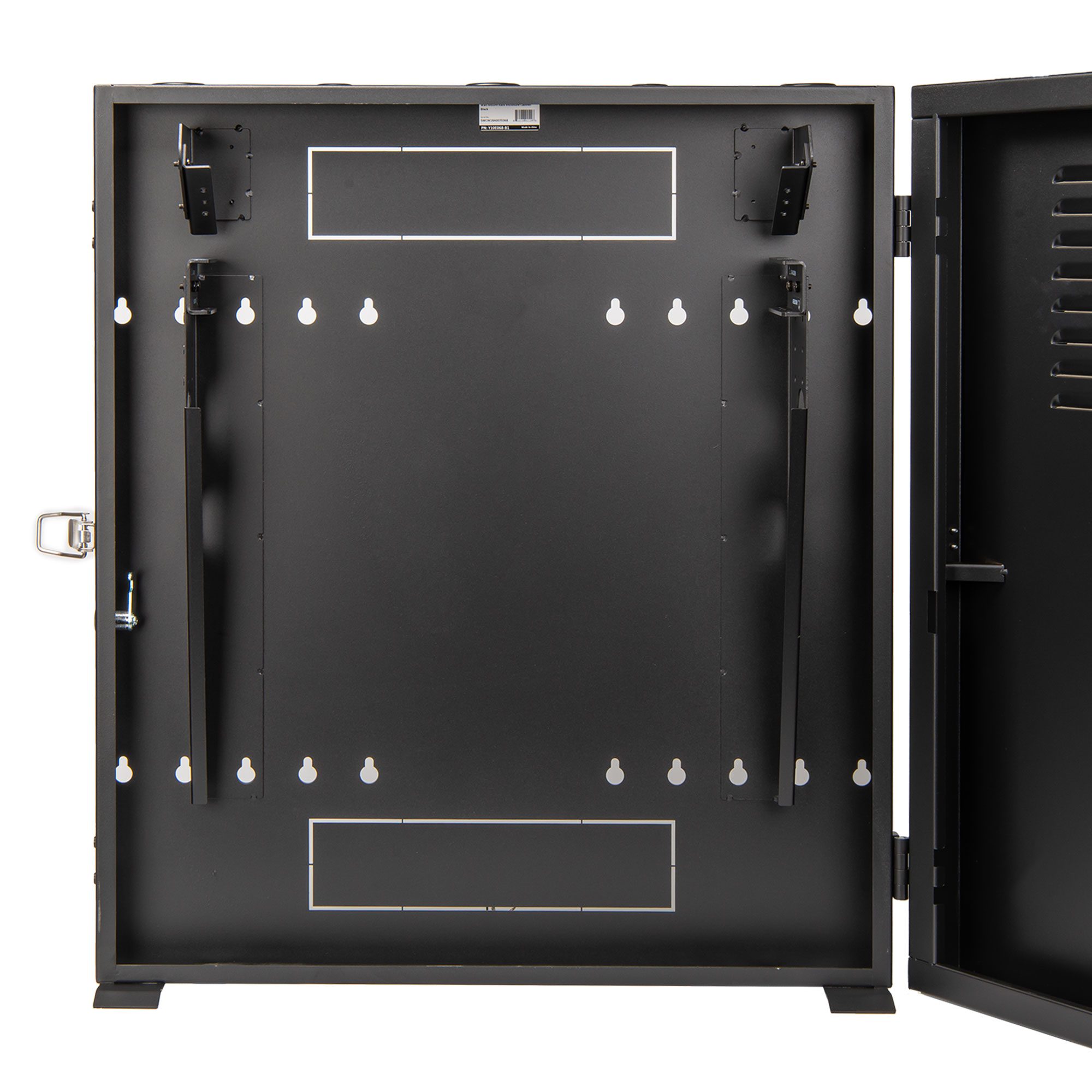

This low-profile cabinet mounts vertically, extending less than five inches from the wall, while accommodating equipment up to 20 inches deep. It offers 2U of rack space in the primary mounting area and includes an additional slide-out 1U mounting bracket at the top for patch panels up to 2.5 inches deep. The secure locking front door helps prevent unauthorized access, damage, or theft. The vented design ensures adequate airflow to keep equipment cool, and the reversible door can open to the left or right for added convenience.

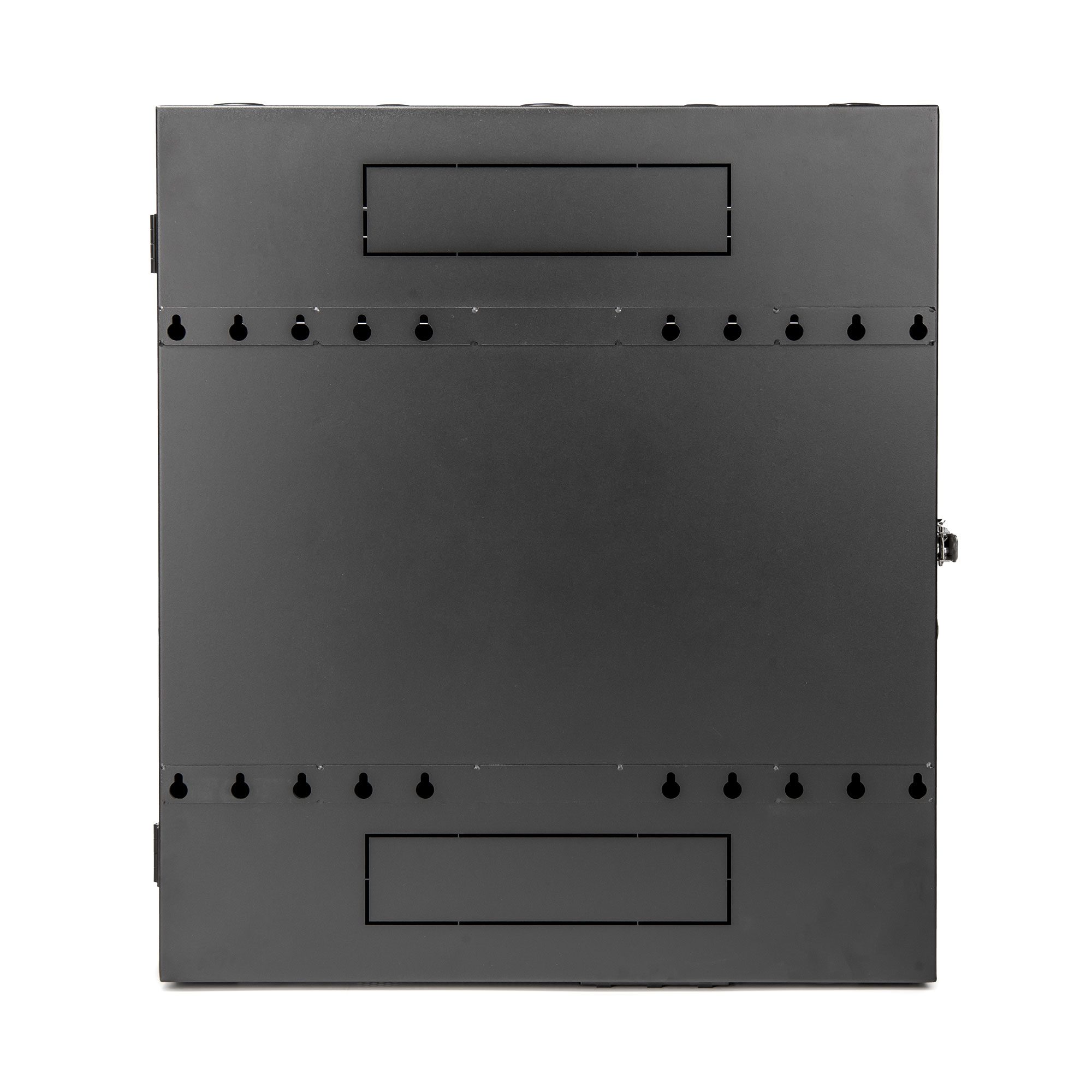

Installation is straightforward as the SolidRack comes fully assembled and ready to mount. The wall-mounting holes are spaced 16 inches apart to fit standard wall studs, making it easy to secure. The cabinet features threaded mounting holes that support both M6 and 12-24 hardware, and the rack spaces are clearly marked for easy reference. Backed by Rocstor 5-year limited warranty and free lifetime technical support.

Key Features

• Saves valuable workspace by housing EIA-standard 19-inch rack equipment in a 2U vertical-mount cabinet.
• Low-profile design extends less than 5 inches from the wall, accommodating equipment up to 20 inches deep.
• Includes a slide-out 1U mounting bracket for patch panels up to 2.5 inches deep.
• Maximum load capacity of 150 lbs (68 kg).

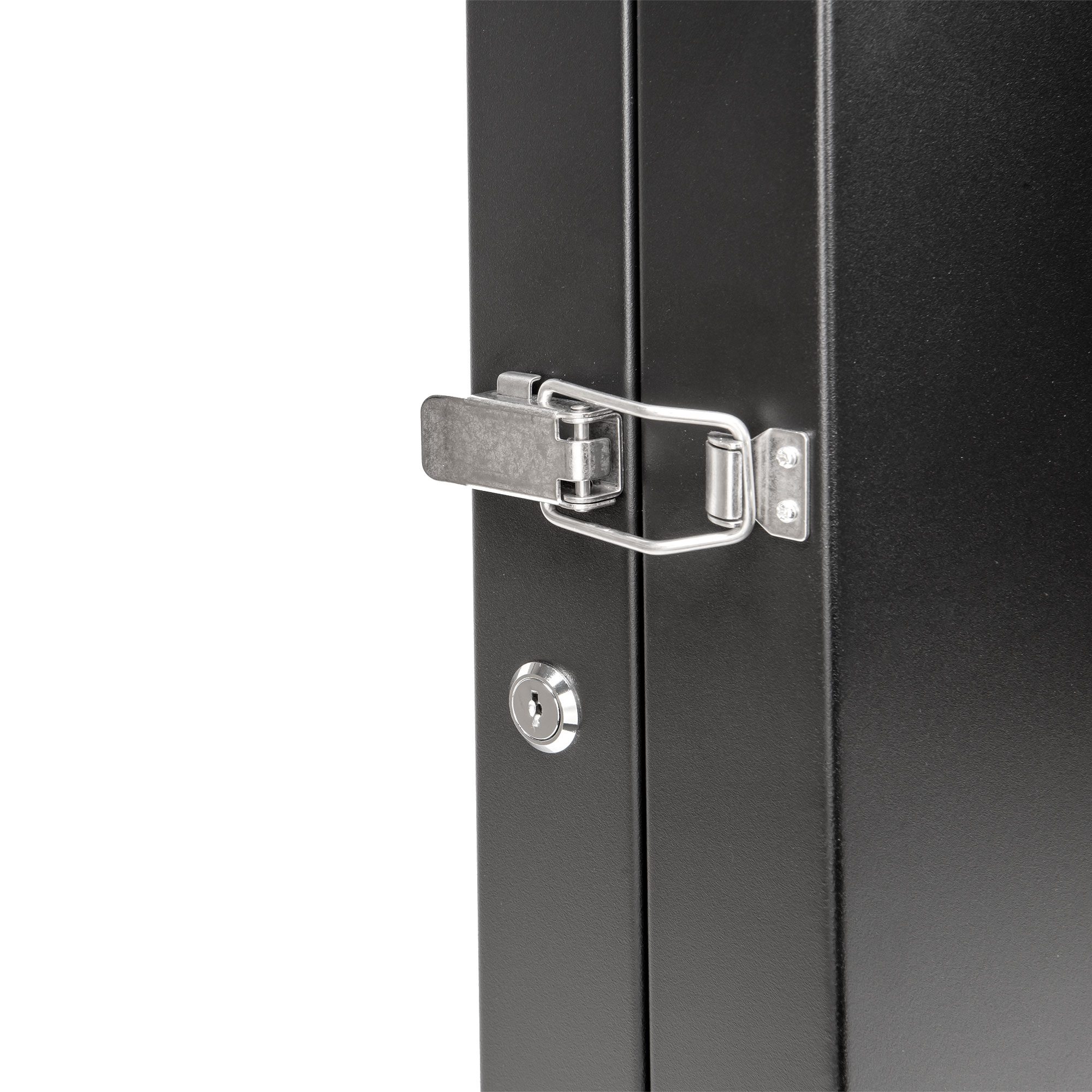

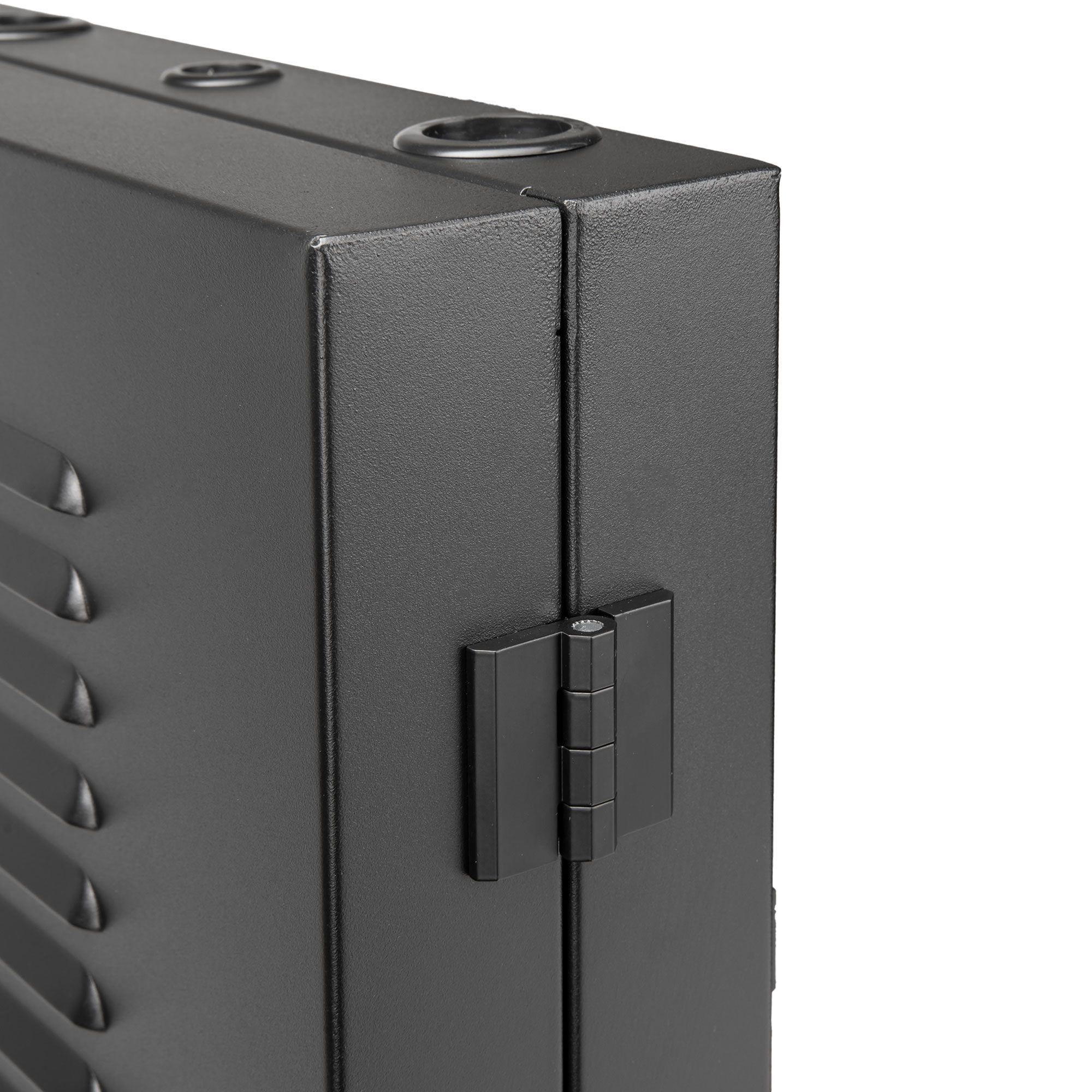

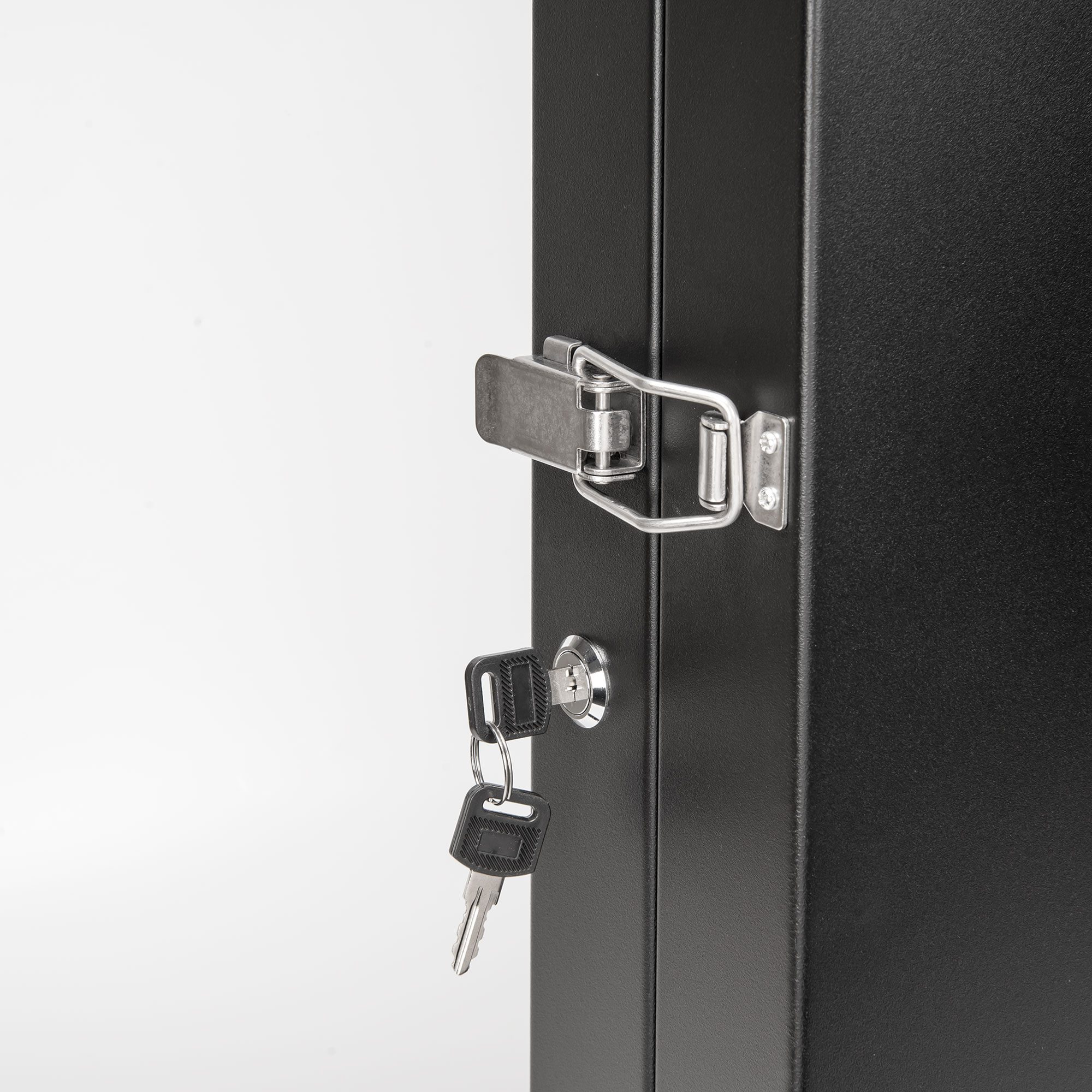

• Secure locking, reversible front door prevents unauthorized access and tampering.

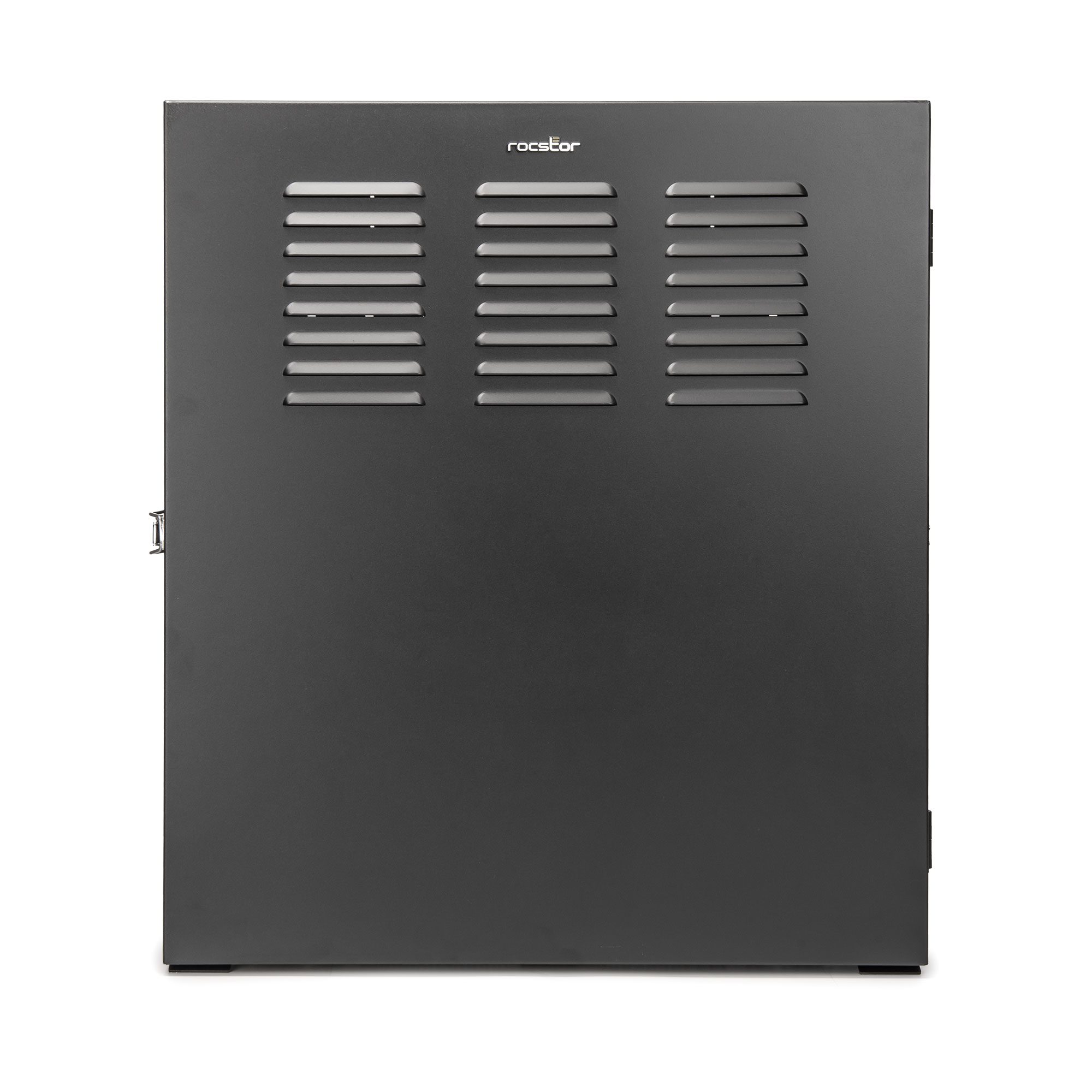

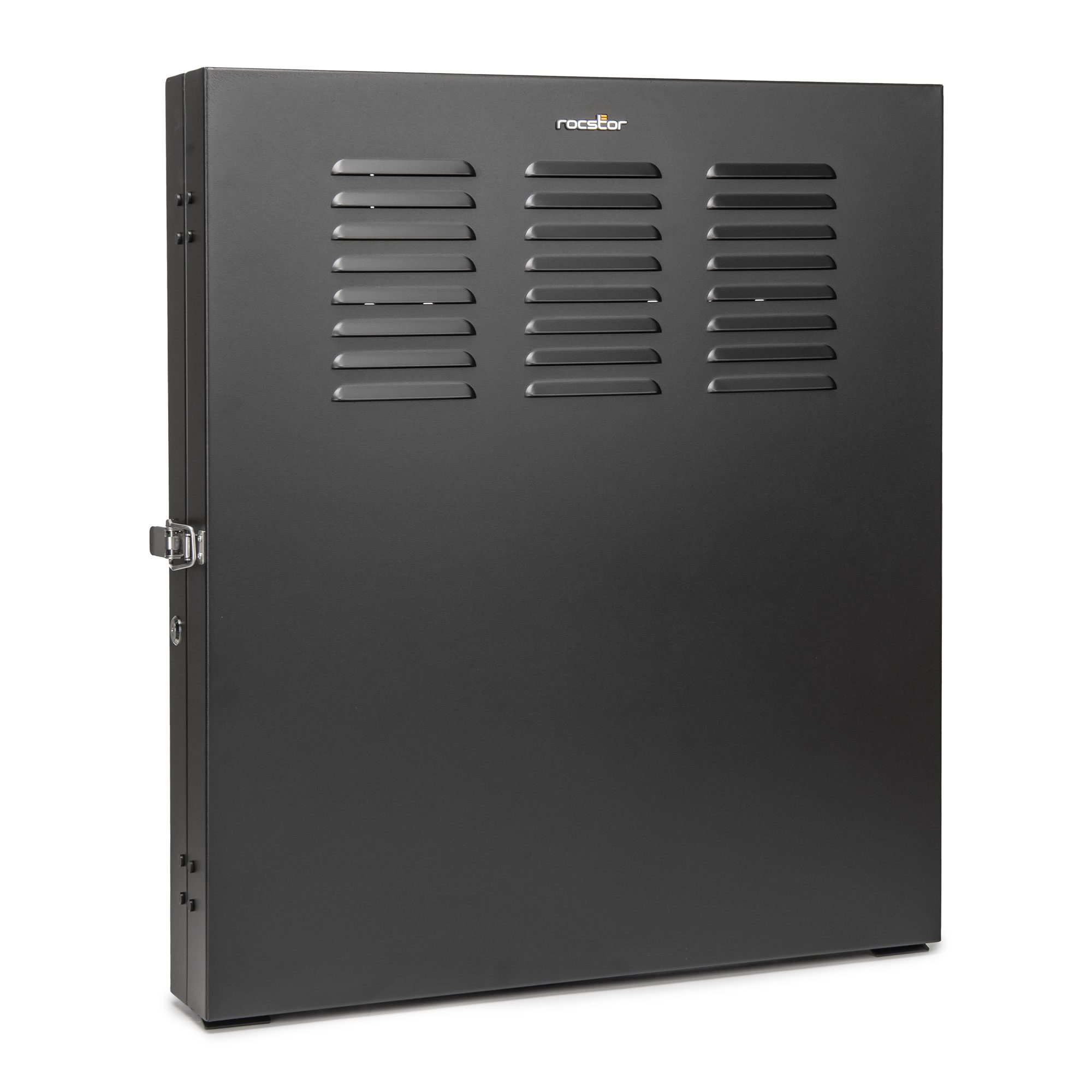

• Vented design ensures proper airflow to keep equipment cool.

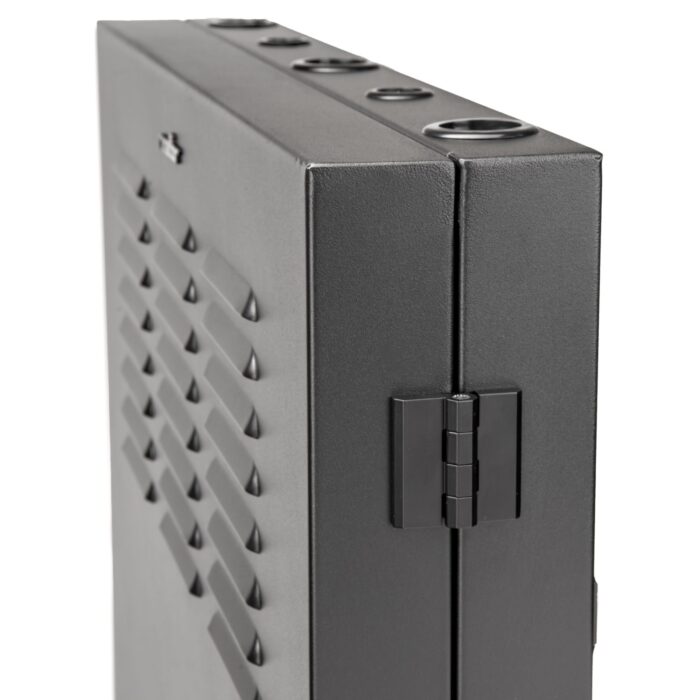

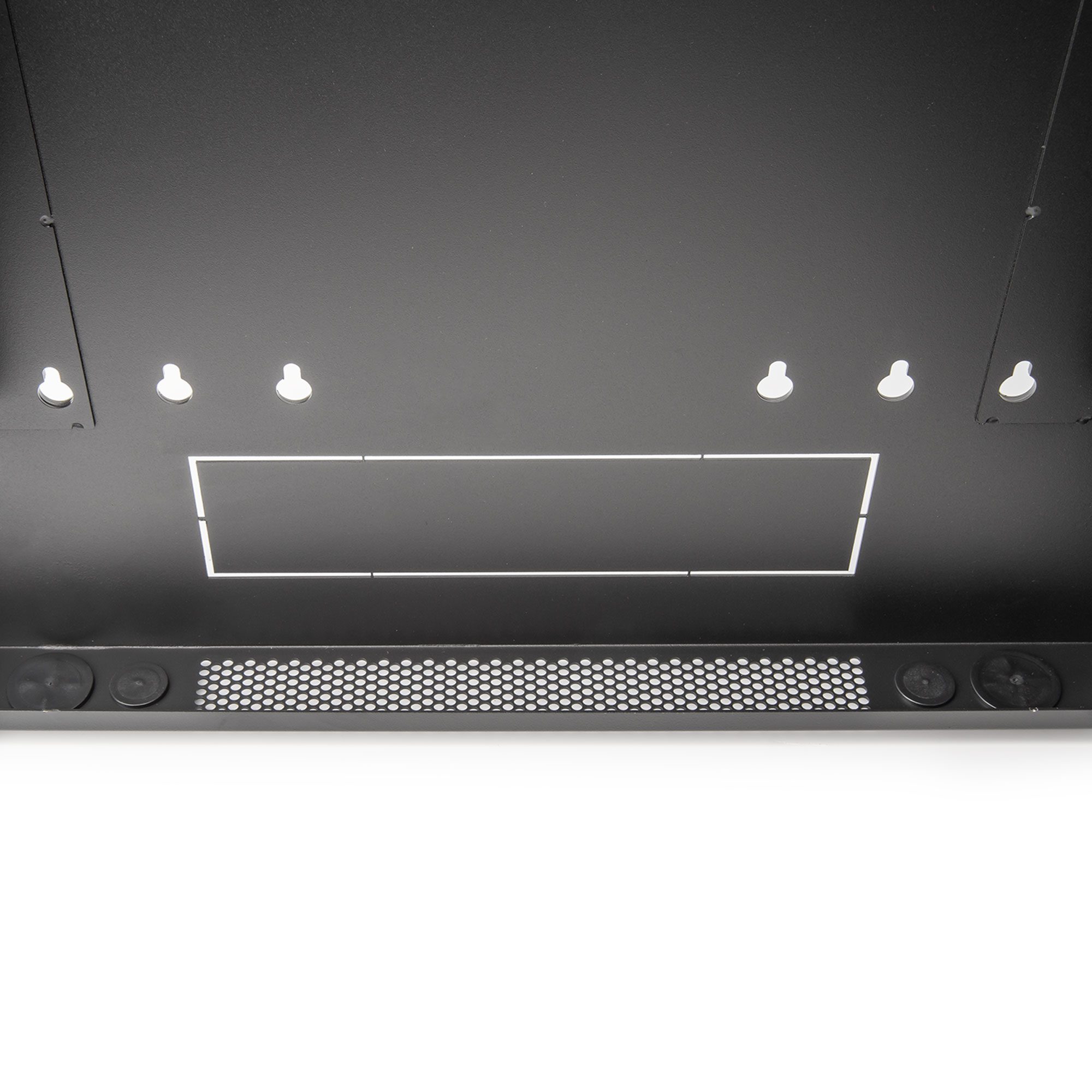

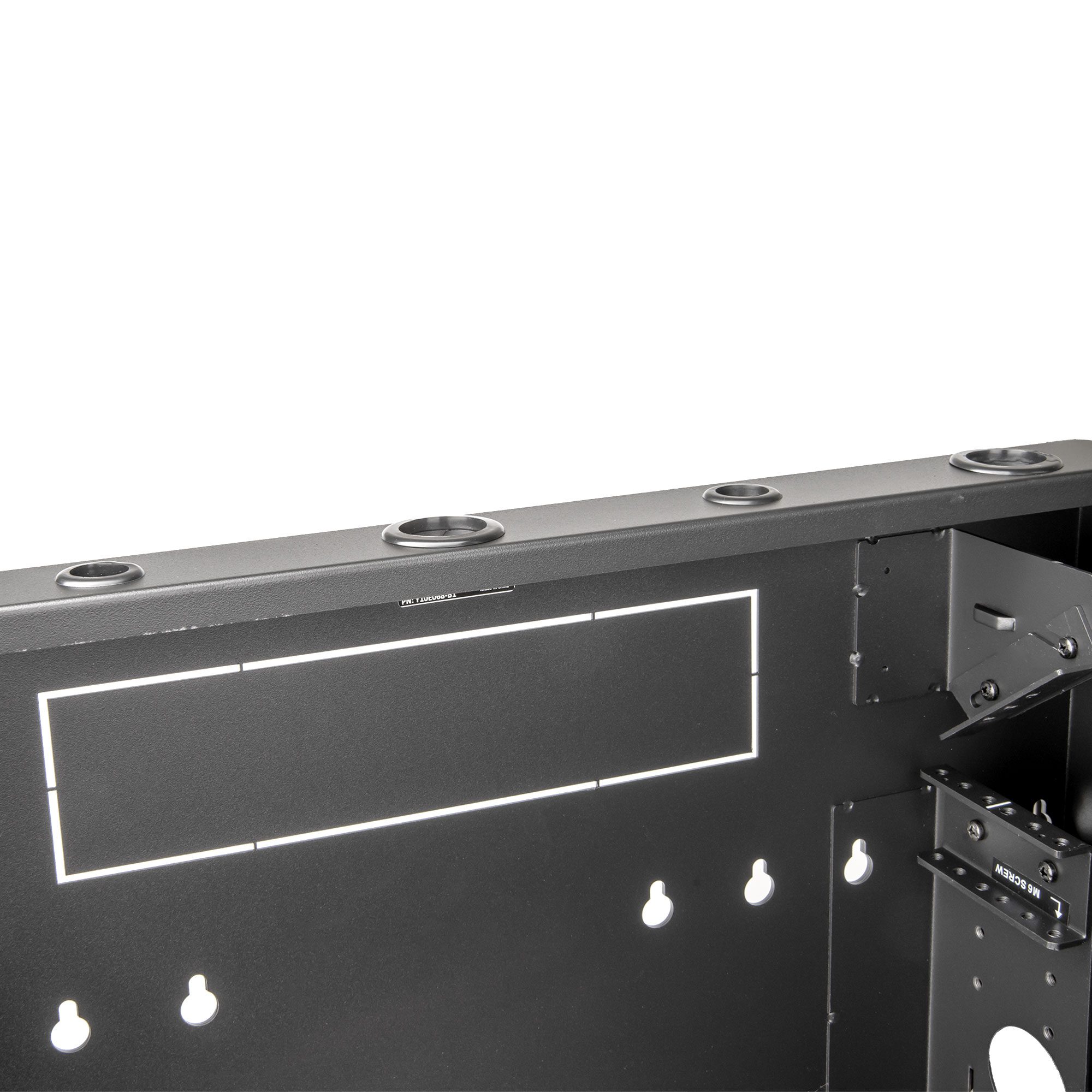

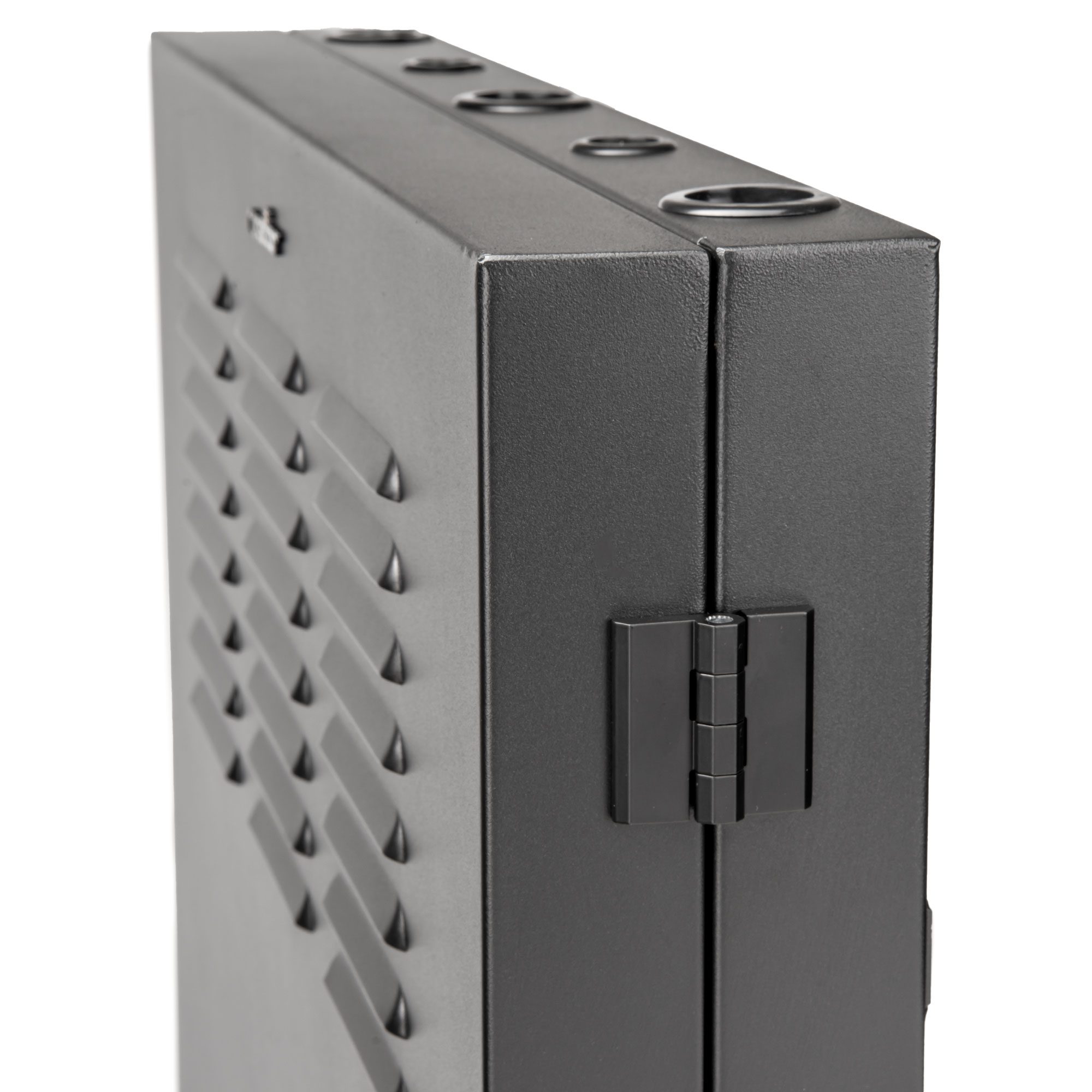

• Convenient top and bottom ports with removable covers for easy cable routing.
• Ships fully assembled with wall-mounting holes spaced 16 inches apart for standard wall stud placement.

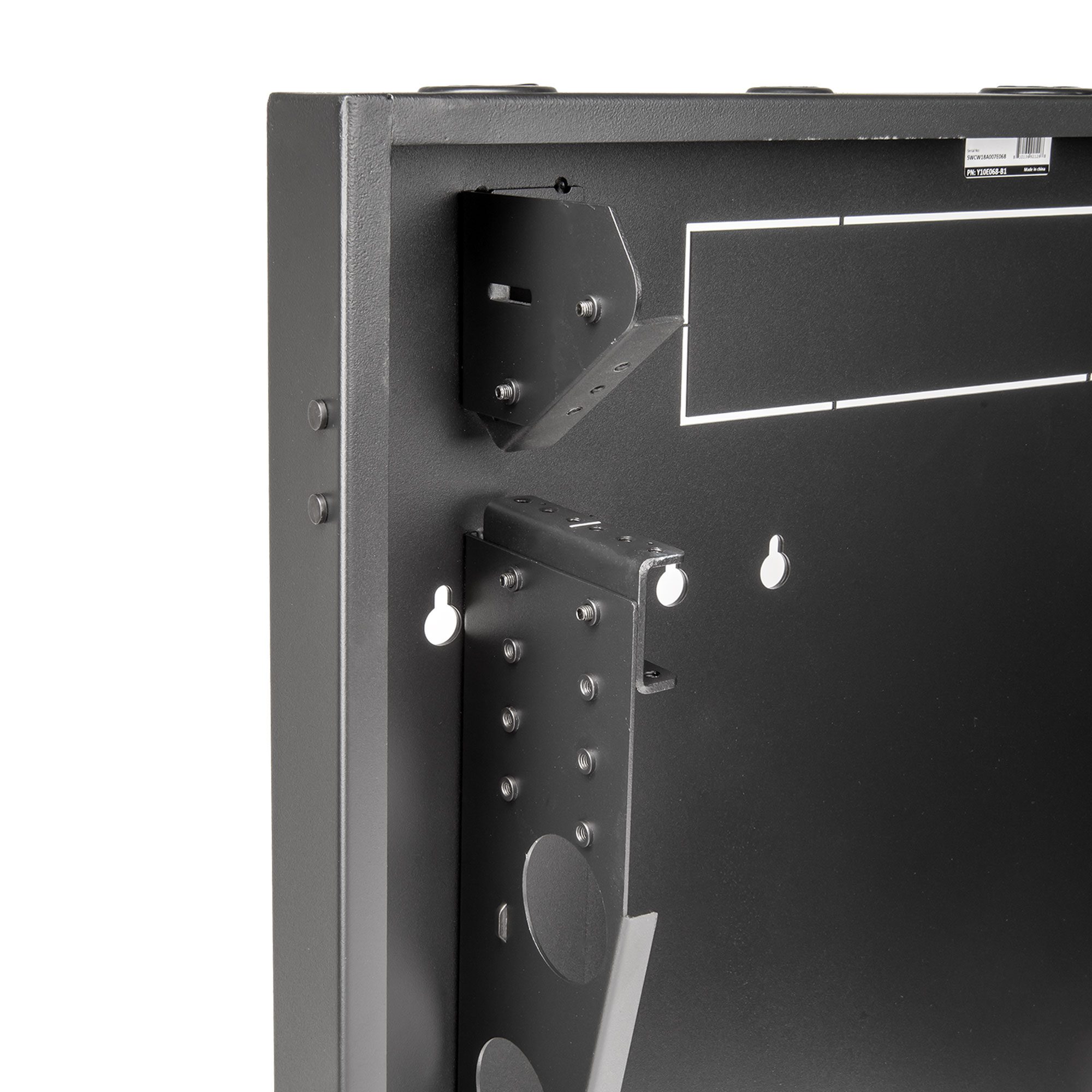

• Threaded mounting holes support M6 or 12-24 hardware, with clearly marked rack spaces for easy installation.
• Warranty: Rocstor 5-year limited warranty.
