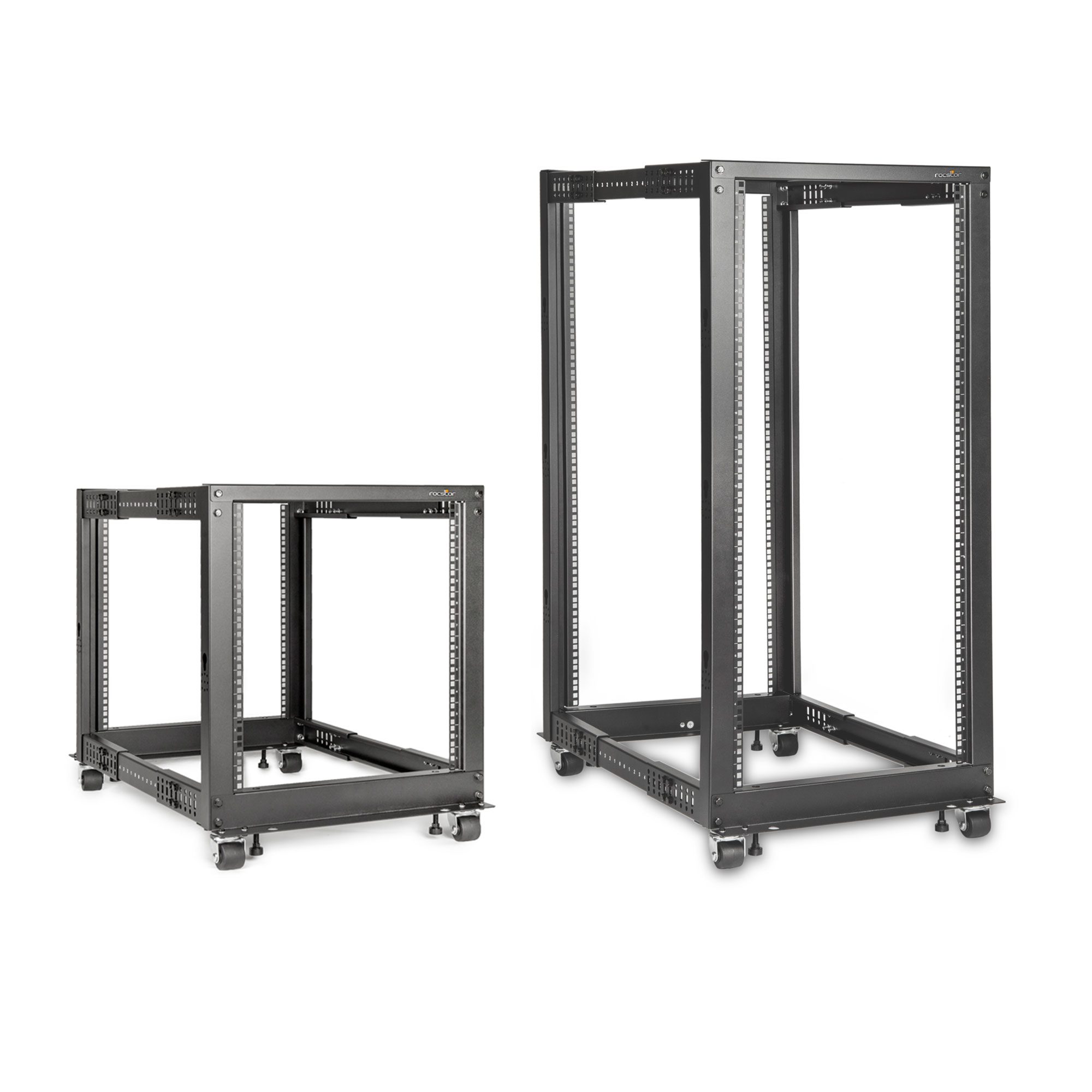

SolidRack Open Frame 4-Post Adjustable Depth Rack
$299.95 – $439.95
Rocstor SolidRack 12U, 18U, 25U, 36U and 42U Adjustable Depth Open Frame 4 Post Rack w/ Casters – Adjustable mounting depth of 22in-40in & 25.1 in Tall – Includes Casters – Assembly Required – 1200lb Static/Stationary Weight Capacity – Heavy-duty Steel – 19in EIA/ECA-310 rated – Black
Description
SolidRack Open Frame 4-Post Adjustable Depth Rack available at 12U, 18U, 25U, 36U and 42U
Rocstor’s Premium Open Frame 4-post SolidRack features an adjustable design to safely support a variety of IT equipment, including servers from Lenovo, HP, Dell, switches, routers, panels, UPS, and batteries. The rack has adjustable mounting depths ranging from 22in to 40in for customizable installation in limited space. Its open frame design provides unrestricted air flow and easy equipment access, reducing cable damage and outage issues. The rack complies with EIA/ECA-310 standard and is suitable for organizing A/V, networking, or telecommunication equipment in crowded spaces such as network closets in various settings including schools, offices, homes, hostels, and industries.
This 18U frame has 4-vertical rails with adjustable depths to hold up to 19-inch equipment, providing better protection and cable management. This premium standalone rack is made of heavy-duty CRS and finished with black-powder coating for durability. It has a tested weight capacity of up to 1200 lbs. (544 kg). Rocstor provides all necessary hardware for assembly, including cage nuts and screws for the punched square holes on the front and back rails. The rack also has casters for mobility and easy movement across different surfaces. Alternatively, it can be attached to the floor with a pre-drilled base for stability and security. It also has leveling feet for adjusting on uneven floors for a tightened grip.
The 18U SolidRack has numbered U units and square mounting holes for simplified equipment installation. It has a flat-pack design for easy shipping and quick assembly. This premium 18U Open Frame SolidRack is backed by Rocstor’s 5-year warranty and lifetime phone support.
Features:
• Supports numerous A/V, networking and IT equipment, including large switches, servers, computer equipment, routers, and UPS
• Ideal for limited-space environments such as network closets, homes, institutions, workstations, and industries
• Supports adjustable mounting depths of 22in-40in
• Organizes the equipment and cables more securely
• Accommodates EIA/ECA-310 standard 19-inch rack equipment in 18U of space
• Safely holds a stationary weight capacity of up to 1200 lbs (544 Kgs)
• Numbered rack units (U) and square mounting holes
• Arrives with caster kit, leveling feet, and base-plate depending upon the dynamic or static application requirements
• 4-post open frame with punched square holes for equipment mounting
• Allows flat-pack packaging for easy, smooth, and cost-effective shipping
• Vented structure providing unobstructed airflow and easy equipment access
• Built with heavy-duty Steel CRS for trusted strength, durability, and longevity
Additional information
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Rack Hight | 12U, 18U, 22U, 25U, 36U, 42U |
| Style | Open Frame |
| Wallmountable | No |
| Max Depth Capacity | Up to 40 in |
| UPC | 810606037849, 810606037856, 810606039607, 810606039614, 810606039621 |
12U
| Overview | |
| Device Compatibility | Patch Panel, Network Switch, UPS, Server, VoIP Device |
| Rack Type | Open-Frame |
| Physical Characteristic | |
| Color | Black |
| Rack Height | 12U |
| Rack Depth | Adjustable |
| Maximum Device Depth (in.) | 40 |
| Minimum Device Depth (in.) | 22 |
| Shipping Dimensions (hwd / in.) | 5.9 x 14.2 x 25.8 |
| Shipping Weight (lbs.) | 55.12 |
| Unit Dimensions (hwd / in.) | 63.8 x 60 x (59.2~104.9) |
| Unit Weight (lbs.) | 50.3 |
| Weight Capacity – Stationary (lbs.) | 1200 |
| Number of Vertical Mounting Rails | 4 |
| Assembly Required | Yes |
| Package Includes | Left Vertical Rail x2 Corner Section x8 Center Section x4 Top Bracket x2 Right Vertical Rail x2 Base Bracket x2 M8 Bolt x48 M8 Washer x48 M8 (13mm) Wrench x1 M6 Cage Nut x50 M6 Plastic Washers x50 M6 Phillips Head Screw x50 M6 Cage Nut (8U/12U x4) (15U/18U x8) (25U x12) (42U x24) Hook Mounting Screws (12U x4) (25U x12) Casters x4 Leveling Feet x4 M6 Screws x18 M6 Flat Washers x18 M6 Flange Nut x16 M6(10mm) Wrench x1 Phillips Screwdriver x1 Toothed Lock Washer x4 Toothed Lock Washer x1 M6 Phillips-Head Screw x4 |
| Standards & Compliance | |
| Product Compliance | RoHS; EIA/ECA-310-E |
| Warranty | |
| Product Warranty Period (Worldwide) | 5-year limited warranty |
18U
| OVERVIEW | |
| UPC Code | 810606039607 |
| Device Compatibility | Network Switches; Routers; Patch Panels; UPS; Servers |
| Rack Type | Open-Frame |
| Wall Mountable | No |
| PHYSICAL | |
| Color | Black |
| Construction Material | Steel |
| Rack Height | 18U |
| Rack Depth (in.) | Standard (23.3~41.3) |
| Maximum Device Depth (cm) | 101.6 |
| Maximum Device Depth (in.) | 40 |
| Maximum Device Depth (mm) | 1016 |
| Minimum Device Depth (cm) | 56 |
| Minimum Device Depth (in.) | 22 |
| Minimum Device Depth (mm) | 560 |
| Shipping Dimensions (hwd / in.) | 5.91 x 48.23 x 8.27 |
| Shipping Dimensions (hwd / cm) | 15 x 122.5 x 21 |
| Shipping Weight (lbs.) | 62.28 |
| Shipping Weight (kg) | 28.25 |
| Unit Dimensions (hwd / in.) | 35.55 x 23.62 x (23.3~41.3) |
| Unit Dimensions (hwd / cm) | 90.3 x 60 x (59~105) |
| Unit Weight (lbs.) | 59.30 |
| Unit Weight (kg) | 26.90 |
| Weight Capacity – Stationary (kg) | 544 |
| Weight Capacity – Stationary (lbs.) | 1200 |
| Number of Vertical Mounting Rails | 4 |
| Assembly Required | Yes |
| FEATURES & SPECIFICATIONS | |
| Grounding Lug | Includes a set of screws, bolts, and washers to secure a user-supplied grounding wire to Front and Back frames |
| Built-in Cable Management | No |
| Extra Wide | No |
| Mounting Hole Types | Square (For Cage Nuts) |
| Includes Casters | Yes 2” 4pcs set |
| Includes Leveling Legs | Yes (Set of 4) |
| STANDARDS & COMPLIANCE | |
| Product Compliance | RoHS; EIA/ECA-310-E |
| WARRANTY & SUPPORT | |
| Product Warranty Period (Worldwide) | 5-year limited warranty |
Rocstor’s Premium 18U Open Frame 4-post SolidRack features an adjustable design to safely support a variety of IT equipment, including servers from Lenovo, HP, Dell, switches, routers, panels, UPS, and batteries. The rack has adjustable mounting depths ranging from 22in to 40in for customizable installation in limited space. Its open frame design provides unrestricted air flow and easy equipment access, reducing cable damage and outage issues. The rack complies with EIA/ECA-310 standard and is suitable for organizing A/V, networking, or telecommunication equipment in crowded spaces such as network closets in various settings including schools, offices, homes, hostels, and industries.
This 18U frame has 4-vertical rails with adjustable depths to hold up to 19-inch equipment, providing better protection and cable management. This premium standalone rack is made of heavy-duty CRS and finished with black-powder coating for durability. It has a tested weight capacity of up to 1200 lbs. (544 kg). Rocstor provides all necessary hardware for assembly, including cage nuts and screws for the punched square holes on the front and back rails. The rack also has casters for mobility and easy movement across different surfaces. Alternatively, it can be attached to the floor with a pre-drilled base for stability and security. It also has leveling feet for adjusting on uneven floors for a tightened grip.
The 18U SolidRack has numbered units (U) and square mounting holes for simplified equipment installation. It has a flat-pack design for easy shipping and quick assembly. This premium 18U Open Frame SolidRack is backed by Rocstor’s 5-year warranty and lifetime phone support.
Features:
• Supports numerous A/V, networking and IT equipment, including large switches, servers, computer equipment, routers, and UPS
• Ideal for limited-space environments such as network closets, homes, institutions, workstations, and industries
• Supports adjustable mounting depths of 22in-40in
• Organizes the equipment and cables more securely
• Accommodates EIA/ECA-310 standard 19-inch rack equipment in 18U of space
• Safely holds a stationary weight capacity of up to 1200 lbs. (544 Kgs)
• Numbered rack units (U) and square mounting holes
• Arrives with caster kit, leveling feet, and base-plate depending upon the dynamic or static application requirements
• 4-post open frame with punched square holes for equipment mounting
• Allows flat-pack packaging for easy, smooth, and cost-effective shipping
• Vented structure providing unobstructed airflow and easy equipment access
• Built with heavy-duty Steel CRS for trusted strength, durability, and longevity
25U
| Overview | |
| Device Compatibility | Patch Panel, Network Switch, UPS, Server, VoIP Device |
| Rack Type | Open-Frame |
| Physical Characteristic | |
| Color | Black |
| Rack Height | 25U |
| Rack Depth | Standard |
| Maximum Device Depth (in.) | 40 |
| Minimum Device Depth (in.) | 22 |
| Shipping Dimensions (hwd / in.) | 5.9 x 7.3 x 60.6 (knocked down) |
| Shipping Weight (lbs.) | 65.9 |
| Unit Dimensions (hwd / in.) | 47.8 x 23.6 x (23.5~41) |
| Unit Weight (lbs.) | 57.6 |
| Weight Capacity – Stationary (lbs.) | 1200 |
| Number of Vertical Mounting Rails | 4 |
| Assembly Required | Yes |
| Package Includes | Left Vertical Rail x2 Corner Section x8 Center Section x4 Top Bracket x2 Right Vertical Rail x2 Base Bracket x2 M8 Bolt x48 M8 Washer x48 M8 (13mm) Wrench x1 M6 Cage Nut x50 M6 Plastic Washers x50 M6 Phillips Head Screw x50 M6 Cage Nut (8U/12U x4) (15U/18U x8) (25U x12) (42U x24) Hook Mounting Screws (8U/12U x4) (25U x12) (42U x24) Casters x4 Leveling Feet x4 M6 Screws x18 M6 Flat Washers x18 M6 Flange Nut x16 M6(10mm) Wrench x1 Phillips Screwdriver x1 Toothed Lock Washer x4 Toothed Lock Washer x1 M6 Phillips-Head Screw x4 |
| Standards & Compliance | |
| Product Compliance | RoHS; EIA/ECA-310-E |
| Warranty | |
| Product Warranty Period (Worldwide) | 5-year limited warranty |
36U
| OVERVIEW | |
| UPC Code | 810606039614 |
| Device Compatibility | Network Switches; Routers; Patch Panels; UPS; Server |
| Rack Type | Open-Frame |
| Wall Mountable | No |
| PHYSICAL | |
| Color | Black |
| Construction Material | Steel |
| Rack Height | 36U |
| Rack Depth (in.) | Standard (23.3~41.3) |
| Maximum Device Depth (cm) | 101.6 |
| Maximum Device Depth (in.) | 40 |
| Maximum Device Depth (mm) | 1016 |
| Minimum Device Depth (cm) | 56 |
| Minimum Device Depth (in.) | 22 |
| Minimum Device Depth (mm) | 560 |
| Shipping Dimensions (hwd / in.) | 5.91 x 68.5 x 7.28 |
| Shipping Dimensions (hwd / cm) | 15 x 174 x 18.5 |
| Shipping Weight (lbs.) | 79.37 |
| Shipping Weight (kg) | 36.00 |
| Unit Dimensions (hwd / in.) | 67.05 x 23.62 x (23.3~41.3) |
| Unit Dimensions (hwd / cm) | 170.3 x 60 x (59~105) |
| Unit Weight (lbs.) | 76.06 |
| Unit Weight (kg) | 34.50 |
| Weight Capacity – Stationary (kg) | 544 |
| Weight Capacity – Stationary (lbs.) | 1200 |
| Number of Vertical Mounting Rails | 4 |
| Assembly Required | Yes |
| FEATURES & SPECIFICATIONS | |
| Grounding Lug | Includes a set of screws, bolts, and washers to secure a user-supplied grounding wire to Front and Back frames |
| Built-in Cable Management | No |
| Extra Wide | No |
| Mounting Hole Types | Square (For Cage Nuts) |
| Includes Casters | Yes 2” 4pcs set |
| Includes Leveling Legs | Yes (Set of 4) |
| STANDARDS & COMPLIANCE | |
| Product Compliance | RoHS; EIA/ECA-310-E |
| WARRANTY & SUPPORT | |
| Product Warranty Period (Worldwide) | 5-year limited warranty |
Rocstor’s Premium 36U Open Frame 4-post SolidRack features an adjustable design to safely support a variety of IT equipment, including servers from Lenovo, HP, Dell, switches, routers, panels, UPS, and batteries. The rack has adjustable mounting depths ranging from 22in to 40in for customizable installation in limited space. Its open frame design provides unrestricted air flow and easy equipment access, reducing cable damage and outage issues. The rack complies with EIA/ECA-310 standard and is suitable for organizing A/V, networking, or telecommunication equipment in crowded spaces such as network closets in various settings including schools, offices, homes, hostels, and industries.
This 36U frame has 4-vertical rails with adjustable depths to hold up to 19-inch equipment, providing better protection and cable management. This premium standalone rack is made of heavy-duty CRS and finished with black-powder coating for durability. It has a tested weight capacity of up to 1200 lbs. (544 kg). Rocstor provides all necessary hardware for assembly, including cage nuts and screws for the punched square holes on the front and back rails. The rack also has casters for mobility and easy movement across different surfaces. Alternatively, it can be attached to the floor with a pre-drilled base for stability and security. It also has leveling feet for adjusting on uneven floors for a tightened grip.
The 36U SolidRack has numbered units (U) and square mounting holes for simplified equipment installation. It has a flat-pack design for easy shipping and quick assembly. This premium 36U Open Frame SolidRack is backed by Rocstor’s 5-year warranty and lifetime phone support.
Features:
• Supports numerous A/V, networking and IT equipment including large switches, servers, computer equipment, routers, and UPS
• Ideal for limited-space environments such as network closets, homes, institutions, workstations, and industries
• Supports adjustable mounting depths of 22in-40in
• Organizes the equipment and cables more securely
• Accommodates EIA/ECA-310 standard 19-inch rack equipment in 36U of space
• Safely hold stationary weight capacity of up to 1200 lbs. (544 Kg)
• Numbered rack units (U) and square mounting holes
• Arrives with caster kit, leveling feet, and base-plate depending upon the dynamic or static application requirements
• 4-post open frame with punched square holes for equipment mounting
• Allows flat-pack packaging for easy, smooth, and cost-effective shipping
• Vented structure providing unobstructed airflow and easy equipment access
• Built with heavy duty Steel CRS for trusted strength, durability and longevity
42U
| OVERVIEW | |
| UPC Code | 810606039621 |
| Device Compatibility | Network Switches; Routers; Patch Panels; UPS; Server |
| Rack Type | Open-Frame |
| Wall Mountable | No |
| PHYSICAL | |
| Color | Black |
| Construction Material | Steel |
| Rack Height | 42U |
| Rack Depth (in.) | Standard (23.3~41.3) |
| Maximum Device Depth (cm) | 101.6 |
| Maximum Device Depth (in.) | 40 |
| Maximum Device Depth (mm) | 1016 |
| Minimum Device Depth (cm) | 56 |
| Minimum Device Depth (in.) | 22 |
| Minimum Device Depth (mm) | 560 |
| Shipping Dimensions (hwd / in.) | 5.91 x 79.13 x 7.28 |
| Shipping Dimensions (hwd / cm) | 15 x 201 x 18.5 |
| Shipping Weight (lbs.) | 84.88 |
| Shipping Weight (kg) | 38.50 |
| Unit Dimensions (hwd / in.) | 77.56 x 23.62 x (23.3~41.3) |
| Unit Dimensions (hwd / cm) | 197 x 60 x (59~105) |
| Unit Weight (lbs.) | 81.57 |
| Unit Weight (kg) | 37.00 |
| Weight Capacity – Stationary (kg) | 544 |
| Weight Capacity – Stationary (lbs.) | 1200 |
| Number of Vertical Mounting Rails | 4 |
| Assembly Required | Yes |
| FEATURES & SPECIFICATIONS | |
| Grounding Lug | Includes a set of screws, bolts, and washers to secure a user-supplied grounding wire to Front and Back frames |
| Built-in Cable Management | No |
| Extra Wide | No |
| Mounting Hole Types | Square (For Cage Nuts) |
| Includes Casters | Yes 2” 4pcs set |
| Includes Leveling Legs | Yes (Set of 4) |
| STANDARDS & COMPLIANCE | |
| Product Compliance | RoHS; EIA/ECA-310-E |
| WARRANTY & SUPPORT | |
| Product Warranty Period (Worldwide) | 5-year limited warranty |
Rocstor’s Premium 42U Open Frame 4-post SolidRack features an adjustable design to safely support a variety of IT equipment, including servers from Lenovo, HP, Dell, switches, routers, panels, UPS, and batteries. The rack has adjustable mounting depths ranging from 22in to 40in for customizable installation in limited space. Its open frame design provides unrestricted air flow and easy equipment access, reducing cable damage and outage issues. The rack complies with EIA/ECA-310 standard and is suitable for organizing A/V, networking, or telecommunication equipment in crowded spaces such as network closets in various settings including schools, offices, homes, hostels, and industries.
This 42U frame has 4-vertical rails with adjustable depths to hold up to 19-inch equipment, providing better protection and cable management. This premium standalone rack is made of heavy-duty CRS and finished with black-powder coating for durability. It has a tested weight capacity of up to 1200 lbs. (544 kg). Rocstor provides all necessary hardware for assembly, including cage nuts and screws for the punched square holes on the front and back rails. The rack also has casters for mobility and easy movement across different surfaces. Alternatively, it can be attached to the floor with a pre-drilled base for stability and security. It also has leveling feet for adjusting on uneven floors for a tightened grip.
The 42U SolidRack has numbered units (U) and square mounting holes for simplified equipment installation. It has a flat-pack design for easy shipping and quick assembly. This premium 42U Open Frame SolidRack is backed by Rocstor’s 5-year warranty and lifetime phone support.
Features:
• Supports numerous A/V, networking and IT equipment including large switches, servers, computer equipment, routers, and UPS
• Ideal for limited-space environments such as network closets, homes, institutions, workstations and industries
• Supports adjustable mounting depths of 22in-40in
• Organizes the equipment and cables more securely
• Accommodates EIA/ECA-310 standard 19-inch rack equipment in 42U of space
• Safely hold stationary weight capacity of up to 1200 lbs. (544 Kg)
• Numbered rack units (U) and square mounting holes
• Arrives with caster kit, leveling feet, and base-plate depending upon the dynamic or static application requirement
• 4-post open frame with punched square holes for equipment mounting
• Allows flat-pack packaging for easy, smooth, and cost-effective shipping
• Vented structure providing unobstructed airflow and easy equipment access
• Built with heavy duty Steel CRS for trusted strength, durability and longevity
