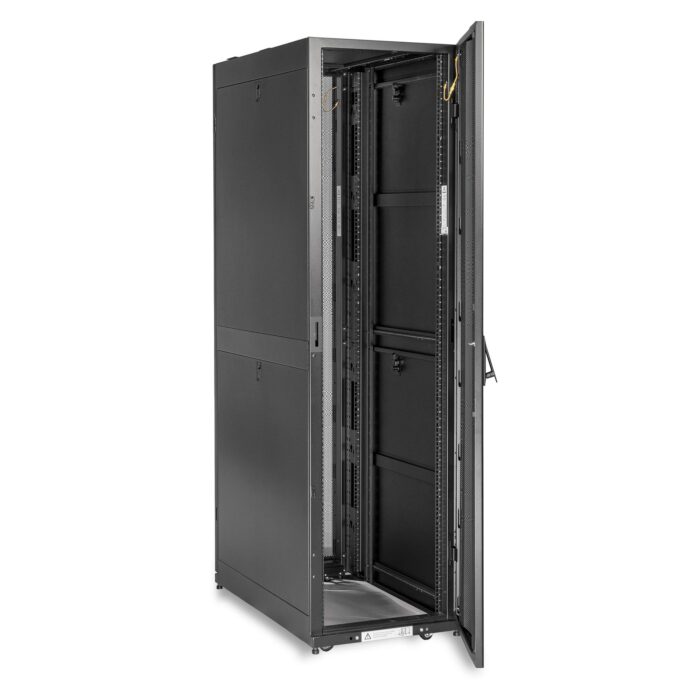

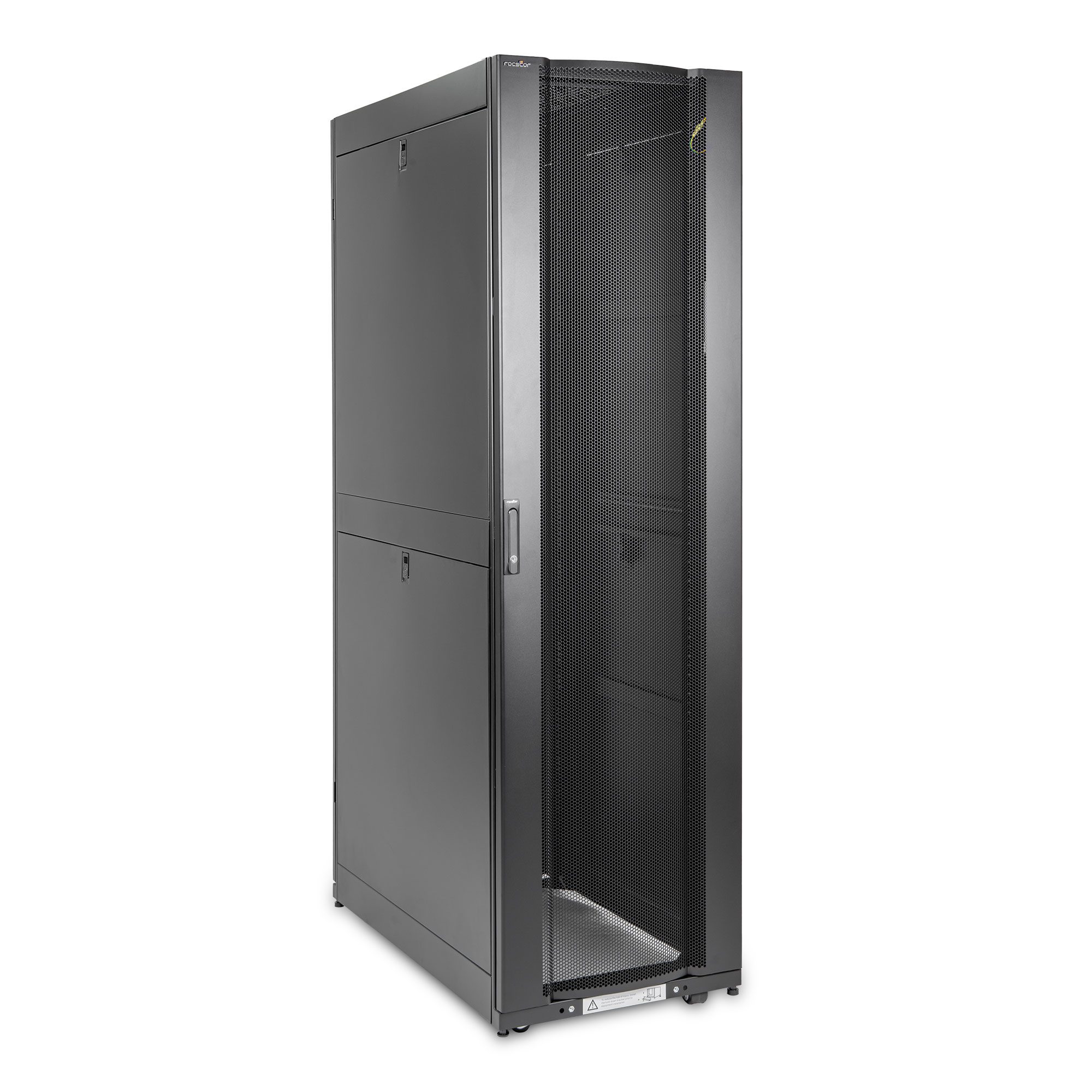

SolidRack R3105 Premium 45U Rack Enclosure Cabinet – 3300 lb (1500kg) Static Load Capacity – Assembled
$1,739.95
SolidRack R3105 45U Rack Enclosure Cabinet – Includes Doors & Side Panels – 3300 lb (1500kg) Static Load Capacity – Heavy-duty – 23.6 inches (600mm) Wide x 42 inches (1070mm) Deep, 83.7 inches (2125.29mm) Height (including Casters), 45U Enclosure – Floor Standing – Cold-rolled Steel (CRS) – Keyed Door Locks – ROHS & CE Certified – EIA-310-E & IP20 Protection Rating Compliant – Assembled – Black
Key Features
- Enterprise-Grade 45U Enclosure: Built for modern data centers, server rooms, and high-density IT deployments.
- Ultra-Strong Steel Construction: Supports up to 3300 lbs (1500 kg) of stationary equipment with exceptional durability.
- Flexible Depth Adjustment: Internal rails adjust from 5.67 to 35.24 inches, fitting a wide range of servers and IT hardware.

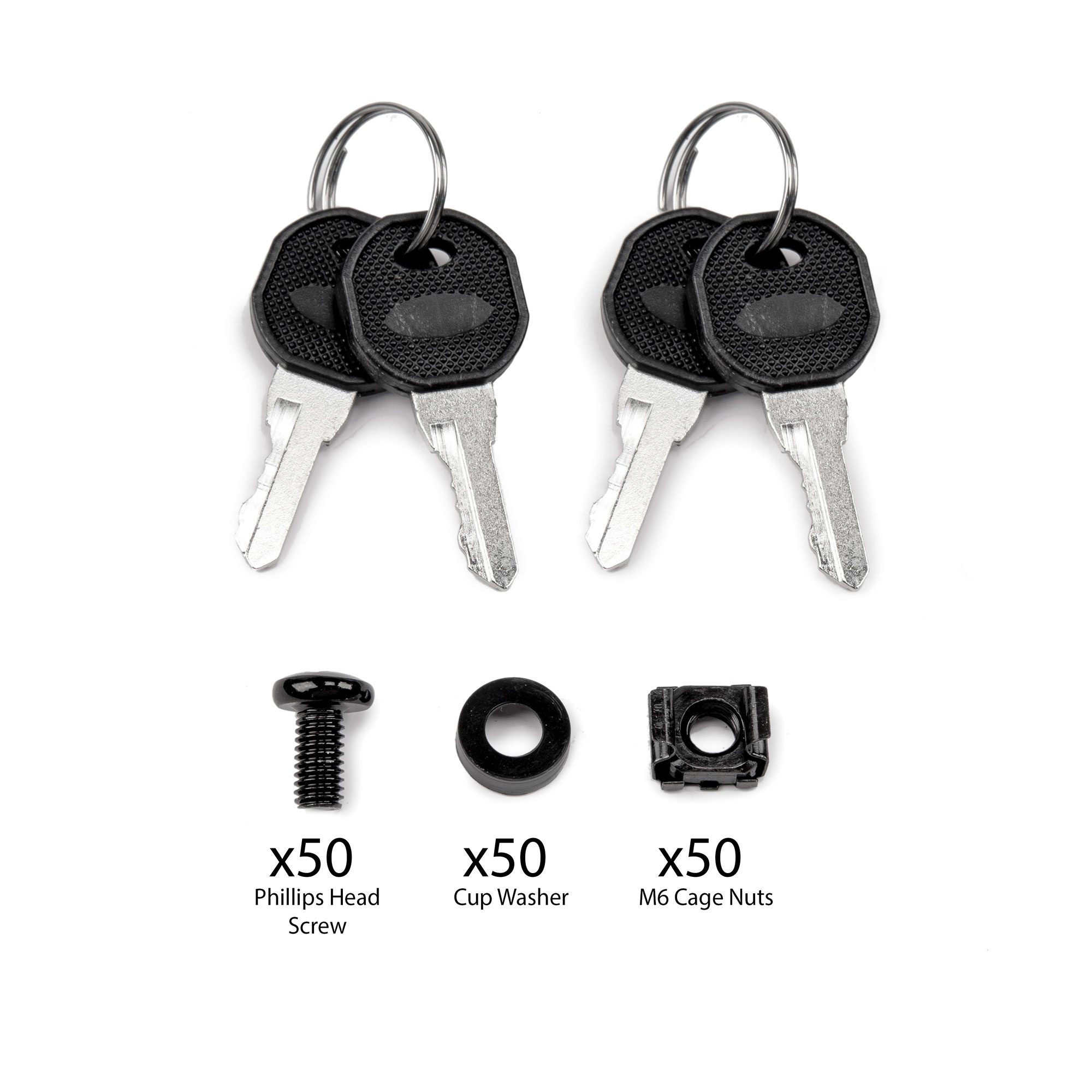

- Secure, Locking Access Panels: Reversible, removable front and rear doors plus keyed-alike side panels protect against unauthorized access.

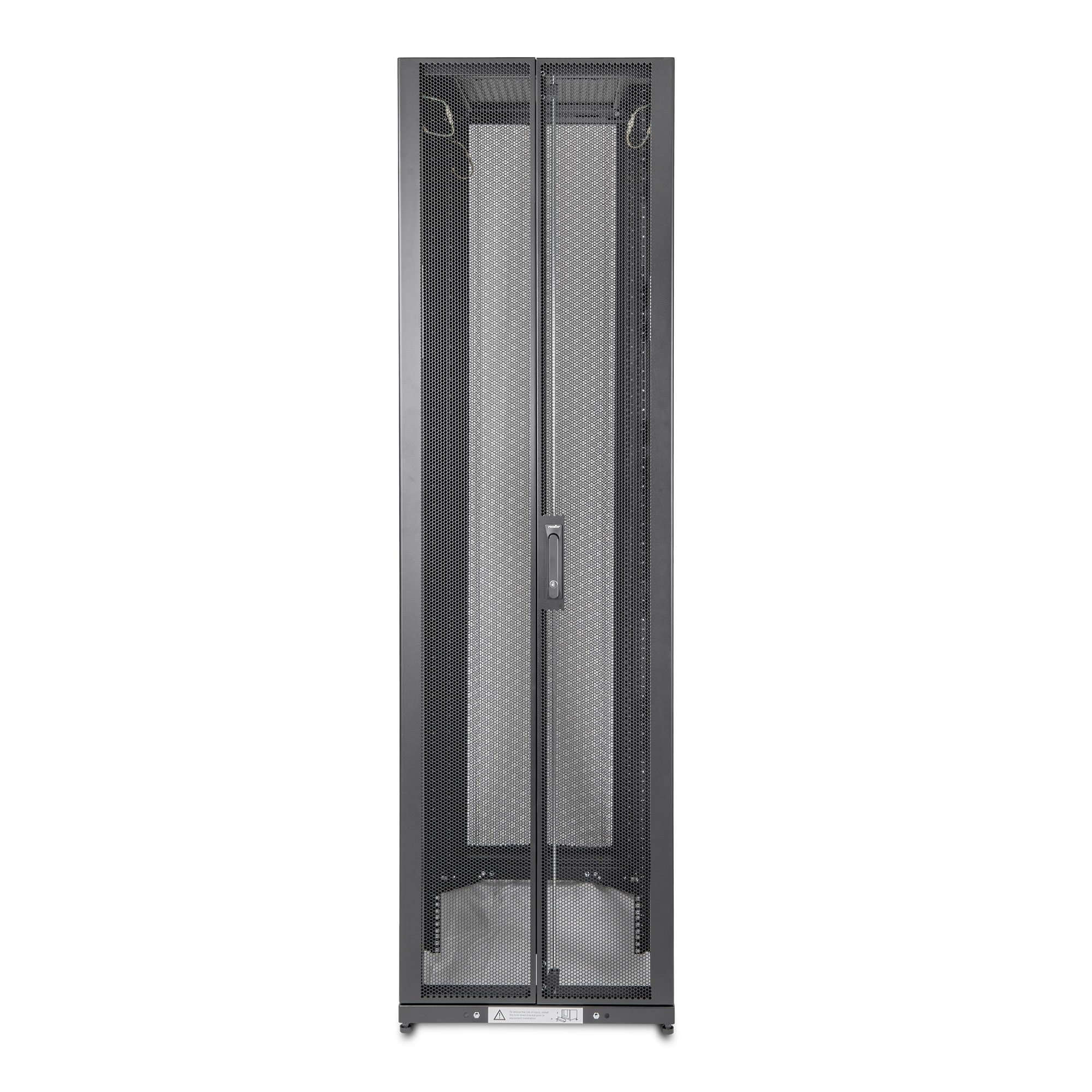

- Optimized Cooling Airflow: Perforated front and rear doors with top ventilation support efficient front-to-rear cooling.

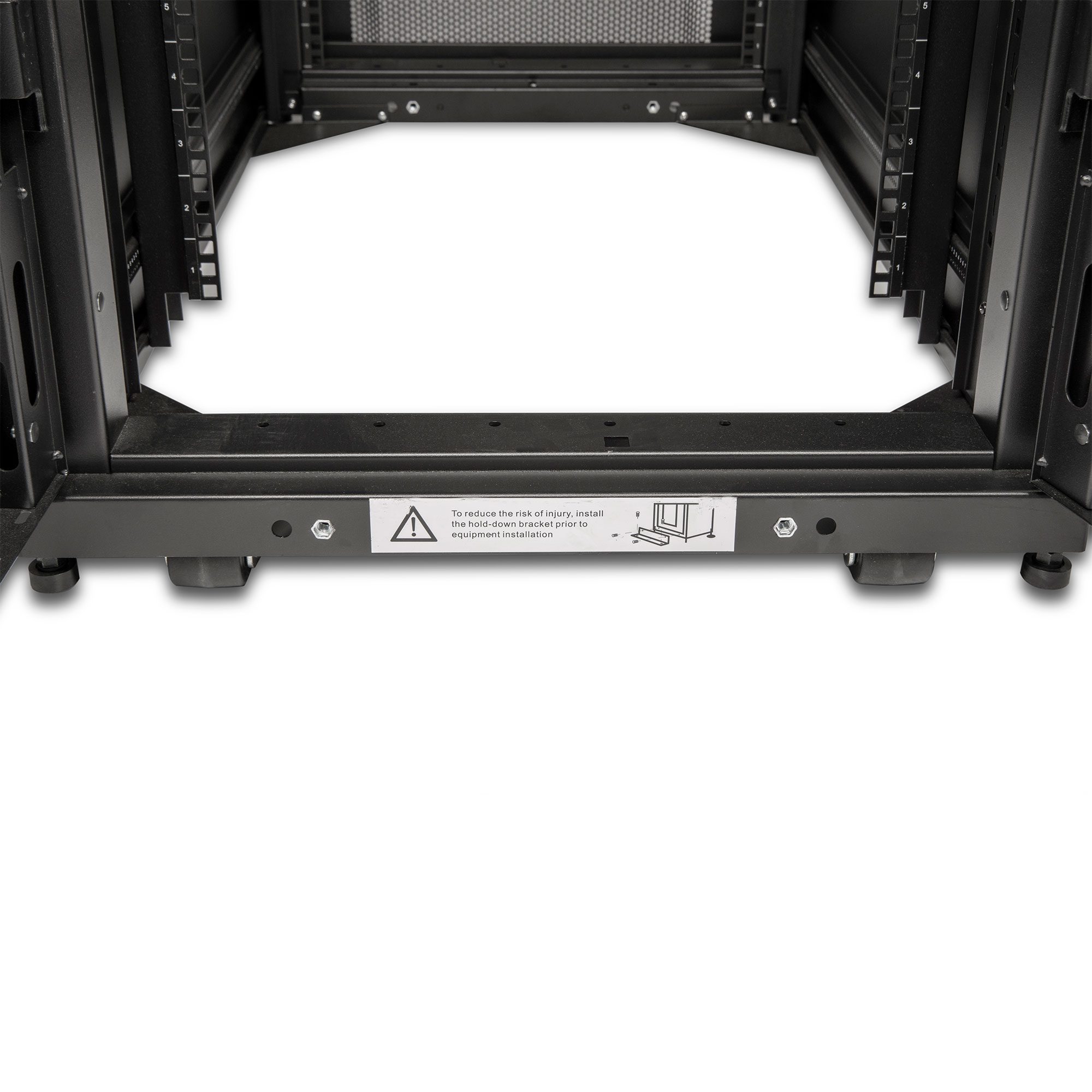

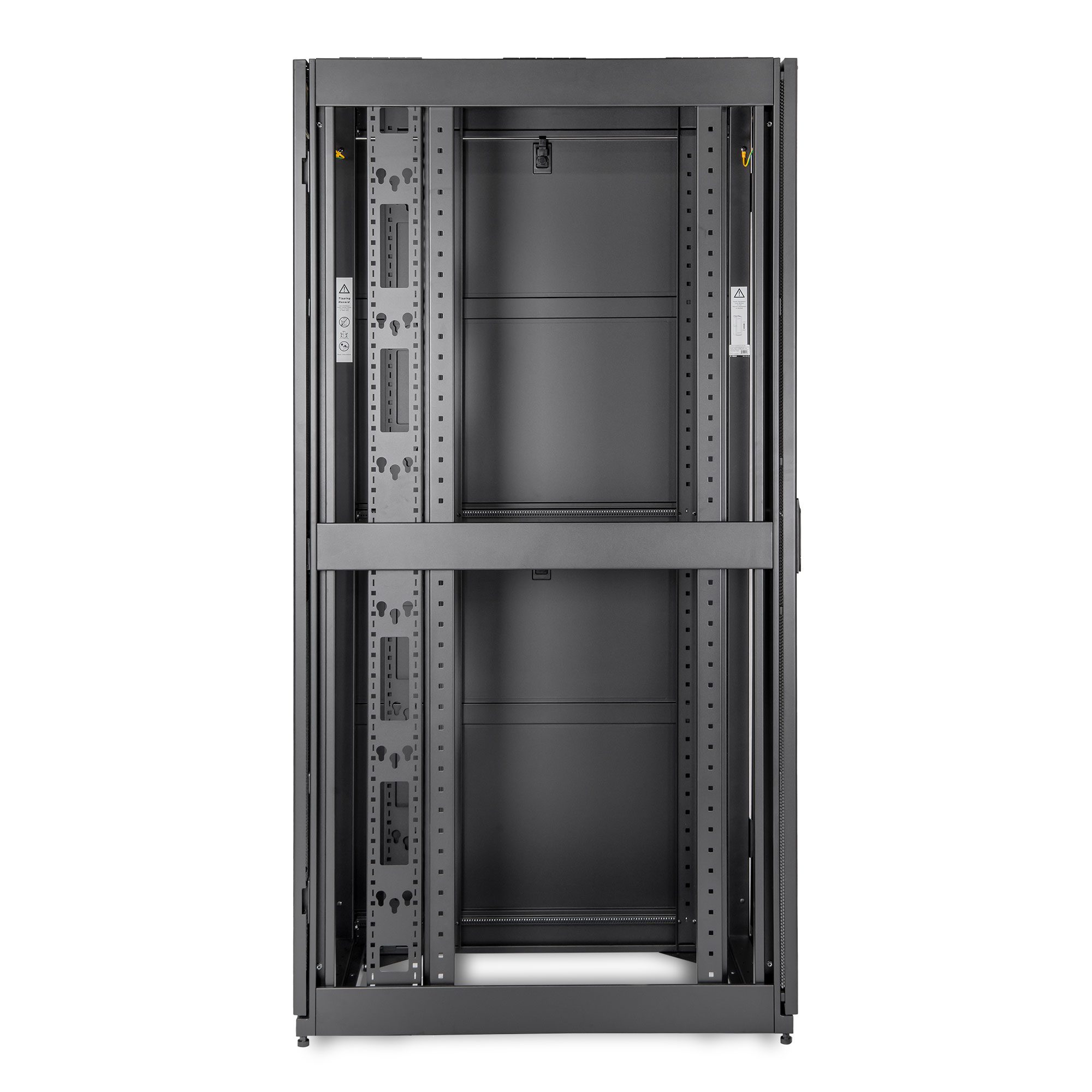

- Clean, Efficient Cable Routing: Top access ports and open bottom design simplify structured cabling and airflow management.
- Fully Assembled for Fast Deployment: Ships ready to use with preinstalled casters and levelers for easy positioning and stability.

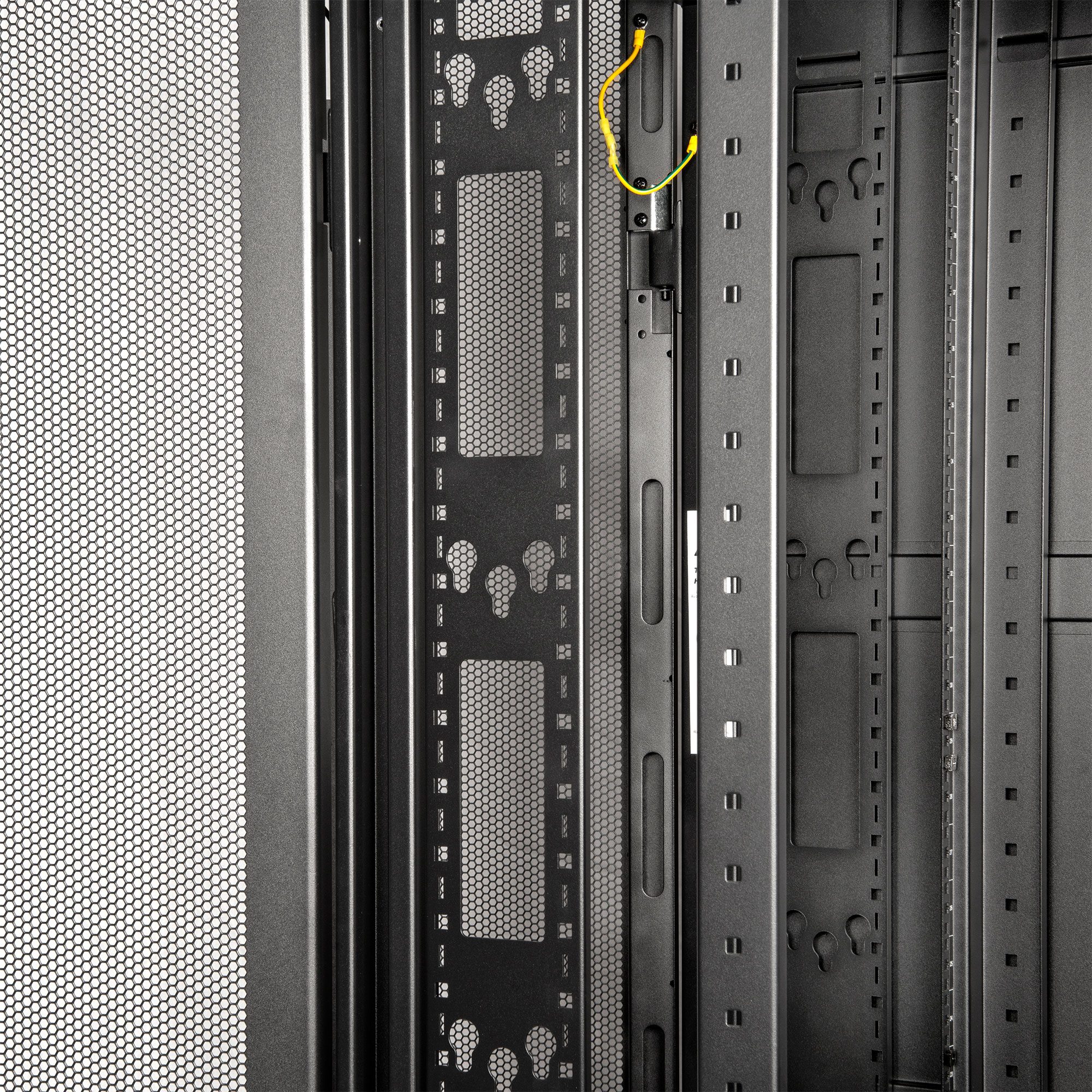

- Toolless 0U Mounting Rails: Quickly install PDUs, cable managers, and accessories without tools.
- Data-Center Ready Design: Compatible with airflow, cable management, and baying accessories, backed by a 5-year Rocstor warranty.
- Country of Origin: China
Built for the Next Generation of Data Centers.
The SolidRack R3105 is engineered for environments where performance and reliability cannot be compromised. Designed for enterprise server rooms, growing data centers, and high-density IT deployments, this 45U enclosure delivers industrial-grade strength in a refined, purposeful form. Constructed from heavy-duty cold-rolled steel and finished with a premium black powder coat, it withstands demanding workloads with ease—supporting an extraordinary 3300 lbs (1500 kg) of static equipment.
A Flexible Interior With Room to Scale.

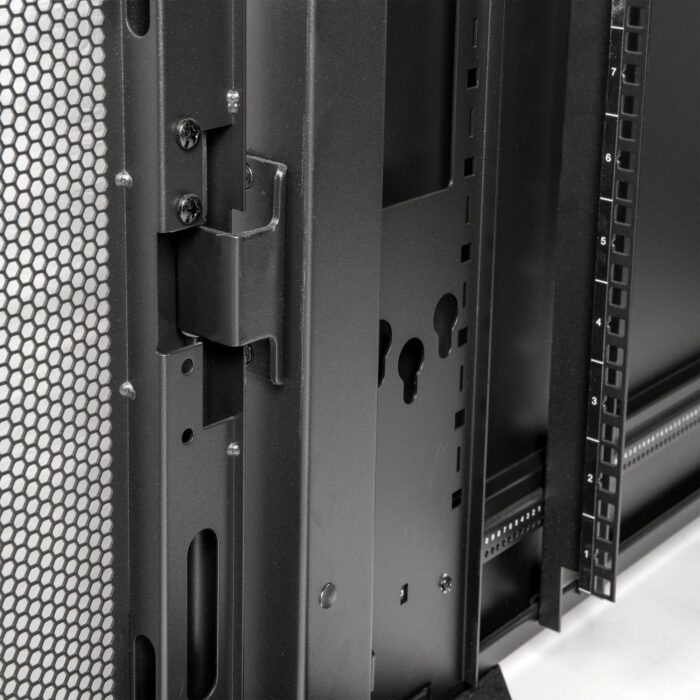

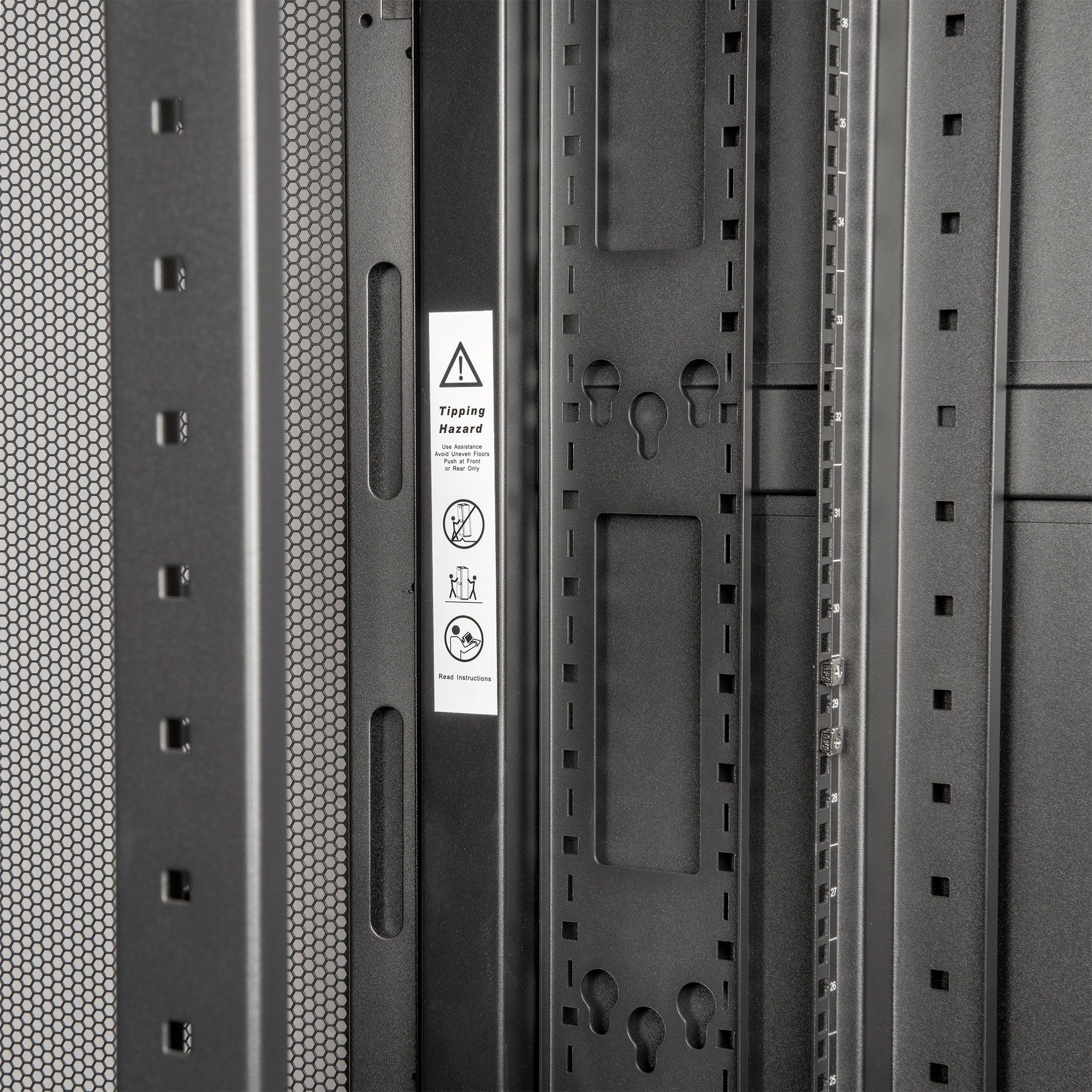

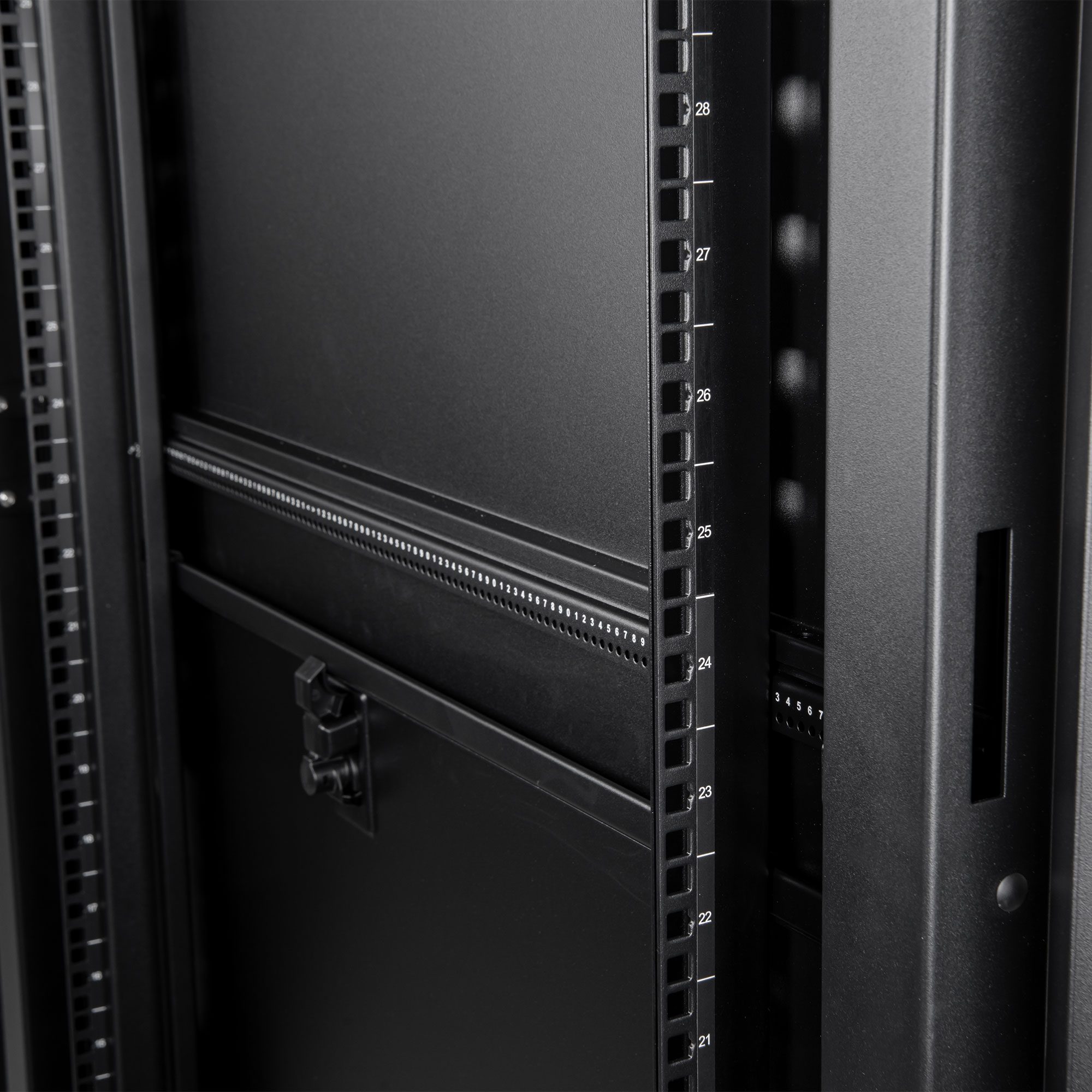

Every infrastructure evolves, and the R3105 is designed to grow with it. Adjustable mounting rails offer an internal depth range from 5.67 to 35.24 inches, accommodating a broad range of servers, switches, PDUs, and storage systems—including today’s deeper enterprise hardware. Toolless rails for accessories allow quick installation of vertical PDUs and cable managers, making customization fast, intuitive, and ready for expansion.
Security That Never Slows You Down.

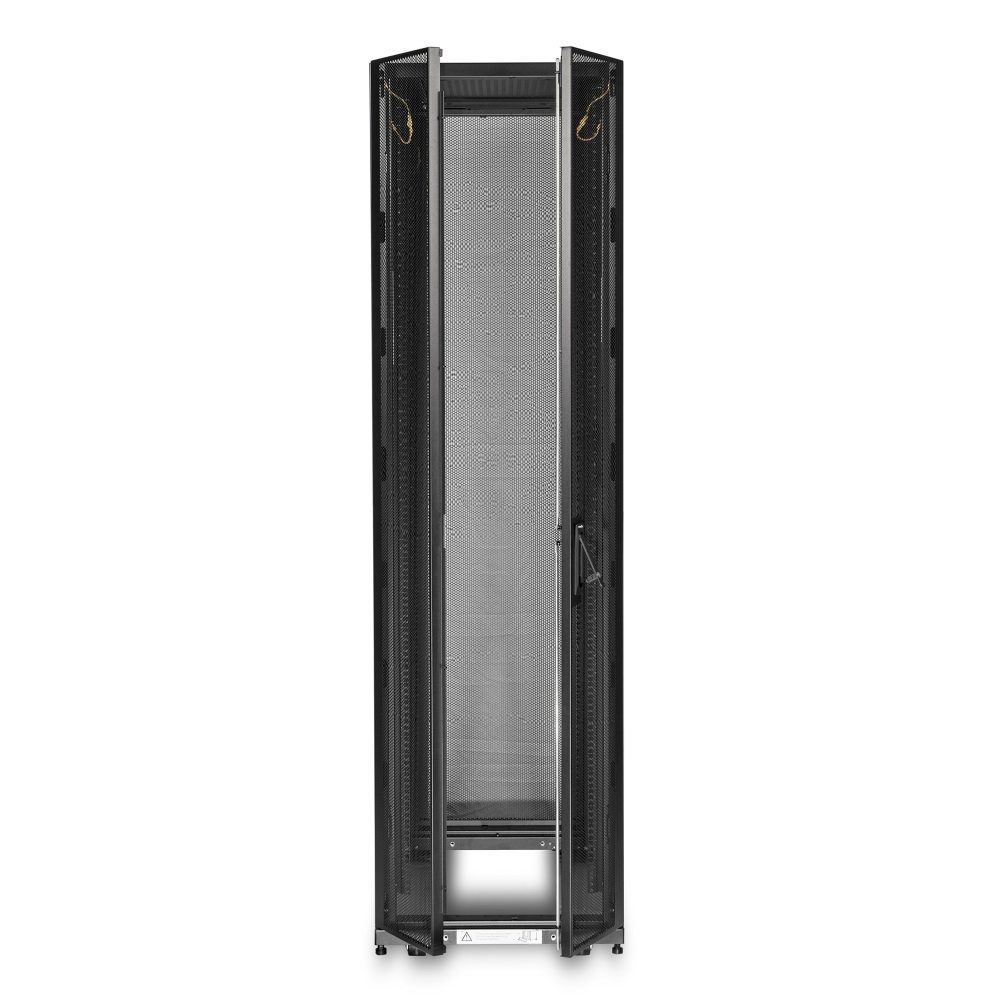

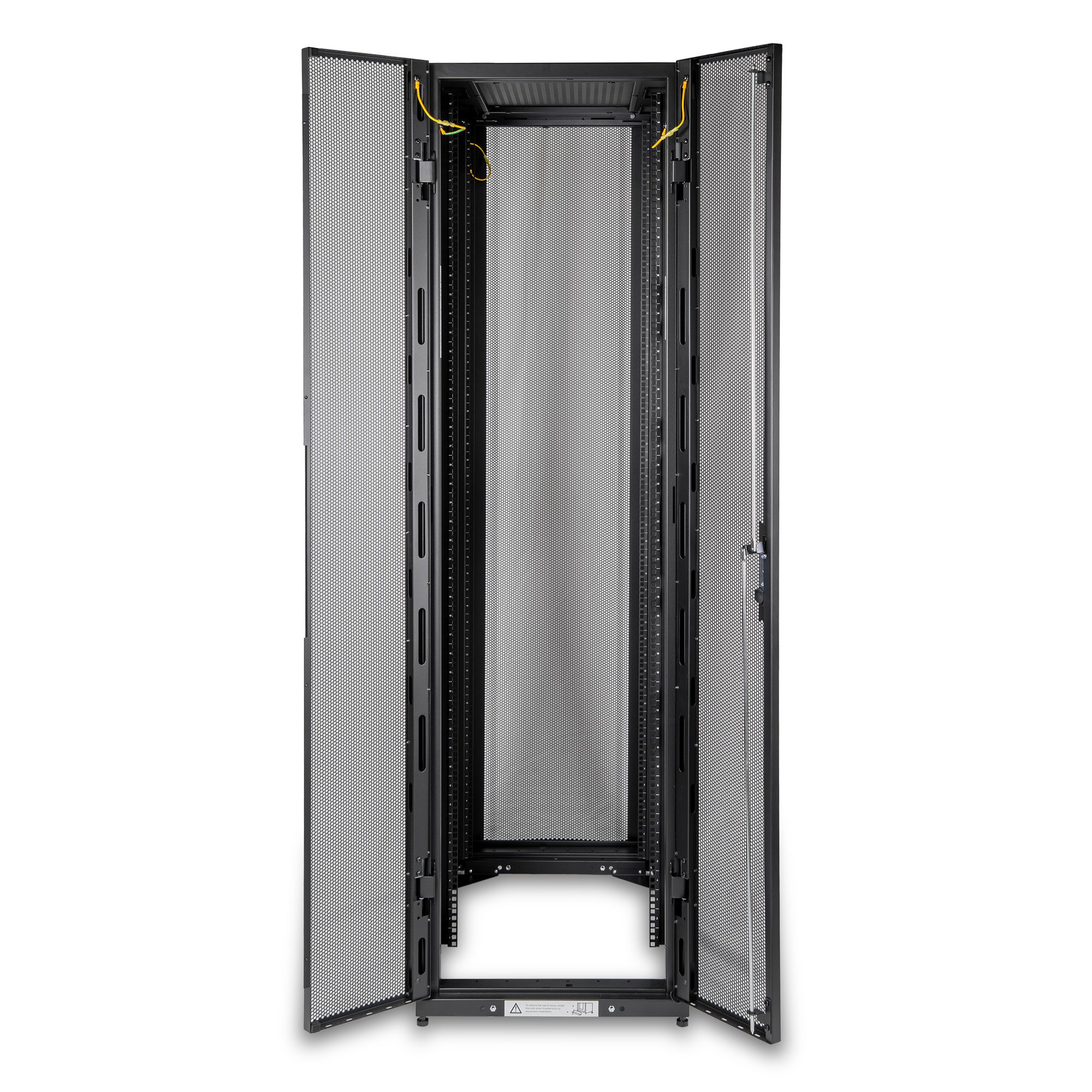

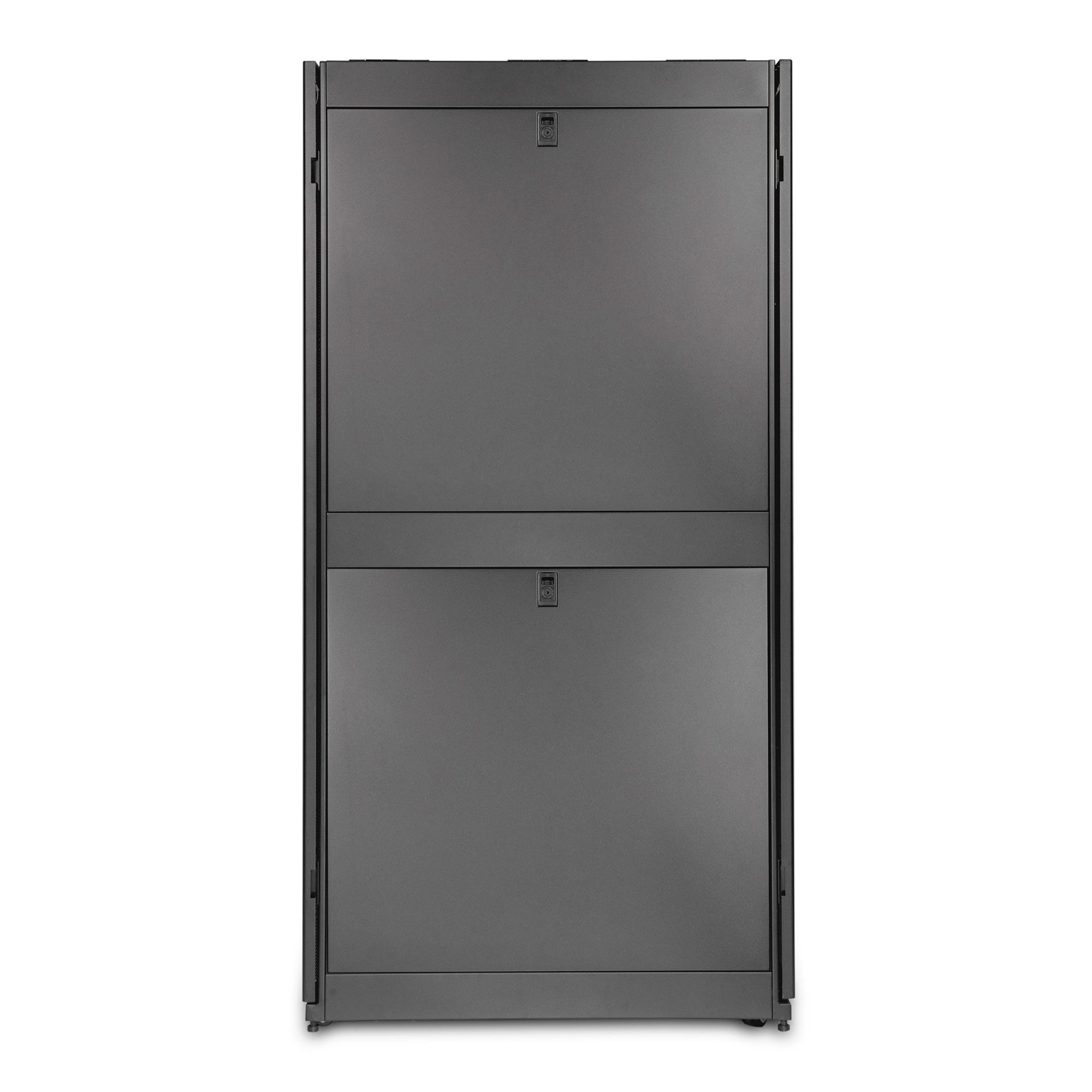

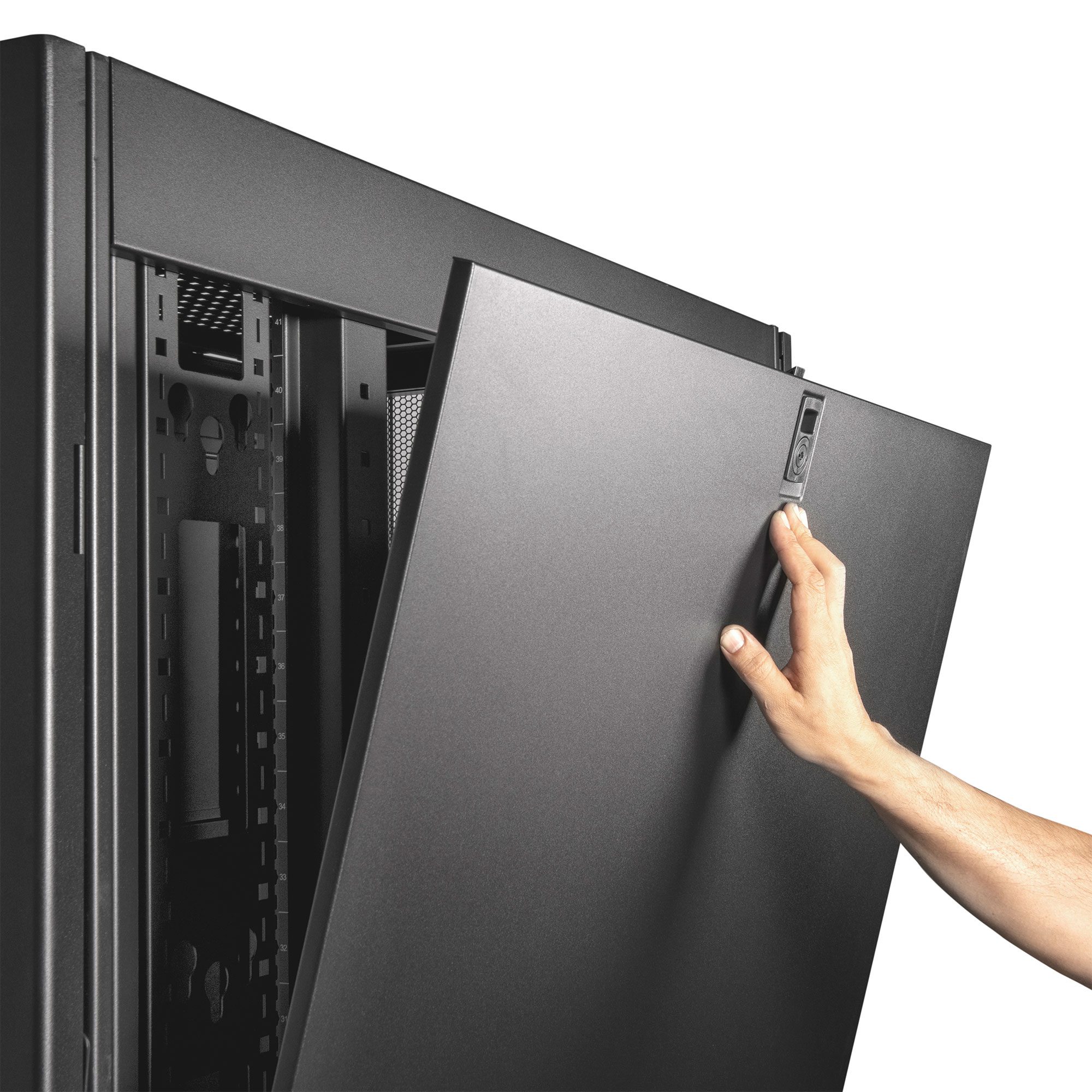

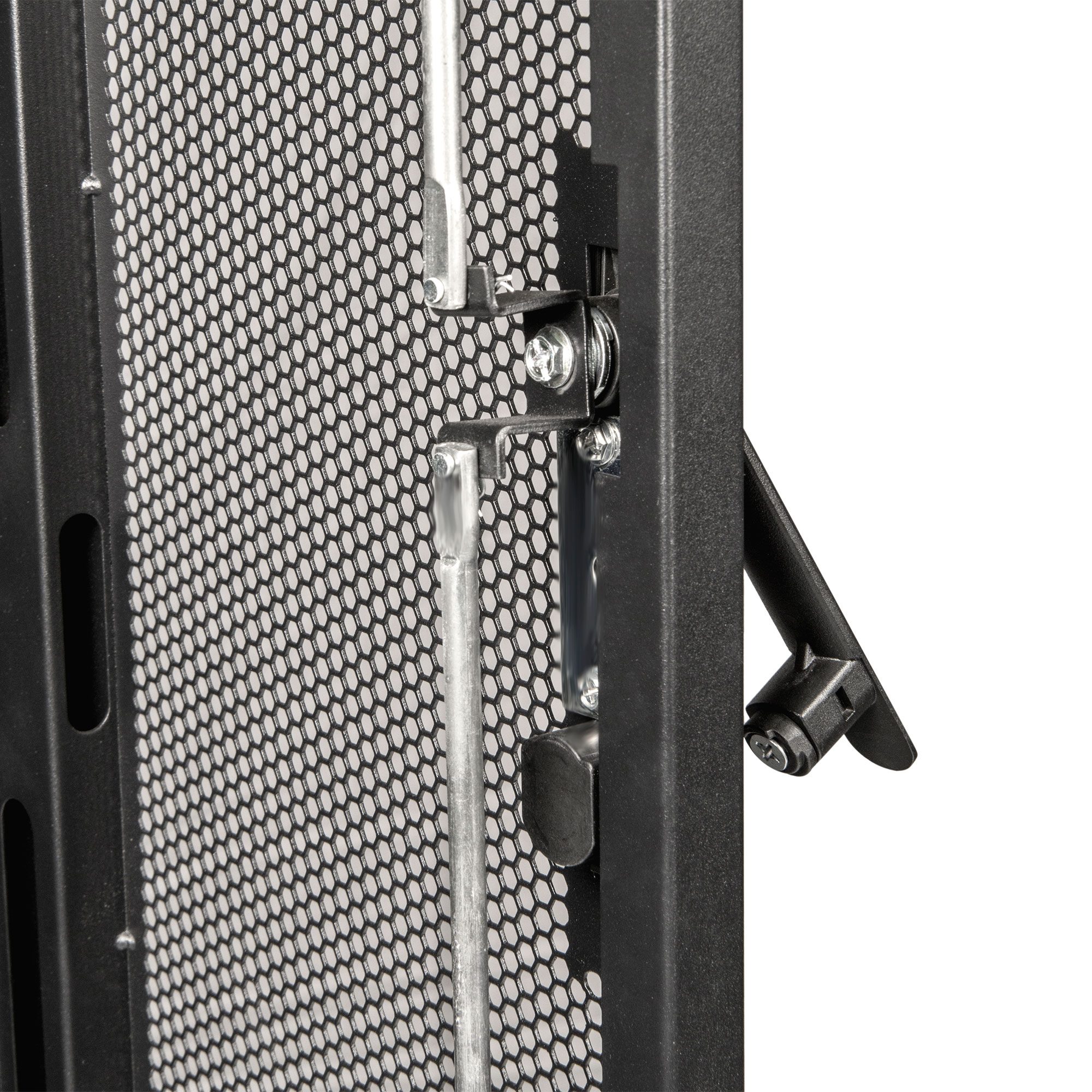

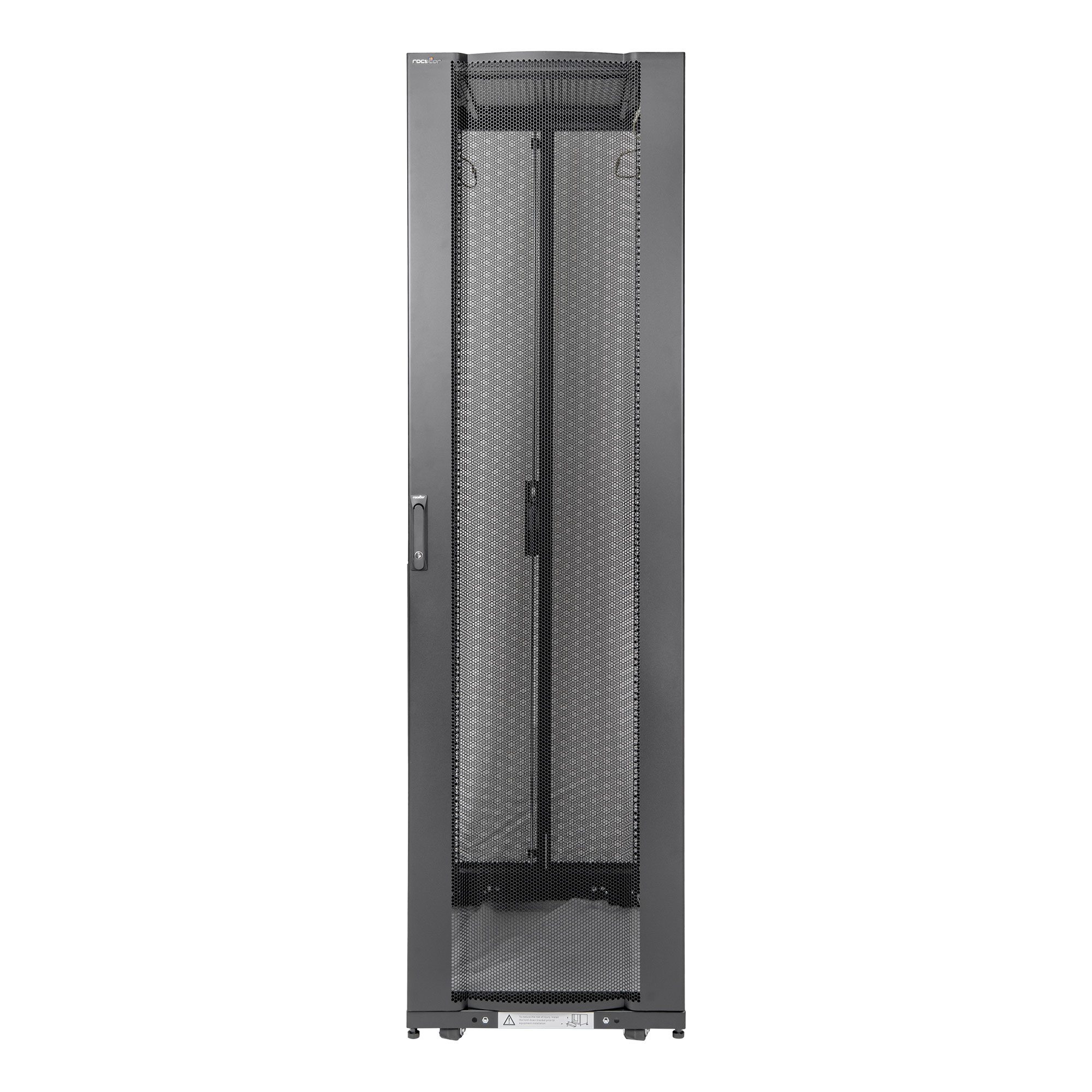

The R3105 protects mission-critical hardware with locking, reversible, and fully removable front and rear doors. Removable side panels—keyed alike for simplicity—provide additional access and streamline service workflows. A split rear-door design creates extra clearance in tight rooms, enabling the rack to sit closer to walls without sacrificing accessibility. It’s security built intelligently, so technicians can move quickly without compromise.
Engineered for Efficient Cooling and Clean Cabling.
A high-performance rack demands high-performance airflow. The R3105’s perforated doors, vented top panel, and open bottom ensure consistent front-to-rear ventilation—ideal for hot-aisle/cold-aisle arrangements. Generous cable access ports and open routing pathways make it easy to run large power and network bundles cleanly throughout the enclosure, supporting efficient airflow and simplified maintenance.
Ready to Deploy Right Out of the Box.
The R3105 arrives fully assembled, dramatically reducing deployment time. Preinstalled casters let you roll the enclosure into place and through standard doorways, while integrated levelers secure it for long-term stability. Designed to slot effortlessly into modern data centers and IT rooms, it enables fast installation, immediate equipment loading, and minimal downtime during rollout.
Designed for Reliability. Backed for Peace of Mind.

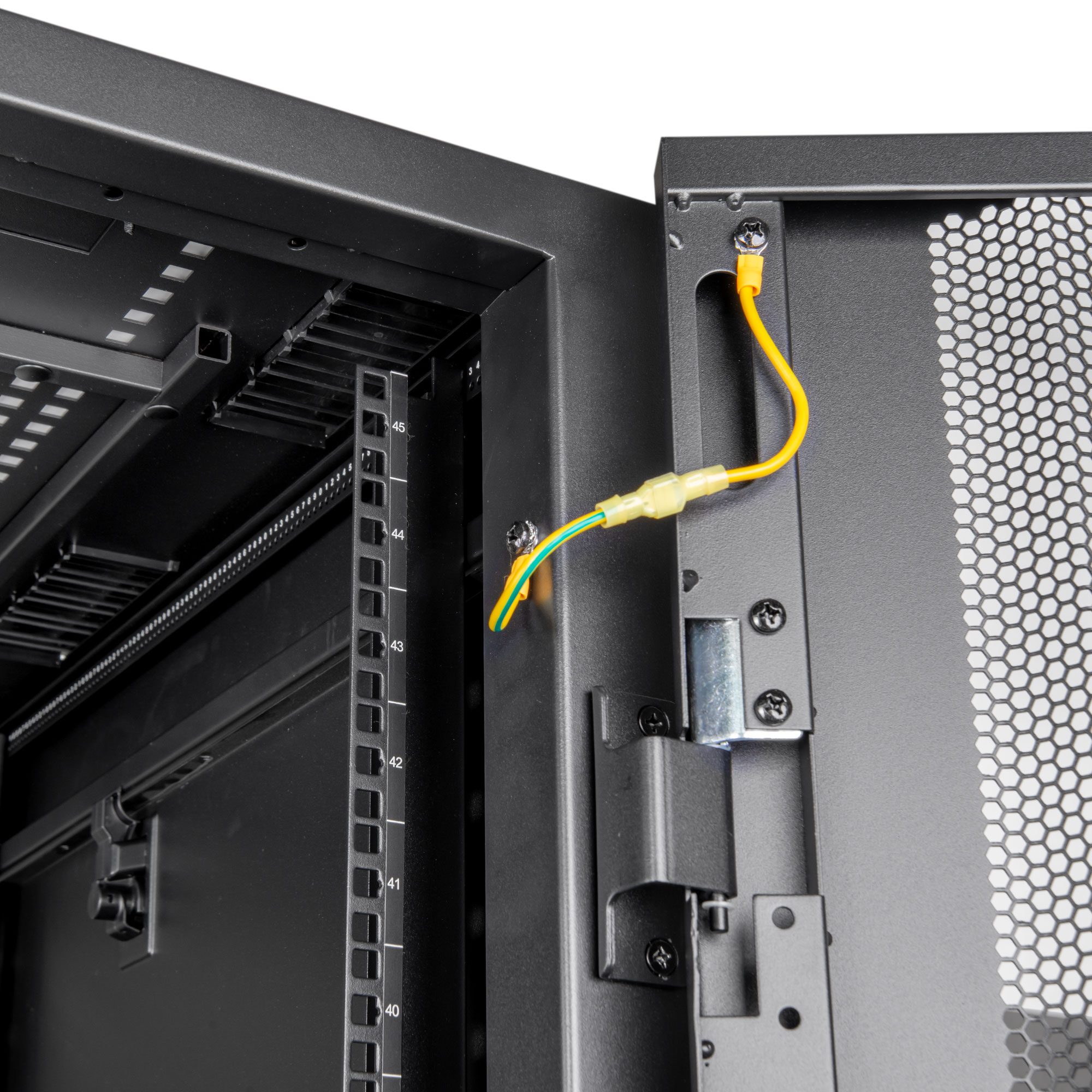

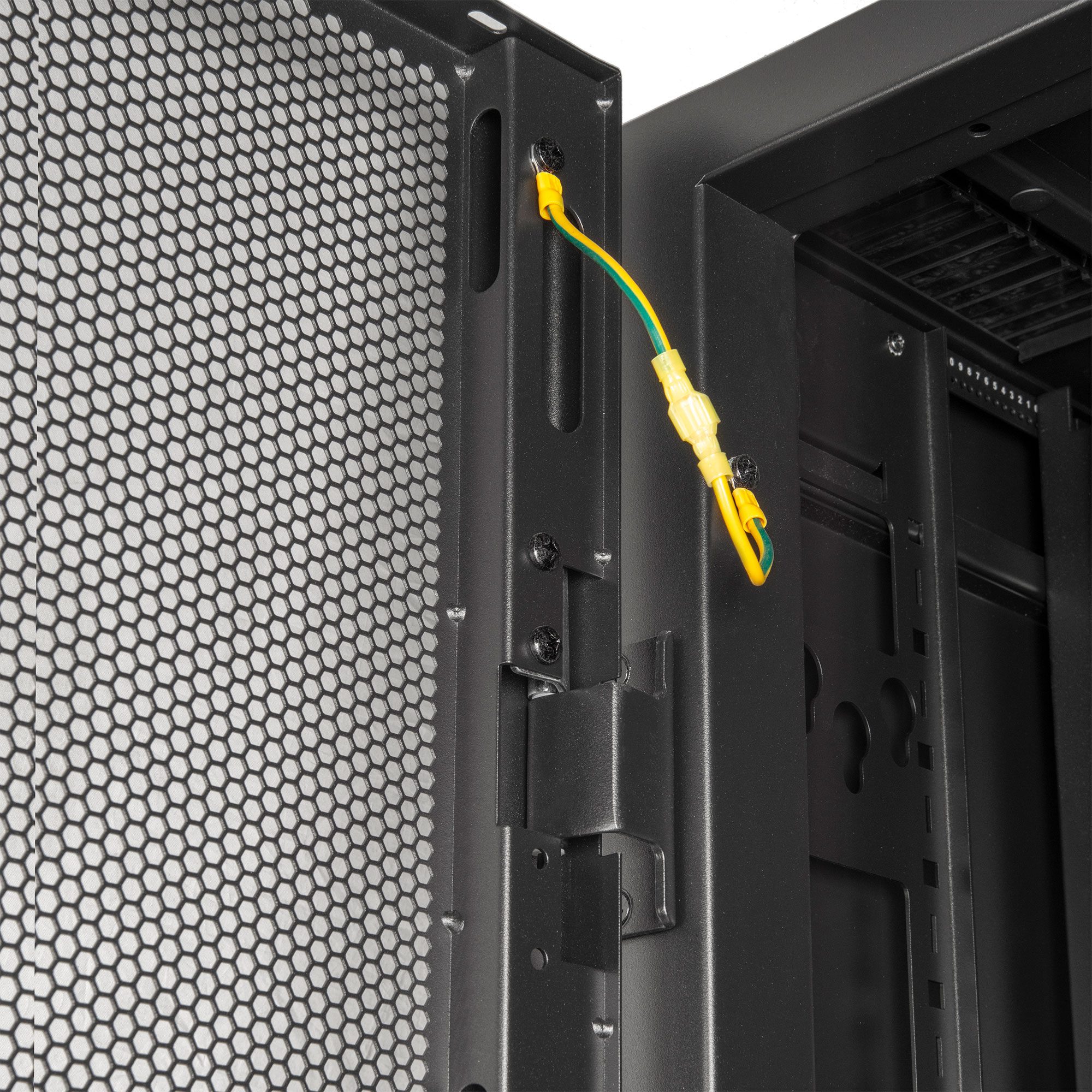

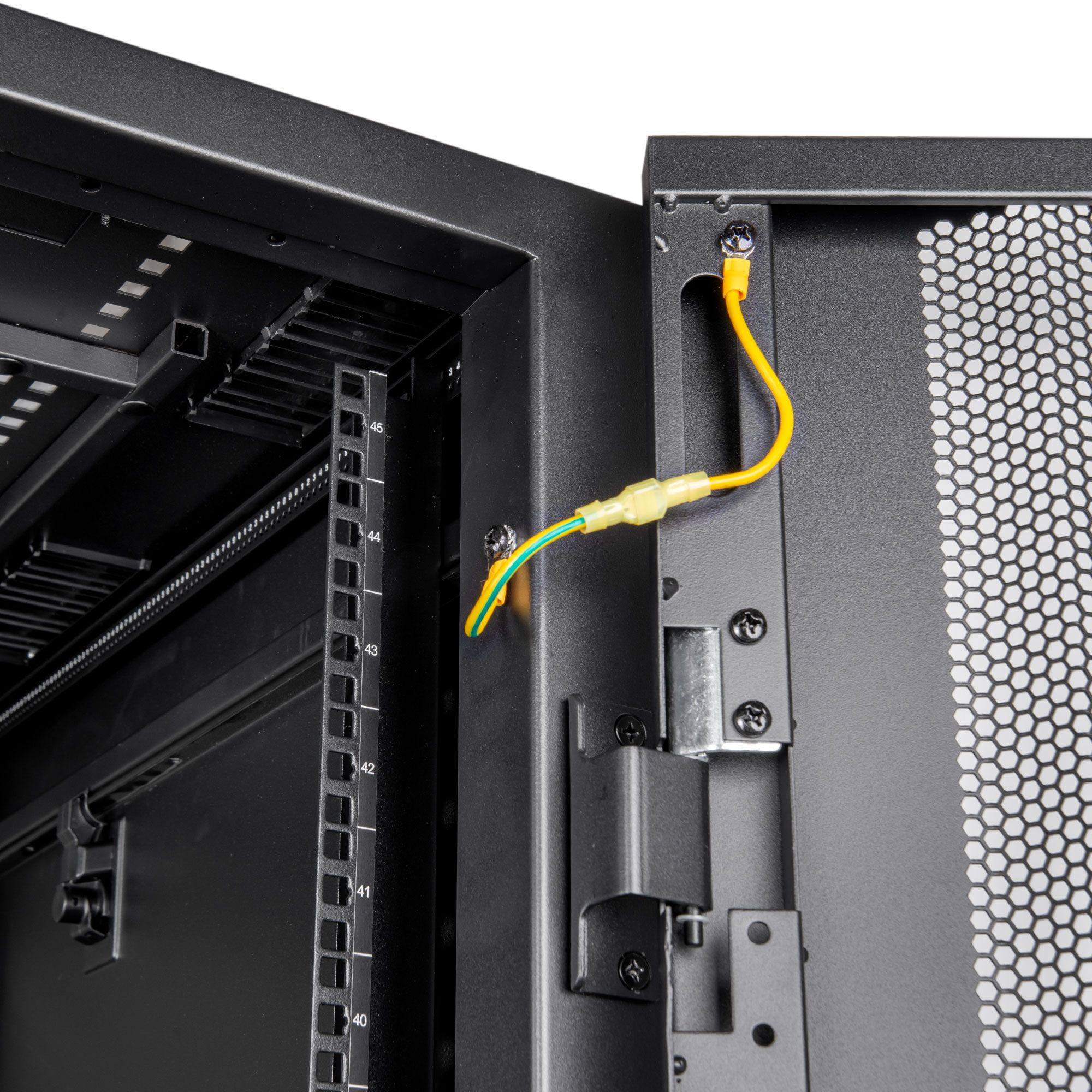

From the textured powder-coated finish to the reinforced frame, every detail of the SolidRack R3105 is crafted for long-term endurance. A comprehensive grounding system enhances safety, and full compatibility with airflow optimization and cable management accessories prepares the enclosure for future upgrades. Supported by Rocstor’s 5-year limited warranty and lifetime technical assistance, the R3105 delivers confidence, stability, and enterprise-grade performance for years to come.
| Style | Enclosed Cabinet, Floor-Standing |
|---|---|
| Rack Height | 45U |
| Rack Depth | Deep |
| Max Device Depth | 42 |
| Weight Capacity (lbs.) | 3300 |
| Device Compatibility | LAN Switch, Server, UPS System |
| Color | Black |
| Rocstor Part# | Ingram Micro | TD Synnex US | TD Synnex CA | A.B. Distributing | B&H |
| Y10E063-B1 | KY1737 | 9778561 | 8185672 | ROC-Y10E063-B1 | ROY10E063B1 |
General Information
| Manufacturer | Rocstor |
| Manufacturer Part Number | Y10E063-B1 |
| Manufacturer Website Address | http://www.rocstor.com |
| Brand Name | Rocstor |
| Product Line | SolidRack |
| Product Name | SolidRack Rack Cabinet |

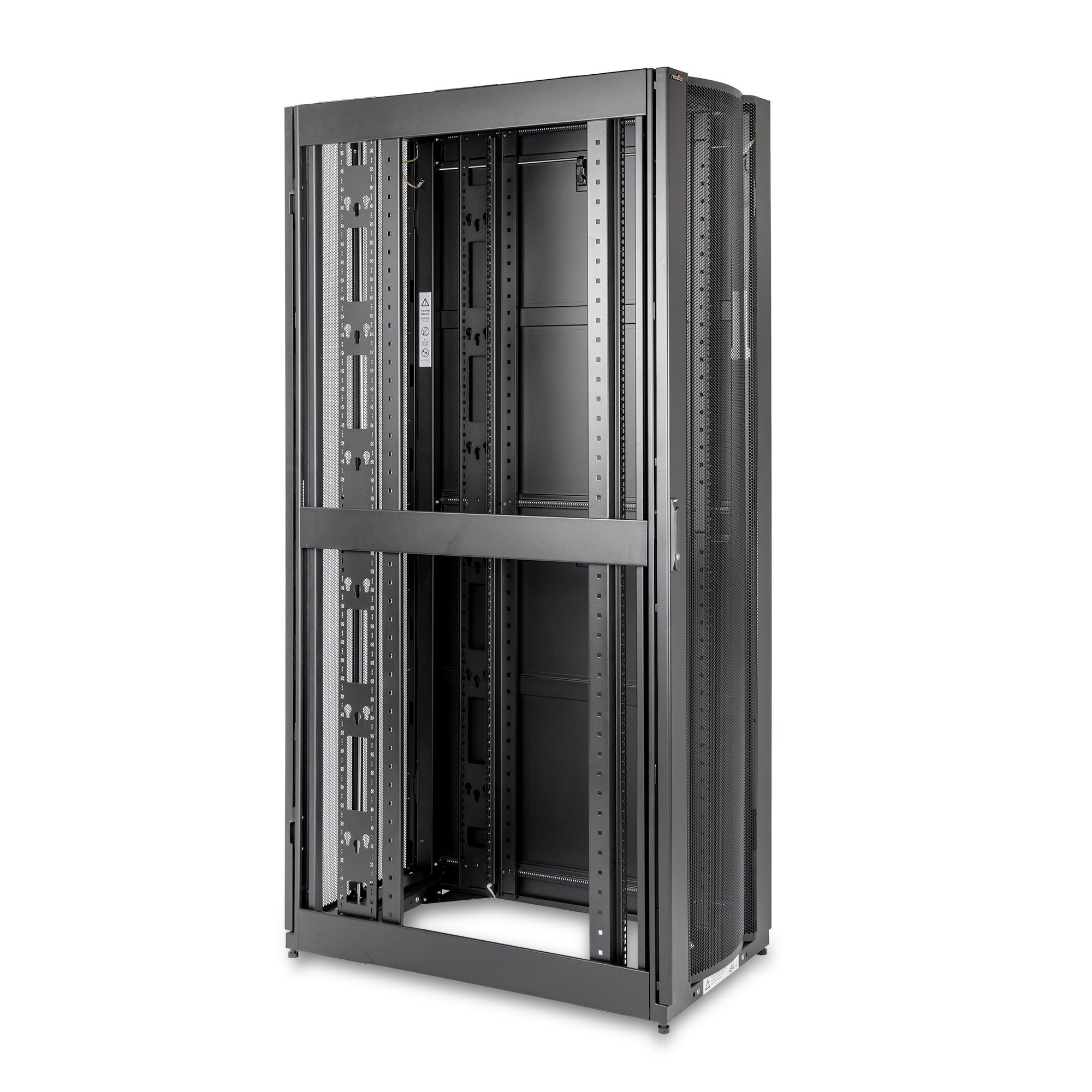

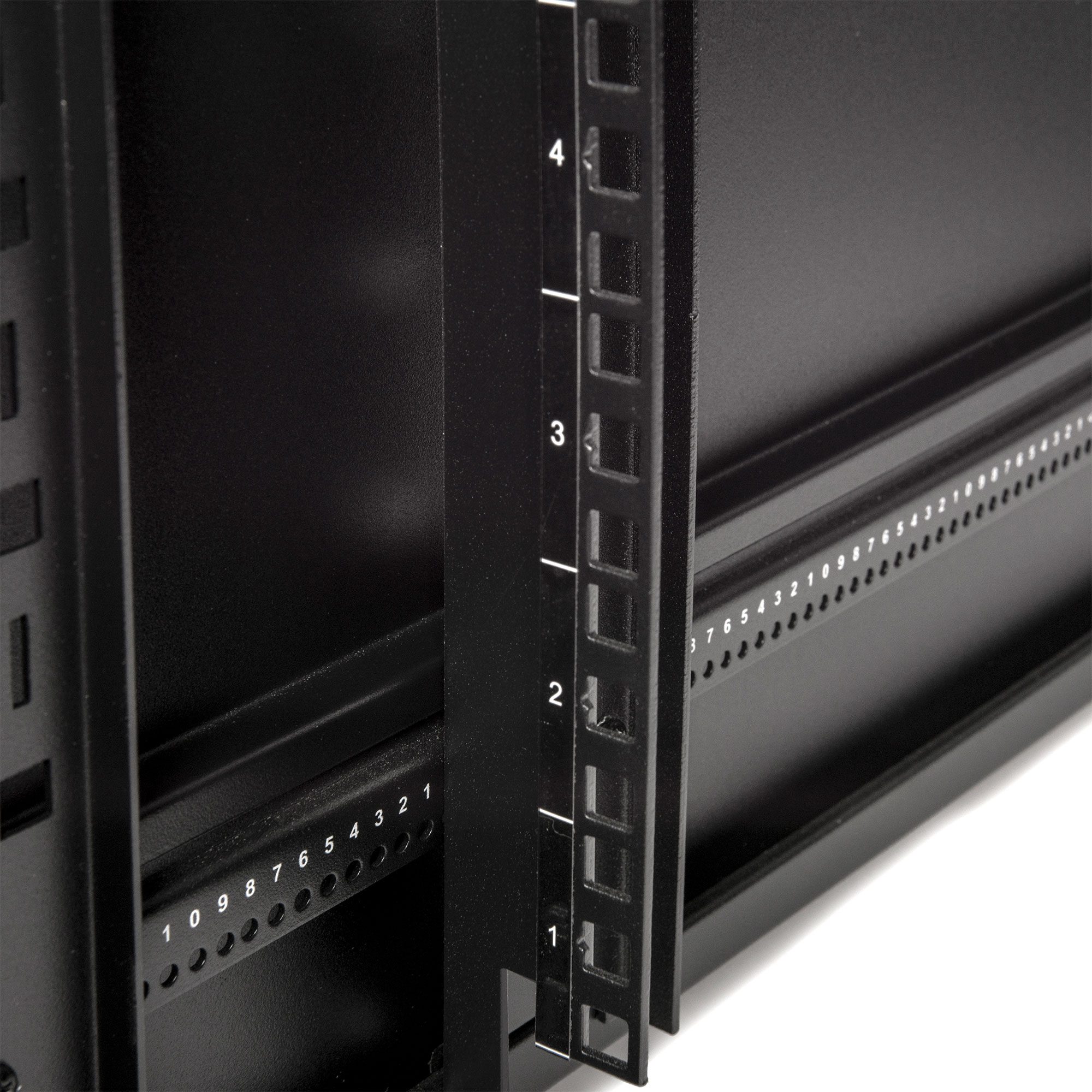

| Marketing Information | The Rocstor SolidRack R3105 45U Rack Enclosure Cabinet is built for modern data centers, offering a robust static load capacity of 3300lbs (1500kg) or 2314lbs (1049kg) of rolling capacity. The R3105 ships fully assembled and includes doors and side panels. Made from durable cold-rolled steel (CRS), it features keyed door locks. With its extensive ventilation and cable management capabilities, it ensures optimal airflow and organization, making it perfect for hot-aisle/cold-aisle configurations. The SolidRack features front and rear pairs of vertical rails with square mounting holes, adjustable from 5.67 inches (144 mm) to 35.24 inches (894 mm) when the cable manager bar is not installed. With the cable manager bar in place, the adjustable range for the vertical rails is from 5.67 inches (144 mm) to 30 inches (762 mm). It also includes adjustable vertical mounting rails for easy installation of PDUs and cable managers.
Safety and convenience are key aspects of the SolidRack R3105. It has locking, reversible, and removable front and rear doors, along with removable side panels for maximum security and ease of maintenance. The split rear door design allows for closer placement to walls, saving space. The vented top panel and open bottom facilitate efficient cooling and cable access, while preinstalled casters and levelers ensure easy mobility and stable positioning. Deploying the SolidRack R3105 is straightforward with its preinstalled casters and levelers. This rack enclosure is compatible with a wide range of accessories, allowing for customized solutions to meet specific needs. It comes with a Rocstor 5-year warranty and free technical support, providing peace of mind and reliable performance. |
| Product Type | Rack Cabinet |
Technical Information
| Rack Type | Enclosed Cabinet |
| Application/Usage |
|
| Ventilation | Yes |
| Features |
|
Physical Characteristics
| Form Factor | Floor Standing |
| Color Family | Black |
| Product Color | Black |
| Product Material | Cold-rolled Steel (CRS) |
| Dynamic/Rolling Weight Capacity | 2314 lb |
| Static/Stationary Weight Capacity | 3300 lb |
| Height | 83.7' |
| Width | 23.6' |
| Depth | 42.1' |
| Weight (Approximate) | 293.21 lb |
| Rack Height | 45U |
| Rack Depth | 42.10' |
Miscellaneous
| Package Contents |
|
| Assembly Required | No |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warranty
| Limited Warranty | 5 Year |
