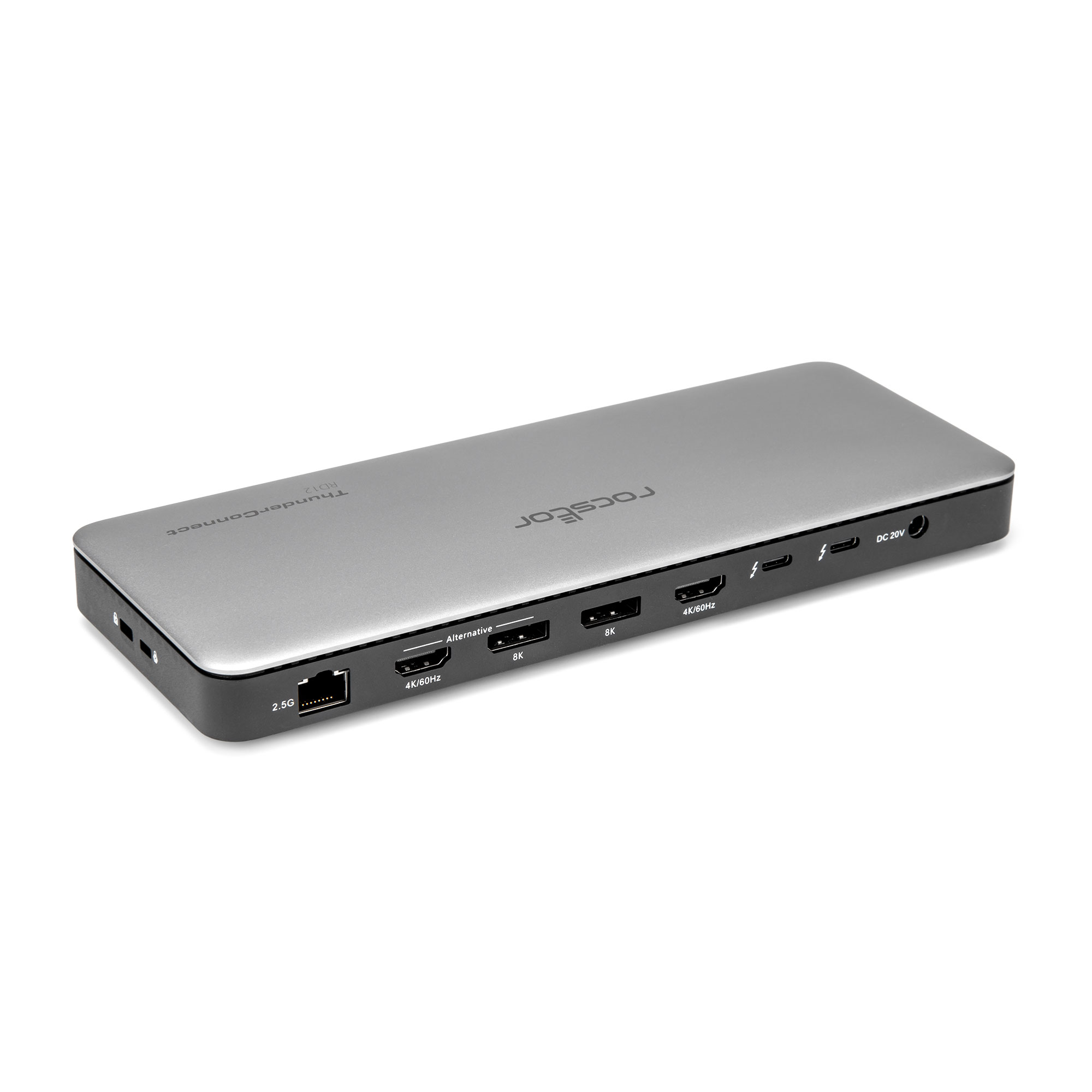

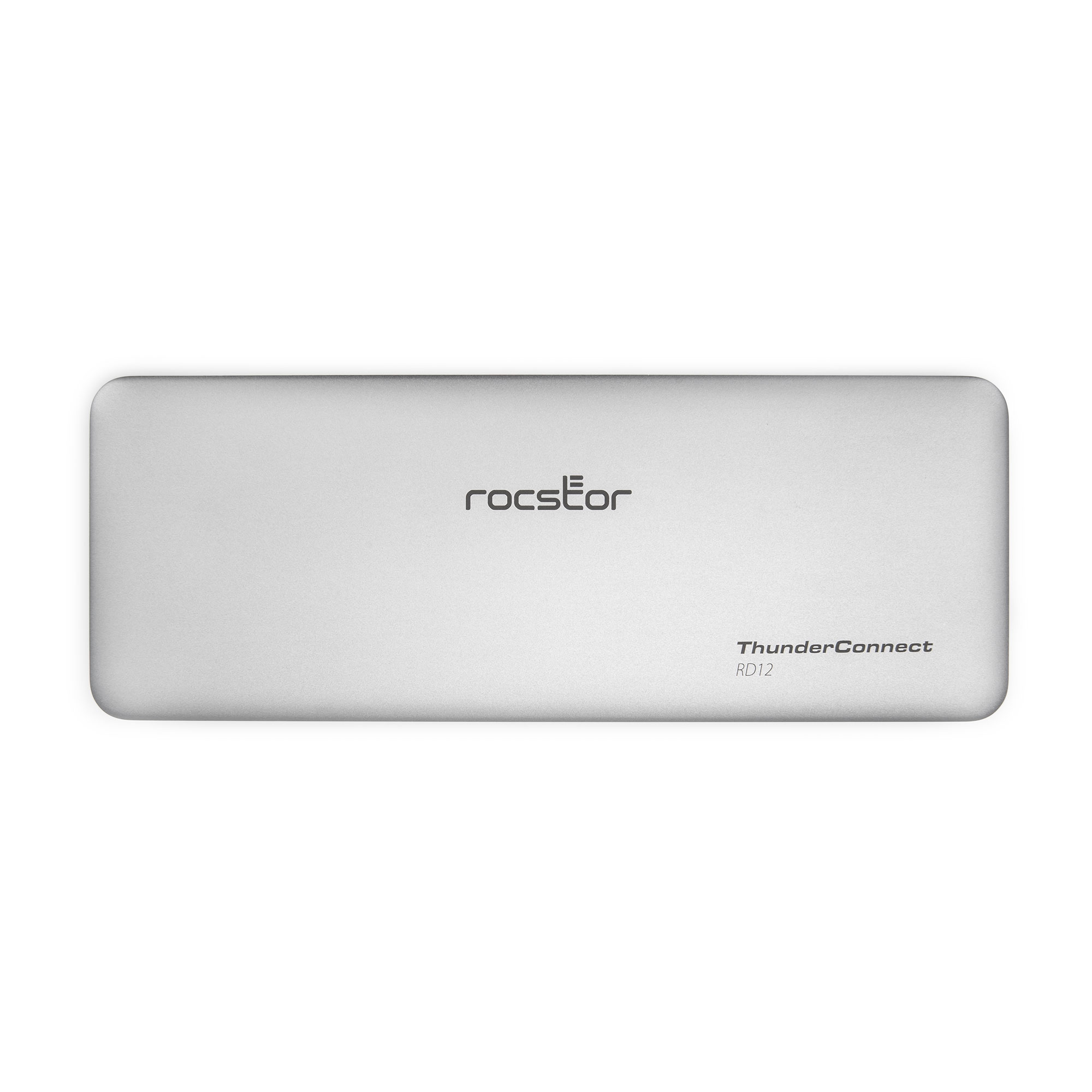

ThunderConnect RD12 Thunderbolt 4 Quad Display Docking Station
$189.95
ThunderConnect RD12 Thunderbolt 4 Quad Display Docking Station – Quad/Triple/Dual Monitor Dock – 2x HDMI 4K, 2x DisplayPort (DP 8K/4K), 2x ThunderBolt 4, 5x USB Ports, 1x 2.5Gb Ethernet, SD/microSD 4.0 (TF4.0), 3.5mm, 2x Locking Slots – 100W PD – TB Certified
Key Features

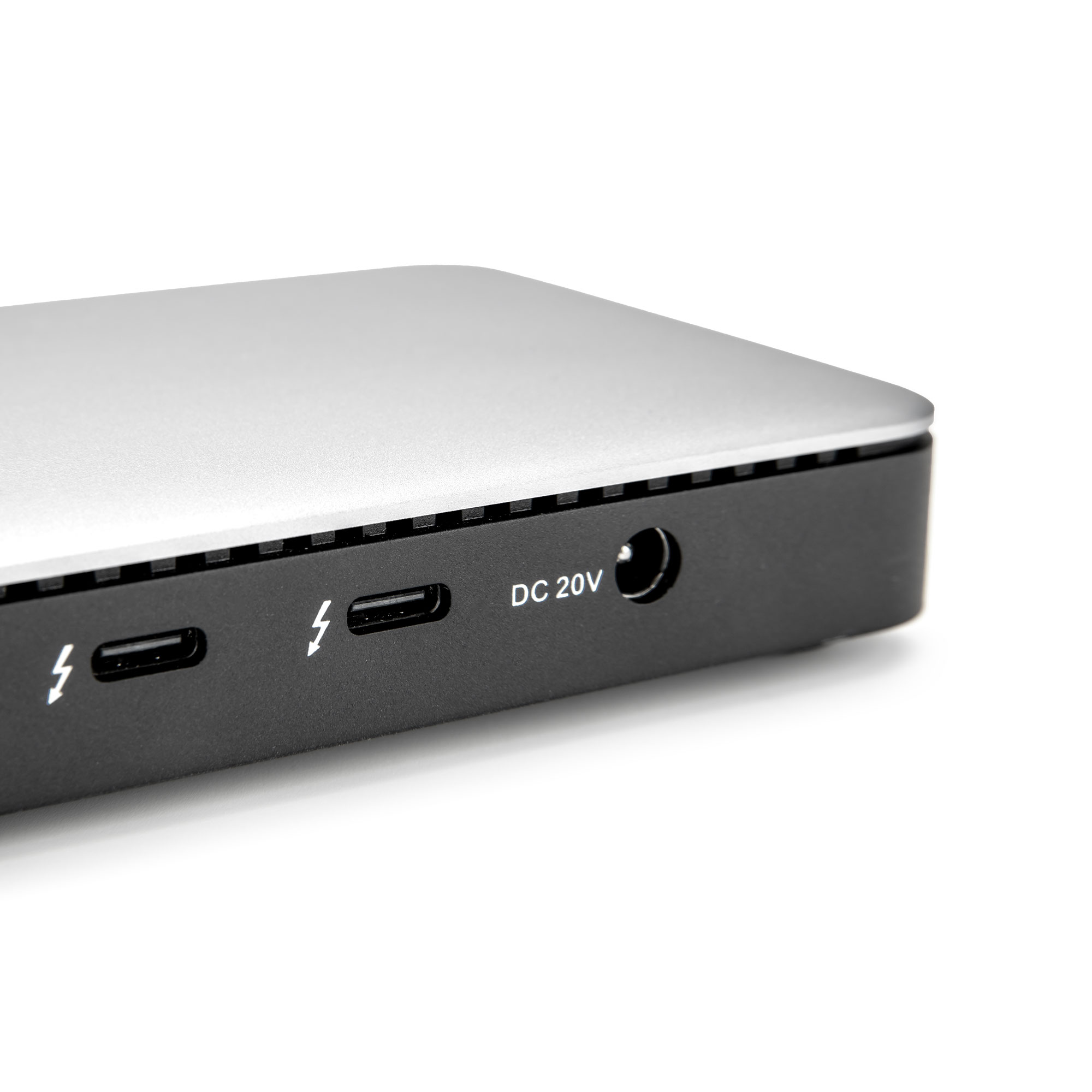

- Thunderbolt 4 Powerhouse: Delivers blazing-fast 40Gbps transfer speeds, daisy-chaining, and pro-level performance.
- Stunning Multi-Display Support: Connect one 8K display, dual 4K/60Hz monitors, or triple 4K outputs on TBT4/USB4 Windows systems.
- 100W Power Delivery: Provides intelligent USB-C PD charging for laptops and devices with dynamic power distribution.

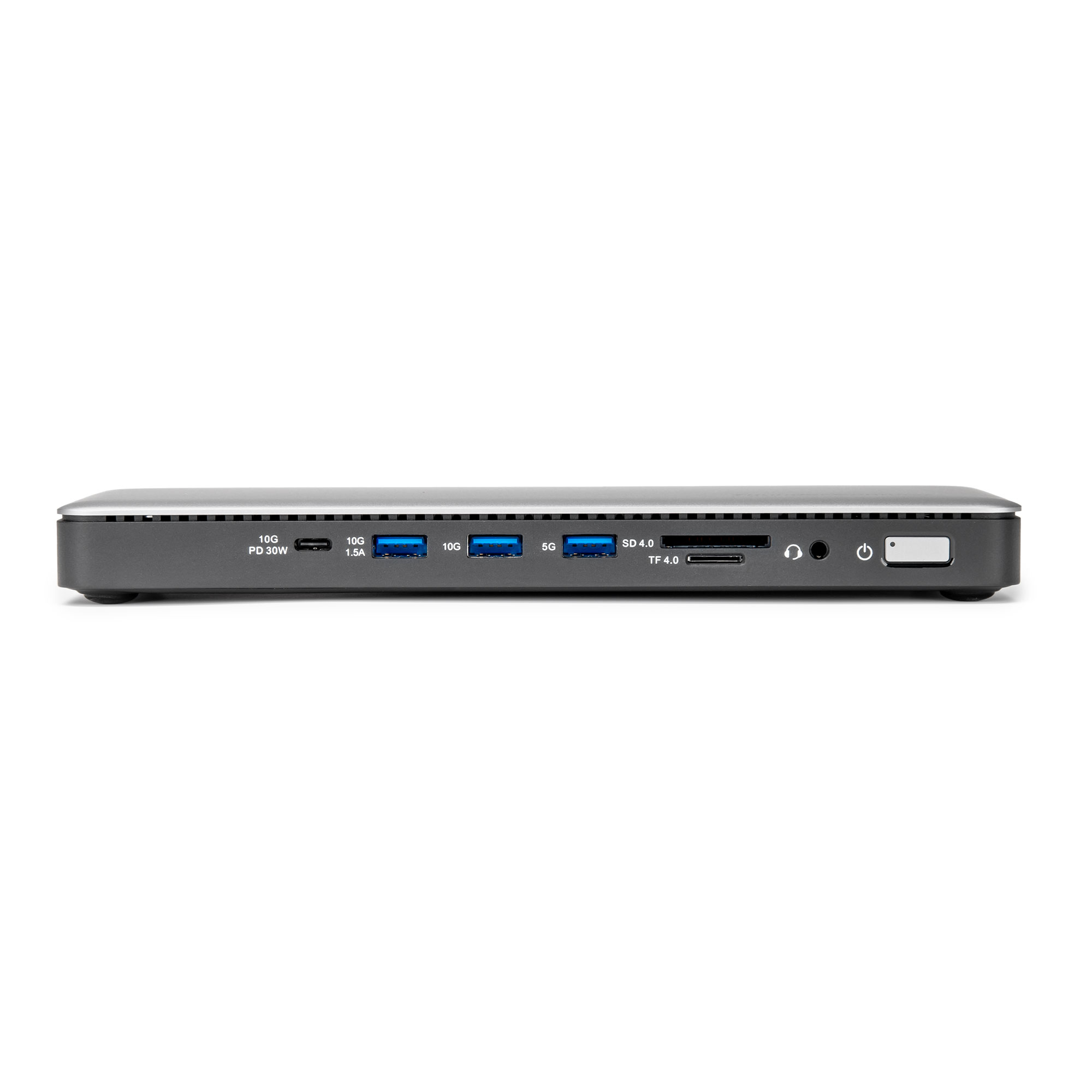

- High-Speed USB Expansion: Features USB-C Gen2 and three USB-A ports with up to 10Gbps for fast peripheral connectivity.
- 2.5Gb Ultra-Fast Ethernet: Ensures low-latency, high-bandwidth wired networking for streaming, conferencing, and large transfers.
- Next-Gen SD/microSD 4.0: Offers high-speed media access with SD4.0/TF4.0 card reader technology.
- High-Resolution Audio Port: Includes a 384kHz 3.5mm audio jack for clear, premium sound output.

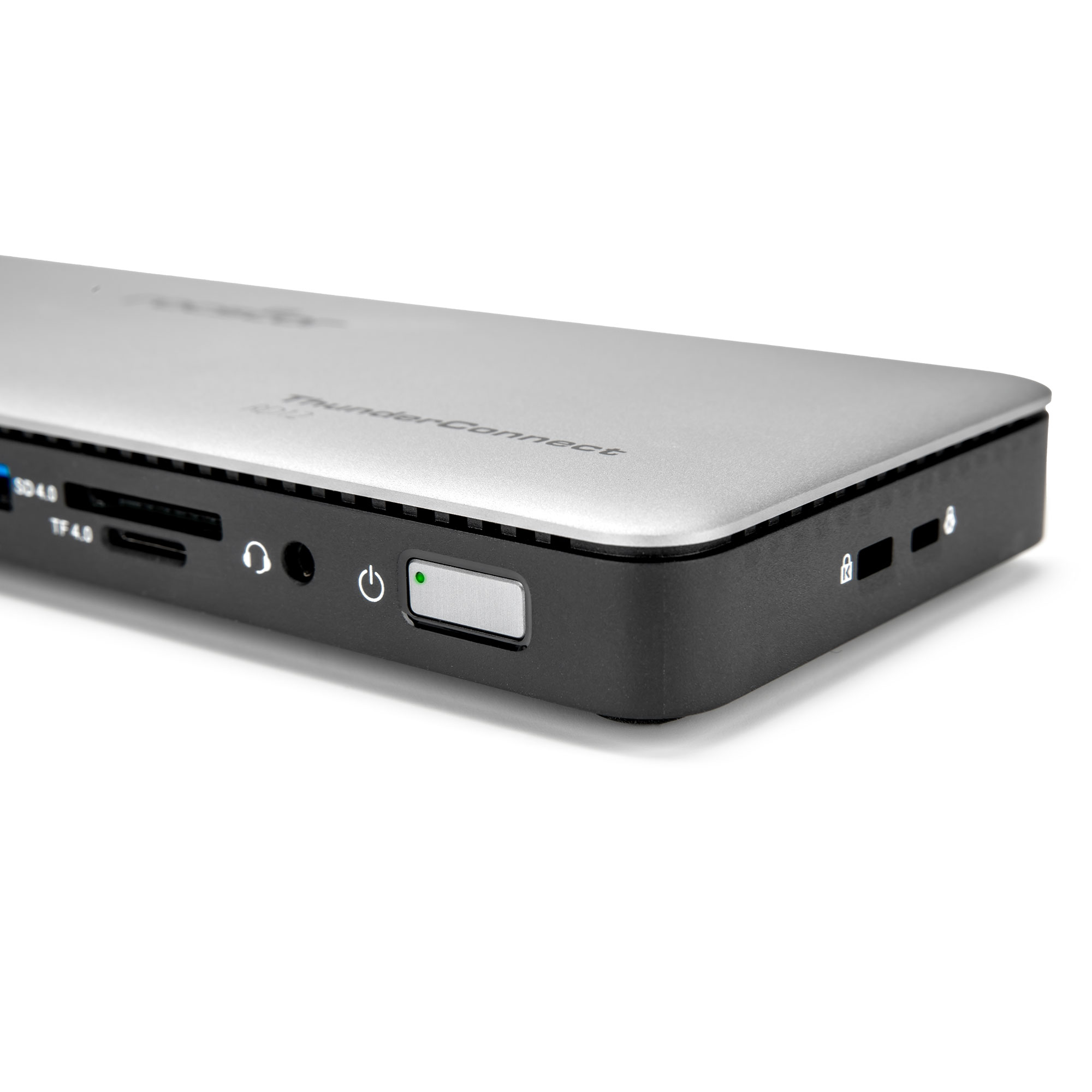

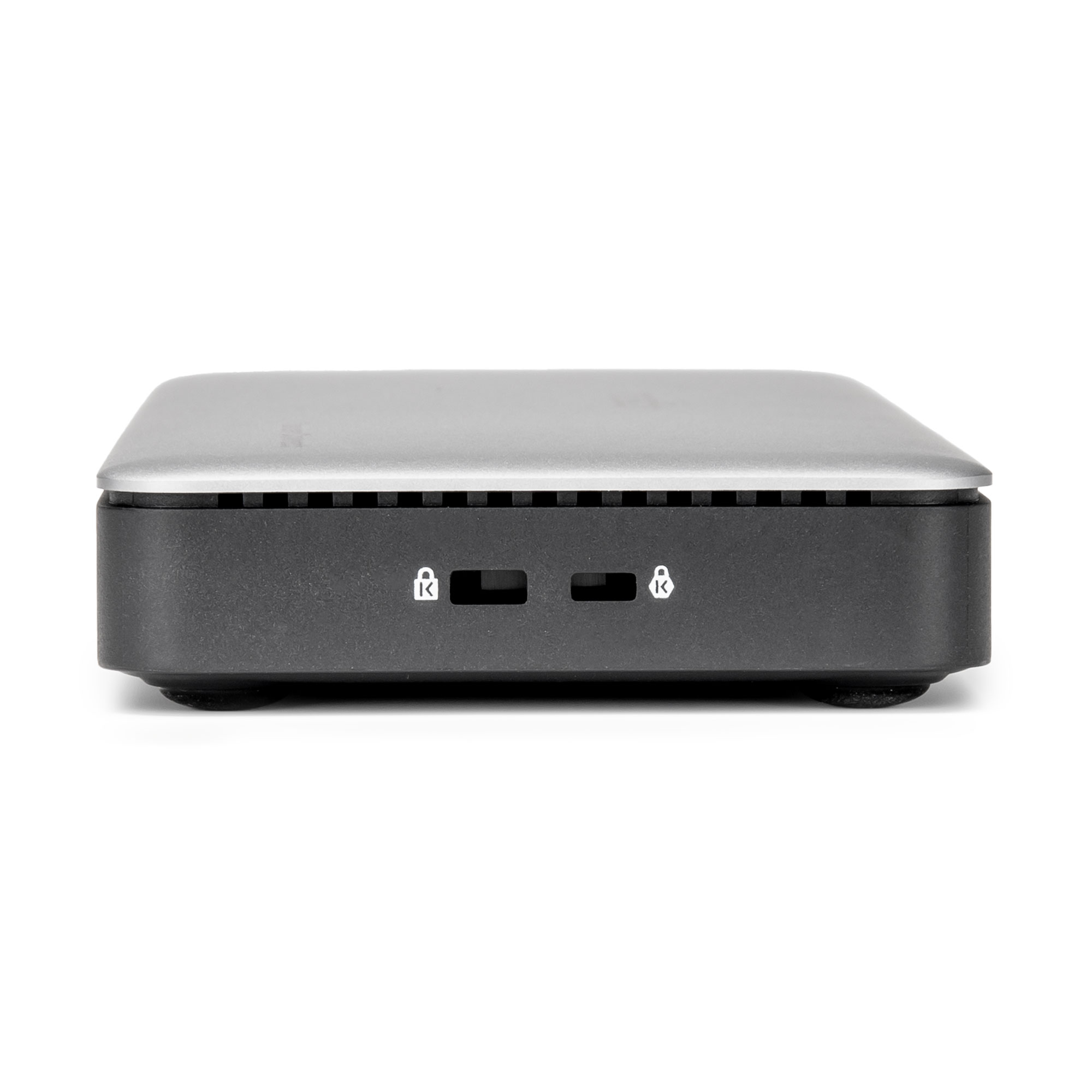

- Dual Security Locking: Supports both Kensington K-Slot and Nano lock mechanisms for enhanced device protection.
- Universal Compatibility: Thunderbolt-certified for Windows and macOS, supporting USB-C, USB4, and Apple M1–M5 processors.
Powering the Future of Your Workspace.
The Rocstor ThunderConnect RD12 unlocks the full potential of Thunderbolt 4, turning your desk into a powerful, streamlined command center. A single cable lets you run multiple displays, connect essential peripherals, and charge your laptop—all with effortless simplicity. Supporting one 8K display or dual 4K/60Hz monitors—and up to triple displays on Thunderbolt 4/USB4 Windows PCs—the RD12 gives creators, analysts, and multitaskers a stunning visual canvas. Whether editing, analyzing, or gaming, everything looks sharp and performs smoothly.
Thunderbolt 4 Performance Without Limits.

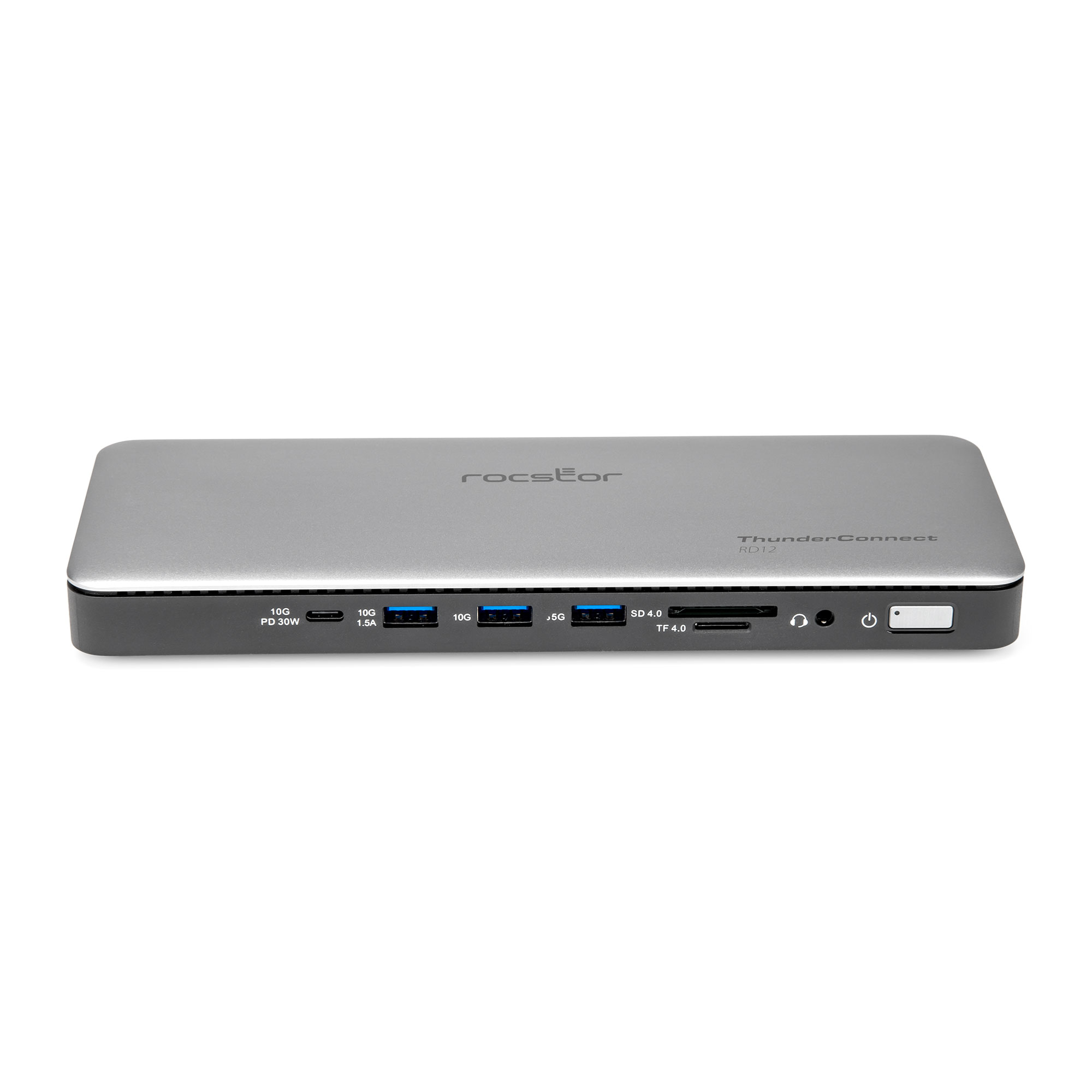

At its core, the RD12 uses Thunderbolt 4 to deliver blazing 40Gbps speeds for massive file transfers, 8K workflows, demanding apps, and up to six daisy-chained devices. Everything stays fast, stable, and built for pro-level performance. Five additional USB ports—USB-C Gen2 with 100W PD, dual USB-A 10Gbps, and USB-A 5Gbps—give every accessory a high-speed home. From modern USB-C gear to legacy devices, the RD12 integrates seamlessly into any workflow.
Intelligent Power and Ultra-Fast Networking.
With 100W Power Delivery, the RD12 keeps your laptop fully powered through heavy workloads, using smart, adaptive power allocation to protect your system while maintaining peak performance. The 2.5Gb Ethernet port ensures ultra-low-latency connections for streaming, conferencing, and cloud work. Combined with a 384kHz audio jack and SD/microSD 4.0 reader, the RD12 becomes the center of a complete creative and professional setup.
Crafted for Pros. Ready for Every Platform.
Engineered with a premium, compact design and dual locking support for both K-Slot and Nano, the RD12 is built for real-world productivity—secure, durable, and perfect for offices, studios, and mobile workstations. Thunderbolt-certified for Windows and macOS—including Apple’s M1 through M5 processors—the RD12 works flawlessly across USB-C, USB4, and Thunderbolt 3/4 devices. Backed by a 3-year warranty and lifetime support, it delivers the reliability and performance professionals expect.
Quad 4K And 8K Multi-Display Performance With Thunderbolt 4 Flexibility

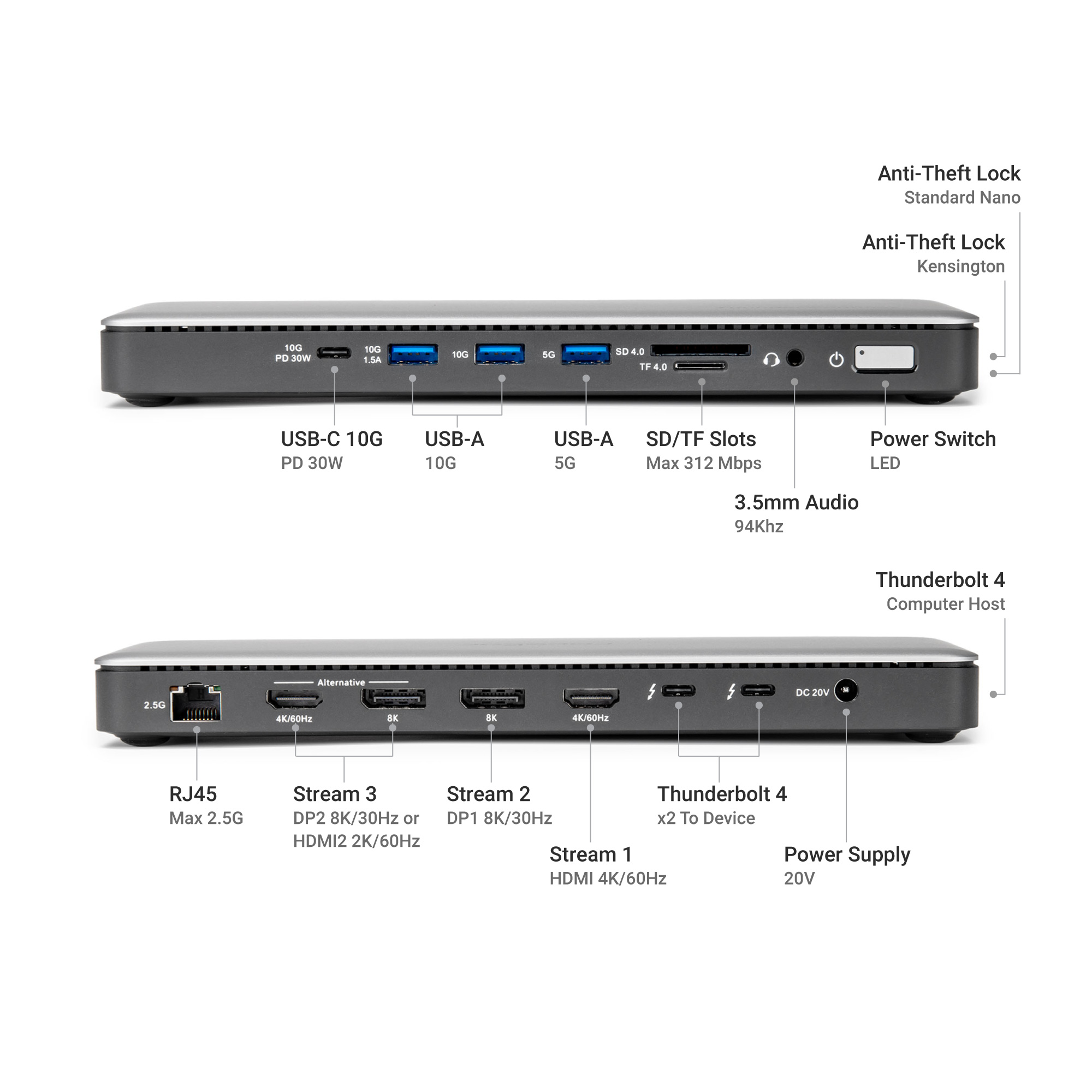

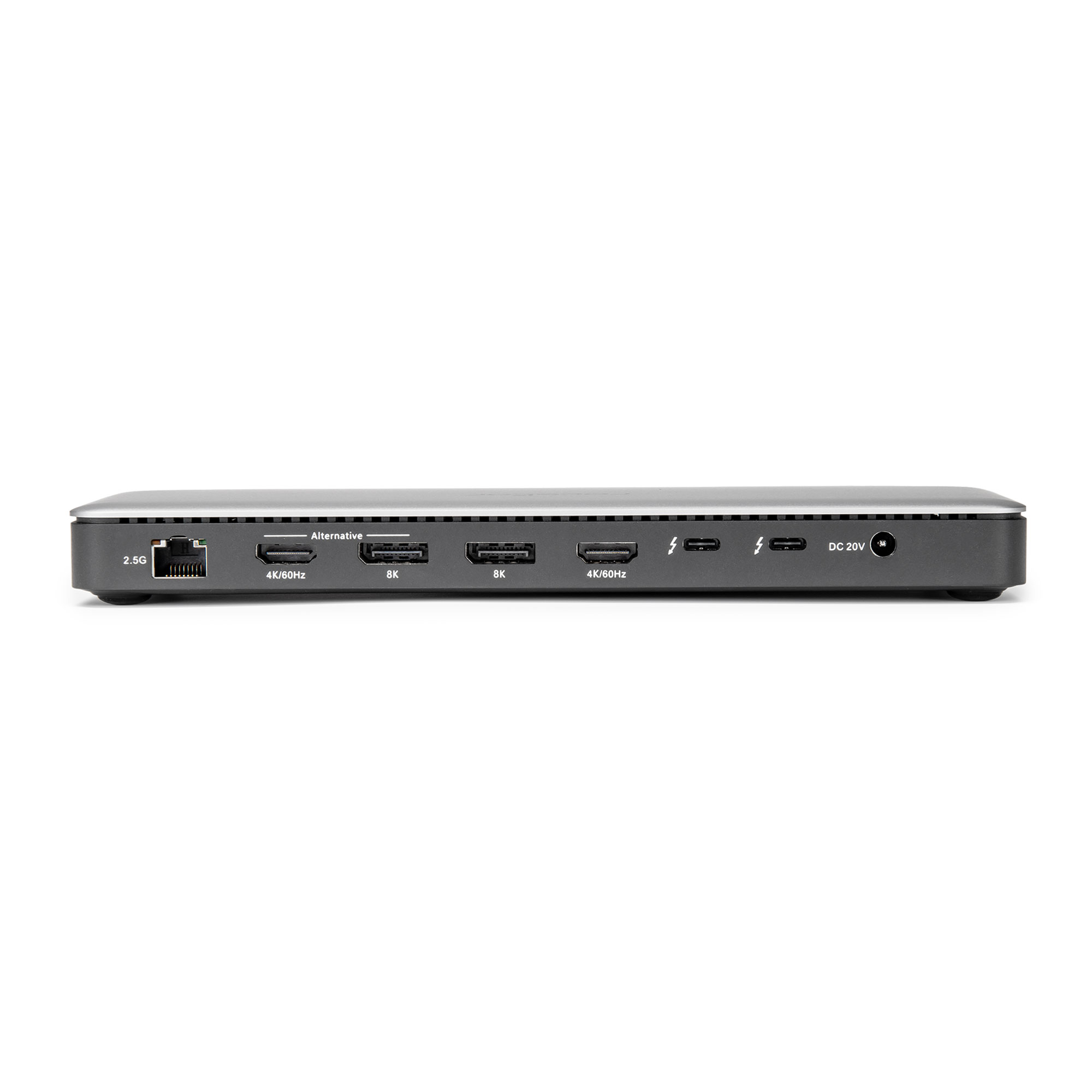

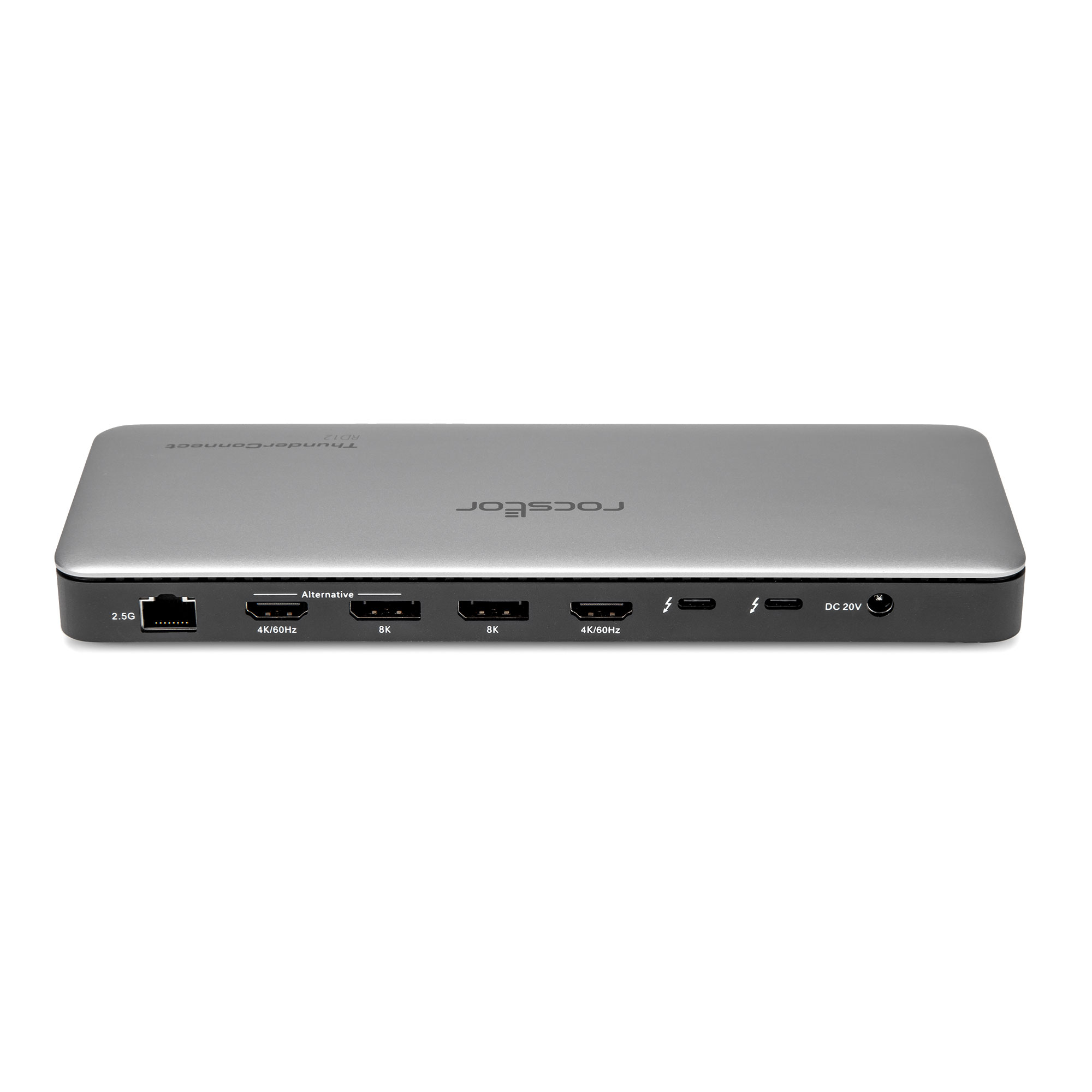

The Rocstor ThunderConnect RD12 provides flexible high-performance video through its 2× HDMI and 2× DisplayPort outputs, supporting single, dual, triple, or quad-monitor workstation setups. When connected to Windows systems with an Intel 12th Gen processor or newer that supports DisplayPort 1.4 with DSC, the dock can drive up to four independent displays at resolutions up to 4K 60Hz. Quad-display configurations are also supported on systems without DSC at lower resolutions or refresh rates depending on available GPU bandwidth. The RD12 additionally supports a single 8K 60Hz display through a compatible HDMI port on DSC-enabled systems.
Apple Mac compatibility varies by processor architecture: M-series Pro and Max systems support dual extended displays, while base M-series processors support one external display due to macOS hardware limitations.
| Technology | 3.5mm Audio, DisplayPort, HDMI, RJ45, SD/Micro card Reader, Thunderbolt, USB-A, USB-C, USB4 |
|---|---|
| Host Connector | Thunderbolt |
| Video Ports | DisplayPort, HDMI |
| Number of Monitors | 3 |
| Data Ports | USB-A, USB-C |
| Network Ports | RJ45 |
| Special Features | External Power Supply |
General Information
| Manufacturer | Rocstor |
| Manufacturer Part Number | Y10P025-S1 |
| Manufacturer Website Address | http://www.rocstor.com |
| Brand Name | Rocstor |
| Product Line | Premium |
| Product Model | RD14 |
| Product Name | Premium RD14 USB4 40G Portable Dock |
| Marketing Information | The Rocstor Premium RD14 USB4 40G Portable Dock delivers unmatched efficiency and versatility for I/O solutions, boasting speeds up to 40Gb/s for seamless data and video transfer. This innovative dock allows for the connection of USB4 devices across six cascading levels, making it a perfect choice for high-performance setups. The Type-C interface supports a remarkable 8K/30Hz video output and facilitates swift 10G data transmission, ensuring optimal performance for all your connectivity needs.
With dual video ports, the dock allows you to connect two displays simultaneously, each supporting dual 4K/60Hz output, making it ideal for multitasking on TBT4/USB4 Windows PC setups. The RJ45 port offers a maximum bandwidth of 2.5G, ensuring fast and reliable networking capabilities. Additionally, the USB ports provide rapid 10G data transmission, while the intelligent power allocation feature optimizes energy distribution based on connected device power consumption, leveraging external power supply efficiently. Engineered for compatibility with USB4 and Thunderbolt hosts, this dock is designed to meet the demands of modern computing environments. Its slim, compact aluminum design not only enhances durability but also adds a touch of sophistication to any workspace. Experience the pinnacle of connectivity solutions with Rocstor's Premium RD14 dock, perfect for Windows 10 and above, and macOS 11 and above. Backed by Rocstor 3-year limited warranty and lifetime free technical support. |
| Packaged Quantity | 1 |
| Product Type | Docking Station |
Technical Information
| Connectivity Technology | Wired |
| Charging Capability | Yes |
| Device Supported |
|
| Cable Length | 3.28 ft |
| Features | Compact |
| Management Features | Wake-on-LAN |
| Number of Displays Supported | 2 |
| Screen Mode Supported |
|
| Supported Resolutions |
|
| Maximum Data Transfer Rate | 5 GB/s |
| Security Slot Type | Kensington Security Slot |
Network & Communication
| Ethernet Technology | 2.5 Gigabit Ethernet |
Interfaces/Ports
| Host Interface | USB4 |
| Total Number of USB Ports | 5 |
| Number of USB 2.0 Ports | 1 |
| Number of USB 3.2 Gen 2 Type-A Ports | 2 |
| Number of USB Type-A Ports | 3 |
| Number of USB Type-C Ports | 2 |
| USB Type-A | Yes |
| USB Type-C | Yes |
| USB Type-C Detail | 1 x USB 3.2 Type-C Gen2, 1 x USB-C (8K/10G) |
| Network (RJ-45) | Yes |
| Number of RJ-45 Ports | 1 |
| Number of DisplayPort Outputs | 2 |
| DisplayPort | Yes |
| DisplayPort Version | 1.4 |
| USB Power Delivery | 100W |
Software
| Operating System Supported |
|
Power Description
| Maximum Power Supply Wattage | 134 W |
| Power Source Type | Power Adapter |
Physical Characteristics
| Color Family | Silver |
| Product Color | Aluminum Silver |
| Form Factor | Portable |
| Height | 0.80' |
| Width | 3.10' |
| Length | 7.4' |
| Weight (Approximate) | 11.70 oz |
Miscellaneous
| Package Contents |
|
| Kensington Security Slot | Yes |
| Compatibility | Compatible Products:
|
| Brand Compatibility |
|
| Environmental Compliance | Waste Electrical and Electronic Equipment Directive (WEEE) |
| Country of Origin | Vietnam |
Warranty
| Limited Warranty | 3 Year |
| Rocstor Part# | Ingram Micro | TD Synnex US | TD Synnex CA | A.B. Distributing | B&H |
| Y10P036-S1 | NJ2071 | 9812568 | 8171613 | ROC-Y10P036-S1 | ROY10P036S1 |
