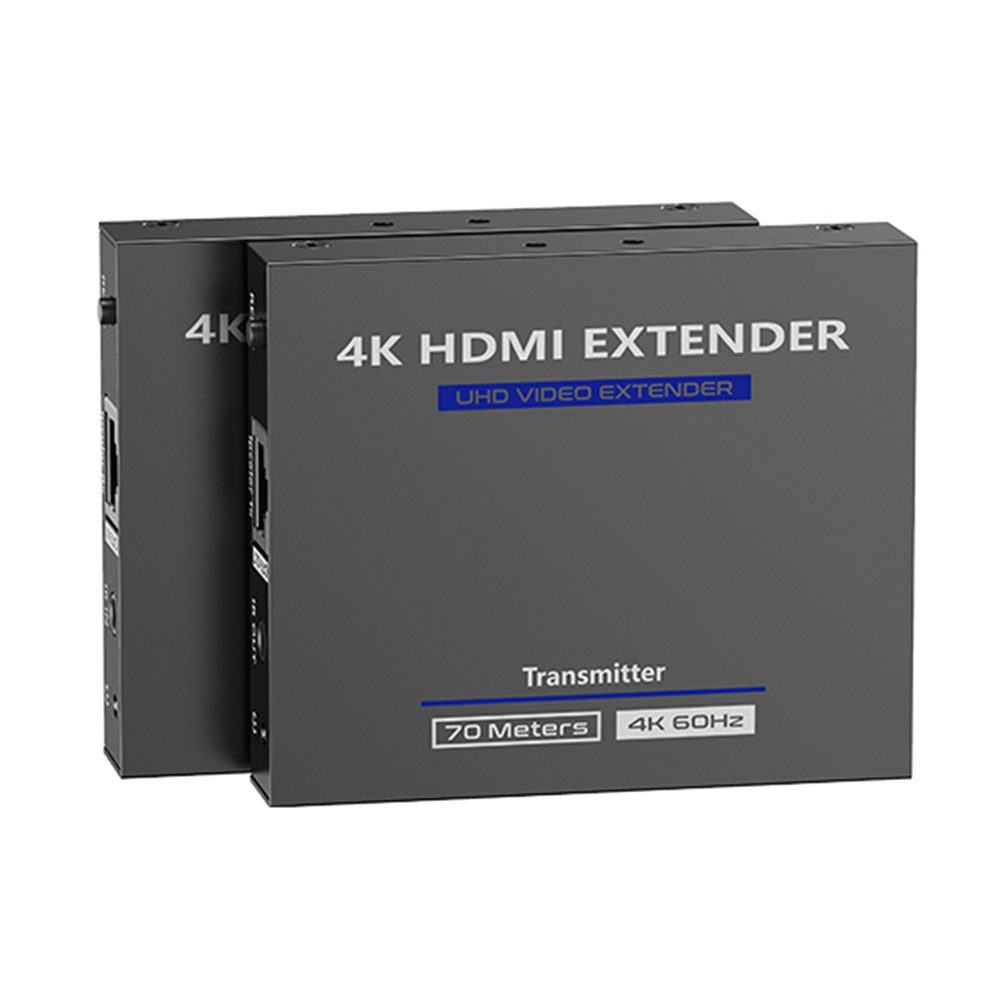

4K@60Hz HDMI Extender over CAT6/CAT6a/Cat7 Ethernet Cable – up to 230ft Point to Point Extender
$139.95

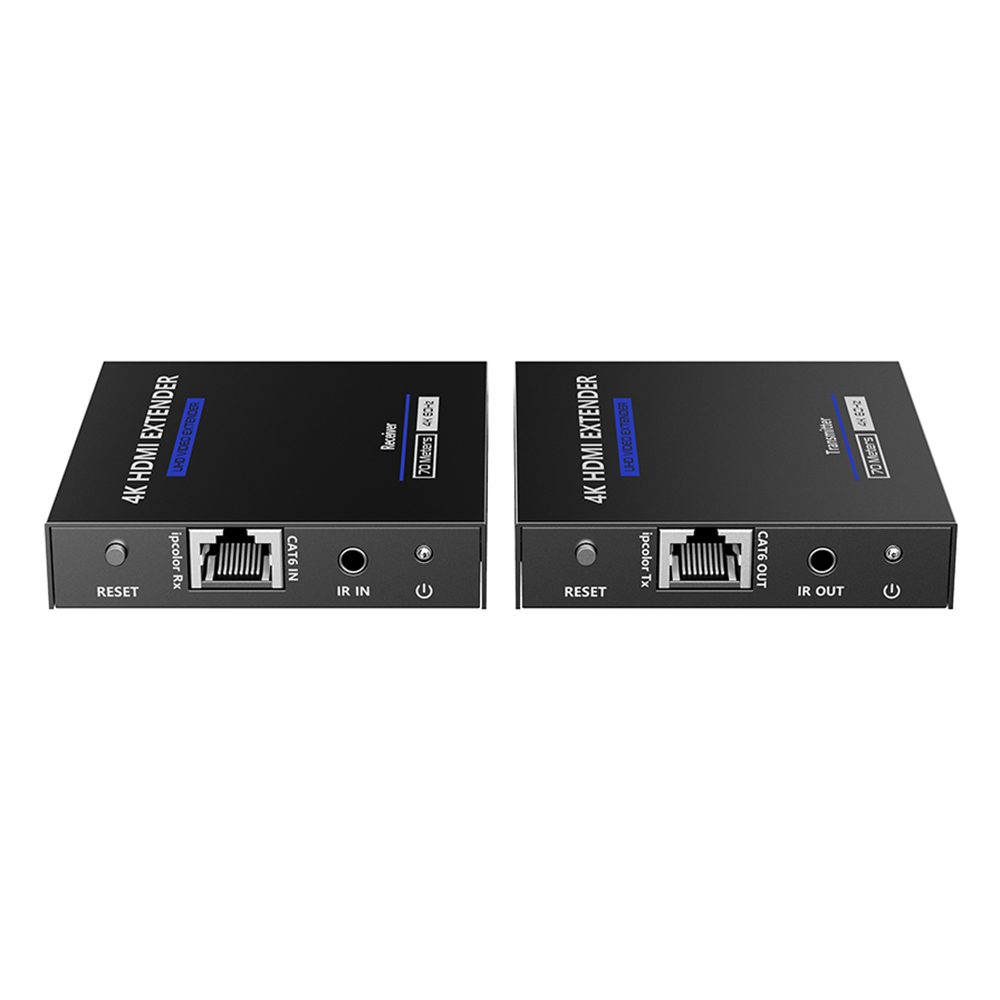

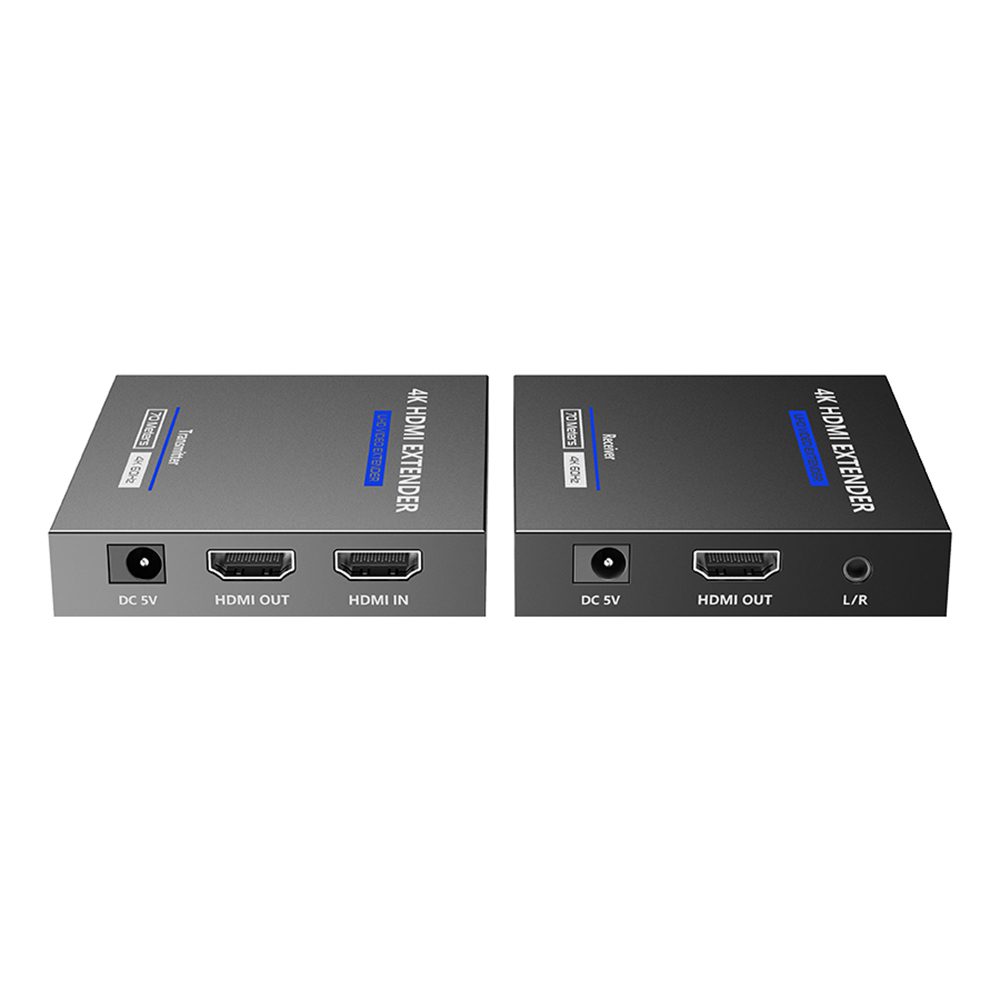

4K@60Hz HDMI Extender over CAT6/CAT6a/Cat7 Ethernet Cable – 4K 60Hz up to 230ft (70m) – Point to Point Extender – iPcolor Image – Zero Latency – 3.5mm Audio – Includes HDMI Transmitter and Receiver (Kit) – Supports IR pass-through – HDCP 2.2, EDID, HDR, YUV4:4:4 – HDMI 2.0 Extender over CAT6/CAT6a/Cat7 Ethernet – One UL power supply – No Software/drivers required – Metal housing Includes built-on mounting brackets – Black
Description
4K@60Hz HDMI Extender over CAT6/CAT6a/Cat7 Ethernet Cable – up to 230ft Point to Point Extender

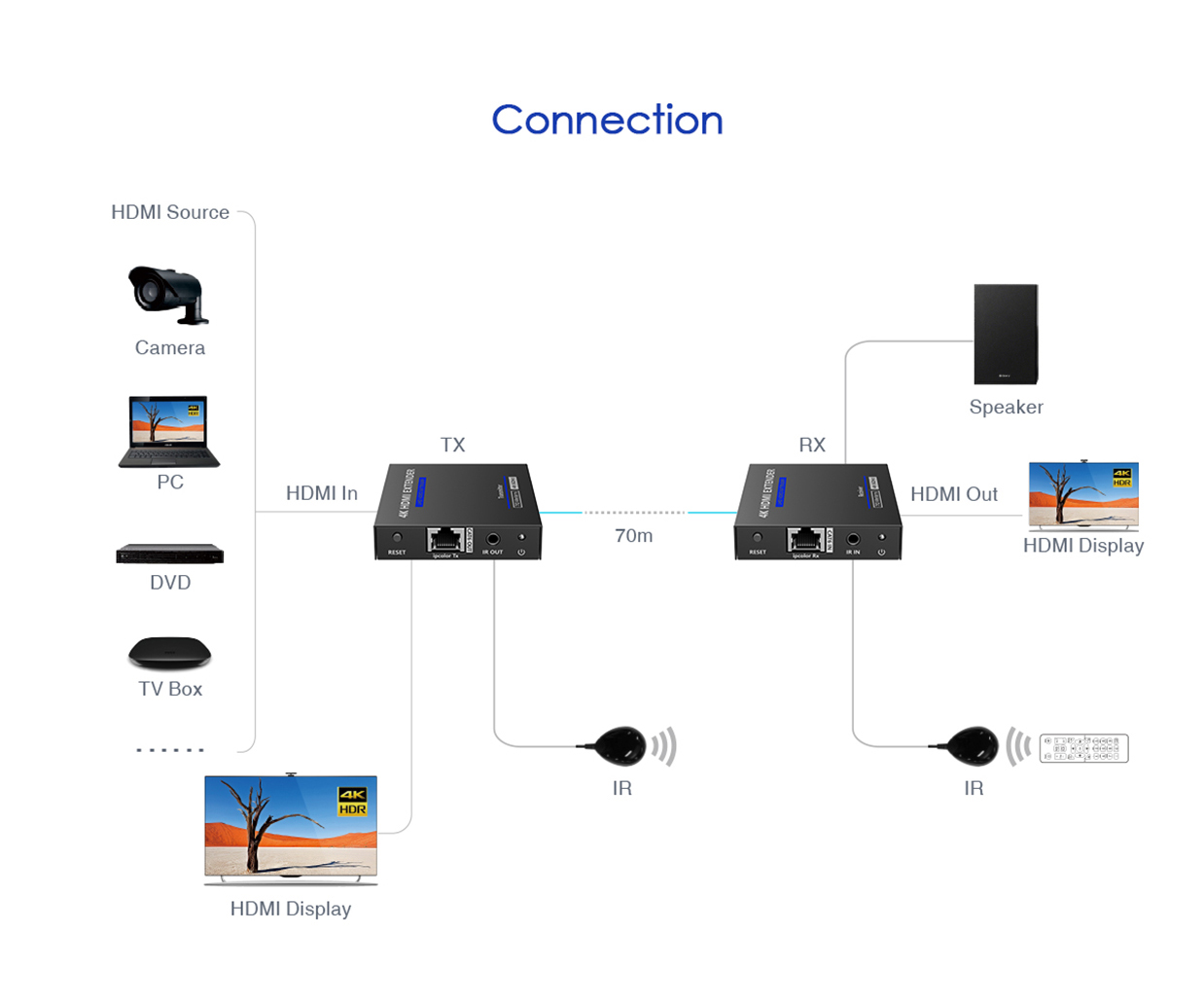

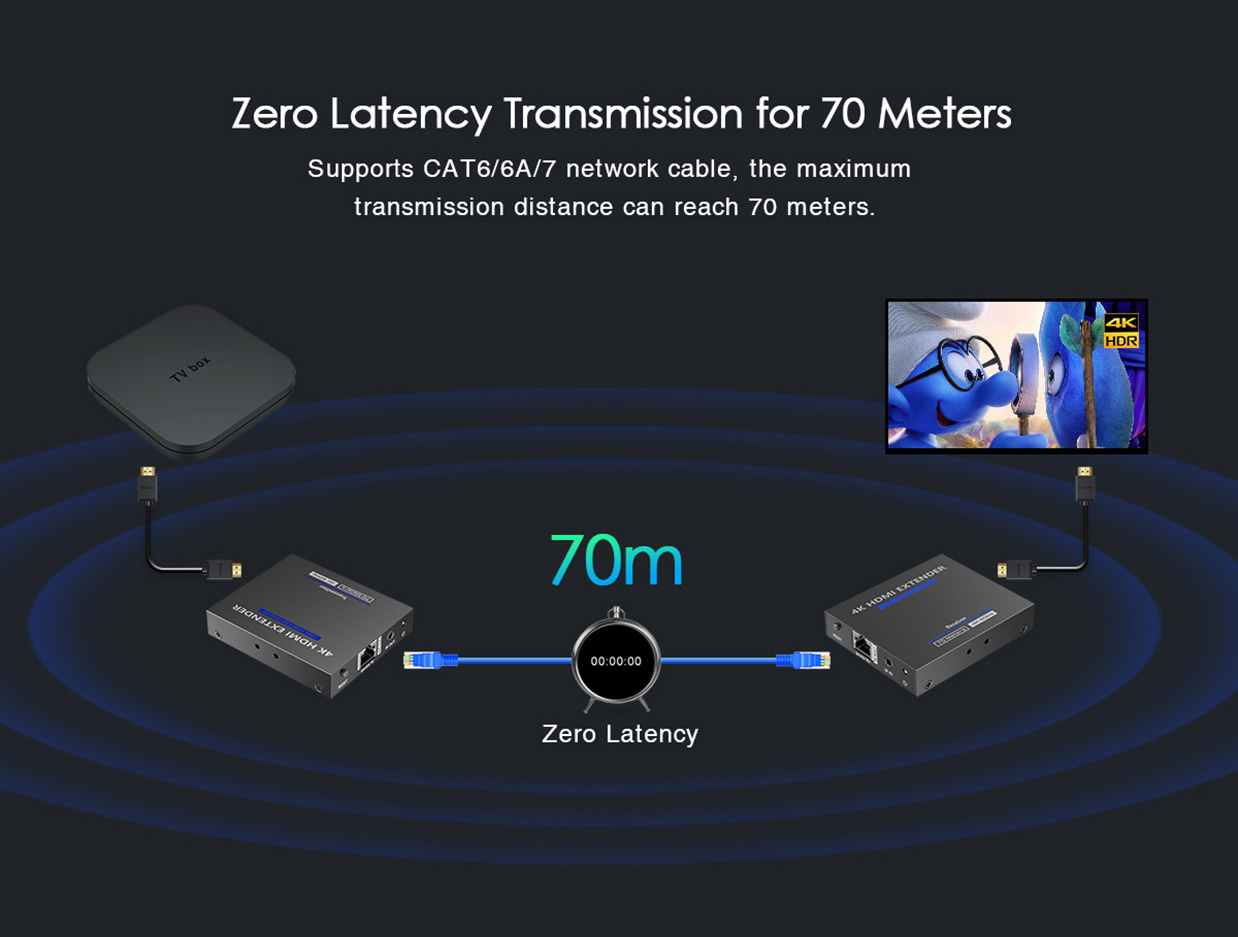

Elevate your audiovisual experience to new heights with the Rocstor TrueReach Point to Point 4K @ 60Hz HDMI Extender. Engineered for exceptional performance and reliability, this advanced extender enables you to extend high-quality HDMI signals over long distances. With zero latency and a transmission distance of up to 70 meters, the TrueReach HDMI Extender ensures seamless, high-definition content delivery.
Experience breathtaking visuals with support for 4K resolution at 60Hz with HDR. Whether you’re setting up a professional presentation space, a multimedia center, or a digital signage system, the TrueReach HDMI Extender guarantees vibrant colors, sharp details, and a truly immersive viewing experience.
The TrueReach extender goes beyond video transmission, offering IP color image capability. This feature allows for a broader range of applications, such as security systems and remote monitoring, where both video and color information are crucial for accurate representation.
With built-in lightning, surge, and ESD (electrostatic discharge) protection, the Rocstor TrueReach HDMI Extender ensures your valuable equipment remains safe and secure, even in unpredictable electrical environments. This protection safeguards your investment and provides peace of mind.
The TrueReach HDMI Extender features convenient IR pass-through, allowing you to control your HDMI source devices from the remote display location. No more hassle of moving between devices or searching for separate control systems. Enjoy seamless control and enhanced usability.
Thanks to its compatibility with Cat6, Cat6A, and Cat7 network cables, the Rocstor TrueReach adapts effortlessly to different cable types. Its adaptive technology automatically adjusts parameters to optimize display performance, ensuring a stable and reliable connection. Experience the freedom to extend your HDMI signals without compromising on video quality or signal integrity.
Features:
• Zero latency HDMI extender for seamless audiovisual transmission
• Supports 4K @ 60Hz HDR resolution for breathtaking visuals
• Transmission distance of up to 131 ft (40 meters) for 4K @ 60Hz and 70 meters for 1080p @ 60Hz signals
• IP color image capability for versatile applications, including security systems
• Built-in lightning, surge, and ESD protection for equipment safety
• IR pass-through feature for convenient control of HDMI source devices from the remote display location
• EDID passthrough ensures smooth communication between source and display
• Compatible with Cat6, Cat6A, and Cat7 network cables
• Adaptive technology automatically adjusts parameters for optimal display performance
• Ideal for professional presentations, multimedia centers, digital signage systems, and more.
Additional information
| Extenders Type | Extender Kit, HDMI Extender Kit, Receiver, Transmitter |
|---|---|
| Style | Box |
| Method | CATx |
| Video In | HDMI |
| Video Out | HDMI |
| Max Resolution | 4K/60 |
| Max Range | 51 – 100 |
User Manual
Specification

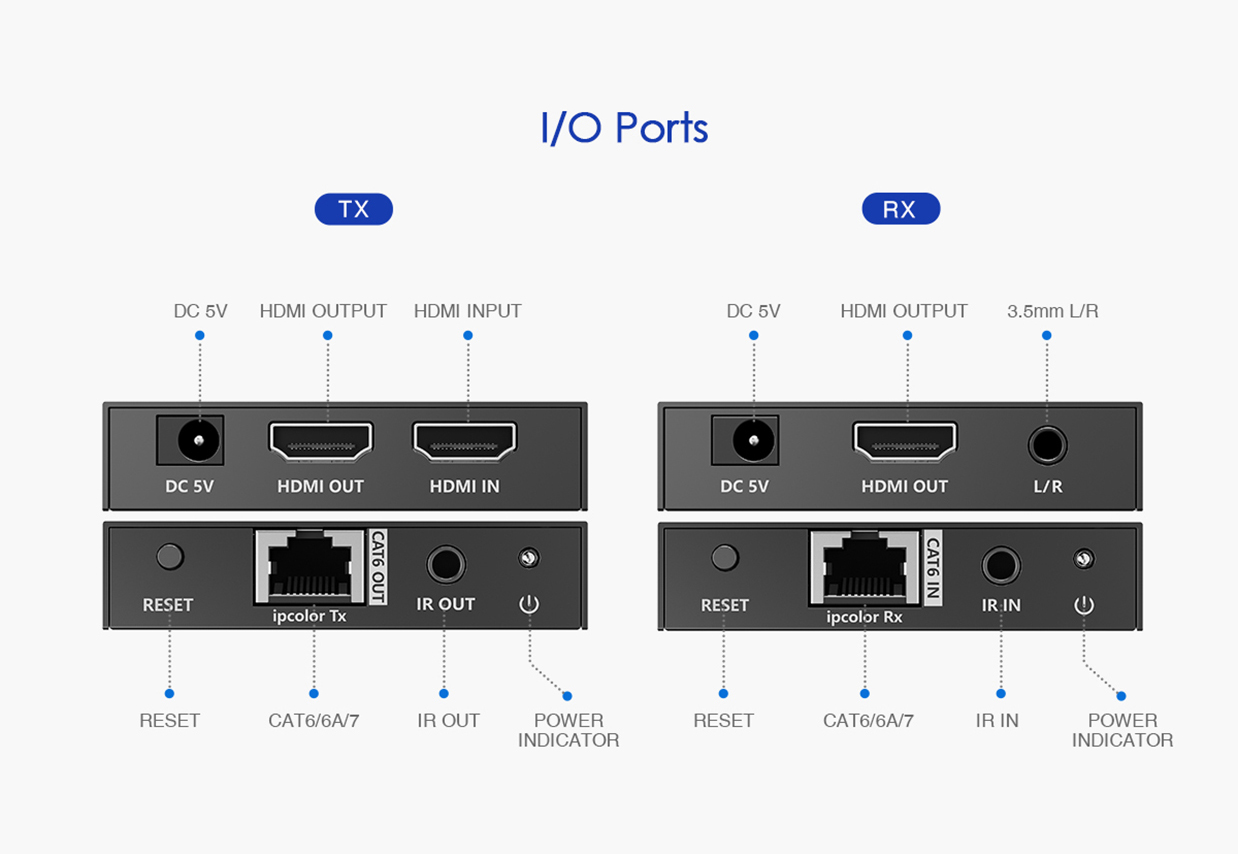

| Specification | Transmitter | Receiver |
| Video Signal | ||
| Input | 1xHDMI Type A, Female | N/A |
| Output | 1xHDMI Type A, Female | 1xHDMI Type A, Female |
| HDMI Cable | 3-5m | 3-5m |
| Max Transmission Rate | 18Gbps | |
| Max Transmission Bandwidth | 600MHz | |
| EDID Pass back | Support | |
| Compatibility | HMDI2.0（Deep color/4K/HDR/YUV4:4:4） | |
| HDCP2.2 | ||
| Resolution | 4096×2160@24/25Hz、3840×2160@24/25/30/50/60Hz、1080i@50/60Hz、1080p@50/60Hz、720p@50/60Hz、480i@60Hz、480p@60Hz、576i@50Hz、576p@50Hz 1280×960、1280×800、1280×768、1680×1050、1360×768、1366×768、1600×900、1024×768、800×600 |
|
| Network | 1xRJ-45, Female | 1xRJ-45, Female |
| Distance | CAT6/6A/7≤70m | |
| Audio Signal | ||
| Input | 1xHDMI Type A, Female | N/A |
| Output | 1xHDMI Type A, Female | 1xHDMI Type A, Female 1×3.5mm jack, Female |
| Formats | LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos | |
| Control Signal | ||
| IR Interface | 1×3.5mm IR OUT, Female | 1×3.5mm IR IN, Female |
| Range | ＜5m | |
| Frequency | 20-60KHz | |
| Power Supply | ||
| Interface | 1xDC5V_2.1 jack, without thread | |
| Voltage | DC5V/1A | DC5V/1A |
| Working Power | ＜3W | ＜3W |
| Operating Environment | ||
| Operating Temperature | -20～60℃ | |
| Storage Temperature | -30～70℃ | |
| Humidity | 0～90%(No Condensation) | |
| Physical Properties | ||
| Material | Iron | |
| Weight | 140g | 140g |
| Colour | Black | |

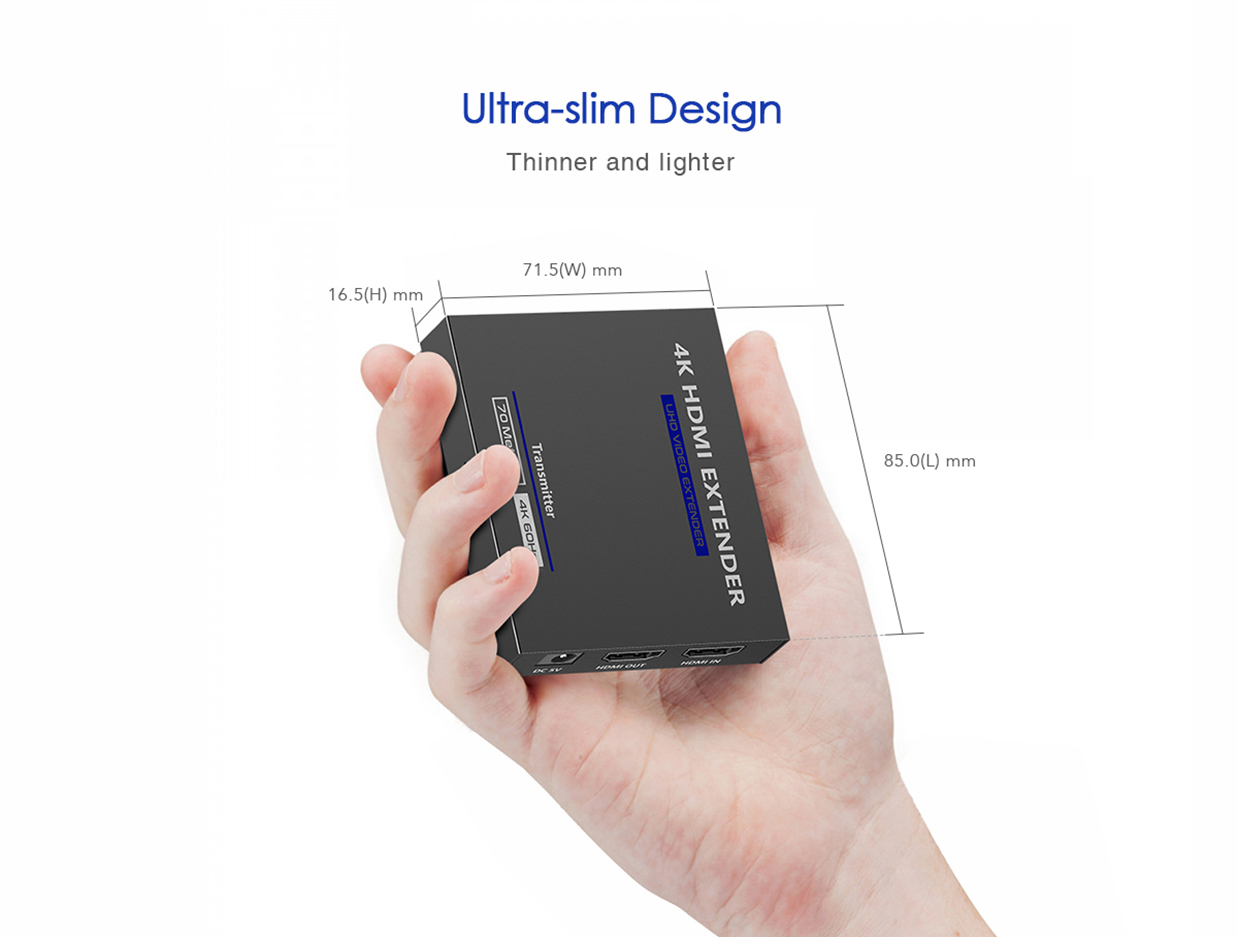

| Size | 80.0(L) x 75.5(W) x 16.5(H) mm | |
| Static Protection | ESD Protection 1a Contact discharge 2 Level（±4KV） 1b Air discharge 3 Level（±8KV） Standard：IEC61000-4-2 |
|
| Lighting protection, Surge protection | ||
| Certification | FCC/CE/RoHS | |
| Rack-mounted | Support | |
