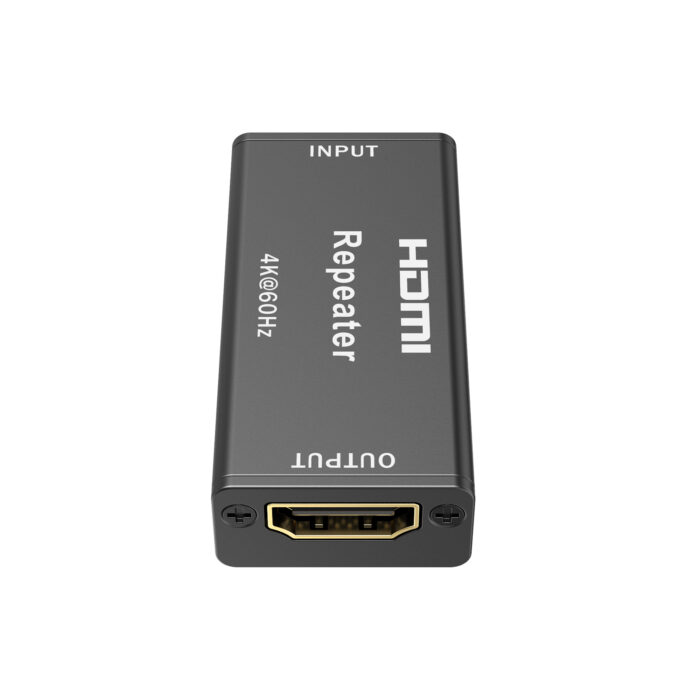

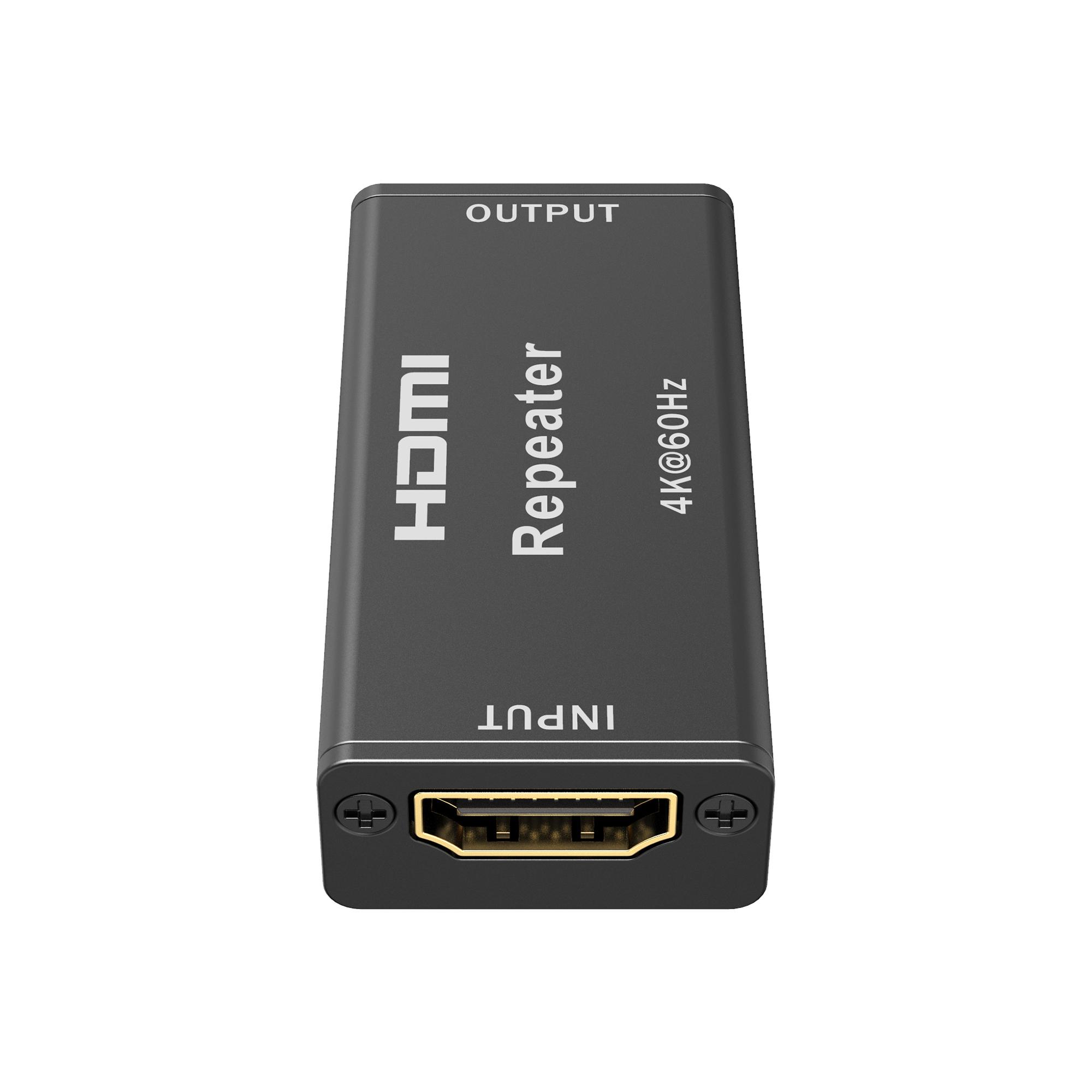

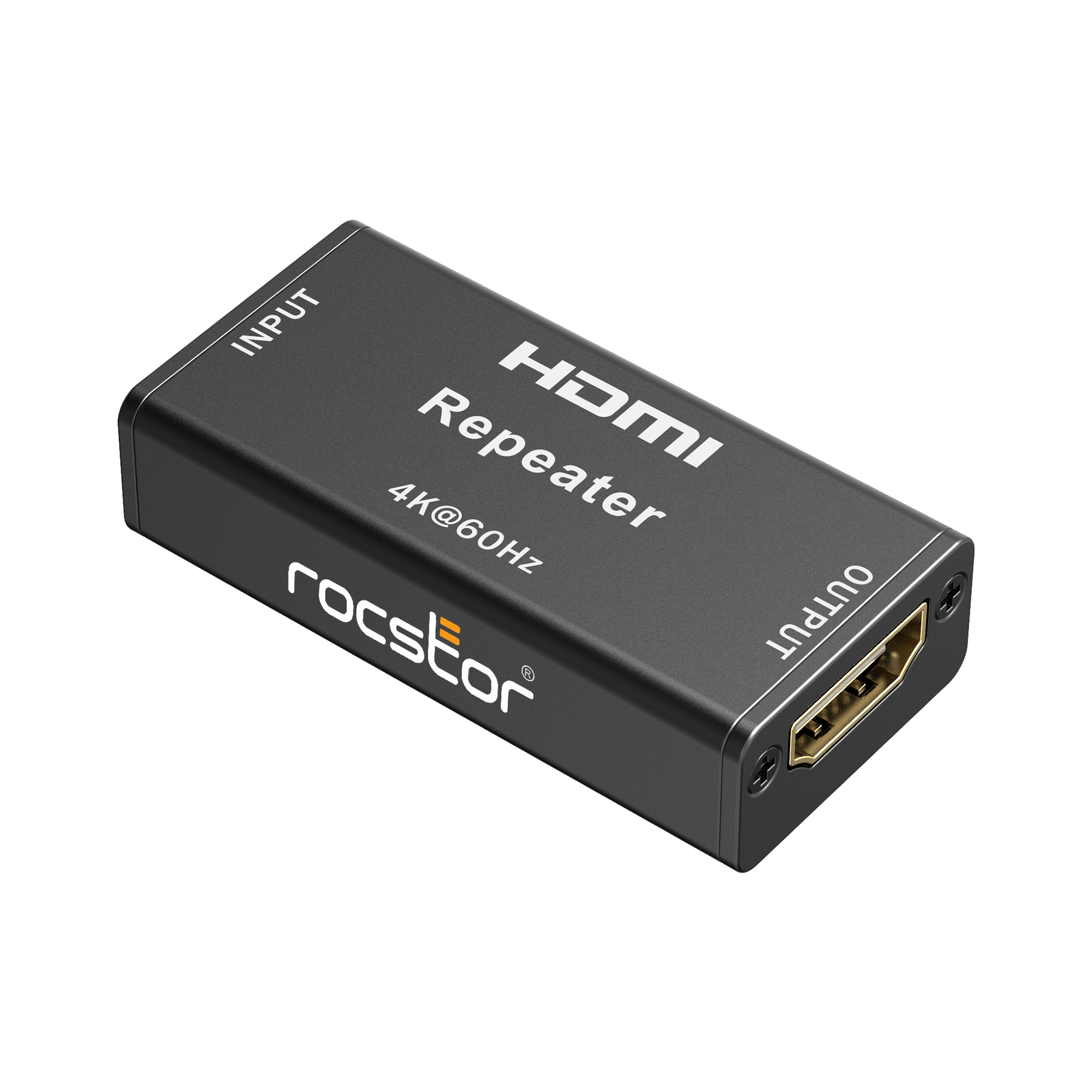

4Kx2K HDMI Repeater Extender – HDMI2.0 Signal Booster & Video Amplifier
$49.95
Rocstor TrueReach 4Kx2K HDMI Repeater Extender – HDMI2.0 Signal Booster & Video Amplifier – Up to 132 ft (40m) 1080p, 4K@30Hz 98ft (30m), 4K@60Hz 82ft (25m) Transmission Distance – HDCP 2.2 & 7.1 Audio Support – Powered by HDMI bus, no AC required- Extend HDMI signal – Aluminium – Black
Description
4Kx2K HDMI Repeater Extender – HDMI2.0 Signal Booster & Video Amplifier
Upgrade your audiovisual experience with the Rocstor TrueReach 4Kx2K HDMI Repeater Extender. Designed to enhance your HDMI signal and extend transmission distances, this device ensures top-notch video quality and seamless connectivity. With advanced features and reliable performance, it is the perfect solution for home theaters, conference rooms, and professional AV installations.

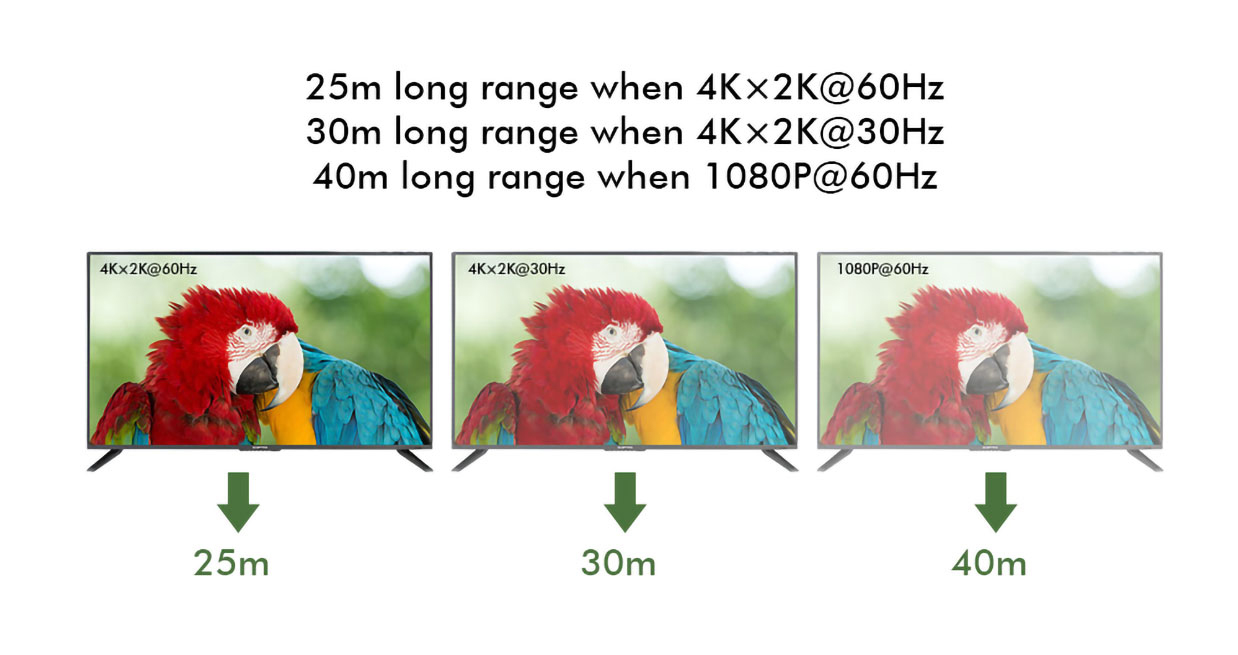

The TrueReach HDMI Repeater serves as both a signal booster and video amplifier, providing an HDMI2.0 Signal Boost for superior signal integrity. It enables transmission distances of up to 132 ft (40m) for 1080p, 98ft (30m) for 4K@30Hz, and 82ft (25m) for 4K@60Hz, ensuring high-resolution video playback without compromising quality.
Equipped with HDCP 2.2 and 7.1 audio support, the TrueReach HDMI Repeater delivers an immersive audiovisual experience. Enjoy crystal-clear sound and the full range of audio formats, bringing your content to life and captivating your senses.

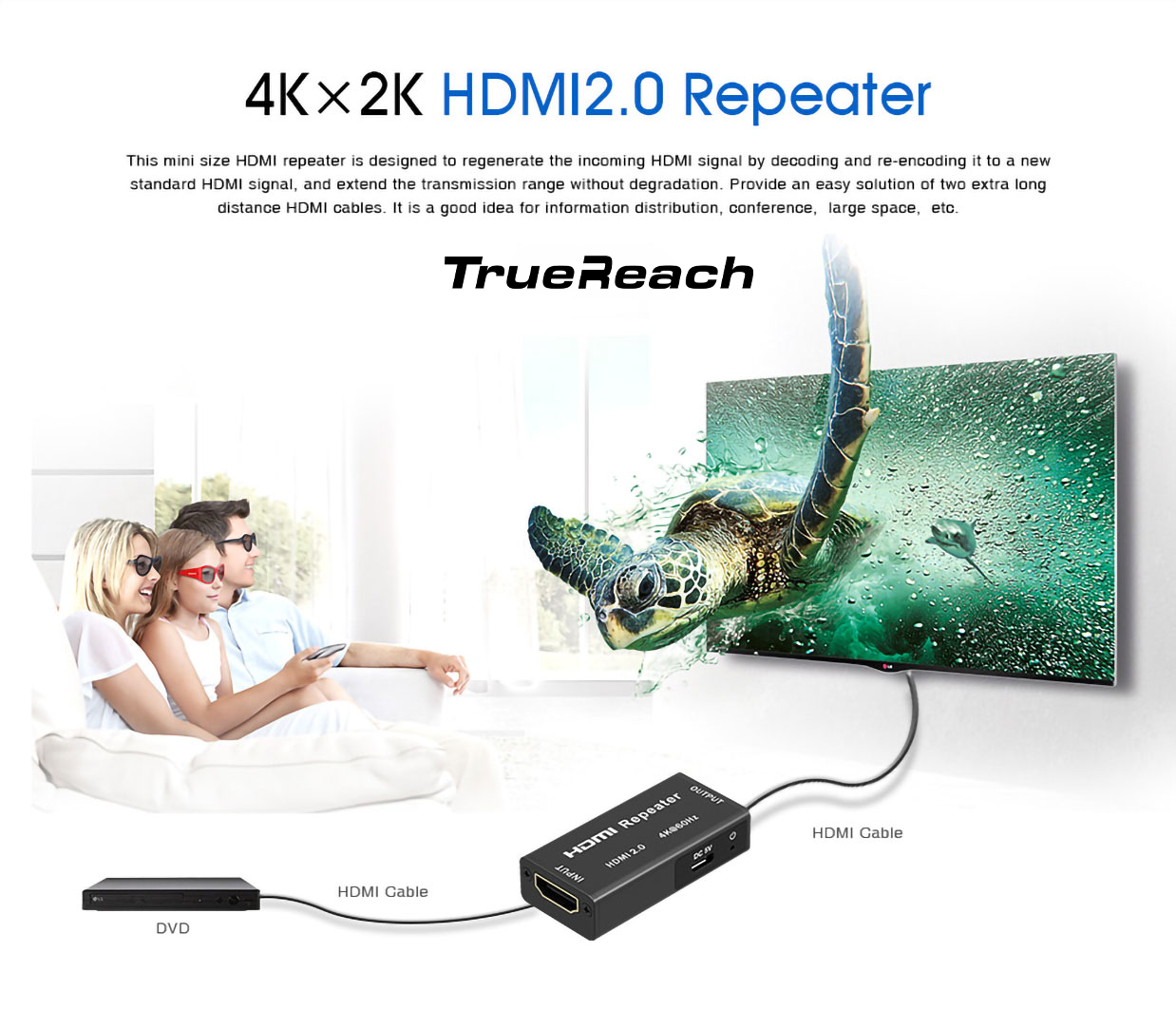

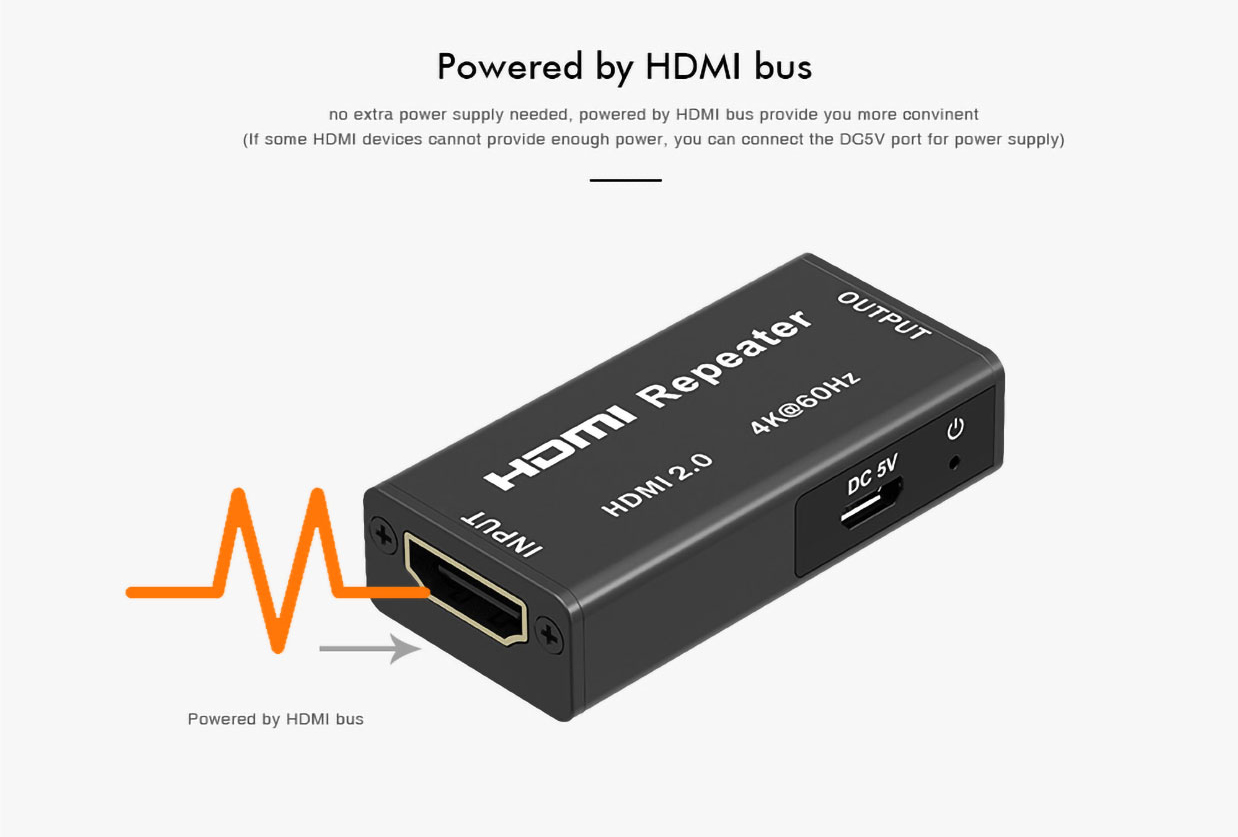

The TrueReach HDMI Repeater is powered by the HDMI bus, eliminating the need for an additional AC power source. This not only simplifies installation but also reduces cable clutter, making it an efficient and user-friendly solution. Simply connect it to your existing HDMI cable setup, and it will increase the power of your HDMI signal, extending the reach of your video source up to 132 ft (1080p) and 82ft (4K@60Hz).
Features:
• HDMI2.0 Signal Booster & Video Amplifier for enhanced signal integrity
• Transmission distances of up to 132 ft (40m) for 1080p and 82ft (25m) for 4K@60Hz
• HDCP 2.2 and 7.1 audio support for an immersive audiovisual experience
• Powered by HDMI bus, eliminating the need for an additional AC power source
• Extend HDMI signal beyond the limitations of standard cables
• Durable aluminum construction for long-lasting performance
• Sleek black design complements any AV setup
• Ideal for home theaters, conference rooms, and professional AV installations.
Additional information
| Extenders Type | Repeater |
|---|---|
| Style | Box |
| Method | HDMI bus |
| Video In | HDMI |
| Video Out | HDMI |
| Max Resolution | 4K/60 |
| Max Range | 05 – 30 |
User Manual
Specification
| Power Supply | Voltage/current | Can be powered by input sources through HDMI port (when the transmission / connection is not stable, or the output is not fluent, please use external Micro USB power spply) |
| Power consumption | ＜2.5W | |
| HDMI performance and interface |
HDMI compliance | HDMI2.0 |
| HDCP compliance | HDCP2.2 | |
| HDMI input / output resolution | 480i@60Hz、480p@60Hz、 576i@50Hz、576p@50Hz、 720p@50/60Hz、1080i@50/60Hz、 1080p@50/60Hz、4K×2K@24/25/30/60Hz |
|
| Transmission distance | 4K×2K@60Hz | 25 meters(AWG22 standard HDMI cable) |
| 4K×2K@30Hz | 30 meters(AWG24 standard HDMI cable) | |
| 1080P | 40 meters(AWG24 standard HDMI cable) | |
| Protection level |
Electrostatic protection of the whole machine |
1a Contact discharge level 3 1b Air discharge level 3 Implementation of the standard: IEC61000-4-2 |
| Operating environment |
Working temperature | 0～50℃ |
| Storage temperature | -10～70℃ | |
| Humidity (no condensation) | 0～90% | |
| Body properties | Dimension | 53.0(L) x 25.9(W) x 12.7(H)mm |
| Material | Aluminum alloy | |
| Colour | Black | |
| Weight | 37g |
