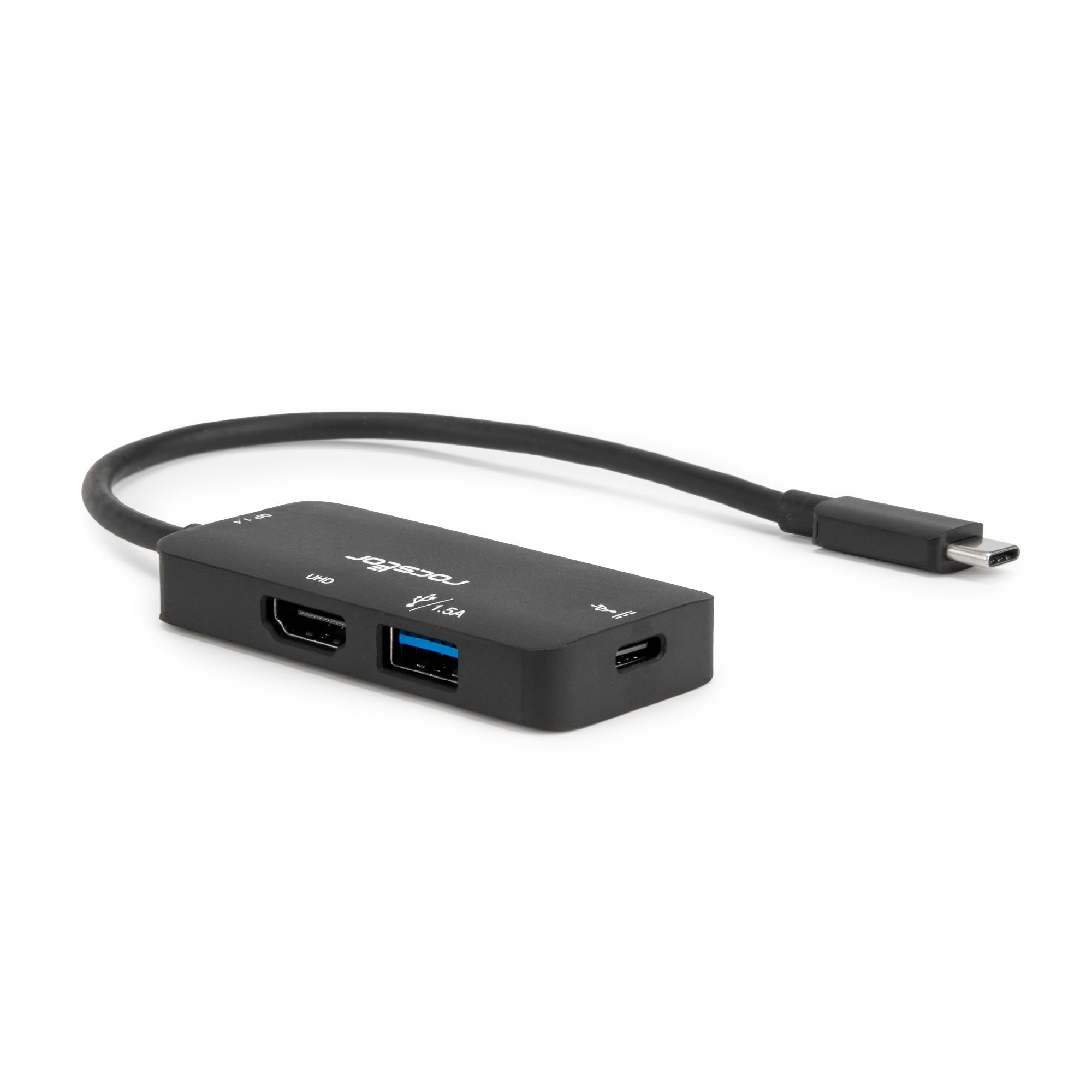

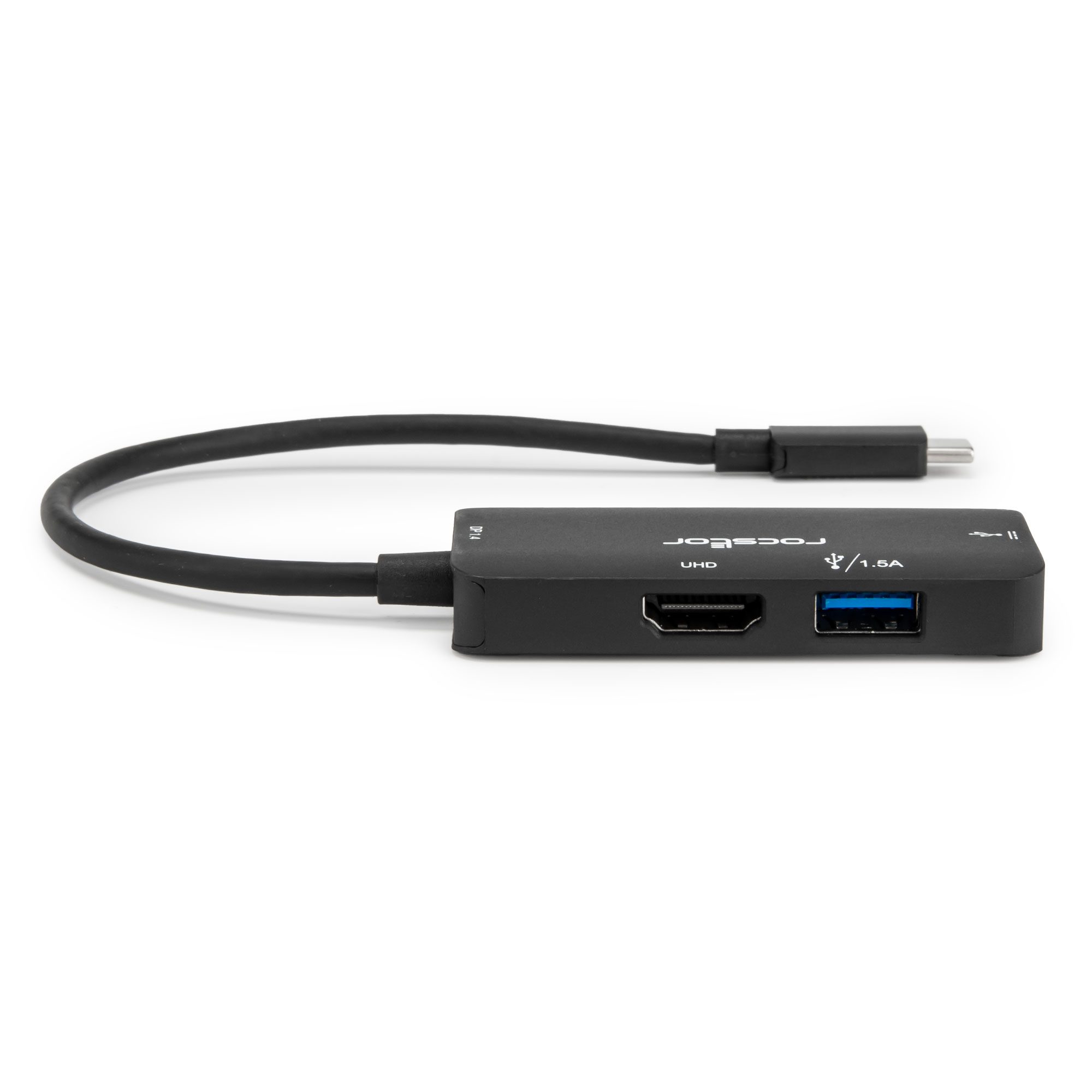

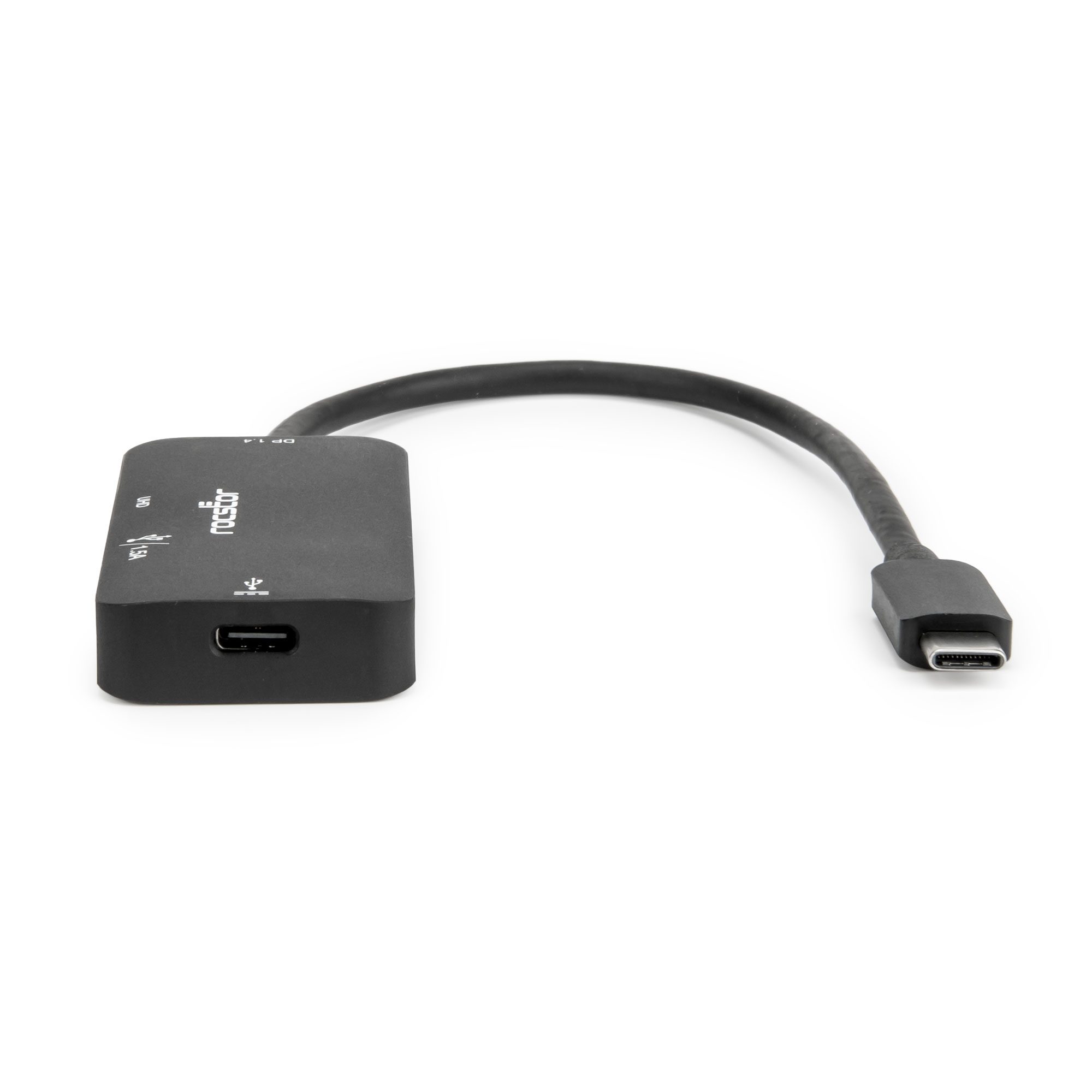

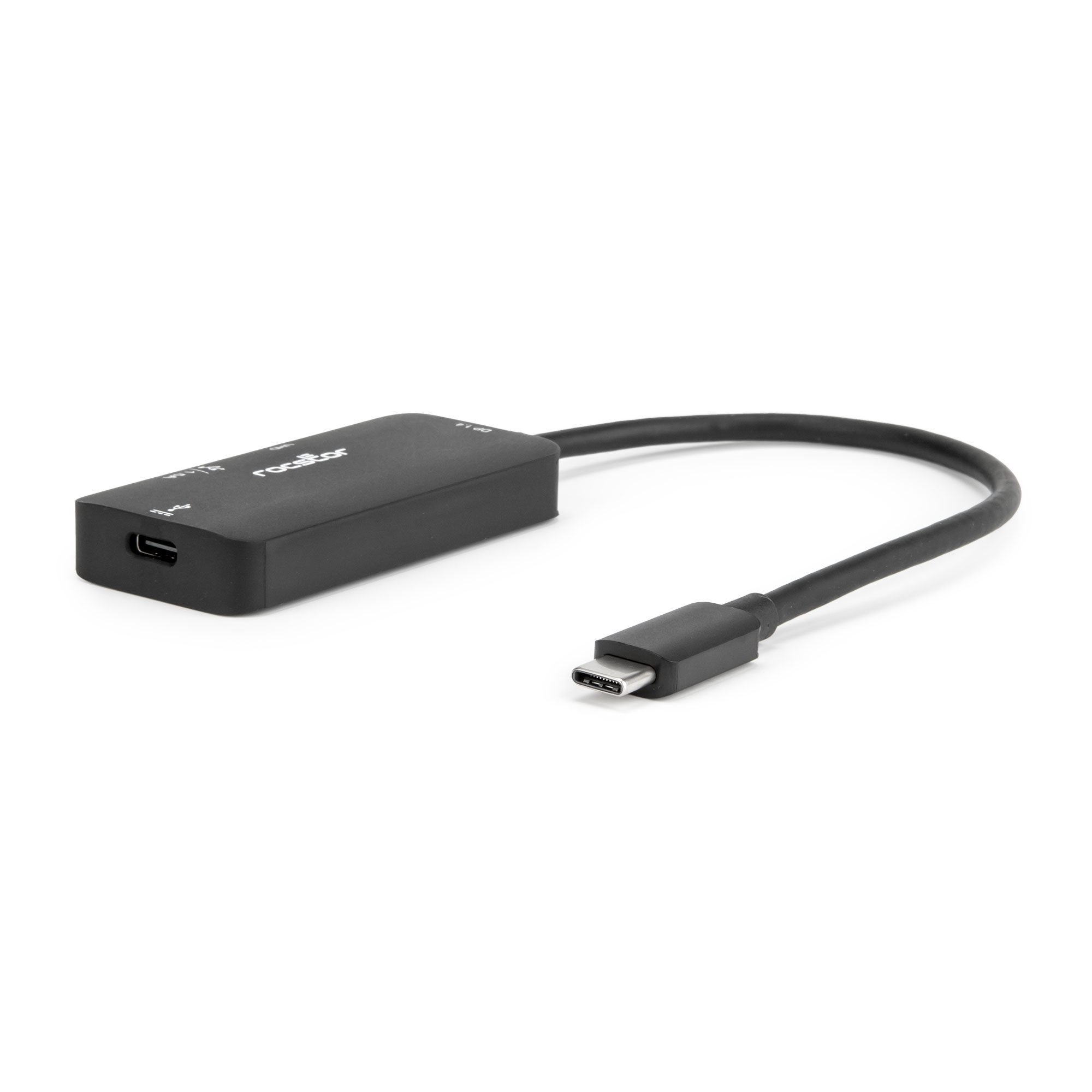

USB Type-C 3-in-1 4K Multiport Adapter – USB-C to, HDMI 4K@60Hz, USB 3.0 Type-A, USB-C Data or 100W Power Delivery PD Charging – DP 1.4 Alt Mode

$20.95

USB Type-C 3-in-1 4K Multiport Adapter – USB-C to 1x HDMI 4K@60Hz, 1x USB 3.0 Type-A, 1x USB-C Data or 100W Power Delivery PD Charging – DP 1.4 Alt Mode – Silver/Black

Add $39.99 to cart and get free shipping!
Description

The Rocstor Premium USB Type-C 3-in-1 4K Multiport Adapter is the perfect solution for extending the port capabilities of Type-C and Thunderbolt 3 or 4 hosts, such as PCs and laptop computers. This compact hub features an HDMI port, a USB-A port, and a Type-C female port, making it ideal for devices with a single Type-C port. Equipped with the latest DisplayPort 1.4 Alt mode supported IC, the adapter supports HDMI video output at a maximum resolution of 4K/60Hz while simultaneously transferring USB 3.1 data at up to 5Gbps. Additionally, the Type-C female port supports PD 3.0 with a maximum power delivery of 100W when connected to a PD Adapter and facilitates data transmission at speeds up to 5Gbps when connected to a Type-C device.

Compatible with all DP Alt mode supported Type-C hosts, the Rocstor 3-in-1 Adapter ensures seamless integration and enhanced functionality. It supports HDR, HDCP 2.2 & HDCP 1.4, and multiple color depth outputs, providing an exceptional visual experience. The USB-A port allows for high-speed data transfer and downstream charging up to 7.5W, while the Type-C port offers both power delivery and data transfer capabilities. Designed for robust performance and versatility, the Rocstor USB Type-C 3-in-1 4K Multiport Adapter is an essential accessory for maximizing your device’s connectivity and productivity. Backed by Rocstor 2-year limited warranty and lifetime free technical support.

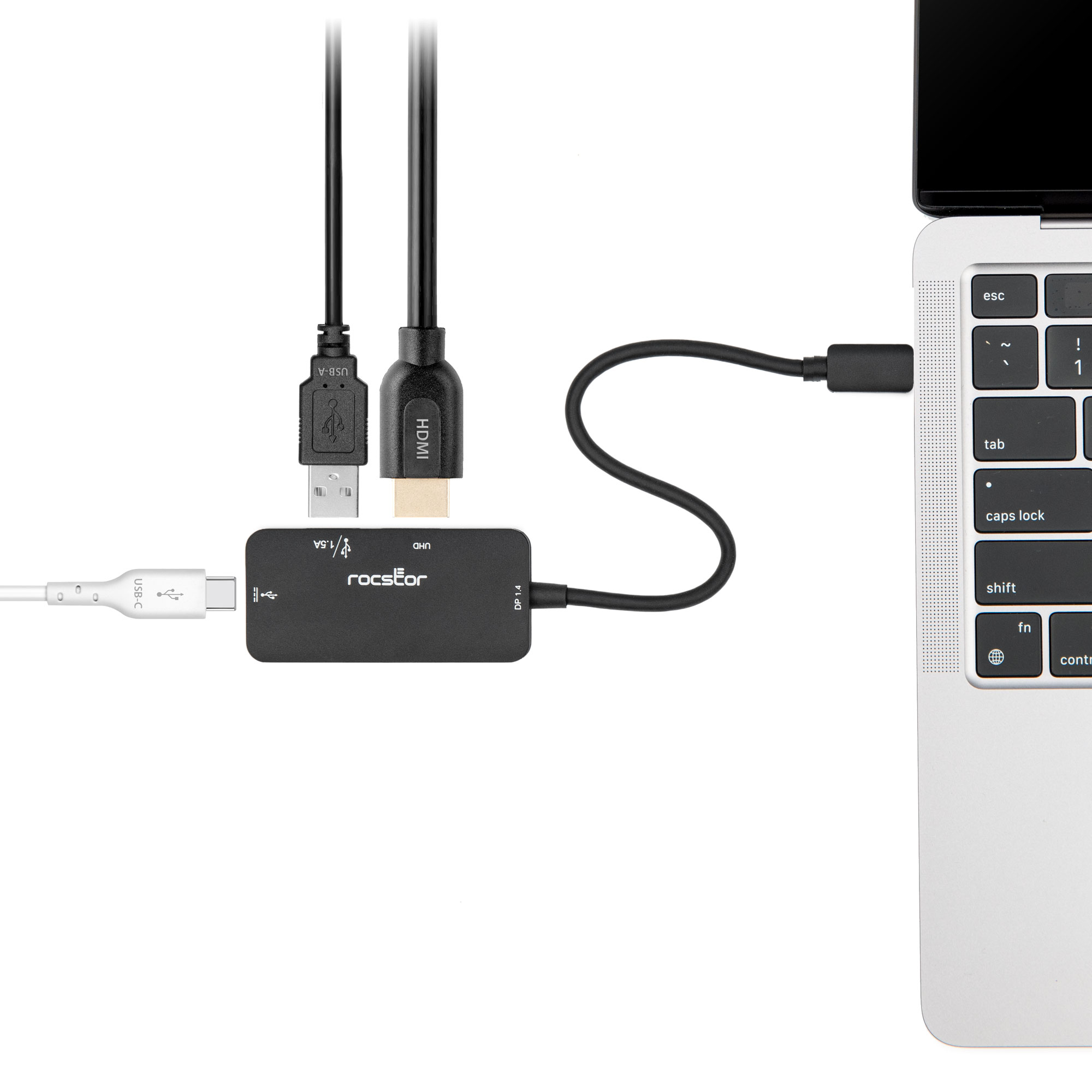

  • Multiport Expansion: Connects a single Type-C port to HDMI, USB-A, and Type-C PD/data ports.
  • High-Resolution HDMI Output: Supports 4K/60Hz resolution with DP 1.4 Alt mode and 18Gbps bandwidth.
  • USB-A Port: Provides up to 5Gbps data transfer and supports max 7.5W (5V/1.5A) downstream charging.
  • Type-C PD Charging and Data Port: Supports up to 100W PD charging with PD 3.0 Fast Role Swap and max 5Gbps data transfer.
  • HDR and HDCP Support: Ensures optimal video quality with enhanced depth, detail, brightness, contrast, and color gamut.
  • Multiple Color Depth Outputs: Supports 6/8/10/12 bit color depth and various pixel formats (RGB, YCbCr 4:4:4, YCbCr 4:2:2).
  • Wide Compatibility: Works with all DP Alt mode supported Type-C hosts, including Thunderbolt 3 and 4 ports.
  • Enhanced Protection: Includes short-circuit, over-current, and over-voltage protection for safe and reliable performance.
  • Warranty: Rocstor 2-Year Limited Warranty
Additional information
Technology

HDMI

,

USB-A

,

USB-C

Host Connector

USB-C

Video Ports

HDMI

Number of Monitors

1

Data Ports

USB-A

,

USB-C

User Manual

User Manual

Y10A306-B1 User Manual

Partner Numbers
Rocstor Part# Ingram Micro TD Synnex US TD Synnex CA A.B. Distributing B&H
Y10A306-B1 NJ2064 9812558 8171623 ROC-Y10A306-B1 ROY10A306B1
Specification

General Information

Manufacturer Rocstor
Manufacturer Part Number Y10A306-B1
Manufacturer Website Address http://www.rocstor.com
Brand Name Rocstor
Product Name Premium Type-C to HDMI/USB-A/Type-C Female (PD & Data) Multiport Adapter
Marketing Information The Rocstor Premium USB Type-C 3-in-1 4K Multiport Adapter is the perfect solution for extending the port capabilities of Type-C and Thunderbolt 3 or 4 hosts, such as PCs and laptop computers. This compact hub features an HDMI port, a USB-A port, and a Type-C female port, making it ideal for devices with a single Type-C port. Equipped with the latest DisplayPort 1.4 Alt mode supported IC, the adapter supports HDMI video output at a maximum resolution of 4K/60Hz while simultaneously transferring USB 3.1 data at up to 5Gbps. Additionally, the Type-C female port supports PD 3.0 with a maximum power delivery of 100W when connected to a PD Adapter and facilitates data transmission at speeds up to 5Gbps when connected to a Type-C device.



Compatible with all DP Alt mode supported Type-C hosts, the Rocstor 3-in-1 Adapter ensures seamless integration and enhanced functionality. It supports HDR, HDCP 2.2 & HDCP 1.4, and multiple color depth outputs, providing an exceptional visual experience. The USB-A port allows for high-speed data transfer and downstream charging up to 7.5W, while the Type-C port offers both power delivery and data transfer capabilities. Designed for robust performance and versatility, the Rocstor USB Type-C 3-in-1 4K Multiport Adapter is an essential accessory for maximizing your device's connectivity and productivity. Backed by Rocstor 2-year limited warranty and lifetime free technical support

Packaged Quantity 1
Product Type A/V Adapter

Technical Information

Adapter Type HDMI/USB/USB-C
Connector Type on First End USB Type C - Male
Connector Gender on First End Male
Connector on First End Details 1 x USB Type C - Male
Connector Type on Second End
  • HDMI Digital Audio/Video - Female
  • USB 3.0 Type A - Female
  • USB Type C - Female
Connector Gender on Second End Female
Connector on Second End Details
  • 1 x HDMI Digital Audio/Video - Female
  • 1 x USB 3.0 Type A - Female
  • 1 x USB Type C - Female
Features
  • USB- Power Delivery (USB PD)
  • Charging
  • HDR Support
  • HDCP 1.4
  • HDCP 2.2
  • Power Delivery 3.0

Physical Characteristics

Color Family Black
Product Color Black
Height 0.5'
Width 1.3'
Length 11.5'
Weight (Approximate) 0.55 oz

Miscellaneous

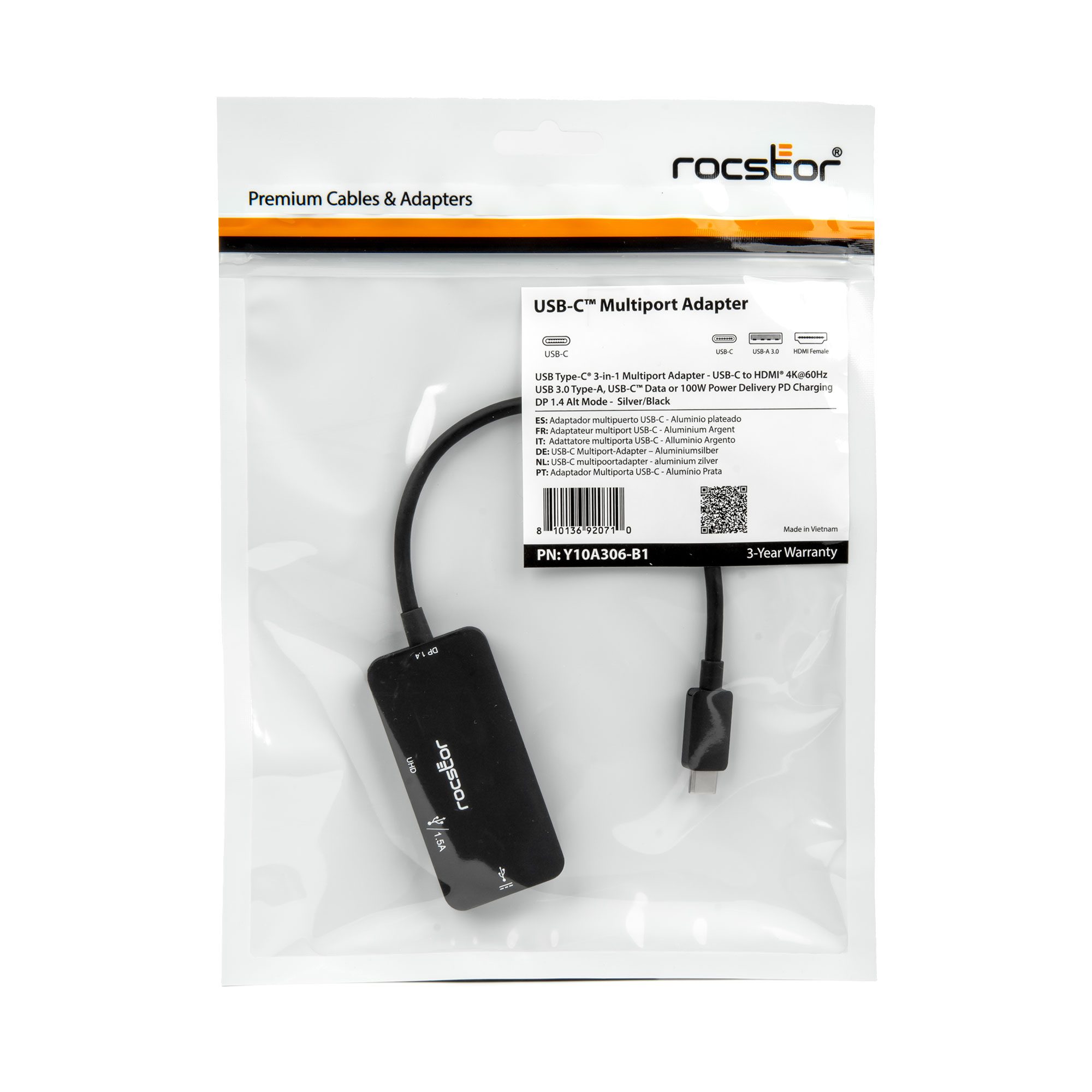

Package Contents
  • Premium Type-C to HDMI/USB-A/Type-C Female (PD & Data) Multiport Adapter
  • 1 x User Manual



Operating System Compatibility
  • Windows 8
  • Windows 10
  • Windows 11
  • ChromeOS
  • iPadOS
  • Mac OS
  • Mac OS X 10.13 High Sierra
  • macOS Ventura 13.0
  • macOS Monterey 12.0
  • macOS Big Sur 11.0
  • macOS Catalina 10.15
  • macOS Mojave 10.14
Compatibility Notebooks:

  • Chromebook
  • Dell XPS
  • Apple MacBook
  • Microsoft Surface



Microsoft - Surface Tablet

Country of Origin Vietnam
Environmental Compliance Waste Electrical and Electronic Equipment Directive (WEEE)

Warranty

Limited Warranty 2 Year
