4K@60Hz HDMI over Wireless Extender – Long Range -Plug & Play

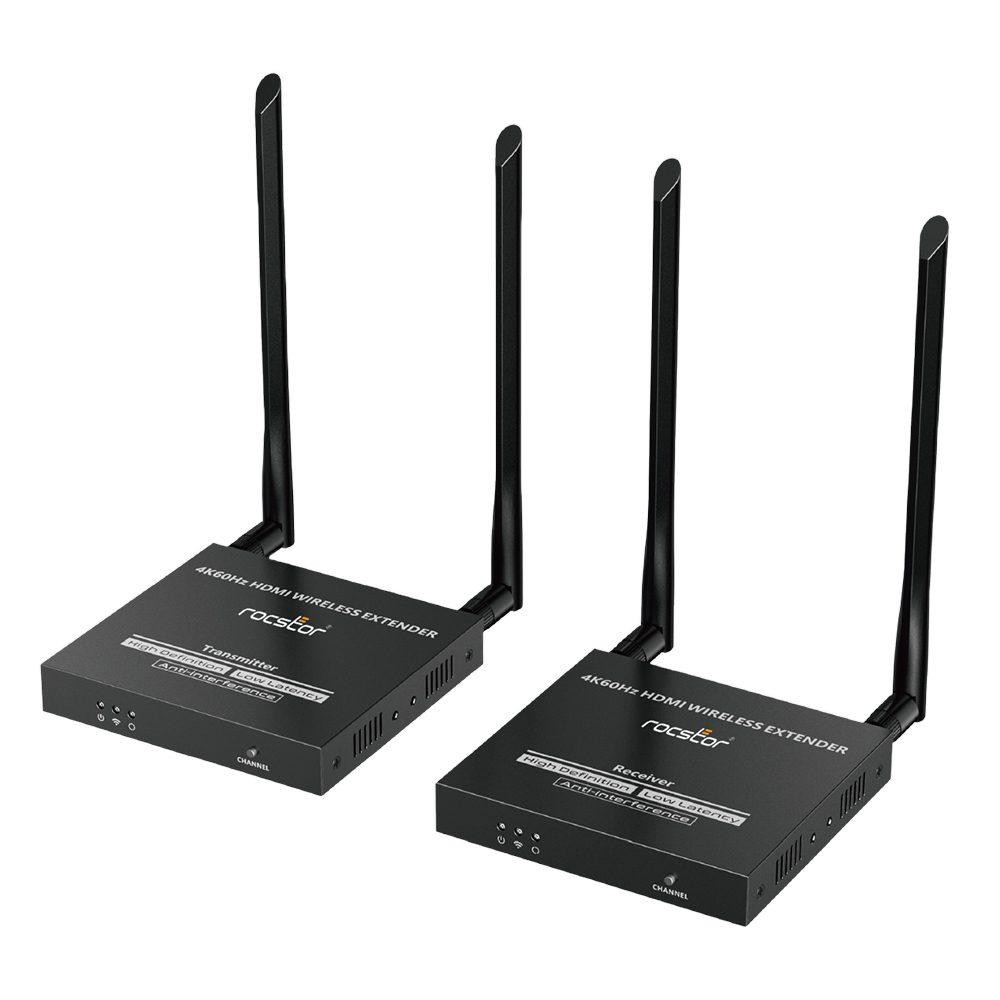

Rocstor TrueReach 4K@60Hz HDMI over Wireless Extender – 4K 60Hz up to 164ft (50m) – Wireless HDMI 4K 60Hz Video – iPcolor Image – Supports IR Pass-through & Auto SSID pairing – ipColor Stream Technology – Plug & Play, no software required – Includes HDMI Transmitter and Receiver (Kit) – Metal housing – Black



Learn More

4K@60Hz HDMI over Wireless Extender – up to 164ft – Long Range -Plug & Play

Experience the freedom of wireless HDMI connectivity with the Rocstor TrueReach 4K@60Hz HDMI over Wireless Extender. This advanced extender allows you to transmit stunning 4K 60Hz video signals wirelessly, eliminating the need for long HDMI cables. With its impressive range of up to 164ft (50m), it provides flexible and convenient installation options for your audiovisual setup.

The TrueReach HDMI over Wireless Extender delivers crystal-clear video quality with support for 4K resolution at 60Hz. Enjoy immersive visuals with vibrant colors and sharp details, bringing your entertainment or presentations to life. With iPcolor Image technology, the extender ensures accurate color reproduction, enhancing the overall viewing experience.

This extender supports IR pass-through, allowing you to control your video source remotely. Adjust settings, switch inputs, or control playback without the need to be in close proximity to your devices. The auto SSID pairing feature simplifies the setup process by automatically connecting the transmitter and receiver, saving you time and effort.

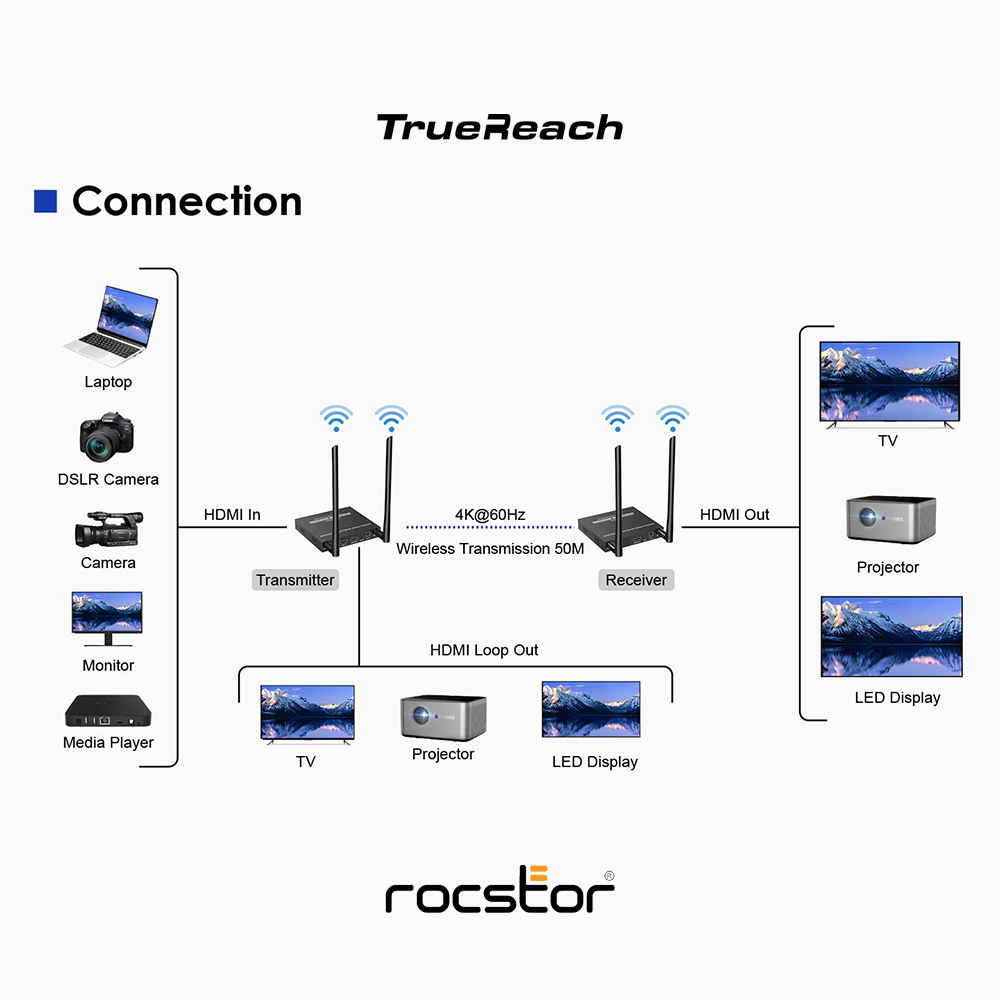

With the TrueReach HDMI over Wireless Extender, installation is a breeze. It’s a plug-and-play solution that requires no software or complicated configurations. Simply connect the HDMI transmitter to your video source and the receiver to your display or projector, and you’re ready to enjoy wireless HDMI connectivity.


• Transmit 4K 60Hz video wirelessly up to 164ft (50m)
• iPcolor Image technology for accurate color reproduction
• Supports IR pass-through for remote control of video source
• Auto SSID pairing for easy setup and connection
• ipColor Stream Technology ensures high-quality video streaming
• Plug-and-play functionality, no software required

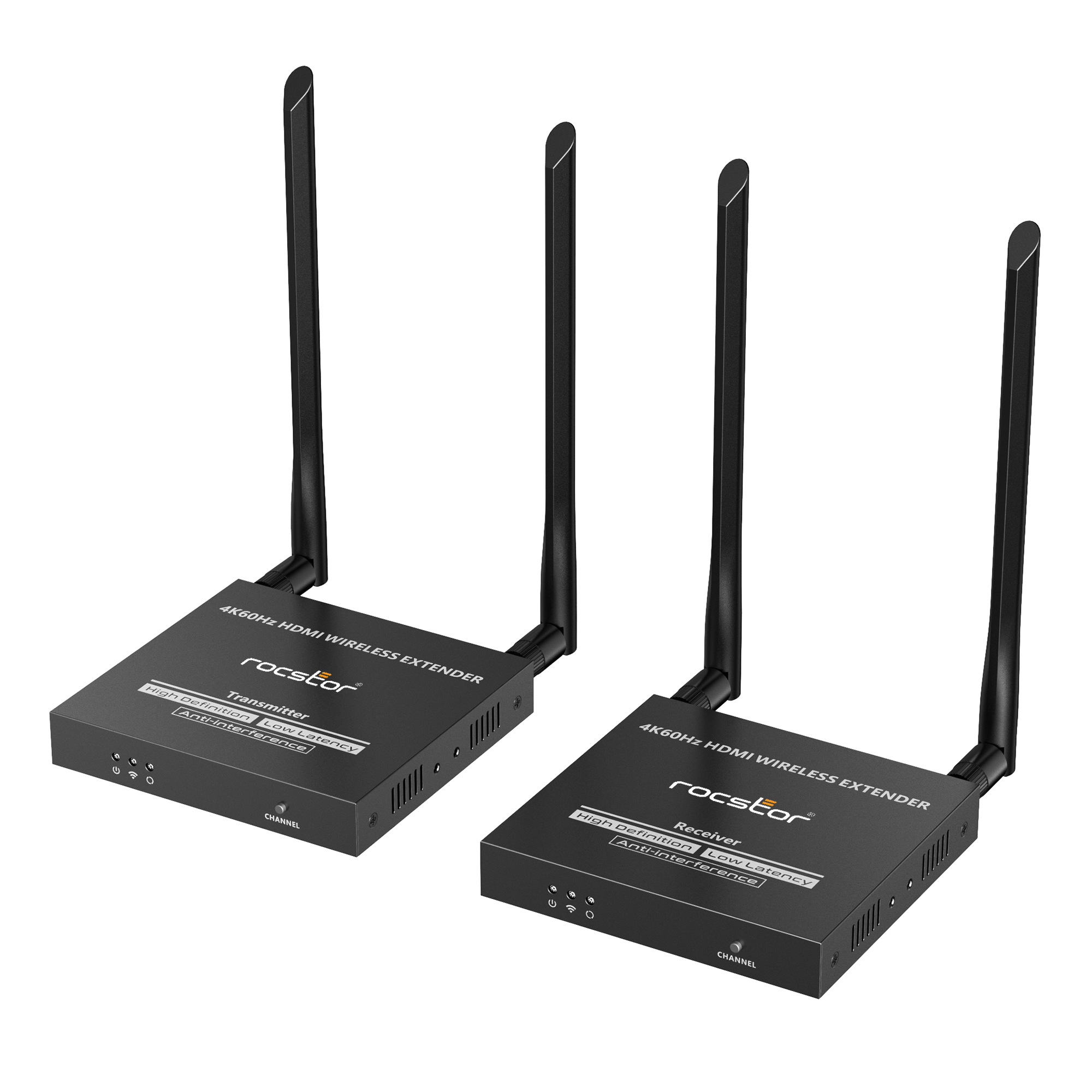

• Includes HDMI transmitter and receiver (kit)
• Durable metal housing for enhanced durability
• Sleek black design complements any AV setup.

Additional information

Weight 2.66 lbs
Dimensions 6.06 × 14.06 × 3.35 in
Extenders Type

HDMI Extender Kit, Wireless Extender Kit





Video In


Video Out


Max Resolution


Max Range

31 – 50

User Manual

Y10G005-B1 User Manual


Power Supply Voltage/Current DC 5V/2A
Power consumption TX ≤ 6W, RX ≤ 4W
HDMI Performance
and Interface
HDMI version HDMI 2.0
HDCP version HDCP 1.4/HDCP 2.2
Maximum transfer
Resolution supported 3840×2160@24/30/50/60Hz,1080P@50/60Hz, 720P@50/60Hz,
1920×1200, 2560×1440, 2560×1600
Input and output TMDS signal 0.7~1.2Vp-p(TMDS)
Input and output DDC signal 5Vp-p(TTL)
Transmission Wi-Fi Frequency bands 5.18~5.24 GHz
Transmission distance ≤ 50m
Latency 130~180ms
Connection types One-to-one
SSID pairing Supported
Protection Level ESD protection 1a Contact discharge level 3
1b Air discharge level 3
Standard: IEC61000-4-2
IR Performance Infrared frequency 20~60kHz
Receiving range ≤ 5m
Operating Environment Working temperature -20~60℃
Storage temperature -30~70℃
Humidity (nocondensation) 0~90% RH
Physical Properties Dimension TX: 115(W) x 125(L) x 20.6(H) mm
RX: 115(W) x 125(L) x 20.6(H) mm
Color Black
Material Iron
Net weight TX: 353g; RX: 346g
