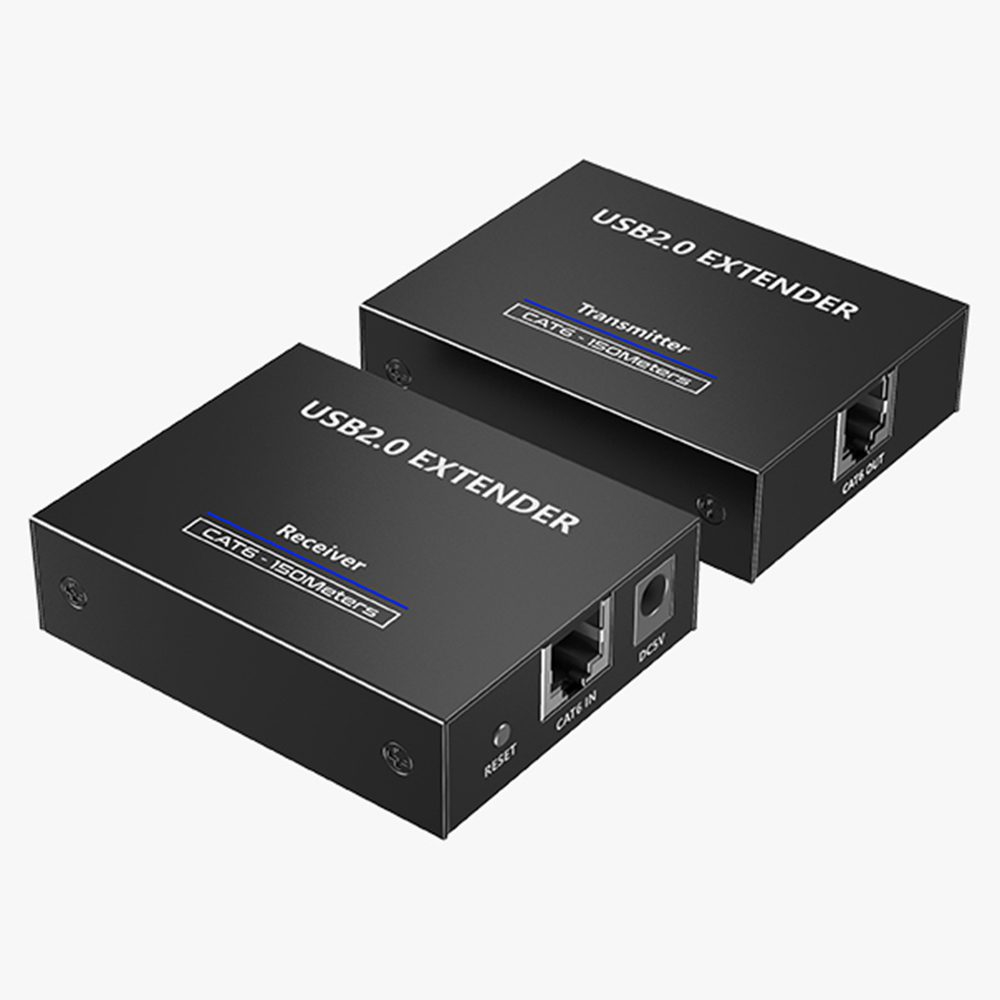

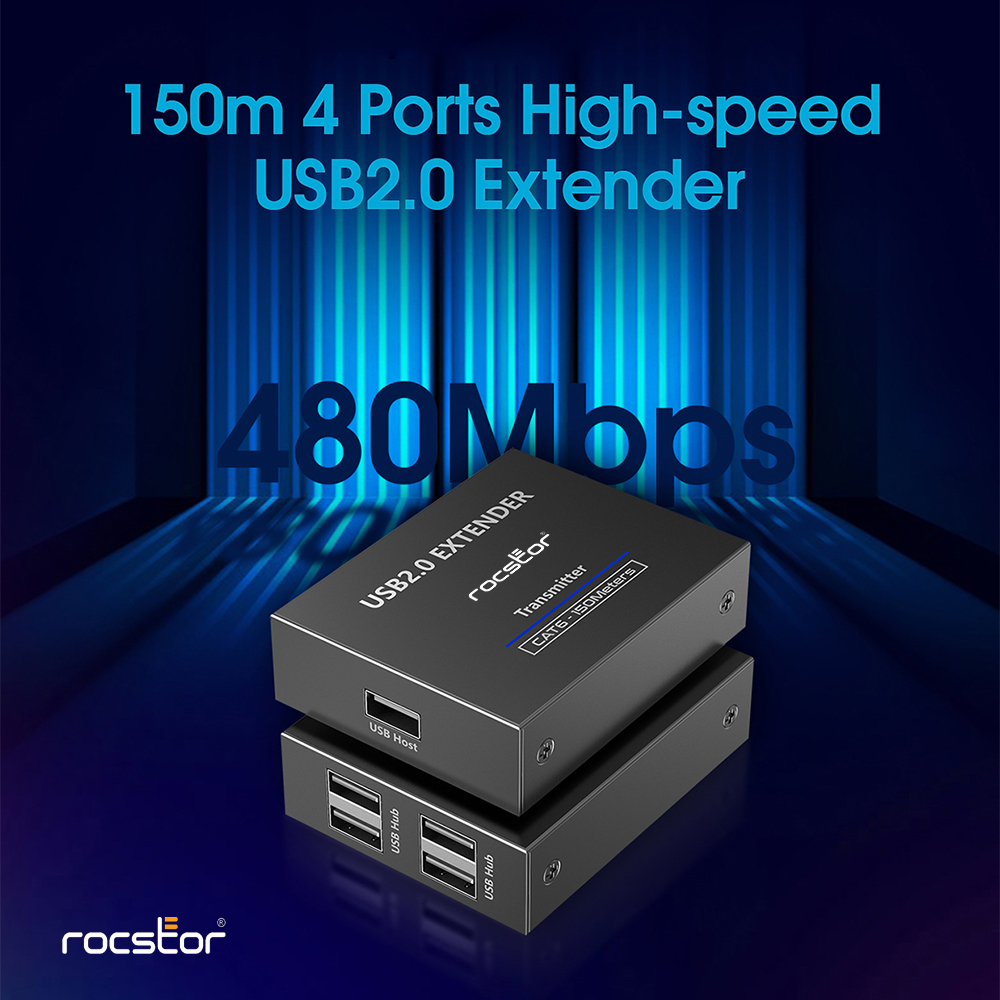

4 Port USB 2.0 Over Cat5/Cat6/Cat6a Extender Bus powered – Up to 492ft
$109.95
4 Port USB 2.0 Over Cat5/Cat6/Cat6a Extender – Up to 492ft (150m) – Bus powered – Link up to four USB 2.0 devices that are located 482ft (150m) away from your computer using Cat5 or Cat6. -Compact and budget-friendly USB extension through a single Ethernet cable.- OS independent – Includes Transmitter & hub Receiver – 3″(L) x 2.4″(W) x 0.8(H) – Black1
Description
4 Port USB 2.0 Over Cat5/Cat6/Cat6a Extender Bus powered – Up to 492ft
Experience the convenience of extended USB connectivity with the Rocstor TrueReach 4 Port USB 2.0 Over Cat5/Cat6/Cat6a Extender. This innovative device allows you to link up to four USB 2.0 devices to your computer, even if they are located as far as 492ft (150m) away. With its compact design and budget-friendly solution, this extender is a versatile addition to any workspace.
The TrueReach USB Extender enables you to extend your USB devices effortlessly using a single Cat5, Cat6, or Cat6a Ethernet cable. Say goodbye to the limitations of standard USB cable lengths and enjoy the freedom to connect devices even at longer distances. Whether you need to extend your printer, keyboard, mouse, or other USB peripherals, this extender has you covered.

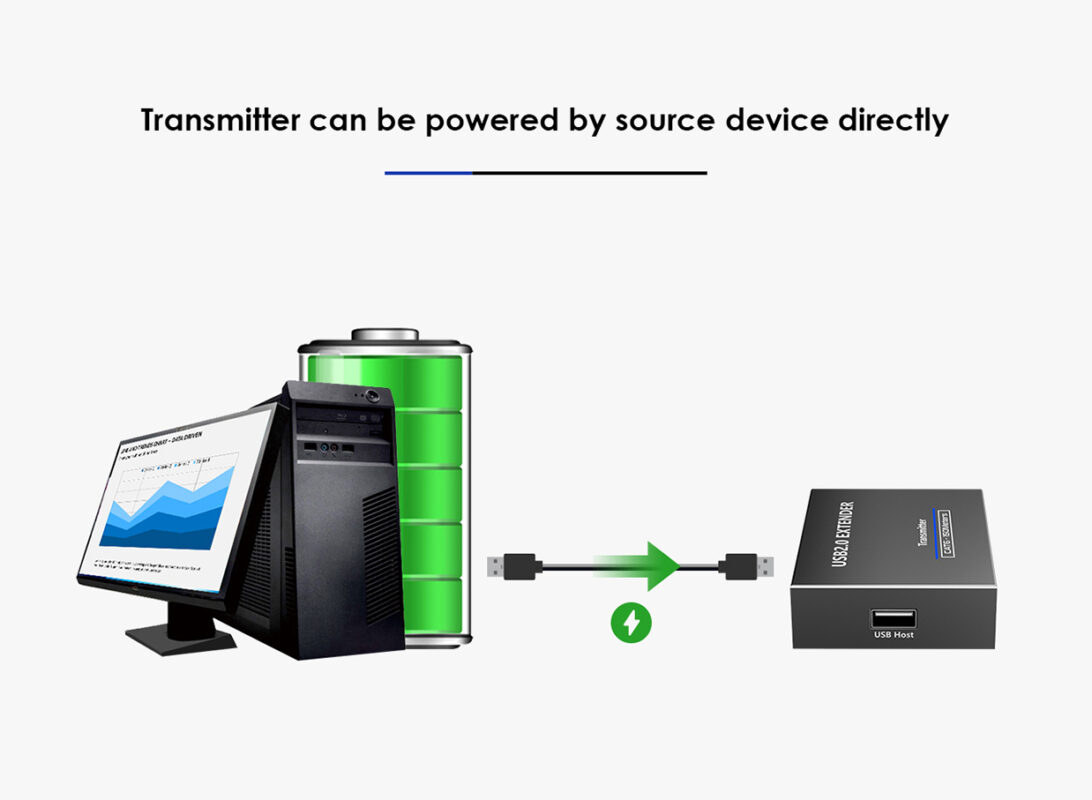

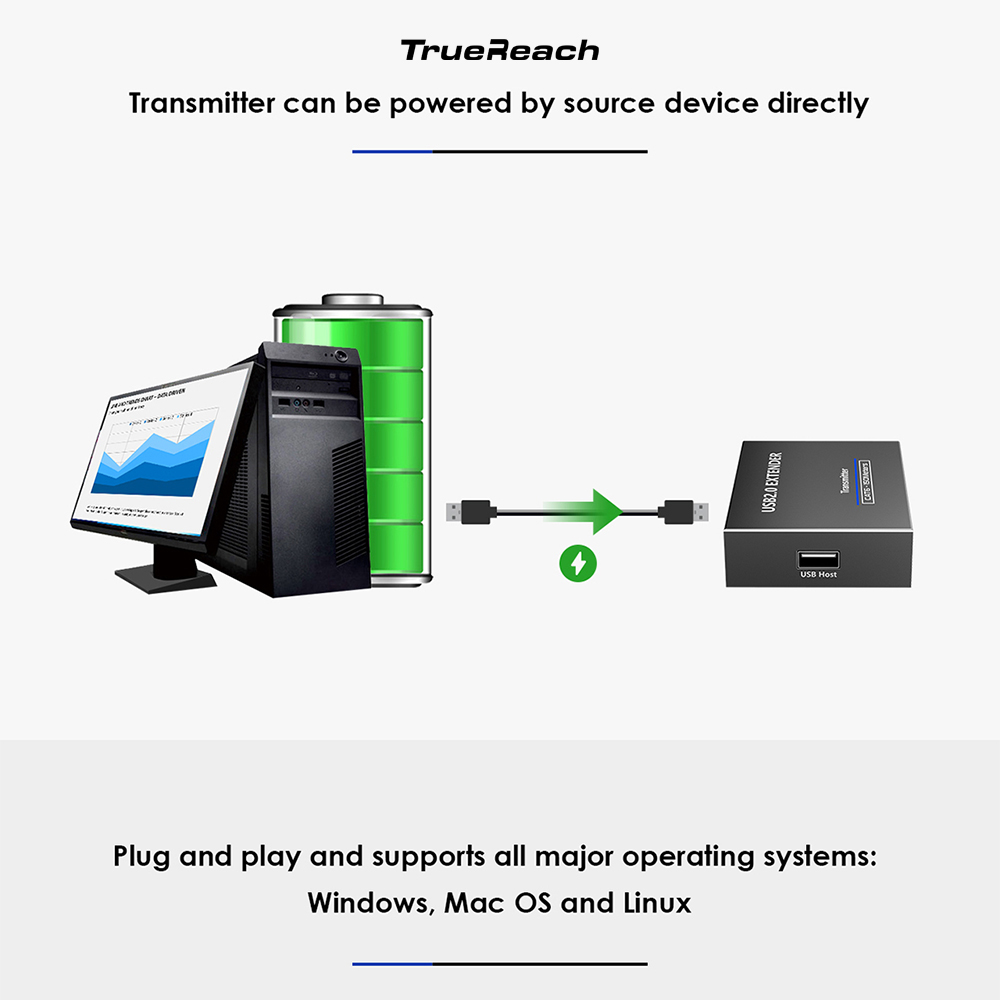

With its bus-powered design, the TrueReach USB Extender eliminates the need for an external power source. Simply connect the Transmitter to your computer and the hub Receiver to your USB devices, and you’re ready to go. This streamlined setup makes installation quick and hassle-free.
The TrueReach USB Extender is OS independent, ensuring compatibility with various operating systems. Whether you’re using Windows, Mac, or Linux, this extender provides seamless functionality, allowing you to connect and operate your USB devices without any compatibility issues.
Features:
• Extend USB connectivity up to 492ft (150m) using Cat5, Cat6, or Cat6a Ethernet cable

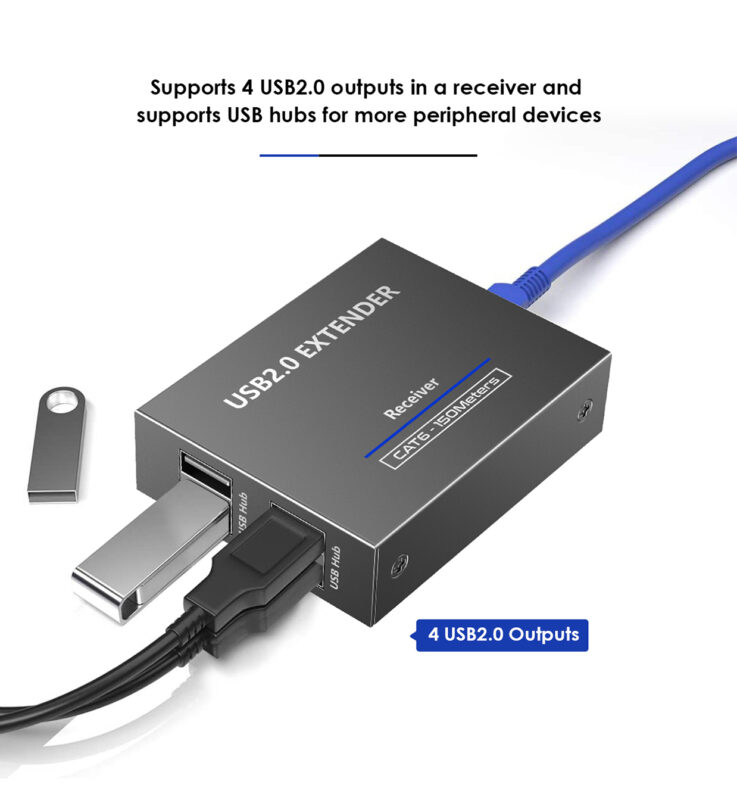

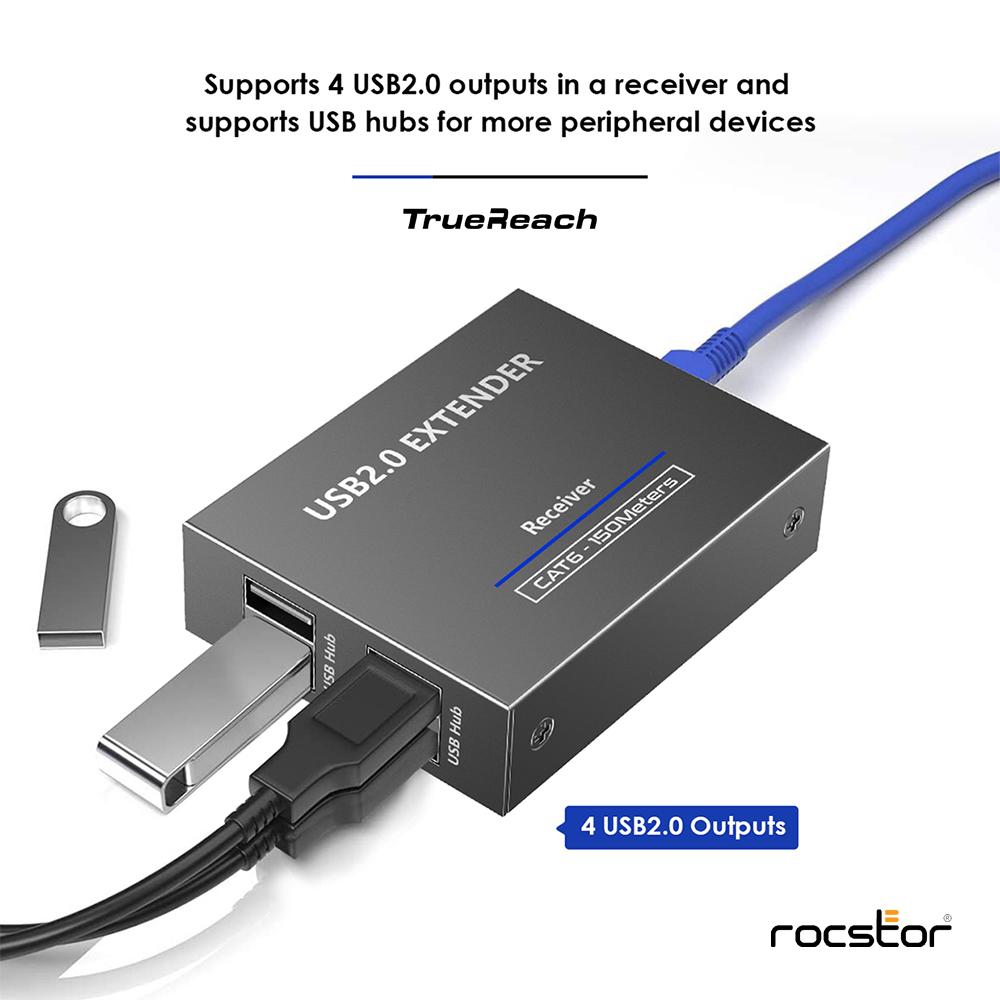

• Link up to four USB 2.0 devices to your computer at longer distances
• Compact and budget-friendly solution for extended USB connectivity
• Bus-powered design eliminates the need for an external power source

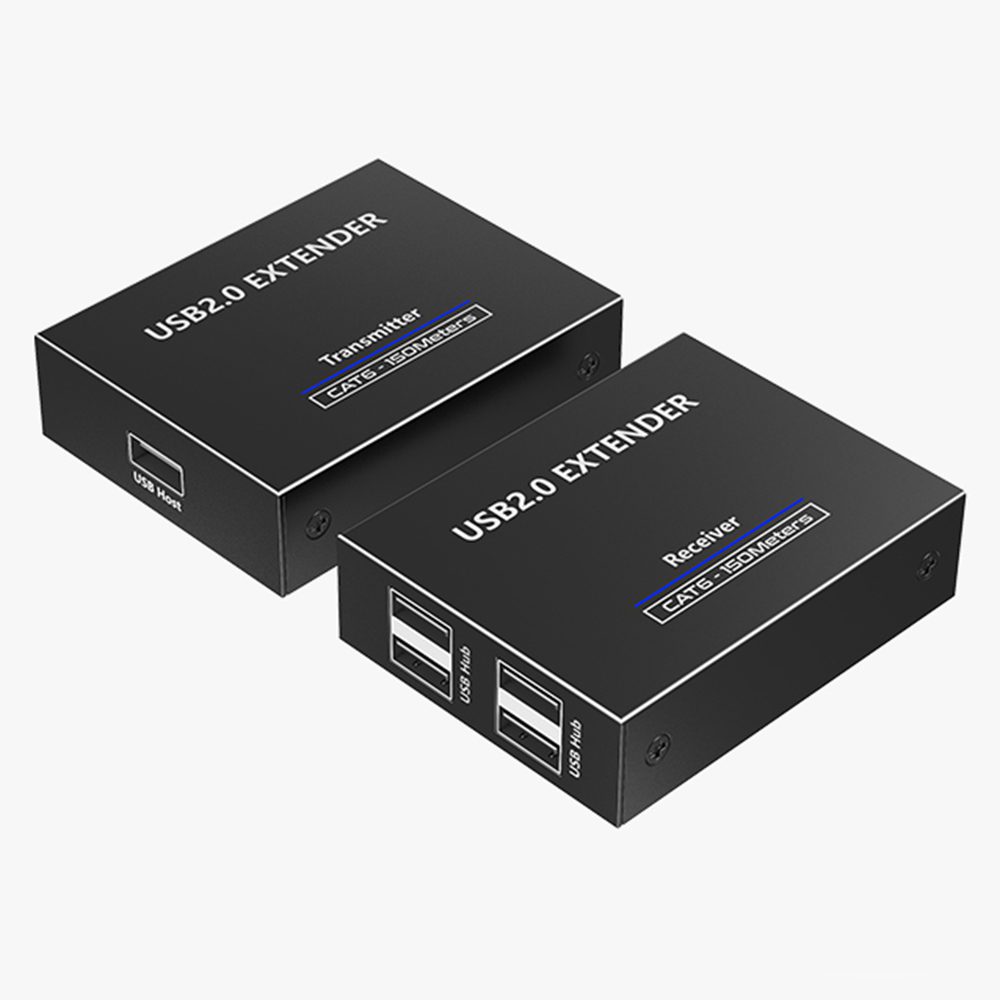

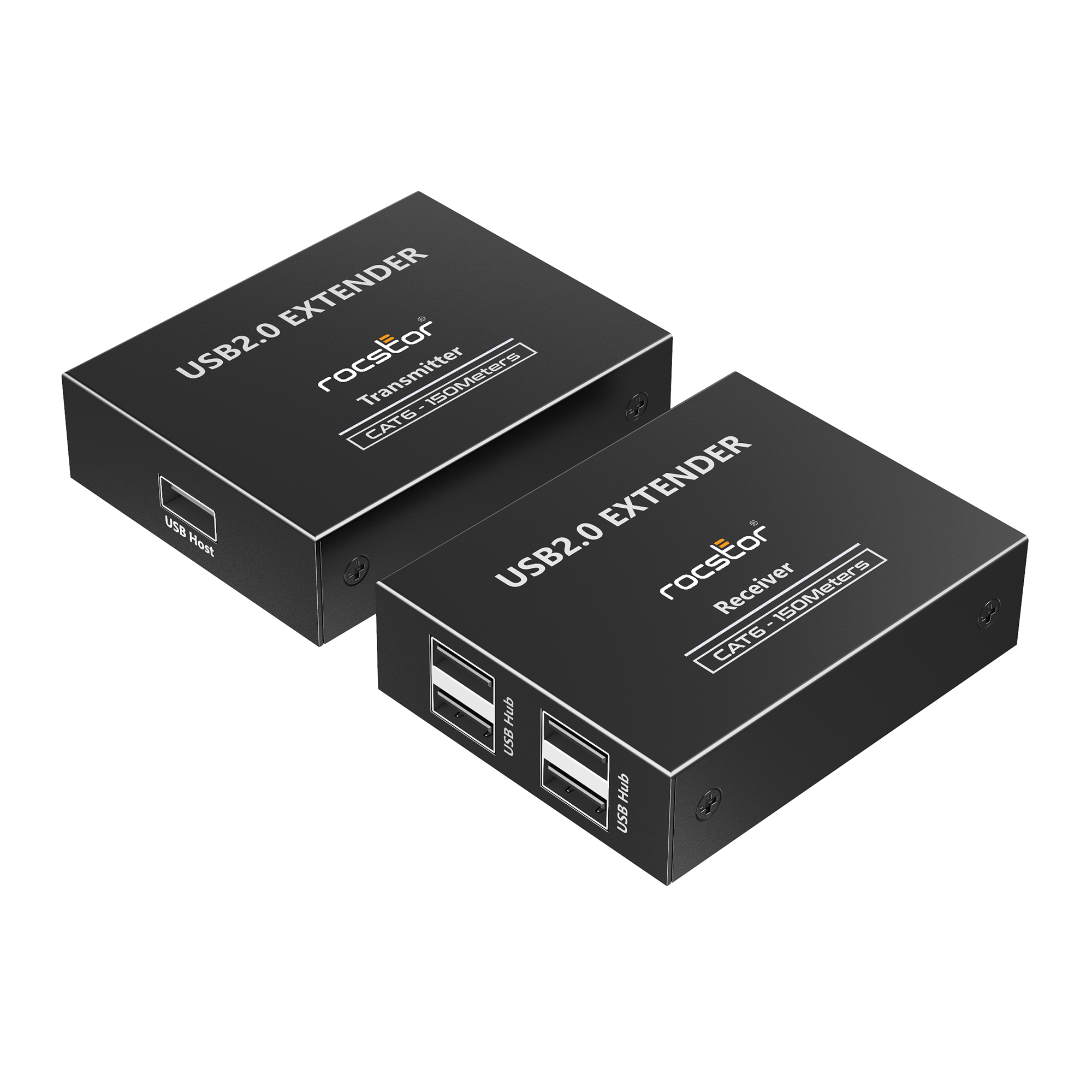

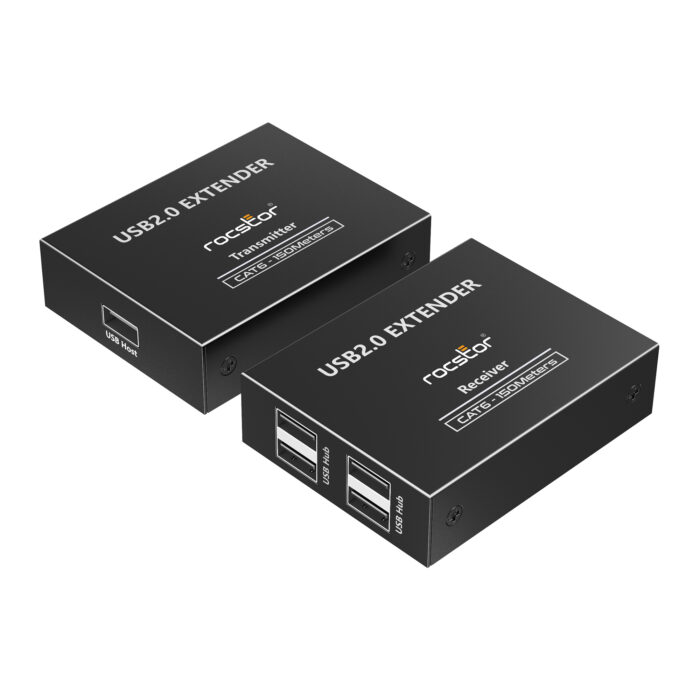

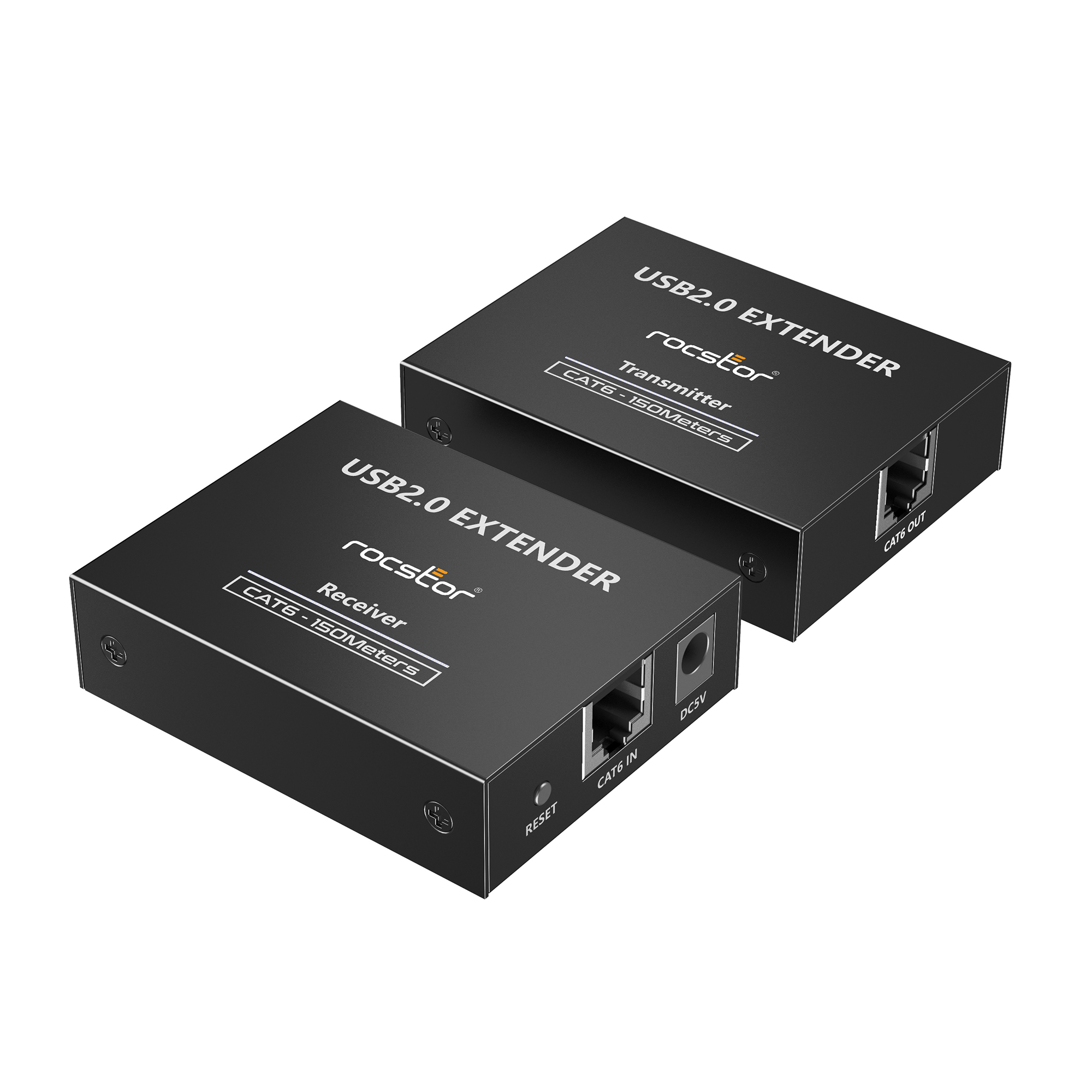

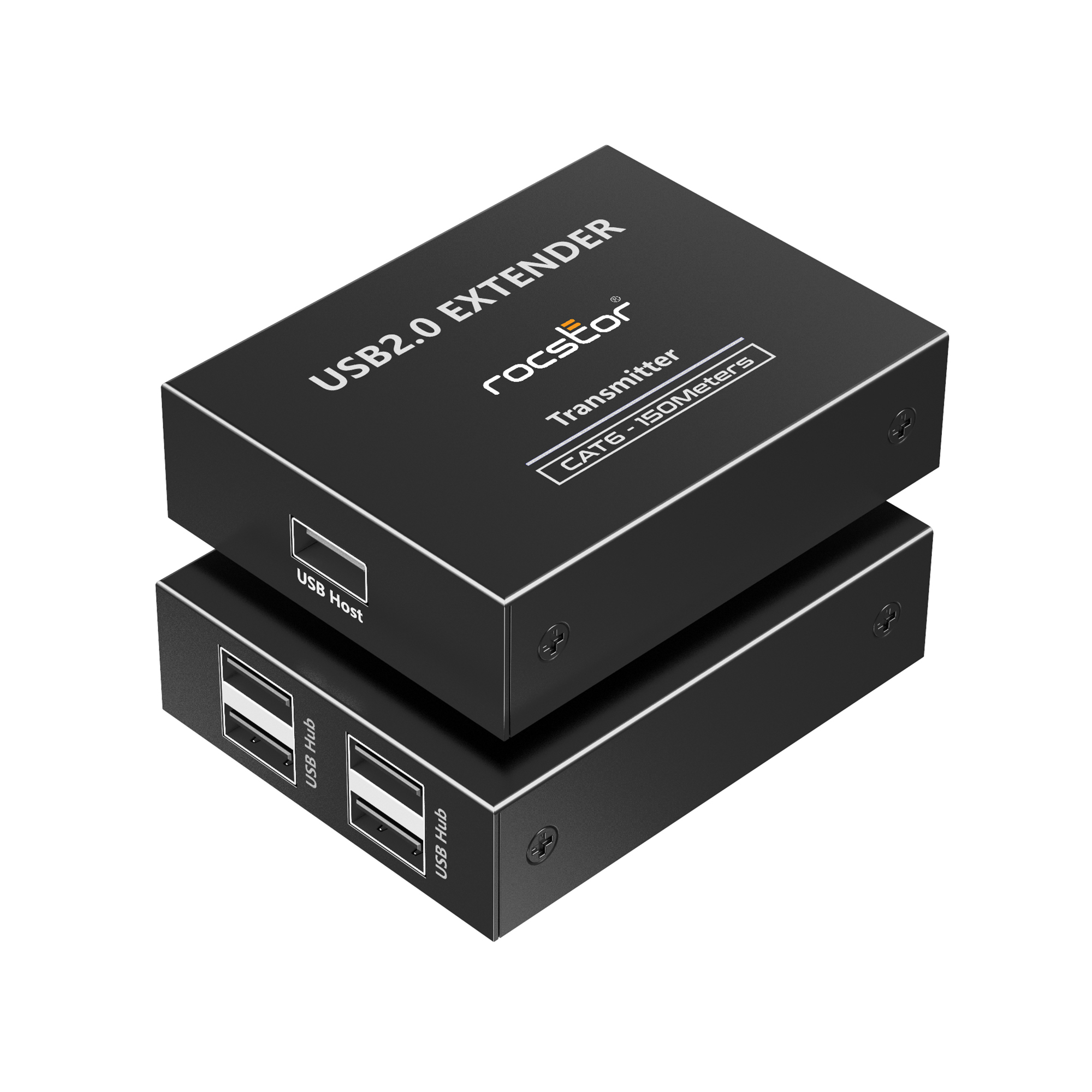

• Streamlined installation with Transmitter and hub Receiver included
• OS independent for compatibility with Windows, Mac, and Linux
• Dimensions: 3″(L) x 2.4″(W) x 0.8″(H)
• Sleek black design blends seamlessly with any workspace.
Additional information
| Extenders Type | Extender Kit, Receiver, Transmitter, USB Extender |
|---|---|
| Style | Box |
| Method | CATx |
| Max Range | 101 – 200 |
User Manual
Specification
| Technical | Transmitter | Receiver |
| USB Compliance | USB2.0, compatible with USB1.1, USB1.0 | |
| USB Rate | compatible with High-Speed, Full-Speed, Low-Speed | |

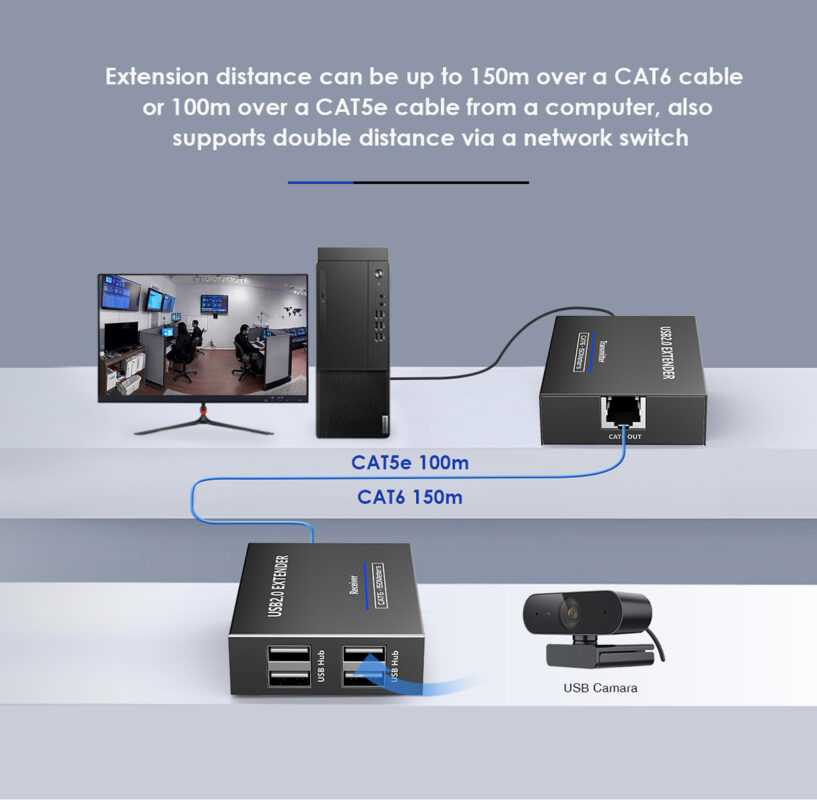

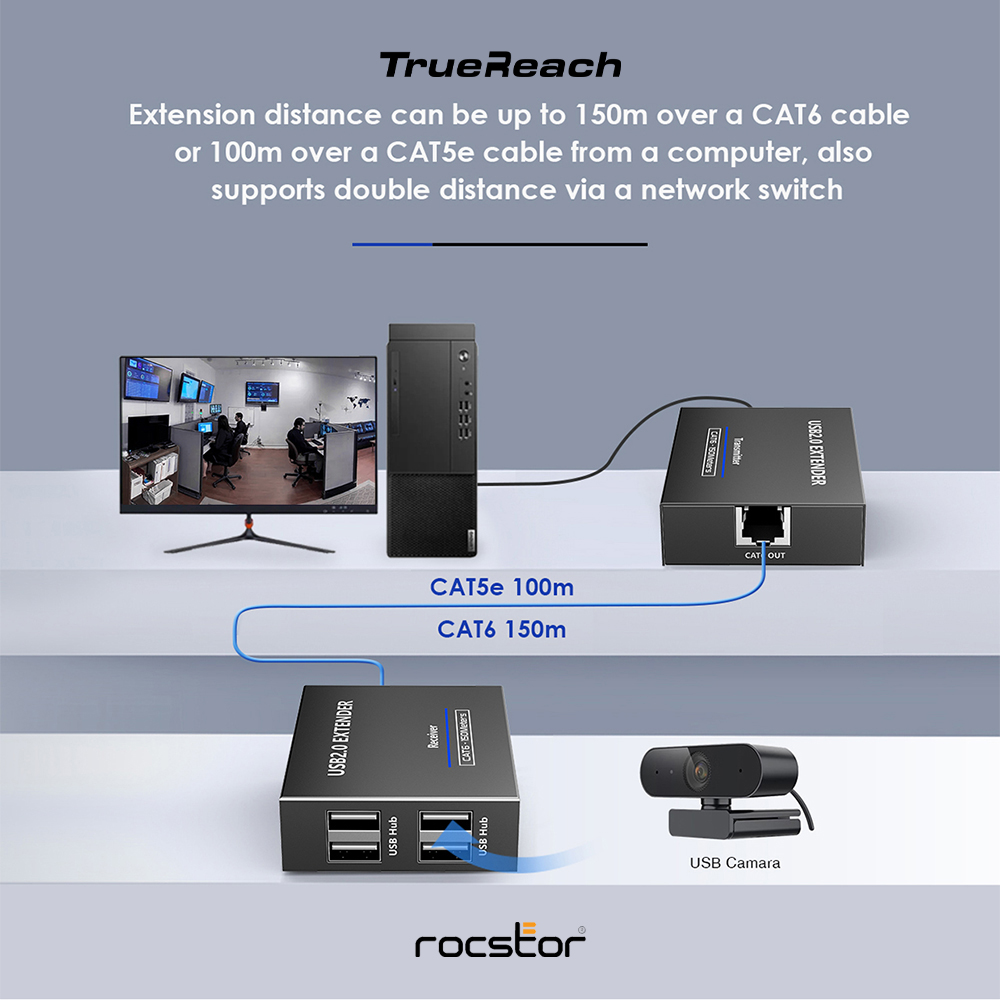

| Transmission Distance | CAT5E≤100m; CAT6/6A/7≤150m | |
| USB Device | Printer, camera, scanner, U disk, keyboard, mouse, touch screen | |

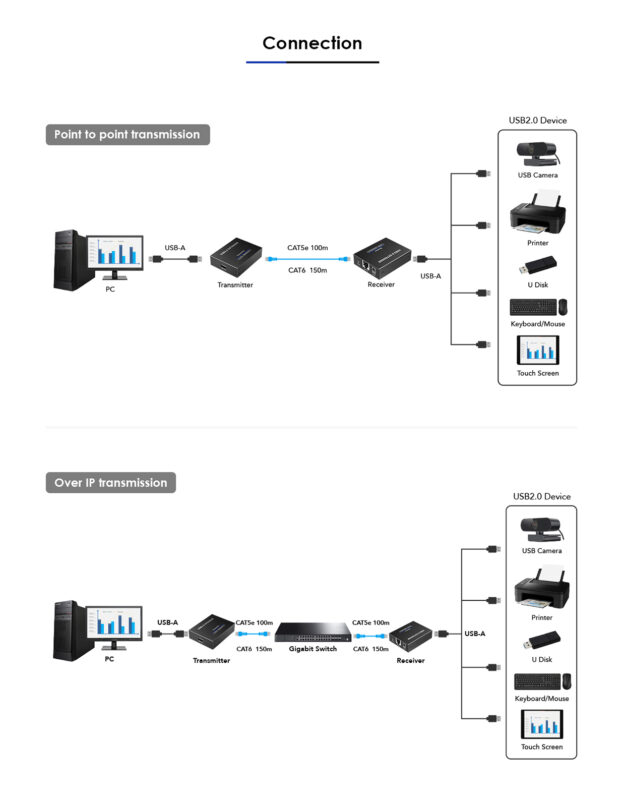

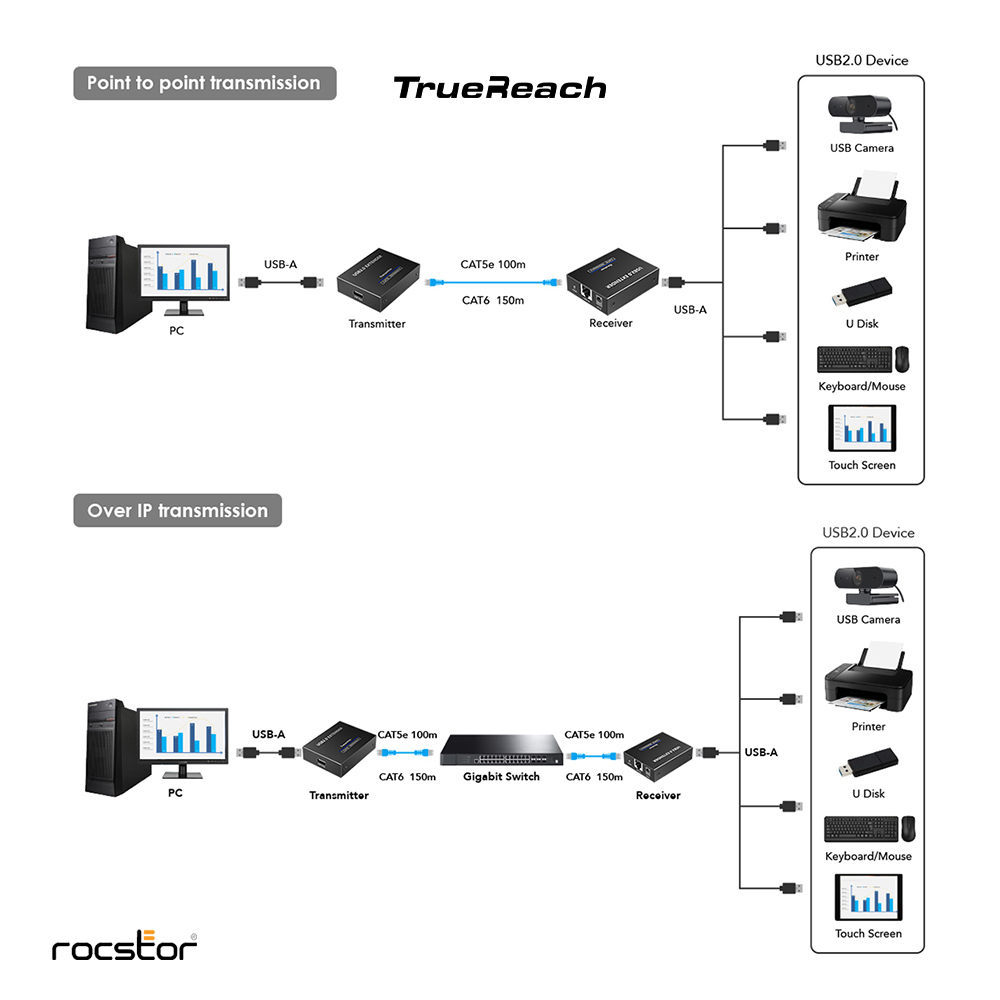

| Switch | support Gigabit switch extension | |
| USB Hot-Plug | support | |
| System | Windows、MacOS、Linux 、Android | |

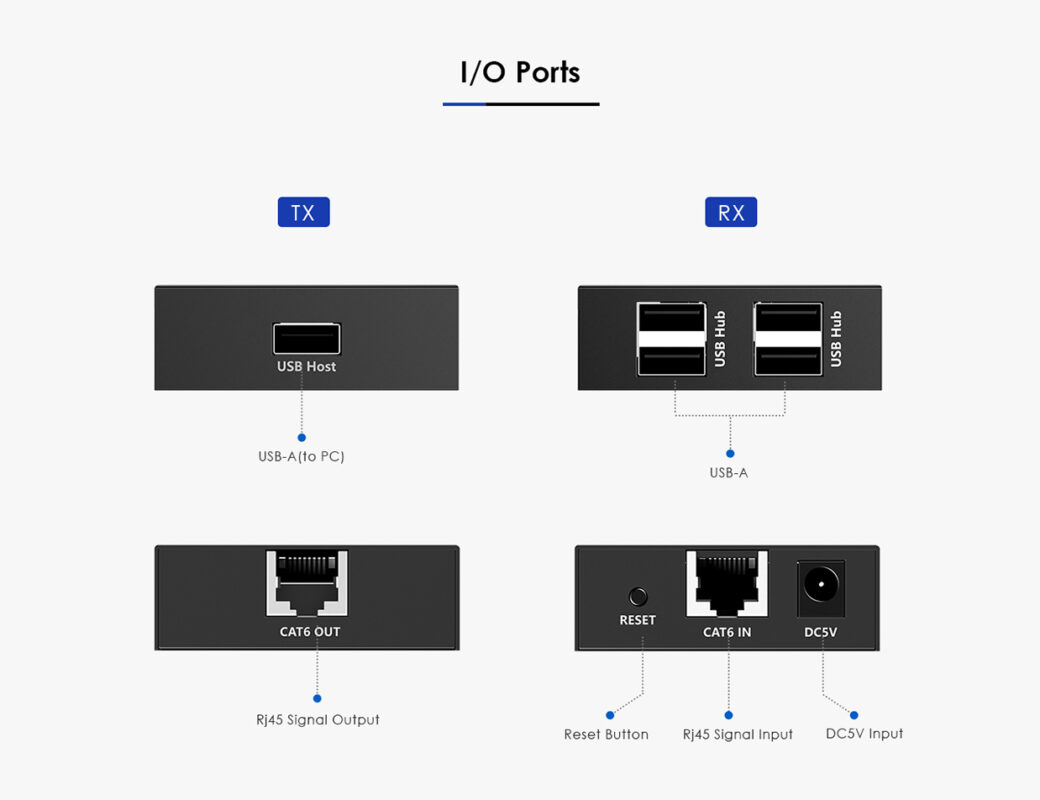

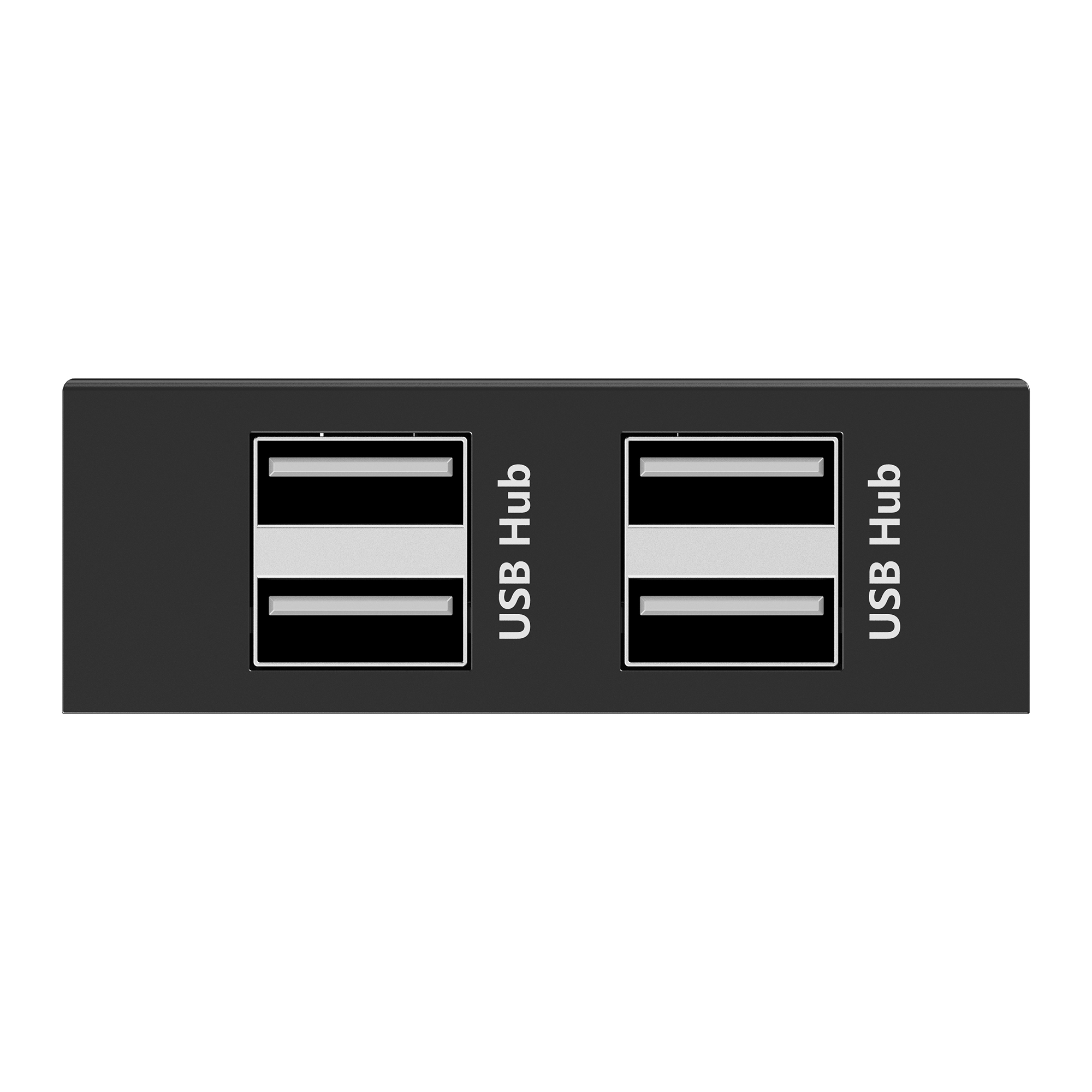

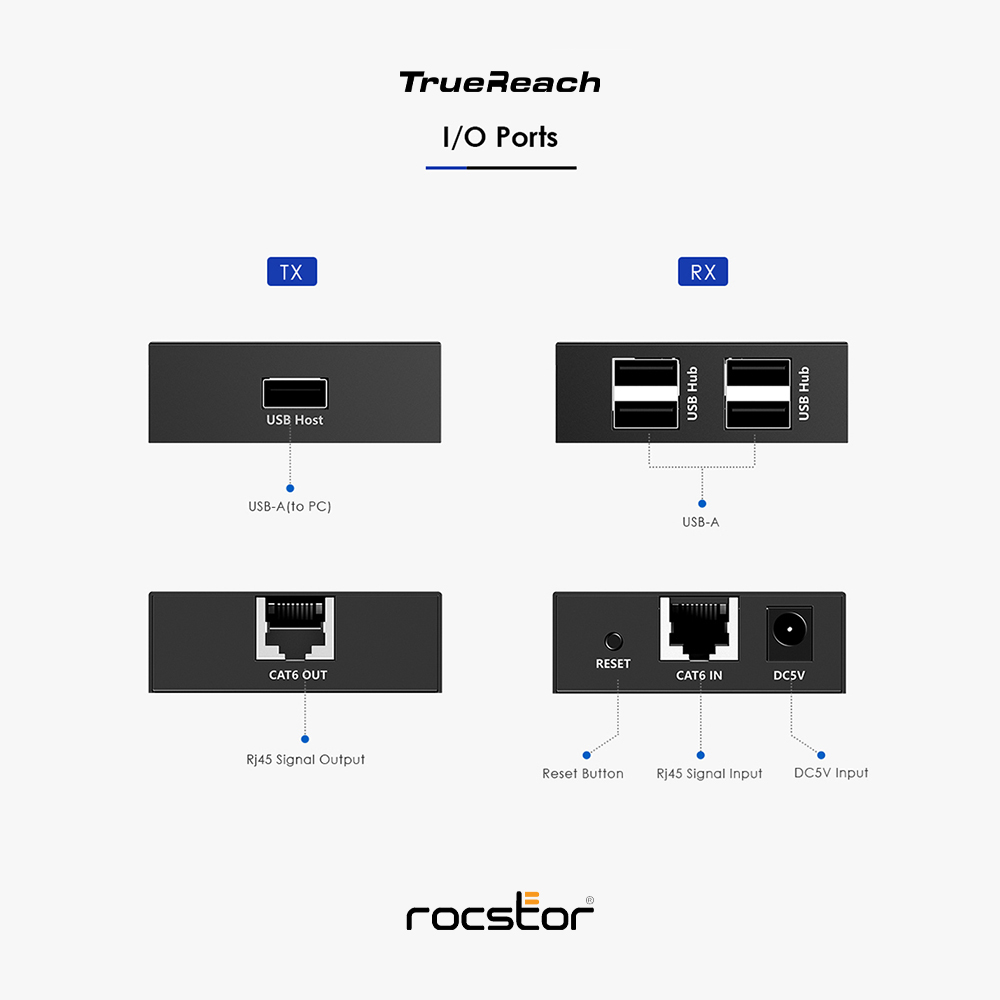

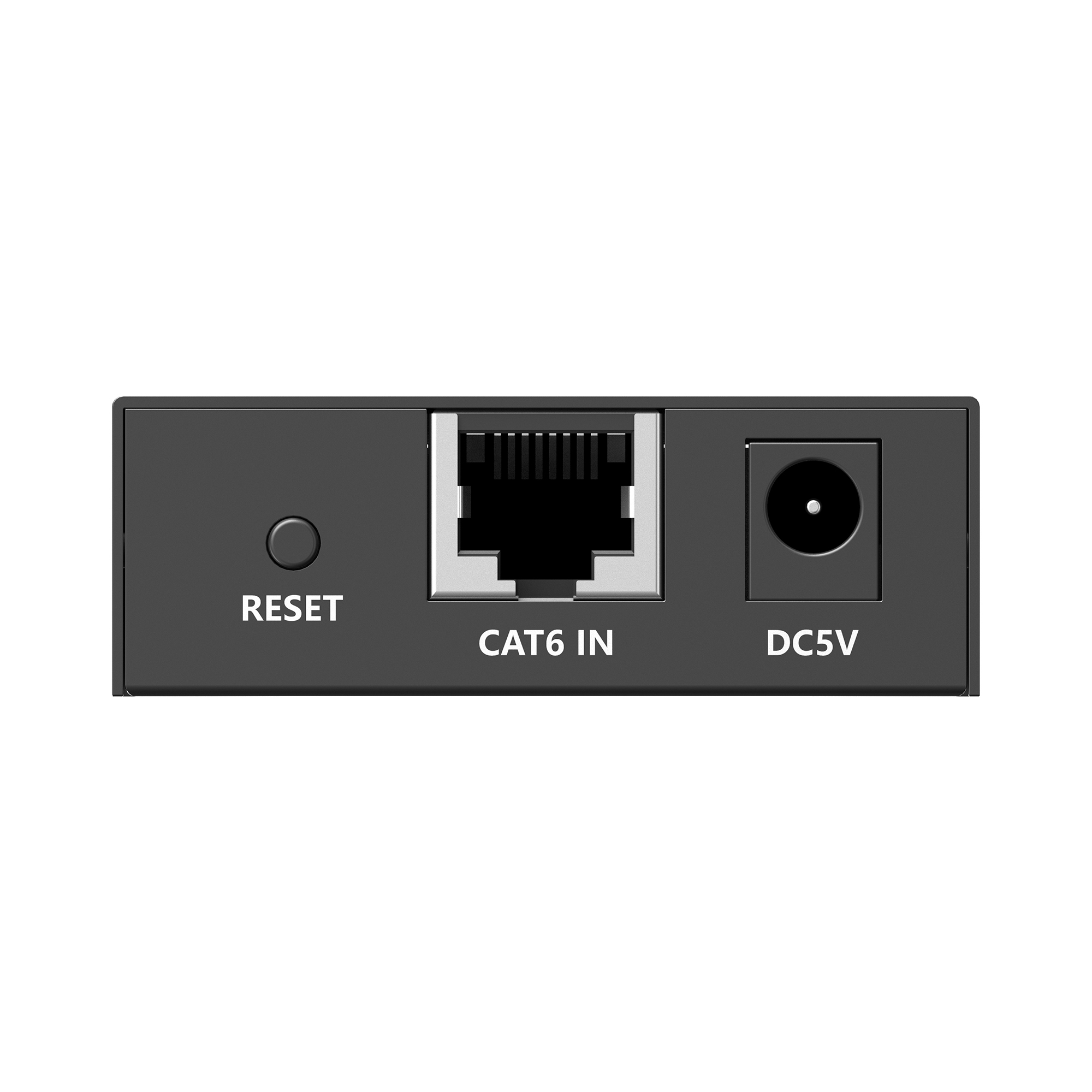

| Input | / | DC2.1×1, RJ45×1, USB-A ×4 |

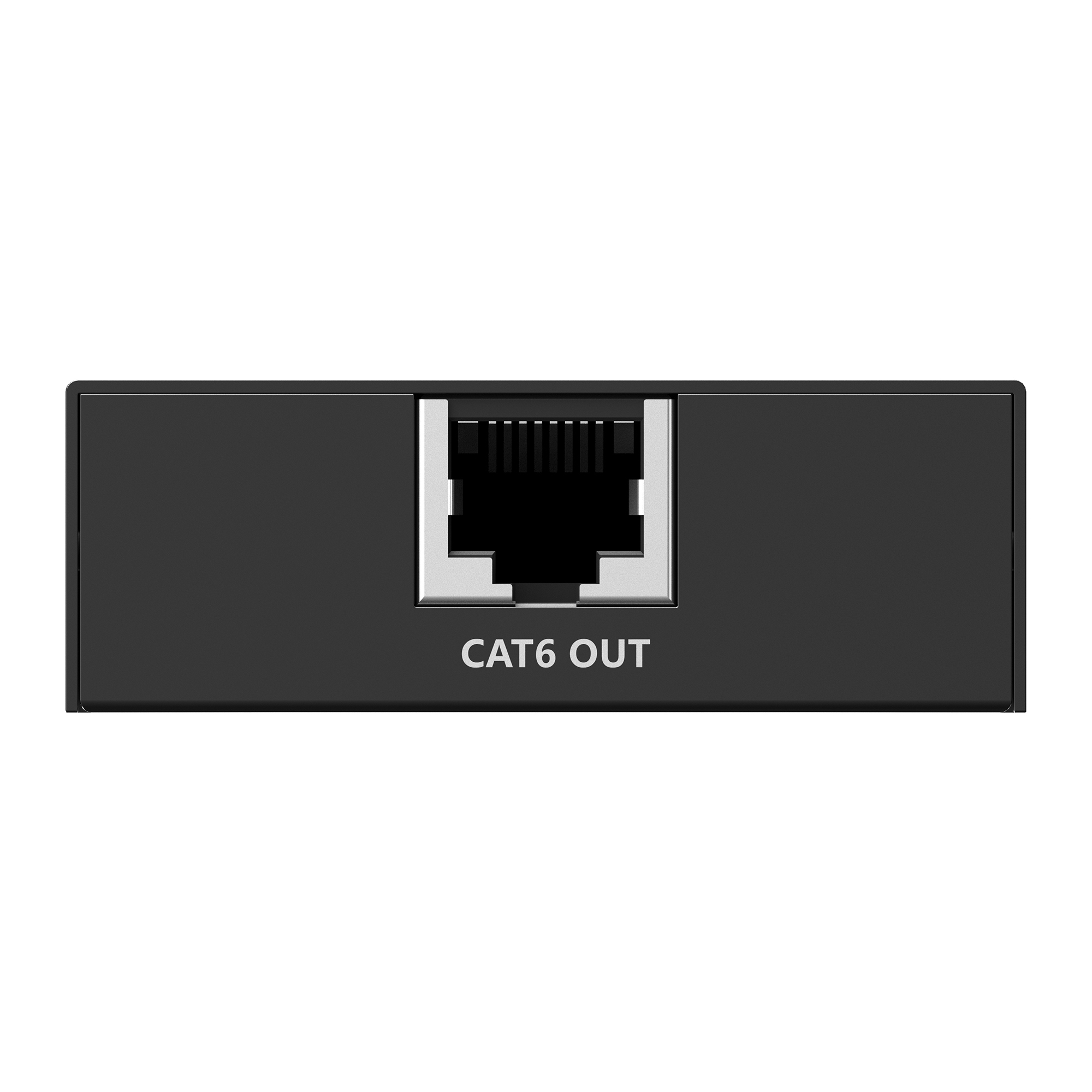

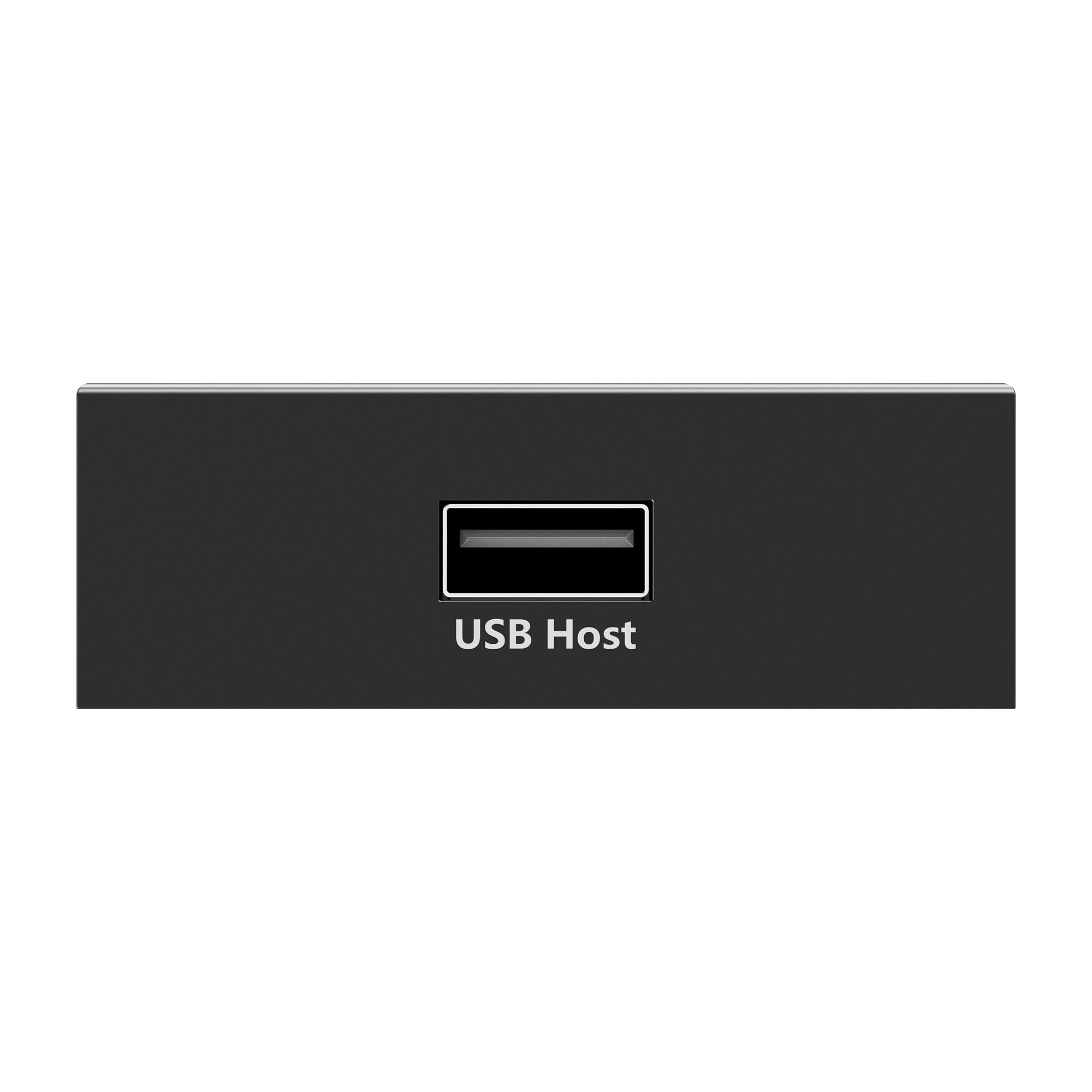

| Output | USB-A×1, RJ45 ×1 | / |
| Network cable standard | CAT5E/CAT6/CAT6A/CAT7 , follow IEEE-5688 standard | |
| Mechanical | Transmitter | Receiver |
| Housing | Iron | |
| Dimensions(L×W×H mm) | 77.0(L) x 60.0(W) x 21.0(H) mm | |
| Net weight | 123g | 128g |
| Power supply | Power from the device | 5V/1A |
| Power consumption | ≤2W | ≤2W |
| Operation temperaure | -20～60℃ | |
| Storage temperature | -30～70℃ | |
| Relative humidity | 0～90%(no condensation) | |
| Protection | Lightning Protection, Surge Protection, ESD Protection | |
| Application | Industrial Control, KVM Extension, Professional Audio-Visual, Security and monitoring, Medical Device Connectivity | |
