SolidRack 4U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet – Black
$399.95
Rocstor SolidRack 4U Low Profile Vertical Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet – 4U Rack Height x 19″ Rack Width – 20 in. Deep – Wall Mountable – 150 lb Static/Stationary Weight Capacity – 25.3″x 29.25″x4U (643x743mmx4U) – Wall-mount Cabinet – Steel – Black
Description

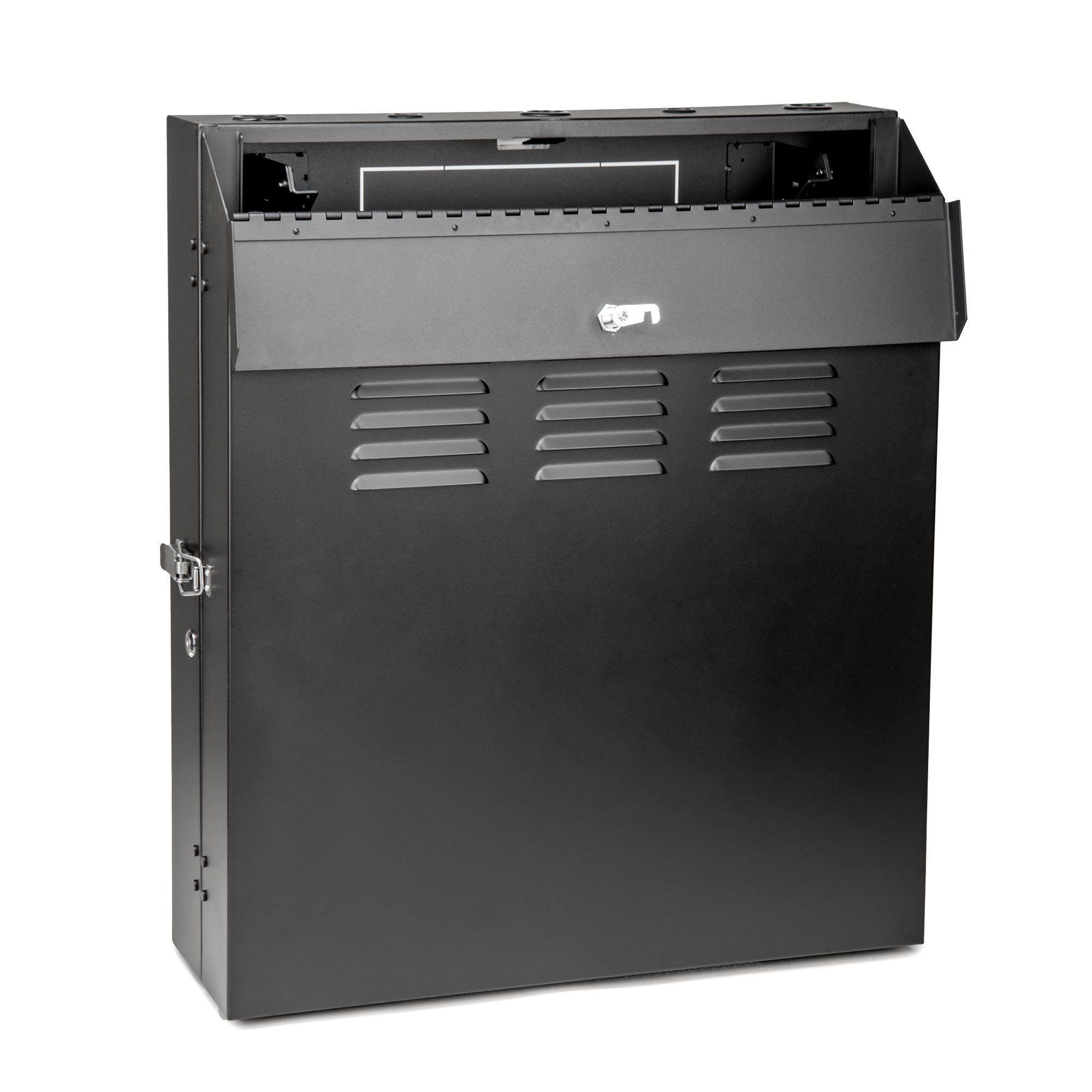

The SolidRack 4U Low-Profile Vertical-Mount Switch-Depth Wall-Mount Rack Enclosure Cabinet is an optimal solution for securing and organizing EIA-standard 19-inch rack equipment in constrained spaces like network wiring closets, retail locations, classrooms, and back offices. Constructed from heavy-duty steel with a durable black powder-coated finish, this robust cabinet offers a maximum load capacity of 150 lbs (68 kg), ensuring your equipment is well-supported and protected.

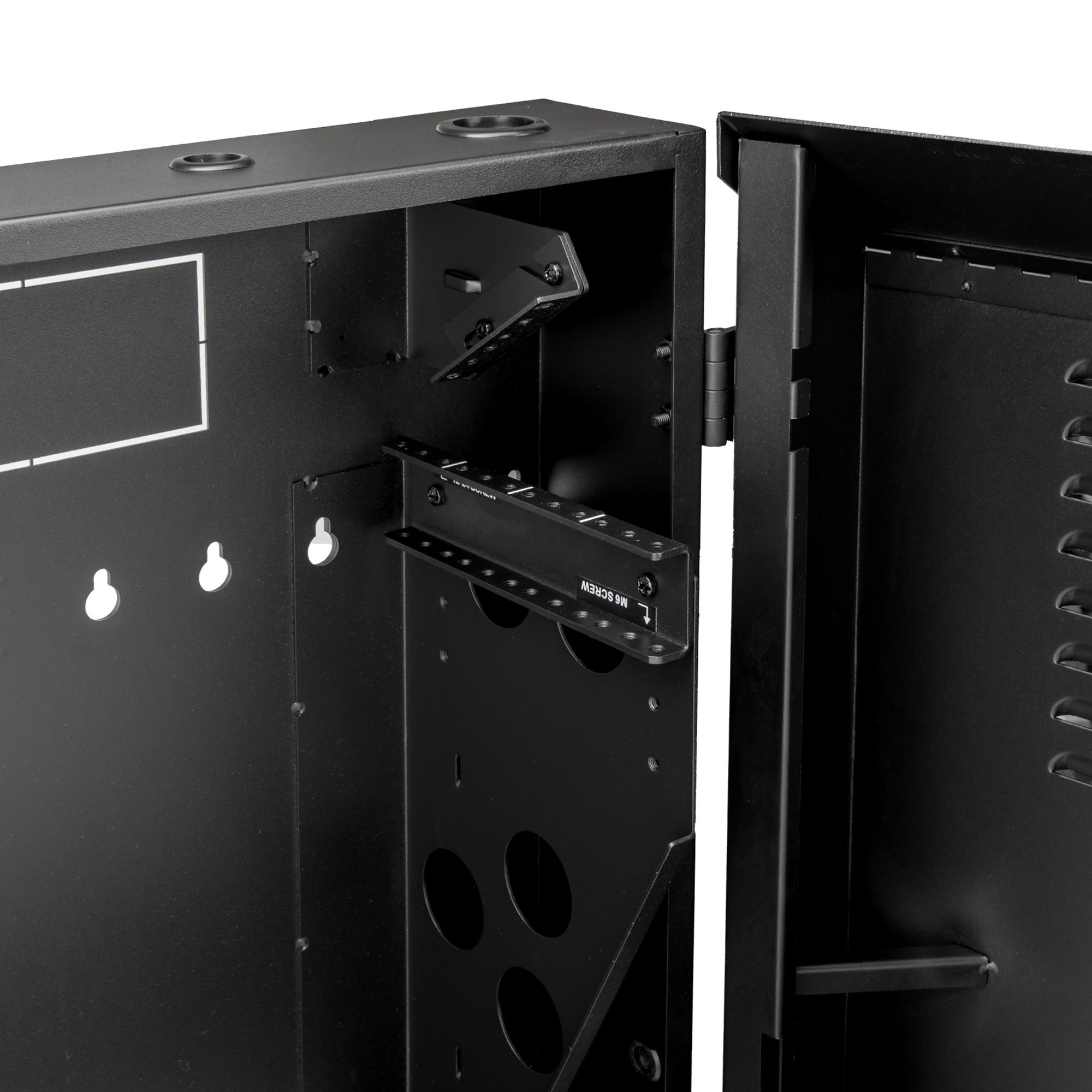

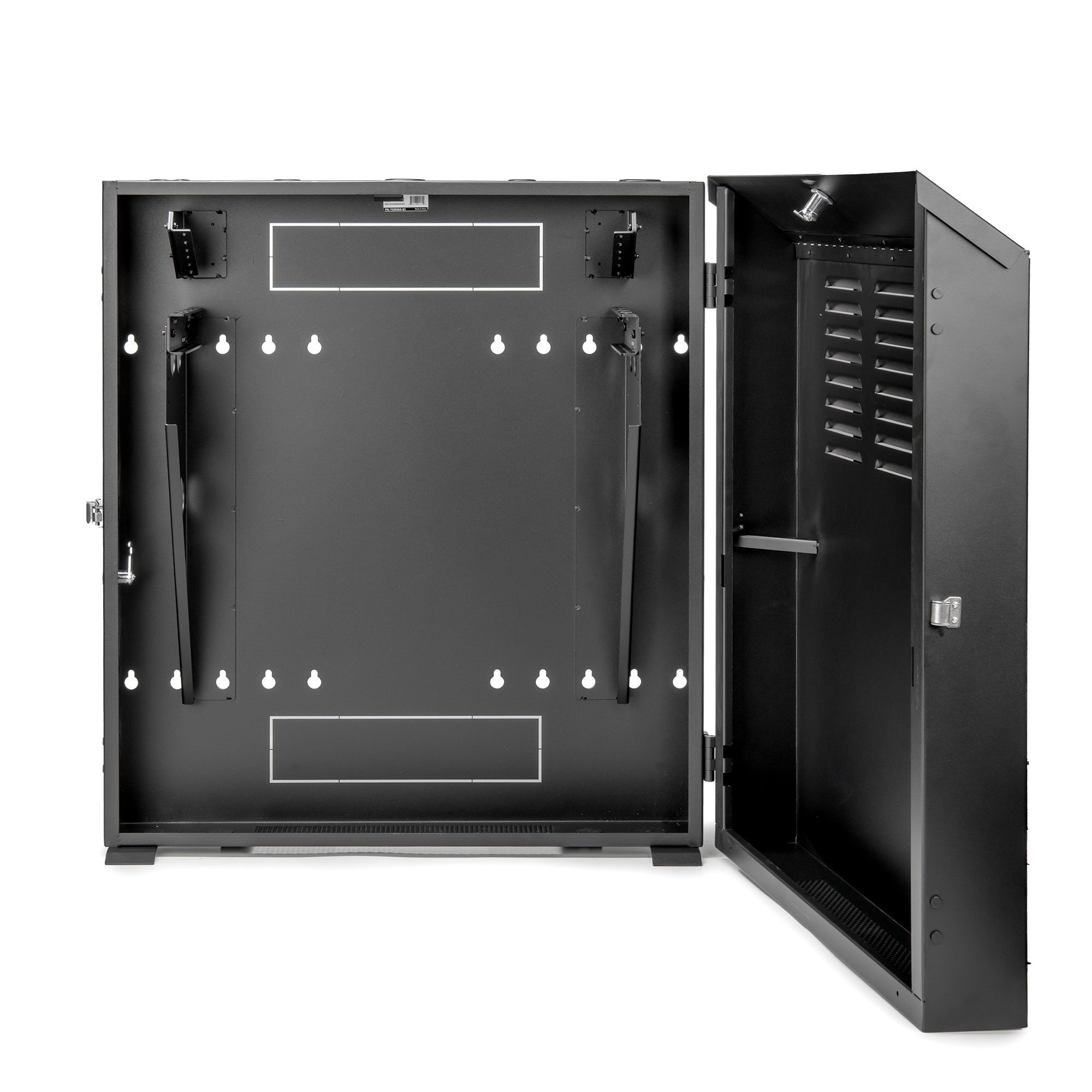

Designed for efficient use of space, the low-profile cabinet mounts vertically and extends just eight inches from the wall while accommodating equipment up to 20 inches deep, such as network switches and patch panels. In addition to providing 4U of rack space in the primary mounting area, the enclosure includes a slide-out 2U mounting bracket at the top for patch panels up to 2.5 inches deep. The cabinet’s secure locking top panel and front door, along with its vented design, ensure that your equipment remains cool and protected from tampering and theft.

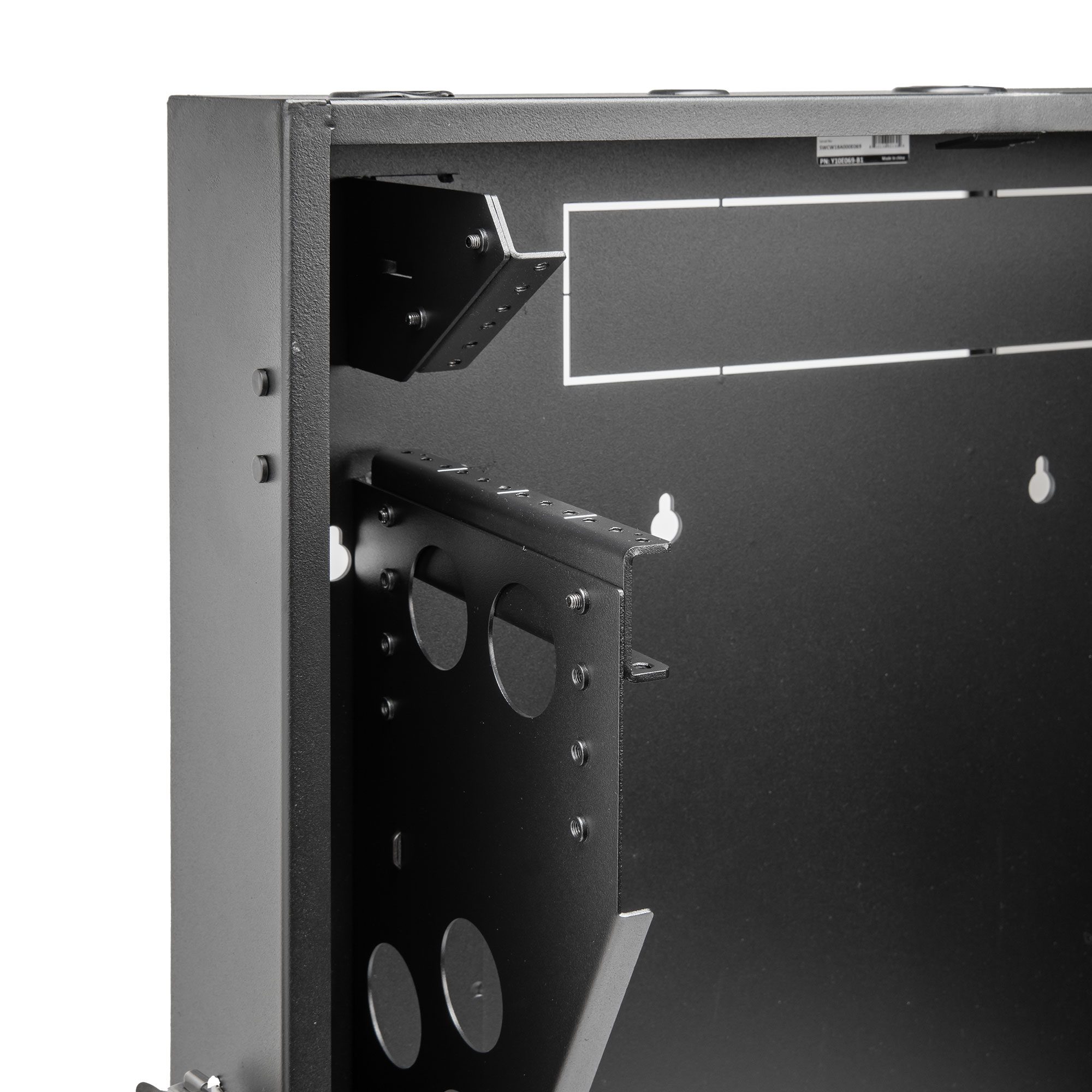

The SolidRack 4U cabinet is user-friendly and arrives fully assembled, ready for quick wall mounting. The installation process is simplified with threaded mounting holes that support M6 or 12-24 hardware, and wall-mounting holes spaced 16 inches apart to align with standard wall studs. The enclosure’s adjustable rails and clearly marked rack spaces further ease the setup, while the convenient top and bottom ports allow for seamless cable routing. Backed by Rocstor 5-year limited warranty and free lifetime technical support.
Key Features
- 4U low-profile vertical-mount cabinet constructed from heavy-duty steel with a black powder-coated finish
- Extends only 8 inches from the wall while housing equipment up to 20 inches deep
- Includes a slide-out 2U mounting bracket for patch panels up to 2.5 inches deep
- Maximum load capacity of 150 lbs (68 kg)

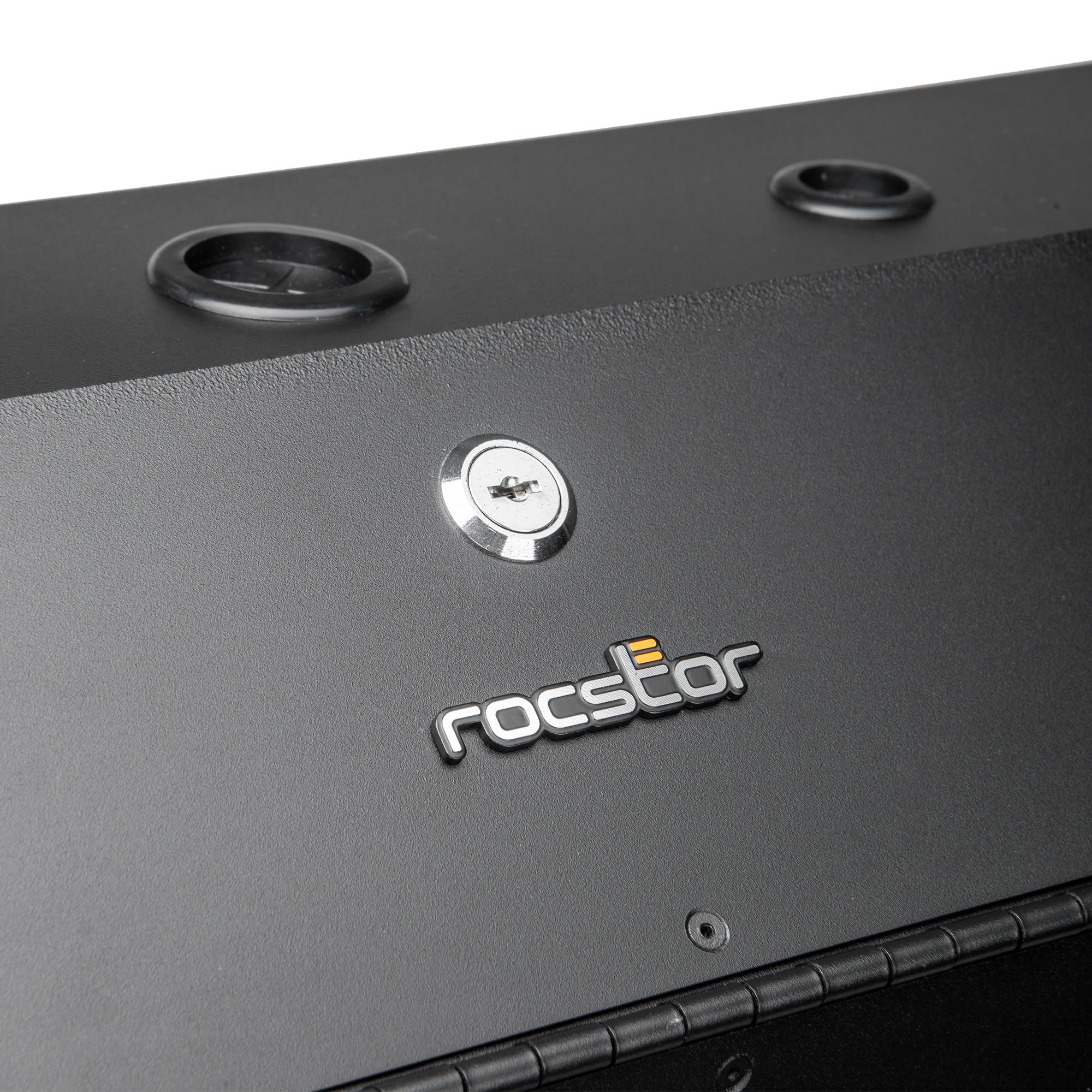

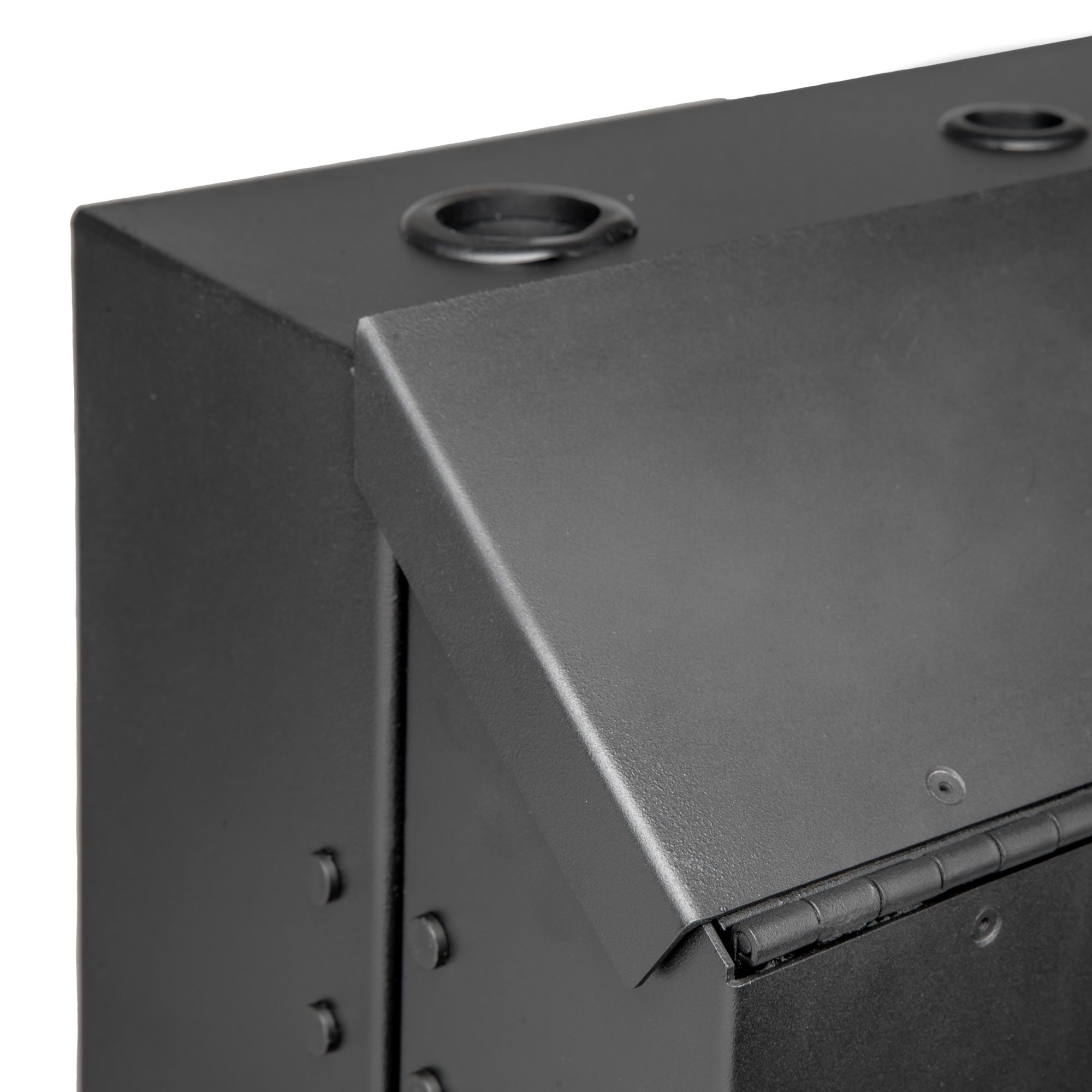

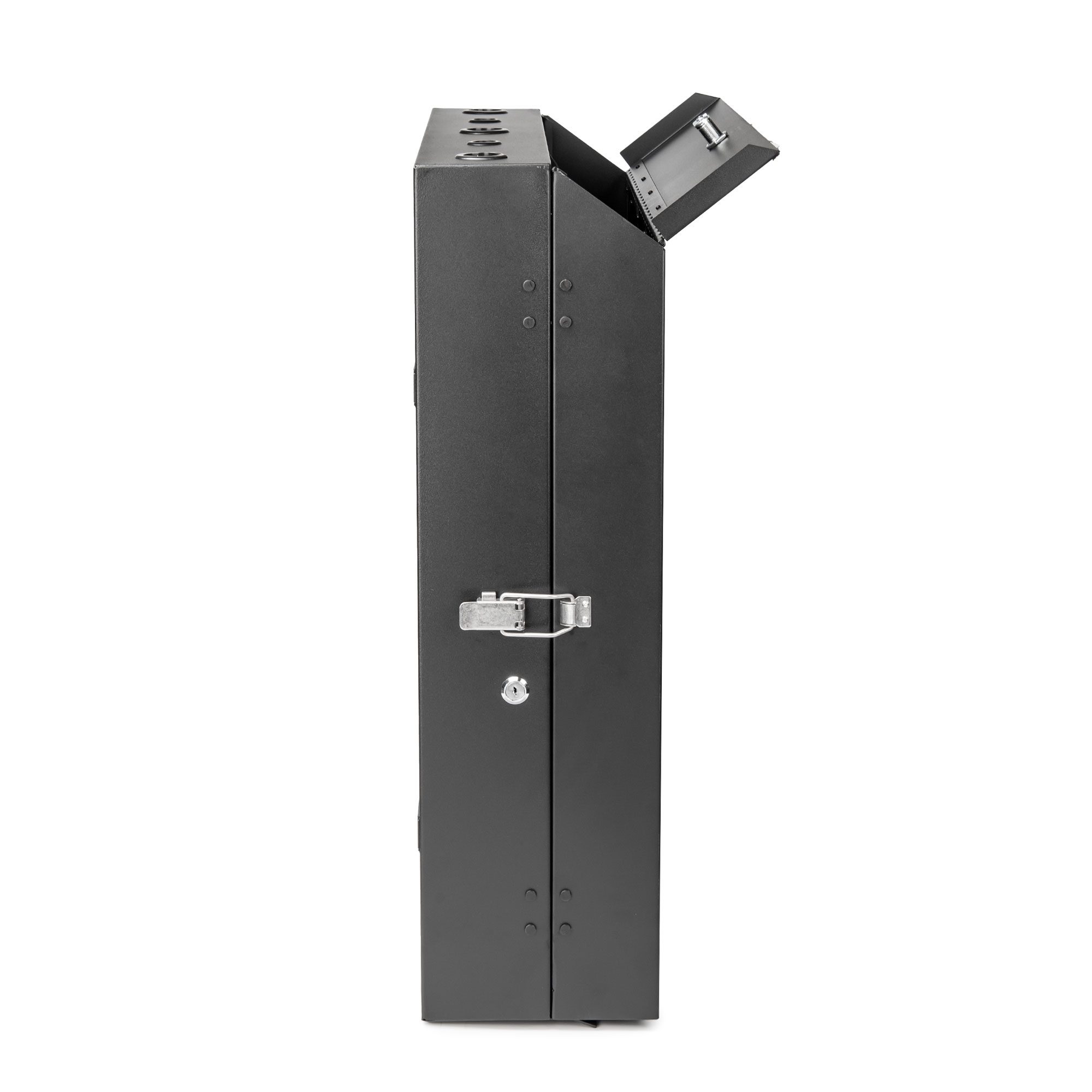

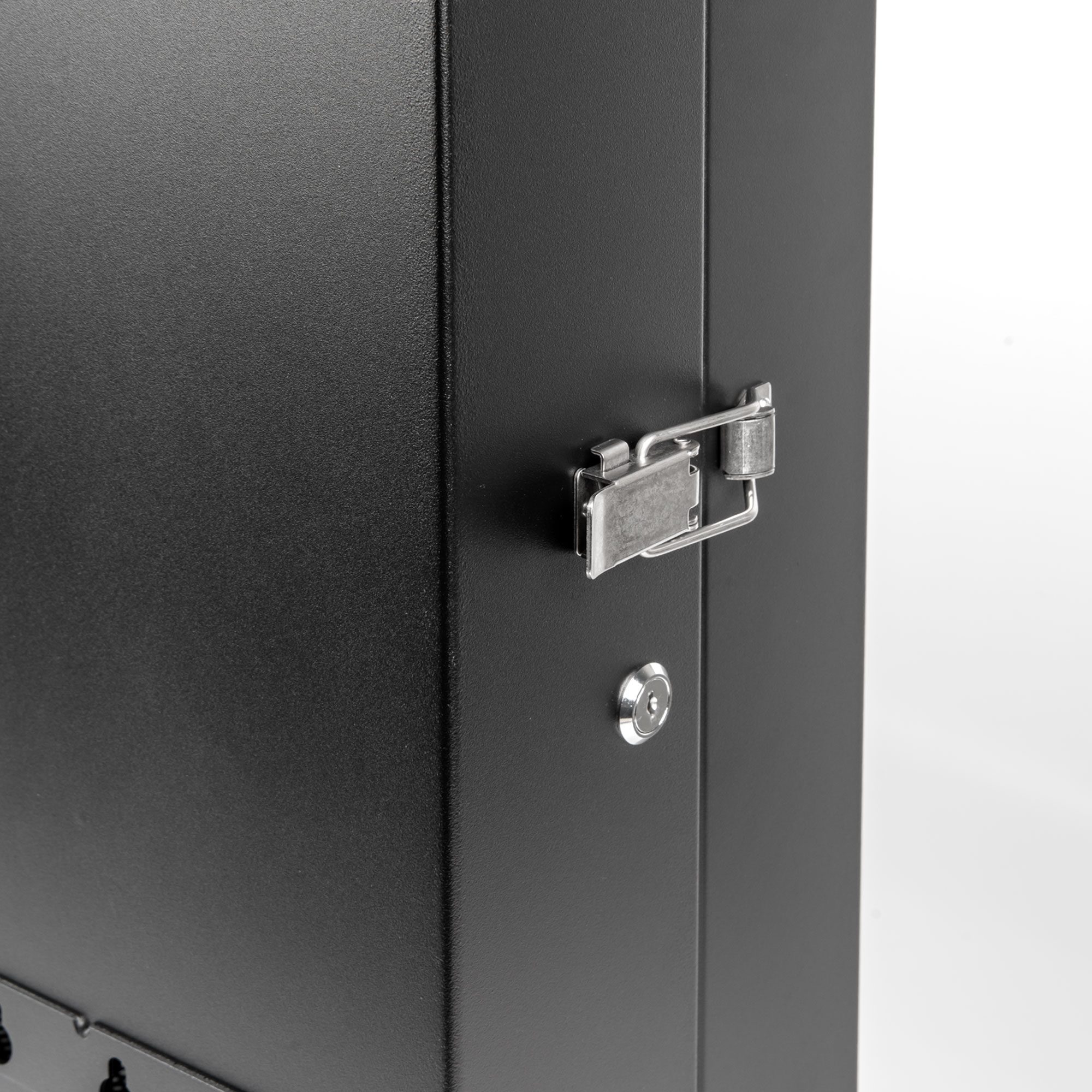

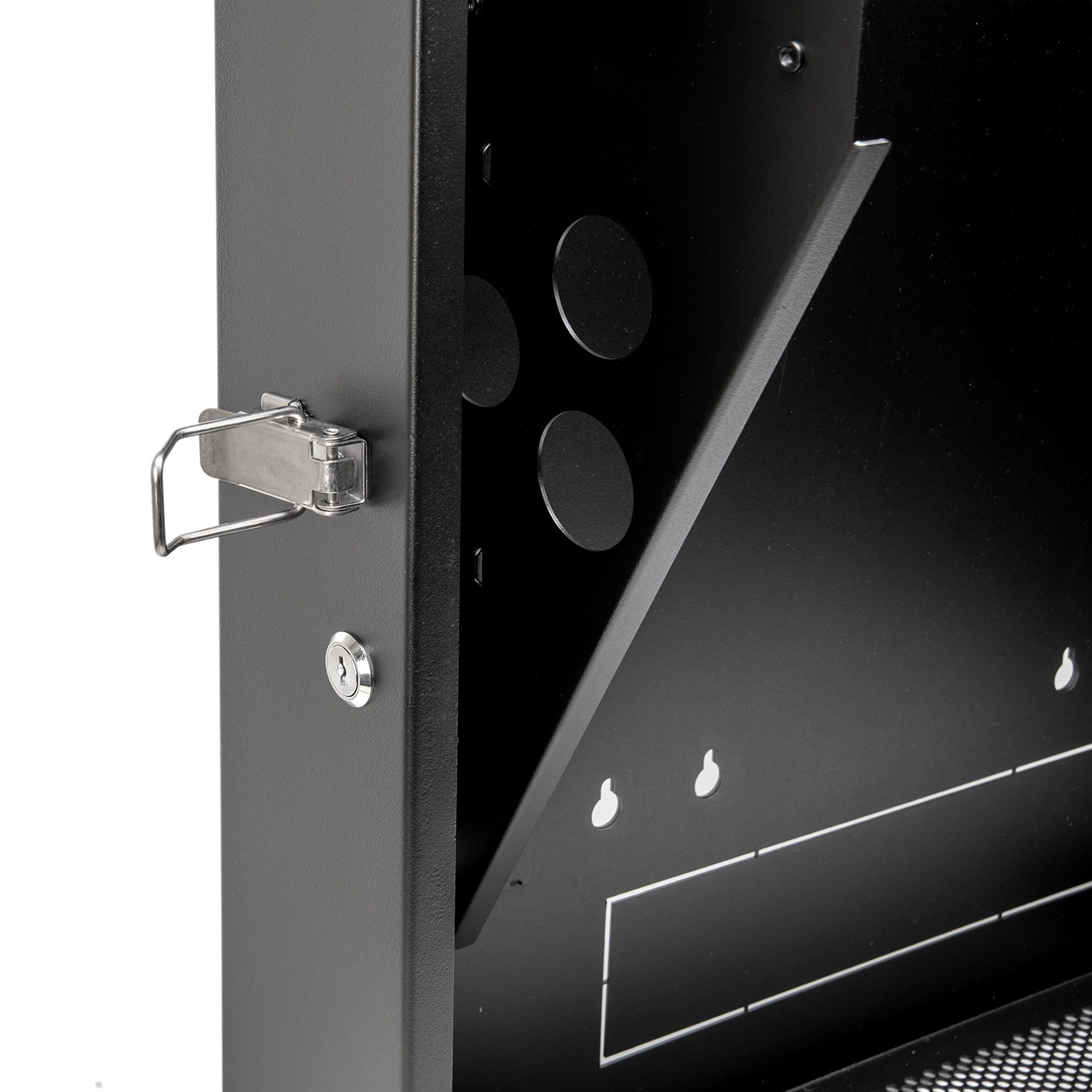

- Secure locking top panel and reversible front door to prevent tampering and theft

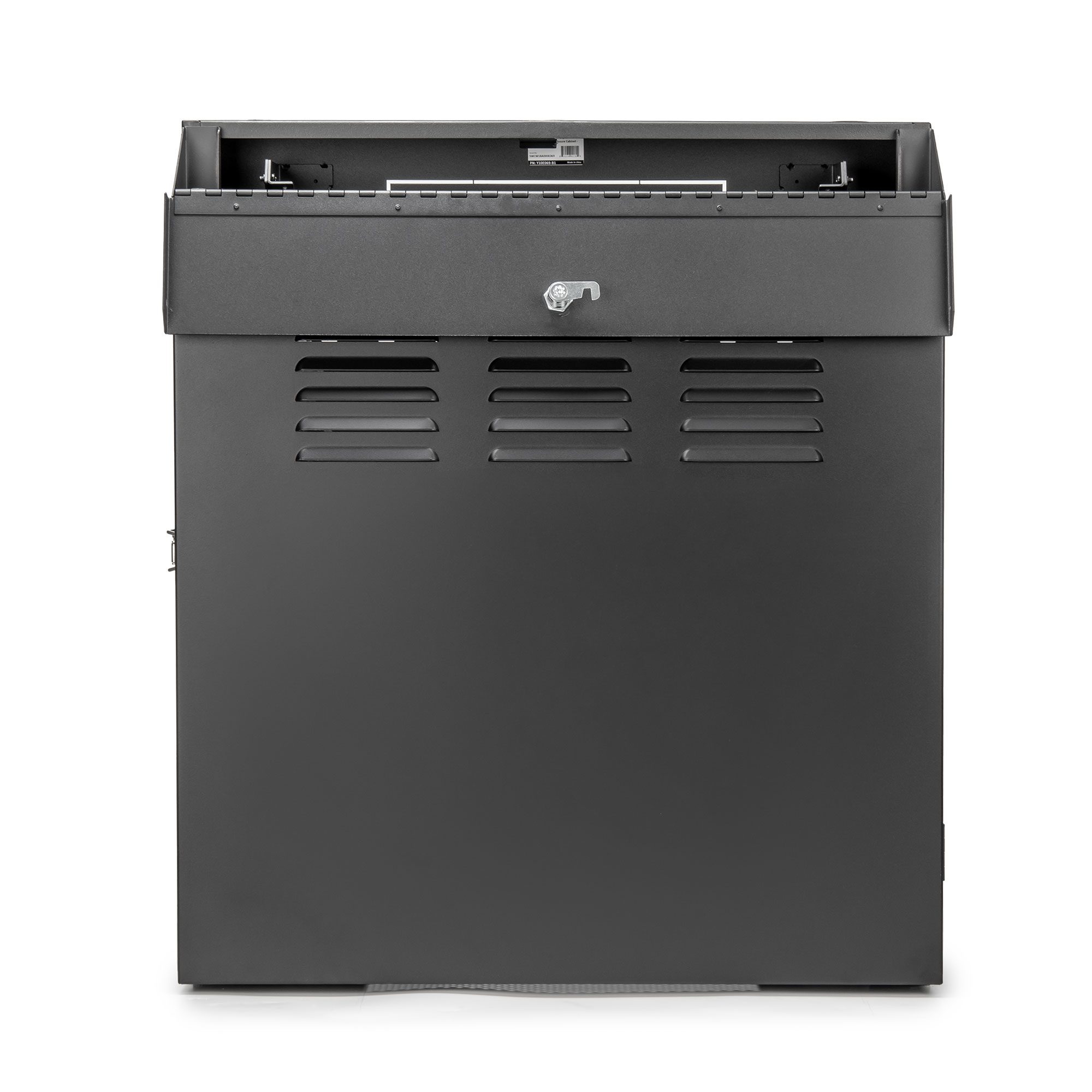

- Vented design for efficient airflow to keep equipment cool

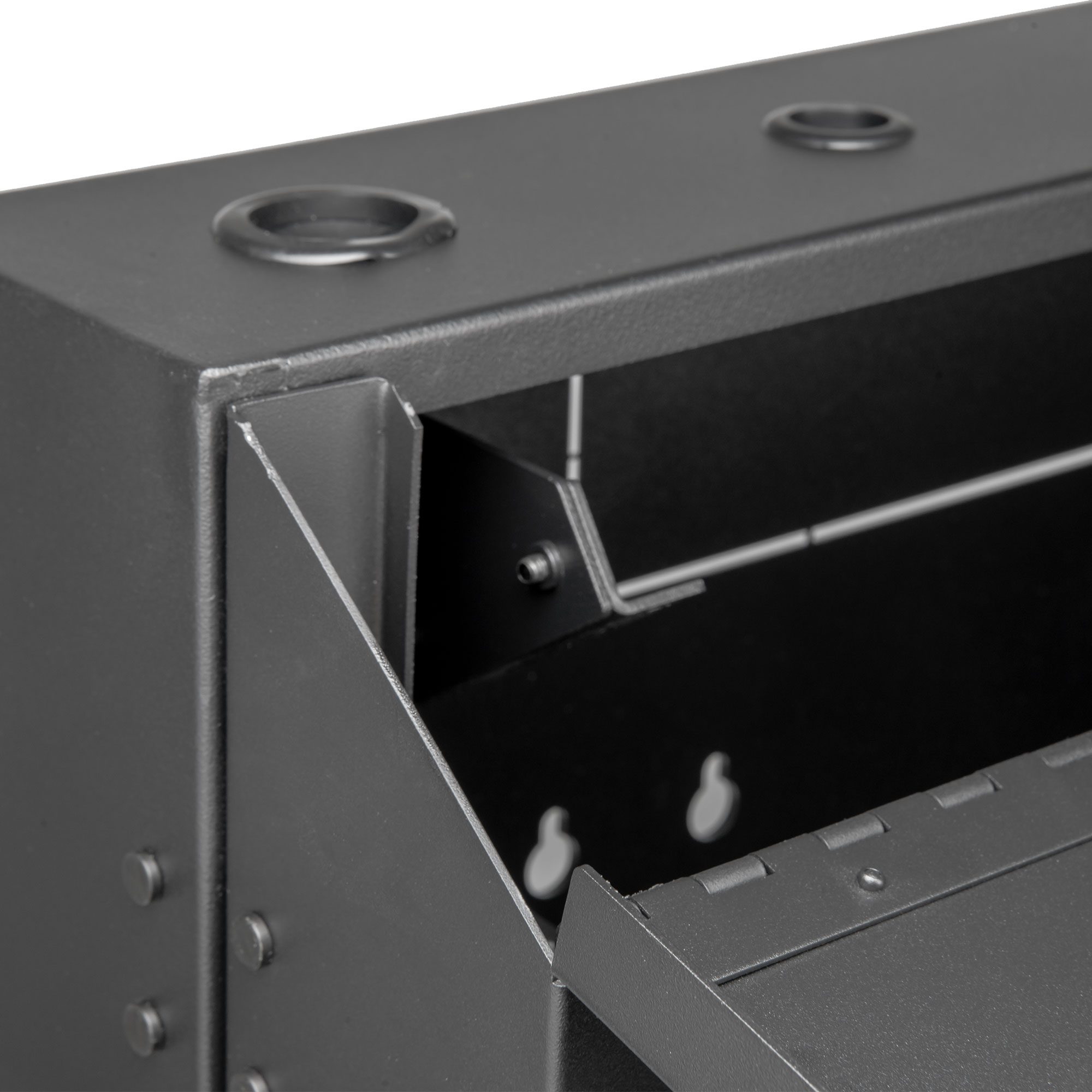

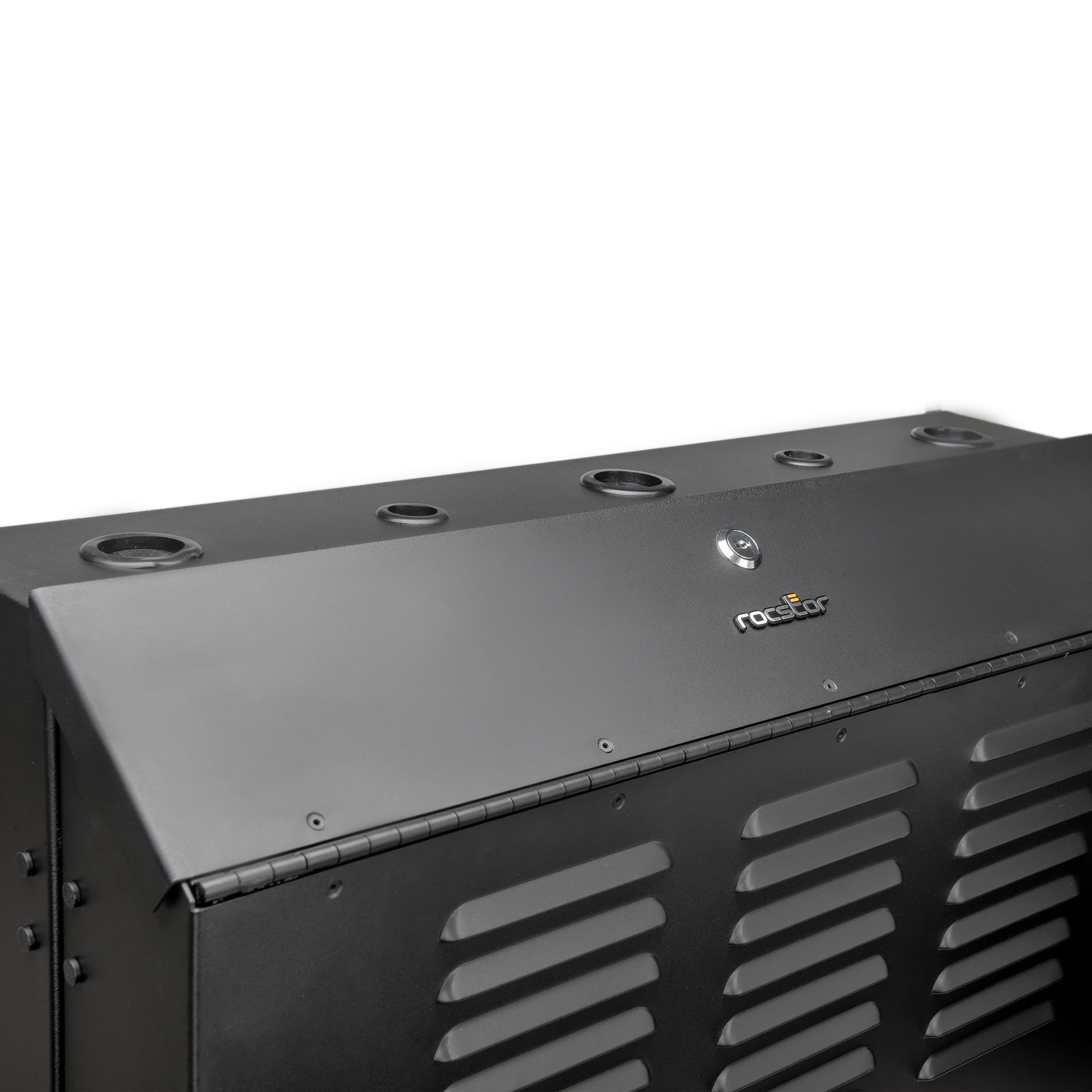

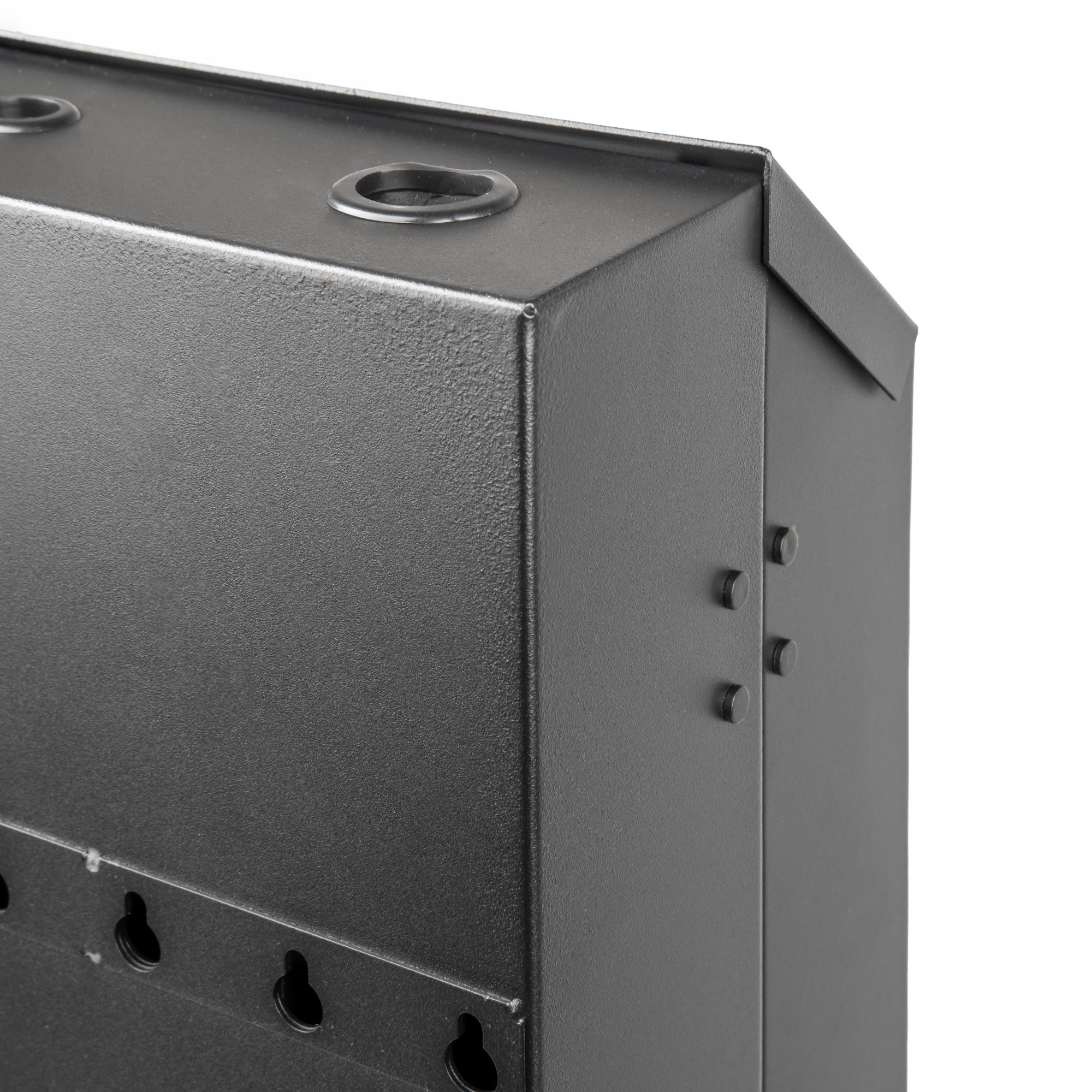

- Convenient top and bottom ports with removable covers for easy cable routing

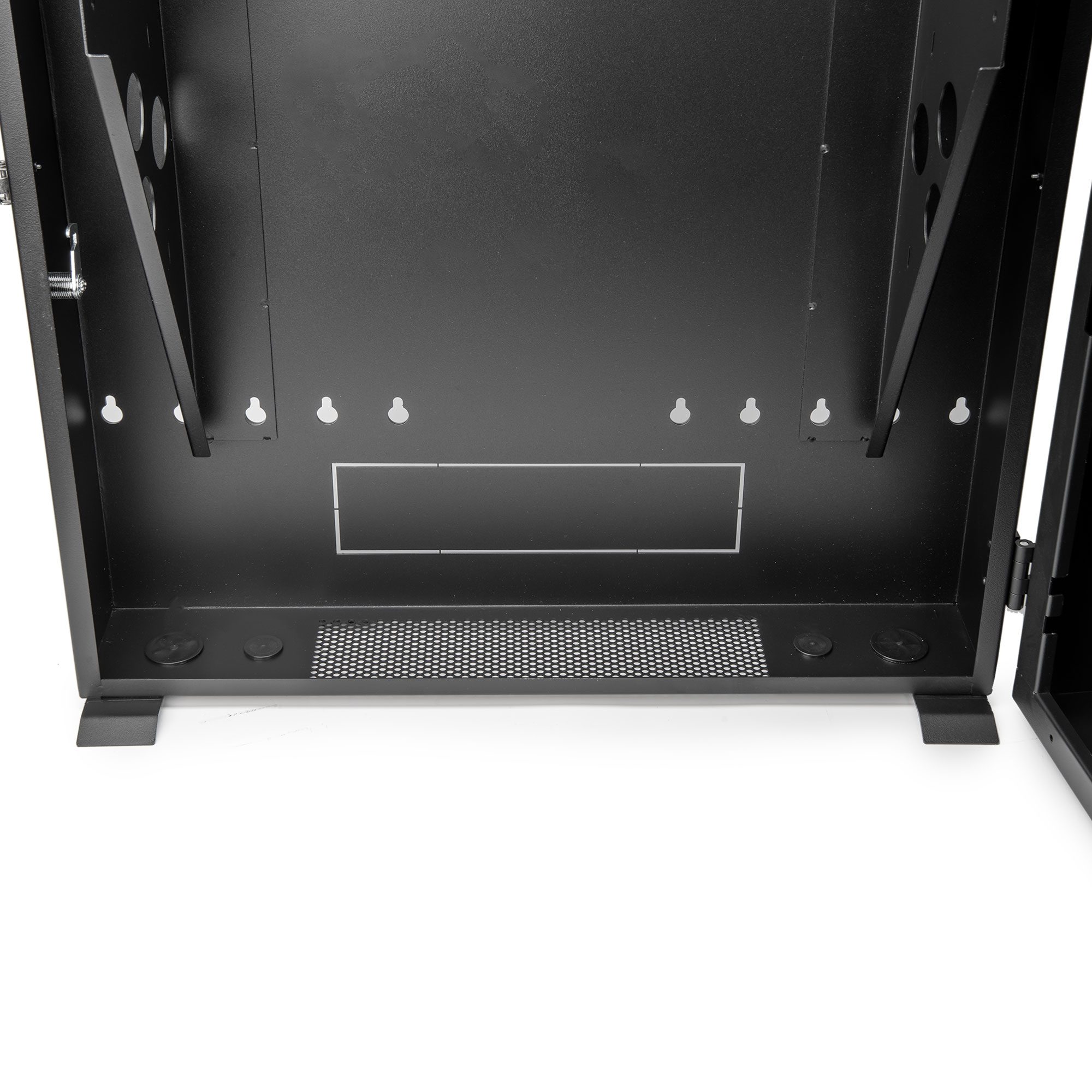

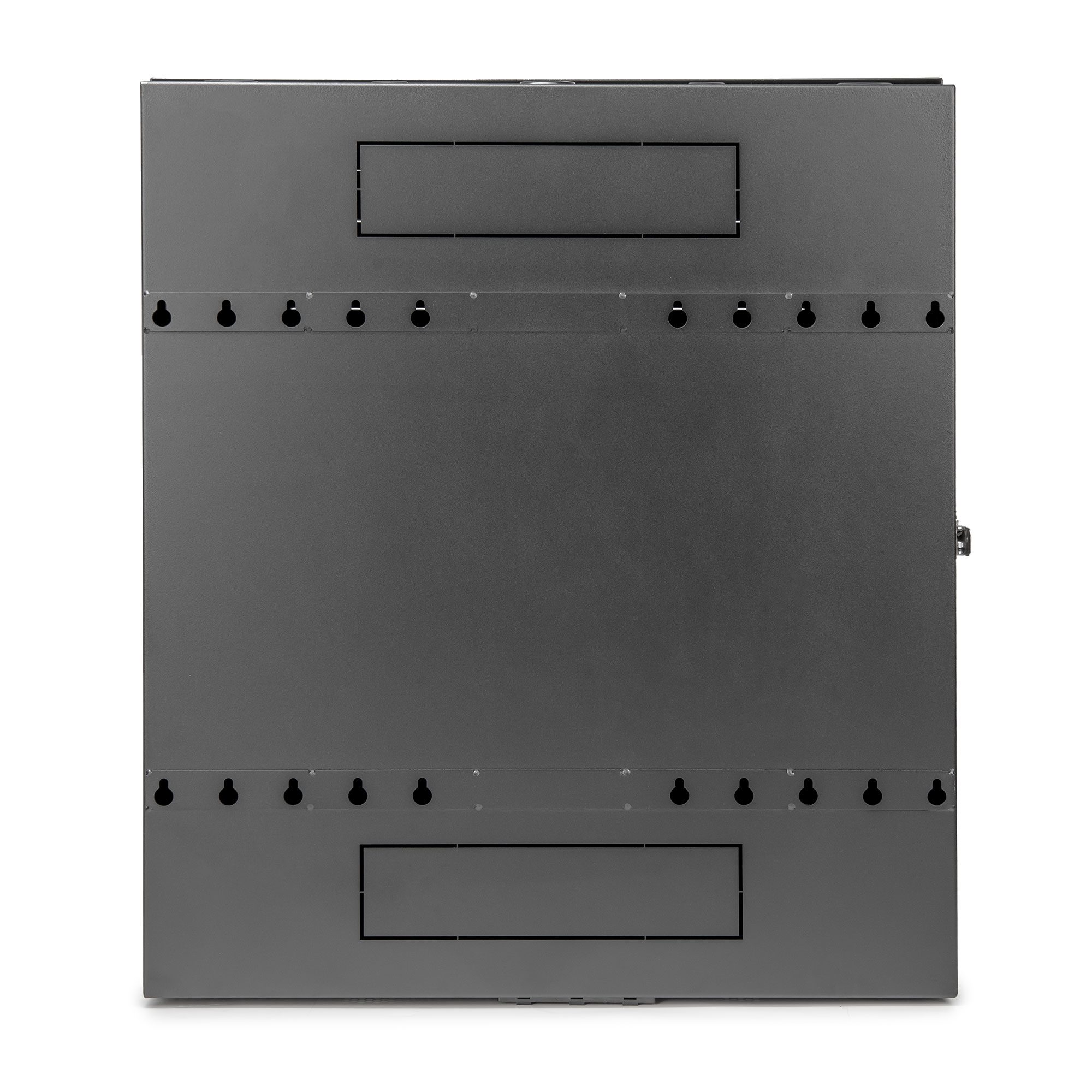

- Ships fully assembled for quick installation with wall-mounting holes spaced 16 inches apart
- Threaded mounting holes support M6 or 12-24 hardware, with adjustable rails and clearly marked rack spaces
- Warranty: Rocstor 5-Year limited warranty
Additional information
| Rack Hight | 4U |
|---|---|
| Style | Vertical, Wall Mount Rack |
| Wallmountable | Yes |
| Max Depth Capacity | Switch-Depth |
User Manual
Specification
Overview
| UPC Code | 810136921304 |
| Device Compatibility | Patch Panel; Network Switch |
| Rack Type | Small Enclosure |
Physical
| Color | Black |
| Rack Height | 4U |
| Rack Depth | Shallow |
| Maximum Device Depth (in.) | 20 |
| Shipping Dimensions (hwd / in.) | 13.38 x 31.10 x 34.25 |
| Shipping Weight (lbs.) | 57.2 |
| Unit Dimensions (hwd / in.) | 28.8 x 25.6 x 8 |
| Unit Weight (lbs.) | 60.18 |
| Weight Capacity – Stationary (lbs.) | 150 |
| Number of Vertical Mounting Rails | 2 |
Warranty
| Product Warranty Period | 5-year limited warranty |
Package Content
| Items Included |
|
General Information
| Product Type | Enclosure Cabinet |
| Manufacturer Part Number | Y10E069-B1 |
| Manufacturer Website Address | https://www.rocstor.com/ |
| Manufacturer | Rocstor |
| Product Name | SolidRack 4U Low Profile Vertical Mount Enclosure Cabinet |
| Brand Name | Rocstor |
