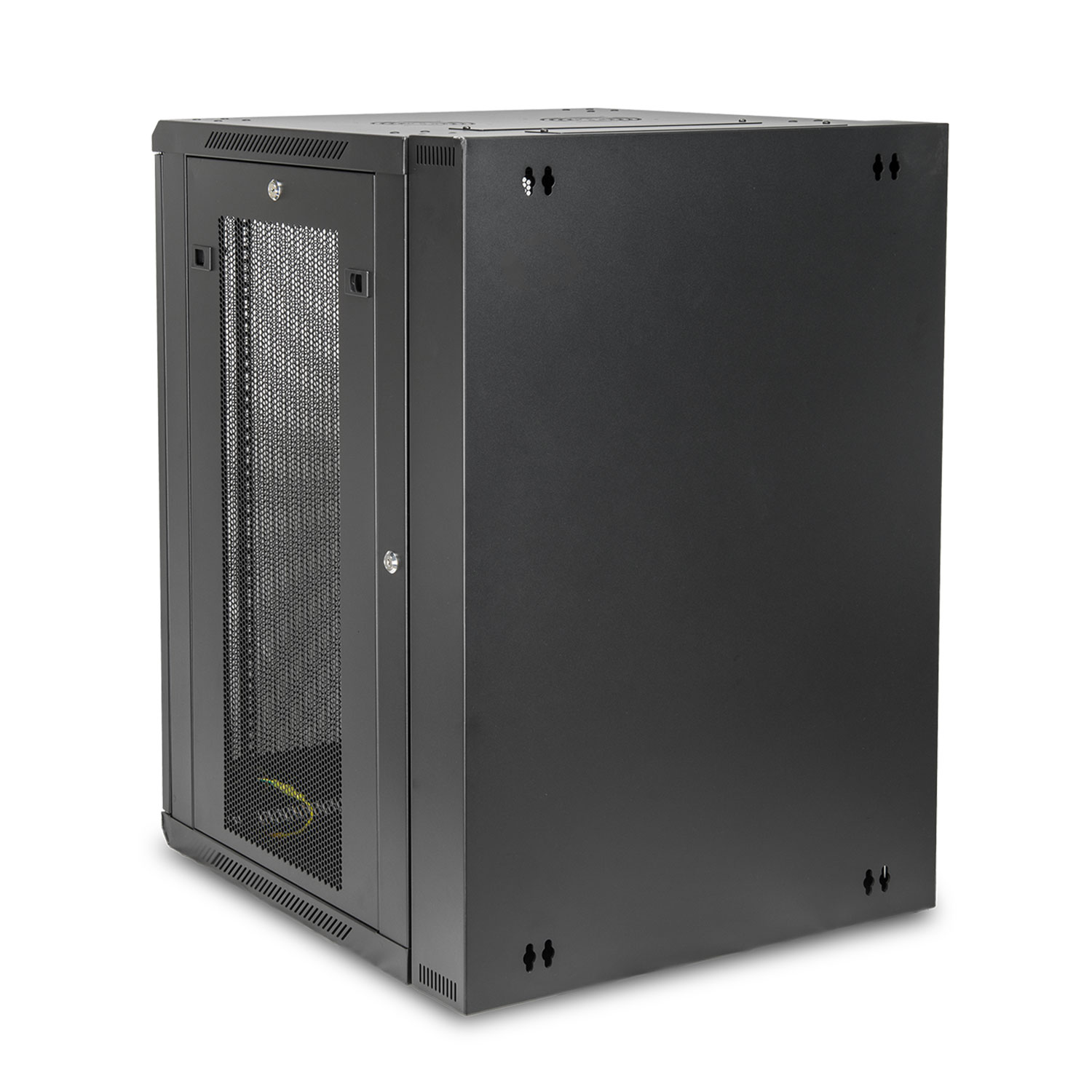

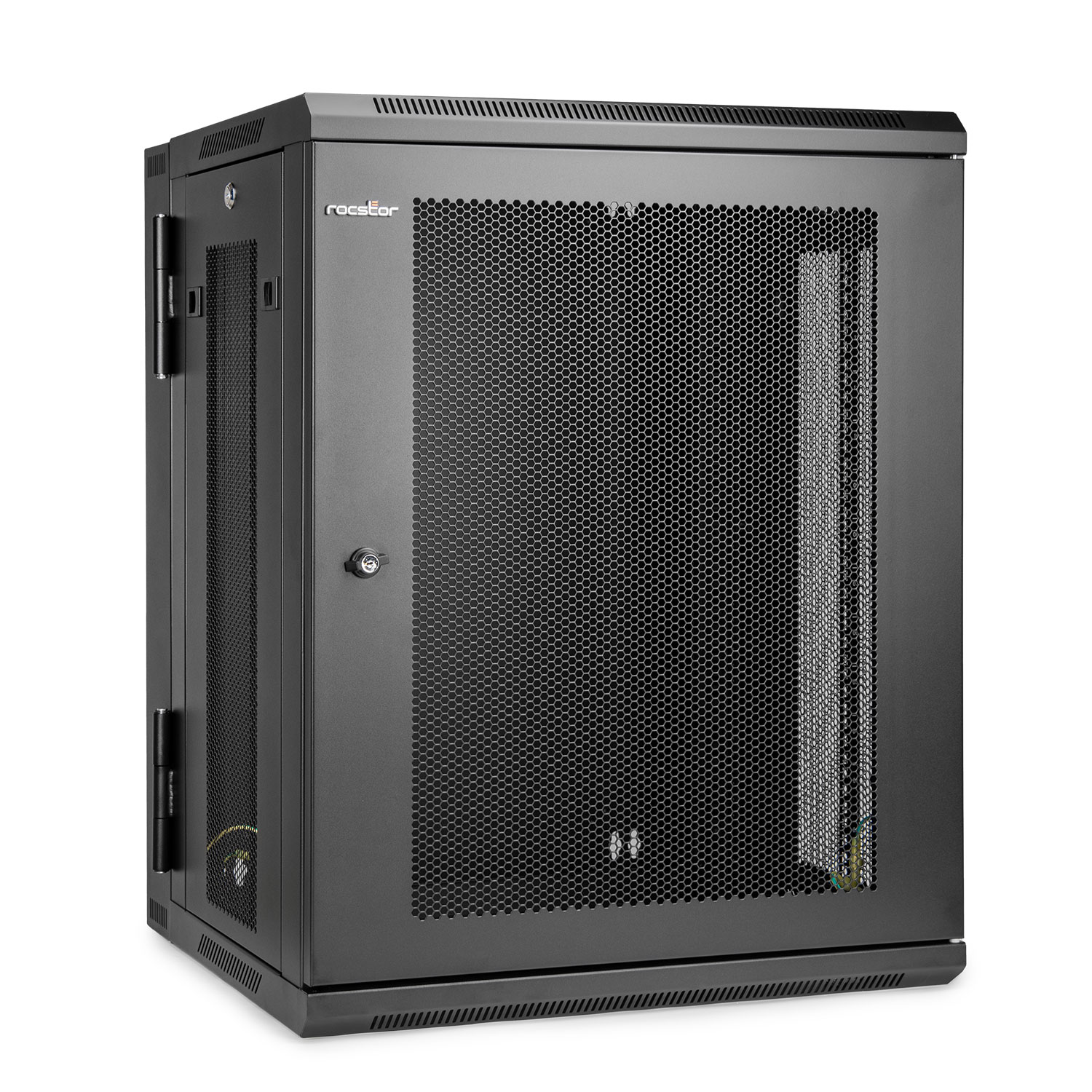

SolidRack 15U Low-Profile Switch-Depth Wall-Mount Half-Height Rack Enclosure with Perforated Doors

Product Overview

The Rocstor SolidRack 15U Low-Profile Switch-Depth Wall-Mount Rack Enclosure with Hinged Back design is engineered for secure and space-efficient deployment of network switches, patch panels, and shallow-depth rack equipment in network closets, branch offices, retail locations, classrooms, and edge computing environments. Designed with a compact half-height form factor, the enclosure supports all EIA-standard 19-inch rack equipment and features adjustable mounting depth from 3.94 inches to a maximum depth of 16.93 inches. With a rack height of 15U, rack width of 19 inches, a 21.65 inch rack depth, and a maximum load capacity of 200 lbs, the enclosure delivers enterprise-grade performance and durability in a low-profile wall-mount design. Built from heavy-duty cold-rolled steel (CRS) with a durable black powder-coated finish, the cabinet provides reliable protection for mission-critical networking equipment.

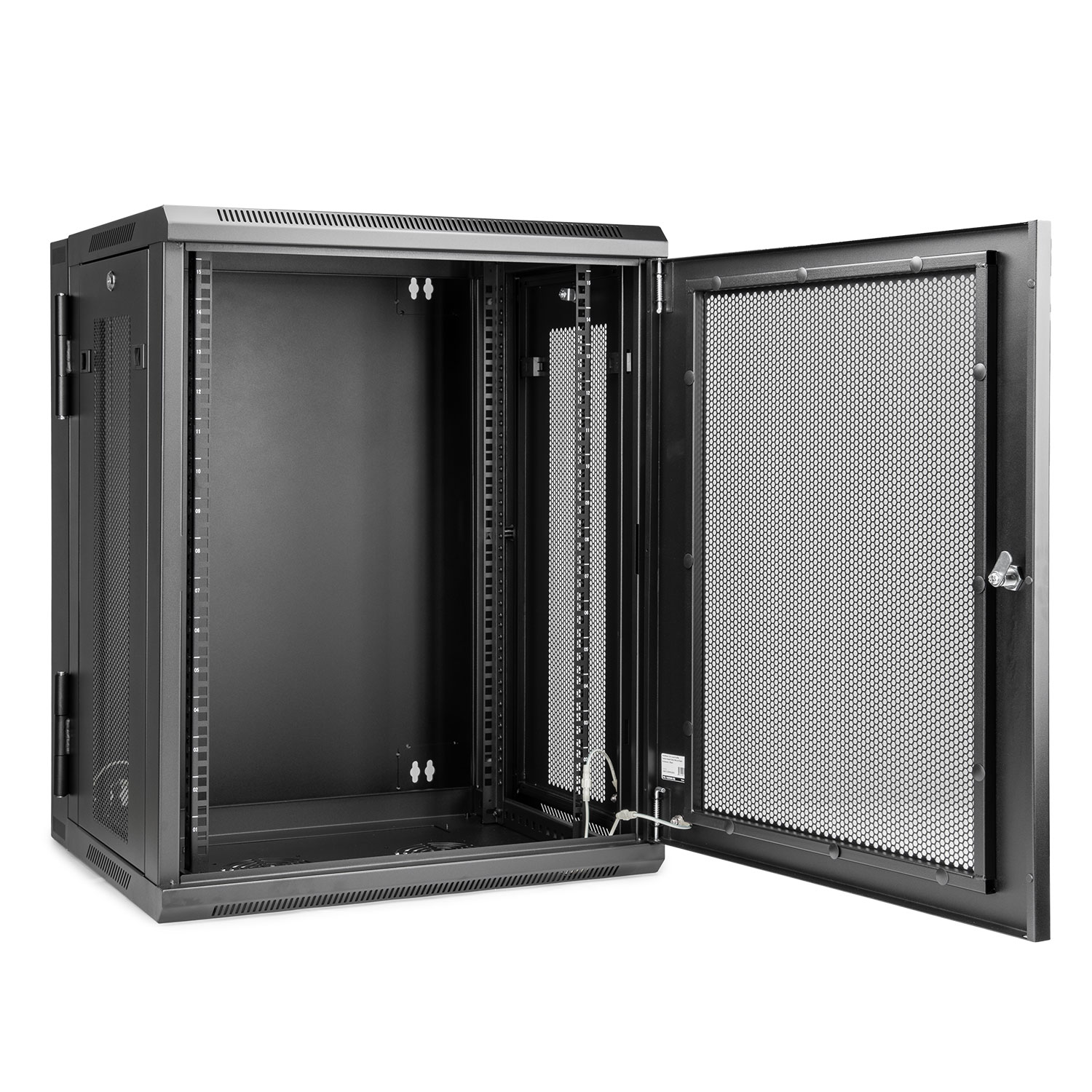

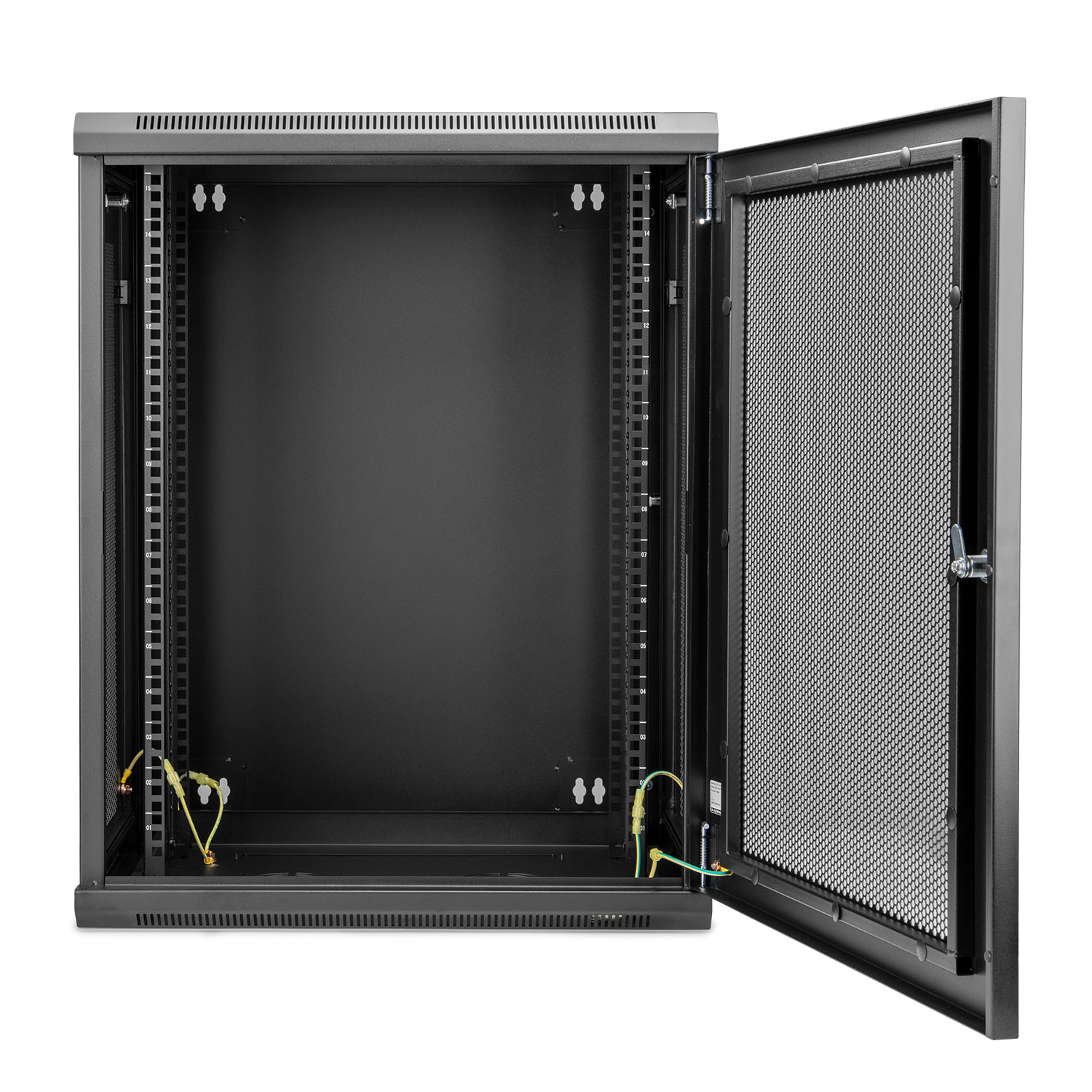

Designed for rapid installation and simplified maintenance, the SolidRack wall-mount enclosure features a hinged back design that swings away from the wall, providing unrestricted rear access to cabling and equipment during installation, servicing, and maintenance. The perforated front and rear doors, removable side panels, and secure locking system help prevent unauthorized access while maintaining efficient airflow and accessibility. The airflow-optimized perforation pattern promotes superior front-to-rear ventilation to help maintain proper operating temperatures for installed LAN switches, patch panels, and shallow-depth networking hardware. The enclosure supports organized cable routing and professional infrastructure management for modern network environments.

Built for flexibility and professional deployment, the SolidRack enclosure includes removable side panels, locking perforated front and rear doors, and adjustable mounting rails to support a wide range of networking applications. The wall-mount cabinet design conserves valuable floor space while providing enterprise-grade protection and organization for mission-critical equipment. The hinged cabinet design simplifies equipment access and cable management, reducing installation and maintenance time. Backed by Rocstor’s 5-year warranty and lifetime technical support, the SolidRack 15U wall-mount enclosure delivers a dependable, secure, and professional rack-mount solution for modern network infrastructure environments.

Key Features

• 15U low-profile wall-mount rack enclosure
• Supports EIA-standard 19” rack equipment
• 200 lb maximum load capacity

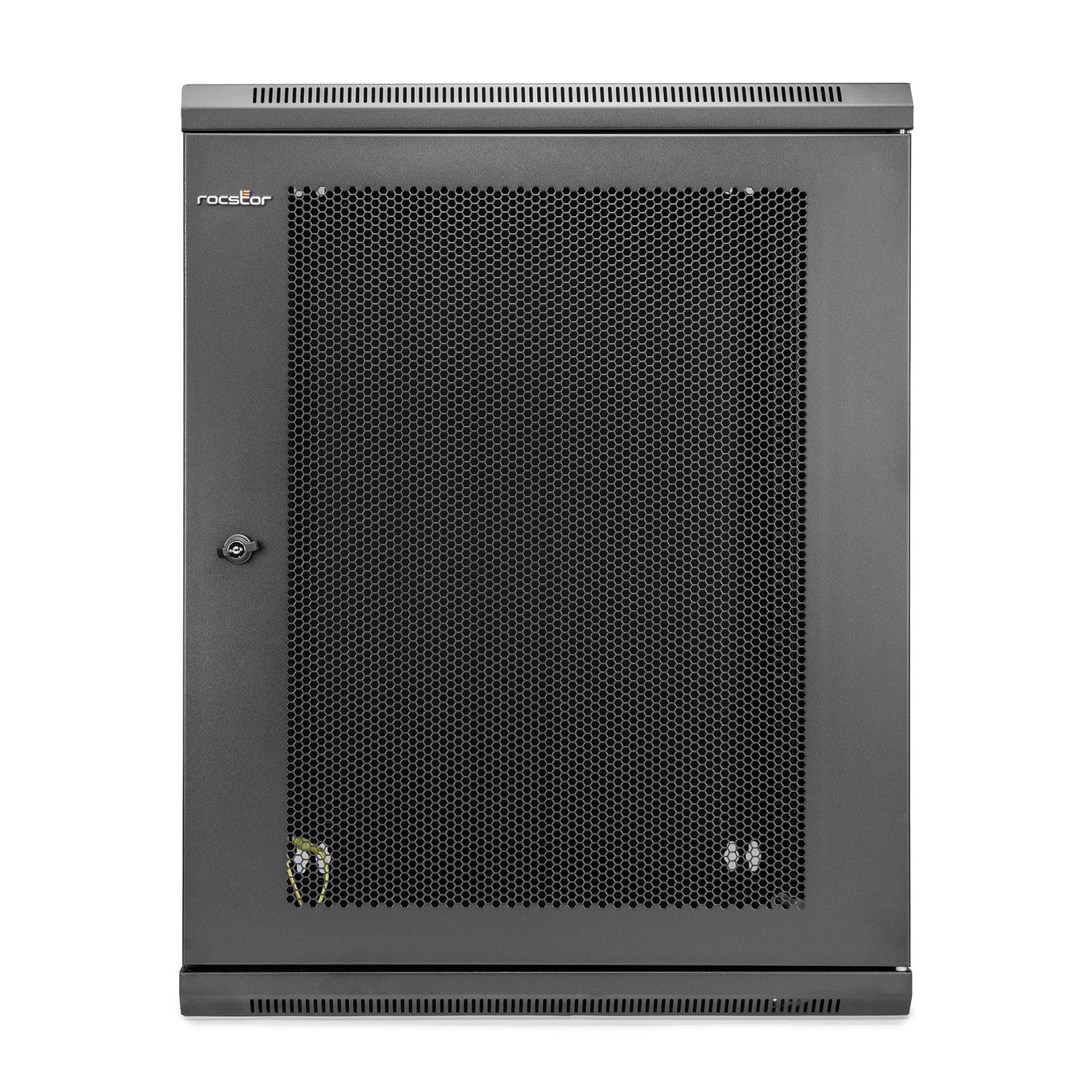

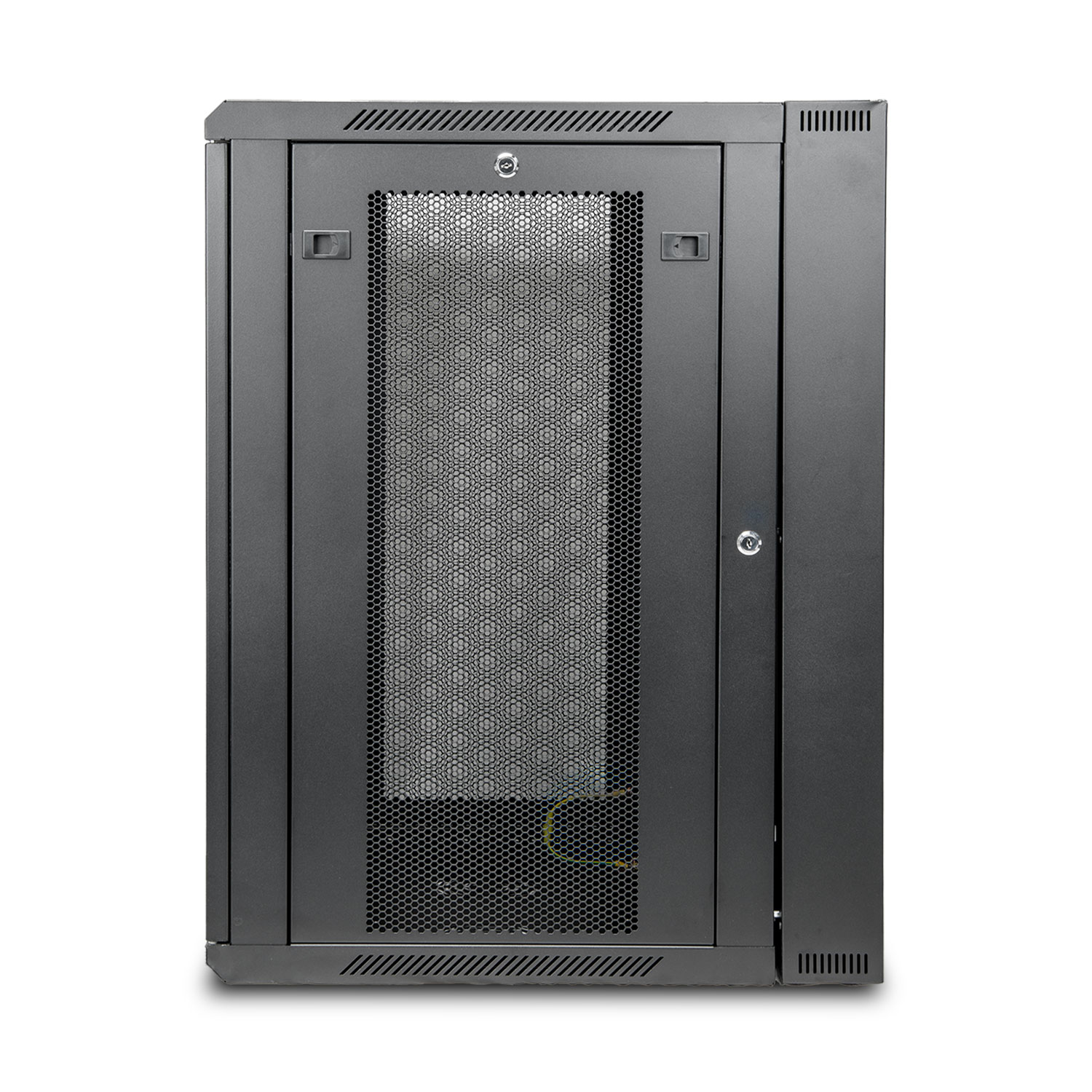

• Perforated front and rear doors for optimized airflow

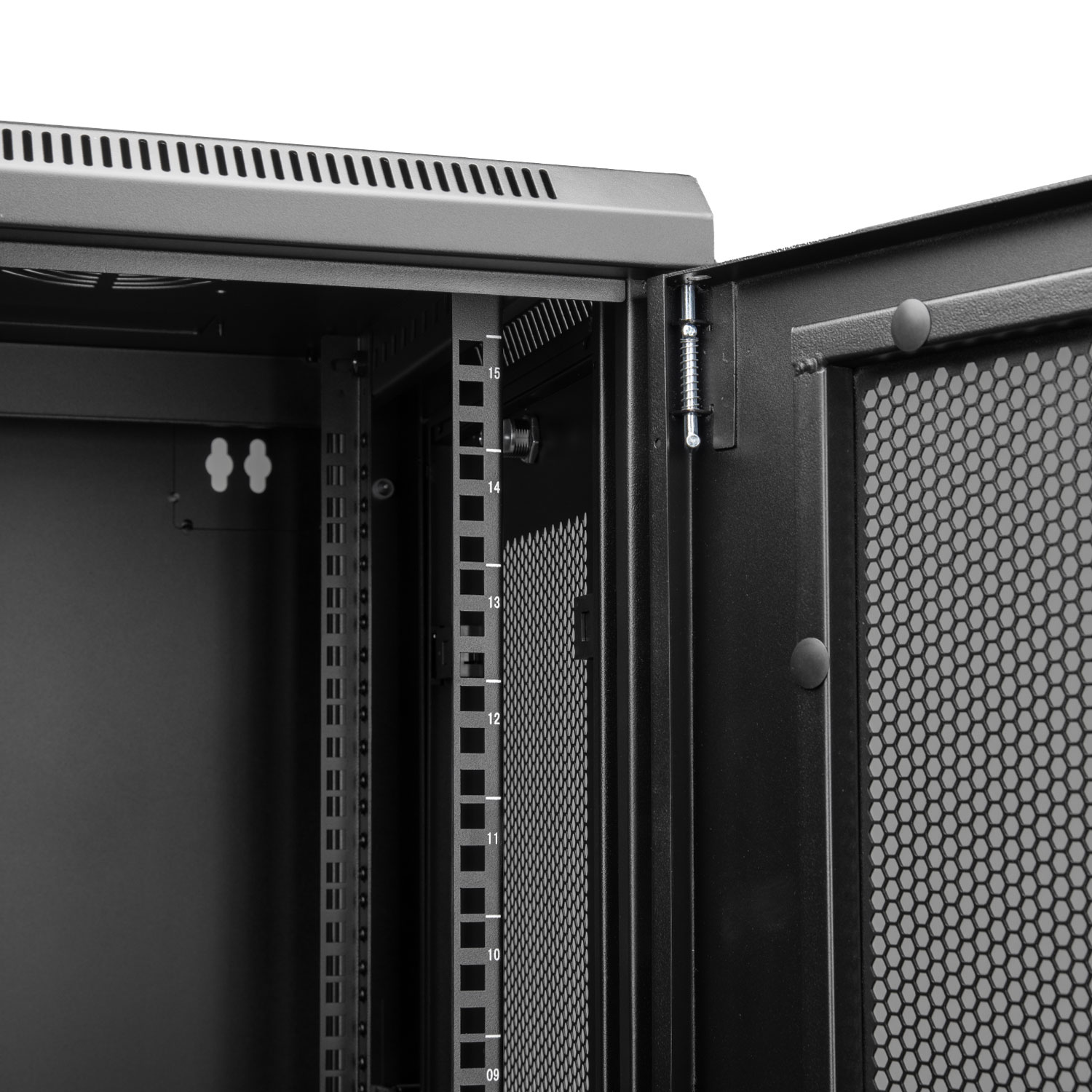

• Adjustable mounting depth from 3.94” to 16.93”

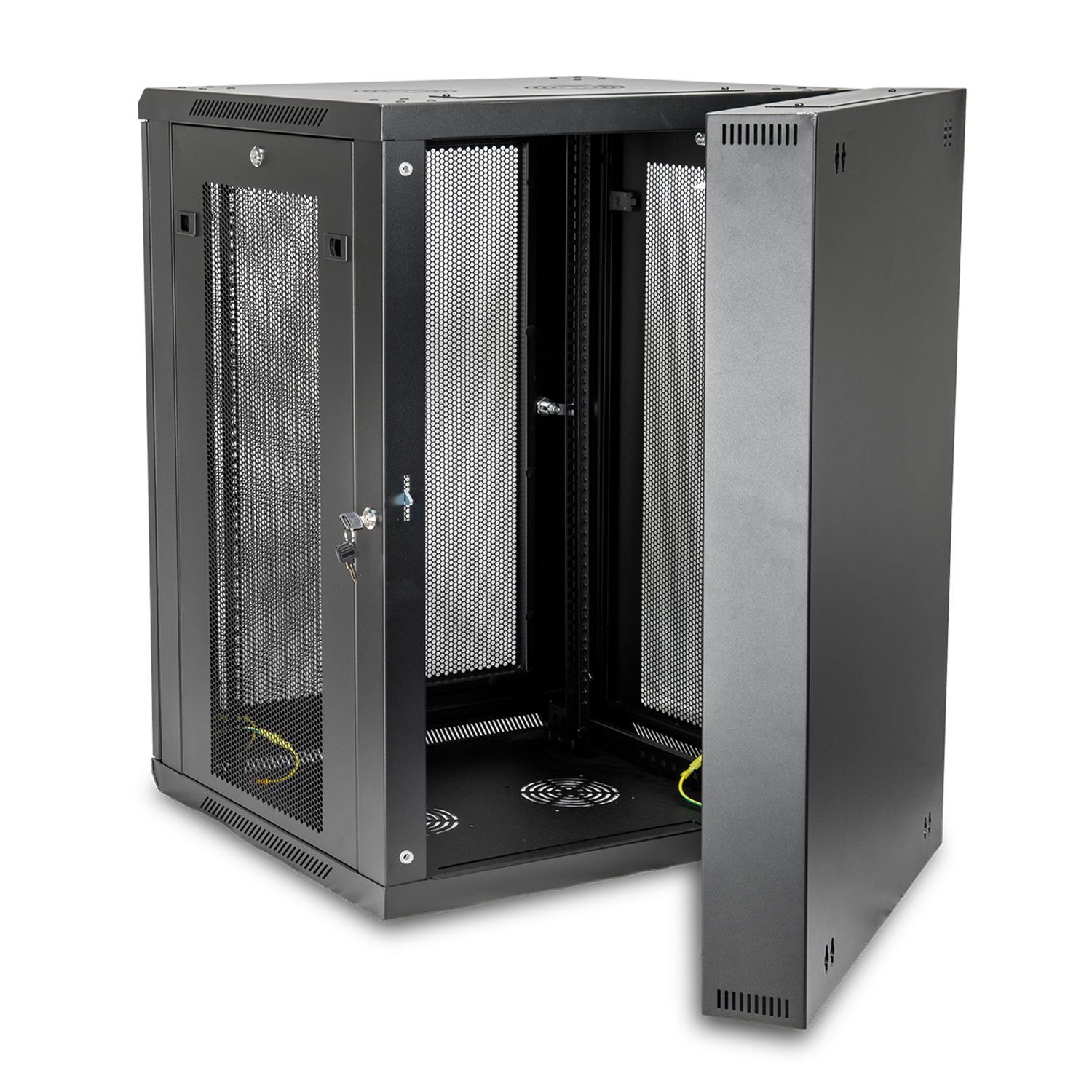

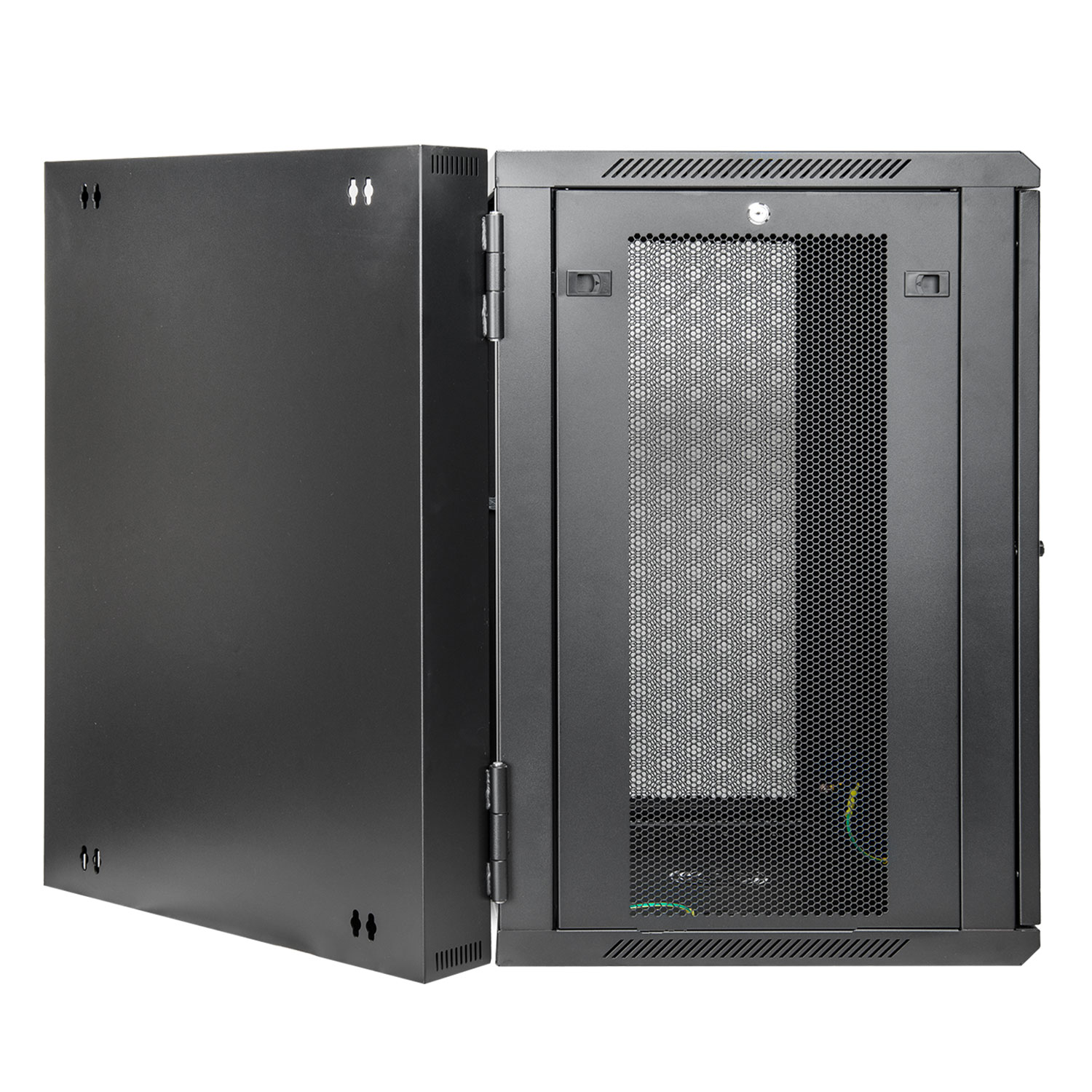

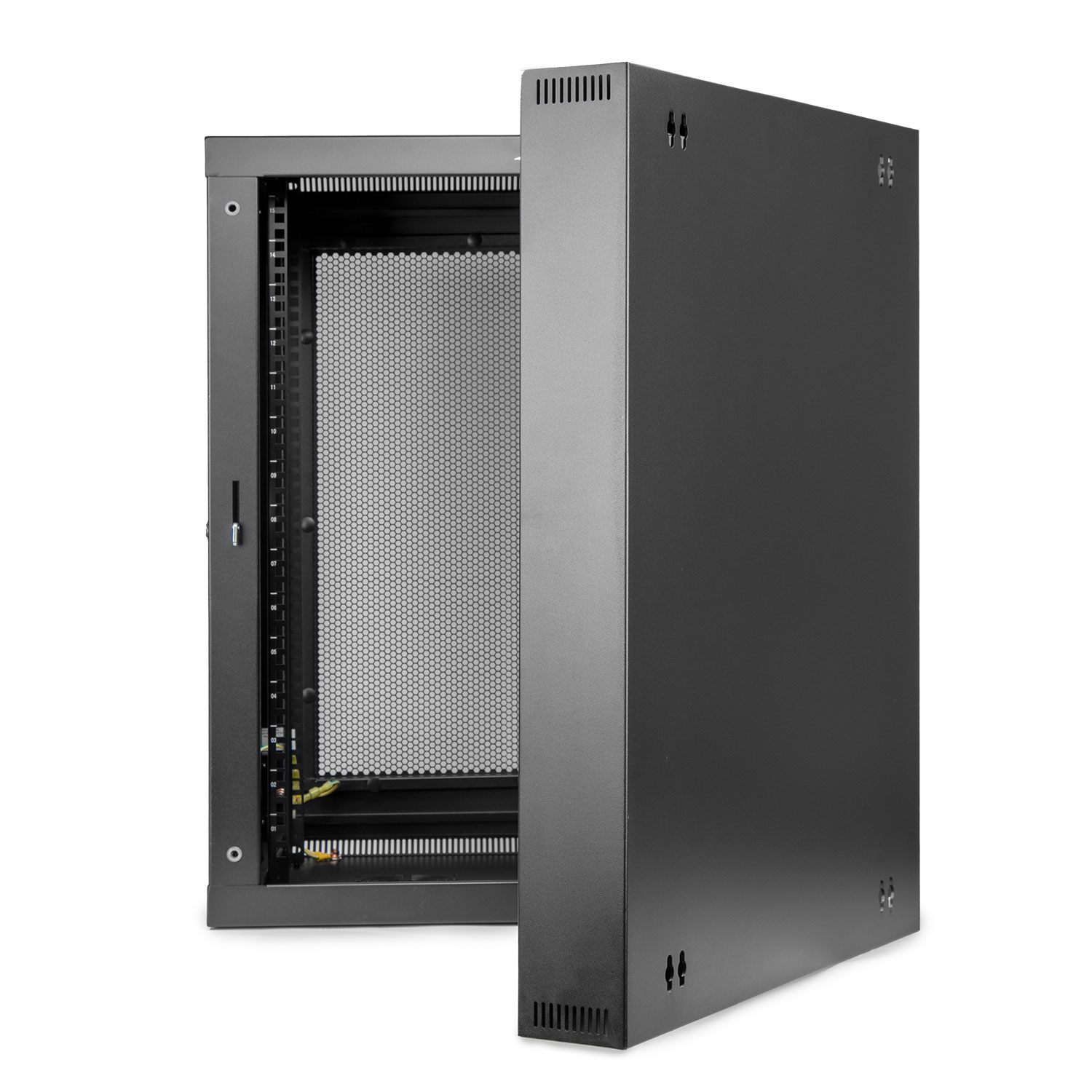

• Hinged back cabinet swings away from wall for rear equipment access
• Ideal for LAN switches, patch panels, and shallow-depth equipment
• Heavy-duty cold-rolled steel (CRS) construction

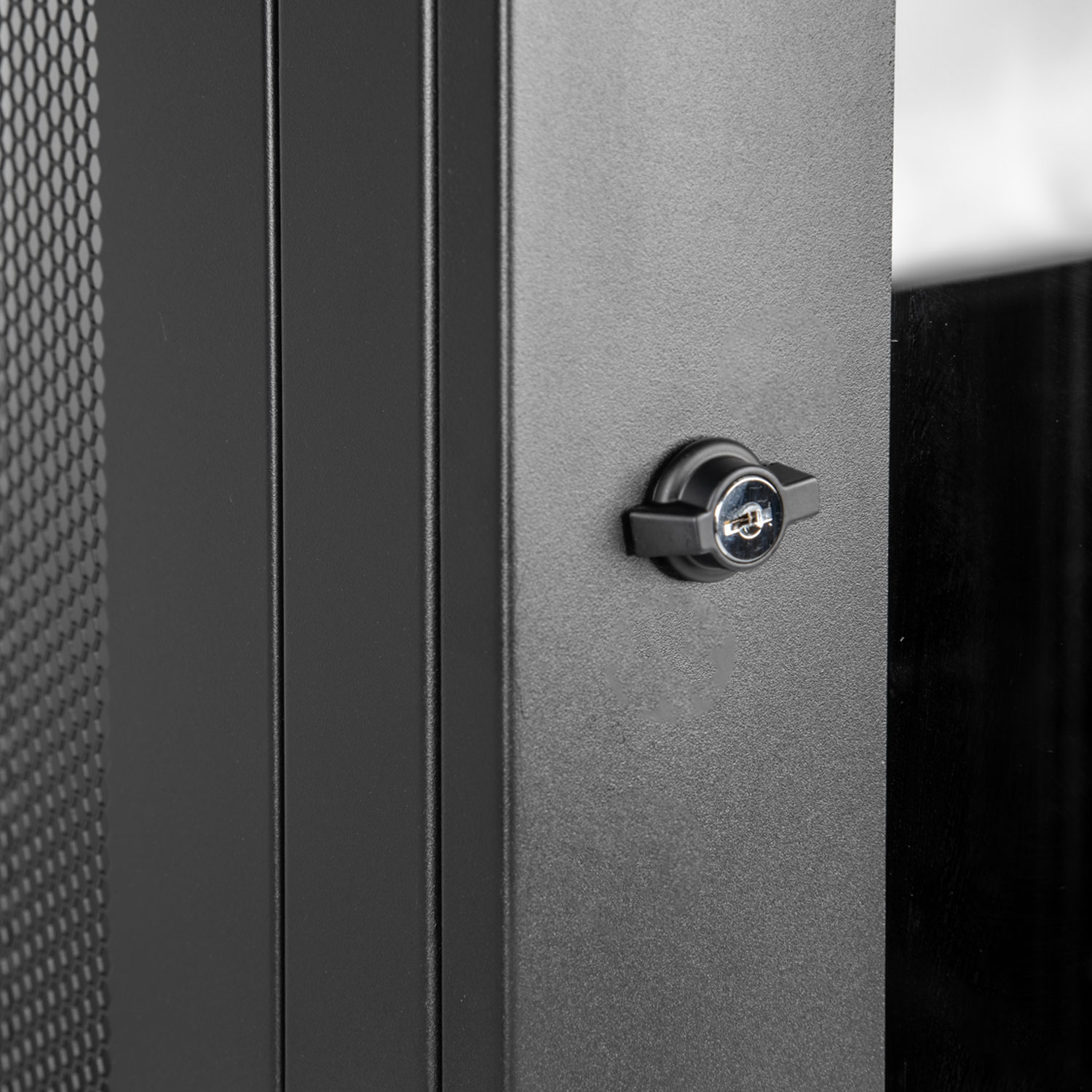

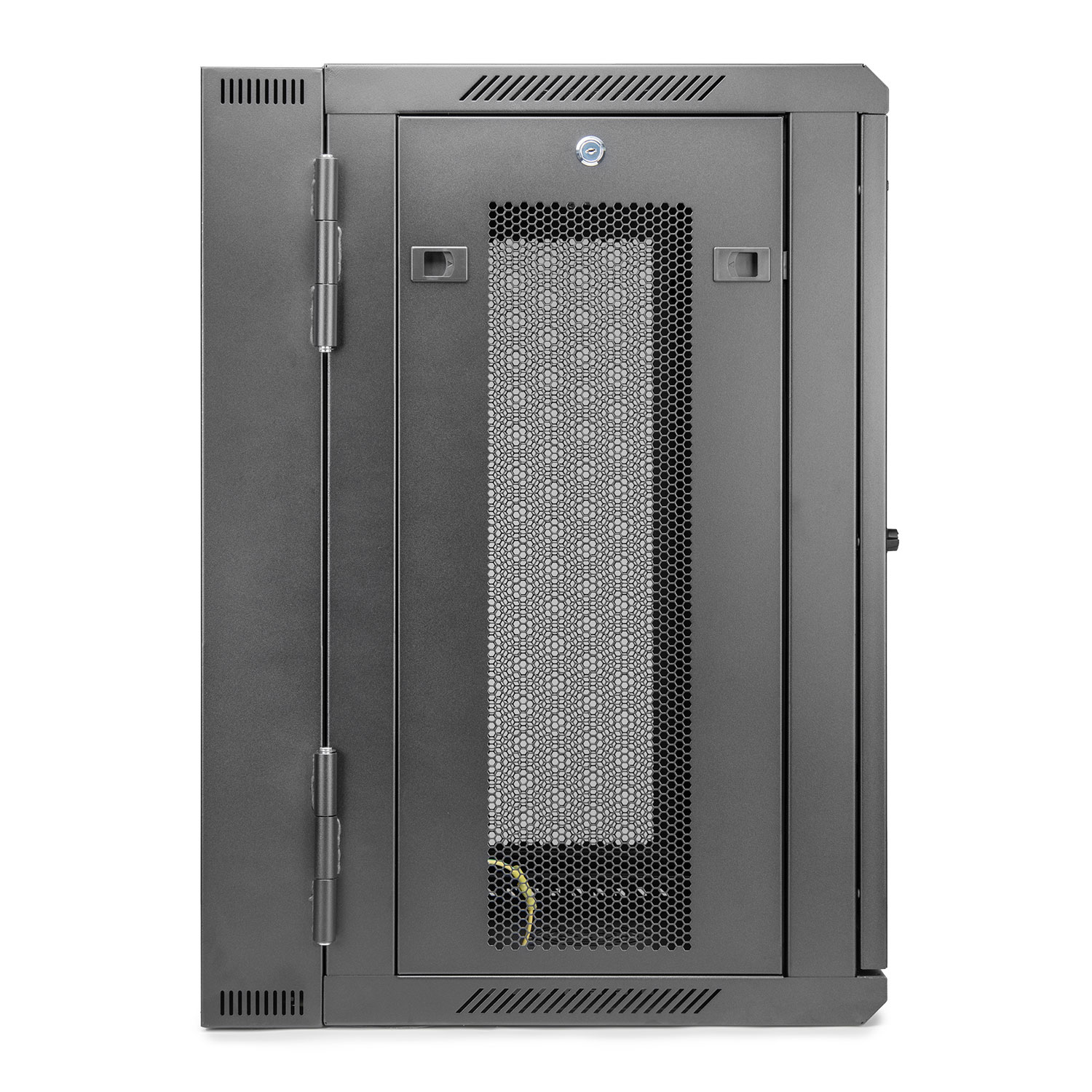

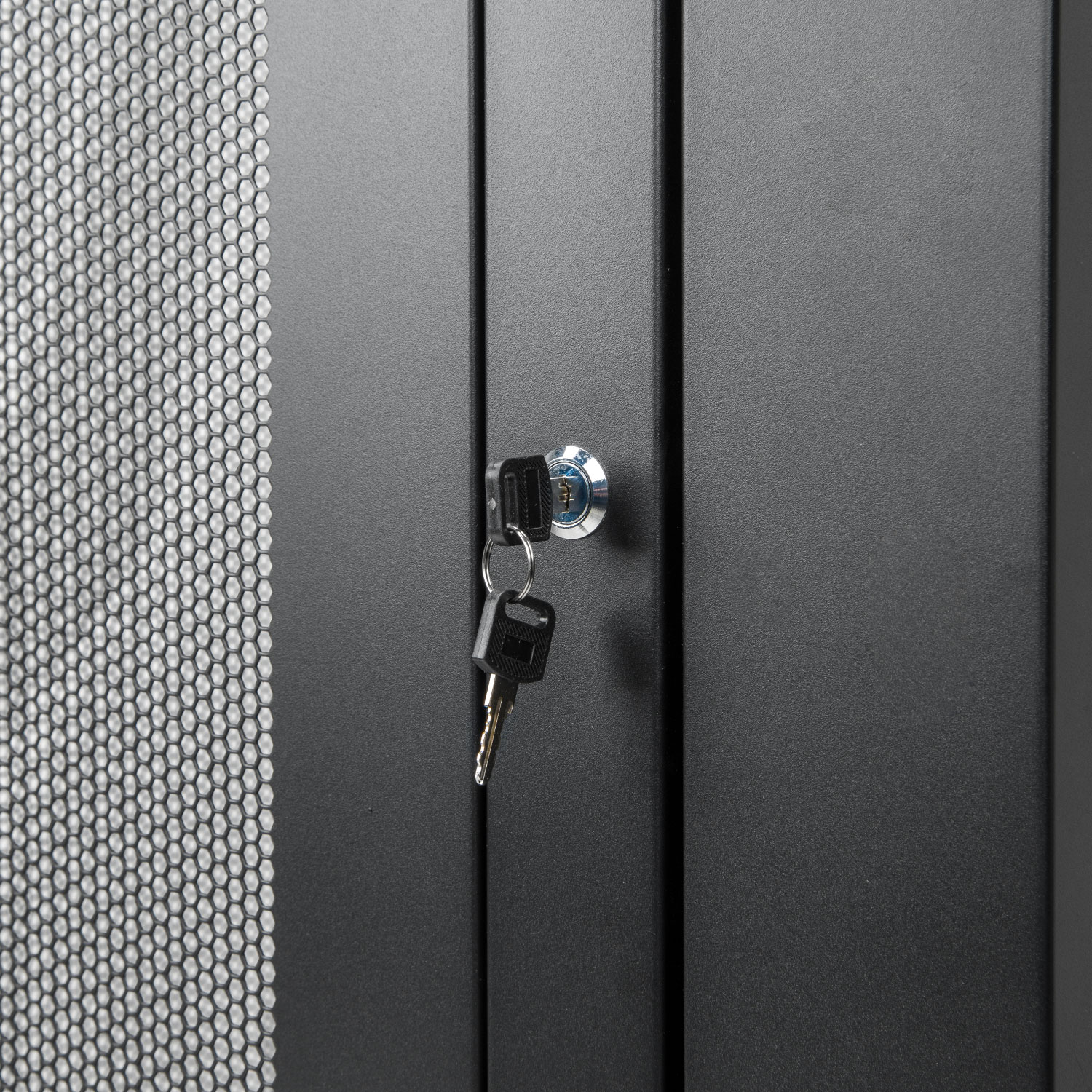

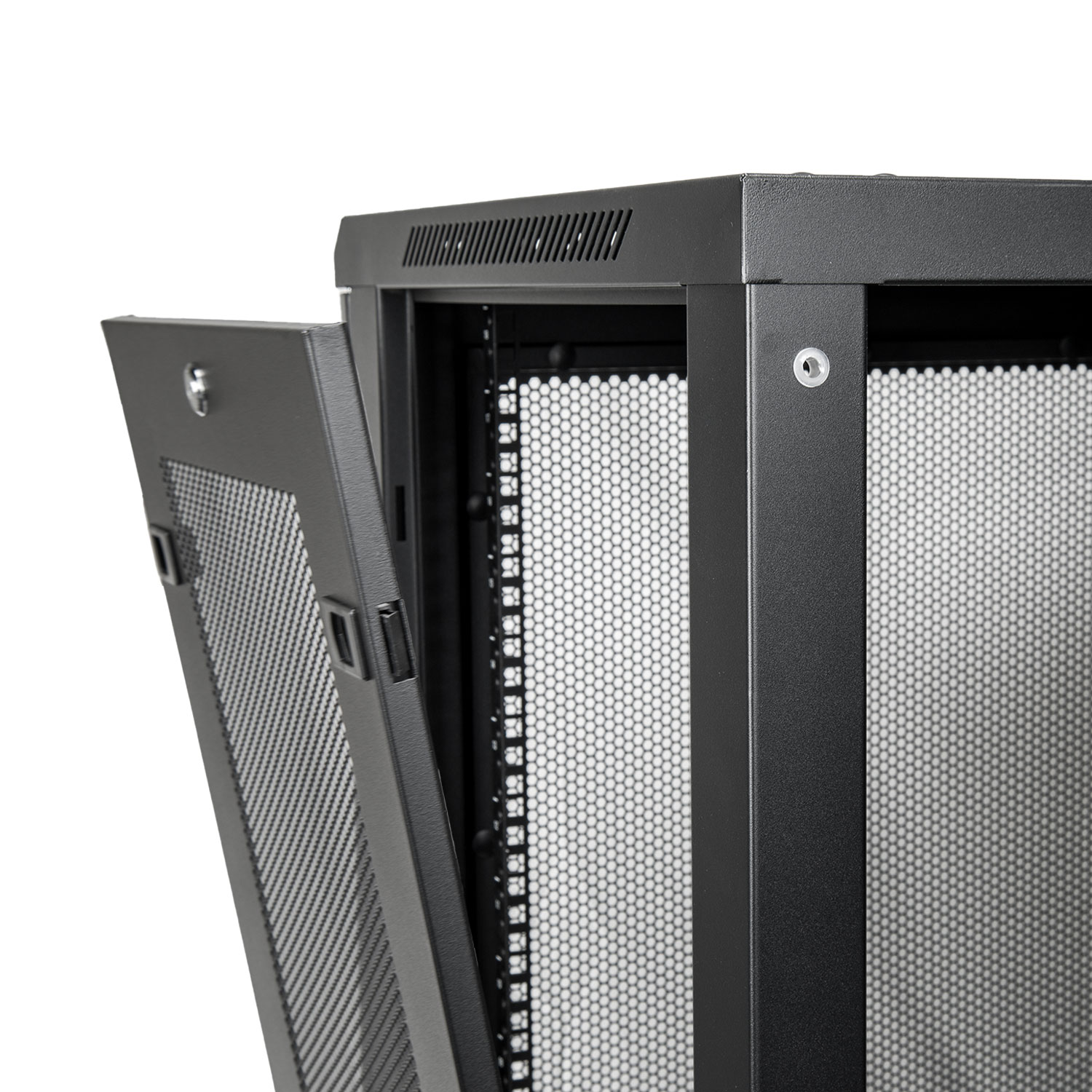

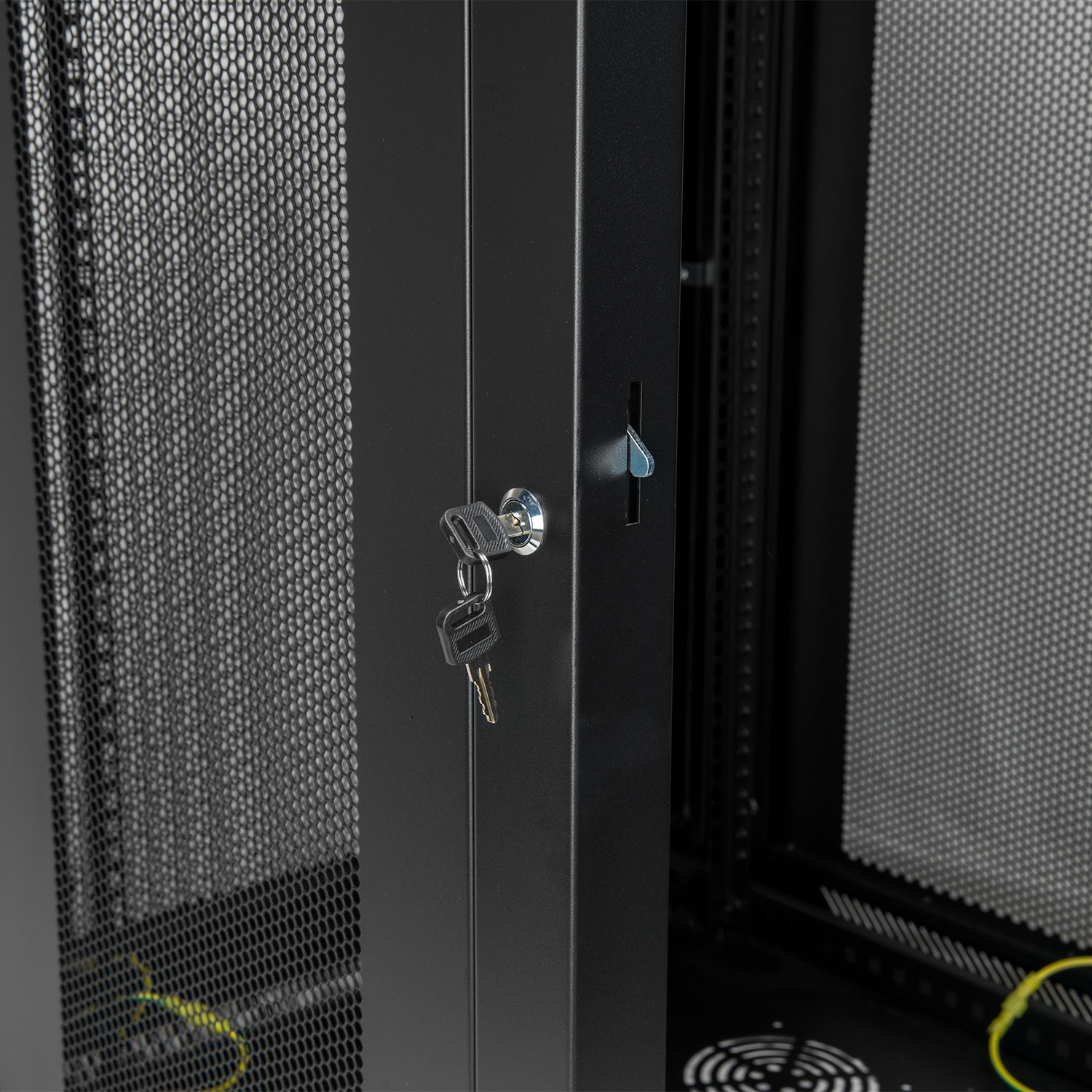

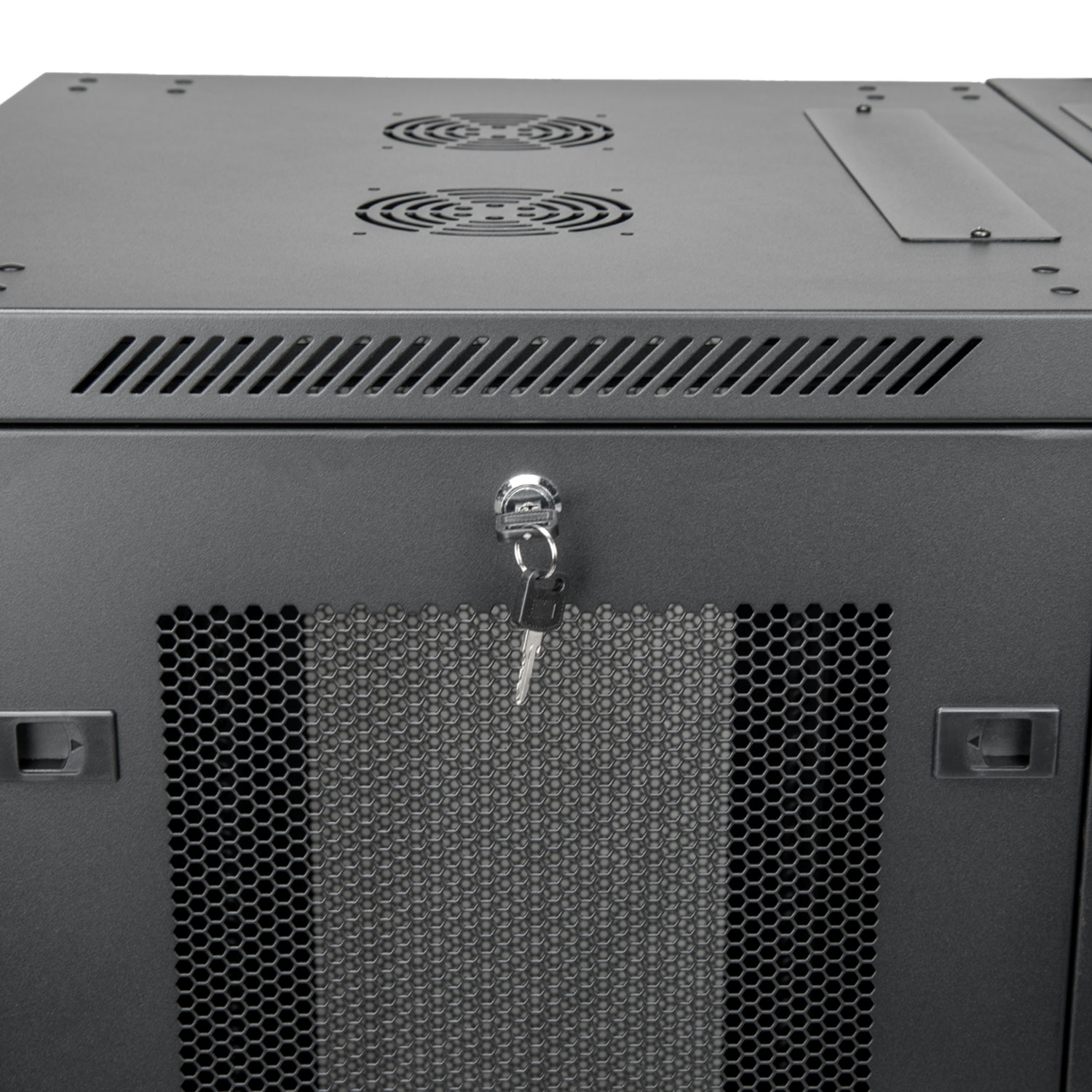

• Locking front and rear doors with removable side panels
• Wall-mountable space-saving half-height design
• Professional black powder-coated finish
• Supports organized cable routing and infrastructure management

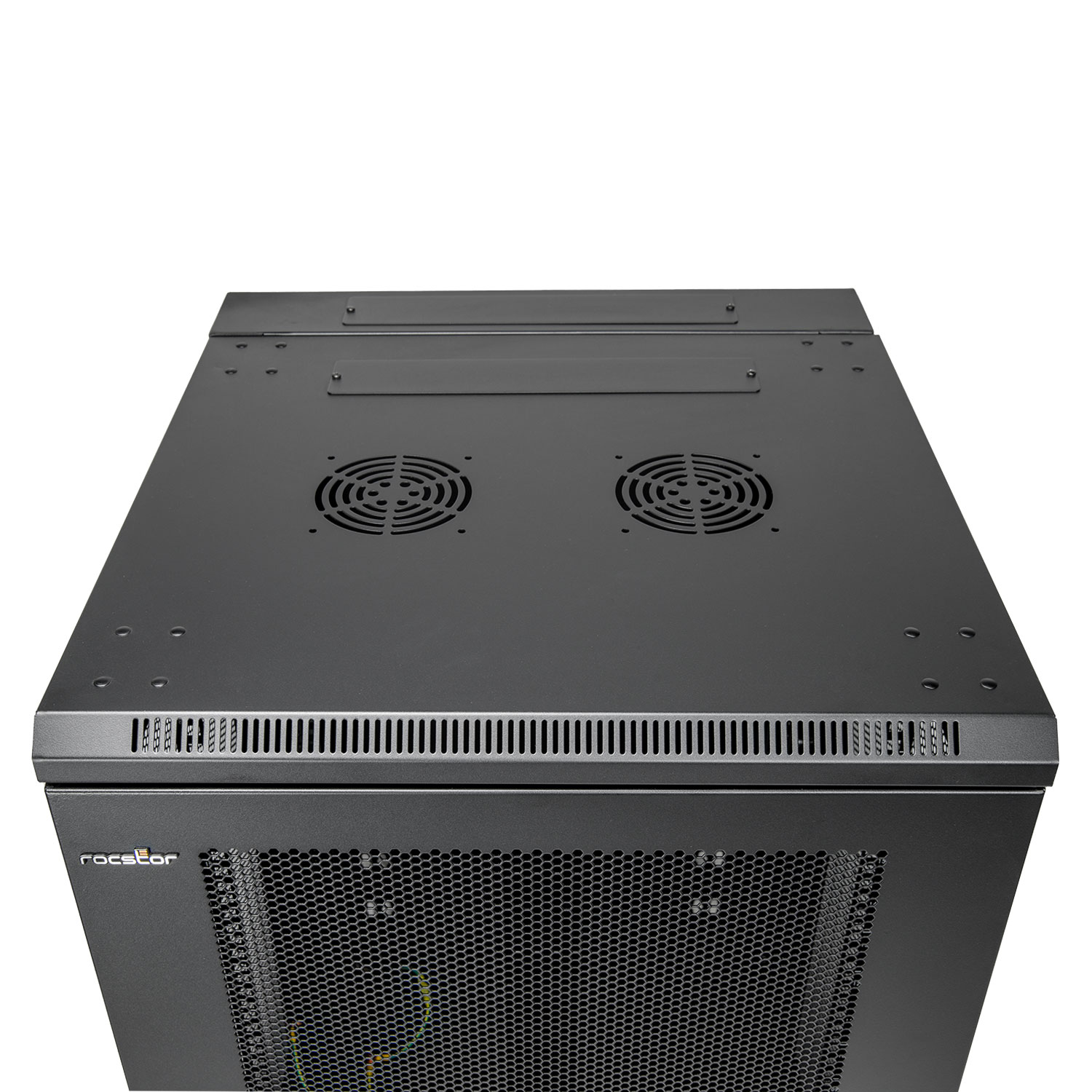

• Optimized airflow for improved cooling performance
• RoHS, CE, EIA-standard 19”, IP20 compliant
• 5-year warranty with lifetime technical support
