SolidRack 8U/12U/22U Wall Mount Adjustable Rack Enclosure 2-Post Open Frame Rack


SolidRack 8U/12U/22U Wall Mount Adjustable Rack Enclosure – 2-Post Open Frame Expandable Rack – Low-Profile Switch-Depth Wallmount – 150 lb (68 kgs) Maximum Load Capacity – 19″ Rack Compatible – CRS Steel – Comparable to SRWO8U22 – Assembly Required-Black

SKU: Y10E041-B1 Categories: , , Tags: ,


SolidRack 8U/12U/22U Wall Mount Adjustable Rack Enclosure 2-Post Open Frame Rack

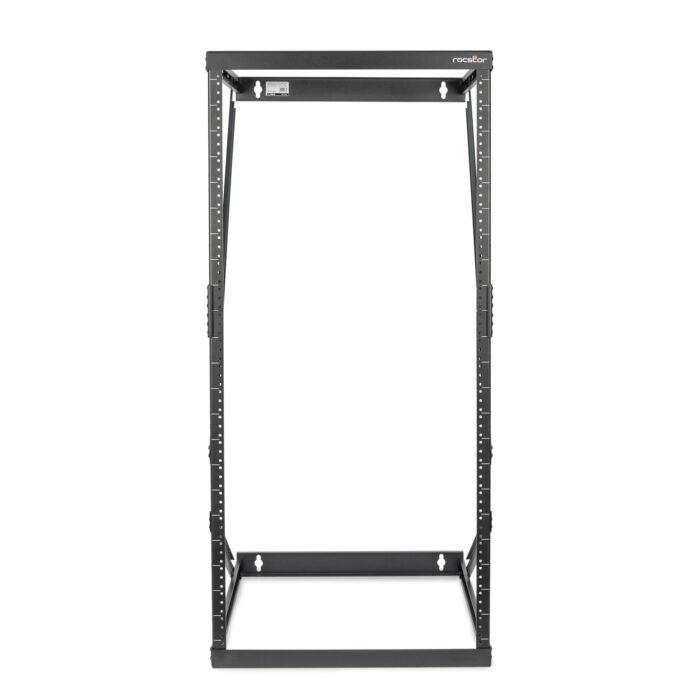

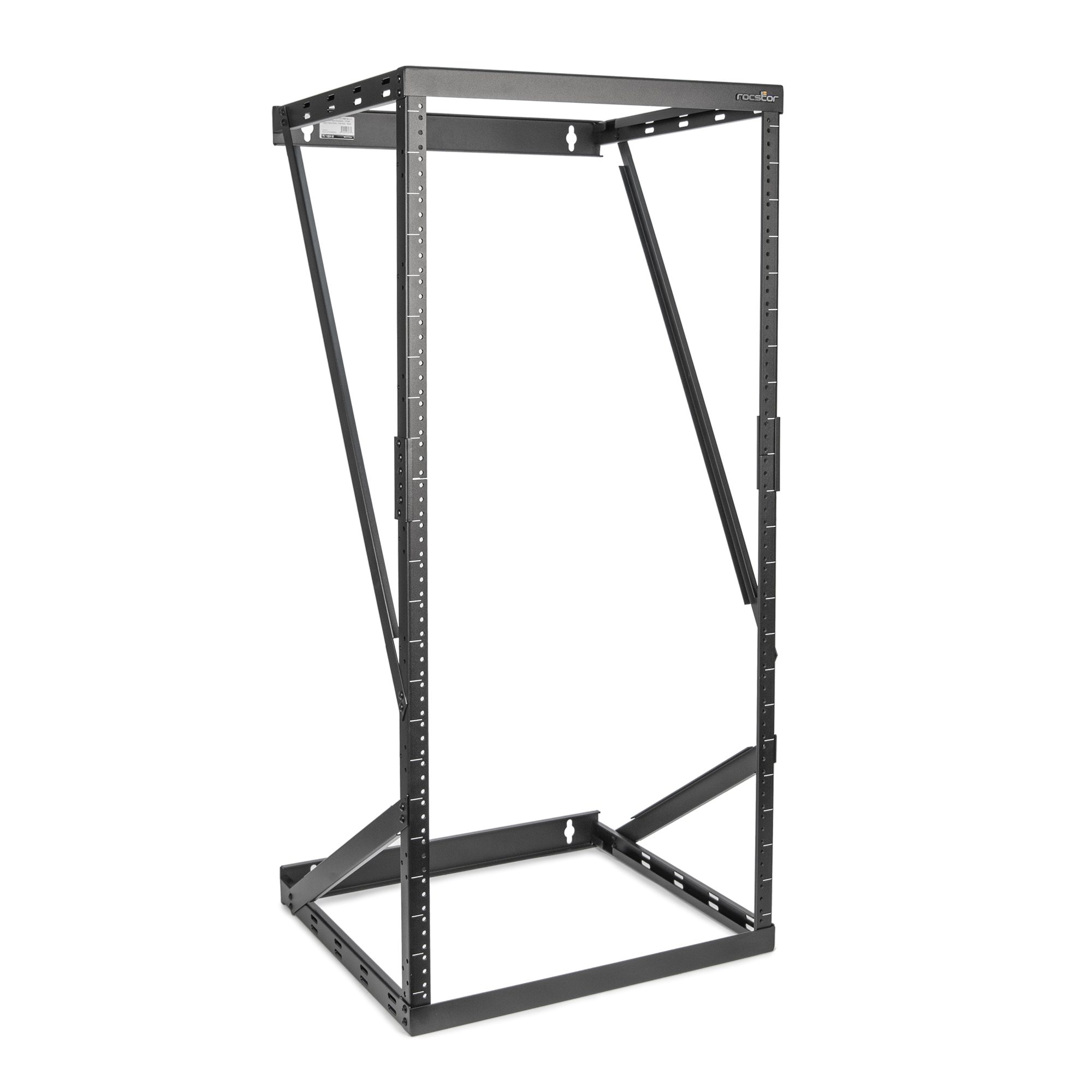

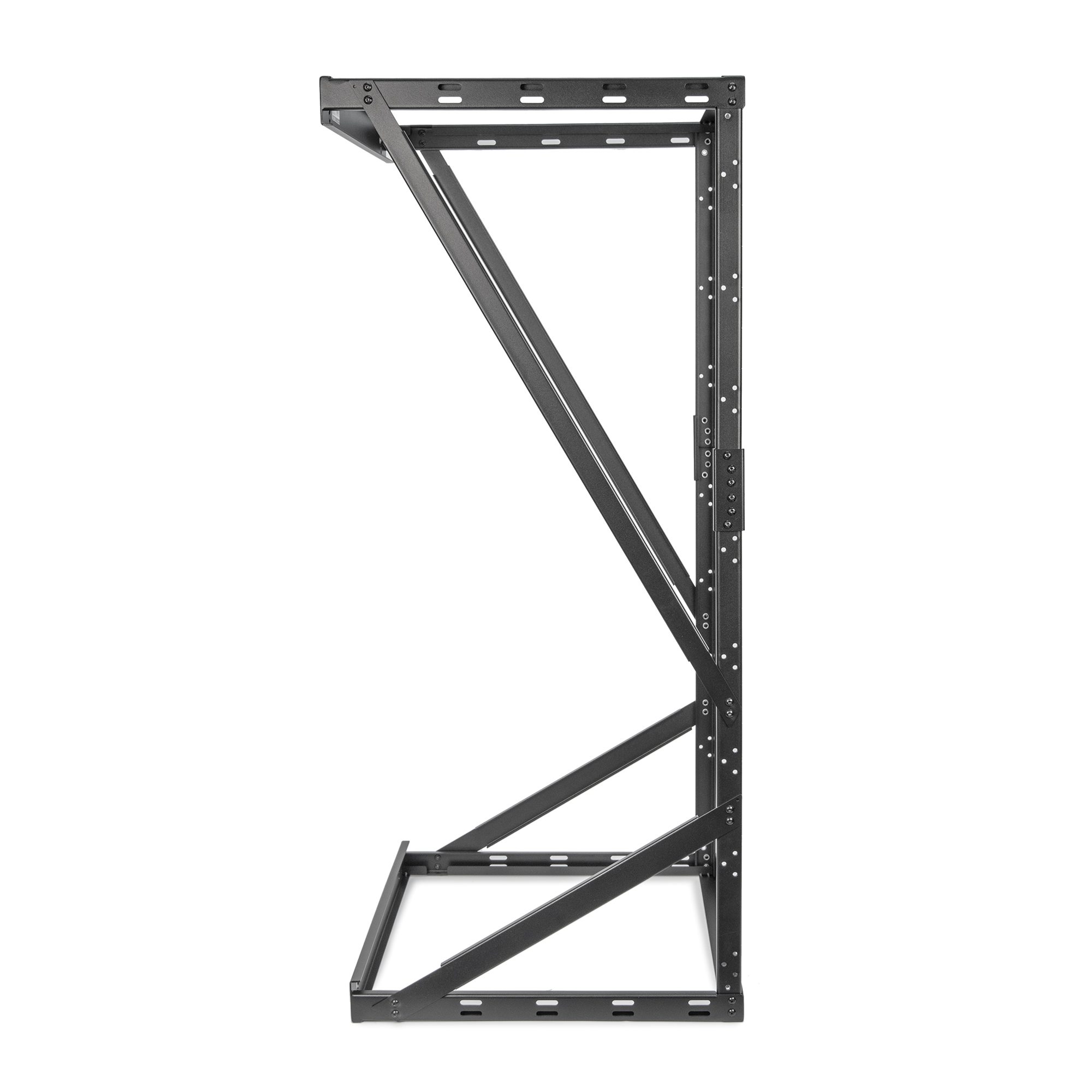

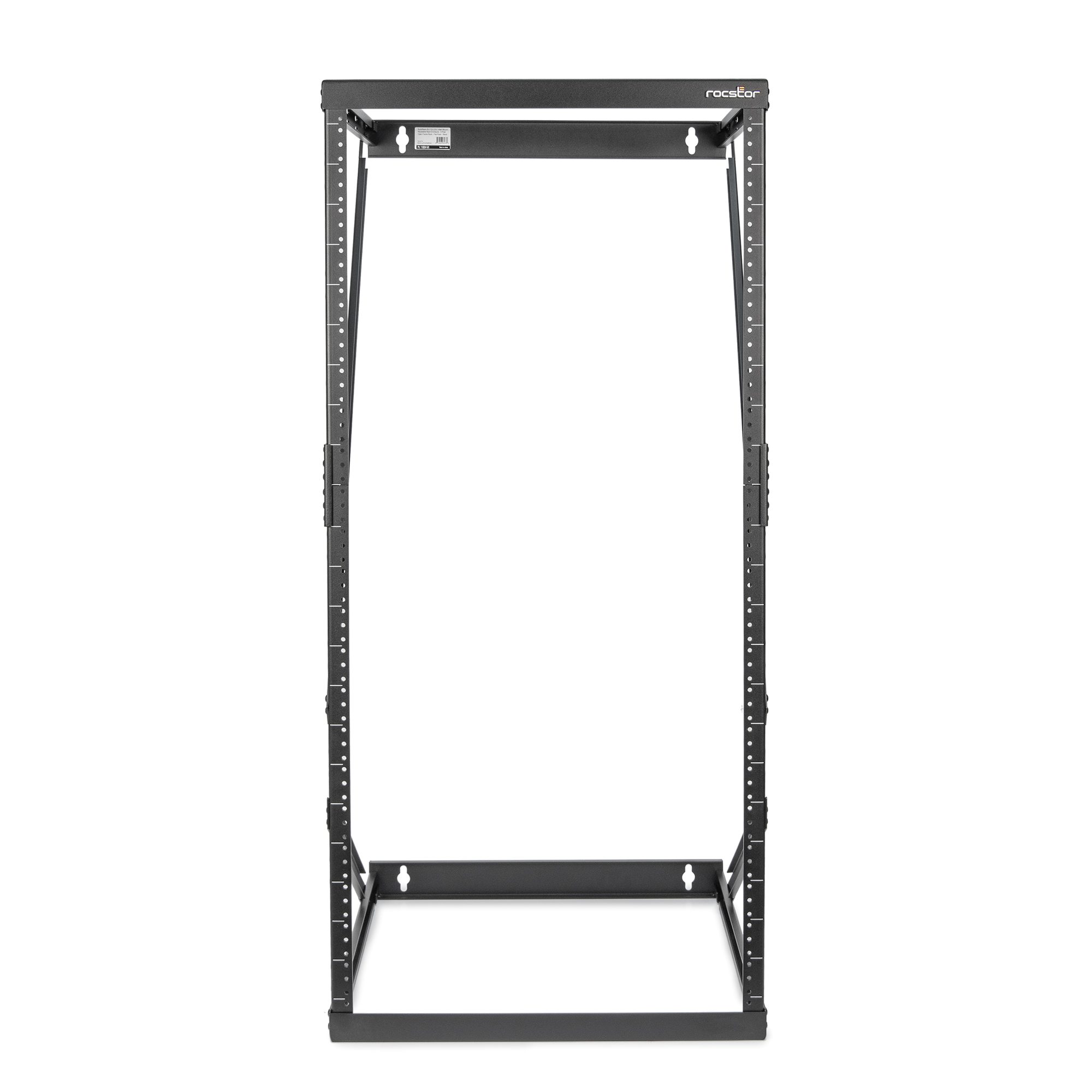

Rocstor’s Premium 8U/12U/22U wall mount rack is a versatile and expandable solution for storing and supporting standard 19-inch rack equipment. It can be expanded to three sizes (8U, 12U, 22U), depending upon the number of mounting equipment, and allows for reserving space for future equipment. It provides an economical and cost-effective solution for mounting and organizing equipment.

The 2-post rack provides an organized and elevated solution for IT equipment including patch panels, switches, and network servers. It has an open-frame design for easy accessibility during configuration or troubleshooting, and improved air circulation to keep equipment cool. It can be used in server rooms, back offices or limited-space equipment rooms.

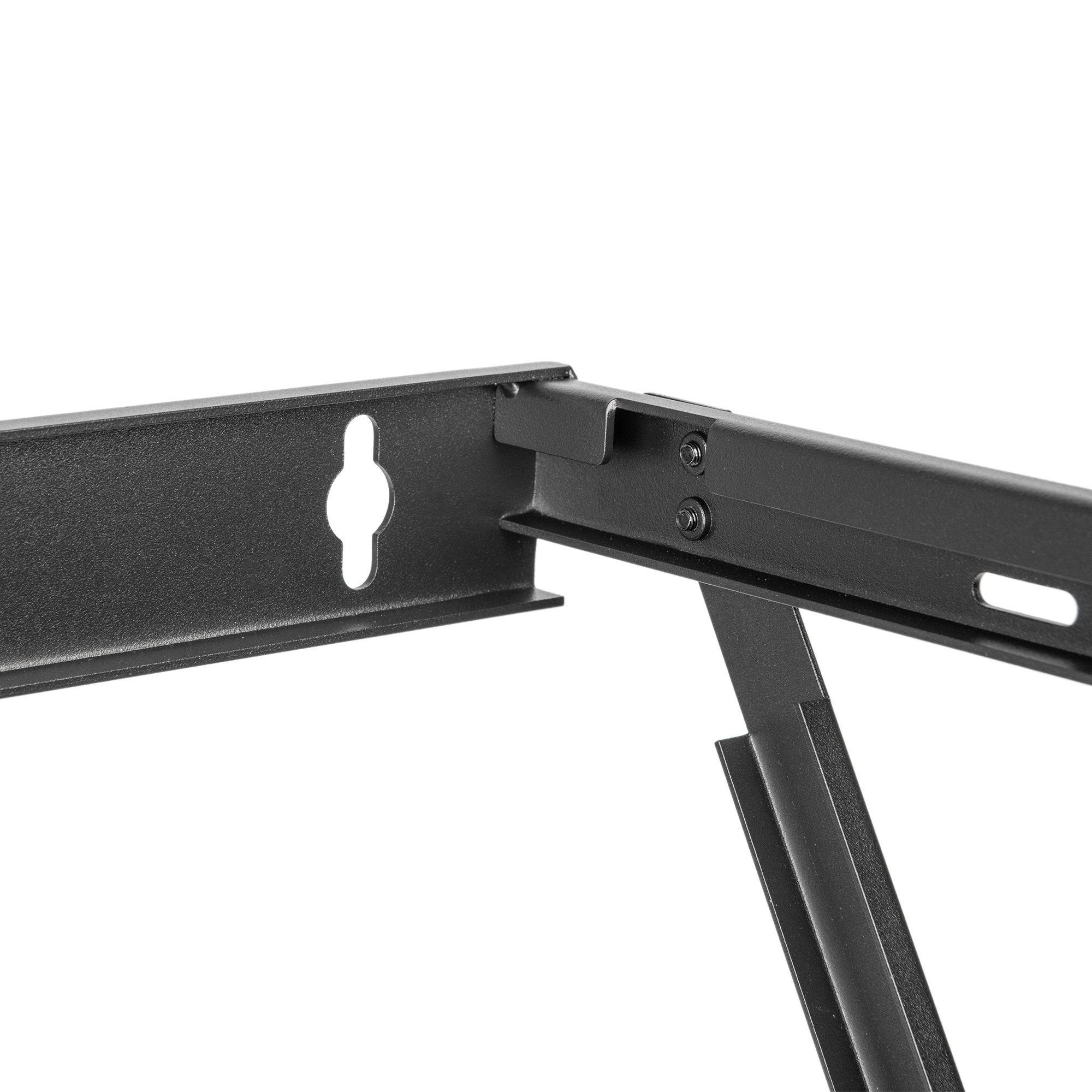

The wall mount bracket is made of heavy-duty CRS with a black-powder coat finish for durability and corrosion resistance. It has a maximum static load capacity of 150 lbs. (68Kgs) and is lightweight. The rack has numbered units (U) and square mounting holes for easy equipment installation with included hardware (cage nuts and screws). It is designed for smooth installation and arrives in a flat-pack for convenient transportation and reduced shipping costs.
This 8U/12U/22U wall mount rack is backed by Rocstor’s 5-year warranty and lifetime phone support.

• Supports numerous networking and IT equipment including patch panel, servers, and switches
• Ideal for limited-space environments like network closet, server closet, or wiring closet.
• Organizes the equipment and cables more securely and fittingly
• Accommodates EIA/ECA-310 standard 19-inch rack equipment

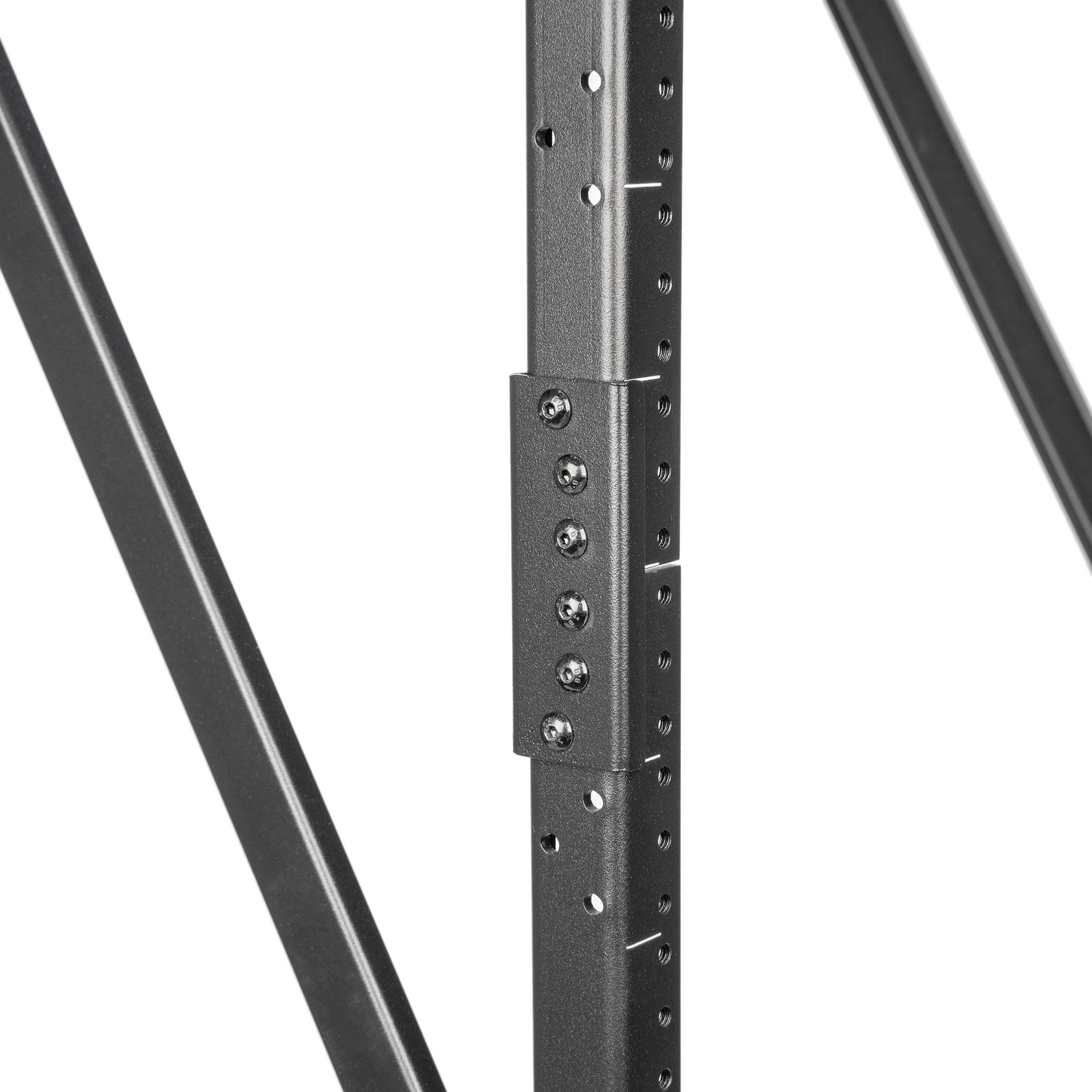

• Vertically expandable to 8U, 12U, or 22U configuration
• Economical solution for current usage as well as future equipment
• Safely hold stationary weight capacity of up to 150 lbs. (68 Kgs)

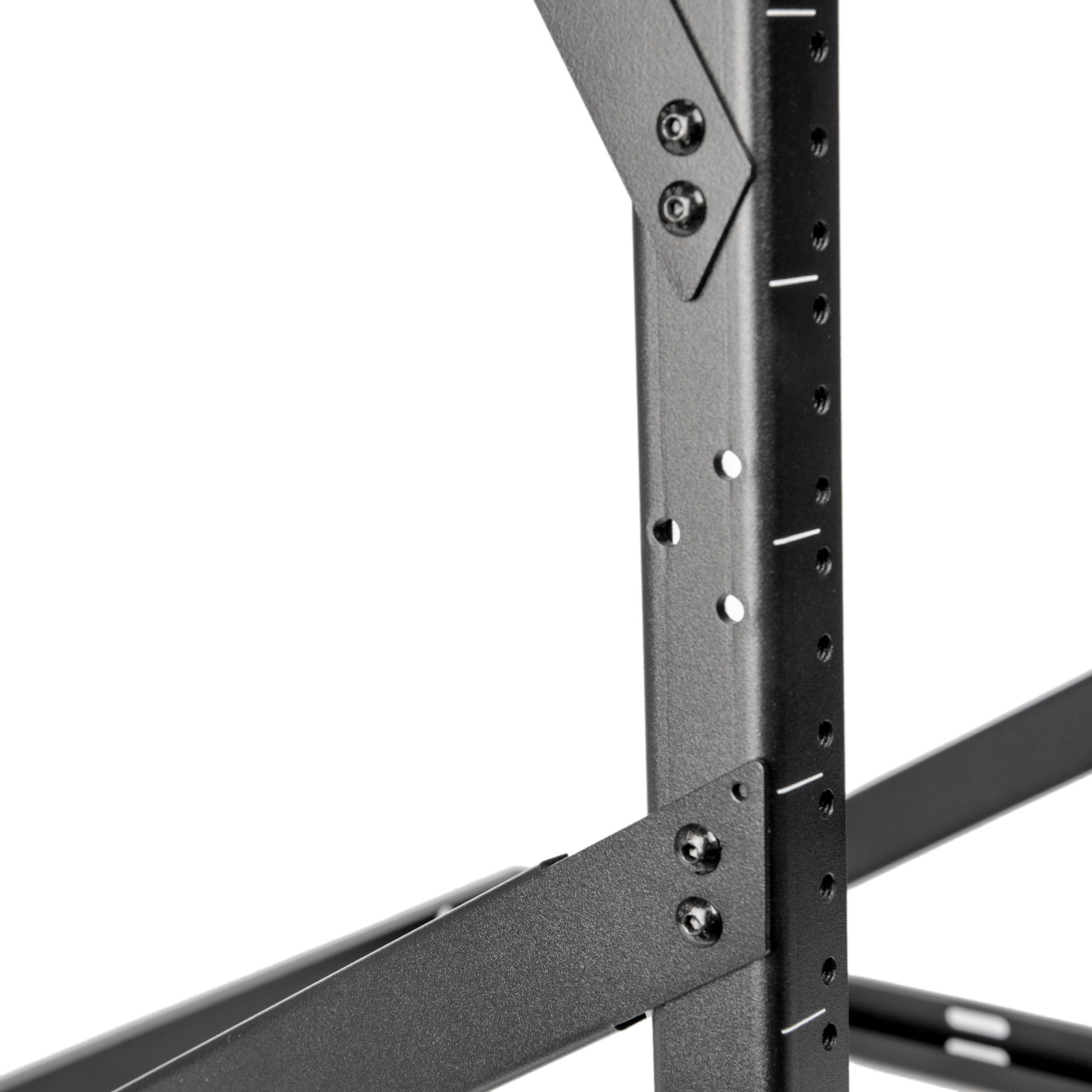

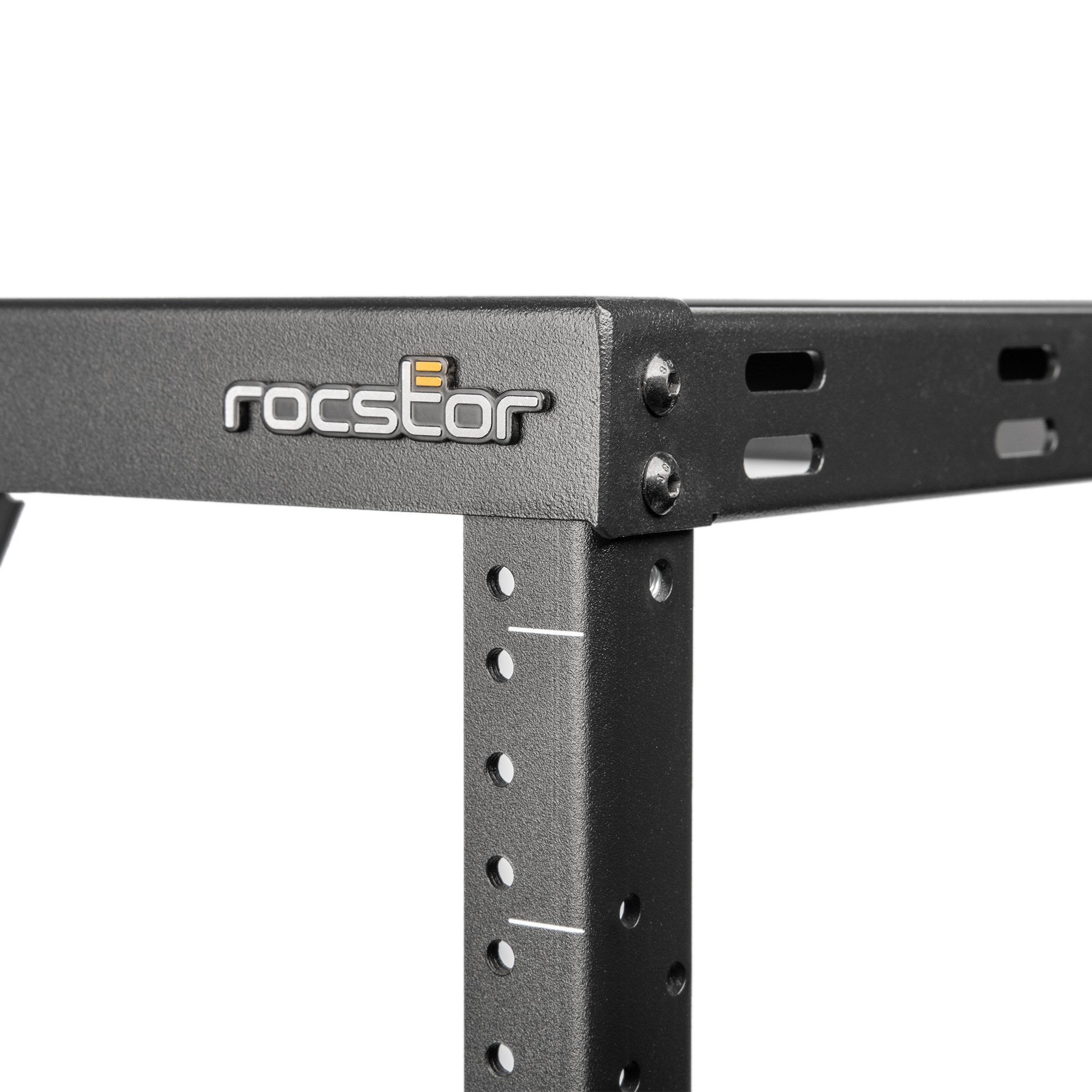

• Numbered rack units (U) and square mounting holes
• Arrives flat pack to easily transport and save shipping costs
• Arrives with all hardware including cage nuts, screws, and washers
• Open frame design for unobstructed airflow and easy equipment and cabling access
• Built with heavy duty CRS for trusted strength, durability and longevity

Additional information

Rack Hight

8U, 12U, 22U

Frame Type

Open Frame



Max Depth Capacity

Up to 19 in


User Manual

Y10E041-B1 User Manual


UPC Code 810606039782
Device Compatibility Network Switches; Routers; Patch Panels; UPS; Server
Rack Type Open-Frame
Wall Mountable Yes
Color Black
Construction Material Steel
Rack Height 22U
Rack Depth (in.) Shallow (18.14)
Maximum Device Depth (cm) 44.45
Maximum Device Depth (in.) 17.5
Maximum Device Depth (mm) 444.5
Shipping Dimensions (hwd / in.) 4.53 x 39.76 x 26.77
Shipping Dimensions (hwd / cm) 11.5 x 101 x 68
Shipping Weight (lbs.) 20.94
Shipping Weight (kg) 9.50
Unit Dimensions (hwd / in.) (17.82 or 24.82 or  42.34) x 19.90 x 18.14
Unit Dimensions (hwd / cm) (45.3 or 63.0 or 107.5) x 50.5 x 46.07
Unit Weight (lbs.) 18.30
Unit Weight (kg) 8.30
Weight Capacity – Stationary (kg) 68
Weight Capacity – Stationary (lbs.) 150
Number of Vertical Mounting Rails 2
Assembly Required Yes
Built-in Cable Management No
Extra Wide No
Mounting Hole Types Square (For Cage Nuts)
Product Compliance RoHS; EIA/ECA-310-E
Product Warranty Period (Worldwide) 5-year limited warranty
