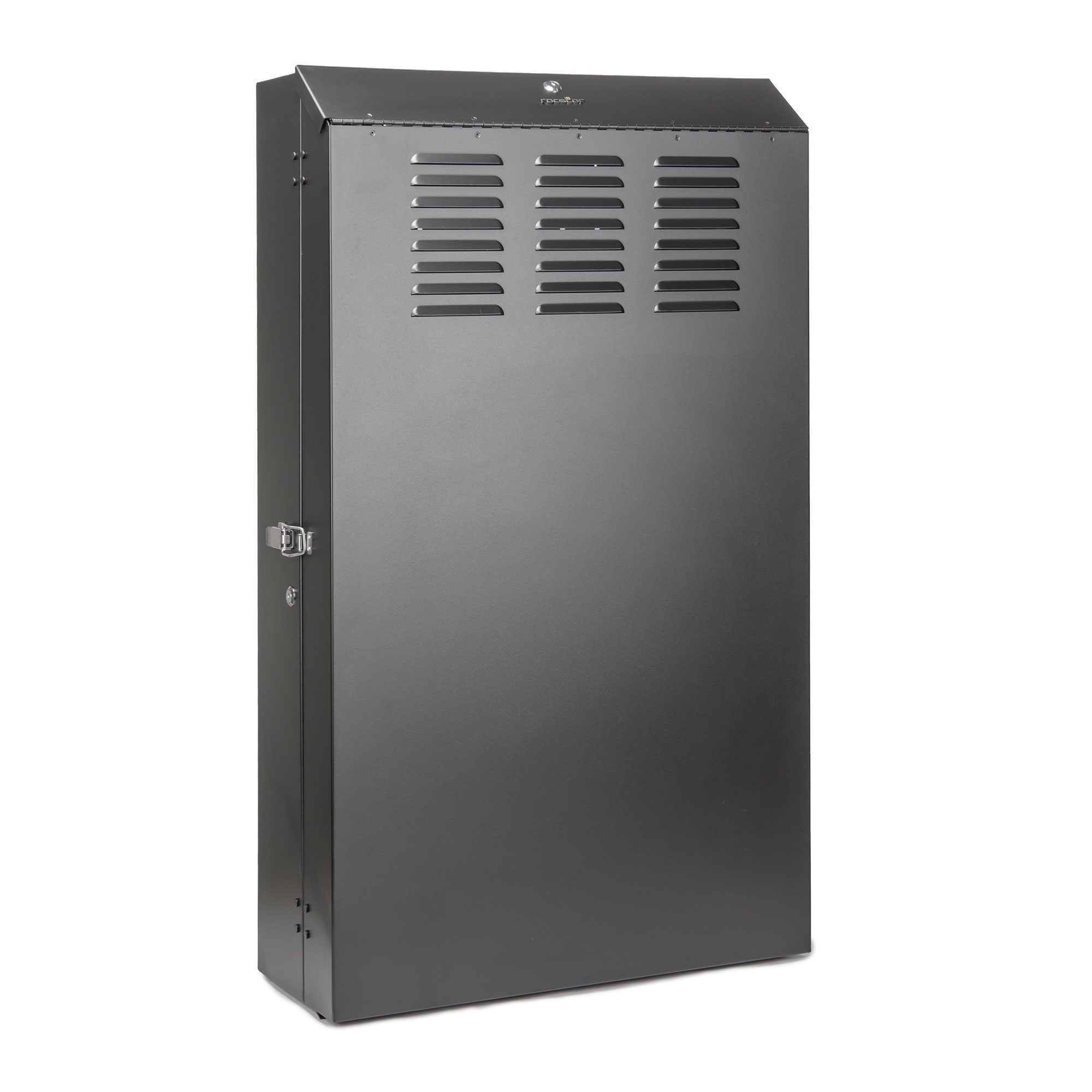

SolidRack 5U Low Profile Vertical Mount Server-Depth 36 inches Deep Wall-Mount Rack Enclosure Cabinet

Description

The SolidRack 5U Low-Profile 36 inches Deep Vertical-Mount Server-Depth Wall-Mount Rack Enclosure Cabinet is expertly crafted to house EIA-standard 19-inch rack equipment in space-constrained environments such as network wiring closets, retail locations, classrooms, and back offices. Constructed from heavy-duty steel with a durable black powder-coated finish, this cabinet ensures your equipment remains secure and organized while offering a maximum load capacity of 150 lbs (68 kgs). The vertical mounting design allows the cabinet to extend less than 10 inches from the wall, making it an ideal choice for areas where floor space is at a premium.

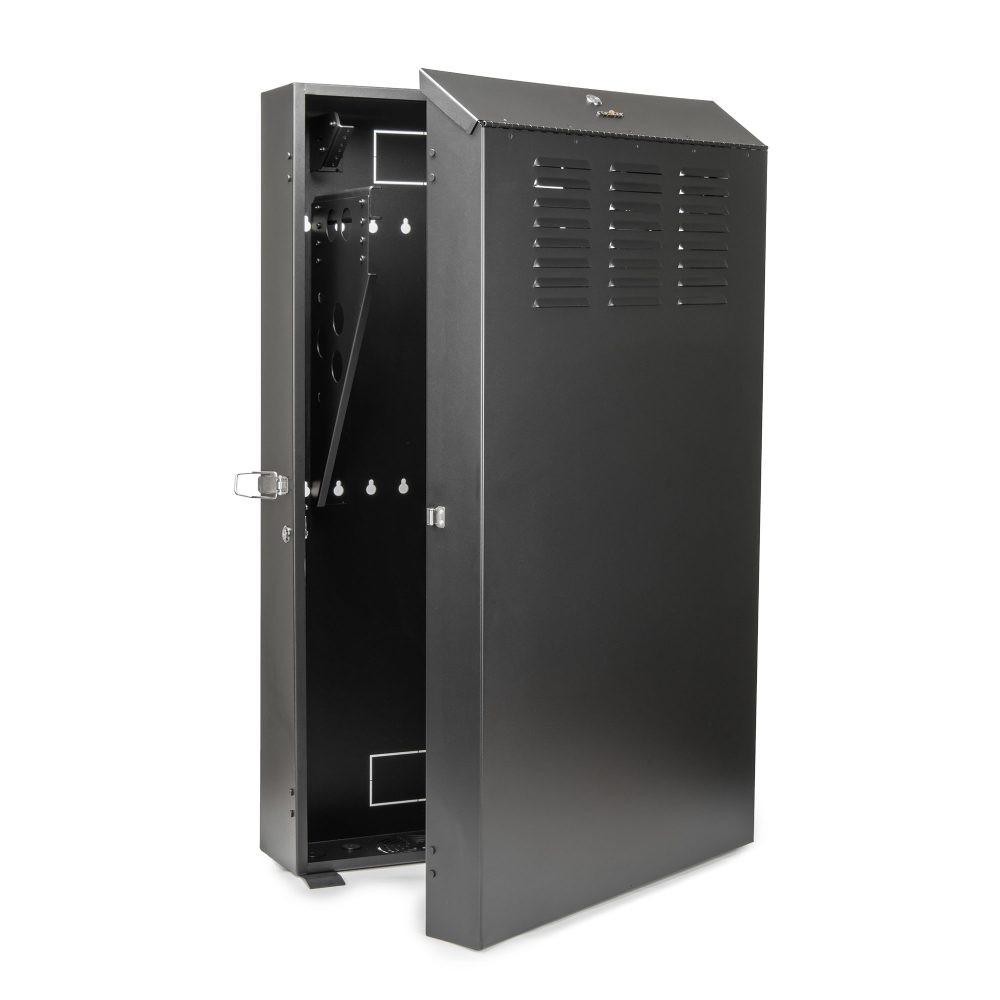

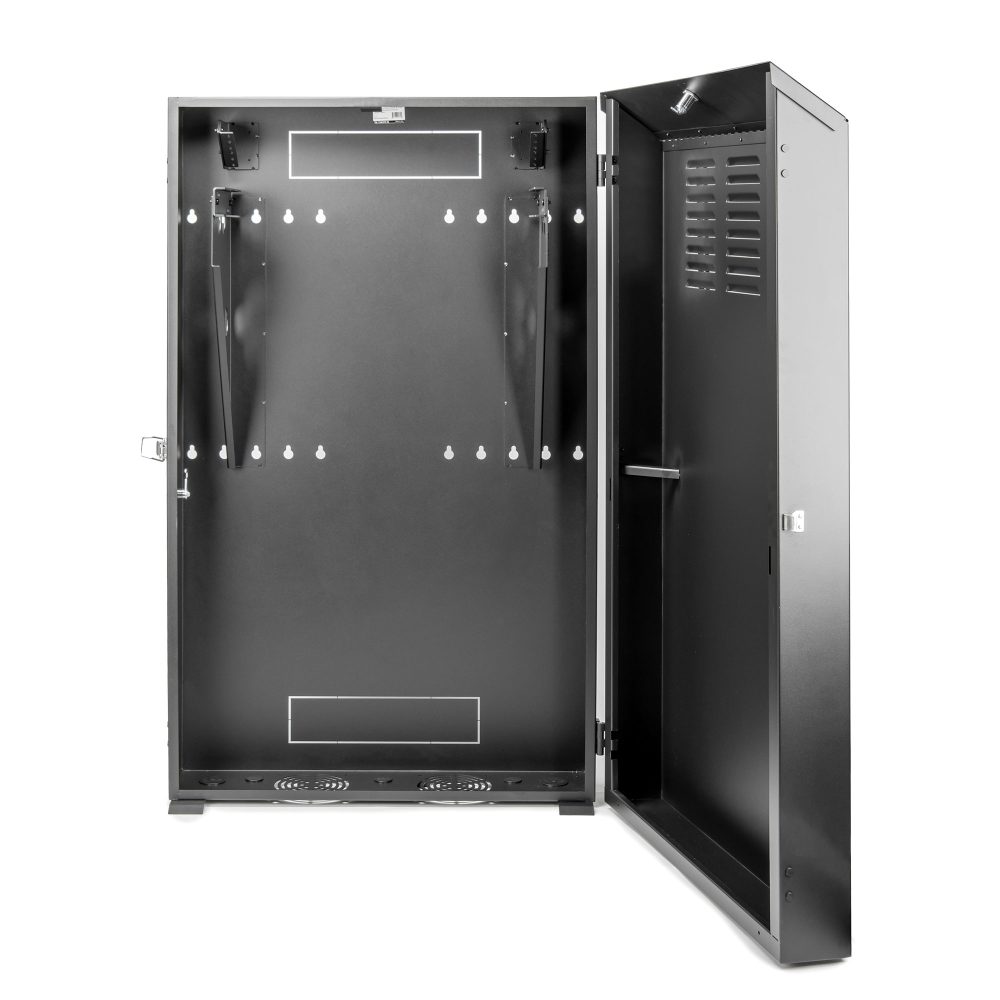

This low-profile cabinet is designed to accommodate equipment up to 36 inches deep, including 1U servers, UPS systems, battery packs, network switches, and patch panels. It provides 5U of rack space in the primary mounting area and features a slide-out 2U mounting bracket at the top of the enclosure for patch panels up to 2.5 inches deep. The top panel and front door lock securely to prevent tampering or theft, while the vented design ensures optimal airflow to keep equipment cool. The reversible front door can open left or right, adding flexibility to your setup, and the convenient top and bottom ports facilitate easy cable routing.

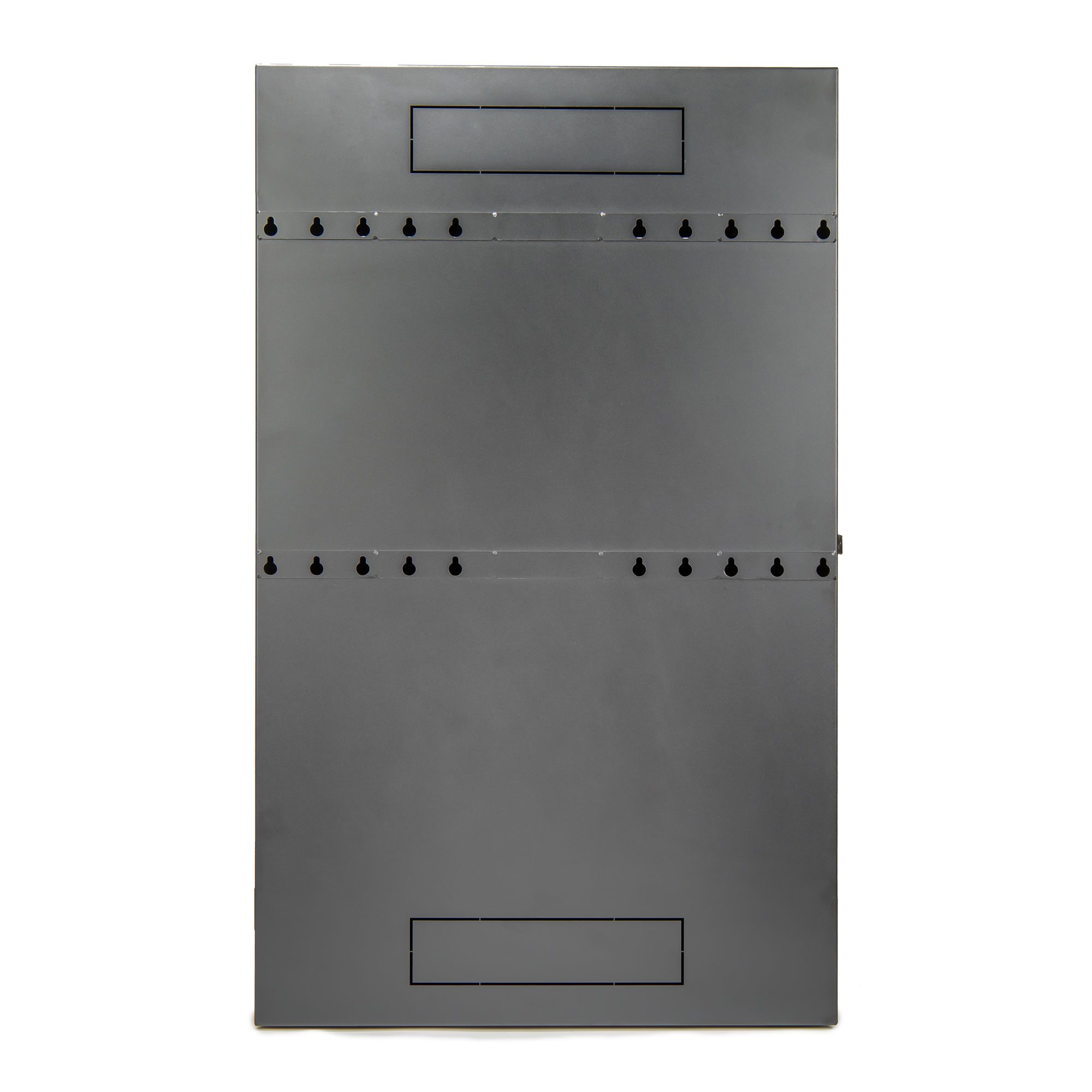

The SolidRack 5U cabinet comes fully assembled and ready for quick wall mounting. Installation is straightforward, with threaded mounting holes and hardware that support M6 or 12-24 mounting. Wall-mounting holes are spaced 16 inches apart to fit standard wall studs, and adjustable rails allow for easy customization of equipment depth. Backed by Rocstor 5-year limited warranty and lifetime technical support.

Key Features

• 5U low-profile 36 inches Deep vertical-mount cabinet constructed from heavy-duty steel with a black powder-coated finish
• Extends less than 10 inches from the wall while housing equipment up to 36 inches deep

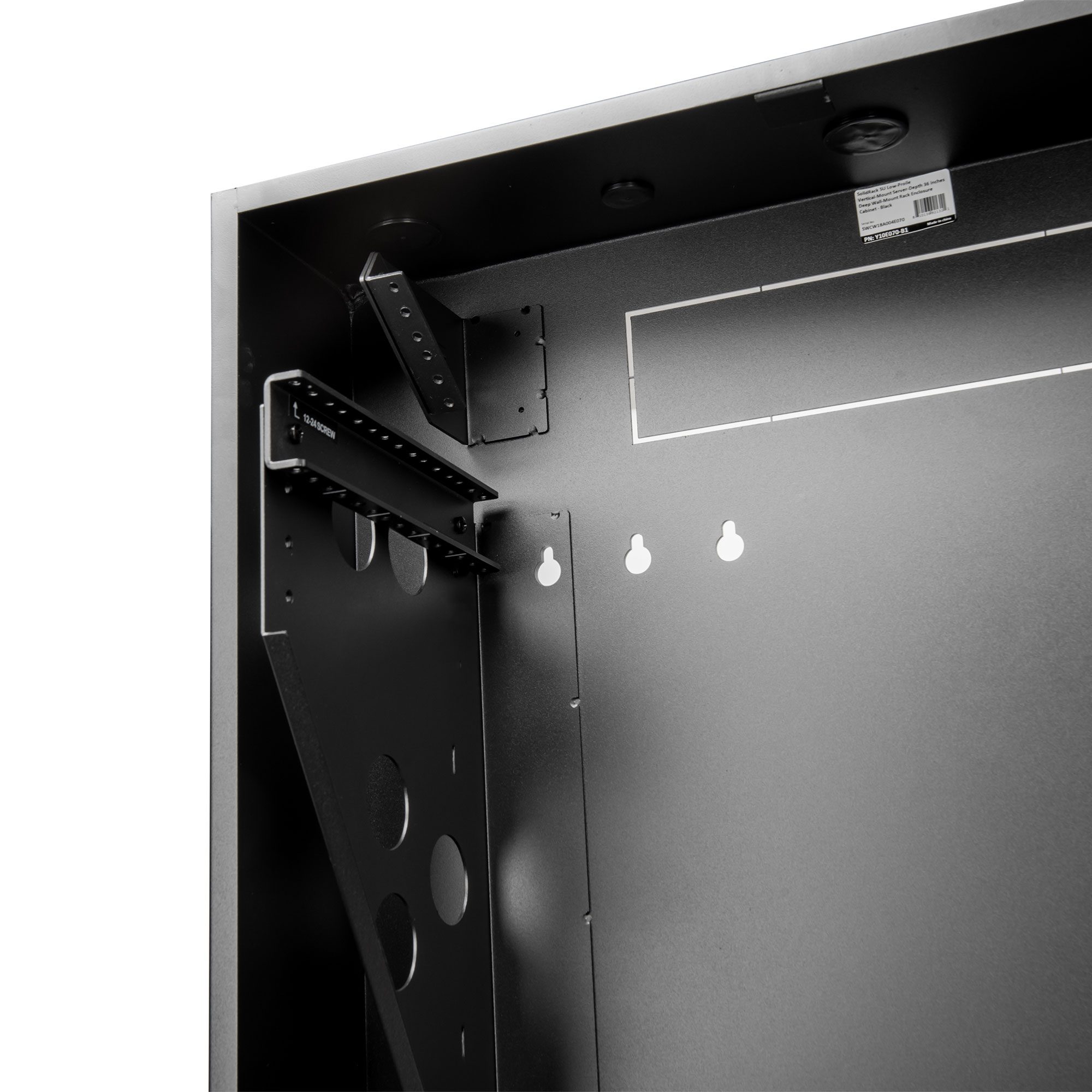

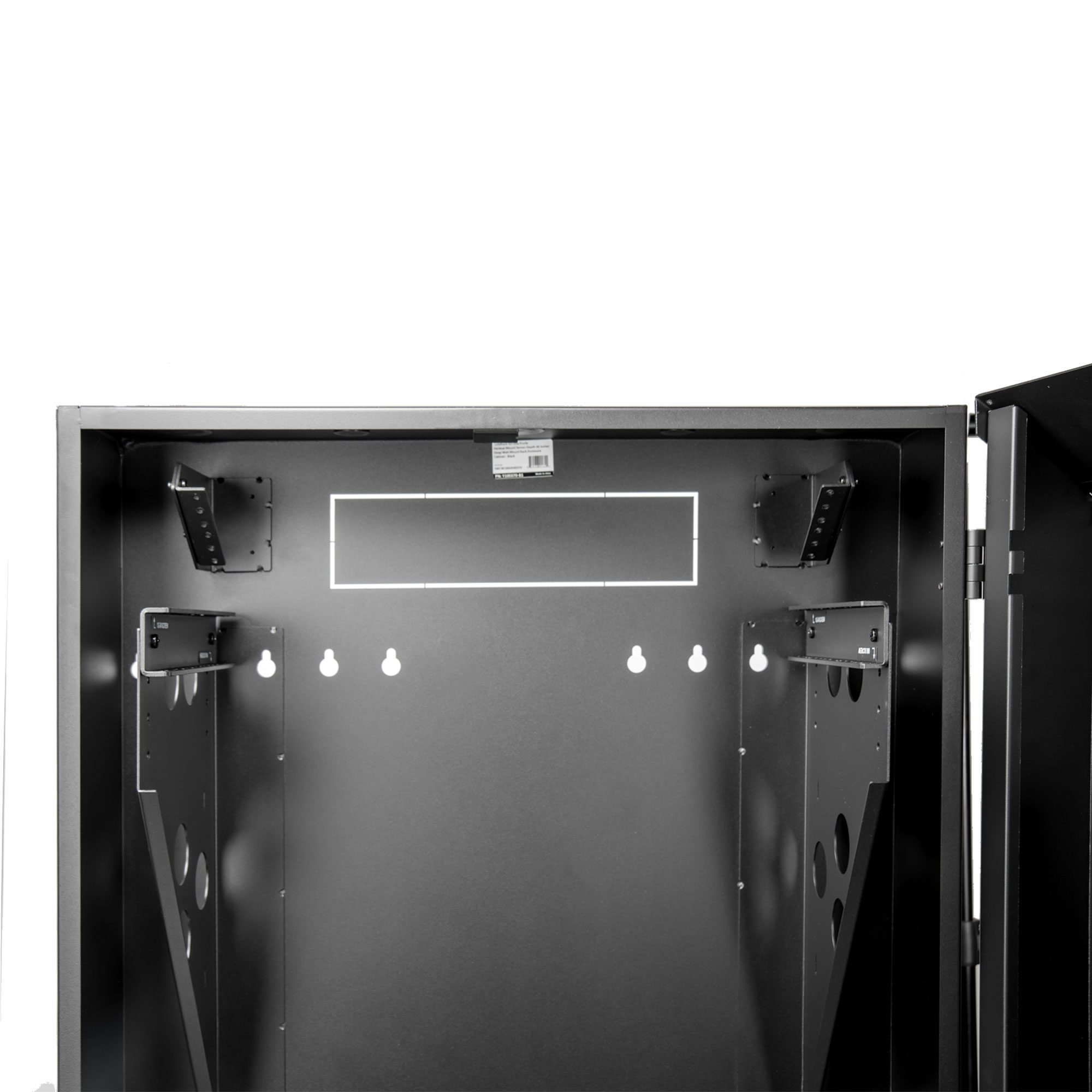

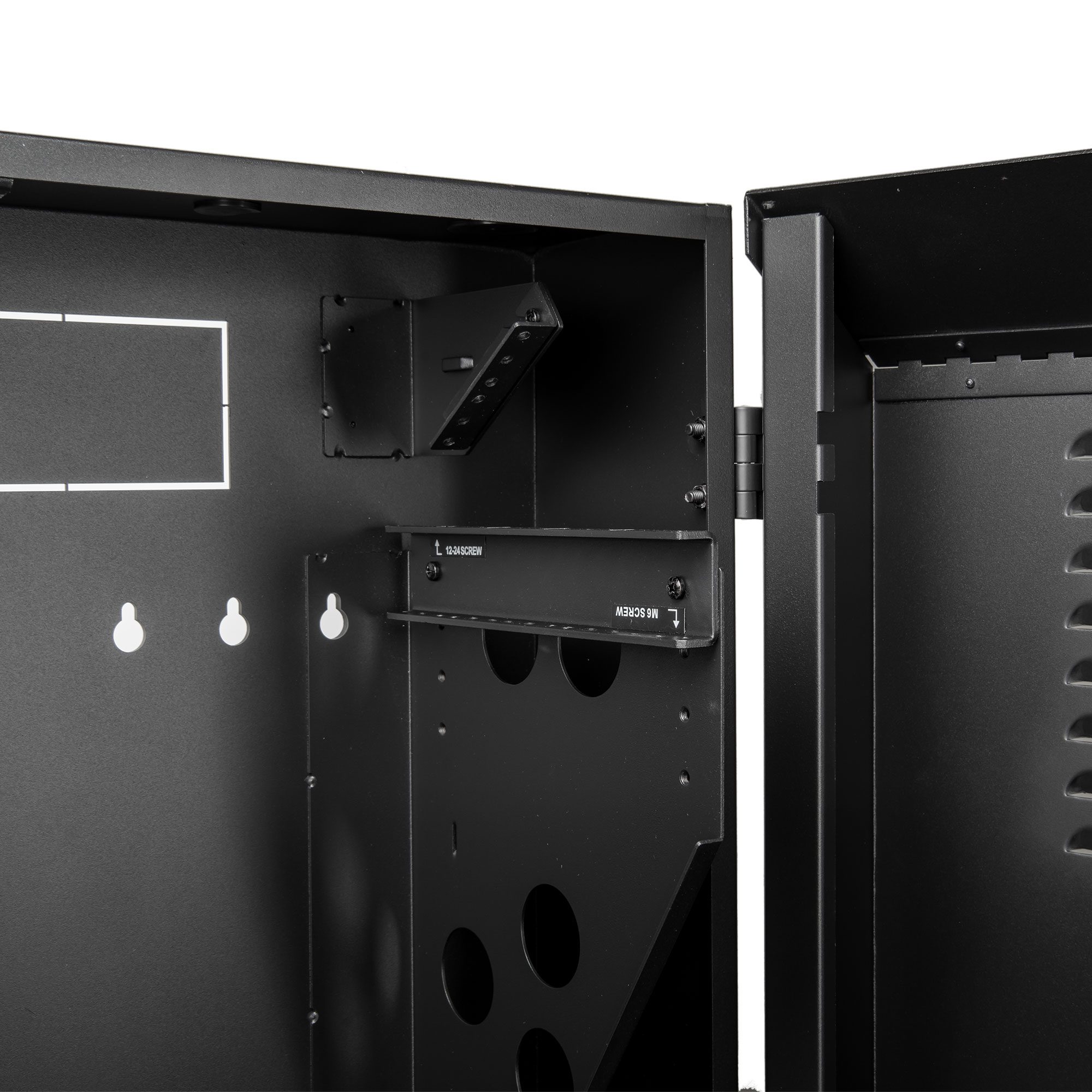

• Includes a slide-out 2U mounting bracket for patch panels up to 2.5 inches deep
• Maximum load capacity of 150 lbs (68 kgs)

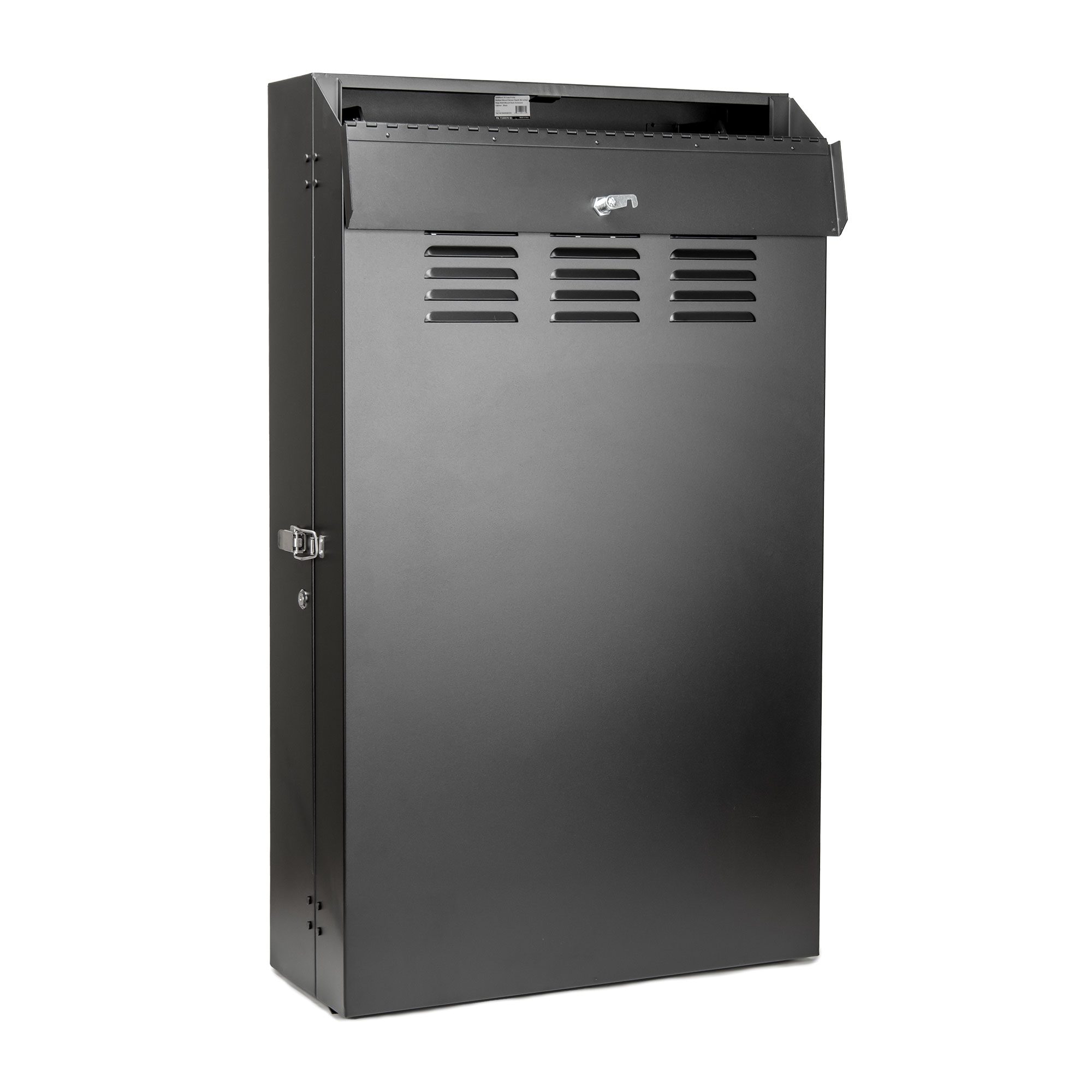

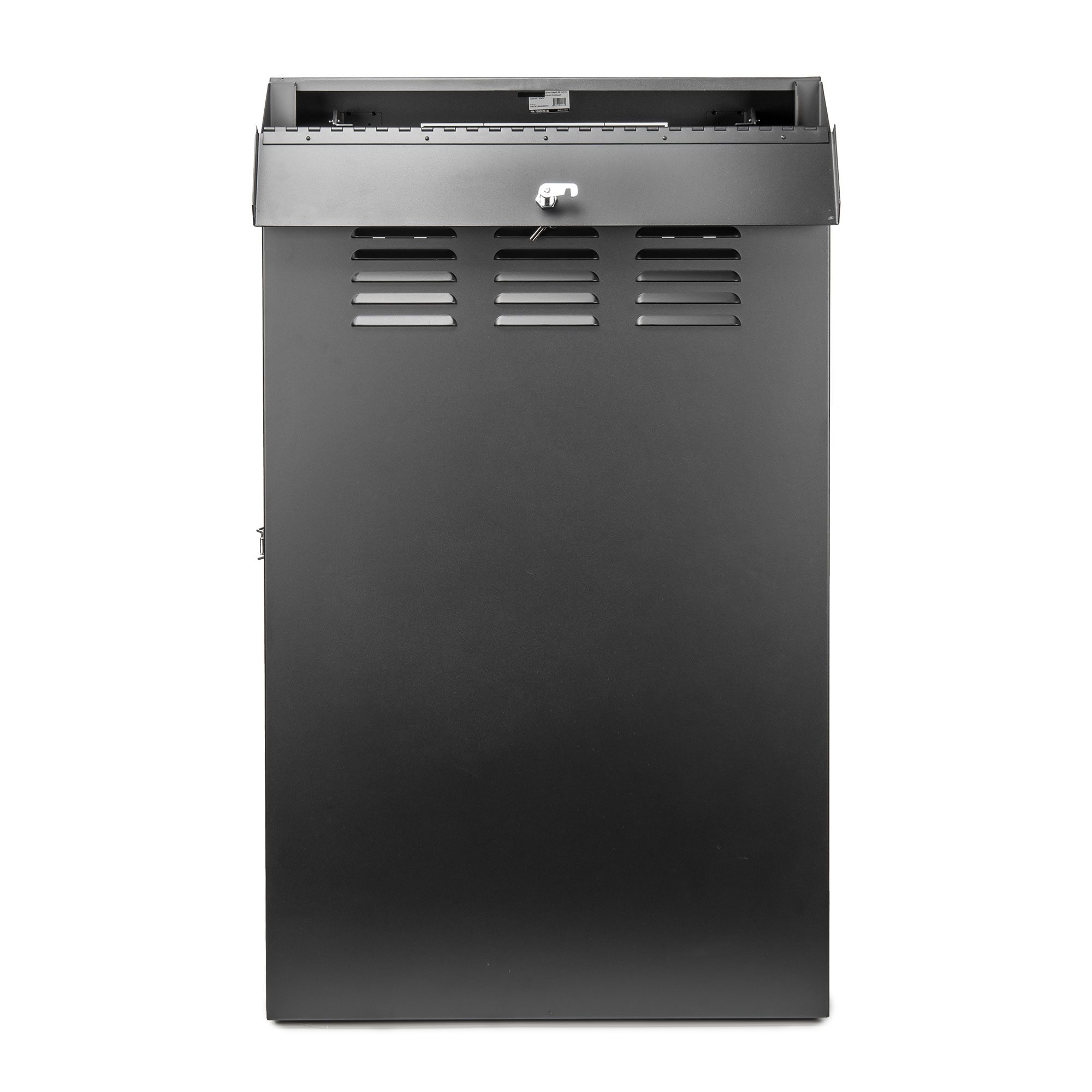

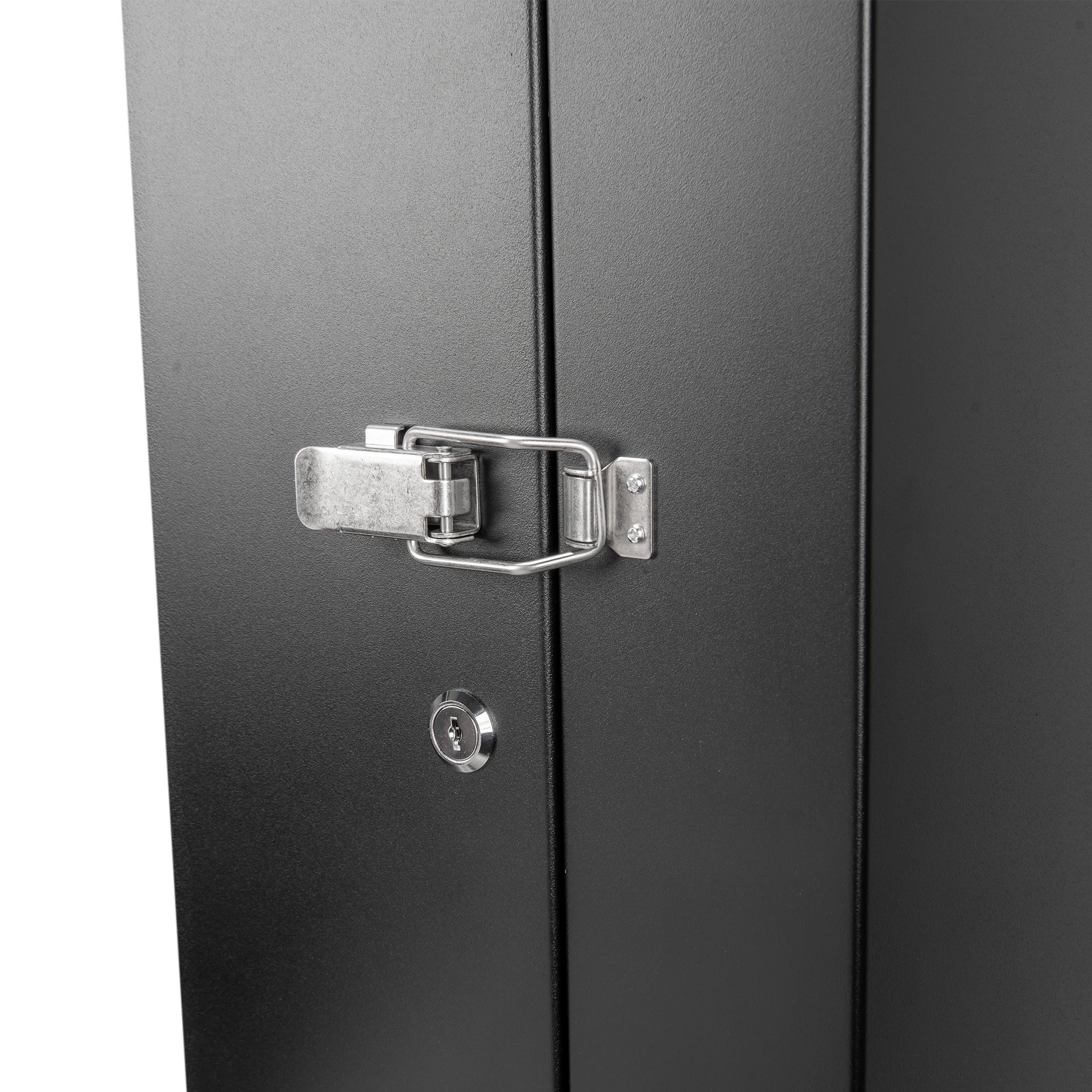

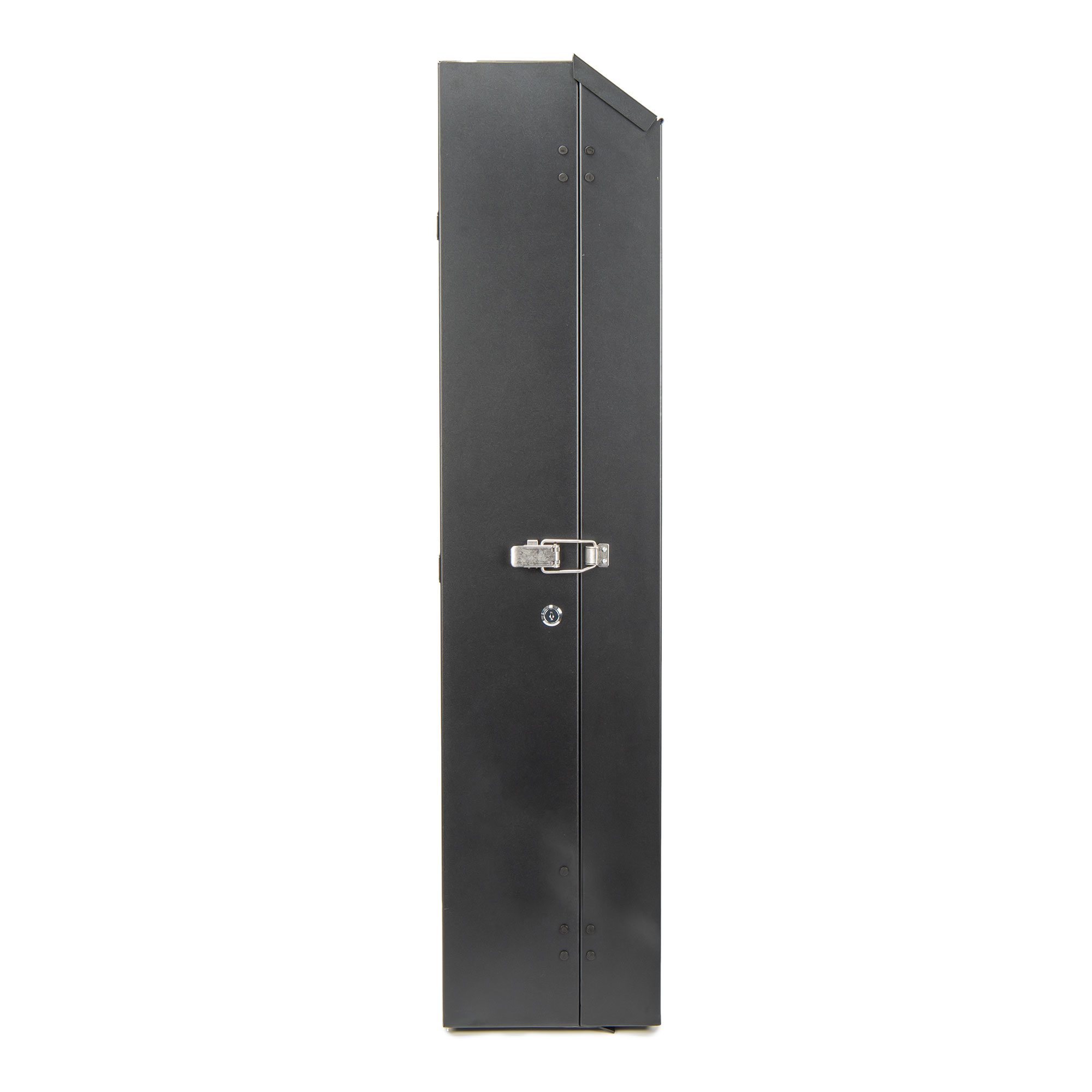

• Secure locking top panel and reversible front door to prevent tampering and theft

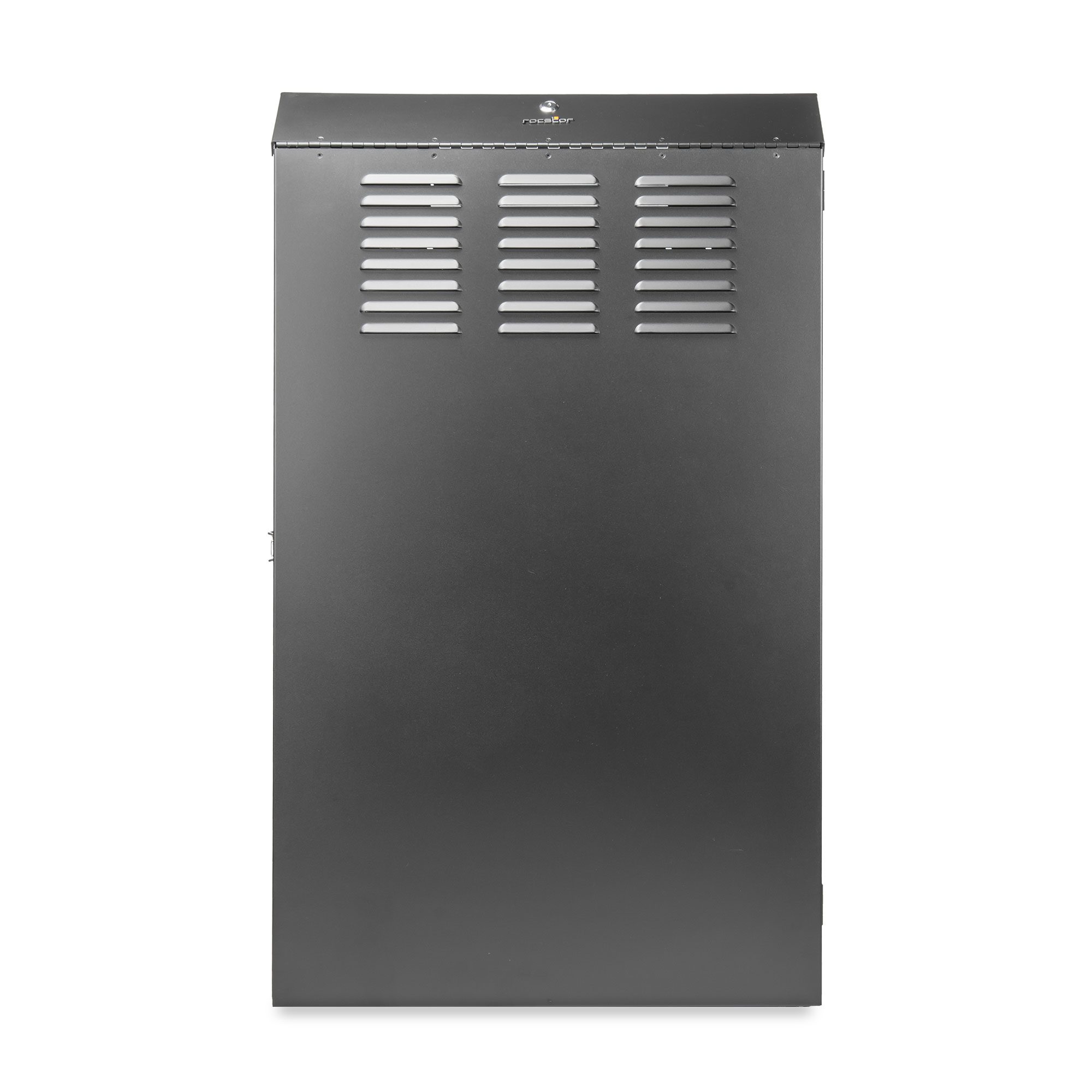

• Vented design for efficient airflow to keep equipment cool

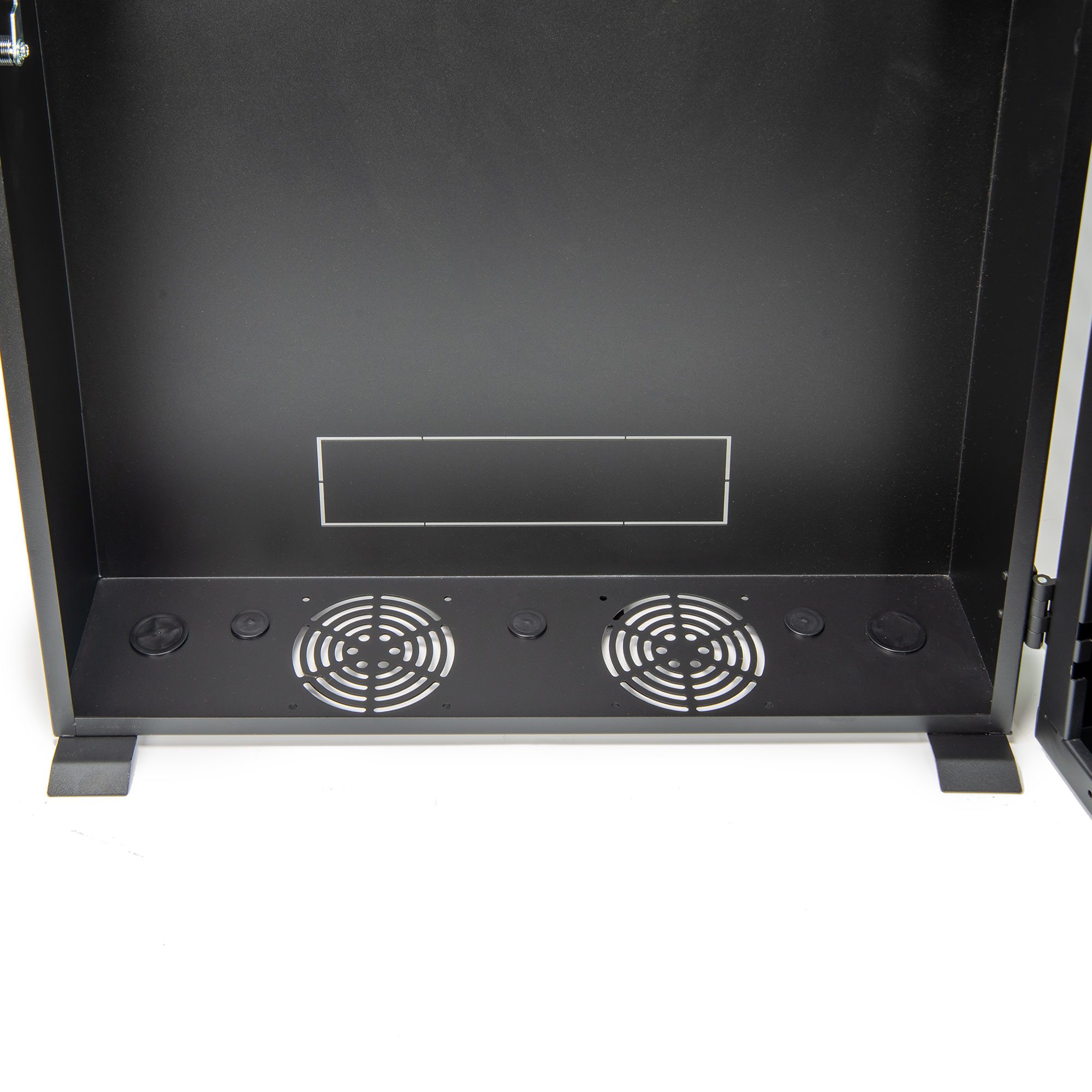

• Convenient top and bottom ports with removable covers for easy cable routing
• Ships fully assembled for quick installation with wall-mounting holes spaced 16 inches apart
• Threaded mounting holes support M6 or 12-24 hardware, with adjustable rails and clearly marked rack spaces
